Product Type	Freestanding Washing Machine
Brand	Exquisit
Model	WA7212
Dimensions (H x W x D)	85 cm x 60 cm x 55 cm
Net Weight	65 kg
Power Supply	220-240 V ~ 50 Hz
Energy Class	A+++
Wash Capacity (Cotton)	7 kg
Maximum Spin Speed	1200 rpm
Water Consumption per Cycle	50 L
Noise Level (Wash/Spin)	58 dB / 76 dB
Programs	Cotton, Synthetics, Delicates, Quick 30', Wool, Hand Wash, Rinse & Spin, Spin Only, Drain
Additional Features	Delay Start, Child Lock, Quick Wash, Extra Rinse, Temperature Selection
Display	LED Digital
Door Opening	Left hinge, 180° opening angle
Installation Type	Freestanding
Spare Parts Availability	7 years after end of production
Repairability Index	8.5 / 10

Frequently Asked Questions - WA7212 Exquisit

What is the correct way to clean the detergent drawer?

Remove the drawer by pressing the release catch. Wash it under running water using a soft brush. Use a toothpick to clear the fabric softener compartment. Wipe dry before reinserting.

How do I resolve an E10 error code?

Error E10 indicates a water inlet issue. First, check that the water tap is fully open. Then inspect the inlet hose for kinks or blockages. Clean the inlet filter inside the machine connection. If the error persists, contact support.

What is the maximum load for a synthetic cycle?

For synthetic fabrics, the maximum load is 3.5 kg. Overloading may cause poor washing results or imbalance.

Can the washing machine be installed under a counter?

Yes, the WA7212 is a freestanding model that can be placed under a counter provided there is sufficient clearance for ventilation (at least 5 cm on sides and top). Use the supplied top panel if required.

How often should I run a drum cleaning cycle?

We recommend running a drum cleaning cycle every 2 months or after 30 washes. Use a washing machine cleaner or run a hot water cycle (90°C) with a cup of vinegar or citric acid.

What is the child lock function and how to activate it?

The child lock prevents accidental button presses during a cycle. To activate, press and hold the Start/Pause button for 3 seconds. A sound signal confirms activation. Repeat to deactivate.

Why is the spin cycle not starting or taking too long?

This may be due to an unbalanced load. Pause the cycle, redistribute laundry evenly, and restart. Also ensure the drain hose is not clogged. If the issue persists, check for a faulty drain pump or lid switch.

Where can I find the serial number?

The serial number is located on the rating plate, which is usually on the back of the machine or inside the door frame. It is needed for warranty claims or spare part orders.

How do I clean the drain pump filter?

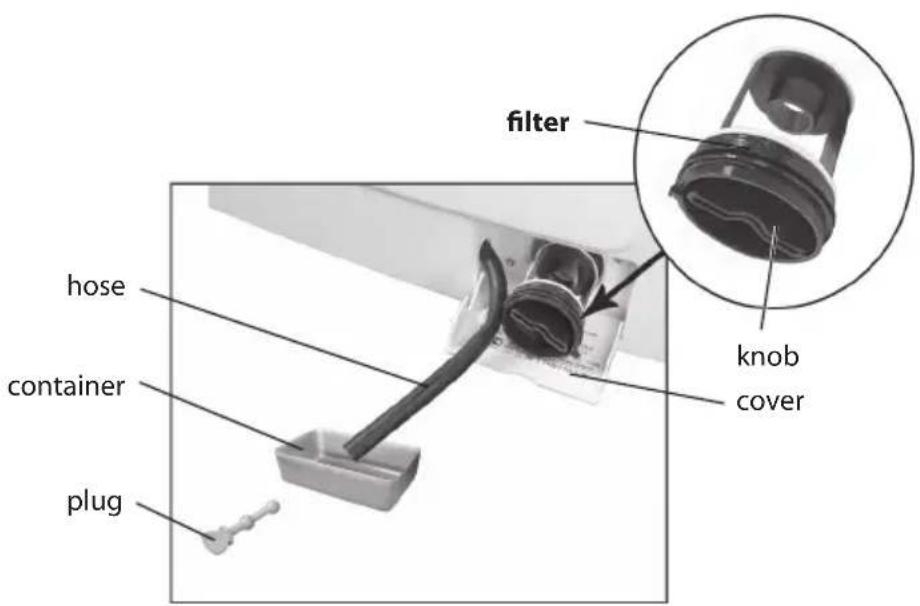

Unplug the machine. Open the lower service flap. Place a tray under the filter. Turn the filter counterclockwise to remove it. Clean out any debris and ensure the impeller rotates freely. Reinstall tightly.

What does the delay start feature do?

Delay start allows you to program the machine to start a cycle after a set time (e.g., 3, 6, 9 hours). Useful to take advantage of off-peak electricity rates or to have laundry ready at a specific time.

USER MANUAL WA7212 Exquisit

Front view of a white front-loading washing machine with a circular vent and control panel (no visible text or symbols)

Dear Purchaser!

The operation manual reflects peculiar technical features of the automatic washing machine (hereinafter referred to as the machine), it contains the required information about its operation, the useful information about washing. After attentively studying the operation manual before connecting and using the machine, you will be able to properly and safely operate it..

Keep the operation manual during the whole period of its service.

1 GENERAL

1.1 In accordance with figure 1 the automatic washing machine (hereinafter referred to as the machine) is intended for washing textile goods, sports footwear with the use of synthetic washing means of low foaming, as well as for rinsing and wringing out. All operations of treating the goods are automatically performed in compliance with the preset program.

1.2 The machine is intended for operation only in household conditions. The use for industrial purposes (in restaurants, cafes, offices, kinder gardens, hospitals, etc.) is not allowed.

1.3 Modern washing technologies are used in the machine which allow to achieve maximal results of washing with the minimal consumption of water and electrical power. Therefore, when the machine operates, the water level may not visually be determined through the door glass.

1.4 The electronic control system is stipulated in the machine which contributes to uniform distribution of the linen in the drum before every wringing out for exclusion of excessive vibrations and noise.

1.5 The protecting system in the filling hose stipulated in the machine depending on the model determines the water leakage when the hose is damaged – water supply is terminated to the machine from the water line, washing is stopped and a malfunction is shown on the display.

1.6 An additional protecting system "Aquastop" preventing water leakage inside the machine, which is stipulated in some models, stops water supply from the water line to the machine when the latter is damaged – washing is stopped, water is drained from the tank and a malfunction is shown on the display

Control panel Dispenser drawer Door Drum Gasket Filter cap

Figure 1

1.7 The main specifications of the machine are shown in table 1.

1.8 The machine should be operated:

— at the ambient temperature (25 ± 10) °C and relative humidity not exceeding 75%;

— at pressure in the water line from 0.05 to 1 MPa;

— from a single phase AC electrical circuit having frequency (50±1) Hz;

— in the range of rated AC voltages 230 V.

ATTENTION! Temperature reduction in the premise below 0 °C may result in water freezing in the machine and outage of the machine.

1.9 The manufacturer constantly works for further improving the machine construction and its quality, therefore he is entitled to introduce amendments to design and completing the machine by keeping its main specifications intact.
1.10 After transportation at ambient temperature below 0 °C the machine should be kept at the room temperature for at least 24 hours before connection to the electrical mains.

ATTENTION! The manufacturer (seller) bears no responsibility (including during the guaranteed operation period) for defects and damages of the product occurred due to violations of the operation terms or its storage or force majeure circumstances (a fire, natural disasters, etc.)

Table 1 Product fiche for household washing machines according to Delegated Regulation (EU) 1061/2010.

Brand name	EXQUISIT
Model WA6212 WA7210 WA7212 WA7214
Energy efficiency class1	A+ A++ A++ A++
Washing index	>1,03 >1,03 >1,03 >1,03
Spin-drying efficiency class2	B C B B
Annual energy consumption [kW·h/year]	190	195
Annual water consumption [l/annum]	8800	10000
Consumption per cycle 7 kg Cotton 60°C [kW·h/l], Programme time [min.]	-	0,99 kW·h/50l, 170'	0,99 kW·h/50 l, 172'	0,99 kW·h/50 l, 172'
Consumption per cycle 3,5 kg Cotton 60°C [kW·h/l], Programme time [min.]	-	0,93 kW·h/42l, 163'	0,93 kW·h/42 l, 165'	0,93 kW·h/42 l, 165'
Consumption per cycle 3,5 kg Cotton 40°C [kW·h/l], Programme time [min.]	-	0,58 kW·h/42l, 115'	0,58 kW·h/42 l, 117'	0,58 kW·h/42 l, 117'
Consumption per cycle 6 kg Cotton 60°C [kW·h/l], Programme time [min.]	1,05 kW·h/45 l, 172'	-
Consumption per cycle 3,0 kg Cotton 60°C [kW·h/l], Programme time [min.]	0,85 kW·h/37 l, 162'	-
Consumption per cycle 3,0 kg Cotton 40°C [kW·h/l], Programme time [min.]	0,55 kW·h/37 l, 115'	-
Remaining moisture [%]	<54	<63	<54	<48
Power Left on/Power off [W]	<1,0/<0,5	<1,0/<0,5	<1,0/<0,5	<1,0/<0,5
Maximum rotational speed during the wringing [rpm]	1200	1000	1200	1400
Maximum loading in the cotton washing mode [kg]	6,0	7,0
Water supply system pressure [MPa]	0,05 - 1,0
Voltage/Frequency [V/Hz]	230/50
Nominal power consumed [W]	1900	2100
Overall dimensions [H/W/D mm]	846x596x475	846x596x565
Net weight [kg]	63	63	65	66
Noise level: Washing / Wringing [dB(A)]	59/75	59/73	59/75	59/78

^1 A + + + (highest efficiency) to D (least effective).
^2 A (highest efficiency) to G (least effective).

2.1 The machine is an electrical household appliance, therefore general electric safety rules should be fulfilled during its operation.
2.2 The appliance is not intended for use by the persons (including children) having lowered physical, sensual or mental abilities, or if they have no experience or knowledge, if they are not under control or have not been instructed about the use of the appliance by a person responsible for their safety.

Children must be under control in avoidance of any playing with the appliance.

2.3 By the type of protection from electricity shock the machine is related to class I.

2.4 A double-pole socket having the earthing contact for connection of the machine must be located at a place accessible for urgent disconnection of the machine from the electrical mains.

2.5 Before connection of the machine to the electrical mains absence of damages of the power supply cord should visually be checked. The cord must not be twisted and compressed.

When the power supply cord is damaged in order to avoid any danger it must be replaced by the manufacturer or a service company.

2.6 Safety precautions should be observed during handling and transportation of the machine as it has a big mass.

ATTENTION! Do not use the machine as a pad, a pedestal, etc. Do not lean on the opened door of the machine.

2.7 IT IS PROHIBITED to install the machine outside the premise so that not to subject it to atmospheric impact.
2.8 IT IS PROHIBITED to operate the machine without installation of plugs in accordance with clause 3.1.2.
2.9 When the machine is connected to the cold water supply network only a new filling hose should be used which is included to a supply set.
2.10 IT IS PROHIBITED to use in the machine the substances containing solvents, as there is a danger of release of poisonous gases, machine damage, ignition and explosion.
2.11 In the process of washing it is not recommended to touch the machine door glass, as it is heated and may become the reason of a fire.
2.12 After the end of a washing the machine is to be switched off, disconnected from the electrical mains, the plug is to be pulled out of the socket, and the water supply cock is to be closed (see fig. 8).
2.13 For provision of electrical and fire safety the following IS PROHIBITED:

— to connect the machine to the electrical circuit having malfunctioned protection from current overloads;

— to use a socket without an earthing contact for machine connection;

— to use adapters, multi-seat (having two or more points of connection) sockets and elongation cords for machine connection to the electrical mains;

— to disconnect the machine from the electrical mains by pulling the supply cord;

— to insert and pull out the power supply plug from the socket, as well as to touch the operating machine with wet hands;;

— to wash the machine under a water jet;

— to independently repair and introduce amendments to the machine design, as well as to its water and electric power supply. This may result in serious damages of the machine and deprive of the warranty repair. The repair must only be performed by a qualified mechanical expert of a service company.

2.14 If any malfunction is found in machine operation related to electrical crackling, smoking, etc. The machine should immediately be disconnected from the electrical mains, by pulling the plug from the socket, the water supply cock should be closed, and a mechanical expert of a service company should be called.

In case of a fire the machine should immediately be disconnected from the electrical mains, the water supply cock should be closed, measures are to be taken for fire extinguishing and a fire brigade is to be called.

ATTENTION! After expiry of the machine service period the manufacturer bears no responsibility for safety of the product. The further operation may be non-safe, as probability of occurrence of electrical and fire dangerous situations is considerably increased due to natural degradation of materials and wear-off of machine components.

3.1 PREPARATION TO INSTALLATION

3.1.1 Packaging materials (polyethylene film, foamed polystyrene parts) are to be removed from the machine. The protecting film is to be removed from the display.

ATTENTION! In avoidance of machine damage do not move it by taking a chute, the door or seal in accordance with fig.1. For machine transportation the tank is fixed with blocking screws.

Four screws should be turned out with the aid of a spanner and rubber and plastic sleeved are to be removed in accordance with figure 2. If the sleeves are left inside the machine and they could not be removed, the rear panel should be taken out in accordance with fig. 3 with the aid of a cross screw driver and the sleeves should be removed. The panel is to be reinstalled. Holes are to be closed with plastic plugs included to a supply set.

Screws and sleeves are to be kept for possible machine transportation in future.

ATTENTION! In avoidance of possible damage of the casing do not switch on the machine with the installed blocking screws, rubber and plastic sleeves.

3.2 MACHINE INSTALLATION

3.2.1 The machine must be installed onto a strong, even and dry surface.

The soft floor cover (a carpet, coating based on foamed polyurethane, etc.) is not suitable for installation, as it contributes to vibration and worsening of machine ventilation.

The machine should be installed on a wooden floor by preliminarily strongly fixing a slab made of wooden materials to the floor having thickness at least 15 mm. It is recommended to install it in a premise corner on the wooden floor in the process of operation for better machine stability.

3.2.2 The machine is to leveled strictly horizontally in relation to the floor by screwing the adjustable supports in and out in accordance with figure 4: counter-nuts are to be released at supports with the aid of a spanner, height of supports is to be adjusted, counter-nuts are to be tightened. Wrong leveling of the machine or insufficient tightening of counter-nuts may become a source of vibration and increased noise during machine operation.

ATTENTION! In order to provide maximum stability of the machine unscrewing of supports must be minimal.

3.3 CONNECTION TO ELECTRICAL MAINS

ATTENTION! The machine must be earthed.

The machine must be connected to the electrical mains via a double-pole socket with an earthing contact, wherein the allowed current is at least 16 A. A three-wire cable with copper wires having section at least 1.5 mm2 or aluminium wires having section at least 2.5 mm2 must be supplied to the socket. The phase wire must be connected via an automatic device of electric mains protection intended for the maximal current (operating current) 16 A having operation time not exceeding 0.1 s.

If the socket has not supply of the aforesaid cable or it is far from the place of machine installation, the electrical mains and socket installation should be improved. Improvement of the electrical mains and socket installation must be carried out by the qualified personnel.

IT IS PROHIBITED to provide earthing by means of an individual wire, as well as with the aid of the heating, water supply or sewerage equipment.

ATTENTION! The manufacturer (the Seller) bears no responsibility for caused harm to health and property if it is caused by non-fulfillment of the aforesaid requirements to connection.

3.4 WATER LINE CONNECTION TO SEWERAGE

3.4.1 The machine is to only be connected to the cold water supply network via a water supply cock having a 34 -inch threaded branch.
3.4.2 The following should be done before connection of the machine to the water line:

— the water line cock is to be opened and water is to be drained so that to wash out sand and rust from pipes;
— filter cleanness is to be checked in the filling hose in accordance with figure 5 and 6 and to the machine;

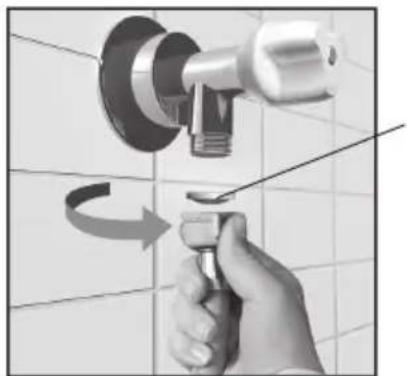

— if the filling hose has a protecting system in accordance with figure 6, attention should be paid to the colour in a special window of the hose. The yellow colour of the window shows the good state of the hose;
— the filling hose is to be connected to the threaded branch of the water supply cock in accordance with figure 5 and 6 and to the machine in accordance with figure 7 by tightly screwing in nuts by hand.

3.4.3 During washing the water supply cock must fully be opened in accordance with figure 8.

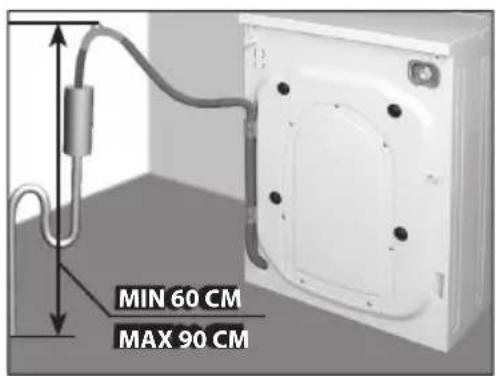

3.4.4 In accordance with figure 9 the drain hose must be located at the height of at least 60 and not exceeding 90~cm from the floor level. If this rule is not observed, the machine will not work.
3.4.5 For water drainage directly to sewerage the drain hose of the machine is to be installed above the discharge elbow (a siphon) to a sewage pipe having the internal diameter at least 40 mm so that to avoid back suction of effluent water to the machine.

The drain hose may directly be connected to the siphon in accordance with figure 10, if the siphon has a branch for its connection.

3.4.6 When water is drained to a basin or a bath the hose should be fixed in the place of bending by means of a special bracket included to the supply in accordance with figure 11. The hose must not be immersed to water.

ATTENTION! Filling and drain hoses must not be twisted or compressed after connection to the water line and sewage.

3.4.7 After connection of the machine to the water line and sewage tight connection of hoses should be checked – places of connection must be dry.

OPEN CLOSED

Figure 8 Figure 9

MIN 60 CM MAX 90 CM

Close-up of a pipe fitting with a bowl on top, showing tubing and pipe connection (no text or symbols visible)

Figure 10

Close-up of a white square sink with a coiled hose and metal faucet, against a tiled wall (no text or symbols visible)

Figure 11

4 MACHINE OPERATION

4.1 CONTROLS

4.1.1 Machine controls include a knob for washing program selection (hereinafter – a knob), a push button for selection of extra functions, bush button ▶ push button in accordance with figures 12,13.

A knob is intended for switching the machine on/off and selection of a washing program. Titles of programs and symbol ○ are marked around the knob. The knob is turned in both directions (clockwise and counterclockwise) and precisely set to the respective point of the selected program. When the knob is set to symbol○ the machine is switched off and the selected program is cancelled.

Push buttons of selection of extra functions (see 4.3)

Every push button is marked with a symbol on the control panel in accordance with figure 13. Pushing the button will allow to additionally select an extra function to the washing program.

A push button of drum rotation frequency selection during wringing out (hereinafter referred as wringing out speed) ⚙️ Pressing push button ⚙️ makes it possible to select the wringing out speed below the maximum value stipulated in the washing program. The selected value of wring-out speed is illuminated with a respective indicator.

Temperature selection push button ©

This allows selecting the temperature below the maximal value stipulated by the washing program. The selected value of temperature is illuminated with a respective indicator.

Push button ▶ II (START/PAUSE) is stipulated for beginning (start) of machine operation according to the selected program, as well as for setting a pause in machine operation without cancellation of the washing program.

Night mode push button When a push button illuminates at the time indicator before « » value is lighted up at the time indicator before duration value. Washing is carried out at lowered wring-out speeds, as well as with the disconnected sound alarm by providing the noiseless machine operation.

4.2 LIGHT INDICATORS

4.2.1 Light indicators of time, washing operations and push buttons of selection of extra functions are operated in the area of machine operation indication in compliance with figures 12, 13.

4.2.2 The time indicator is intended for representation of washing duration, as well as time before washing beginning if the function of delayed washing beginning has been selected

4.2.3 Indicators of washing operations:

- time of the delayed washing beginning; - preliminary washing,

- wetting, - main washing, - ringing,

- stoppage in water in the tank,

- wringing out and drainage.

4.2.4 The switch-on indicator is possessed by every push button of selection of extra functions and push button ▶ II Push buttons of temperature and wringing out speed selection have a number of indicators with numerical values.

Dispenser drawer START/PAUSE button 00:00 Push buttons of selection of extra functions Program selection knob

Figure 12 — Control Panel

time indicator indicators of washing operations temperature indicators wring out speed indicators* 00:00 90°C 1000 60 800 40 600 30 400 2 START/PAUSE night mode selection of wring out speed mode temperature selection light ironing stoppage in with water in a tank additional rinsing watering preliminary washing, delayed washing

* Wringing out speeds depend on machine model

Figure 13

4.3 EXTRA FUNCTIONS

4.3.1 Possibility of inclusion of extra functions depends on the program of washing (see table 2). The required function is to be selected by pressing the required push button.
4.3.2 Setting the time of delayed washing beginning will make it possible to postpone washing beginning from 1 to 24 hours. When this function is selected the time shall successively be changed with the interval of 1 hour.

4.3.3 Preliminary washing (P) is stipulated for strongly contaminated cotton fabrics.

When this function is selected the articles shall additionally be washed in water with a detergent at temperature 30 °C by providing the qualitative elimination of contamination during the main washing..

4.3.4 Wetting is stipulated for strongly contaminated cotton fabrics. The articles shall be kept in water for 2 hours with detergents (by periodically turning the around), then they shall be washed according to the selected according to the selected program. During function selection the preliminary function of washing shall simultane-

ously be switched on P — two respective indicators are flashing. Wetting shall be carried out after the end of preliminary washing when the wetting indicator starts blinking.

For reduction of time of wetting push button shall repeatedly be pressed – The function will be released and the machine will be operated according to the selected program.

4.3.5 Extra wring out is intended for clothes for children, goods of persons having an allergy for detergents or for washing in very mild water wherein the detergent is repeatedly rinsed.

When this function is selected one more rinsing shall be added to the washing program.

4.3.6 Stoppage with water in the 📋 is used during washing of articles made of thin fabrics for reduction of crumpled fabrics.

When a function is selected the drainage and final wring-out cycle is excluded. After the end of washing water shall be drained: the selection knob shall be set to symbol "DRAINAGE" program shall be selected and carried out.

4.3.7 Light ironing shall be stipulated for reduction of crumpling the fabrics in the process of washing and wringing out, easy subsequent ironing. The use of this function maintains the spare washing mode and careful wringing out with the minimal number of tucks after washing.

5 FIRST SWITCH-ON

5.1 FIRST WASHING

5.1.1 Every machine shall be tested by the manufacturer, and therefore, the machine may contain slight amount of water. For elimination of water after the test, as well as for machine cleaning from inside the first washing shall be carried out without loading any clothes.
5.1.2 The first washing shall be carried out by setting the program "COTTON" and temperature — 90 °Cin accordance with pp. 6.4 - 6.6, 6.11.

ATTENTION! For the first machine switching on the machine to division 2 of the tray in accordance with figure 15 a half detergent standard shard shall be loaded for maximal loading of clothes by taking into account recommendations of the detergent manufacturer.

5.2 GENERAL RECOMMENDATIONS BEFORE WASHING BEGINNING

5.2.1 Before switching on the machine a water cock should be opened and by discharging water one should be made sure that water does not contain contaminations in the form of sand, rust, etc.

ATTENTION! The manufacturer (the seller) shall not be responsible (including during the warranty operation period) for washing quality, as well as for defects and damages of the machine related to the use of water which is contaminated with rust, sand, scale, etc.

5.2.2 Correct setting of filling and discharge hoses shall be checked (see 3.4).

If the machine has not been used for a long period the stilled water shall be drained from the filling hose by turning out a nut and disconnecting a hose from the water supply cock. The filling hose shall be connected to the water line in accordance with clause 3.4.2.

6.1 It should be checked whether there are any odd subjects or domestic animals in the drum.

Clothes shall be prepared and loaded to the machine (see 7.1).

Close the machine door by a hearable click of the lock by preliminarily removing the door locking from closing (if it was installed in accordance with clause 6.13).

ATTENTION! The clothes shall not be seized between the door and the sealant.

6.2 The respective chute section shall be loaded with the detergent intended for automatic washing machines and means for special treatment (see 7.2). The chute shall uniformly be closed.
6.3 The power supply cord shall be inserted to the socket and the water supply cock shall be opened (see fig. 8).

6.4 MACHINE SWITCHING ON AND PROGRAM SELECTION

6.4.1 For switching on the machine the knob should be set to the point of the required washing program in accordance with figure 12. The following is flashing in the indication area of machine operation: washing duration, indicators of washing operations of the selected program, indicators of washing temperature and wringing out speed.
When programs are selected in accordance with table 2 the main parameters of washing set up by the manufacturer are provided (wring out speed, washing temperature, its duration, etc.).
6.4.2 Washing duration reflected at the time indicator is determined under laboratory conditions. It may be changed (increased or reduced) during machine operation depending on water temperature and pressure in the

water line, mass of the loaded clothes, type of fabrics, change of voltage in the mains, etc.

ATTENTION! Mismatch of time reading is allowed with the moment of actual washing completion before the end of washing on the display.

6.4.3 The program shall only be selected before washing beginning. Setting the knob to the point of a new program during machine operation (without machine switching off) does not allow changing the formerly selected program.
6.4.4 After program selection washing parameters may be changed and extra functions may be selected in compliance with 6.5-6.7.

6.5 TEMPERATURE SELECTION

By pressing on push button Ⓤ️ accordance with figure 13 one may decrease the washing temperature stipulated by the program. When the push button is pressed, indicators are lighted up in succession with the numerical temperature values from maximal to ⓔ️ along with the successful repetition. Washing duration reading will be changed at the same time with temperature selection.

The selected washing temperature values in the machine (without water heating), 30 °C, 40 °C, 60 °C, 90 °C.

6.6 SELECTION OF WRINGING OUT SPEED

By pressing the push button Ⓞ in accordance with figure 13 the wringing out speed may be reduced which is stipulated by the washing program. When the push button is pressed, the indicators are lighted up in succession with numerical values of wringing out speed from the maximal one to Ⓞ with the subsequent repetition.

The selected values of wring out speed – from the maximal one (depending on the machine model) to the minimal one – zero 📄 (wringing out is disconnected).

ATTENTION! Speed of wringing between the main operations of washing is not regulated, and it does not depend on the selected program.

ATTENTION! In case of irregular distribution of clothes in the drum the wringing out speed in the drum shall automatically be lowered or there is no wringing out at all.

6.7 SELECTION OF EXTRA FUNCTION

6.7.1 For selection of an extra function the respective push button shall be pressed – an indicator will flash in accordance with figure 13. In case of the repeated pressing the light indicator will go out, the function will be cancelled.

Selection of extra functions is only allowed before the beginning of washing. When the push buttons are pressed during machine operation a triple sound signal is heard – the extra function is not switched on.

ATTENTION! If the selected function mismatches the selected program the indicator will not flash, and the function will not be switched on (a triple sound signal is heard).

6.7.2 Setting the time of delayed beginning of washing

Pressing the push button ⏻ the push button indicator will flash and the maximal time of washing beginning delay 24 hours («24:H») will appear. By pressing the push button ⏻ the required time should be set up (the reading interval - 1 hour).

If this function should be cancelled the time "0:H" should be set up (before washing beginning), by pressing push button ⏻— the push button indicator will go out.

6.8 SWITCHING OFF SOUND ALARM

The sound alarm is stipulated in the machine. The sound alarm accompanies the beginning and completion of machine operation, as well as it is provided during setting up the incombustible functions, in case of accidental pressing the push buttons during machine operation according to the selected program.

By simultaneous pressing and holding down push buttons 🏠 and during 3 seconds sound signals of machine operation are disconnected, except for the signals informing on malfunctions ( «Sn-0» is lighted up at the display). During the repeated pressing the push buttons 🏠 and the sound signal is switched on («Sn-1» is lighted up at the display).

6.9 WASHING BEGINNING

For machine operation beginning by the selected washing program the push button should be pressed and a sound signal will be provided, the door blocking device will operate and washing will begin. The countdown will begin at the time indicator before the end of washing. Also, during washing the indicator of the fulfilled washing operation, indicators of temperature, wringing out speed and additional functions will flash (if selected). If the additional function "Time of delayed washing beginning" ( ) has been selected, countdown of time before the washing beginning will be started.

ATTENTION! It is not recommended to use the water line when water is filled to the machine during washing. Due to pressure fluctuation in the water line the volume of filled water may be insufficient for fulfillment of qualitative washing and rinsing.

ATTENTION! Cessation of voltage supply in the electrical mains during washing does not influence the subsequent machine operation: after resuming the voltage supply in the electrical mains the machine continues program fulfillment since the moment of its stoppage.

6.10 PAUSE DURING MACHINE OPERATION

If machine operation should be terminated without program cancellation the pressed push button should be held during 2 seconds – a sound signal will be provided, the indicator of push button will blink, time countdown and washing are stopped. For continuation of the stopped program the push button should be pressed.

In programs "DELICATE FABRICS", "WOOL", "MANUAL WASHING", "COMBI WASHING" machine operation cannot be suspended as washing is stipulated with the big amount of water. If the door should be opened during performance of these programs water should preliminarily be drained: the program shall be cancelled (see clause 6.11), then the program "DRAINAGE" shall be selected and switched on.

ATTENTION! Do not open the machine door if the water level in the drum is visually determined via the door glass.

6.11 PROGRAM CANCELLATION

For cancellation of the fulfilled program the knob should be set to symbol ○ — the machine is switched off and the fulfilled program is cancelled. If the door should be opened water should be drained by selecting and switching on the program "DRAINAGE".

6.12 MACHINE SWITCHING OFF

6.12.1 After the end of the last washing operation the inscription "END" appears at the time indicator, the door blocking device is disconnected, a triple sound signal appears, indicators of washing operations and the indicator ▶ || go off.

If the machine is not disconnected from the mains the sound signal will be provided five times more with the interval of one minute.

The machine shall be switched off by setting up the knob to symbol, the supply cord plug shall be removed from the socket and the water supply cock shall be closed. The clothes shall be taken out.

The tray should slightly be pulled out and the door shall be left half-opened until the internal machine parts become dry. In avoidance of any smell in the machine the door shall remain in the half-opened position by the following washing.

It is recommended to prevent from closing the door blocking.

It is provided to prevent accidental powering on the Machine by kids. To block the door against closing, turn the sleeve with screwdriver clockwise up to the stop. The sleeve will come forward not allowing the door to be closed. To remove the blocking, prior washing start, perform the acts in reverse sequence.

7 RECOMMENDATIONS AND ADVICE

7.1 PREPARATION AND LOADING OF GOODS

7.1.1 The following is required before the beginning of washing:

— to sort out goods and clothes by separating the coloured and white goods;
— to distribute goods by types of fabrics by checking the symbols on labels;

sleeve

door

Close-up of a white door handle with a circular knob and a circular button (no text or symbols visible)

— to make sure that pockets on clothes are empty, broken parts of clothes should be stitched, zippers, belts, clasps and hooks should be fastened, hardly removable stains should preliminarily be eliminated (see. 7.3);

— sand is to be removed from clothes (pockets, lapels);
— goods with applications are to be turned inside out.

ATTENTION! Penetration of metal objects (coins, clamps, etc)

to the machine together with the goods may become a reason of damage of the rubber seal and the plastic tank of the machine. These malfunctions are not subject to warranty repair.

7.1.2 Small goods (handkerchiefs, socks, etc.), brassieres with beads, as well as delicate goods (thin tights, stockings) should be put to a special bag before washing.
7.1.3 For getting better results of washing and wringing out it is recommended to wash big and small goods together.

IT IS PROHIBITED to load only the goods made of fabrics absorbing a big amount of water (terry towels, dressing gowns, carpets, etc).

7.1.4 Before starting sports footwear washing the following is required:

— shoe strings are to be taken out of the shoes; ;
— sand is to be removed and the external surface of the footwear is to be washed.

ATTENTION! It is not recommended to wash the sportswear made of natural leather or suede, as well as having the sole made of hard plastic or metal components.

7.2 USE OF SYNTHETIC DETERGENTS

7.2.1 A chute is intended in the machine for detergents in accordance with figures 1, 14.

The chute has three sections, marked with figures and a symbol:

1 — for preliminary washing with the use of powder detergents and bleaching substances;
2 — for the main washing;

— for special treating substances (conditioning, smoothening, starching, aromatizing additives).

The following is installed in addition to a chute section:

— a chute for the liquid bleacher marked with letters Cl;
— a curtain for the use of liquid detergents.

7.2.2 Detergents, bleachers and conditioning additives should be used for washing which are intended for automatic washing machines with the account of recommendations of the detergent manufacturer.

ATTENTION! It is not recommended to use bleaching gels for washing.

7.2.3 Dozing of detergents should be carried out with the account of the mass of goods, their soiling and water hardness.

ATTENTION! Overdozing of detergents, as well as the use of detergents for manual washing may result in excessive foaming, which makes the washing quality lower and may lead to machine outage.

7.2.4 When a powder detergent is used a curtain should be removed from section 2 of the chute (if it is installed). Check so that the powder should not get to a section for special treating substances in accordance with figure 15, as in the process of rinsing foam will be formed and white spots may appear on goods.
7.2.5 When additional functions , are chosen the powder detergents are to be used which are to be placed to section 1 in accordance with figure 14.
7.2.6 When the liquid detergent is used a curtain must be installed to section 2 in accordance with figure 16, and figure levels in milliliters are marked on both sides of the curtain. In order to freely move the curtain by guiding slots to the lower position it should be inserted to the chute section by the front surface with figures;

— 200, 150, 100, 50

7.2.7 Overfilling of special treating substances in section ✿ (above the MAX mark on the cap), as well as penetration to neighboring sections will result in lower quality of washing.
7.2.8 Bleaching substances during selection of the program "SOILS" are to be placed to section 1 in accordance with figure 14, and bleaching takes place directly after the main washing.

Before the use of the liquid bleacher a chute for the liquid bleacher is to be inserted to section 1 in accordance with figures 14,15. A mark on the cap CL MAX determines the maximal level of bleacher filling to the chute.

ATTENTION! When a bleacher is used setting the additional function of the preliminary washing is not allowed.

7.2.9 For improvement of washing quality and machine protection from lime sediments during washing in water having hardness degree II or III a water smoothening agent is to be used along with a detergent. It should be added to the detergent to section 2 in accordance with figure 14 as per manufacturer's recommendations.

The water hardness degree is to be determined as per table 1. Information about the water hardness may be obtained at the local water supply company.

IT IS PROHIBITED to remove the chute for detergents during machine operation in avoidance of water leakage

from the machine and its spilling.

7.3 ELIMINATION OF SOME TYPES OF SPOTS

7.3.1 Some spots cannot be eliminated from articles in the process of the ordinary washing in the machine. Therefore, before washing in the machine they are to manually be eliminated. At first, this is done at a small hardly visible section of a cloth by starting the treatment from an end of a stain by gradually approaching to its centre for prevention from any soils.
7.3.2 Wax is to be scratched off by means of a rounded object so that not to damage the fabric. Then the fabric is to be placed between two sheets of the absorbing paper and the stain is to be treated with a hot iron..
7.3.3 Stains of ball pens and flow masters are to be eliminated with a soft cloth moistened in ethyl spirit.
7.3.4 Mould stains are to be eliminated during washing along with addition of a bleacher to a section of chute 1 in accordance with figure 14, if the fabric is resistant to bleacher impact. In rest cases the stained section is moistened with 10% solution of hydrogen peroxide and left for 15 minutes.
7.3.5 Slight burns of the fabric with an iron are to be eliminated in the same way as mould stains.
7.3.6 Rust is to be removed with special means for elimination of rust. Manufacturer's recommendations should be fulfilled.
7.3.7 Paint is to be removed after full drying. The soiled section is to be wiped with a solvent shown on a paint package (for example, water, turpentine), soaped and washed.
7.3.8 Stains of a lipstick on cotton or wool are to be wiped with a cloth moistened in ether.
7.3.9 In order to remove a lacquer for nails an absorbing paper is to be put onto the soiled fabric and the stain is to be moistened with acetone from the back side of the cloth. By frequently changing the paper the fabric is to be moistened with acetone by the full disappearance of the stain.
7.3.10 Butter is to be applied to stains of vegetable oil or resin for some time and washed out with turpentine.
7.3.11 Stains of grass may be moistened with diluted bleacher by taking into account recommendations of the manufacturer. They are well removed from wool with 90% spirit solution.
7.3.12 A cloth with blood stains should be moistened in cold water with salt addition, then this is to be washed with household soap.

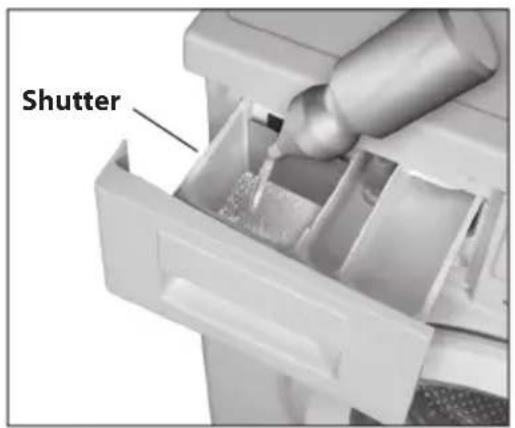

Dispenser drawer Shutter Cap 2 1

Figure 14

YES NO

Figure 15

Shutter

Figure 16

7.4 INTERNATIONAL SYMBOLS FOR TAKING CARE OF TEXTILE GOODS

When washing program and temperature are selected it is recommended that symbols of care on a label should be studied so that the goods should not be constrained and bleached in the process of washing.

The goods having the labels with the following symbols should be washed in the machine:

— washing, — delicate washing; 95 washing at the maximal temperature 95 °C; 60 washing at the maximal temperature 60 °C; 40 washing at the maximal temperature 40 °C; 30 washing at the maximal temperature 30 °C; manual washing.

IT IS PROHIBITED to wash the goods in the machine if the symbol is indicated on the label.

8 WASHING PROGRAMS

ATTENTION! For saving the detergent, electrical power and for reduction of environment pollution during selection of the washing program take into account the cloth type and the degree of soiling the article in accordance with table 3.

Standard washing programs are stipulated in the machine (COTTON, SYNTHETICS, DELICATE FABRICS, WOOL) and special ones (MANUAL, EXPRESS, COMBI, INTENSIVE, SOILS, SPORTS FOOTWEAR, DELICATE WRINGING OUT, RINSING, DRAINAGE, WRINGING OUT).

Special programs make it possible to reduce the washing period and power consumption.

9.1 The machine is a household appliance which does not require a special maintenance, but it is designed so that the minimum of operation is required to service it.

9.2 MACHINE CLEANING

ATTENTION! Before cleaning the machine disconnect the machine from the electrical mains and close the cock for water supply.

9.2.1 The machine should regularly be cleaned. External surfaces of the machine, plastic and rubber parts should only be wiped with a wet soft cloth.

After every washing the seal is to be wiped by contour in accordance with figure 1 with a dry soft cloth.

ATTENTION! Carefully remove accumulated odd particles at the door seal.

IT IS PROHIBITED to use chemicals, abrasives, spirit, petrol and other solvents for machine cleaning.

9.2.2 The chute for detergents should periodically be washed by preliminarily be taken it out of the machine in accordance with figure 17, 18.
9.2.3 If rusty subjects get into the machine along with the goods spots of rust may appear on the drum which must be removed with substances for cleaning the articles made of stainless steel.

9.3 CLEANING OF FILTERS OF WATER SUPPLY

9.3.1 A filter in the filling hose in accordance with figures 5 or 6, as well as a filter in a threaded branch of the electric valve in accordance with figure 19 are mounted for prevention from getting into the machine of mechanical admixtures with water (sand, metal chips, etc.). Filters are to be cleaned at least once per year.

Table 2

Hardness Degree	Water Characterization Water Hardness in ^0 dH		Water Hardness in Milli-Mol per Litre
I	Soft	0 - 7	Up to 1,3
II	Medium hard	7 - 14	1,3 - 2,5
III	Hard	14 - 21	2,5 - 3,8

9.3.2 The following is required for cleaning the filters:

— the filling hose is to be disconnected from the water supply cock in accordance with figures 5 or 6, by turning a nut counterclockwise;
— the filling hose is to be disconnected from the threaded branch of the machine electric valve in accordance with figure 7 by turning a nut counterclockwise;
— the filter is to be removed from the threaded branch of the electric valve with the aid of flat pliers or forceps in accordance with figure 19;
— rubbish is to be removed from filters, removable filters are to be wiped with a brush and washed under a water jet

After cleaning the filters are to be mounted to the filling hose and to the threaded branch of the electric valve in the reverse sequence. The filling hose is to be connected and tight connections are to be checked – connection places must be dry during machine operation.

9.4 CLEANING OF PUMP FILTER

9.4.1 The pump filter prevents for penetration of nap, threads, small subjects (buttons, clips, coins, etc.) to the discharge pump during washing.

For avoidance of pump damage the filter is to be cleaned from clogging once per 6 months.

When goods with the long nap are washed the filter is to be cleaned after every washing.

9.4.2 Before cleaning water is to be drained from the pump. For this purpose the filter cover is to be opened in accordance with figure 21 for water collection. Height of the vessel must be below the hose outlet hole from the machine. A plug is to be removed from the hose and water is to be drained to the vessel. In case of a big water volume in the machine tank discharge is to be carried out several times.

The filter handle is to be turned counterclockwise and the filter is to be removed.

ATTENTION! Water residue leaking is possible when the filter handle is turned.

9.4.3 Rubbish is to be removed from the filter, the filter is to be washed under a water jet.

9.4.4 A plug is to be installed to the hose, the filter and the hose are to be installed in the reverse sequence.

Close-up of a hand inserting a plastic bag into a drawer (no visible text or symbols)

Figure 17

Person washing a sink with a water dispenser, no visible text or symbols

Figure 18

solenoid-operated valve filter

Figure 19

cover

Figure 20

Table 3 - wash programs

Program Name		Wash Temperature,	Possible Use of Drawer Compartments			Possible Use of Optional Functions	Maximum Load, kg
COTTONS		[D50H]	1	2			6,0^1) 7,0^2)
SYNTHETICS	[KYYT]	[BHAZ]	—	2			3,0
DELICATES	[BBAY]	- 2					3,0
WOOL		[CBYX] - 2					1
HAND WASH			-	2			1
QUICK CYCLE			-	2			2,0^1) 3,0^2)
MIXED		- 2					2,5^1) 3,0^2)
INTENSIVE3)			-	2			6,0^1) 7,0^2)
DRY CLEAN.		1 2					6,0^1) 7,0^2)
SPORTSWEAR			-	2			2,5
SPORT SHOES			-	2			2 pair
RINSE — — —							6,0^1) 7,0^2)
DRAIN — — — —		[9C36]					6,0^1) 7,0^2)
SPINNING — — — —		[40W5]					6,0^1) 7,0^2)
DELIC.SPIN — — — —		[A6T]					6,0^1) 7,0^2)
1) CMA WA6012 [ZBK4] 2) WA7210, WA7212, 7214 [SOHD] 7214 3) Programme "Inten" is a sta one for checking conformity with the requirements of Commission Regulation (EU) N°1061/2010. It ed for Co 60 °C with full and partial load and Cotton 40 °C with partial load test runs.

Correct installation and fixation of filter position are to be checked. The filter cover is to be closed.

10 POSSIBLE MALFUNCTIONS AND THEIR TROUBLESHOOTING

10.1 The malfunctions which can be eliminated by a customer are shown in table 4.

10.2 If "F2", "F3", "F4", "F5", "F6", "F7", "F8", "F9", "F10", "F11", "F12", "F13", "F14", "F15" are flashing on the display, the machine should be disconnected from the electrical mains, the water supply cock should be closed and a mechanical expert of the service company should be called.

10.3 Before operation of the "Aquastop" protection system ("F15" is flashing) a small amount of water leakage is possible from the machine.

11 DISPOSAL

11.1 The materials used for machine package may be reprocessed and used again if they are delivered to places of waste products collection.

ATTENTION! Do not let children play with package materials, as there is a danger of suffocation by being entrapped into the film.

11.2 The machine subject to disposal should be made unsuitable for use by cutting off the power cord in order to exclude possible connection to the electrical mains, and the door lock latch is to be broken. The machine is to be disposed in accordance with the existing legislation of the country.

filter knob cover hose container plug

Figure 21

Table 4 possible malfunctions

Potential problem/ Possible indication on the display	Probable reason Remedial procedure
The machine is not working, indication areas of the display are not flashing	No voltage in the electrical mains	Check voltage in the socket of the mains by switching on any electrical appliance
	No contact between the power cord plug and the socket of the mains	To provide contact of the power supply plug and the socket
	A push button is not pressed 1	The machine is to be switched on, the push button is to be pressed 1
The program is not fulfilled / CLOSE DOOR	The door is not closed The door is to be closed to hear a clear click of the lock
Water is leaking from the chute for detergents	The chute for detergents is not tightly closed	The chute for detergents is to tightly be closed
	Powder residues are hardened in the chute for detergents	Hardened residues of powder are to be removed by washing the chute under flowing water in accordance with clause 9.2.2
The machine is continuously filling and discharging water / F5	The drain hose is wrongly installed	The drain hose is installed in accordance with clauses 3.4.4 - 3.4.7
	The free part of the drain hose is immersed in water	The free part of the drain hose is to be taken out of water
Water is not filled to the washing machine / F5	Water is not available in the water line	Water availability is to be checked in the water line by opening the cock with cold water
	The water supply cock is closed The water	supply cock is to be opened
	The filling hose is compressed The filling hose is to be freed
	The filter is clogged which is located between the cock and the filling hose, or the filter in the threaded branch of the electrical valve is clogged	Filters are to be cleaned in accordance with clause 9.3 by disconnecting the machine from the electrical mains and the water line
	The protection system has operated in case of water leakage in the filling hose - a window of red colour in the filling hose (see fig. 6)	A new filling hose is to be installed
The machine does not drain water	Wrong installation of drain hose	The drain hose is to be installed in accordance with clauses 3.4.4 - 3.4.7
	The drain hose is compressed The drain hose is to be freed
	The pump filter is clogged	The pump filter is to be cleaned in accordance with clauses 9.4.2 - 9.4.4
No wringing out /F4	A detergent was used which is not intended for automatic washing machines of the big foaming	“RINSING” program is to be selected and switched on
	“0” wringing out speed has been set up (wringing is disconnected)	Wringing out revolutions are to be selected in accordance with table 2
	Goods are concentrated in one part of the drum	Goods are to uniformly be placed in the drum
Vibration and noise of the machine	Not all blocking screws and bushes are removed for transportation	All blocking screws and bushes are to be removed for transportation in accordance with clause 3.1.2
	The machine is not leveled The machine is to be leveled in accordance with clause 3.2.2
	Big goods (bed-sheets, table-clothes, etc.) are concentrated in one part of the drum	Goods are to uniformly be placed in the drum
Goods are not sufficiently wrung out	Goods are not uniformly located in the drum	During loading to the machine the goods are to uniformly be put
	The washing program or drum rotation frequency are wrong	The washing program or drum rotation frequency are to be selected in accordance with the type of fabric
Excessive quantity of detergent in the chute for detergents	Insufficient pressure in the water line (below 0.05 MPa)	The machine is to be disconnected and a local residential operating service is to be called
	The filter is clogged which is located between the water supply cock and the filling hose, or the filter in the threaded branch of the electrical valve.	Filters are to be cleaned in accordance with clause 9.3, by disconnecting the machine from electrical mains and the water line
	The used detergent has the expired service life or is of low quality	The detergent is to be changed
Residues of detergent on goods	Detergents contain phosphate containing components which are insoluble in water	“RINSING” program is to be selected and switched on
Goods are not sufficiently clean after washing	The maximal loading of dry goods is exceeded	Dry goods are to be loaded with the account of the maximal loading, shown in table 2
	Insufficient quantity of the detergent is used	The detergent quantity is to be increased by fulfilling the recommendations of the detergent manufacturer
	The washing program is improperly selected	The washing program is to be selected with the account of type of fabrics, the degree of their soiling
Water appeared under the machine	Loose connections of the filling hose	Correct installation of the filter, nuts (skewing is not allowed) is to be checked. Nuts of the filling hose are to be tightened
	Drain hose integrity is violated	The service company is to be called for filling hose replacement
	Goods are compressed between the door and the seal	The push button is to be pressed washing is stopped. Wait 2 minutes, the door is to be opened for freeing the compressed goods. Then the door is to be closed and the push button is to be pressed for washing continuation
	The pump filter is improperly mounted The filter handle is to be tightened against the rest

Control panel Dispenser drawer Door Drum Gasket Filter cap

Figure 1

Diagram of a white industrial enclosure with four circular pressure gauges and directional arrows indicating flow or movement (no text or symbols present)

Abbildung 2

Close-up of a white appliance with a curved panel and black buttons, being adjusted by a hand (no text or symbols visible)

Abbildung 3

Close-up of hands holding a mechanical clamp with a screw, showing rotational motion (no text or symbols)

Abbildung 4

Hand holding a tool applying material to a wall-mounted fixture, with a curved arrow indicating rotation (no text or symbols visible)

Abbildung 5

Sieb

Abbildung 6

Close-up of hands holding a small mechanical component with a curved arrow symbol (no visible text or symbols)

Abbildung 7

Close-up of a pipe fitting with a bowl above it, showing tubing and a handle (no text or symbols visible)

Abbildung 10

Close-up of a white square sink with a coiled hose and faucet, placed on a tiled wall (no text or symbols visible)

Abbildung 11

sleeve door

Close-up of a hand inserting a plastic bag into a drawer (no text or symbols visible)

Abbildung 17

Person washing a small white appliance into a sink with a faucet (no visible text or symbols)

Abbildung 18

Elektroventil Sieb

Abbildung 19

Abdeckung

Abbildung 20

2) WA7210, WA7212, WA7214
