GS 3181 - Freezer BOMANN - Free user manual and instructions

Product Type	Freezer
Brand	Bomann
Model	GS 3181
Energy Source	220-240 V ~ 50 Hz
Net Capacity	Approx. 80 L
Dimensions (H x W x D)	85 x 55 x 55 cm
Weight	Approx. 25 kg
Climate Class	N-ST
Temperature Range	-24 °C to -18 °C
Control Type	Mechanical thermostat
Defrost	Manual (requires defrosting)
Door Hinge	Reversible (left/right)
Shelves/Baskets	1 wire shelf + 1 freezer basket
Lighting	Interior LED lamp (replaceable)
Freezing Capacity	Up to 4 kg per 24 h
Storage Time (power failure)	Approx. 10 h
Noise Level	41 dB(A)
Energy Consumption	Approx. 0.6 kWh/24 h
Energy Efficiency Class	E
Refrigerant	R600a
Cleaning	Unplug, wipe with mild detergent, dry
Repairability Index	6.5 / 10 (estimated)
Spare Parts Availability	Thermostat, door gasket, shelves, LED bulb

Frequently Asked Questions - GS 3181 BOMANN

What is the correct temperature setting for my Bomann GS 3181 freezer?

The recommended temperature for long-term storage is -18 °C. Turn the thermostat knob to a medium setting; adjust lower for faster freezing.

How do I defrost the freezer?

Unplug the appliance, remove food, and leave the door open. Place towels to absorb melting water. Do not use sharp tools or heaters to remove frost.

Why is my freezer making strange noises?

Normal noises include gurgling from refrigerant flow and clicking from the compressor. If loud or unusual, ensure it is level and not touching walls.

How can I save energy with the GS 3181?

Keep the door closed as much as possible, allow hot food to cool before storing, and maintain a gap behind the freezer for ventilation.

Can I reverse the door opening direction?

Yes, the door hinge is reversible. Follow the manual instructions to change the hinge side and adjust the door handle accordingly.

What should I do if the freezer stops cooling?

Check power supply, thermostat setting, and door seal. If still not cooling, the compressor or refrigerant may be faulty; contact a service technician.

How do I clean the Bomann GS 3181?

Unplug the appliance. Remove all shelves and drawers. Wipe interior with a soft cloth and a solution of mild detergent and water. Dry thoroughly before restarting.

What type of light bulb does the freezer use?

The freezer uses an LED bulb (type E14, 230 V, 1 W). Replace only with the same type after unplugging the appliance.

Is the freezer suitable for a garage or unheated room?

It is rated for climate class N-ST, meaning it works in ambient temperatures from 16 °C to 38 °C. Do not use in rooms below 10 °C.

Can I store ice cream in the Bomann GS 3181?

Yes, ice cream can be stored at -18 °C. Ensure it is well wrapped to prevent freezer burn.
Note: For best quality, consume within the recommended time.

USER MANUAL GS 3181 BOMANN

HAUSHALTSAUSFARJESCHIRANK SG031813181

HOUSEHOLDOUFSREER

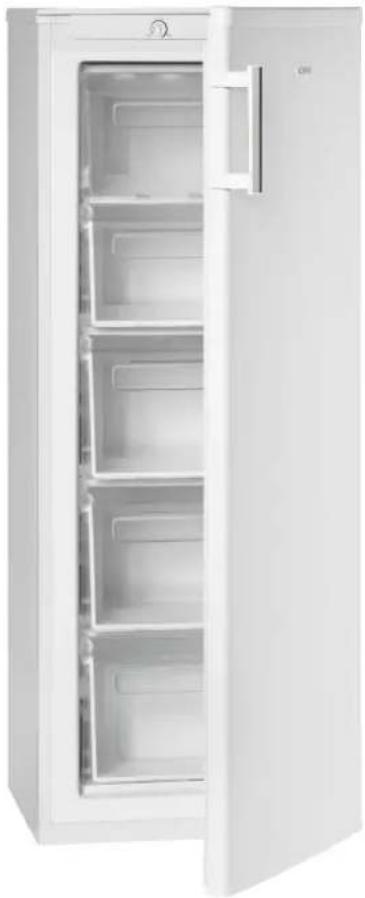

White refrigerator with open door, showing front shelves and door (no visible text or symbols)

Special safety Information for this Unit......Page 14

Transport and Packaging......Page 16

Appliance Equipment......Page 16

Installation......Page 16

Startup / Operation......Page 18

Cleaning......Page 20

Troubleshooting......Page 20

Technical Data......Page 20

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols In these Instructions for Use: Use Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

IOTENOL highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

IOTENOTE

The illustrations in this instruction manual can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any use other purpose. Any other use is not intended and can result in damages or personal injuries.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNINGING

Do not allow small children to play with the foil. There is a danger of suffocation!danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of use of the appliance. The appliance is safe way and understand the hazards involved.

- Children Shadreat play with the appliance.

- Cleaning and user maintenance shall maintain a trade by children miles they are older 8 years and supervised.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

- Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNING:

The coolant circuit of this appliance contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport apdrPackaging and Packaging Delivery scope

Transport the appliance Transport the appliance

Transport the appliance, if possible, only in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

i NOTENOTE

The appliance has castors which facilitate the transport and installation of the appliance. Tilt the appliance back slightly and move it gently.

Unpack the appliance Unpack the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

CAUTION: Transport protection!TION: Transport

Pull off the foil from the appliance sides.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning".

Appliance Equipment Equipment

Appliance overviewAppliance overview

1 Temperature control
2 Compartment with freezing flap
3 Freezing drawers
4 Adjustable feet at the front / castors at the rear

1 x freezing flap, 4 x freezing drawer, 1 x ice-cube tray, for assembling the door handle: door handle incl. fixing screws with covers, for reversing the door opening: dummy cap (A)

Installation Installation

Conditions for the installation location

- Good ventilation is required around the appliance, in order to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Sufficient clearance is necessary.

• Gap to the back and to the side walls each approx. 5 cm;
• Place the appliance so that the appliance door can open without being impeded.

- Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to chapter “Technical Data” or to the rating label section! located in the interior or on the rear side of the appliance.

• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.
• Avoid little ein installation:

- near heaters, next to a stove, direct sunlight or any other heat sources;

- at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;

- near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).

- Do not expose the appliance any weather.

Assembling the door hand, and holding the door ha

Remove the cover caps from the door outer side and tighten the handle with the delivered screws into the underlying holes. Put the included screw covers on.

Electrical connection Electrical connection

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric electric shockshock
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

CAUTION:CAUTION

In case of disconnection or power failure:

• Wait for approx. 5 minutes before restarting.
• Check the operation settings.

- Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

- Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reverse the Boreopingopening

If required, the door openings can be moved from the right (supplied condition) to the left side.

WARNING: WARNING:

When replacing the door stops, the appliance must be disconnected from the power supply. Always unplug the appliance first.

i NOTENOTE

• When installing, ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.

- Remove the cover caps on the top cover. Loosen the screws underneath and remove the top cover.

- Transfer the blind cap of the appliance cover at the opposite side.

- Dismount the upper door hinge. Open the appliance door a little and lift it out of the lower door hinge.

- Remove the dummy cap (B) and insert supplied dummy cap (A). Place the appliance door safely aside.

i NOTENOTE

Keep the dummy cap (B) for another possible door opening reverse.

- Tilt the appliance slightly backwards and block it in this position. Unscrew the feet.

Dismount the foot bracket and the lower door hinge.

- Tilt the appliance slightly backwards and block it in this position. Unscrew the feet.

- Attach the door hinge at the other appliance side,

after you have unscrewed the hinge pin and used it from the

other hinge side. Transfer and fix the foot bracket too. Turn in the feet accordingly.

- Replace the appliance upright. Put the appliance door on the hinge pin and fix it in its intended position.

- Transfer the upper door hinge at the opposite side, after you have unscrewed the hinge pin and used it from the other hinge side.

Put the hinge pin in the hole of

the appliance door and fasten the hinge.

• Replace the appliance cover, which you have removed at the beginning. Tight the screws and clip the screw covers on.
• Check if the door is aligned vertically and horizontally optimally so that the smooth opening and closing of the door is guaranteed.
• Dismount the door handle and attach it to the corresponding other door outer side. Refer to the instructions in "Assembling the door handle". Transfer the cover caps on the exposed holes to the respective other door outer side.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Storing food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

Startup / OperationStartup / Operatio

Prior to first use Prior to first use

CAUTION:CAUTION:

After transport, the appliance should be left standing upright for about 4 hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning".

Starting the appliance Starting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the following section "Settings".

Settings

The power levels [MIN-MAX] regulates the different values of the internal temperature. Turning the temperature control clockwise will lower the inside temperature.

CAUTION:CAUTION:

• Always pay attention to the storage instructions on the sales packaging.
• Make sure that the operating temperature does not rise above -18^ . For this, the unit should be defrosted regularly. A thick frozen layer deteriorates the cooling and increases the energy consumption.

The ✦ freezer allows you to store frozen food at a temperature of -18°C or colder for several months; to produce ice cubes and to freeze fresh food. Due to external influences such as ambient temperature, site, frequency of door opening and the amount of food, the temperature can affect the appliance.

Freezing

• 24 hours before freezing we recommend turning the temperature control to the highest power level and to keep this setting even after freezing for a few hours. The appliance is not compromised if the setting will not revert to a normal operating temperature after the freezing process, but for economic reasons you should possibly avoid it.
• Fresh food should be frozen as fast as possible to 4X the core. Therefore during freezing operation, the temperature of fresh food should be lowered as fast as possible in order to keep formation of ice

Setting MINSETtingNING NORMALGMO Setting MAXetting MAX

Lowest setting (warmest inside temperature)

Medium setting (optimal operating temperature)

Highest setting (coldest inside temperature)

crystals as little as possible and not to damage the food structure.

• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food Storing frozen food

• Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time, up to three months. This period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautions General safety precautions

• Do not exceed the maximum freezing capacity. See data under "Technical Data" and on the rating label.
• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not open the door in case of power failure. If the failure does not take longer than 15 hours, the food will not be affected.
• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the appliance can cause symptoms similar to burns if the skin is very sensitive.
• Never touch frozen food with moist or wet hands.

Operating noise Operating noise

Type of soundToUse
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off Switching off

To switch off the appliance disconnect of the appliance disconnect from the power supply.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Thoroughly clean the appliance (see "Cleaning").
• Leave open the appliance door to prevent unpleasant odours.

Tips for Energy saving

• Disconnect the appliance from the power supply if the appliance is not in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure sufficient ventilation at the bottom and rear side. Never block ventilation openings.
• Allow warm dishes to cool down before putting into the appliance.
• Do not adjust the temperature colder than necessary.
• Do not open the door longer than necessary.
• The appliance should be defrosted regularly.
• The seal of the appliance door must be completely intact, so that the door closes properly.

CleaningCleaning

WARNING: WARNING:

• Always switch off and disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components.

Risk of electric shock! Risk steel electrochemical damage the plastic parts.

- The appliance must be dry before restarting operation.

CAUTION:CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interiorCleaning the app

• Clean the appliance interior, the exterior surfaces and the door seal regularly with warm water and mild detergent.
• Remove for that the appliance content and storage at a cool location.
• After everything was thoroughly dried, you can restart the operation.

DefrostingDefrosting

CAUTION/CAUTION

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged.

A defect evaporator can cause serious damage.

To achieve better cooling and to save energy, defrost the appliance regularly as follows:

• To start the defrosting process, disconnect the appliance from the power supply.
• Remove the food items and keep covered at a cool location.
• When the ice has melted, wipe the condensate away and dry the appliance interior.

- Then you may restart the appliance by connecting the plug and turning the temperature control.

Troubleshooting Troubleshooting

Before you contact an authorized speciali before you contact an au

ProblemProblenCause / Action
Appliance is not working or not properly	- Insert the power plug correctly or check the fuse.- Check the temperature setting.- Check the ambient temperature.- Unblock the ventilation openings, install the appliance freely.
Stored food is too warm	- Check the temperature setting.- Open the door only as long as necessary.- Check the location.
Loud noise during operation	- Check the appliance position.- See the section “Operating noise”.
Water on the outer surface.	On days of high humidity, condensation might occur on the outer surface of the appliance. This is no malfunction!

NOTE:

If a problem still persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Electrical connection....

Mains voltage: 220-240 V\~

Mains frequency: 50 Hz

Power consumption: 80 W

Dimension H x W x D / Weight....

Appliance size: 144.0 x 55.4 x 55.1 cm

Net weight: ....approx. 47.0 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

BrandBrand	BOMANNBOMANN
ModelModel	GS 3181GS 3181
CategoryCategory	8
Energy Efficiency class2)	A++
Annual Energy consumption3) kWh/a	177
Net capacity cooling total I	-
- thereof cold storage compartment I	-
- thereof wine storage compartment I	-
- thereof cellar compartment I	-
- thereof storage compartment for fresh-food I	-
Net capacity freezing total I	160
Star rating4)	4
Design temperature of other compartments	-
Coldest storage temperature of wine storage compartment	-
Frost-free	-
Temperature rise time h	15
Freezing capacity kg/24h	12
Climate class5)	N/ST/T
Noise emission dB(A) re1 pW	41
Built-in	-
Wine storage appliance	-

1) Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances

2) A+++ (highest efficiency) to G (lowest efficiency)

3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.

4)* = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C

** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C

*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C

(^**) = food freezer compartment in which the temperature is not warmer than -18^ and a min. freezing capacity in 24h

5) Climate class SN: ambient temperature of +10°C up to +32°C

Climate class N: ambient temperature of +16°C up to +32°C

Climate class ST: ambient temperature of +16°C up to +38°C

Climate class T: ambient temperature of +16°C up to +43°C

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

Meaning of the "Dustbin" SymbolMeaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH Bomann Gm

www.bomann.dewww.bomann.de
