Product Type	Microwave Oven
Model	MO200MS
Brand	Gorenje
Category	Microwaves
Capacity	20 Liters
Power Output	700 W
Dimensions (W x D x H)	45.0 x 26.0 x 35.0 cm
Weight	10.5 kg
Power Supply	230 V ~ 50 Hz
Functions	Defrost, Timer, Auto Cook Menus
Control Type	Rotary Knobs & Push Buttons
Interior Light	Yes
Turntable	Glass Turntable, 245 mm
Child Lock	Yes
Auto Shut-Off	Yes
Cleaning	Wipe interior with damp cloth; use mild detergent
Maintenance	Keep door seals clean; replace waveguide cover if damaged
Spare Parts Availability	Glass turntable, roller ring, waveguide cover
Repairability Index	6.5 / 10
Energy Consumption (Standby)	< 1 W
Energy Consumption (Cooking)	0.7 kWh per hour

Frequently Asked Questions - MO200MS GORENJE

How do I set the timer on the Gorenje MO200MS?

Turn the timer knob clockwise to the desired time in minutes. The microwave will start automatically.

Can I use metal containers in the microwave?

No, metal containers cause sparks and damage. Use microwave-safe glass or plastic only.

How do I clean the interior of the microwave?

Wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. For odors, place a bowl of water with lemon slices and heat for 2 minutes.

What does the 'Defrost' function do?

The defrost function uses low power to thaw frozen food evenly. Set the weight and the microwave adjusts time automatically.

How do I activate the child lock?

Press and hold the 'Stop' button for 3 seconds until a beep sounds. To deactivate, repeat the process.

Why is my microwave not heating?

Check if the door is closed securely, the timer is set, and the power supply is working. If still not heating, the magnetron may be faulty.

Can I place the microwave on top of another appliance?

No, ensure the microwave is on a flat, stable surface with at least 10 cm clearance around it for ventilation.

How do I replace the turntable glass plate?

Purchase a compatible glass plate (245 mm). Remove the old one and place the new one on the roller ring.

What is the maximum cooking time?

The timer allows up to 30 minutes per session. For longer cooking, reset the timer.

Where can I download the manual?

The manual is available for free download at notice-facile.com under Gorenje MO200MS.

USER MANUAL MO200MS GORENJE

Exterior view of a silver microwave oven with dual control knobs (no visible text or symbols)

MO200MW

MO200MS

1 Sigurnosni sistem za zatvaranje vrata
2 Prozor pećnice
3 Otvori za zračenje
4 Ležajni obruč
5 Stakleni pladanj
6 Nadzorna ploča

Nadzorna ploča

1 Stakleni okretni pladanj
2 Prozor rerne
3 Otvori za zračenje
4 Ležajni obruč
5 Stakleno podnožje - pladanj
6 Nadzorna ploča

Pomagala

1. Nastavak (kvačilo): već postavljeno na osovinu motora na dnu rerne.

Before operating this oven, please read these instructions completely.

SPECIFICATIONS

Power consumption: 230 V \~ 50 Hz, 1080W

Output: 700W

Operating Frequency: 2450 MHz

Outside Dimensions: 454 mm (L) x 330 mm (W) x 262 mm (H)

Oven Cavity Dimensions: 315 mm (L) x 296 mm (W) x 211 mm (H)

Oven Capacity: 20 litres

Cooking Uniformity:....Turntable system (ø245 mm)

Uncrated Weight: ....Approx. 10,5 kg

Noise level: Lc < 58 dB(A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.

b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.

b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT THE NEAREST AUTHORIZED SERVICE AGENT.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your microwave oven as possible.
c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as:

3. Misaligned Door

4. Damaged Door
5. Dents or Holes in Door Window and Screen
6. Dents in Cavity

7. If any of the above are visible, DO NOT use the oven.

8. This Microwave Oven weighs 10,5 kg and must be placed on a horizontal surface strong enough to support this weight.

9. The oven must be placed away from high temperature and steam.

10. DO NOT place anything on top of the oven.
11. Keep the oven at least 20 cm away from both sidewalls and 30 cm away from rear wall to ensure the correct ventilation.
12. DO NOT remove the turn -table drive shaft.
13. As with any appliance, close supervision is necessary when used by children.
14. Make sure that the AC outlet is easily accessible so that the plug can be removed quickly in an emergency. Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing

provisions of the electrical safety standards are considered.

The product has to be correctly installed on earthed socket with a single-phase AC (230 V/50 Hz). WARNING! THIS APPLIANCE MUST BE EARTHED!

1. This oven requires 1.1 KVA for its input consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250V,8 Amp Fuse.

IMPORTANT INSTRUCTIONS

WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or excessive microwave energy:

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Never touch the surfaces of heating or cooking appliances.

They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

Microwave energy&High voltage! Do not remove the cover.

- WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

- WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

- WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

- WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

- Children should be supervised to ensure that they do not play with the appliance.

- Don't remove oven's feet, do not block air events of the oven.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

- The oven should be cleaned regularly and any food deposits removed;

• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table or worktop.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
• Never replace the light bulb inside the oven. It must always be replaced by Gorenje service.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other non-food items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not use the oven for home canning, Microwave ovens are not designed to permit proper canning. Improperly canned food may spoil and be dangerous to consume.
6. Do not cook eggs in the shell, as they will burst. Occasionally a poached egg may burst during cooking. Be sure to cook covered and let stand one minute after cooking before removing the cover.
7. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chichen livers, etc without first being pierced several times with a fork.
8. Do not insert any object into the openings on the outer case.
9. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
10. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Living ware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.

• Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Do not attempt to deep-fry foods in this oven.
• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.
  10,5. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
• Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
• When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
• Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

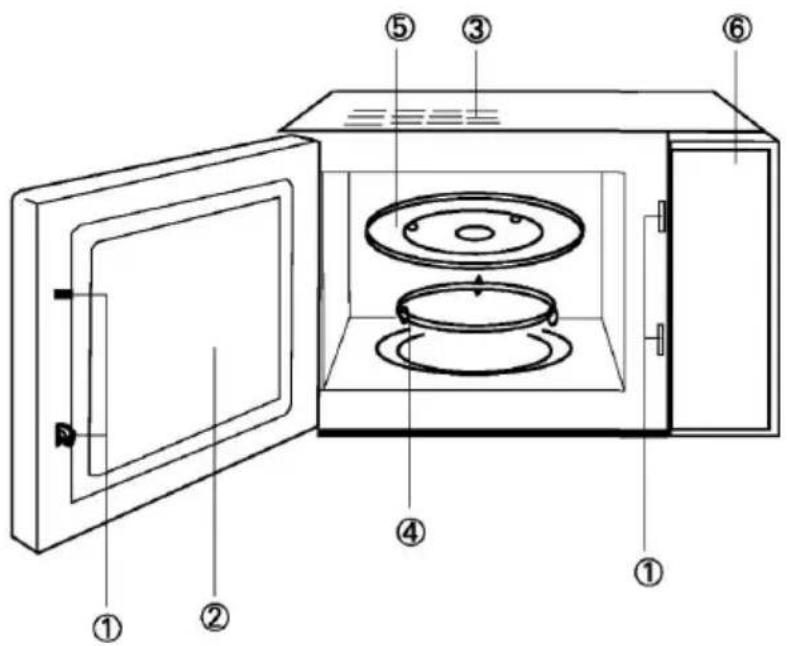

CONTROL PANEL

1 Door Safety lock system
2 Oven window
3 Oven Air Vent
4 Roller Ring
5 Glass Tray
6 Control Panel

1 Timer 0-30 Minutes
2 Power Select Control

QUICK LOOK UP GUIDE

1. Place the food in the oven. Select the power level by rotating the Cooking Power Control knob.
2. Select the cooking time by rotating the Timer knob.

If you want to defrost some food

1. Turn the cooking power control knob to" *".
2. Turn the timer knob to select the appropriate time.

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the color.

You can use your microwave oven to:

• Defrost
• Instant reheat
• Cook

Cooking Principle

1. The microwaves generated by the magnetron are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.

3. Cooking times vary according to the receptacle used and the properties of the food.

4. Quantity and density.

5. Water Content
6. Initial temperature (refrigerated or not)

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre
• The same temperature throughout the food

1. First place a bowl of water on the turntable.

2. Set the power level to high by turning Cooking Power Control knob.

3. Set the time to 4-5 minutes by turning the Timer knob. The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum is used, the water takes longer to boil.

WHAT TO DO IF YOU ARE IN DOUBT OR IF YOU HAVE A PROBLEM

If you experience any of the problems listed below, please try the solutions offered.

- This is normal:

Condensation in the oven Air flow around the door and outer casing Light reflected around the door and outer casing Steam escaping from around the door or vents.

- The oven does not start when you turn the timer knob

Is the door completely closed? The food is not cooked at all

Have you set the timer correctly.

Is the door closed

Have you overloaded the electric circuit and caused a fuse to blow or a circuit breaker to be triggered

• The food is either overcooked or under-cooked Was the appropriate cooking time set for the food Was an appropriate power level chosen
• Sparking and crackling occur inside the oven (arcing) Have you used a dish with metal trimmings Have you left a fork or other metal utensil inside the oven Is aluminium foil too close to the inside walls.
• The oven causes interference with radios or televisions Slight interference may be observed on televisions or radios when the oven is operating. This is normal, and to solve the problem, install the oven away from televisions, radios and aerials.

POWER LEVELS
High	700Watt
Medium High	539Watt
Medium	385Watt
Medium Low	252Watt
Low	119Watt
Defrost	252Watt

COOKING/REHEATING

The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended.

First place the food in the centre of the turntable. Close the door.

1. Set the power level to high by turning Cooking Power Control knob. (Maximum power: 700 Watt)
2. Set the time by turning Timer knob. Result: The oven light comes on and the turntable starts rotating.

You can change the power level during cooking, by turning the cooking power control knob.

STOPPING THE COOKING

1. To stop temporarily; Open the door. Result: Cooking stops. To resume cooking close the door.
2. To stop completely: turn the Timer knob to "0".

ADJUSTING THE COOKING TIME

1. Adjust the remaining cooking time by rotating the Timer knob.

MANUAL DEFROSTING OF FOOD

The defrost feature enables you to defrost meat, poultry and fish first place the frozen food in the centre of the turntable and close the door.

1. Turn the Cooking Power Control knob to defrost.
2. Turn the Timer knob to select the appropriate time. Result: Defrosting begins.

COOK-WARE GUIDE

COOK-WARE	MICROWAVE SAFE	COMMENTS
Aluminium Foil	Safe with care, see comments	Can be used in small quantities to protect area's of food against over cooking. Arcing can occur if too much foil is used or if foil is to close to oven walls
Browning Plate	Yes	Do not preheat for more than 8 minutes
China and Earthenware	Yes	Usually suitable unless decorated with a metal trim
Disposable Polyester and	Yes	Some frozen foods are packed in
cardboard dishes		these containers
Fast Food PackagingPolystyrene CupsPaper bags/NewspaperRecycled paper or metal trims	YesNONO	Can be used to warm food, but overheating may cause the polystyrene to meltMay catch fire May cause arcing
Glassware Oven to table wareFine GlasswareGlass Jars	YesYesYes	Can be used unless decorated with metal trimDelicate glass may crack if heated suddenlyMust remove the lid, suitable for warming only
Metal dishes Freezer BagTies	NONO	May cause arcing or fire May cause arcing or fire
Paper Plates, Cups,Napkins, Kitchen paperRecycled paper	Safe with care, see comments NO	For short cooking times and warming.Also to be used to absorb excess moisture May cause arcing
Plastic ContainersCling FilmFreezer Bags	YesYesSafe with care, see comments	Heat resistant plastic the most suitable. Other plastics may warp or discolour. DO NOT USE MELAMINE.Can be used to retain moisture, should not touch the food, and care should be taken when removing.Only if boilable or oven proof, should not be airtight always prick bag with a fork.
Wax or Grease PROOF Paper	Yes	Can be used to prevent spattering and to retain moisture.

DEFROSTING

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly turn up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of its wrapping, so thawed liquids can drain away.

Put the frozen food on a dish without a cover. Turn over halfway through defrosting, drain away any liquid, and remove giblets etc as soon as possible.

Check the food occasionally to make sure it does not feel warm.

If smaller and thinner parts of the frozen food start to warm up, they can be shielded using small strips of aluminium foil wrapped around them during defrosting.

Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for at least 20 minutes before continuing.

HINT: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this when home freezing.

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces
• Door and door seals
• Turntable and roller rings

Always ensure that the door seals are clean and the door closes

1. Clean the outside surfaces with soft cloth and warm soapy water.
2. Remove any splashes or stains on the inside surfaces and roller ring with a soapy cloth, rinse and dry.
3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turn table and heat for ten minutes at maximum power.
4. Wash, the dishwasher safe glass turntable, whenever necessary

DO NOT SPILL WATER IN THE VENTS. NEVER USE ANY ABRASIVE PRODUCTS OR CHEMICAL SOLVENTS. TAKE PARTICULAR CARE WHEN CLEANING, DOOR SEALS TO ENSURE THAT NO PARTICLES ACCUMULATE, PREVENTING THE DOOR FROM CLOSING PROPERLY.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances. For personal use only!

Additional recommendations for cooking with microwave and useful advices can be found on web side: http://www.gorenje.com

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

INSTRUCTIUNI GENERALE PENTRU SIGURANTA DVS.
