Product Type	Water dispenser
Brand	Princess
Model	Water Machine Top 283003
Dimensions (H x W x D)	Approx. 100 x 30 x 30 cm
Weight	Approx. 10 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption (Heating)	500-700 W
Power Consumption (Cooling)	Approx. 100 W (compressor) or 50 W (electronic)
Water Tank Capacity	Approx. 5 L (upper reservoir) + 5 L (lower reservoir)
Temperature Settings	Hot (85-95°C), Cold (5-15°C), Ambient
Main Functions	Hot water dispensing, cold water dispensing, child lock, drip tray
Water Type	Bottled water (top-loading) or direct connection via optional kit
Cooling Method	Compressor cooling (or thermoelectric, depending on variant)
Safety Features	Overheat protection, child lock, anti-drip valve
Maintenance	Descaling every 3 months, cleaning drip tray weekly
Recommended Cleaning Agent	White vinegar or citric acid for descaling
Accessories Included	Drip tray, water bottles (not included), user manual
Spare Parts Available	Drip tray, water taps, heating element, cooling fan
Reparability	Modular design, user-replaceable parts (e.g., drip tray, taps)
Country of Origin	China
Certifications	CE, RoHS

Frequently Asked Questions - Water Machine Top 283003 PRINCESS

How do I install the water bottle on the Princess Water Machine Top 283003?

Place the water bottle upside down onto the top of the dispenser. Ensure the cap is pierced and the bottle is seated securely. The water will flow into the upper reservoir.

How do I dispense hot water safely?

Press the child lock button first to unlock, then press the hot water tap. Always use a cup and avoid direct contact with steam. Keep children away from the hot water spout.

What should I do if the water tastes or smells bad?

Clean and descale the unit. Mix a solution of white vinegar and water (1:3) and run it through the system. Rinse thoroughly with fresh water. Also, replace the water bottle if old.

How often should I descale the water dispenser?

Every 3 months or more frequently in hard water areas. Descaling prevents limescale buildup that can affect performance and water quality.

Why is the water not cooling?

Check if the cooling switch is on. Ensure the unit is plugged in and the compressor (if applicable) is running. If the problem persists, the cooling system may need professional repair.

Can I use a hot water tap immediately after the unit is plugged in?

No, wait until the heating indicator light turns on (usually 5-10 minutes). The hot water tank needs time to heat the water to the set temperature.

How do I clean the drip tray?

Remove the drip tray and wash it with warm soapy water. Rinse and dry thoroughly before reinstalling. Clean weekly to prevent bacteria buildup.

What type of water can I use?

Only use clean, potable bottled water. Do not use carbonated or mineral water with high mineral content as it may cause clogging. Some models support direct water line connection with a filter.

How do I reset the child lock?

The child lock automatically resets after a few seconds of inactivity. To disable it temporarily, hold the child lock button for 3 seconds. Refer to the manual for your specific model.

Where can I find spare parts for this model?

Spare parts such as drip trays, taps, and heating elements are available from the Princess website or authorized retailers. Use the model number 283003 to search.

USER MANUAL Water Machine Top 283003 PRINCESS

Symbolic emblem of a crown with a vertical line above it, enclosed in an oval frame (no text or numbers present)

PRINCESS®

Close-up of a white fluid injection pump component with blue directional arrow indicating flow or movement (no text or symbols visible)

Fig. 1

Fig.2

Close-up of a KOLDICKS(100% CO2) gas cylinder with a dial indicator (no visible text or symbols on the object itself)

Fig. 5

Fig. 6

Water Machine Top apparatus is a drinking micro filtered water fountain connected directly to the water main.

It supplies n. 3 waters: room temperature water + cold water + cold carbonated water.

ENVIRONMENTAL CONDITIONS

While waiting for installation, the apparatus must be stored in a vertical position (see arrow on the packaging, if wrapped) at a temperature of between 5° and 35°C. Maximum humidity without condensation, 80%.

POSITIONING

The machine can be positioned in an internal, domestic, office or laboratory-type room, etc., on a level surface sufficiently resistant to support its weight or on the special accessory unit.

There should be electrical and water supplies near to the machine which correspond to the specifications supplied by the manufacturer. Ensure a perimeter space of at least 7 cm for adequate ventilation; for the upper part, there should be a space of at least 7-10 cm.

If the apparatus has been transported or placed in a non-vertical position, its efficiency will have been compromised.

The electrical supply cable and the water supply tube should not be obstructed. Location of the apparatus near to sources of direct or indirect heat, or above other apparatus or domestic electrical appliances is forbidden.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

List of additional features:

ACCESSORY DESCRIPTION		TOP
	Connection Kit	√
	Pressure CO2 Reducer	√
	CO2 Cylinder monouse 600 gr.	√
	Filter	√

After positioning the machine, proceed to the operations of connecting the supply. Comply with the national regulations in force in the country of installation and common sense.

1. WATER CONNECTIONS

At the moment of connecting the dispenser, if the pressure of the main is higher of 3.5 bar (350000 Pa) install the water pressure reducer (optional) checking that it is calibrated at 3 – 3.5 bar (300000-350000 Pa).

Proceed as follows:

a. a water shut-off cock must be inserted at the junction point.

The mains water supply must guarantee:

- that it is not subject to high pressure surges;

- min. pressure 1,5 bar (150000 Pa);

Avoid temporary connections

b. Only use pipe fittings certified for foodstuffs like those supplied (for food use) with the apparatus.

Proceed as follows:

- connect the water inlet coupling to the shut-off cock of the water mains;

- join the supply pipe (supplied) to the quick release water inlet on the machine.

Position the end of the cold water outlet pipe in a suitable recipient, open the water and flush through with at least 10 litres to clean out the pipes and filter.

If the water supply line has to be longer than 4-5 m, it should be made with a pipe of a larger section and the pipe supplied only used to join the apparatus and any accessories

2. ELECTRICAL CONNECTIONS

Observe the general installation, preparation and start-up regulations for electrical plants in force in the country in which the apparatus is installed. Pay special attention to the earthling system.

In order to ensure the safety of people and the apparatus, respect the following rules.

Warning

Check that the features of the power supply are compatible with the technical data of the apparatus.

Use of extensions, adapters or joins in the cable are prohibited.

After checking that the features of the electrical installation satisfy the indications of the manufacturer, proceed as described:

A) Consult the paragraph "First start-up" (page 18) before inserting the (male) plug into the electrical socket.

B) The apparatus must be positioned so that the plug connecting it to the electrical system is easily accessible during normal use.

FILTER

Is essential the use of a filter for the Water machine correct functioning.

The filter have to be positioned on the back side of the machine as in the following images.

Close-up of a metallic industrial device with blue directional arrow indicating flow or movement (no readable text or symbols)

Pict. 1

Pict. 2

Pict. 3

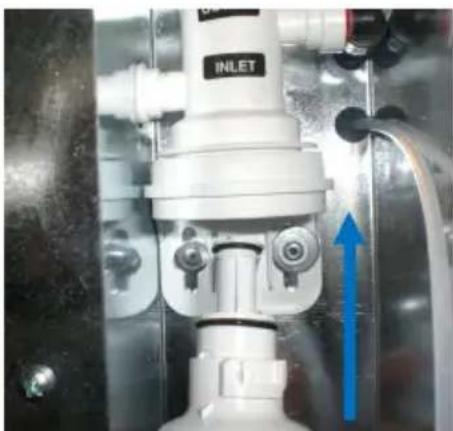

Fig. 1 – Filter Insertion

Fig. 2 – Complete Insertion

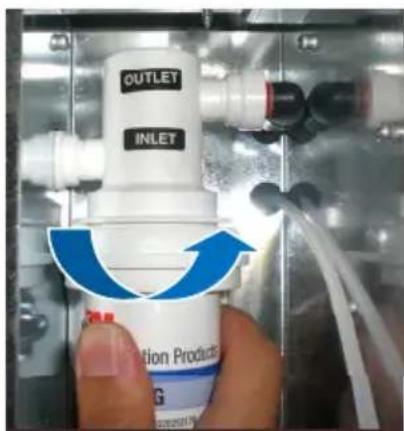

Fig. 3 – Rotation for fasten the filter

For filter substitution do the previous practice on the contrary.

The filter have to be replaced after 4000 liter use or after 12 month from the first start-up.

Every time the filter is changed it is a good idea to note the date of replacement or to write it directly on the new filter in indelible ink.

[Photos reproduced on this manual are only indicative. This photos refers to various model so some components can be different or in a different position].

Pict. 4

1) Electromechanical thermostat with knob
2) On/off switch
3) Electrical power supply
4) Inlet Coupling for water from the main water supply
5) Inlet Coupling for CO2

Electromechanical thermostat functioning

By rolling the knob in a clockwise direction right to the end the thermostat will reach a position in which the water is chilled to the extreme cold temperature.

By rolling the knob in a counterclockwise direction the thermostat will reach a position in which the water is chilled to the lowest temperature.

Warning: by forcing further and in a counterclockwise direction the knob rotation one may eliminate definitely the refrigerating loop functioning

FIRST START UP

It is important to identify the model of the fountain before starting, and to scrupulously follow the specific start-up procedures for the specific model. Failure to do so may result in serious damage to the equipment.

After making the water and electrical connections, proceed as follows:

1. place a container under the supply tap;
2. open the water shut-off cock;
3. plug into the electrical supply;
4. open the room temperature water tap;
5. open the CO₂ gas (see the paragraph "Use of the equipment", page 19);
6. switch on the machine;

7. wait until the pump stops working;

8. let flow 3-5 litres of room temperature water and cold water to clean completely the circuits from the solution of sanitization;

9. dispense the water using the carbonated water button for 3-5 litres; pay attention to let flow as a maximum one litre at a time;
10. wait for about two minutes after the pump has stopped and then repeat the operation for several times;
11. wait for about 1 hour before dispensing carbonated cold water;

NOTE Water pump doesn't work if the pressure CO_2 reducer is in closed position. To dispense carbonated water always make sure that the pressure CO_2 reducer is open. If the pressure reducer is closed the pump doesn't work and the machine will dispense cold still water.

DESCRIPTION OF THE EQUIPMENT

Water Machine Top is an apparatus to chill drinking micro filtered water to install on the counter.

USE OF THE EQUIPMENT

In order to switch on the machine use the button to the rear of the apparatus (picture 4, page 18).

The temperature is regulated by rotating the knob back the machine. By rotating the knob in a clockwise direction the water temperature will be reduced. By rotating the knob in a counterclockwise direction the water temperature increases. The complete knob rotation determines a different temperature set in with a variable range between a minimum of 5^ C and a maximum of 10^ C.

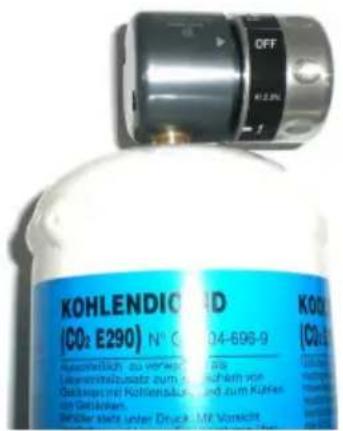

OPENING THE CO₂ CYLINDER

Close-up of a Kooldoxide (coated) gas can with a metallic dial and cap, no visible text or symbols on the can itself.

Pict. 5

Pict. 6

a) Hold the pressure reducer (Pict. 5) firmly with one hand. With the other hand, tighten the CO2 gas bottle as much as possible, keeping mono-use CO2 gas bottles in a vertical position (Pict. 6).
b) At this stage, pay close attention to the tube connected to the pressure reducer which must never be pulled or compressed.

Any gas leak during this operation is normal. However, a continuous leak after the bottle has been completely tightened is NOT normal. Make sure that you have tightened the bottle properly!

WARNING. Exposure to the CO_2 jet may cause burns due to the very low temperature of the gas.

c) Position the bottle in the most appropriate housing, if possible near to the fountain.

About 1 hour after tightening the bottle, the apparatus is ready to dispense water. The correct position for the installation and removal of the bottle is the vertical one with the pressure reducer above and the bottle underneath.

NOTE

In addition to being linked to reaching the optimal temperature of the refrigerator, the quality of carbonation also depends on the physical characteristics of the water used. It takes about 1,5 hours to obtain optimal carbonation (without extracting either cold or carbonated water in the meantime) from the time of connection of the fountain to the electricity supply.

All maintenance operations, whether ordinary or extraordinary, must be carried out with the equipment switched off and the electricity and water supplies deactivated. In particular, it is opportune that, at every change of filter, the reading of the litre counter (if installed) and the date of the replacement are recorded.

The following list is a guide to the scheduled operations which should be carried out on the apparatus, according to the frequency suggested.

Part of the apparatus	Type of operation	Frequency of operation
		Daily Weekly		Every 6 months	Annual
Front and bodywork	Cleaning sanitisation	●
Distribution spout			●

NOTE

The times given in the table are indicative and refer to normal conditions of use. Always, refer to the hygiene regulations of the location (local and/or national). The frequency of the intervention is directly proportional to how much the machine has to work, that is, the quality of the mains drinking water supply.

CLEANING

Scrupulous cleaning is essential to keep the apparatus in good condition. General cleaning of the machine must be carried out with the machine off, using non-corrosive detergents, diluted in water and with a sponge or damp cloth. Do not use solvent- or alcohol-based products. The level of protection of the electrical apparatus ensures protection from splashes; please avoid water contact with electrical connections, switches, buttons, etc.

SANITISATION OF THE APPARATUS

The apparatus must be sanitised from time to time (completely every 6 months of use) to avoid possible bacterial contamination.

You can buy sanification kit from authorized reseller.

SANITISATION OF THE FOUNTAIN TERMINAL

If the apparatus is left unused for a long period, the following procedure must be followed when it is turned on again:

a) flush through with at least 5 litres of water;
b) sanitise the fountain at each change of water filter, or when the apparatus has been unused or not supplied for one or more weeks;
c) to sanitise, put a sanitising product in the coil of the fountain;
d) sanitise the fountain spout by loosening it and immersing it in a liquid food sanitiser for 10-15 minutes. Rinse the items, fit them back into the ring-nut and tighten them.

PROBLEMS CAUSES SOLUTIONS
The fountain does not supply water	Main water tap closed Open the tap
	Mains water connection pipe compressed or constricted	Correct the path. Remove any obstruction or constriction
	No electricity supply	Check that the plug is correctly inserted in the socket on the back of the fountain
The fountain supplies little water	The filter is blocked	Replace the Filter. Contact qualified staff.
	Low water pressure at inlet	Contact the technical assistance service
The fountain does not cool very much	Check position of thermostat	Lower the temperature by turning the thermostat knob
	The rear ventilation grill could be blocked by dust	Move the fountain, removing the rear part away from the wall
	The perimetral space for an adequate ventilation is not enough	Move away the dispenser from the wall.

GARANZIA / WARRANTY

he device is guaranteed from material/manufacturing flaw for 24 month since the date of purchasing. The warranty right have to be established by a receipt/ fiscal document issued from an authorised retailer, furnished at the moment of buying and have to report the machine model, the date of purchasing and the retailer business name.

The warranty don't cover damage coming from a wrong or not adequate use of the device, from reparations realized by authorized staff and from potential falls of the machine. Warranty do not cover potential indirect damages to objects/human beings caused by a device abnormal functioning.

INSTRUCTIONS FOR THE END USER

If this symbol is represented on the disposal device and/or on the user manual comply with the following indications:

- at the end of his life the device have to be sell off in a eco-friendly way, so that the equipment and his components can be reused and recovered as widely as possible.

- Don't dispose of the device throwing it away as a common garbage without a separate collection: consign it to a

authorized retailer or a gathering place.

- Contact the local council for further information on available modality of delivery and collections.

To sell off the device even if is still functioning or it can be repaired easily make sure that the water dispenser can be reused.

For further information on this subject please visite our web-site:

www.princess.nl

European directives in force:

• 2002/95/CE
• 2002/96/CE

PRINCESS HOUSEHOLD APPLIANCES BV

LIESBOSLAAN, 57 4813 EB BREDA NL TEL. [phone]
