GX55 - Computer Mouse Natec - Free user manual and instructions

Product Type	Computer mouse
Model	GX55
Brand	Natec
Interface	USB wired
Cable Length	1.5 m
Sensor Type	Optical
Resolution	1000 DPI
Number of Buttons	3 + scroll wheel
Ergonomic Design	Yes, for right-handed use
Dimensions (W x D x H)	120 x 70 x 38 mm
Weight	100 g
Power Source	USB bus powered
Compatible Operating Systems	Windows, macOS, Linux
Color	Black
Cable Material	Braided fabric
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids
Safety Warnings	Keep away from water; do not disassemble
Spare Parts Availability	Contact Natec support for replacement cable or feet
Repairability	Limited; user-replaceable parts not available

Frequently Asked Questions - GX55 Natec

How do I connect the Natec GX55 mouse to my computer?

Plug the USB cable into an available USB port on your computer. The mouse should be automatically detected and ready to use. No additional drivers are required for basic functionality.

Is the GX55 mouse compatible with macOS?

Yes, the Natec GX55 is compatible with macOS, Windows, and most Linux distributions. It works as a standard HID device.

How do I clean my Natec GX55 mouse?

Unplug the mouse. Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution to wipe the exterior. Avoid getting moisture into the sensor or buttons. Do not use abrasive cleaners.

Can I adjust the DPI on the GX55?

The GX55 has a fixed resolution of 1000 DPI. There is no on-the-fly DPI adjustment button. You may adjust pointer speed in your operating system settings.

What do the three buttons do?

Left and right buttons perform standard clicks. The scroll wheel can be used for scrolling and as a middle button click. No additional side buttons are present.

Does the mouse work on a glass surface?

The optical sensor is designed for opaque surfaces. It may not track well on glass or glossy surfaces. A mouse pad is recommended for optimal performance.

Is the cable detachable?

No, the cable is permanently attached to the mouse. It cannot be replaced without opening the device, which may void the warranty.

How long is the warranty for the GX55?

Typical warranty period is 2 years from the date of purchase. Keep your proof of purchase for any warranty claims.

Can I use the mouse for gaming?

The GX55 is a basic office/home mouse. It is not designed for gaming but can be used for casual games that do not require high precision or extra buttons.

What should I do if the cursor moves erratically?

Check that the sensor is clean and free of debris. Try using the mouse on a different surface, such as a mouse pad. If the problem persists, restart your computer or try another USB port.

USER MANUAL GX55 Natec

EN - NATEC GENESIS GX55 - USER MANUAL

I. Introduction

Natec Genesis GX55 is a wired gaming mouse with 9 fully customizable buttons, high precision optical engine and comfortable design.

II. Features

• High-end optical engines, positioning precision
• Adjustable resolution up to 3200DPI
• Different LED indicator colors, which depend on resolution
• Two modes of LED lightning: full lightened and breathing.
• 9 fully programmable keys – more than 40 setting to choose for each
• Adjustable polling rate: 125/250/500/1000 Hz.
• Advanced profiles management
• Ergonomic design.

III. Driver description

A. System

• Compatible with Windows XP/Vista/7 operation system
• USB (1.1/2.0) port
• CD-ROM drive
• 30 MB of hard disk space

B. Windows XP/Vista/7 installation guide

1. Insert the Genesis GX55 gaming mouse USB plug into the computer USB port
2. Insert the Genesis GX55 driver CD into the CD-ROM drive
3. When the screen shows install the program, click next
4. Select the install path, then click next
5. Installing
6. When the screen shows installation finished, click finish
7. Restart the computer.

IV. Mouse configuration

A. Main Control

Main control tab allows you to assign individual functions to each button and restore default settings.

You can bind one of more than 40 functions to keys labeled by numbers on the schema above. In the middle of the window, you can see actual configuration of the buttons. Each position on the list is in fact a combo box, from which you can choose a preferred function for an individual button.

Restoring factory defaults

To restore factory defaults, click reset on the main control window. Warning – resetting the configuration will delete all settings and macros stored in the driver!

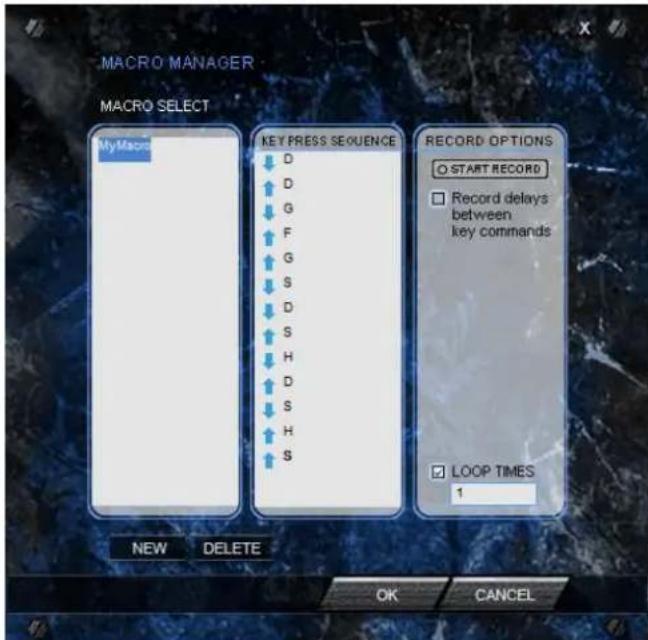

Defining Macros

In brief speaking, a macro is a series of actions that you can bind to the keyboard. More precisely, macro is a recorded sequence of key presses, releases and time delays between them. Output delays can be recorded or predefined by user.

To define a macro, you have to choose from available function list assign macro, and then macro manager.

Adding a macro:

1. Click new
2. Choose name for your macro
3. Click start record
4. Press desired sequence of keys
5. Press stop record

Now you can assign your macro to the key by selecting it from group assign macro on the list related to the programmed key.

Deleting macros:

1. Open macro manager

2. Choose a macro from the list

3. Click delete

Additional options:

Record delays between key commands – you can choose whether to record time intervals between pressing and releasing the keys

Loop times - you can define how many times macro should be used after single button press.

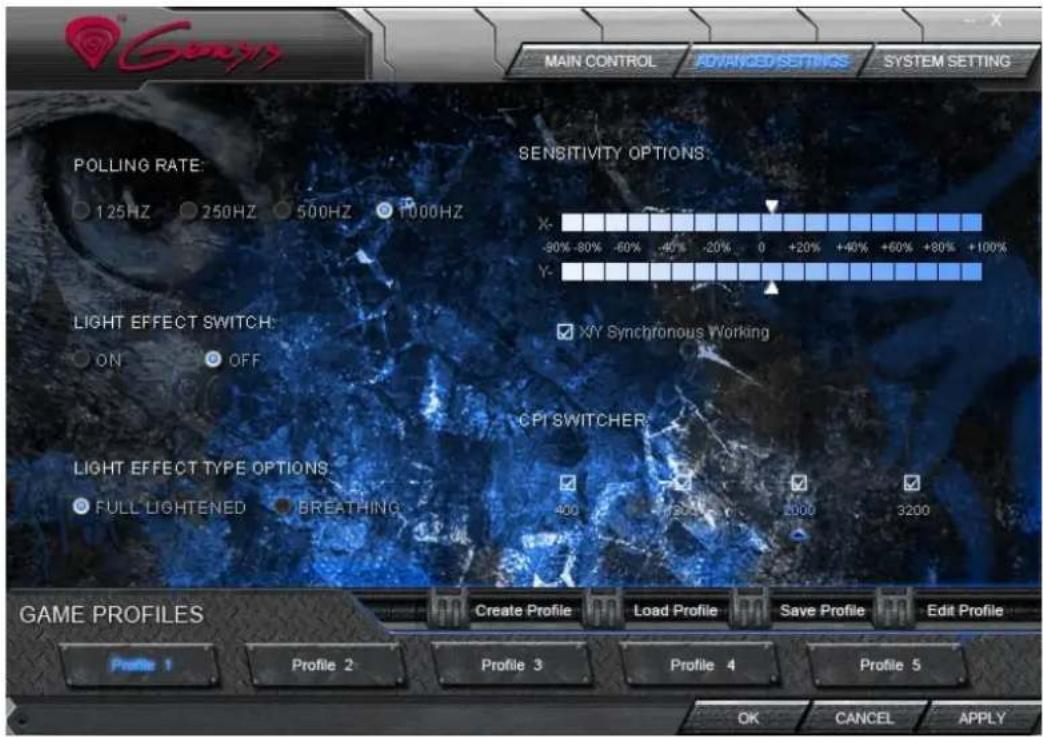

B. Advanced Settings

In this tab, you can adjust settings related to the way the mouse works – such as precision or sensitivity.

Polling rate – defines how often the mouse sends information of its position to the computer. Available options: 125/250/500/1000Hz

Light effect switch - turns on/off light effects on the mouse

Light effect type options – allows you to choose the type of LED effects of the mouse. Full lightened option causes constant luminance of diode while color changing; breathing setting means that the diode will slowly pulse.

Sensitivity options - using the sliders you can adjust sensitivity for axis X and Y at once (when X / Y synchronous working box is checked) or separately (if unchecked).

CPI Switcher - defines the resolution (CPI - counts per inch) of the mouse. Available options - 400/1200/2000/3200 CPI

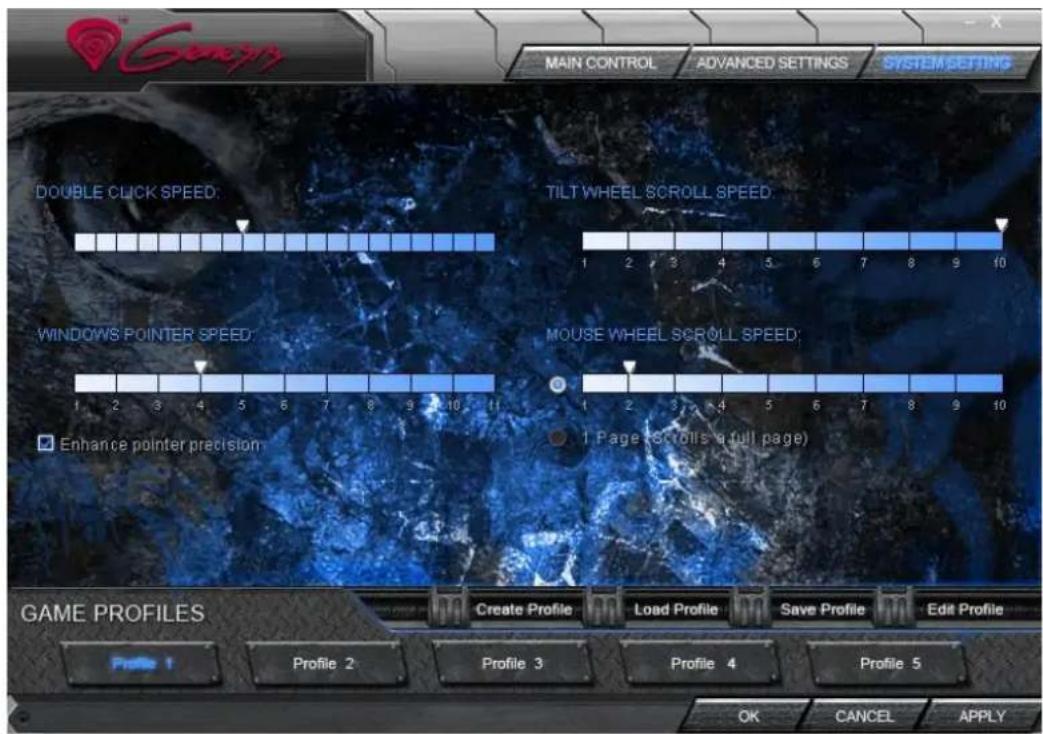

C. System Settings

The settings here are related rather to an operation system, not the hardware itself. System settings allow you to change the way your system interprets signals from the mouse.

Double click speed - defines how short time interval between two clicks should be to interpret them as a double click

Windows pointer speed – allows you to change the speed of the screen cursor Enhance pointer precision – provides slight support in precise movement of the cursor

Tilt wheel scroll speed - defines the speed of horizontal scrolling

Mouse wheel scroll speed – defines the speed of vertical scrolling. You can adjust using the slider or choose option 1 Page, which will cause full pages scrolling.

D. Profile management

Natec Genesis GX55 allows you to create different profiles of settings and assign them to individual games or applications. Up to five profiles can be stored in the driver – other have to be saved to your hard disk. Switching between profiles is possible by the driver interface, mouse buttons with assigned profile-related functions or automatically – by launching an application linked to the profile.

Creating a profile

1. Click create profile on the driver interface
2. Type the name for the profile
3. In the path to executable box insert path to the executable file (.exe) of the application you want to be assigned to the profile

Editing a profile

1. Click edit profile on the driver interface
2. Edit the name and path to assigned application accordingly to your needs

Saving a profile

1. Click save profile on the driver interface
2. Choose the folder you want to save profile to and name for the file

Loading a profile

1. Click load profile on the driver interface
2. Choose the file with the profile you need

V. General

• Non-authorized repairs or taking the device to pieces make the warranty void and may cause the product damage.
• Do not use the product in low and high temperatures and in the dusty atmosphere.
• Do not connect / disconnect the product to / from a computer when it is on.
• The safe product, conforming to the EU requirements.
• The product is made in accordance with RoHS European standard. The standard was issued in order to decrease the amount of the electronic and electrical waste emitted into the atmosphere.
• The WEEE symbol (the crossed-out wheeled bin) using indicates that this product in not home waste. You protect the environment when you recycle hazardous waste appropriately. In order to get detailed information about recycling this product please contact your retailer or a local authority.
