Notice Ubiquiti Networks UVC-PRO - page 1
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Indoor/Outdoor IP Security Camera
Model UVC-Pro
Video Resolution 1080p Full HD (1920x1080)
Lens 3x Optical Zoom, f=3-9 mm
Video Compression H.264
Maximum Frame Rate 30 FPS
Infrared Yes, for night vision
Sensor 3M WDR Sensor
View Angle (Horizontal) 81.0° (wide) to 27.9° (tele)
View Angle (Vertical) 44.4° (wide) to 15.7° (tele)
View Angle (Diagonal) 94.0° (wide) to 32.1° (tele)
Dimensions 322 x 100 x 100 mm (12.67 x 3.93 x 3.93 in)
Weight 2.15 kg (4.73 lbs)
Power Method Passive PoE (48V, 0.5A) or 802.3af
Power Adapter 48V, 0.5A PoE adapter included
Max Power Consumption 12.5 W
Ethernet Port 10/100 Ethernet with waterproof gland
Protection Rating IP67 waterproof
Operating Temperature -40 to 50°C (-40 to 122°F)
Operating Humidity 20 - 90% non-condensing
Mounting Options Wall, pole, or ceiling (mounting kit included)
Processor ARM 1136J-S 528 MHz
Memory 256 MB DDR3, 256 MB Flash
Certifications CE, FCC, IC
Package Contents Camera, PoE adapter, power cord, hex keys, metal strap, screws, anchors, Ethernet sleeve, mounting template, quick start guide
Warranty 1-year limited warranty
Maintenance Clean lens with soft dry cloth; avoid pointing at sun
Security Features Factory reset button, password-protected web interface, HTTPS access
Optional Accessories Cable accessory (UVC-Pro-C), Large pole mount (UVC-Pro-M)

Frequently Asked Questions - UVC-PRO Ubiquiti Networks

How do I reset the camera to factory defaults?
To reset the UniFi Video Camera PRO, short the two reset pins using a hex key or an electric conductor. Refer to the hardware overview diagram for pin location.
What is the default IP address if no DHCP server is available?
If no DHCP server is present, the camera defaults to the IP address 192.168.1.20.
Is the camera weatherproof?
Yes, the UniFi Video Camera PRO has an IP67 waterproof rating, making it suitable for outdoor use. Ensure the waterproof gland is properly tightened to prevent water ingress.
What power supply is required?
The camera supports Passive PoE (48V, 0.5A) or 802.3af. A 48V PoE adapter is included in the package.
Can I use the camera without the UniFi Video software?
Yes, the camera can be used as a stand-alone device. You can access the Camera Configuration Interface directly via a web browser using the camera's IP address (default credentials: username ubnt, password ubnt).
How do I adjust the camera view after installation?
The camera features a 3x optical zoom lens. The physical camera head can be adjusted by hand. For fine-tuning, use the UniFi Video software or the web interface.
What is the maximum Ethernet cable length for PoE?
For reliable PoE transmission, use shielded Ethernet cable (minimum CAT5) and keep cable runs under 100 meters (328 feet).
Is the camera compatible with third-party NVRs?
The camera uses standard protocols (H.264, RTSP) and can be integrated with many third-party NVRs. However, full functionality requires the UniFi Video software or an UniFi NVR (sold separately).
How do I mount the camera on a pole?
Use the included metal strap: open the strap by turning the locking screw counterclockwise, slide it through the back of the camera, wrap around the pole, and tighten the screw clockwise. A screwdriver or 7 mm socket driver is required.
What is the warranty period?
The Ubiquiti Networks UVC-Pro comes with a 1-year limited warranty covering defects in material and workmanship. Warranty conditions apply; see the full manual for details.

User questions about UVC-PRO Ubiquiti Networks

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Security Camera in PDF format for free! Find your manual UVC-PRO - Ubiquiti Networks and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. UVC-PRO by Ubiquiti Networks.

USER MANUAL UVC-PRO Ubiquiti Networks

natural_image Exterior view of a white cylindrical security camera with lens and mounting flange (no text or symbols visible)

UniFi®

Video Camera

Ubiquiti Networks UVC-PRO - 1

1080p Indoor/Outdoor IP

Camera with Infrared and

3x Optical Zoom

Model: UVC-Pro

Introduction

Thank you for purchasing the Ubiquiti Networks™ UniFi® Video Camera PRO. This Quick Start Guide is designed to guide you through the installation of the camera and show you how to access the Camera Configuration Interface. This Quick Start Guide also includes the warranty terms.

The UniFi® Video software and User Guide are available for download at downloads.ubnt.com/unifivideo

Package Contents

Ubiquiti Networks UVC-PRO - Package Contents - 1

natural_image Exterior view of a white cylindrical mechanical component (no text or symbols visible)

Camera PoE Adapter

Ubiquiti Networks UVC-PRO - Package Contents - 2
(48V, 0.5A)

Ubiquiti Networks UVC-PRO - Package Contents - 3
Power Cord Hex

Ubiquiti Networks UVC-PRO - Package Contents - 4
Keys

Ubiquiti Networks UVC-PRO - Package Contents - 5
Metal
Strap

Ubiquiti Networks UVC-PRO - Package Contents - 6
Pan Head Screws (M4x30, Qty. 4)

Ubiquiti Networks UVC-PRO - Package Contents - 7
Screw Anchors (Qty. 4)

Ubiquiti Networks UVC-PRO - Package Contents - 8
Ethernet Sleeve

Ubiquiti Networks UVC-PRO - Package Contents - 9
Mounting Template

Ubiquiti Networks UVC-PRO - Package Contents - 10
Quick Start Guide

Installation Requirements

Wall-Mounting:

  • Drill
  • Drill bit, 7 mm
    • Hole saw, 45 mm (optional)
    • Phillips screwdriver

Pole-Mounting:

- Screwdriver or 7 mm socket driver

TERMS OF USE: Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is designed for outdoor installations. It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

Optional Accessories

Ubiquiti Networks offers additional accessories that can be purchased for use with the UniFi Video Camera PRO. For accessory installation instructions, refer to the Quick Start Guide that accompanies the product.

Cable Accessory (UVC-Pro-C)

The UniFi Video Camera PRO Cable Accessory provides additional connectivity options for UniFi Video Camera PRO, including audio in/out and mFi® mPort options. There is also a reset button and PoE/Ethernet connector.

Audio In/Out Reset mPort POE/Ethernet Connects to UVC-Pro

Large Pole Mount (UVC-Pro-M)

The UniFi Video Camera PRO Large Pole Mount accommodates larger poles up to 160 mm wide.

Ubiquiti Networks UVC-PRO - Large Pole Mount (UVC-Pro-M) - 1

natural_image Three white plastic mechanical components with mounting holes and threaded connectors, shown from different angles (no text or symbols visible)

Hardware Overview

Camera Adjustment

Adjusts Camera Up or Down Rotates Camera Rotates Base

Waterproof Gland

The UniFi Video Camera PRO has a waterproof gland for connecting Ethernet. Below are the components that make up the waterproof gland:

Compression Nut Housing Seal Ethernet Connector Reset Pins

To reset the UniFi Video Camera PRO to factory default settings, use the hex keys or an electric conductor to short the pins. (The two Reset Pins are called out in the diagram above.)

Installation Overview

The installation process differs depending on if you are mounting the camera on a wall or on a pole. Follow the instructions for the installation that you are performing.

Wall Mount

  1. Remove the adhesive Mounting Template from the backing and place the label on the wall where you want the camera.

Ubiquiti Networks UVC-PRO - Wall Mount - 1

natural_image Pure white circular shape with no text, numbers, or symbols
  1. Use a 7 mm drill bit to drill the four anchor holes in the wall. (Optional) If threading the cabling through the wall, drill the center hole using a 45 mm hole saw.

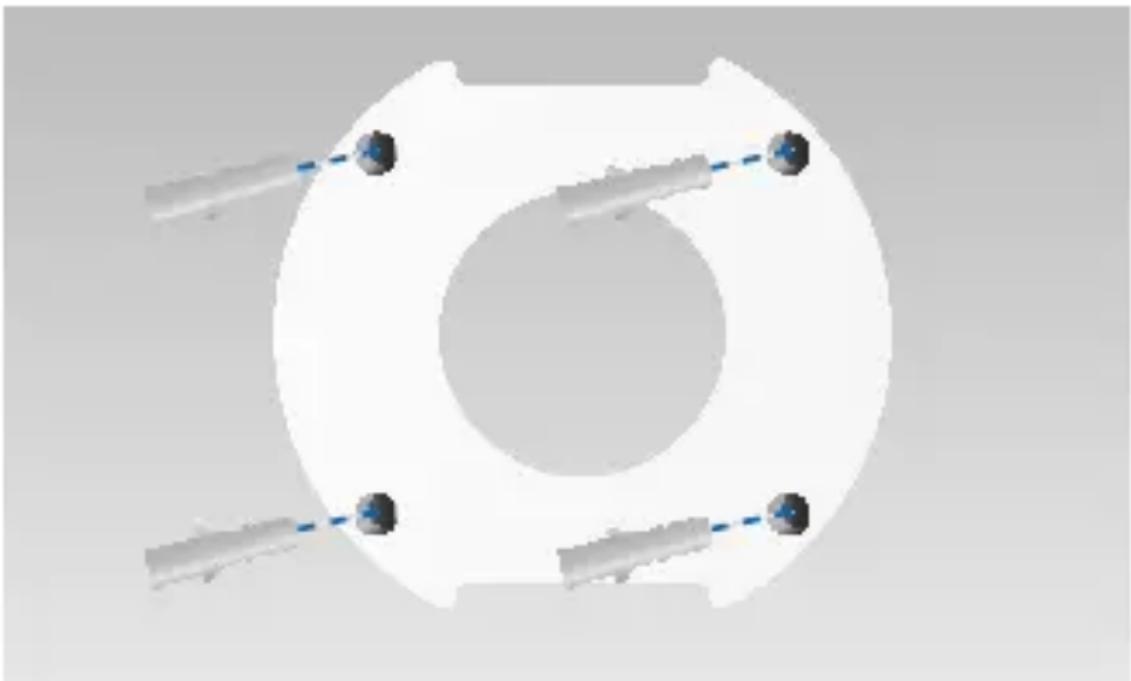

  2. Insert the four Screw Anchors into the wall.

Ubiquiti Networks UVC-PRO - Wall Mount - 2

natural_image Pure mechanical component diagram without any text, numbers, or symbols
  1. Thread the cabling through the wall or one of the recessed areas on the Mounting Bracket Base.

Ubiquiti Networks UVC-PRO - Wall Mount - 3

natural_image 3D rendering of a white cylindrical mechanical component with a black end cap and flange (no text or symbols visible)

Ubiquiti Networks UVC-PRO - Wall Mount - 4

natural_image White cylindrical device with a vertical rod extending upward, against a neutral background (no text or symbols visible)

Ubiquiti Networks UVC-PRO - Wall Mount - 5

Note: There are two recessed areas for an Ethernet cable on the Mounting Bracket Base. Place the Ethernet cable in the recessed area closest to your power source.

  1. Use a Phillips screwdriver to secure the camera to the wall with the four Pan Head Screws.

Ubiquiti Networks UVC-PRO - Wall Mount - 6

natural_image 3D rendering of a cylindrical mechanical component with internal features and mounting points (no text or symbols visible)

Proceed to "Connecting Power and Ethernet".

Pole Mount

To mount the camera on a pole, use the included Metal Strap:

  1. Open the Metal Strap by turning the locking screw counter-clockwise.

Ubiquiti Networks UVC-PRO - Pole Mount - 1

natural_image 3D rendered image of a metallic ring with blue dashed arrows indicating rotation or movement (no text or symbols)
  1. Slide the Metal Strap through the back of the camera.

Ubiquiti Networks UVC-PRO - Pole Mount - 2

natural_image 3D rendering of a robotic arm joint with visible internal components and motion arrows (no text or symbols)
  1. Wrap the Metal Strap around the pole. Use a screwdriver or 7 mm socket drive to turn the locking screw clockwise and securely fasten the strap to the pole.

Ubiquiti Networks UVC-PRO - Pole Mount - 3

natural_image Mechanical assembly diagram showing a cylindrical component with a tool inserted, no visible text or symbols

Connecting Power and Ethernet

  1. Disassemble the waterproof gland by turning the Compression Nut counter-clockwise.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 1

natural_image Close-up of a black electric vehicle charging plug with a curved cable, showing no text or symbols.
  1. Seperate the Seal from the Housing.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 2

natural_image Two black cylindrical objects connected by a dashed blue arrow, no text or symbols present
  1. Insert the Ethernet cable through the Compression Nut and the Housing. Ensure the threads of the Compression Nut face the notches on the Housing.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 3

natural_image 3D rendering of a mechanical component with two cylindrical parts connected by a rod, no visible text or symbols

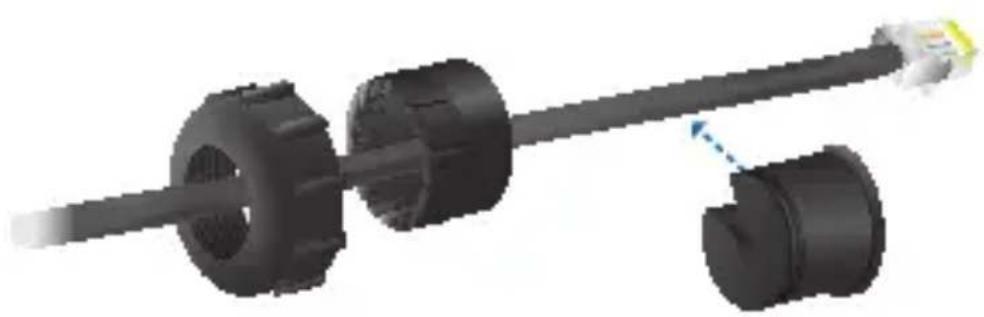

  1. Wrap the Seal around the Ethernet cable.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 4

natural_image Mechanical assembly diagram showing a shaft connected to two cylindrical components with no visible text or symbols

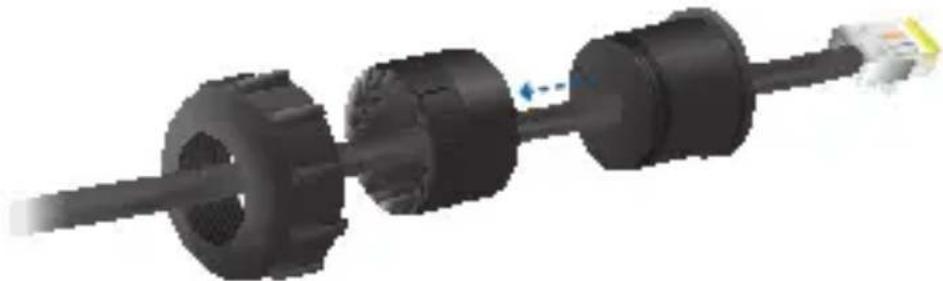

  1. Slide the Seal into the Housing.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 5

natural_image 3D rendering of a mechanical assembly with three cylindrical components connected by a cable, showing internal gear and shaft (no text or symbols visible)
  1. Connect the Ethernet cable to the Ethernet Connector on the camera.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 6

natural_image 3D illustration of a cable connector with a highlighted internal port (no text or symbols)

Optional Step: The included Ethernet Sleeve can be placed over the Ethernet connector to allow the cable to be removed easier.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 7

natural_image Two black USB cable connectors with a white connector and a network interface socket (no text or symbols visible)
  1. Enclose the waterproof gland by turning the Compression Nut clockwise. Turn the Compression Nut until the Seal extrudes slightly from the end of the Compression Nut.

Seal

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 9

Note: The Seal should be extruding from the Compression Nut when properly tightened to prevent water from entering.

  1. Remove the protective plastic film from the camera lens.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 10

natural_image 3D rendering of a white cylindrical security camera with a blue arrow indicating rotation (no text or symbols)
  1. Connect the other end of the Ethernet cable to one of the following:

- PoE Adapter Connect the camera to the Ethernet port labeled POE on the included PoE Adapter.

• TOUGHSwitch PRO or Carrier Connect the camera to a port with 48V power enabled and skip steps 10 and 11.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 11

natural_image Diagram of a surveillance camera connected to a network device and router, with a blue circular symbol labeled 'OR' (no text or symbols on the devices themselves)
  1. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 12

natural_image Black USB router with cable inserted into a terminal block (no visible text or symbols)

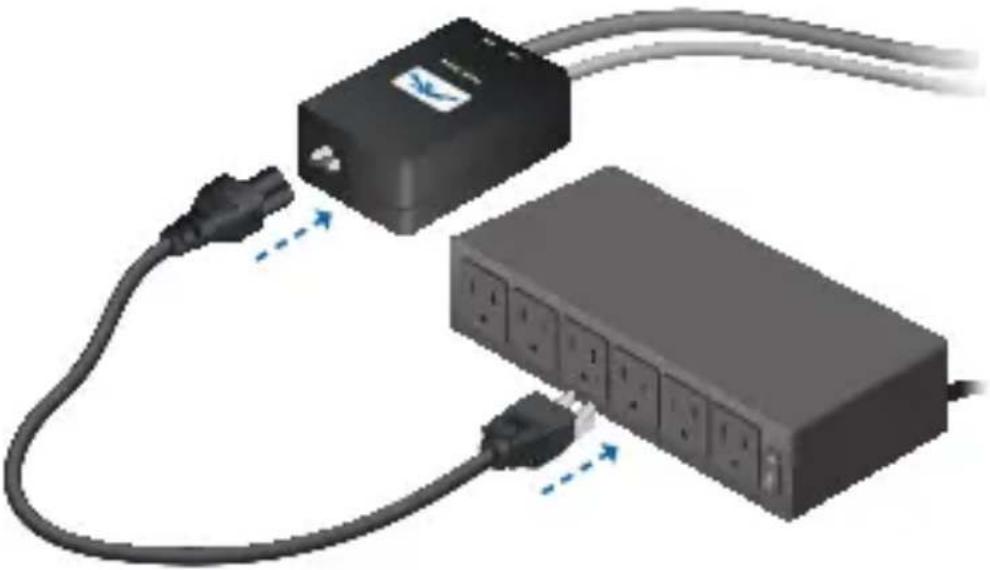

  1. Connect the other end of the power cord to a power outlet.

Ubiquiti Networks UVC-PRO - Connecting Power and Ethernet - 13

natural_image Diagram of a power strip connection showing cable routing from a black device to a multi-pin rack (no text or symbols present)

UniFi Video

The UniFi Video software is pre-installed on the UniFi NVR (sold separately). If you do not have the UniFi NVR, you can download and install the latest version of the UniFi Video software at downloads.ubnt.com/unifivideo; the UniFi Video auto-management feature should automatically detect and install your new camera(s).

CANSAGE BASE MODEL HOST FASTAGE AirCam (X) airCam 800.5214 v800 stars AirCam (X2) airCam 800.5214 v800 stars AirCam (X3) airCam (X) 800.5214 v800 stars AirCam (X4) airCam (X) 800.5214 v800 stars AirCam (X5) airCam (X) 800.5214 v800 stars AirCam (X6) airCam (X) 800.5214 v800 stars AirCam (X7) airCam (X) 800.5214 v800 stars AirCam (X8) airCam (X) 800.5214 v800 stars AirCam (X9) airCam (X) 800.5214 v800 stars AirCam (X10) airCam (X) 800.5214 v800 stars Bullet #3 AIRCAM (X1) AIRCAM (X2) AIRCAM (X3) AIRCAM (X4) AIRCAM (X5) AIRCAM (X6) AIRCAM (X7) AIRCAM (X8) AIRCAM (X9) AIRCAM (X10) AIRCAM (X11) AIRCAM (X12) AIRCAM (X13) AIRCAM (X14) AIRCAM (X15) AIRCAM (X16) AIRCAM (X17) AIRCAM (X18) AIRCAM (X19) AIRCAM (X20) AIRCAM (X21) AIRCAM (X22) AIRCAM (X23) AIRCAM (X24) AIRCAM (X25) AIRCAM (X26) AIRCAM (X27) AIRCAM (X28) AIRCAM (X29) AIRCAM (X30) AIRCAM (X31) AIRCAM (X32) AIRCAM (X33) AIRCAM (X34) AIRCAM (X35) AIRCAM (X36) AIRCAM (X37) AIRCAM (X38) AIRCAM (X39) AIRCAM (X40) AIRCAM (X41) AIRCAM (X42) AIRCAM (X43) AIRCAM (X44) AIRCAM (X45) AIRCAM (X46) AIRCAM (X47) AIRCAM (X48) AIRCAM (X49) AIRCAM (X50) AIRCAM (X51) AIRCAM (X52) AIRCAM (X53) AIRCAM (X54) AIRCAM (X55) AIRCAM (X56) AIRCAM (X57) AIRCAM (X58) AIRCAM (X59) AIRCAM (X60) AIRCAM (X61) AIRCAM (X62) AIRCAM (X63) AIRCAM (X64) AIRCAM (X65) AIRCAM (X66) AIRCAM (X67) AIRCAM (X68) AIRCAM (X69) AIRCAM (X70) AIRCAM (X71) AIRCAM (X72) AIRCAM (X73) AIRCAM (X74) AIRCAM (X75) AIRCAM (X76) AIRCAM (X77) AIRCAM (X78) AIRCAM (X79) AIRCAM (X80) AIRCAM (X81) AIRCAM (X82) AIRCAM (X83) AIRCAM (X84) AIRCAM (X85) AIRCAM (X86) AIRCAM (X87) AIRCAM (X88) AIRCAM (X89) AIRCAM (X90) AIRCAM (X91) AIRCAM (X92) AIRCAM (X93) AIRCAM (X94) AIRCAM (X95) AIRCAM (X96) AIRCAM (X97) AIRCAM (X98) AIRCAM (X99) AIRCAM (Y00)

Proceed to Adjusting the Camera View.

Camera Configuration Interface

Access the Camera Configuration Interface if you have not yet installed the UniFi Video software, or plan to use the UniFi Video Camera as a stand-alone camera without the UniFi Video software.

  1. Ensure that your host machine is connected to the same LAN as the UniFi Video Camera.
  2. The UniFi Video Camera is set to DHCP by default. If you have a router or DHCP server providing addresses on your network, please check your DHCP Client Table or download the Ubiquiti Discovery Tool from:

http://www.ubnt.com/download#app

Ubiquiti Networks UVC-PRO - Camera Configuration Interface - 1

Note: If you do not have a DHCP server, the camera defaults to the IP address 192.168.1.20.

  1. Launch your web browser, and in the address field, type https:// and then the IP address of the camera, for example: https://192.168.1.20. Press enter (PC) or return (Mac).

https://192.168.1.20

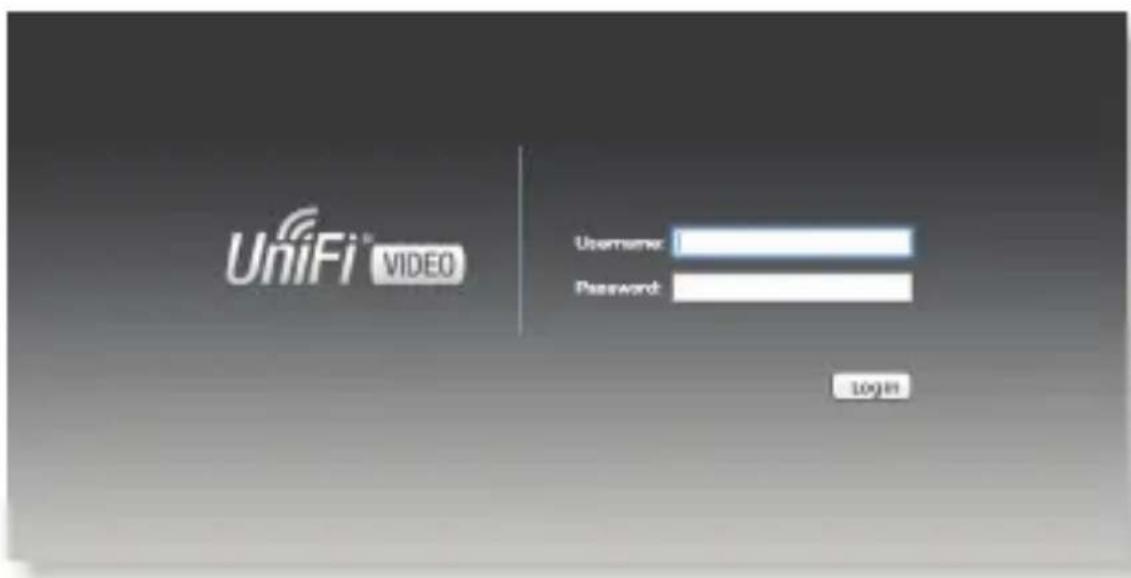

  1. The login screen will appear. Enter ubnt in the Username and Password fields and click Login.

UniFi® VIDEO Username: Password: LOGI#

  1. The Main screen will appear and you should see a live video stream from the UniFi Video Camera.

UniFi Video Center MAIN DEVICE UniFi VIDEO Guam Status: Service #: AirCamQuest Version: v10-davacam94a.taobao 2720 MAC Address: 36-MOC-38-12-22 Date: 2014-05-07 10:06:01 kgame: 80.0158 LAN: 100MHz Full Monitor UnriYam Throughput DHCP Client Leg © Copyright 2008.30 14 Unipull Networks, Inc.

Adjusting the Camera View

Adjust Camera Up or Down Using Large Hex Key Rotate CameraRotate Base Use Small Hex Key

Ubiquiti Networks UVC-PRO - Adjusting the Camera View - 2

Ensure you have removed the protective plastic film from the camera lens.

For details on using the UniFi Video software, refer to our website at: documentation.ubnt.com/unifivideo

Specifications

UniFi Video Camera PRO
Dimensions 322 x 100 x 100mm (12.67 x 3.93 x 3.93")
Weight 2.15 kg (4.73 lbs)
Ports (1) 10/100 Ethernet Port
Sensor 3M WDR Sensor
Lens 3X Optical Zoom, f= 3-9 mm
Infrared Yes
Buttons Factory Reset Button
Power Method Passive PoE (48V, 0.5A), 802.3af
Power Supply 48V, 0.5A PoEAdapter Included
Max. Power Consumption 12.5 W
Certifications CE, FCC, IC
Mounting Pole/Wall/CeilingAdapter Kit Included
Protection Rating IP67 Waterproof
Operating Temperature-40 to 50°C (-40 to 122°F)
Operating Humidity20 - 90% Non-Condensing
Video
Video CompressionH.264
Resolution1080p Full HD
Maximum Frame Rate 30 FPS
Image SettingBrightness, Contrast, Sharpness, Saturation, Noise Reduction, 50 Hz/60 Hz
General
ProcessorARM 1136J-S 528 MHz
Memory256 MB DDR3, 256 MB Flash
View Angle44.4° W - 15.7° T (V)81.0° W - 27.9° T (H)94.0° W - 32.1° T (D)

Safety Notices

  1. Read, follow, and keep these instructions.
  2. Heed all warnings.
  3. Only use attachments/accessories specified by the manufacturer.

Ubiquiti Networks UVC-PRO - Safety Notices - 1

WARNING: Do not point the camera toward the sun. The sun's heat can damage the camera's internal components.

Ubiquiti Networks UVC-PRO - Safety Notices - 2

WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

  1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer's label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
  3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.

a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and regulations.

Limited Warranty

UBIQUITI NETWORKS, Inc ("UBIQUITI NETWORKS") warrants that the product(s) furnished hereunder (the "Product(s)") shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS' sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. The expense of removal and reinstallation of any Product is not included in this warranty. The warranty period of any repaired or replaced Product shall not extend beyond its original term.

Warranty Conditions

The above warranty does not apply if the Product:

(I) has been modified and/or altered, or an addition made thereto, except by Ubiquiti Networks, or Ubiquiti Networks' authorized representatives, or as approved by Ubiquiti Networks in writing;
(Ⅲ) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical, electromagnetic or electrical stress, including lightning strikes, or accident;
(V) has been damaged or impaired as a result of using third party firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation; all Ethernet cabling runs use CAT5 (or above), and for outdoor installations, shielded Ethernet cabling is used, and for indoor installations, indoor cabling requirements are followed.

Returns

No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS' facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal. Information on the RMA process and obtaining an RMA number can be found at: www.ubnt.com/support/warranty.

Disclaimer

EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER'S EQUIPMENT OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer's selection of products (including the Products) for buyer's application and/or failure of products (including the Products) to meet government or regulatory requirements.

Limitation of Liability

EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Note

Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to any transactions regarding the sale of the Products.

Compliance

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Industry Canada

This Class A digital apparatus complies with Canadian CAN ICES-3(B).

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

  1. This device may not cause interference, and
  2. This device must accept any interference, including interference that may cause undesired operation of the device.

Australia and New Zealand

Ubiquiti Networks UVC-PRO - Australia and New Zealand - 1

Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

Ubiquiti Networks UVC-PRO - CE Marking - 1

RoHS/WEEE Compliance Statement

Ubiquiti Networks UVC-PRO - RoHS/WEEE Compliance Statement - 1

English

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Deutsch

Declaration of Conformity

Česky [Czech]UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p íslu n mi ustanoveními sm rnice 1999/5/ES.
Dansk [Danish]Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands [Dutch]Hierbij verklaart UBIQUITI NETWORKS dat het toestel UBIQUITI NETWORKS device, in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.Bij deze verklaart UBIQUITI NETWORKS dat deze UBIQUITI NETWORKS device, voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.
EnglishHereby, UBIQUITI NETWORKS, declares that this UBIQUITI NETWORKS device, is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Eesti [Estonian]Käesolevaga kinnitab UBIQUITI NETWORKS seadme UBIQUITI NETWORKS device, vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Suomi [Finnish]UBIQUITI NETWORKS vakuuttaa täten että UBIQUITI NETWORKS device, tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Français [French]Par la présente UBIQUITI NETWORKS déclare que l’appareil UBIQUITI NETWORKS, device est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Deutsch [German]Hiermit erklärt UBIQUITI NETWORKS, dass sich diese UBIQUITI NETWORKS device, in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet”. (BMWi)
Ελληνική [Greek]ME THN ΠΑΡΟΥΣΑ UBIQUITI NETWORKS ΔΗΛΩΝΕΙ OTI UBIQUITI NETWORKS device, ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1995/5/EK.
Magyar [Hungarian]Alulírott, UBIQUITI NETWORKS nyilatkozom, hogy a UBIQUITI NETWORKS device, megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
Íslenska [Icelandic]Hér me I sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í tilskipun 1999/5/EC.
Italiano [Italian]Con la presente UBIQUITI NETWORKS dichiara che questo UBIQUITI NETWORKS device, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist tajiem noteikumiem.
Lietuviškai[Lithuanian]UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS jrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Malti[Maltese]Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan UBIQUITI NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Norsk[Norwegian]UBIQUITI NETWORKS erklærer herved at utstyret UBIQUITI NETWORKS device, er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
Slovensky[Slovak]UBIQUITI NETWORKS t mto vyhlasuje, e UBIQUITI NETWORKS device, sp a základné po iadavky a v etky príslu né ustanovenia Smernice 1999/5/ES.
Svenska[Swedish]Härmed intygar UBIQUITI NETWORKS att denna UBIQUITI NETWORKS device, står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Español[Spanish]Por medio de la presente UBIQUITI NETWORKS declara que el UBIQUITI NETWORKS device, cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Polski[Polish]Niniejszym, firma UBIQUITI NETWORKS o wiadcza, e produkt serii UBIQUITI NETWORKS device, spełnia zasadnicze wymagania i inne istotne postanowienia Dyrektywy 1999/5/EC.
Português[Portuguese]UBIQUITI NETWORKS declara que este UBIQUITI NETWORKS device, está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Română[Romanian]Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivei 1999/5/CE.

Online Resources

Support support.ubnt.com

Community community.ubnt.com

Downloads downloads.ubnt.com

Ubiquiti Networks UVC-PRO - Online Resources - 1

natural_image Abstract geometric pattern with radial lines and a small circular mark (no text or symbols)

www.ubnt.com

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Ubiquiti Networks

Model : UVC-PRO

Category : Security Camera
