Operator's Guide ---- page 2

The model and serial numbers are located on the bottom. Record the serial number in the space provided below.

Refer to them whenever you call upon your Sony dealer regarding this product.

Model No.

Serial No.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

For the customers in the U.S.A.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

WARNING

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

The mains plug on this equipment must be used to disconnect mains power. Please ensure that the socket outlet is installed near the equipment and shall be easily accessible.

NOTICE

Use the power cord set approved by the appropriate testing organization for the specific countries where this unit is to be used.

If you have any questions about this product, you may call:

Sony Technical Support, 1-800-588-3847 or write to :

Sony Technical Support, 3300 Zanker Road, San Jose, CA 95134, 1940.

U.S.A.

DECLARATION OF CONFORMITY

Trade Name: Sony

Model No: SDT-D11000/D9000

Responsible Party: Sony Electronics, Inc.

Address: 680 Kinderkamack Road, Oradell NJ 07649 U.S.A.

Telephone: [phone]

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

This device requires shielded interface cables to comply with FCC emission limits.

Table of Contents

	How to Use this Guide......5
Part 1Introduction	About DDS Drives......6Features......6Useable Cartridges......7System Components......7Part Names and Functions......8Front Panel......8Rear Panel......10
Part 2Preparation	Supplied Items......11Interconnections......11SCSI ID Setting......12
Part 3Operation	How to use the DDS Drive......13Cartridge Removal......14
Part 4Care andMaintenance	Taking Care of the Drive......15Safety Considerations......15Avoiding Damage......15Taking Care of Cartridges......17Use Precautions......17Storage Precautions......17Head Cleaning......18How to Clean......18
Appendix	Specifications (SDT-D11000)......19Specifications (SDT-D9000)......20

How to Use this Guide

This Guide describes the DDS Drive Unit SDT-D11000/D9000, and how to take care of it. Please read it carefully before using the unit, and keep it handy for future reference.

The Guide consists of four parts, plus the specifications. Refer to the parts that relate to your use of the drive.

Part 1 describes the features of the drive, its system components, and the name and function of each part.

Part 2 describes the necessary connections between the drive and the host computer. If other SCSI devices are being used, you may need to change the SCSI ID setting. Read this part if you are installing the drive.

Part 3 describes how to use the drive, including how to turn it on, and how to insert and remove cartridges. Read this part if you are going to operate the drive.

Part 4 describes how to take care of the drive and cartridges, and how to clean the drive heads. Read this part before using the drive.

The Specifications Appendix provides the major specifications of the SDT-D11000/D9000.

About DDS Drives

The SDT-D11000 is an external DDS drive unit that uses data cartridges conforming to the DDS-4 format. The SDT-D9000 is an external DDS drive unit that uses data cartridges conforming to the DDS-3 format. The SDT-D11000 supports DDS-1, DDS-2, DDS-3 and DDS-4 formats. The SDT-D9000 supports DDS-1, DDS-2 and DDS-3 formats.

Features

The DDS Drive Unit SDT-D11000 has the following features:

• The Digital Data Storage format provides a huge data storage capacity on DDS-1/DDS-2/DDS-3/DDS-4 data cartridges.
• Read After Write Function and third-level error correction code guarantee high data reliability.
• Data compression provides 40 gigabytes of storage on 150m tape-length cartridge. ^*1

The native capacity is 20 gigabytes of storage on 150 m tape-length cartridge.

• Stored data are automatically checked for compression.
• Embedded wide ultra SCSI interface.

(LVD/SE automatically switchable)

• Supports SCSI-2 sequential-access devices command set.
• Read/Write operation is available with DDS-1, DDS-2, DDS-3 and DDS-4 formats.

The DDS Drive Unit SDT-D9000 has the following features:

• The Digital Data Storage format provides a huge data storage capacity on DDS-1/DDS-2/DDS-3 data cartridges.
• Read After Write Function and third-level error correction code guarantee high data reliability.
• Data compression provides 24 gigabytes of storage on 125 m tape-length cartridge. ^*1

The native capacity is 12 gigabytes of storage on 125 m tape-length cartridge.

• Stored data are automatically checked for compression.
• The SCSI-2 (ANSI SCSI-2 X3T9.2/86-109 REV. 10C) interface is fully supported for host computer access.
• Read/Write operation is available with DDS-1, DDS-2 and DDS-3 formats.

Useable Cartridges

Data cartridges used with the SDT-D11000 must be marked with the DDS-1, DDS-2, DDS-3 or DDS-4 logo. The SDT-D9000 can only be used with data cartridges marked with DDS-1, DDS-2 or DDS-3 logo.

DDS-4 Logo

DDS-3 Logo

DDS-2 Logo

DDS-1 logo

Caution

Be sure to use only the cartridges designed specifically for DDS (do not use DAT cartridges for music).

System Components

The SDT-D11000 connects to the host computer via a wide ultra SCSI interface.

The SDT-D9000 connects to the host computer via a SCSI-2 interface.


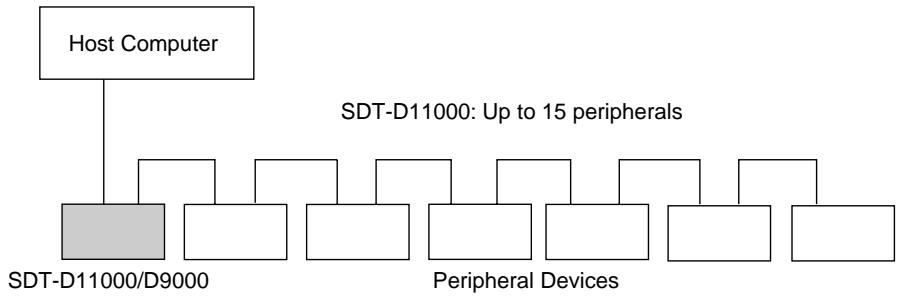

Figure 1-1. Example of System Components

Front Panel

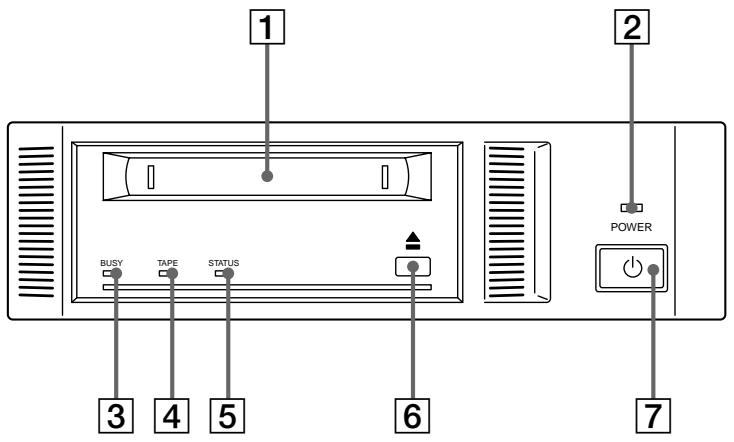

Figure 1-2. Front panel

1 DDS Data Cartridge Receptacle

See page 13 for information on inserting and removing a DDS data cartridge.

2 POWER Indicator

Lights while the drive is on.

3 BUSY Indicator

Lights when data is being transferred through the SCSI interface. This indicator also lights under the following conditions:

Drive is reading or writing normally:

repeated blinking (same on-off interval).

4 TAPE Indicator

When a DDS cartridge is installed, this indicator lights. This also lights under the following conditions:

Inserting and removing a cartridge:	repeated blinking (same on-off interval).
Cartridge deteriorated:	alternating long-short blinking.

5 STATUS Indicator

Lights when an inserted cartridge is write-protected. This indicator also lights under the following conditions:

Drive needs cleaning:	repeating long-on, short-off blinking.
End of Tape during cleaning:	repeating blinking (same on-off interval).
Drive Malfunctioning:	repeating short-on (once or twice), long-off blinking.

6 EJECT Button

Push to remove a data cartridge from the drive.

7 POWER Switch

Press to turn the drive on or off.

Rear Panel

SDT-D11000

SDT-D9000

Figure 1-3. Rear Panel

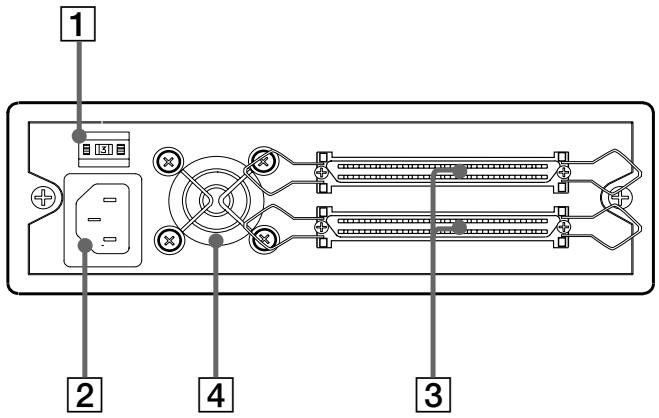

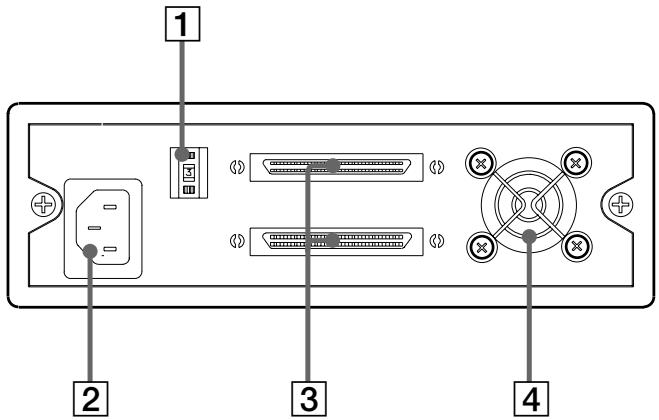

1 Rotary Selector Switch SCSI ID selector.

2 AC IN Connector Connect the supplied power cable here.

③ SCSI Connector Connects to the SCSI bus connector of the host computer or another SCSI peripheral.

4 Cooling Fan

Part 2. Preparation

After you confirm that you have all of the required accessories for your installation, connect the drive to the host computer, and select the SCSI ID with the rotary switch on the rear panel.

Supplied Items

When you first open the box, make sure it contains the following items. Contact your supplier if anything is missing or broken.

• DDS Drive Unit
• Power Cable
• Operator's Guide

Interconnections

SDT-D11000

The SCSI bus allows connection of up to fifteen peripherals to the host computer. Use a SCSI cable with a 68 pin connector.

Precautions

• Switch off the host computer and peripherals before connecting the SCSI cable.
• Make sure the SCSI connectors are pressed tightly together.
• If this unit is the last (or only) device on the SCSI bus, make sure to connect a SCSI bus terminator to the open connector.
• The total length of the SCSI cable(s) between the host computer and the last device should be less than 3 meters. ^1
• To set up the LVD configuration, you need: 1) Host PC with the LVD SCSI Board, 2) only LVD devices on the SCSI bus, and 3) LVD/SE switchable terminator.

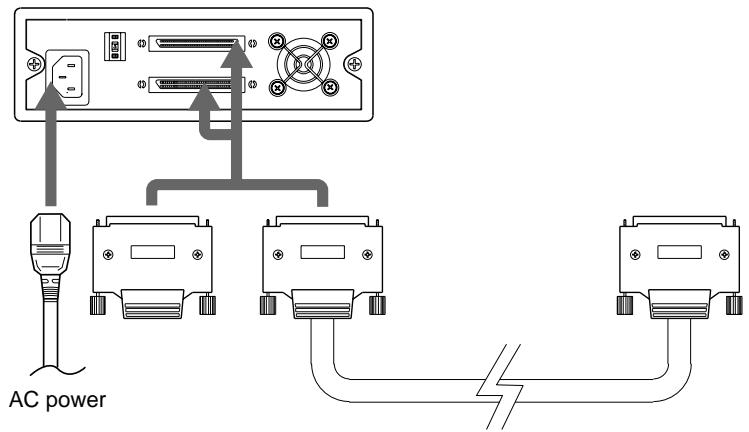

Figure 2-1. Interconnections

*1 When using high-speed data transfer with the SDT-D11000, it is recommended that total length of the SCSI cable not exceed 1.5 m (SE) or 12 m (LVD).

SDT-D9000

The SCSI bus allows connection of up to seven peripherals to the host computer. Use a SCSI cable with a full pitch 50 pin connector.

Precautions

• Switch off the host computer and peripherals before connecting the SCSI cable.
• Make sure the SCSI connectors are pressed tightly together.
• If this unit is the last (or only) device on the SCSI bus, make sure to connect a SCSI bus terminator to the open connector.
• The total length of the SCSI cable(s) between the host computer and the last device should be less than 6 meters. ^2

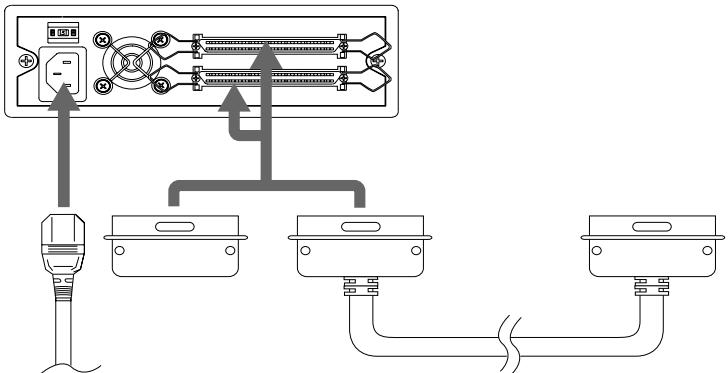

Figure 2-2. Interconnections
^*2 When using high-speed data transfer with the SDT-D9000, it is recommended that total length of the SCSI cable not exceed 3 m.

SCSI ID Setting

The SCSI ID is set by the rotary switch on the rear panel. Press the + or - buttons to move the number up or down, respectively.

As shipped from the factory, the SCSI ID is set to 0. Press the switch buttons, if necessary, to select the SCSI ID number you require.

Precautions

• The SCSI ID must be different from IDs of the other peripherals on the SCSI bus.
• As shipped from the factory, SCSI parity is enabled and Term power is ON. A SCSI bus terminator must be connected to the SCSI bus before use.
• Before changing the SCSI ID setting, be sure to turn off the power with the POWER switch on the front panel.

Part 3. Operation

This section describes how to use the DDS drive, and how to handle data cartridges.

How to use the DDS Drive

1 Press the POWER switch on the front panel. The POWER indicator should light, and the STATUS, BUSY and TAPE indicators should blink as the self-test is performed.
2 When the three indicators stop blinking, you can insert a data cartridge as shown below. The TAPE indicator will blink, and if the cartridge is write-protected, the STATUS indicator will light.

Line drawing of a computer case with an open drive and a separate CD tape case (no text or symbols)

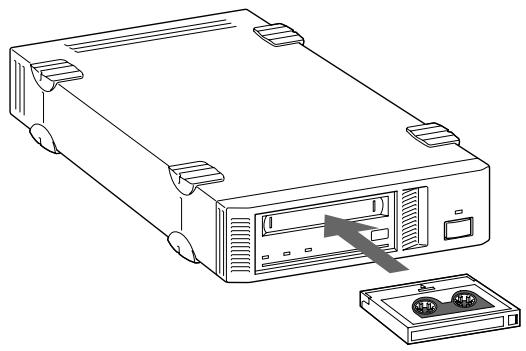

Figure 3-1. Inserting a data cartridge

3 Computer software controls the reading and writing of tapes. While reading or writing, the BUSY indicator blinks.

Cartridge Removal

Press the EJECT button.

The cartridge ejects automatically.

Line drawing of a computer drive chassis with ports and buttons (no text or symbols)

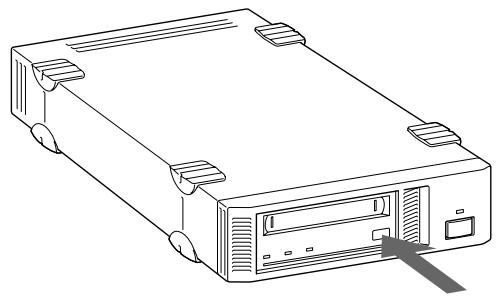

Figure 3-2. Press the EJECT button

Caution

Do not push the EJECT button while the BUSY indicator is blinking: to do so may destroy data on the tape.

Part 4. Care and Maintenance

Taking Care of the Drive

Safety Considerations

Power

• Be sure to use only 100-240 V AC.
• Avoid plugging into the same outlet as high-current equipment like copiers or shredders.

■ Power Cable Precautions

• Do not crush the cable or place heavy items on it. If the cable insulation appears worn or broken, do not use the cable.
• Always unplug the cable by holding the plug: never pull the cable itself, as it will break.
• If the drive is not being used for a long time, unplug the cable from the outlet.

Avoiding Damage

■ Avoid shock and vibration

Intense shock, such as from dropping the drive, will damage it.

■ Environmental considerations

Do not store or use the drive in locations subject to:

• high humidity
• excessive dust
• high temperature
• intense vibration
• direct sunlight
• sudden changes in temperature

■ Proper ventilation

To avoid overheating, install the drive where it will have free air circulation around the case, and do not cover it during operation. The drive can malfunction if the internal temperature rises too high.

■ Avoid sudden changes in temperature

If the drive is moved from a cool place to a warm place, or if the room temperature suddenly rises, moisture may condense inside the case. After a sudden change in temperature, wait at least one hour before turning the drive on. If the drive is turned on with condensation inside, and a cartridge is installed, the drive or the tape can be damaged.

■ Abnormal occurrences

If the drive behaves abnormally, or if it begins to smell or smoke, immediately unplug it from the wall outlet and contact your supplier for assistance.

■ Cabinet cleaning

Wipe the cabinet with a soft dry cloth. For heavy dirt, wipe with a soft cloth moistened with a gentle liquid soap, then wipe again with a soft dry cloth. Do not use alcohol, paint thinner, bug sprays or other volatile solvents, as they can damage the finish.

Taking Care of Cartridges

Use Precautions

• Avoid heavy vibration and dropping.
• The shutter on the face of the cartridge is opened automatically when it is inserted into the drive. Do not open the shutter by hand, as touching the tape may damage it.
• The cartridge was carefully aligned during assembly at the factory. Please do not try to open it or take it apart.
• The write-protect switch on the face of the cartridge prevents the tape from being written to or accidentally erased. If you do not need to write to the tape, move this switch to the write-protect position (in the direction of the arrow).

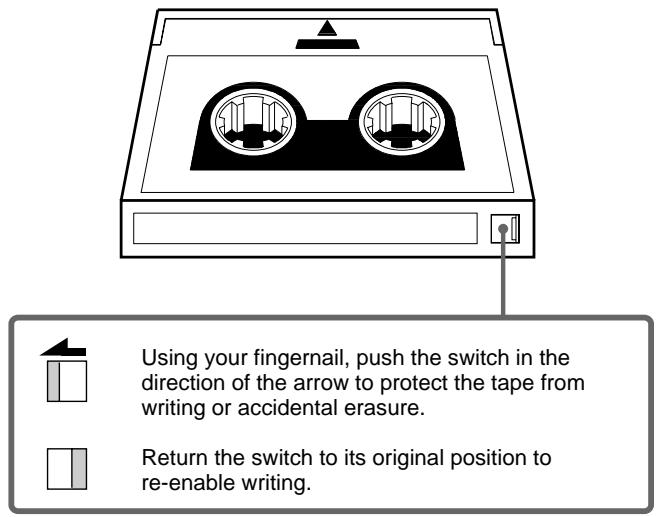

Figure 4-1. Write-protect switch

• In case of a sudden change in temperature, condensation may interfere with reading and writing to a tape.
• Avoid unnecessary insertion and removal of cartridges if you do not need to write or read a tape.
• When finished using the drive, remove the cartridge.

Storage Precautions

• Keep cartridges in their cases when not in the drive.
• Avoid storing cartridges in dusty places, in direct sunlight, near heaters or air conditioners, or in humid locations.
• Do not place cartridges on the dashboard or in a storage tray in a car.

Head Cleaning

To keep the DDS drive in top condition, clean the head as needed, using the proper head cleaning cartridge (sold separately). When the head needs cleaning, the STATUS indicator will blink.

How to Clean

1 Load the head cleaning cartridge (DGD15CL) into the DDS drive. Cleaning starts automatically.
2 After about 10 seconds, cleaning will stop and the cartridge will eject automatically. One head cleaning cartridge can be used about 90 times.

Notice

Do not rewind the cleaning cartridge and reuse it. When you reach the end of the cartridge, dispose it and buy a new one.

Specifications (SDT-D11000)

■ Performance

Storage Capacity	40 GB compressed(with 150 m DDS-4 tape)* ^1 20 GB uncompressed(with 150 m DDS-4 tape)
Bit Error Rate	less than 10^-15
Data Transfer Rate(TAPE)	1.18 MB/s uncompressed2.36 to 4.72 MB/s compressed
Burst Data Transfer Rate(SCSI)	14 MB/s maximum, asynchronous40 MB/s maximum, synchronous
Initialize Time	less than 1 seconds
Load Time	less than 24 seconds
Unload Time	less than 20 seconds
Rewind Time	less than 80 seconds (with 150 m tape)

■ Operating Environment

Operating	Temperature:	10 to 35 °C
	Humidity:	30 to 80%(no condensation)
	Maximum wet bulb temperature:	26 °C
Non-Operating	Temperature:	-40 to +70 °C
	Humidity:	10 to 90%

■ Power Supply & Miscellaneous

Power Supply	100 to 240 V AC, 50/60 Hz
	1.2 A
Case Dimensions	198 × 64.5 × 246 mm (W × H × D) (excluding protruding parts)
Weight	2.3 kg
Accessories	Power Cable (1)
	Operator's Guide (1)

Specifications may be subject to change, in the interest of technological improvement, without notice or obligation.

Specifications (SDT-D9000)

■ Performance

Storage Capacity	24 GB compressed(with 125 m DDS-3 tape) ^*1
	12 GB uncompressed(with 125 m DDS-3 tape)
Bit Error Rate	less than 10^-15
Data Transfer Rate(TAPE)	1.18 MB/s uncompressed2.36 to 4.72 MB/s compressed
Burst Data Transfer Rate(SCSI)	5 MB/s maximum, asynchronous10 MB/s maximum, synchronous
Initialize Time	less than 3 seconds
Load Time	less than 24 seconds
Unload Time	less than 20 seconds
Rewind Time	less than 80 seconds (with 125 m tape)

■ Operating Environment

Operating	Temperature:	10 to 35 °C
	Humidity:	30 to 80%(no condensation)
	Maximum wet bulb temperature:	26 °C
Non-Operating	Temperature:	-40 to +70 °C
	Humidity:	10 to 90%

■ Power Supply & Miscellaneous

Power Supply	100 to 240 V AC, 50/60 Hz
	1.2 A
Case Dimensions	198 × 64.5 × 246 mm (W × H × D)
	(excluding protruding parts)
Weight	2.3 kg
Accessories	Power Cable (1)
	Operator's Guide (1)

Specifications may be subject to change, in the interest of technological improvement, without notice or obligation.

Règles de sécurité

Line drawing of a portable electronic device with a close-up of its front panel and control panel (no text or symbols)

Line drawing of a computer chassis with drive bays and ports (no text or symbols)

Line drawing of a portable electronic device with a close-up of its front panel and control panel (no text or symbols)

Line drawing of a computer chassis with drive bays and ports (no text or symbols)

Line drawing of a portable electronic device with a close-up of its front panel and a separate CD-ROM case (no text or symbols)

Line drawing of a computer drive chassis with ports and a central drive (no text or symbols)
