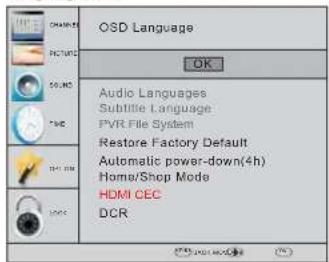

Go to MENU > OPTION and select Restore Factory Default. Enter the password (default 0000) to confirm. This will erase all channels and settings.

The remote control is not working. What should I do?

Check that the AAA batteries are installed correctly with the right polarity. Replace them if exhausted. Ensure nothing is blocking the remote sensor on the TV.

Can I mount this TV on a wall?

Yes, it supports VESA 200x100 mm mounts. Remove the stand by unscrewing the screws, then attach a compatible wall bracket (not included) using the four mounting holes on the back.

How do I enable the child lock?

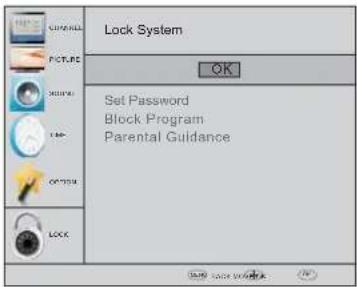

Press MENU, go to LOCK menu. Set Lock System to On. The default password is 0000. You can also block specific channels from the Program Edit menu.

What should I do if the picture breaks into pixels?

This usually indicates a weak signal. Check your aerial or cable connection. If using satellite, ensure the dish is aligned. Consider using an amplifier to boost the signal.

USER MANUAL LES32T1000HFM HAIER

Please read this manual carefully before operating the unit, and keep it for future reference.

Contents

01 Safety Warnings

Welcome....2

Important Information....2

Safety notice 3

Warning and cautions 4

02 Introduction

Main Parameter....5

Base Stand Assembly Instruction....7

Wall Mounting Installation Guidelines....8

Control Panel....9

Rear/Side Sockets....9

Connecting to your Haier TV 10

Common Interface 12

03 Remote Control

Remote Control....13

Teletext 14

04 Operation

Installation Guide 15

CHANNEL MENU.16....

Auto Tuning (DVB-T).16....

Auto Tuning (DVB-C).17....

DTV Manual Tuning (DVB-T)....17

DTV Manual Tuning (DVB-C)....18

ATV Manual Tuning 18

Program edit 18

CI information....19

PICTURE MENU.19....

SOUND MENU....19

TIME MENU 19

OPTION MENU....19

LOCK MENU....20

EPG Menu(Electronic Program Guide)......20

DVB-52....21

First Time Installation....21

Satellite Management....21

Program Edit 22

Signal Information....22

CI Information 22

EPG(Electronic program guide)....22

PVR function....24

Prepare to record the program 24

Record the program 25

Play the record 25

Timeshift function....26

Prepare to record the program 26

USB Drive Storage Format 26

Record a paused DTV program to USB storage device....26

Timeshift limitations....27

USB Player 28

05 Trouble shooting

Trouble shooting 29

Specification 32....

01 Safety warnings

WELCOME

Thanks for buying this 32" LED LCD TV. This guide will help you set up and begin using your TV.

First, check the contents of your box with the parts check list below:

32" FULL HD 1080P Digital LED LCD TV

Remote control

AAA ba x2ttery

Instruction Manual

Quick start guide

YPbPr Connect Cable

Stand

Now you can get started!

En

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

Safety notice

• Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.
• Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.
• Do not expose the product to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
• Keep the product away from direct sunlight and heat source such as radiators or stoves.
• Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your product on a cushion, sofa or other similar surface.
• Do not place the product on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.
• Never place heavy or sharp objects on the panel or frame.
• Unplug the Power from the outlet when the unit is not in use.
• Attention should be drawn to the environmental aspects of battery disposal.
• WARNING: The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.
• Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARNING AND CAUTIONS

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Warning

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Warning

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Caution

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Caution

Do not trap the power supply cord under the television receiver.

Caution

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Caution

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Caution

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Caution

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

02 Introduction

Never tamper with any components inside the TV, or any other adjustment controls not described in this manual. All LED-TV's are high voltage electrical equipment.

When you clean dust or any water drops off the SCREEN or CABINET or around any of the buttons or connectors, the power cabled should be removed from the power socket. Wipe the TV with a soft, dry, dust free cloth.

During thunderstorms, unplug the power cable and aerial / antenna cable to prevent damage to your TV and any other devices connected to it. All repairs to this TV should only be performed by qualified TV service personnel.

Main features

① Used as Television, display terminal, PC display;
② High luminance, wide viewing angle;
③ HDMI interface and SCART Interface;

Main parameter

Panel	32"
TV System	PAL-B/G,I,D/KSECAM-B/G,D/K,L,DVB-T,DVB-C,DVB-S2
Video Signal System	PAL/SECAM/MPEG2/MPEG4/H.264
	5000(DVB-S2);510(DTV);100(ATV)Storage channel num
Input Power Voltage	AC 100 -240V 50/60Hz
Power consumption	50W
Standby Power consumption	≤0.50W
Audio Output Power (THD≤7%)	2x8W
Signal Input	Analog RGB(PC) x1;PC audio x1High-Definition Multimedia Interface (HDMI) x 2Composite Input x 1YPbPr x 1SCART Inputx 1CI x 1USB x 1LNB IN x 1RF Co-Ax x 1
Signal output	Headphone x 1SCART Output x 1
Horizontal definition (TV line)	Composite video input >=350YPbPr >=400

ber

INSTALLATIONCAUTION

*Locate the TV in the room where light does not strike the screen directly.
*Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
*Allow enough space between the TV and the wall to permit ventilation.
*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
*Do not cover the ventilation openings when using theTV.

④ NICAM;
⑤ T; ime-shift
④ NICAM;
⑤ T; ime-shift

PC

PRESET MODE

	RESOLUTION	V.Freq.(KHz) H.Freq.(KHz)
1	640x480	60	31.47
2	800x600	60	37.88
3	1024x768	60	48.36
4	1360x768	60	47.7
5	1280x1024	60	63.98
6	1920x1080	60	66.64

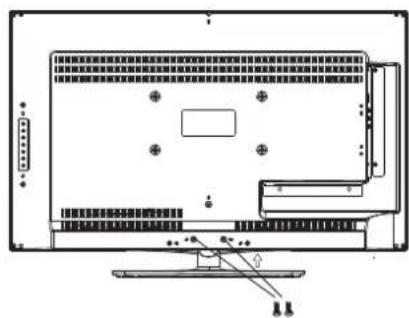

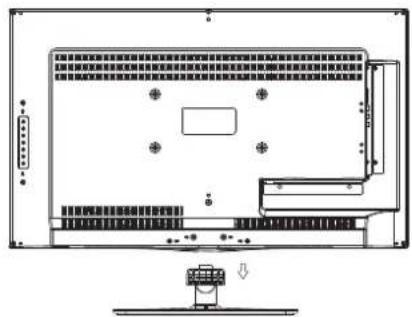

Base Stand Assembly Instruction

1. Insert the stand support pillar into the stand as the arrow indicated direction, and then fastened with three screws.

2. Insert the stand Ass'y into back cover as the arrow indicated direction, and then fastened with two screws.

Technical line drawing of a mechanical component with mounting base and support structure (no text or symbols)

Technical line drawing of a computer monitor with labeled components and mounting points (no text or symbols)

INSTALLATION NOTES

Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation. Please do not attempt to rotate the TV on the stand.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

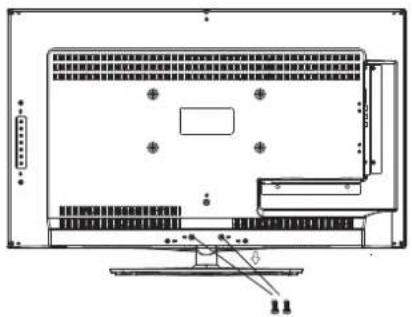

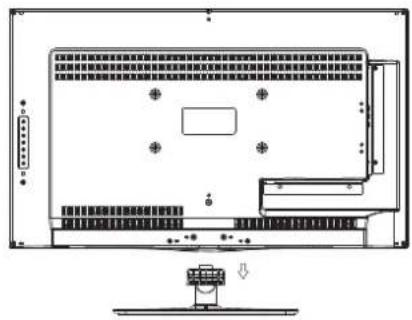

WALL MOUNTING INSTALLATION GUIDELINES

This television can be wall mounted as follows:

1. Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage.

2. Remove the screws from the lower part of the television, where the base joins to the TV, and take away the stand (put the stand somewhere safe for future use).

Technical line drawing of a computer monitor with front panel, screen, and baseboard (no text or symbols)

Line drawing of a computer monitor with visible circuitry and mounting bracket (no text or symbols)

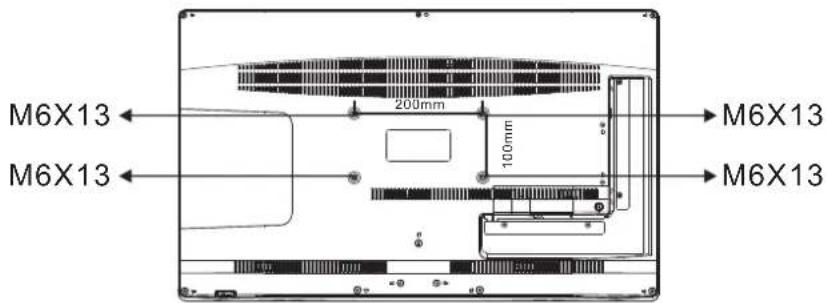

1. Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the four VESA standard holes on the back of the television.

Front control panel

1 Remote control sensor.

2 Indicator LED:

Blue: Power On ; Red: Stand By.

3 Key board.

1	SOURCE	Display the input source menu.
2	MENU	Display main MENU.
3	CH+/CH-	In TV mode, press CH+ or CH- to change the channel up and down.In MENU, press CH+ or CH- to select items .
4	VOL+/VOL-	Adjust sound level.In MENU, adjust the item that you selected.
5	STANDBY

Rear/Side Sockets

1	AC Power Source	input
2	YPbYr	input
3	VIDEO	input
4	L/R AUDIO	input
5	LNB IN	input
6	SCART	input
7	USB	input

8	HDMI2 input
9	HDMI1	input
10	HEADPHONE	analogue audio output
11	COMMON INTERFACE(CI)	input
12	PC AUDIO	input
13	VGA	input
14	RF	input

Connecting to your Haier TV

Connecting to your Haier TV

Connecting a DVD player / Satellite / cable set top box receiver / games console / PC or Laptop

There are several options to connecting a DVD player / Satellite or Cable set top box receiver / games console / PC or Laptop to your TV.

Option 1 SCART

Connect a SCART cable (not supplied) from the SCART socket on the TV to the DVD player/Satellite or cable set top box receiver or games consol.

2 To select the device connected with the SCART cable press the SOURCE button on the remote and use the▼k▲ys to select SCART and press the OK button.

Note:- The TV will default to the SCART connection when the TV is switched on.

Option 2 HDMI1/HDMI2

If the device you want to connect to the TV is switched on, switch off the device first.

2 Connect a HDMI cable (not supplied) from the HDMI socket on the TV to the DVD player / Satellite or cable receiver or games consol.

3 Switch on the device you have just connected to the TV

To select the device connected with the HDMI cable press the SOURCE button on the remote and use the▼k▲ys to select HDMI and press the OK button.

Option 3 AV Audio Visual

(Yellow/White/Red)

1 Make sure that both TV and the device are switched off before connecting.

2 Connect the AV cables (not supplied) from the Video (yellow) and Audio (white, red) sockets on the TV to the DVD player or games console etc.

3 To select the device connected with the AVI cable press the SOURCE button on the remote and use the▼kays to select AV and press the OK button.

Option 4 COMPONENT

(Green/Blue/Red)+(White/Red)

1 Make sure that both TV and the device are switched off before connecting.

2 Connect the cables (not supplied) from the COMPONENT IN sockets Y, Pb, Pr (green, blue, red) and L-Audio-R (white, red) on the TV to the DVD player or games console etc.

To select the device connected with the COMPONENT cable press the SOURCE button on the remote and use the ▼▲ keys to select COMPONENT and press the OK button.

Option 5 VGA (15pin Sub-D)

1 Connect a VGA cable (not supplied) from the VGA socket on the TV to the PC / Laptop.

To select the PC / Laptop connected with the VGA cable press the SOURCE button on the remote and use the ▼▲ keys to select PC and press the OK button.

Note VGA is video only. For audio from your PC/Laptop you need to connect a separate cable from the PC Audio (3.5mm jack) to the headphone socket on you PC/Laptop (3.5mm jack)

Option 6 USB

1 Most USB sticks can be connected to your TV and some digital cameras may also work.

2 Connect USB stick (not supplied) or a USB cable (not supplied) to the TV.

To select the USB device connected to the TV, press the SOURCE button on the remote and use the ▼▲ keys to select USB and press the OK button.

Note1: Only *.jpg and *.mp3 files will work, other file types are not guaranteed and may not.

Note 2. Apple iPhones and iPods are not compatible with your TV.

Note 3. When connecting any device to the USB connection, keep the USB cable length as short as possible.

Option 7 HEADPHONE OUTPUT

Insert the plug of the earphone into the headphone socket on the TV. The TV speakers are now muted. Alternatively you can also plug in external speakers if required.

Option 8 LNB INPUT

Connect the satellite cable with the LNB Port on the back.

After that, you can turn on the engine. Press "Source" to switch into the DVB-S2 mode and start the channel search.

COMMON INTERFACE

The common interface (CI) slot is designed to accept the conditional Access (CA) Module and Smart card in order to view the pay TV programmes and additional services. Contact your Common Interface service provider to get more information about the modules and subscription.

Please noted that CA modules and smart cards are neither supplied nor optional accessories from us.

Warning

- Switch off your TV before any module is inserted in the Common Interface slot.

1 Insert the CAM correctly, then Smart Card to the CI slot that is located at the side of the TV.

2 Turn on the TV and it will display the below message if the CI module is detected. Wait for few moments until the card is activated.

CI Module Inserted

3 Press the MENU button then press ▲▼ button to select CI Information option.

4 Detailed information on the CI card in use is displayed.
5 Press OK button to access the card menu. Refer to the module instruction manual for setting details.
6 When module is removed, the following message will appear on the screen.

CI Module Removed

03 Remote Control

Insert Batteries Into the Remote Control

Three-panel image showing a grid-like structure with arrows indicating features, no visible text or symbols.

1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity(+ or -) of the batteries matches the polarity marks inside the unit
3. Mount the battery cover. Replace with new batteries when the TV set begins to show the following symptoms: Operation is unsteady or erratic. Sometimes the TV set does not function with Remote Control Unit.

Remark:

1) Alkaline Battery Recommended.

2) Remove batteries when they are exhausted or if the remote control is not to be used for long time.

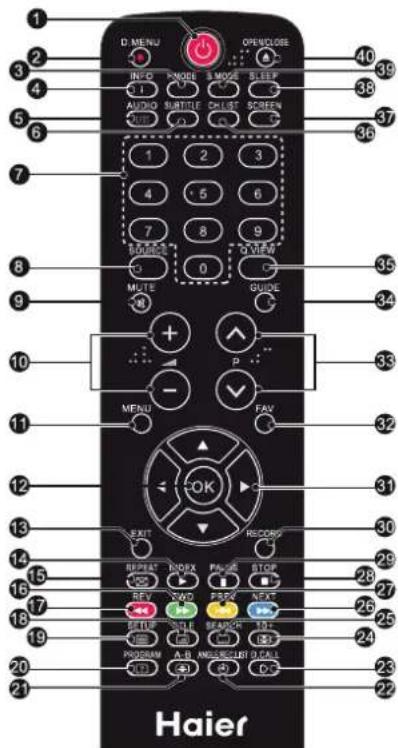

1. POWER: Press to turn on the TV.

2.D.MENU:START RECORD.

3.P.Mode:To switch picture mode.

4.INFO: Press to display the current signal status, including input source and channel audio mode.

1. AUDIO I/II: Press to select MONO, Nicam stereo for ATV channel. Select Audio language for DTV or DVB-S2 channel.

6.SUBTITLE:Press to turn the subtitle On or Off.

7.Number Buttons: For direct access to channels.

8.SOURCE:To select input source.

9.MUTE:To disable or enable the sound output.

1. Volume Control: To adjust sound level.

2. MENU: To display TV menu.

12.0K: To confirm selection.

1. EXIT: To return to the previous menu or exit menu.

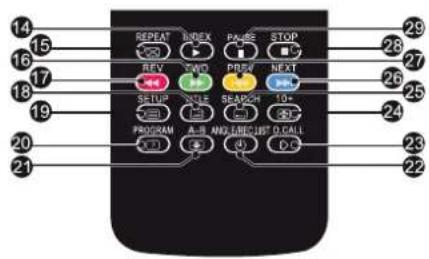

14.Teletext Index/USB PLAY

15.REPEAT:Teletext Exit

16.Teletext Green Button / USB Fast Forward

17.Teletext Red Button / USB Fast Rewind

18.Teletext Mix

19.Teletext Text

20.Teletext Reveal

21.Teletext Size

22.Teletext Time/ANGLE/REC.LIST(teletext time is no function)

23.Teletext Mode:No function

24.Teletext Hold

25.Teletext Subcode:Teletext Subpage

26.Teletext Blue Button / USB Next File

27.Teletext Yellow Button / USB Previous File

28.USB STOP

29.USB PAUSE

30. START RECORD

31.UP, DOWN, LEFT, RIGHT Cursor: Press to navigate your selection.

32.Fav:To access your favourite channels list in TV, DTV or DVB-S2 mode.

1. Select Programme: Press ▲▼ Button to select the next or previous TV channel.

34.GUIDE:Press to display electronic programme guide in TV mode.

35.Q.View:To access the previously viewed channel.

36.CH.LIST: Press to display the channel list.

37.Screen:To change picture aspect ratio.

1. Sleep : Set timer to turn off the TV.

39.S.Mode:To switch sound mode.

40.OPEN/CLOSE:No Function

TELETEXT

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.)

Press:	You will obtain :
TEXT	This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corresponding 3 digit page number. If the channel selected does not broadcast teletext, theindication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).
SELECTING A PAGE	Enter the number of the page required using the 0 to 9 up/down. Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number.
DIRECT ACCESS TO THE ITEMS	Coloured are as are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages. The coloured areas flash when the item or the page is not yet available.
INDEX	This returns to the contents page (usually page 100).
SUB PAGE	Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume sub-page acquisition. The indication appears top left.
HOLD	To freeze the page.
REVEAL	To display or hide the concealed information (games solutions).
LIST	The user can set four favorite pages to be directly linked to the four color keys. While list mode is activated, it is not possibility to use TOP or FLOF navigation with the colorkeys. The favorite page numbers should be stored and restored to/from nonvolatile memory for each channel by the system software.

04 OPERATION

Installation Guide

The installation guide only appear when the TV first time turn on or reset to factory set.

1).Press the ▲▼ buttons to navigate the menu and change the settings. Press the OK button to confirm. Select your desired language, Home/Shop Mode to be displayed on the menu.

Note: The default password is .0000

HOME or SHOP modes

1. Home Mode is an energy-saving Mode. Home Mode is recommended for normal viewing setting and is set as default during manufacturer.
2. Shop Mode is an option for retailers for Advertising or product presentation. Shop Mode has a brighter image than Home Mode.
3. You may switch between Home or Shop Mode as you choose. If you choose Shop Mode, it will enter HDMI1 source automatically, and you will press Exit key to exit POP menu.

2). Press the buttons to select DVB-T/DVB-C and then press the OK button to confirm.

a. If you select DVB-T, the next step is to select the Tune type and country then press the OK button to start tuning.

b. If you select DVB-C, the next step is to config the DVB-C system like (scan type / Frequency/ Network ID/Symbol(KS/S) then press OK button to into the tune type and country select menu, this step is the same as DVB-T, select the tune type (DTV/ATV). Choose the right country, press OK button to start tuning.

3). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found. 4). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.

5). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the Channel menu.

6) Congratulations

1. CHANNEL MENU

1.1) Auto Tuning (DVB-T)

1). Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.
2). Press the buttons to select Auto Tuning and then press the OK button.

3). Press the buttons to select DVB-T/DVB-C Press select DVB-T and then press the OK button to confirm.

4). In the Tune Type menu, press the buttons to select ATV / DTV / DTV + ATV. Press the button and then press the button to select the country where you will operate the TV. Press the OK button to confirm

5). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
6). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
7). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

1.2) Auto Tuning (DVB-C)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.
2). Press the ▼▲ buttons to select Auto Tuning and then press the OK button.

3). Press the ▼▲ buttons to select DVB-T/DVB-C .Press select DVB-C and then press the OK button to confirm.

4). Press buttons to select Scan type/Symbol (Ks/S) press the OK button to confirm.

5). In the Tune Type menu, press the buttons to select ATV / DTV / DTV + ATV. Press the button and then press the button to select the country where you will operate the TV. Press the OK button to confirm.

6). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
7). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
8). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

Note

All the channels including ATV, DTV and Radio can be tuning by one time, if the Tune Type is DTV+ATV.

All the stored channels will be disappear after auto tuning.

After auto tuning, the channel will skip to the first DTV channel.

2.1) DTV Manual Tuning (DVB-T)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.

2). Press the ▼▲ buttons to select DTV Manual Tuning and then press the OK button.

3). The DTV Manual Tuning screen will pop up. Press the ◀▶ buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.

4). Press the MENU button to return back to the main menu.

5). Press the EXIT button to exit the menu.

2.2) DTV Manual Tuning (DVB-C)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.

2). Press the buttons to select CADTV Manual Tuning and then press the OK button.

3). The CADTV Manual Tuning screen will pop up. Press the ▼▲ buttons to select(Frequency /Symbol (ks/s/QAM Type QAM) press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.

4). Press the MENU button to return back to the main menu.

5). Press the EXIT button to exit the menu.

3) ATV Manual tuning :

You can change the sound system to search the analog TV channels and fine tune the channels, then storage the channels you selected.

Note

Press teletext red button to storage to channels after manual tuning.

4). Program edit:

You can Delete, Rename, Move, Skip, FAV any programs.

Delete

Press teletext red button, the program in cursor will delete.

Rename:

Only can rename ATV programs.

Move the cursor to the program, press teletext green button to rename the program.

Press ▼▲ to choose the character. Press ◀▶ to move the cursor.

Press MENU button to exit edit, Press EXIT to exit the menu.

Note: ATV programs name only can be 5 character.

Move:

Use the Arrow Buttons to select the channel you wish to move. Then press the Yellow Button to select Move function. Once active use the Arrow Buttons to move and then press OK to confirm.

Skip:

Press to choose the program, press teletext blue button to skip this program, The will show on the right side of the program. Choose the skipped program, press blue button again, you can cancel the skip, The will disappear.

Favourite:

Press to choose the program, press FAV button, it will show ♥ on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV, the ♥ will disappear.

Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.

5). CI information: (optional)

This menu can display the CI card's information.

2. PICTURE MENU

The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc.

Press OK to move, press OK to adjust.

Note

1).Tint is available in NTSC system only. 2).There are four colors temperature modes can be selected medium, warm, cool, user 3).Screen is available in PC mode only which can adjust Horizontal position, vertical position, size and phase.

3.SOUND MENU

The third item of the MENU is the SOUND MENU. You can adjust the sound effect here such as treble, bass, balance etc.

Press ▼▲ to move, press OK to adjust.

Note

Auto volume: only available when the input signal volume is too large or distortion.

4.TIME MENU

The fourth item of the menu is the TIME MENU. You can adjust the clock, power on/off time, sleep timer Press ◀▶ to move, press OK to adjust.

Note

Within 15 minutes there is no signal, the TV will auto sleep, if Auto Sleep is set ON. The clock time can get from the DTV system auto.

5. OPTION MENU

The fifth item of the MENU is the OPTION MENU. You can adjust the QAudia language, Subtitle language etc.

Automatic Power-down

1. If after 4 hours from switch on and no changes have been made to the TV, for example no channel or volume changes, the TV will start the automatic power down sequence.

And pop-up window will appear on screen.

Seconds to Automatic power-down Please press any Key to Cancel

After 150 seconds the TV will automatically switch to standby. To override the automatic shutdown press any button on the remote control.

1. To cancel the automatic power-down On the Option Menu select Automatic power-down(4H) Press OK. A pop-up message will appear "Are you sure you want to automatic power- down?"

Use the left key to select The TV screen returns to the Option Menu and the Automatic power-down(4H) option will display. Automatic power-down(4H) OFF To return to auto shutdown after 4 hours repeat the above except

use the right key to select .

In PVR File system menu you can set up USB disk for PVR.

Select Disk	C:
Check PVR File System	Start
USB Disk
Formal
Time Shift Size
Speed
(Free Record Limit	6 Hr.)

Note

Restore factory default will clear all the programs and password.

6. LOCK MENU

The sixth item of the menu is the LOCK MENU.

You can lock system, set password, block program and set parental guidance Once you set the lock system on you can not search the channels or change any programs.

The default pass word is 0000, if you forget the password, you can use the super password:9443. Block program: Press ▼▲ to choose the program ,press teletext green button to block the program. If you want unblock the program, pls enter the main menu, input the password, then press green button again.Parental guidance: Press ◀▶ to choose rating.

7.EPG Menu(Electronic Program Guide).

The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day. To access the EPG menu, press the EPG bottom, the following menu will be displayed:

1. INFO

Use ✦ to choose the programs, Press INFO key, you can display the highlight program's information.

2. Schedule

Press the teletext yellow key, It can list all the reminder schedule, press ▼to choose the list, press red key ●DELETE to delete the schedule list.

3. Record

Press the red key, It can set the program to be recorded.

4. Remind

Press the blue key to choose one program and set up one reminder time, the TV screen will skip to the chosen program in the reminder time automatically.

8.DVB-S2 Operation

8.1 First Time Installation

Please press the source button to enter input menu and use/ direction buttons to select DVB-S2 and press OK key to confirm. The Channel List for ASTRA is already installed. You are now ready to watch TV.

Note

If you are using different satellites please follow the system settings instructions to set up the satellite. If you are using more than one Satellite you need to assign the satellites the correct DiSEqC-LNB that is used in your satellite installation.

8.2 Satellite Management

Configure the settings of satellites.

Satellites' list: Press ▼/▲ to select a satellite, whose settings will be shown at right side.

LNB Type: Press ◀ /▶/OK to show the list of LNB Types which is shown as frequencies of local oscillator. You also can enter frequency by User Single, User Dual at bottom of the list.

LNB Power: Press ◀ /▶ to set the LNB power.

22K: Press ◀ /▶ to switch on or off the 22K, which is set with auto when LNB Type is dual local oscillator.

Toneburst: Enable or Disable the toneburst switcher.
DiSEqC1.0:	Select the right port up to 4 for the right LNB.
DiSEqC1.1:	Select the right port up to 16 for the right LNB.
Motor:	Press LEFT/RIGHT to select DiSEqC1.2 or DiSEqC1.3. Then Press OK to show the menu to set position.
DiSEqC1.2:	Move the motor to a right position to lock the signal.
DiSEqC1.3:	Move the motor according to the local and satellite positions.

Motor Settings:	Select DiSEqC and press OK to open.
Move Auto:	Press LEFT/RIGHT to start to move West/East. It will be stopped automatically when the signal is locked.
Move Continue:	Press LEFT/RIGHT to start to move West/East. It will keep moving until you stop it
Move Step[1]:	Press LEFT/RIGHT to move just a step.
Store Position:	Store current position of motor.
Goto Position:	Press LEFT/RIGHT to goto the position stored.
Goto Reference:	Rest all the positions.
Goto X:	Goto the position calculated from the local and satellite positions.

8.2.1 Satellite settings

Add satellites:

Press RED to add a new satellite, in which you must input an unique longitude, and edit the satellite's name with soft keyboard.

Edit satellites:

Press GREEN to edit the focused satellite.

Delete satellite:

Press YELLOW to delete the focused satellite.

Press OK to confirm.

8.2.2 Transponder

Press GUIDE to switch the list to show transponders of the focused satellite. Also you can press GUDIE to switch back to satellites' list.

Add transponder:

Press RED to add a new transponder. It can't save an existing TP under the same satellite.

Edit transponder:

Press GREEN to edit the focused transponder. It can't save an existing TP under the same satellite.

Delete transponder:

Press YELLOW to delete the focused transponder. Press OK to confirm.

Single Transponder Scan:

Press BLUE to pop the menu of scanning setting. After configuring the settings, Press OK to start scanning.

Multi-Transponder Scan:

Press OK to select transponders with the mark"√", then press BLUE to pop the menu of scanning setting. After Configuring the settings, press OK to start multi-transponder scanning.

8.2.3 Channel search

Single Satellite Scan:

Press BLUE to pop the menu of scanning settings.

Scan Mode: Press◀/▶ to select default, which scan the default transponders built in, Blind Scan and NetWork, which scan with NIT on.

Crytped: Press ◀/▶ to select All Channels or FTA Channels;

Service Type: Press ◀/▶ to select ALL, DTV or Radio. Press OK to start scanning with the above settings.

Multi-Satellites Scan:

Press OK to select satellites with the mark "√", then press BLUE to pop the menu of scanning setting. After Configuring like single satellite scan, press OK to start multi-satellites scan.

8.3 Program Edit

To edit your program preferences (skip, favourite, move or delete), you will need to enter the Program Edit Menu.

Delete a TV or Radio Program

Select the program and then press the RED button to delete the channel.

Move a TV or Radio Program

Select the preferred program then press the YELLOW button. Press ◀/▶ to move the program. Press YELLOW again to confirm.

Skip TV or Radio Program

Select the program you would like to skip and press the BLUE button. A skip symbol is displayed. The program is marked as a skip.

Set Favourite Program

Press ▼▲to choose the program, press FAV button, it will show ♥on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV, the ♥will disappear. Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.

8.4 Signal information

It shows the signal quality and signal strange by selectet channel.

8.5 Cl information

It shows informations about the CI card that is connected to tv.

8.6 EPG (Electronic program guide)

The EPG is an on-screen TV guide that shows scheduled programs seven days in advance for every tuned channel. Press the GUIDE button on the Remote Control to access guide. It will show a list with the current runprogramms.

Select "Programm Guide" and press◀▶ switch between Time / Channel.

You can use the▼/▲ key to select the preferred program.

Operation

Time: An overview will be shown about the broadcast to the select date to current time from the programmes.

- Select the "Date / Timer" display and press to edit the date.

Channel: An overview will be shown about the broadcast course of the selectet channel on day you edit before.

- Select the programm display and press◀/▶ to switch the channel

Remind: Use BLUE bottom to open the reminder setting. Press "Ok" to acknowledge the edit settings.

The made settings will be stored in your schedule list.

Record: Use RED bottom to open the record setting. Pres "Ok" to acknowledge the edit settings.

The made settings will be stored in your schedule list.

Info: Use Green botton to open the information about the selectet broadcast.

Schedule: Use YELLOW botton to open the schedule list from your records and remind settings.

Selectet items can be delete with "RED" botton.

9.PVR function

1. Prepare to record the program

PVR function only works in DTV.

From OPTION MENU enter into PVR File System

In "OPTION MENU", please choose "check

PVR File System". Click "OK", until

"checking" change into "Success"

Note: please check the term "speed". If it is

“HD support”, that means the speed of USB

device is available for time shift and record. If not, please format the device, to make sure the device available. The default "Free Record Limit" is 6 hour, if the space on the disk is big enough. If the space is not

big enough, the record time should be shorter,

depends on the room on the device. During the

"check PVR File System" checking, please do

not take any other operation until it finished.

The recordings must be done with the TV PVR

system. It can only be played in the same TV,

not in any other kind of device (computer,

DVD, etc.) which is not compatible with.

TS. file format.

Please note that in order to carry out any kind of recording, the TV will require you to format the

connected USB device to store the recording.

WARNING. WHEN YOU FORMAT, THE

EXTERNAL USB DEVICE YOU WILL LOSE ALL THE FILES AND INFORMATION YOU HAVE STORAGE ON THE DEVICE.

The USB file system will limit the size of the storage size.

File system: NTFS up to 2TB

FAT32 with up to 192GB

FAT16 with up to 2GB

From OPTION MENU enter into PVR File

System as below:

Select Disk:select which disc to save the

record file.

Check PVR File System: check if the PVR File

System set up in the USB device or not.

Format:

(Suggest to format the device by "High Speed Fs...", which can speed up the record.)

below menu appear after Format finish:

Select Disk	C:
Check PVR File System	Checking
USB Disk	Pass
Format	Pass
Time Shift Size	All
Speed	Checking
Free Record Limit	6 Hr.

Select Disk	C:
Check PVR File System	SUCCESS
USB Disk	Pass
Format	Pass
Time Shift Size	All
Speed HD Support	2730KB/S
Free Record Limit	6 Hr.

If you select the "Hi Speed FS" format mode, then you can change the time shift size:

Time Shift Size
Time Shift Disk Size	512 MB
SD 14 Mins
HD 4 Mins

2. Record the program

As playing the DTV/DVB-S2 source, choose the channel and click "record", the record frame will pop up. Click "record" again, the record frame will disappear and the "REC" icon still on the left top. It will disappear until you click "stop".

3.Play the record

The program recorded on the "USB" will be saved in the folder "_MSTPVR" on the device.

1. The USB storage size can be between

128MB and 500GB in size, but for practical use 2GB to 500GB is recommended.

1. Video may become pixelated when Video

bit rate is too low. This can be caused by connecting a USB extension cable instead of plugging the USB directly into the TV

1. Not all USB devices are compatible.

Below is a list of recommended USB drives.

Models that are not listed may be compatible, but it is not guaranteed to work.

The USB support list are the same as Timeshift function, see the following pages for details.

10.Timeshift function

Prepare to record the program

This TV allows you to pause and record the currently watched digital program to a USB storage device, and to resume to the point where it was paused.

Note

- Formatting a USB 2.0 storage device will be needed. Save your original data before formatting. All the data stored in the USB device will be erased after formatting.

USB Drive Storage Format

Select to format the USB device and allocate the amount of space for the Time Shift function.

Note

• The format process will take at least 2 minutes. Please do not turn off the power or remove the USB device during formatting.
• During formatting, a speed test will be done on the USB device. If it fails, it means the USB device may not support the Time Shift function.

Record a paused DTV program to USB storage device

1. While in the DTV input source, insert USB storage device to the USB port on the side of your TV.
2. Press PAUSE 29 to start Time Shift function. The TV program paused. The Time Shift OSD appears, and starts recording.
3. Press STOP 28 to stop Time Shift function and stop recording program.

Note

• Please do not unplug the USB storage device when the Time Shift function is activated.
  • Approximately 4GB of memory buffers about offer 140 minutes.

Time Shift limitations:

1. When the Time Shift feature is activated, only the PLAY/PAUSE/STOP/FWD/REV/VOL+/VOL-/MUTE keys and some basic operation keys (OEXIT/navigation keys) are available.
2. Video playback may not be smooth and skip if USB recording speed does not meet the minimum requirements.
3. Do Not remove USB disk or switch off the power during Time Shift operations. It will abort once the signal is lost.
4. Do Not remove the signal source during Time Shift operations.
5. Do Not quickly and repeatedly change operations between PLAY/PAUSE/FWD/REV.
6. Video may become pixelated when Video bit rate is too low.
7. Not all USB devices are compatible, The USB hard disk drive electricity should be < 500MA.

Below is a list of recommended USB drivies. Models that are not listed may be compatible, but it is not guaranteed to work.

• San Disk Extreme® Contour™ USB Flash Drive - 8GB SDCZ8 - 8192 - E75
- San Disk Extreme® Contour™ USB Flash Drive - 16GB SDCZ8 - 016 G - A75
• Kingston Data Traveler 410 USB 2.0 Flash Drive-8 GB DT410/8 GB
• Kingston Data Traveler 410 USB 2.0 Flash Drive - 16GB DT410/16 GB
• OCZ Technology Rally 2 USB 2.0 Flash Drive - 4GB OCZUSBR2DC - 4GB
• OCZ Technology ATV USB 2.0 Flash Drive - 8GB OCZUSBATV - 8GB
• OCZ Technology Rally 2 USB 2.0 Flash Drive - 8GB OCZUSBR2DC - 8GB
• SZMSUNG - Hm500 JI -500 G

1. This feature is not available for all digital TV, such as scrambled or audio only channels.

11.USB Player

Press source key, and select USB in source list, press OK button to enter the USB menu.

Please make sure that the USB device have plugged in the slot. There are four type media item can be selected, such as photo, music, Movie, and text. Select the type media item by pressing, press OK button to enter the disk selection menu.

Press the ◄dselect the right disk and press OK to display media files and folder list or choose Return to back to the media type selection menu.

Select the media file by pressing..., then the preview frame will pop up. Press the button to play the media file in full screen. When the media file (photo, Movie, or text type) is playing, press the OK or Info button can display the control bar.

Press to select the function icon, press OK button to confirm the function.

Press OR EXIT button to exit the control bar except for music.

Note

You can adjust the audio track, or program in the Info menu while Playing the video file. Choose the Info icon and press OK can display the Info MENU.

USB playback is supported for the following photo file formats:

-JPEG(JPEG format, files with the extension ".jpg") -BMP (files with the extension ".bmp")

-PNG (files with the extension ".png")

USB playback is supported for the following music file formats:

-MP3 (files with the extension ".mp3")

USB playback is supported for the following text file formats:

-TXT (files with the extension ".txt")

USB playback is supported for the following movie file formats:

-TS (MPEG2 & H.264)

05 Trouble shooting

Trouble phenomenon Symptom				Inspection Check
Picture Audio
	Snow Noise			antenna position, direction or connection
	Ghost		Normal audio	antenna position, direction or connection
	Interference		Noise	electronic equipment, car/ motorcycle, fluorescent light
	Normal Picture		Mute	Volume(check if mute is activated or if the audio system connections are not correct)
	No picture Mute			Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup Press standby key on the remote control for inspecting
	No colour Norma		ur control
	Picture breaking up		Normal audio or weak	retune channel
	No colour		Noise	TVsystem
	There is black bar on top and bottom		Normal audio	Change aspect to zoom

EN-29 LED Backlit Flat TV Instruction Manual

Trouble Shooting

My TV does not display the picture on my laptop / PC when connected.	Most PC's and laptops when connected with a VGA Plug (the blue 15 pin plug on your PC or laptop) require you to press some buttons on your key board to get a picture on a TV or other external display. This is usually the F7 (Dell) or F4 (HP / Samsung) or F5 (Toshiba). On laptops, you have to press the "Fn" key at the same time as the "F" key.
I have connected my PC/Laptop to the TV and get a picture but no sound. Why ?	The VGA cable only carries the video or picture information. You need to connect a separate cable connected to the earphone socket (3.5mm jack) on you PC/Laptop to the 3.5m (PC Audio IN) socket on your TV. You will need to select "PC" using the Source button on your remote.Alternatively connect your PC/Laptop using a HDMI cable if you PC/Laptop has a HDMI connector. HDMI is both audio and video.
The picture is not auto resizing when changing channels.	Check that the TV picture Aspect Ratio is set to 'Auto' on all inputs ATV, DTV, SCART, HDMI 1, 2 etc.To set the aspect ratio, (Auto, 4:3 or 16:9). Press Source button start at ATV and repeat the sequence below for all input sources ATV, DTV, SCART, HDMI 1 and 2 as each input source is controlled separately.Press TV Menu buttonPress Right Arrow to access Picture sub menuPress Down Arrow to select Aspect RatioSelect AutoPress ExitRepeat for all input sources.
I have just plugged in a DVD player or another item into my TV and it doesn't work.	This is applicable to any item of equipment plugged to the TV1. Turn both TV & DVD player off (plugs out of the wall socket, not standby).2. Turn off any equipment connected to the SCART socket.3. Disconnect the SCART plug from the TV.4. Plug in and turn TV on5. Plug in and turn DVD player on6. Select HDMI from Source Menu7. Press play on DVD player and check movie plays okNOTE: The SCART socket has priority over HDMI and it is important that the equipment connected to the SCART socket on the TV is switched OFF (not in standby).Please follow this information. If the advice works and the DVD player works, the TV is OK it is just a bit confused.Probably HDMI plugs have been removed and plugged back in when the TV is switched on.Never remove or plug in HDMI cables or any digital equipment with the equipment switched on.Always switch off all equipment when unplugging or connecting any digital equipment.

Trouble Shooting Digital TV Problems and possible Solutions.

Picture Breaks into Pixels

A typical example of a reception problem includes the break up of pictures (pixilation) or the picture freezing, sometimes there are clicking or squeaking sounds or the sound drops out or there is NO reception at all. Your picture may break into pixels due to the digital video signal dropping. The signal dropping may occur because of either problems with weak signals (see TV Aerials) or if you are connected by cable a weak cable signal. If the problem is weak signals, use an amplifier to strengthen the signal. A cable technician can help you install an inline amplifier or a pre-amplifier. This will boost your signal strength and fix the pixel problem.

If you are receiving your TV signal by satellite, check your dish has not moved following high winds, or that the signal is blocked by trees. Trees can be a problem as the TV signal can change depending if a tree between the satellite dish and satellite is in bare or in full leaf.

Missing channels

It may be that you find that there are channels missing, or you're receiving channels from the wrong region. Sometimes the interactive services (red button) doesn't work. This is usually caused by weak signal, see TV Aerials

TV Aerials

Digital terrestrial television (Freeview) comes to your TV via an aerial, The old aerial that was good for analogue TV may not work well for digital so may need upgrading. If you are getting some but not all of the digital channels on DTV (Freeview) for example you get BBC1, BBC2, Channel 4, but not ITV or Channel 5, this is usually because your aerial is a narrow band type, and needs to be changed to a wide band type.

Faulty Leads and Cables

Check your TV. Are the leads at the back - to the mains, the aerial, the set-top box, the video or DVD player or recorder properly connected? SCART leads are known to work loose over time and can result in both audio and video (picture) problems. Either left or right or both audio is missing and the colours are poor or muddy looking. Push the SCART plugs firmly in, this should fix the problem.

HDMI plugs need to be pushed in firmly; it's only the last millimetre that the contacts make. Typically the black plastic part of the HDMI plug should be very close or touching the body of the TV or component. When plugging in any HDMI cables you may experience problems if the HDMI cables are plugged in when the TV or the other component is switched on. Always switch off both the TV and the component you are plugging in. If you have checked the plugs and sockets, switch off the TV and whatever you have plugged in to the TV and then switch them on again.

I have connected my PC to the TV. There is no sound.

If you connect your PC or Laptop to the TV using a VGA (15 pin Sub D) cable there is no audio, you need to connect a separate audio cable to the TV from the PC or laptop.

Unnatural Colours and Flesh Tones

Unnatural flesh tones and other colours could present another problem even in a new HDTV. This is due to the TV picture settings, which are optimized for a showroom environment. Fix this by changing the picture mode to natural in the picture menu. For more precision, try manually setting the colour, contrast and brightness options in the picture menu.

White Outlines

White outlines around objects and people generally appear either if the TV sharpness is set to very high, or if your television set uses some edge-enhancement processing technology. Go to the picture menu and adjust the sharpness till the white outline disappears. If edge-enhancement is enabled, try to disable it using the service menu.

Choppy Video

At times the video might become choppy. When this happens, check whether the signal is strong enough. If the signal is strong the problem is with the cable operator. If the signal strength is weak, try boosting the signal strength with the help of an amplifier.

The picture does not fill the screen

When connecting PC's or laptops to the TV, the picture may not fill the screen. Check the display settings on your PC or laptop (Windows > Start > Control Panel > Appearance and Personalization > Display settings) and select the best resolution. On your TV select:- TV Menu > Picture > Settings and then try AUTO, ZOOM1 or ZOOM2 for the best display.

USB Connection

The USB connection will work with *.jpg (photo) and *.mp3 (music) files. Please note the TV does not recognize Apple iPhone, or iPod's connected to the USB connector on the TV. The TV may play other files, but due to the multiple different file formats, there is no guarantee that these other file formats will work.

Specification

32" FULL HD 1080P Digital LED LCD TV

Television picture quality:	FULL HDIntegrated digital.Screen Size: 81cmResolution 1920x1080 pixels 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C,DVB-S216/32/64/128/256 QAM modulationMPEG2,MPEG4,H.264
Connectivity:	2 HDMI sockets.1 SCART socket.PC input socket.Component video socket.Composite.1 USB port.1 Headphone port.1 LNB.Supported Systems:PAL+SECAMStorage channel number: 5000(DVB-S2),510(DTV),100(ATV)TV (RF):75 Ω ImbalanceAV Video-Input:75 Ω,1V-P,RCAAV Audio-Input:20K Ω,500mB RMSYPbPr/HDMI Video Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Sound quality:	NICAM stereo sound system.2 x 8watts RMS power output.
Standby Power consumption	≤slant 0.50W
Digital features:	Digitally interactive.Digital text.Digital video broadcasting (DVB) subtitles available.Auto setup.Auto scan for new channels.Now and next programme guide.7 day electronic programme guide (EPG).Top up TV compatible.CI slot.Audio description compatible.
Additional features:	UHF/VHF tuner;Sleep timer;Child lock;Picture and textRemote control batteries required 2 x AAA (included).VESA Mount Size: 200 x 100 mmPackage Size (WxHxD): mm864x590x125Set Size (WxHxD) with Stand: mm747x497x200Set Size (WxHxD) without Stand: mm747x454x43Package weight : 8.8 kgSet weight with stand: 7.4kgSet weight without stand: kg6.7

* The part specifications of this TV set provided here are for reference only.
Differences may occur as product technology is updated.
Design and specifications are subject to change without notice.

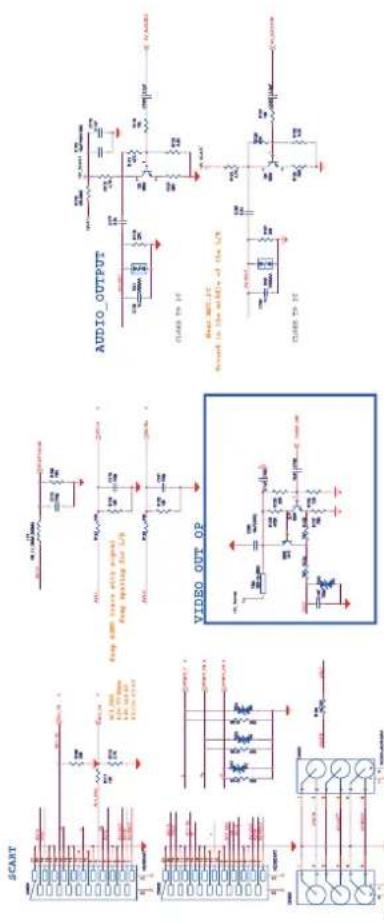

Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is ATV.

2. When current source is DTV, there will be no SCART output signal.

3. Other source have no SCART output signal.

Haier®

Haier®

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a computer monitor with labeled ports and connectors (no text or symbols)

HINWEISE ZUR INSTALLATION

Technical line drawing of a computer monitor with labeled components and connectors (no text or symbols)

Line drawing of a computer monitor with visible ports and connectors (no text or symbols)

Three-panel image showing a solar panel with internal structure and a highlighted section (no text or symbols)

25.Teletext Untercode: Teletext Unterseite

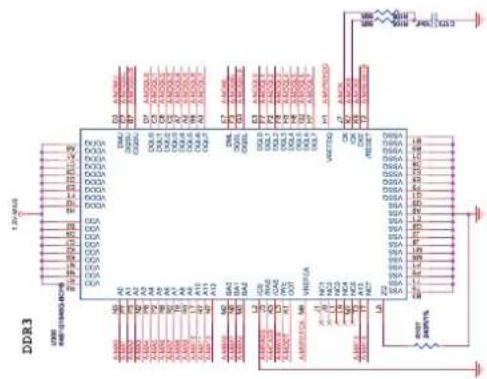

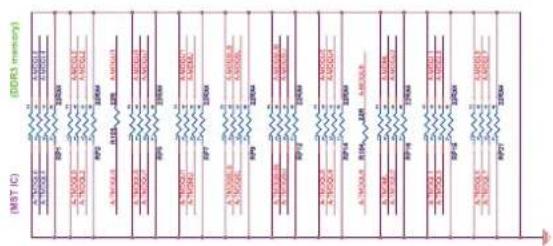

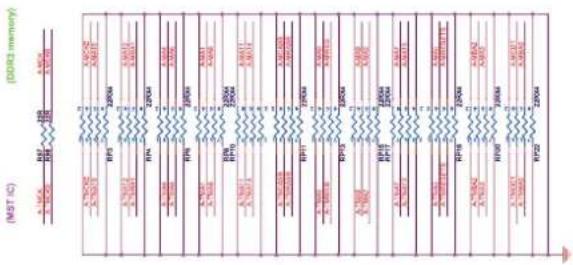

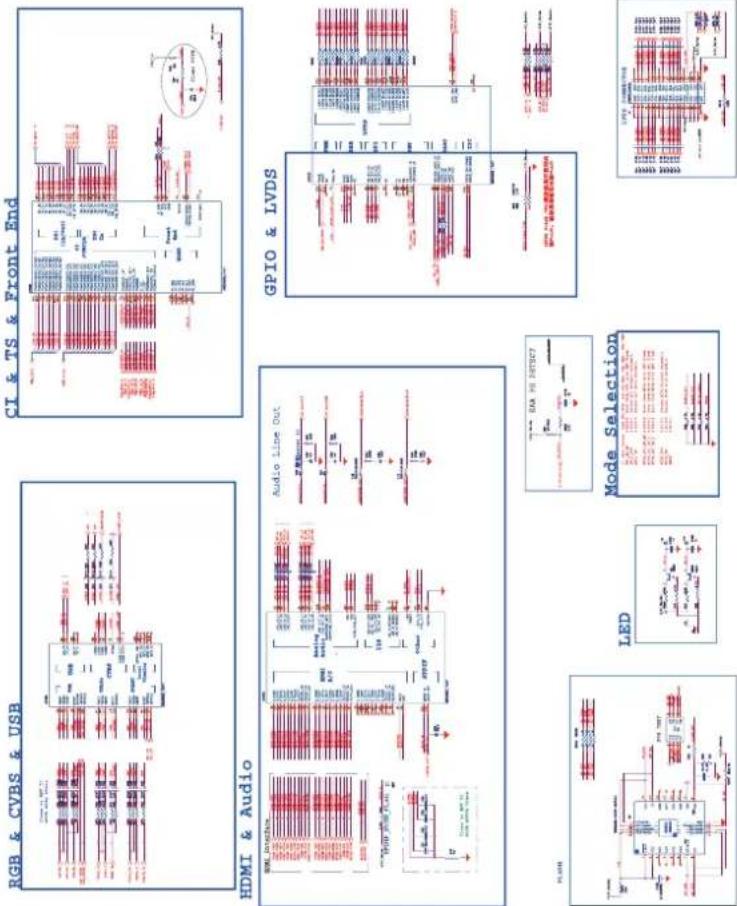

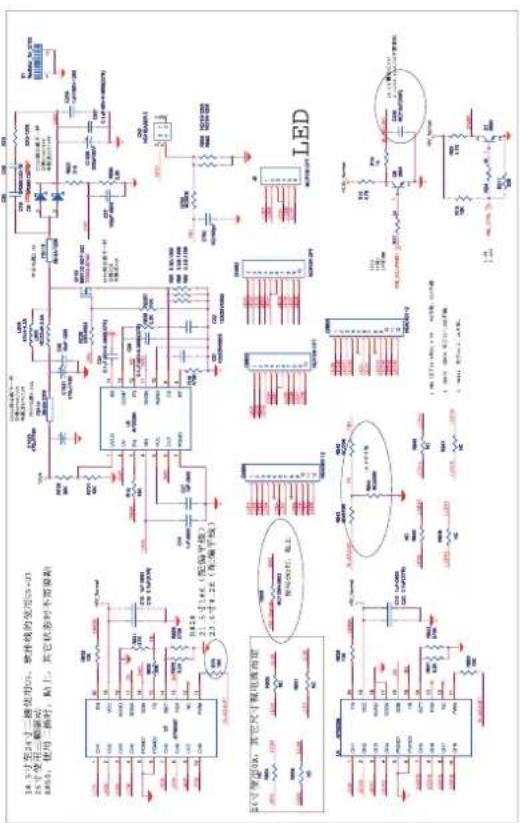

1.5V Normal Power for DDR3

HDMI1

HDMI2
