Product Type	Tablet
Brand	CnMemory
Model	TP8-1000
Display Size	8 inches
Display Resolution	1280 x 800 pixels
Processor	Quad-core
RAM	2 GB
Internal Storage	16 GB
Battery Capacity	4000 mAh
Operating System	Android
Dimensions	210 x 120 x 10 mm
Weight	350 g
Connectivity	Wi-Fi, Bluetooth, Micro USB
Camera Front	2 MP
Camera Rear	5 MP
Audio	3.5mm headphone jack, built-in speaker
Sensors	G-sensor
Power Supply	DC 5V/2A
Accessories Included	USB cable, charger, user manual
Maintenance and Cleaning	Wipe with a dry soft cloth; avoid liquids and abrasives.
Safety Precautions	Keep away from moisture and extreme temperatures; do not disassemble.
Repairability	Not user-serviceable; contact CnMemory support for repairs.

Frequently Asked Questions - TP8-1000 CnMemory

How can I expand the storage of my TP8-1000 tablet?

The tablet supports a microSD card up to 32 GB. Insert it into the card slot located on the side of the device.

What should I do if the screen becomes unresponsive?

First, try a soft reset by pressing and holding the power button for 10 seconds. If that doesn't work, charge the battery for 30 minutes and try again.

How long does the battery last on a full charge?

The 4000 mAh battery typically provides up to 5-7 hours of mixed usage, depending on screen brightness and applications.

Can I connect external devices via USB?

Yes, the Micro USB port supports OTG (On-The-Go) adapters for connecting flash drives, keyboards, or mice.

Is there a way to update the operating system?

Check for updates in Settings > About Tablet > System Updates. If an update is available, download and install it over Wi-Fi.

How do I clean the tablet screen safely?

Turn off the device and use a soft, lint-free cloth slightly dampened with water (or a screen cleaner). Do not spray liquid directly.

The tablet won't turn on. What should I check?

Ensure the battery is charged by connecting the charger. Wait 15 minutes, then press and hold the power button for 10 seconds. If still off, try a hard reset by pressing power and volume up simultaneously.

Does the tablet support HDMI output?

No, the TP8-1000 does not have an HDMI port. However, you can use a screen mirroring app if both devices support Miracast.

What should I do if the Wi-Fi connection drops frequently?

Try moving closer to the router, restart both devices, or forget and reconnect to the network. You can also reset network settings in Settings > Backup & Reset.

Are replacement parts available for this tablet?

Limited spare parts may be available through CnMemory support. For battery or screen replacement, contact authorized service centers.

USER MANUAL TP8-1000 CnMemory

* Kostenfrei aus allen deutschen Netzen / Free from all German telephone networks

24003

Deutsch

1-4 Touchscreen

Abstract 3D geometric design with green and purple blocks, no text or symbols visible

Computer desktop wallpaper showing colorful geometric shapes and application icons (no readable text or symbols)

Game interface screenshot showing purple and pink gradient background with floating icons and control buttons (no readable text or symbols)

4-1-1 WI-FI Verbindung

Close-up of a blue USB cable connector with a black connector attached, against a plain wall (no text or symbols visible)

Bemerkungen:

C: Zeit einstellen:

All trademarks, registered trademarks and logos are the property of their respective owners. Alle Angaben ohne Gewähr.

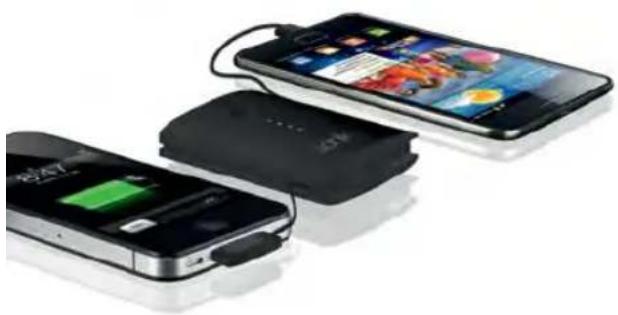

Three smartphones with charging cables and battery modules, no visible text or symbols

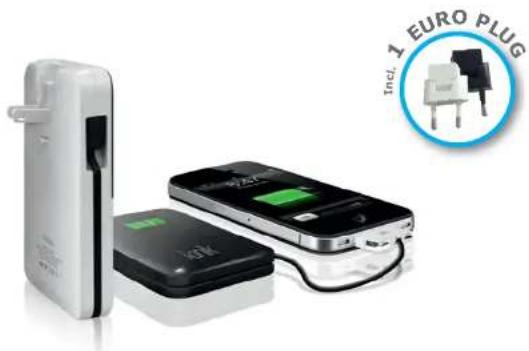

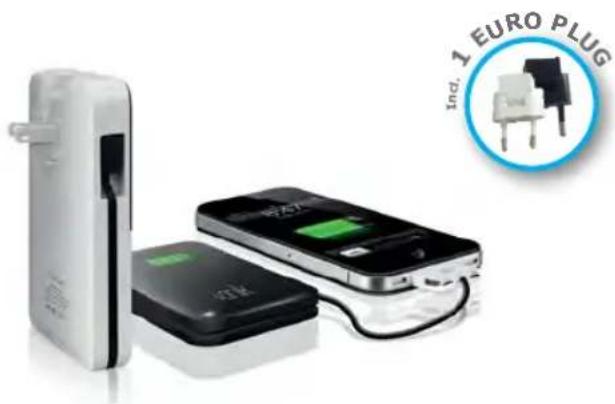

Product photo of a battery pack and smartphone with an Eurostecker logo (no text on main subjects)

PB-3000PB-5000

1. Before using the tablet PC, please read all the information provided first, to ensure this product is used correctly. Please make sure that you have read this manual carefully before using this product.
2. This manual is copyrighted by our Company, any full or partial commercial duplication or interpretation of the manual is forbidden.
3. All information covered in this manual is based on the latest information, and products are subject to change for further development, without notice. We are not liable for any mistakes or discrepancies within this manual. For additional product information, visit the company's website.
4. When using this product, please backup your data, as our company is only responsible for the actual hardware, and will not be held responsible for any loss or damage of personal data and information.

Precautions

This manual includes important information on safety precautions and proper use of this product.

To prevent any accident, please make sure that you have read this manual carefully before using this product.

• Do not keep this product in a hot, humid or dusty location. In particular, do not use this product in a car with shut windows during the summer, and keep out of direct sunlight.
• Avoid dropping and heavy shocks to this product. Also, do not shake the device violently, otherwise this may damage it, causing it to not work correctly.
• Please choose a suitable volume. Avoid an excessively high volume when using a headset. If the noise affects your ears, please decrease the volume.
• Do not suddenly cease connection when this product is formatting, uploading or downloading material, as this may cause errors.
• The producer will not be held responsible for any lost data due to product damage, repairing the product, or for any other reasons.
• Do not disassemble this product by yourself, and do not clean the surface of this product with alcohol, thinner or benzene.
• Do not use this product in a place where using electronic devices is prohibited, such as on an aeroplane.
• Do not use this product while driving a car or walking in the street, as this could cause a traffic accident.
• The producer reserves the right to improve and develop this product. No further notice will be provided on any variation of the specification and design of this product!

(This product is not waterproof)

Content

Important Information 24
Precautions....24 Main Functions....26
Appearance and Buttons....26

1. Quick Start 27
   1-1 Power ON/OFF/Lock/Unlock....27
   1-2 Battery and Charge....28
   1-3 Computer Connection & File Transfer 28
   1-4 Using the Touch Screen 29
   1-5 G-Sensor 29
   1-6 Solving Problems of the Machine Running Slowly....29
   1-7 Entering text....29

2. Main Screen Function/Icons....30

2-1 Main Screen Function 30

2-2 Main Interface 31

2-3 Add/Move/Delete Desktop Icon....31

2-4 Shortcut 32

1. Application Installation .... 32

3-1 Methods of how to Acquire 33

3-2 Program Install....33

3-3 Program Uninstall ....33

1. Internet....33

4-1 Network Setting 33

4-2 Ethernet Setting 34

4-3 Webpage Browser 36

1. File Manager....38

2. OTG Function....38

3. External USB Keyboard and Mouse 38

4. Usage of Micro SD/SDHC (TF)-Card 38

5. Basic Setting ......39

9-1 Wireless & Network Setting 39

9-2 Display Settings....40

9-3 Security....40

9-4 Setting Date and Time....41

1. Troubleshooting ....41

2. Specifications 43

3. i.onik Products ....46

Pictures may differ from original product.

Main Functions:

• 8 inch, G + G capacitive 5 point touch-screen, 800 x 480 pixel resolution.
  • Supports built-in 0.3 Mega front camera.
  • Supports built-in microphone recording function.
  • Supports external USB mouse, keyboard, etc.
• Supports OTG function and USB stick, portable OTG hard disc to transfer data. (Whilst connecting to the portable hard disc, DC power must be connected to the product's power supply, otherwise the tablet PC will crash due to insufficient power supply).
• Multiple network access to the Internet. As Wi-Fi is supported, you can enjoy the Internet anywhere, at anytime.
• With the Gravity sensor (G-sensor), in addition to being able to switch the screen horizontally and vertically, you can also install various software to improve this function, such as flicking through text, changing songs, fun games, etc.
• With the Google Android intelligent operating system, you can create your own personalized space with APKs.
• Supporting APK installation and application, existing software can be downloaded and installed from the Play Store or Internet to your MID or PC.
• With this product, you can easily conduct business and also be entertained through existing applications, such as E-Mail, Word, website browsing, the news, instant messaging, financial activity, blogs, online games, online videos, the stock market, weather reports, mobile TV, maps, general "fun" software, etc.
• Supports MP3, M4A, WMA, APE, FLAC, AAC, MID, WAV, AMR, OGG, etc.
• Supports full HD video decoding (2160P, 1080P, 720P, 480P); video formats: MKV, AVI, RM/RMVB, WMV, 3GP, MOV, MP4, ASF, MPG, DAT, VOB, FLV, etc.
  • Supports JPG, JPEG, BMP, PNG, etc, and formats image browsing.
• Supports Micro SD/SDHC (TF) Card, with a capacity of up to 32 GB.
• Personalized settings - freely adjustable brightness, key tone on or off, changing wallpaper and so on.
• Multilingual.
• More functions could be added by updating Firmware.

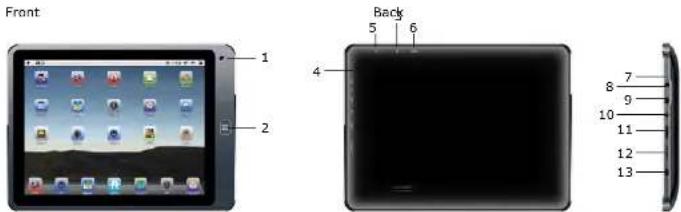

Appearance and Buttons

Definition:

1. V-: volume down
2. V+: volume up
3. ☐: Back – press this button to go to previous screen or previous menu
4. ☐: Power Button – hold down this button to turn the device on or off, or simply press this button to lock screen in order to avoid any errors.
5. Earphone Jack
6. USB Port: Micro USB 5 Pin data cable supports external USB stick, wired mouse, 3G wireless Internet card, etc.
7. Reset and upgrading key
8. Micro SD/SDHC (TF) card slot
9. MIC recording hole: microphone

1. Quick Start

1-1 Power On/Off and unlock

When the power is off, hold down ☐ for three seconds to turn the power on. It will take a little time to turn on, please be patient. It will take about 100 seconds to enter the system, drag the unlock icon ☐ to the camera icon on the left to take a photo, and to the unlocking icon on the right to unlock, see below:

Energy-saving and locking mode: When the machine is not being used, the system will automatically enter into the energy-saving mode. Press ⬤ to awaken the screen, the system will then be ready to unlock in one second, touch 📋 to unlock.

Notes: In energy saving mode, the system will still be turned on, only the LCD screen will be off, showing a black screen. Music or video will continue to play.

Power Off: Whilst using the product, press ① for 5 seconds, the screen will give a "power off" option. Select this "Power off" option, confirm your choice and the system will then automatically turn off. Select "Cancel" to cancel the machine powering off.

Notes: When at low power, a warning will be given; at this point, connect the DC adapter and begin to charge, it will then automatically turn off. If the product cannot boot, please check the battery.

1-2 Battery and Charge

The battery should be charged for 8 to 12 hours for the first time, in order to make sure the battery has enough power.

Please use the provided charger. Now that the device is being charged, the battery icon will show that the device is charging. Please do not disconnect the charger until the device is fully charged. The battery icon will show when it is fully charged.

Please note the following precautions for protecting the lithium battery:

a. Don't charge in or under a high temperature (for example, under direct sunlight).
b. The lithium battery does not need to be completely empty before the user can charge it.
c. While charging, it is normal that both the charger and the device will heat up.

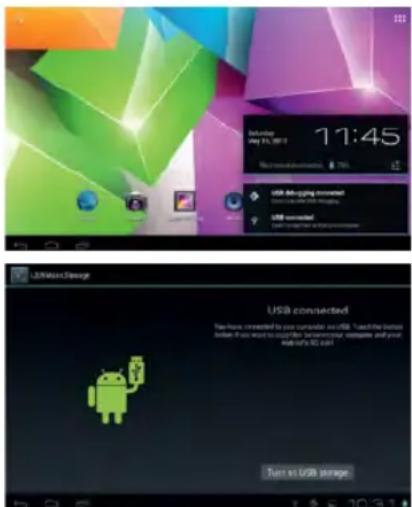

1-3 Computer Connection & File Transfer

Upon connection of the product to the computer with a USB cable, the status bar will show that the USB has connected. The product's default is set for a USB connection. If you are connecting an external mobile hard disc, "USB connected" needs to be showing on the status bar. Click the option to enable the USB status to be altered, with reference to the icon on the bottom right, "Open USB storage equipment", switch this into the USB storage status. Now, the user can access the external hard disc. On USB storage, click the icon again to disconnect USB and recover to charge mode. The USB storage mode system will limit the user's access to the local disc application. By disconnecting USB storage mode, the system will go back to the normal status, as seen in the following image:

1-4 Using the Touch Screen

There are various ways to operate this. You can view the main screen, menu and application.

1-4-1 Click

When you want to use the screen keyboard or select the application in the main menu, it can be done by using your fingers or stylus to click.

1-4-2 Press

When you want to open a file, shortcut, or application in the main menu, just press "OK".

1-4-3 Movement

Movement with your finger or stylus to make the screen drag horizontally or vertically.

1-4-4 Drag

Before dragging, please use your finger or stylus to press, to get to the required location.

1-5 G-Sensor

The product has the function of a G-sensor. After activating the function in the settings (default setting is active), by rotating the machine 90 degrees, the screen will switch from horizontal to vertical automatically.

As well as the screen switching from horizontal to vertical, it can support more functions too, such as flicking through text, changing music and fun games.

1-6 Solving problems of the machine running slowly

After using the product for some time, even though applications have been shut down, they are still running in the background, thus making the system run slowly. Therefore, you need to end these programs in Advanced Task Manager to allow the product to run smoothly.

1-7 Entering Text

When you start an application or select the text edit box to enter text or numbers, the screen keyboard will appear. The keyboard has the following options to select:

- Android keyboard

• Google Pinyin IME (Input Method Editor)

1-7-1 Select IME

With the original setting of the product, the Android keyboard will appear when you input the words.

1. On the main screen press the menu key, and then click settings

2. Click language & input

3. In the language & input area, the product will list the installed IME

4. Select it after selecting the IME you need

Android Keyboard Panel

2 Main Screen Function/Icon

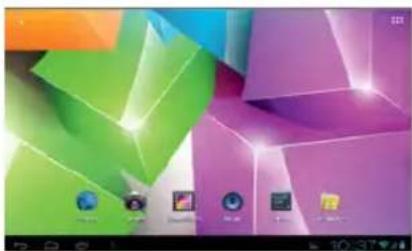

2-1 Main Screen Function

Computer desktop wallpaper showing abstract geometric shapes in green, purple, and orange tones (no text or symbols visible)

Icon Definition Icon Definition
	Google Search Settings
[H7HO]	Back Function Modu	Menu
[CSOA]	Back to main screen from any interface	Camera
[YXOS]	Current time Battery
[DHCO]	WI-FI signal Menu
	New device found

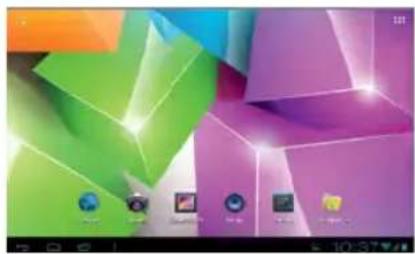

2-2 Main Interface

Abstract 3D geometric design with green, purple, and orange blocks (no text or symbols)

Hold down "Power" to turn on, the screen is then locked after the power is on, press the unlock key to unlock and enter the main screen as below. On this screen, you can view the status bar, change wallpaper, add widgets, add program shortcuts, start programs, etc.

2-2-1 Status Bar

With a stylus, slide down to read prompts in the status bar to open the notification bar and you can see today's date.

2-2-2 Menu

Press menu button or press to open open screen menu:

• Wallpaper: in this menu, you can choose your favourite photos for the main screen background.
• Manage Applications: You can check all the programs that are within this device, and remove all installed programs.
• System Set: Click to enter the system setting menu screen directly.

2-3 Add, move or delete Desk Icon

On the main screen, click 🎯 to enter the function menu list, displaying applications of all web pages. Press and hold to drag the icon to copy it to current desktop, for example, creating shortcuts on the desktop.

Game interface screenshot showing purple and pink gradient background with floating characters and UI elements (no readable text or symbols)

You can delete the icon which is added to main screen, by highlighting the icon which you are going to delete. Now there will be an "X" on the top, just drag this icon to "X" to delete.

2-4 Shortcut

click to show all function icons as below:

This window shows all the function icons, click any icon to enter corresponding screen, see the following:

Sending/Receiving E-Mails.
Browser: Click to enter the Internet to browse web pages.
Calendar: Check the calendar and settings.
Calculator Icon: Click this icon to use the calculator.
Alarm Clock: Clock icon, click this icon to set an alarm.
Play music.
Video player icon or photo browser: Click this icon to play videos and view photos.
Webpage research.
Camera.
Enter recording screen.
File Manager: Check all file types and content.
Advanced task manager: Manage applications and remove. When the machine runs slowly, this function will shut down unused applications in order to prevent the machine running slowly.
Setting icon: Click this icon to enter system setting screen.

3. Application Installation

This device can install APKs (Android Packages) with ease, you can get third-party applications which are suitable for this Android system from the "Play Store" and the Internet. APKs can be installed on this machine.

First select "Setting/Application Program", then select "unknown sources".

3-1 Methods of how to Acquire

Method 1: Download from the website and copy the applications onto the Micro SD/SDHC (TF) and insert into the product.

Method 2: Through the product's "Play Store", by downloading the application onto the Micro SD/SDHC (TF)-card.

3-2 Program Install

Click the main screen's shortcut key, then select "File Manager". Now select the SD card sub-menu and click on the APK.

Note: On the website, all files have the .apk suffix in the third-party program.

3-3 Program Uninstall

Click „Settings“ then select Apps and then click „uninstall”. Uninstall: Uninstall this application, click ■ to go back to previous screen.

4. Internet

4-1 Network Setting

Click the shortcut on the main screen, choose "Setting/Wireless and Network" to enter the network setting screen:

4-1-1 WI-FI Connection

Click the shortcut on the main screen, select "Internet Connection Manager", click "WI-FI setting", then enter the WI-FI setting screen, now select "WI-FI" and activate it.

After WI-FI has opened, it will automatically search for wireless network, this shows on the menu, now click wireless network, enter the password screen, and now input the password and connect. Seconds later, the system will connect to wireless network automatically.

When WI-FI is open, this will make the machine use 25 % more power. When not using WI-FI, please turn it off to extend the battery life.

4-2 Ethernet Setting

Using the Ethernet card (USB-RJ45) when connecting to the Internet. There are two requirements needed to use USB-RJ45 to connect to the Internet, and these are detailed below:

1. ADSL account and password are set up correctly on router.
2. USB-RJ45 network card is the model which is supported by this device.

Models supported are listed below:

AX88772/AX88772a/AX88772B/AX88178/AX88760/QF9700/

SR9600/MCS7830/MCS7832/MCS7730

Steps for Internet Connection:

First connect the network cable to the USB Ethernet card, then insert the USB OTG cable which is meant for this device into USB Ethernet card and the other end into USB port of the device.

Close-up of a blue USB cable connector attached to a black rectangular device (no visible text or symbols)

Notes:

1. First close the WI-FI network, only one network can be used, otherwise there will be errors.
2. This device will automatically detect the USB Ethernet card and switch on the "Ethernet". There will now be a network icon in the status column.

3. Wait a moment, as this device will try to connect to Internet automatically. If the router and the DHCP service are already open, and the netgate, DNS and relevant settings have been applied, then the device will connect to the Internet automatically. (The Ethernet card function must be selected already).

4. If the device fails to connect, usually this is because the settings in the router are not correct. You can set the parameters in the device as follows:

a. Enter setting/Ethernet setting, select and open Ethernet. Enter configuration information, choose "static IP setting", then enter the static IP setting screen (the default setting is automatic acquiring IP. Usually, automatic acquiring IP is fine for everything, but some companies' routers will use specified IPs, not allowing automatic acquiring IP, it depends on router settings, therefore static IP needs to be used at this time).

b. There is no need to fill in the Ethernet card device and physical address. The machine will automatically detect this, after successfully connecting the Ethernet. In the IP address column, enter the IP address, the default usually being 192.168.1.1xx.

c. In "subnet mask", enter network segment mask, the default is 255.255.255.0.

d. In the "DNS server", enter your local network service provider's DNS server IP. A different location has a different DNS server IP - if you are unsure, you can search by Google.
e. Enter the gateway in the „default gateway". The general default is 192.168.1.1 (you can check the router's manual for confirmation). It must be set to the same as the router; otherwise connection will be shown, however cannot connect to the Ethernet.
f. Finally, click the lower right corner of the "Save" button, then select Save. The system will automatically connect after saving, then you can use the Ethernet.

1. Close the Ethernet, unplug the "Ethernet" cable, now you can turn off the Ethernet connection.
2. Unplug the OTG cable.

Attention:

1. If you are unsure about router settings and the DHCP service, please consult the router's manufacturer, point-of-service, network service providers (or ask network management, network experts, etc.), or research independently. Our company does not supply this kind of service and support.
2. If you are not using Ethernet, please unplug the OTG cable and Ethernet card, otherwise the machine will continue to use power.

4-3 Webpage Browser

Set up the network as in chapter 4-1, you can then use the browser to browse the web. Click the shortcut on the main screen. Enter the required URL in the address bar. Open the web page; then slide your finger up and down the screen to view other parts of the page.

4-3-1 Bookmark Manager

- SettingBookmarks

On the browsing screen, if you want to add the current address to bookmark, click the "star" icon select "Bookmark", then click "Add bookmark". Click "Yes" to confirm.

- Open Bookmarks

On the browser screen, click the icon "flag with star" to select "Bookmark", then select the bookmark which you want and open the web page.

- Edit Bookmarks

hold down the bookmark which you like to edit, then select "Edit bookmark" to edit it, and click "Yes" to confirm.

4-3-2 Open new Window

- Open new Browser Window

On the browser screen, click "Menu", then select "New tab" to open a new browser window.

- Switching the Browser Window

The tabs are shown in the top task bar. Here you can switch the tabs.

4-3-3 Change your Startpage

On the browser screen, click "Menu", and the settings menu will appear. Then click "More", and then "Settings", then "Settings homepage" on the settings screen, then enter the required URL, finally click "Yes" to save it.

4-3-4 Browser Settings

On the browser screen, click "Menu", then "Settings" to configure the browser.

4-3-5 E-Mail

You can receive and send E-Mails with this machine. You can add a POP3 OR an IMAP E-Mail account from a standard web E-Mail server (Such as Yahoo, Gmail, or Hotmail).

Notes: Before setting up E-Mail, please ensure your Internet is connected.

4-3-6 E-Mail Setting Guide

Click the shortcut on the main screen, then an E-Mail settings guide will appear to help set up.

Click the "Next" button, enter your E-Mail address and password of your E-Mail account. Then, click the "Next" button. Select your E-Mail type, either POP3 or IMAP. Click the "Next" button to check whether the sending and receiving servers for E-Mail can be used, then enter your account name and E-Mail name, then click "Finish". When E-Mail arrives, it will now enter your inbox automatically.

4-3-7 Receiving and Sending E-Mail

Click the shortcut on the main screen, select the "E-Mail" icon to enter your inbox. The system will refresh automatically, click to read new E-Mails.

Click the icon "envelope +" to write a new E-Mail. Enter the receiver's E-Mail address, subject matter and write the body of your E-Mail. Then if you want to add an attachment, click the icon "paper clip" to bring up the menu, click "Add attachment" to select the attachment. Then click "Send" to send the E-Mail.

Notes: If you have more than one account, and aim to send E-Mail using one specific account, click and choose the desired account name, write the E-Mail.

4-3-8 Delete E-Mail Account

You can delete the POP3 or IMAP E-Mail account from your E-Mail program.

Choose the account you want to delete, then click "Delete account". Click "Yes" to delete.

4-3-9 Instant Messaging

You can send instant messages with friends through "Google Talk" or "Mobile QQ" or other APKs.

5. File Manager

On the main screen, click the file manager icon ☐, then select the storage location to show the files. Here you can copy, move, paste or rename files. Hold down a single folder or file, the Edit box will then pop up with choices to delete, rename, copy, paste or send E-Mail.

6. OTG Function

This product has an OTG function. It can support a USB stick and some other devices like self-powered hard disc, etc. This product will automatically detect the USB device after connecting to it via an OTG cable. You have access to the USB device files, as you do the files on your machine.

With a low battery or the DC charger not plugged in and charging, please do not use the OTG function, or the machine may turn off automatically because of low power.

7. External USB Keyboard and Mouse

After the mouse is connected, the pointer will appear on the screen. The left button is to select, the right button is to return and the middle slider to slide up and down.

Note: Some keys cannot work on this machine. The keyboard will be revised as per the definition of the Android system. We recommend a standard USB keyboard to be used.

8. Usage of Micro SD/SDHC (TF) Card (following TF)

This product comes with TF-card slot. It supports reading files on the TF-card. When using, insert the TF-card into the machine. To take out the TF-card, push the TF-card inside a little then release. The TF-card will then pop out automatically, and you can now remove it. This product supports a TF-card from 1 GB to 16 GB.

Tips:

A. Please insert the TF-card into the card slot correctly.
B. When the TF-card is working (such as reading, copying, etc.), please do not pull out the card as this will lead to data errors.
C. Avoid using the memory card in a high temperature or humid environment.
D. Keep the memory card away from liquid or corrosive material. Note: if you cannot take out the memory card, or it is stuck in the machine, you can use tweezers or other tools to pull it out slowly and carefully.

9. Basic Setting

Click the ■ icon to enter the settings menu: Wireless & Networks, Sound, Display, Storage, Battery, Applications, Accounts & Sync, Location Services, Security, Language & Input, Backup & Reset, Date & Time, Accessibility, and Developer. Press and drag the screen up or down to turn pages.

9-1 Wireless & Network Setting

Click WLAN in Wireless & Network in the "Settings" menu to enter (shown here):

1. WI-FI: Click "ON" to open WI-FI.
2. Mobile networks: Click "More", then "Mobile networks", and turn on the Modem power. If WI-FI is on, this will bring up a box saying, "Please turn off WI-FI first". Click "Yes", now WI-FI will shut down automatically.
3. Mobile network settings: Click to set Data Enabled, Data Roaming, Access Point Names, Network Operators, etc.
4. Ethernet Settings: Please refer to the chapter 4-3 relating to Ethernet Settings.

9-2 Display Settings

Click Display in the Settings menu to enter the settings screen (as below):

A. Brightness: Click here to adjust the brightness of the screen.
B. Wallpaper: Click here to set Live Wallpaper, Wallpapers.
C. Screen Auto-rotation: Screen Auto-rotation: Click here to activate or deactivate screen auto-rotation function.
D.Sleep: Click here to adjust the time for automatic screen lock with choices of 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, or 30 minutes.
E. Font size: Click here to adjust the font size.
F. Accelerometer coordinate system: Click here to set a special coordinate for some games.
G. Screen adaption: Click here to adjust the screen size for some games.

9-3 Security

You can set up device administration, screen lock and password visibility.

1. Unknown sources: Allow installation of non-Market applications.
2. Screen Unlock:
   A. None: Disable screen unlock security
   B. Pattern: Draw pattern to unlock screen
   C. PIN: Enter a numeric PIN to unlock screen
   D. Password: Enter a password to unlock screen

9-4 Setting Date and Time

Click "date & time" in the men to enter into setting interface, cancel auto selection, then you can change the date, time zone and time manually.

A: Set Date:

Click ■ to set up year, month, day, click to confirm.

B: Select Time Zone – select your time zone and confirm.

C: Set Time - Click ■ to set up hour, minute, for example, 10:56 then click ■ to confirm.

D: Set Date Format - Click the date format you prefer and confirm.

10. Trouble Shooting

1. The tablet turns on slowly the first time

- After a system update, or a factory restore, it takes about 2-3 minutes to install some pre-installed applications the first time, then this will speed up.

2. Unable to connect WI-FI or there is a weak signal

• Ensure the Network is working properly.
• Ensure the username and password are correct.
• Ensure the internal antenna is not blocked.
• Ensure the tablet is within the proper distance of the Network and there is no obstruction in between.

3. Fail to copy files

• Ensure the tablet is connected to the computer correctly.
• Ensure there is still disc space.
• Ensure the USB cable is functioning well.

4. No sound in the earphone

• Ensure that the volume is not set to 0.
• Check whether the headset is correctly connected and if the wire is broken.

5. General issues with the system

- When you install some third-party applications it may lead to various issues. You can restart the tablet or uninstall the applications.

6. Unable to set up E-Mail or use registration applications.

• Ensure your Network is working properly.
• Ensure the E-Mail account is correctly set up.
• Ensure your system time is the same as the local time.
• Run the "Advanced Task Manager" to stop some other applications running.

7. The memory capacity is different from the nominal figure

• Just like the hard disc on a computer, the capacity shown is usually less than the nominal capacity; this is due to different unit conversion used by computer and storage device manufacturers. On a computer, 1 GB = 1024 MB, but storage device manufacturers use 1 GB = 1000 MB as default. The actual capacity is not lower.

• The OS of this tablet pre-installs some applications, games and the OS itself takes up some capacity. This is also one reason why the capacity that can be used for storage is less than the nominal figure.

• Specification

Dimension ca. 212	mm x 158 mm x 10,1 mm
Display	8 inch, G + G capacitive 5 point touch-screen, 800 x 480 pixel resolution.
PC connection High	speed USB 2.0
Configuration	CPU Boxchip A13, 1 GHz
	Memory 8 GB (internal)
	RAM	512 MB DDR III
	Mirco SD/SDHC (TF) card	up to 32 GB (optional)
	Operation System Android 4.0.4
Access Network WI-FI IEEE802.11b/g/n
Power	Battery	Lithium battery 3760 mAh
	DC Adapter DC 5V/1.5A
Audio	max. earphone output	(L) 7 mW +(R) 7 mW (32 ohm)
	MP3 bit rate 32 K bps -	320 K bps
	WMA bit rate 16 K bps -	320 K bps
	Frequency response 20	Hz-20 KHz +/-3 dB
	SNR	>= 85 dB
	Distortion degree	<0.6%
Music Formats	MP3, M4A, WMA, APE, FLAC, AAC, MID, WAV, AMR, OGG etc.
Video Formats	supporting Full HD video decoding (2160P, 1080P, 720P, 480P);Video formats: MKV, AVI, RM/RMVB, WMV, 3GP, MOV, MP4, ASF, MPG, DAT, VOB, FLV etc.
Image Formats JPG, JPEG, BMP etc.
Environment Temperature	-5 to 40 °C
Language	multi-languages supported
OS Supported	from WindowsXP/Linux2.4/MAC OS 10.4

All trademarks, registered trademarks and logos are the property of their respective owners. We do not guarantee any data with respect to their content, completeness or up-to-dateness

Stay longer mobile!

With the i.onik ^ charger you can't only recharge your mobile phones and MP3 player, but also your i.onik ^ tablet PC.

Three smartphones with charging loads and battery modules, arranged diagonally (no visible text or symbols)

• Charging time: PB-5000: ca. 6 h
  • Standby time: PB-5000: up to 780 h
  • Talk time: PB-5000: up to 3G/18 h; 2G/6 h
  • Audio: PB-5000: up to 100 h
  • Video: PB-5000: up to 26 h

Powerbank PB-3000/PB-5000

Product photo of a white electronic device with battery and charging case, alongside a circular logo featuring an '1 EURO PLUG' symbol (no text on devices)

PB-3000PB-5000

• Charging time: PB-3000: ca. 3,5 h
• Standby time: PB-3000: up to 420 h
- Talk time: PB-3000: up to 15 h
• Audio: PB-3000: up to 55 h
• Video: PB-3000: up to 14 h

i.onik

mobile

i. onik mobile

TP8-1200-metal Tablet PC

*Kostenfrei aus allen deutschen Netzen / Free from all German telephone networks

24004

i. onik mobile

Deutsch

Definition:

1-4 Touchscreen

Colorful 3D geometric shapes in a digital kitchen interface (no text or symbols visible)

Desktop screenshot showing a colorful 3D geometric design with no visible text or symbols on the objects.

Game interface screenshot showing purple-themed scene with floating objects and UI elements (no readable text or symbols)

4. Internet

4-1-1 WI-FI Verbindung

Close-up of a blue USB cable connector attached to a black rectangular device (no visible text or symbols)

Bemerkungen:

C: Zeit einstellen

All trademarks, registered trademarks and logos are the property of their respective owners. Alle Angaben ohne Gewähr.

Two smartphones with charging devices connected by a battery pack, showing app interface and battery icons (no readable text or symbols)

Product photo of an electronic device with battery pack and smartphone, featuring a Eurostecker logo (no readable text or symbols on main objects)

PB-3000PB-5000

1. Before using the tablet PC, please read all the information provided first, to ensure this product is used correctly. Please make sure that you have read this manual carefully before using this product.
2. This manual is copyrighted by our Company, any full or partial commercial duplication or interpretation of the manual is forbidden.
3. All information covered in this manual is based on the latest information, and products are subject to change for further development, without notice. We are not liable for any mistakes or discrepancies within this manual. For additional product information, visit the company's website.
4. When using this product, please backup your data, as our company is only responsible for the actual hardware, and will not be held responsible for any loss or damage of personal data and information.

Precautions

This manual includes important information on safety precautions and proper use of this product.
To prevent any accident, please make sure that you have read this manual carefully before using this product.
- Do not keep this product in a hot, humid or dusty location. In particular, do not use this product in a car with shut windows during the summer, and keep out of direct sunlight.
- Avoid dropping and heavy shocks to this product. Also, do not shake the device violently, otherwise this may damage it, causing it to not work correctly.
- Please choose a suitable volume. Avoid an excessively high volume when using a headset. If the noise affects your ears, please decrease the volume.
- Do not suddenly cease connection when this product is formatting, uploading or downloading material, as this may cause errors.
- The producer will not be held responsible for any lost data due to product damage, repairing the product, or for any other reasons.
- Do not disassemble this product by yourself, and do not clean the surface of this product with alcohol, thinner or benzene.
- Do not use this product in a place where using electronic devices is prohibited, such as on an aeroplane.
- Do not use this product while driving a car or walking in the street, as this could cause a traffic accident.
- The producer reserves the right to improve and develop this product. No further notice will be provided on any variation of the specification and design of this product!

(This product is not waterproof)

Content

Important Information 20
Precautions....20 Main Functions....22
Appearance and Buttons....22

1. Quick Start 23
   1-1 Power ON/OFF/Lock/Unlock 23
   1-2 Battery and Charge 23 1-3 Computer Connection & File Transfer 23
   1-4 Using the Touch Screen 24
   1-5 G-Sensor 24
   1-6 Solving Problems of the Machine Running Slowly 24
   1-7 Entering text 24

2. Main Screen Function/Icons 25

2-1 Main Screen Function 25
2-2 Main Interface 25
2-3 Add/Move/Delete Desktop Icon 26
2-4 Shortcut 26

1. Application Installation 27

3-1 Methods of how to Acquire 27
3-2 Program Install 27
3-3 Program Uninstall 27

1. Internet 27

4-1 Network Setting 28 4-2 Ethernet Setting 29
4-3 Webpage Browser 29

1. File Manager....31

2. OTG Function....31

3. External USB Keyboard and Mouse 31

4. Usage of Micro SD/SDHC (TF) t-Card 31

5. Basic Setting 32

9-1 Wireless & Network Setting 32
9-2 Display Settings....33
9-3 Security....33 9-4 Setting Date and Time....33

1. Troubleshooting 34

2. Specifications 35

3. Ionik Products 38

All trademarks, registered trademarks and logos are the property of their respective owners. We do not guarantee any data with respect to their content, completeness or up-to-dateness pictures may differ from original product.

Main Functions:

- 8 inch, G+ G capacitive 5 point touch-screen, 800 x 600 pixel resolution.

• Supports built-in 0.3 maga pixel front camera and 2 mega pixel back camera.

• Supports built-in microphone recording function.

• Supports external USB mouse, keyboard, etc.

- Supports OTG function and USB stick, portable OTG hard disc to transfer data. (Whilst connecting to the portable hard disc, DC power must be connected to the product's power supply, otherwise the tablet PC will crash due to insufficient power supply).

- Multiple network access to the Internet. As WI-FI is supported, you can enjoy the Internet anywhere, at anytime.

- With the Google Android intelligent operating system, you can create your own personalized space with APKs.

• Supporting APK installation and application, existing software can be downloaded and installed from the Play Store or Internet to your MID or PC.

- With this product, you can easily conduct business and also be entertained through existing applications, such as E-Mail, Word, website browsing, the news, instant messaging, financial activity, blogs, online games, online videos, the stock market, weather reports, mobile TV, maps, general "fun" software, etc.

• Supports MP3, M4A, WMA, APE, FLAC, AAC, MID, WAV, AMR, OGG, etc.

- Supports full HD video decoding (2160P, 1080P, 720P, 480P); video formats: MKV, AVI, RM/RMVB, WMV, 3GP, MOV, MP4, ASF, MPG, DAT, VOB, FLV, etc.

• Supports JPG, JPEG, BMP, PNG, etc. and formats image browsing.

• Supports Micro SD/SDHC (TF) card, with a capacity of up to 32 GB.

- Personalized settings - freely adjustable brightness, key tone on or off, changing wallpaper and so on

- Personalized settings: Theory, adjustable brightness, key, tone off or off, changing wallpaper and so off. - Multilingual.

- More functions could be added by updating Firmware.

Appearance and Buttons

Definition:

1. Front camera
2. Menu/Home
3. (1): Power Button - hold down this button to turn the device on or off, or simply press this button to lock screen in order to avoid any errors
4. Back Camera
5. Return key - hold down this button to return to the last operation menu or the last operation interface
6. Reset/restart key - hold down this button reset the system
7. Mirophone
8. Earphone Jak
9. USB port: MINI 5PIN data cable connecting port, support external USB stick, mouse, 3G wireless Internet card, etc.
10. DC Power
11. HDMI port: HD output port
12. Micro SD/SDHC (TF)-card slot
13. MICRO SD/SBHC (11)-card slot
14. OTG

1. Quick Start

1-1 Power On/Off and unlock

When the power is off, hold down Ⓞ for three seconds to turn the power on. It will take a little time to turn on, please be patient. It will take about 100 seconds to enter the system, drag the unlock icon 📋 to the camera icon on the left to take a photo, and to the unlocking icon on the right to unlock, see below:

Energy-saving and locking mode: When the machine is not being used, the system will automatically enter into the energy-saving mode. Press ⏻ to awaken the screen, the system will then be ready to unlock in one second, touch ⬆ to unlock.

Notes: In energy saving mode, the system will still be turned on, only the LCD screen will be off, showing a black screen. Music or video will continue to play.

Power Off: Whilst using the product, press Ⓤ for 5 seconds, the screen will give a "power off" option. Select this "Power off" option, confirm your choice and the system will then automatically turn off. Select "Cancel" to cancel the machine powering off.

Notes: When at low power, a warning will be given; at this point, connect the DC adapter and begin to charge, it will then automatically turn off. If the product cannot boot, please check the battery.

1-2 Battery and Charge

The battery should be charged for 8 to 12 hours for the first time, in order to make sure the battery has enough power. Please use the provided charger. Now that the device is being charged, the battery icon will show that the device is charging. Please do not disconnect the charger until the device is fully charged. The battery icon will show when it is fully charged.

Please note the following precautions for protecting the lithium battery:

a. Don't charge in or under a high temperature (for example, under direct sunlight).

b. The lithium battery does not need to be completely empty before the user can charge it.

c. While charging, it is normal that both the charger and the device will heat up.

1-3 Computer Connection & File Transfer

Upon connection of the product to the computer with a USB cable, the status bar will show that the USB has connected. The product's default is set for a USB connection. If you are connecting an external mobile hard disc, "USB connected" needs to be showing on the status bar. Click the option to enable the USB status to be altered, with reference to the icon on the bottom right, "Open USB storage equipment", switch this into the USB storage status. Now, the user can access the external hard disc. On USB storage, click the icon again to disconnect USB and recover to charge mode. The USB storage mode system will limit the user's access to the local disc application. By disconnecting USB storage mode, the system will go back to the normal status, as seen in the following image:

1-4 Using the Touch Screen

There are various ways to operate this. You can view the main screen, menu and application.

1-4-1 Click

When you want to use the screen keyboard or select the application in the main menu, it can be done by using your fingers or stylus to click.

1-4-2 Press

When you want to open a file, shortcut, or application in the main menu, just press "OK".

1-4-3 Movement

Movement with your finger or stylus to make the screen drag horizontally or vertically.

1-4-4 Drag

Before dragging, please use your finger or stylus to press, to get to the required location.

1-5 G-Sensor

The product has the function of a G-sensor. After activating the function in the settings (default setting is active), by rotating the machine 90 degrees, the screen will switch from horizontal to vertical automatically.

As well as the screen switching from horizontal to vertical, it can support more functions too, such as flicking through text, changing music and fun games.

1-6 Solving problems of the machine running slowly

After using the product for some time, even though applications have been shut down, they are still running in the background, thus making the system run slowly. Therefore, you need to end these programs in Advanced Task Manager to allow the product to run smoothly.

1-7 Entering Text

When you start an application or select the text edit box to enter text or numbers, the screen keyboard will appear. The keyboard has the following options to select:

- Android keyboard

• Google IME (Input Method Editor)

1-7-1 Select IME

With the original setting of the product, the Android keyboard will appear when you input the words.

1. On the main screen press the menu key, and then click settings

2. Click language & input

3. In the language & input area, the product will list the installed IME

4. Select it after selecting the IME you need

Android Keyboard Panel

2 Main Screen Function/Icon

2-1 Main Screen Function

Computer desktop wallpaper showing colorful geometric shapes and icons (no readable text or symbols)

Icon Definition Icon Definition
	Google Search Settings
	Back Function Module Me
	Back to main screen from any interface		Camera
	Current time Battery
	WI-FI signal Menu
	New device found Setting menu

2-2 Main Interface

Colorful 3D geometric design with green and purple blocks, no text or symbols visible

Hold down "Power" to turn on, the screen is then locked after the power is on, press the unlock key to unlock and enter the main screen as below. On this screen, you can view the status bar, change wallpaper, add widgets, add program shortcuts, start programs, etc.

2-2-1 Status Bar

With a stylus, slide down to read prompts in the status bar to open the notification bar and you can see today's date.

2-2-2 Menu

Press menu button or press to open open screen menu:

- Wallpaper: in this menu, you can choose your favourite photos for the main screen background.

• Manage Applications: You can check all the programs that are within this device, and remove all installed programs.
• System Set: Click to enter the system setting menu screen directly.

2-3 Add, move or delete Desk Icon

On the main screen, click 🎨 to enter the function menu list, displaying applications of all web pages. Press and hold to drag the icon to copy it to current desktop, for example, creating shortcuts on the desktop.

Illustration of a fantasy scene with purple flowers and glowing elements, no visible text or symbols

You can delete the icon which is added to main screen, by highlighting the icon which you are going to delete. Now there will be an "X" on the top, just drag this icon to "X" to delete.

2-4 Shortcut

click 📄 to show all function icons as below:

This window shows all the function icons, click any icon to enter corresponding screen, see the following:

Sending/Receiving E-Mails.
Browser: Click to enter the Internet to browse web pages.
Calendar: Check the calendar and settings.
Calculator Icon: Click this icon to use the calculator.
Alarm Clock: Clock icon, click this icon to set an alarm.
Play music.
Video player icon or photo browser: Click this icon to play videos and view photos.
Webpage research.
Camera.
Enter recording screen.

File Manager: Check all file types and content.
Advanced task manager: Manage applications and remove. When the machine runs slowly, this function will shut down unused applications in order to prevent the machine running slowly.
Setting icon: Click this icon to enter system setting screen.

3. Application Installation

This device can install APKs (Android Packages) with ease, you can get third-party applications which are suitable for this Android system from the "Play Store" and the Internet. APKs can be installed on this machine.

First select "Setting/Application Program", then select "unknown sources".

3-1 Methods of how to Acquire
Method 1: Download from the website and copy the applications onto the Micro SD/SDHC (TF)-card and insert into the product.
Method 2: Through the product's "Play Store", by downloading the application onto the Micro SD/SDHC (TF)-card.

3-2 Program Install

Click the main screen's shortcut key, then select "File Manager". Now select the SD card sub-menu and click on the APK.
Note: On the website, all files have the .apk suffix in the third-party program.

3-3 Program Uninstall

Click „Settings“ then select Apps and then click „uninstall“.
Uninstall: Uninstall this application, click go back to previous screen.

4. Internet

4-1 Network Setting

Click the shortcut on the main screen, choose "Setting/Wireless and Network" to enter the network setting screen:

4-1-1 WI-FI Connection

Click the shortcut on the main screen, select "Internet Connection Manager", click "WI-FI setting", then enter the WI-FI setting screen, now select "WI-FI" and activate it.

After WI-FI has opened, it will automatically search for wireless network, this shows on the menu, now click wireless network, enter the password screen, and now input the password and connect. Seconds later, the system will connect to wireless network automatically.

When WI-FI is open, this will make the machine use 25 % more power. When not using WI-FI, please turn it off to extend the battery life.

4-2 Ethernet Setting

Using the Ethernet card (USB-RJ45) when connecting to the Internet.

There are two requirements needed to use USB-RJ45 to connect to the Internet, and these are detailed below:

1. ADSL account and password are set up correctly on router.

2. USB-RJ45 network card is the model which is supported by this device.

Models supported are listed below:

AX88772/AX88772a/AX88772B/AX88178/AX88760/QF9700/SR9600/MCS7830/MCS7832/MCS7730

Steps for Internet Connection:

First connect the network cable to the USB Ethernet card, then insert the USB OTG cable which is meant for this device into USB Ethernet card and the other end into USB port of the device.

Close-up of a blue USB cable connector connected to a black rectangular device (no visible text or symbols)

Notes:

1. First close the WI-FI network, only one network can be used, otherwise there will be errors.
2. This device will automatically detect the USB Ethernet card and switch on the "Ethernet". There will now be a network icon in the status column.
3. Wait a moment, as this device will try to connect to Internet automatically. If the router and the DHCP service are already open, and the netgate, DNS and relevant settings have been applied, then the device will connect to the Internet automatically. (The Ethernet card function must be selected already).
4. If the device fails to connect, usually this is because the settings in the router are not correct. You can set the parameters in the device as follows:

a. Enter setting/Ethernet setting, select and open Ethernet.

Enter configuration information, choose "static IP setting", then enter the static IP setting screen (the default setting is automatic acquiring IP. Usually, automatic acquiring IP is fine for everything, but some companies' routers will use specified IPs, not allowing automatic acquiring IP, it depends on router settings, therefore static IP needs to be used at this time).
b. There is no need to fill in the Ethernet card device and physical address. The machine will automatically detect this, after successfully connecting the Ethernet.
In the IP address column, enter the IP address, the default usually being 192.168.1.1xx.
c. In "subnet mask", enter network segment mask, the default is 255.255.255.0.

d. In the "DNS server", enter your local network service provider's DNS server IP. A different location has a different DNS server IP - if you are unsure, you can search by Google.
e. Enter the gateway in the "default gateway". The general default is 192.168.1.1 (you can check the router's manual for confirmation). It must be set to the same as the router; otherwise connection will be shown, however cannot connect to the Ethernet.
f. Finally, click the lower right corner of the "Save" button, then select Save. The system will automatically connect after saving, then you can use the Ethernet.
. Close the Ethernet, unplug the "Ethernet" cable, now you can turn off the Ethernet connection. . Unplug the OTG cable.

Attention:

1. If you are unsure about router settings and the DHCP service, please consult the router's manufacturer, point-of-service, network service providers (or ask network management, network experts, etc.), or research independently. Our company does not supply this kind of service and support.
2. If you are not using Ethernet, please unplug the OTG cable and Ethernet card, otherwise the machine will continue to use power.

4-3 Webpage Browser

Set up the network as in chapter 4-1, you can then use the browser to browse the web. Click the shortcut on the main screen. Enter the required URL in the address bar. Open the web page; then slide your finger up and down the screen to view other parts of the page.

4-3-1 Bookmark Manager

- SettingBookmarks

On the browsing screen, if you want to add the current address to bookmark, click the "star" icon select "Bookmark", then click "Add bookmark". Click "Yes" to confirm.

- Open Bookmarks On the browser screen, click the icon "flag with star" to select "Bookmark", then select the bookmark which you want and open the web page.

• Edit Bookmarks

hold down the bookmark which you like to edit, then select "Edit bookmark" to edit it, and click "Yes" to confirm.

4-3-2 Open new Window

- Open new Browser Window

On the browser screen, click "Menu", then select "New tab" to open a new browser window.

- Switching the Browser Window

The tabs are shown in the top task bar. Here you can switch the tabs.

4-3-3 Change your Startpage

On the browser screen, click "Menu", and the settings menu will appear. Then click "More", and then "Settings", then "Settings homepage" on the settings screen, then enter the required URL, finally click "Yes" to save it.

4-3-4 Browser Settings

On the browser screen, click "Menu", then "Settings" to configure the browser.

4-3-5 E-Mail

You can receive and send E-Mails with this machine. You can add a POP3 OR an IMAP E-Mail account from a standard web E-Mail server (Such as Yahoo, Gmail, or Hotmail).

Notes: Before setting up E-Mail, please ensure your Internet is connected.

4-3-6 E-Mail Setting Guide

Click the shortcut on the main screen, then an E-Mail settings guide will appear to help set up. Click the "Next" button, enter your E-Mail address and password of your E-Mail account. Then, click the "Next" button. Select your E-Mail type, either POP3 or IMAP. Click the "Next" button to check whether the sending and receiving servers for E-Mail can be used, then enter your account name and E-Mail name, then click "Finish". When E-Mail arrives, it will now enter your inbox automatically.

4-3-7 Receiving and Sending E-Mail

Click the shortcut on the main screen, select the "E-Mail" icon to enter your inbox. The system will refresh automatically, click to read new E-Mails.

Click the icon "envelope+" to write a new E-Mail. Enter the receiver's E-Mail address, subject matter and write the body of your E-Mail. Then if you want to add an attachment, click the icon "paper clip" to bring up the menu, click "Add attachment" to select the attachment. Then click "Send" to send the E-Mail.

Notes: If you have more than one account, and aim to send E-Mail using one specific account, click and choose the desired account name, write the E-Mail.

4-3-8 Delete E-Mail Account

You can delete the POP3 or IMAP E-Mail account from your E-Mail program.

Choose the account you want to delete, then click "Delete account". Click "Yes" to delete.

4-3-9 Instant Messaging

You can send instant messages with friends through "Google Talk" or "Mobile QQ" or other APKs.

5. File Manager

On the main screen, click the file manager icon, then select the storage location to show the files. Here you can copy, move, paste or rename files. Hold down a single folder or file, the Edit box will then pop up with choices to delete, rename, copy, paste or send E-Mail.

6. OTG Function

This product has an OTG function. It can support a USB stick and some other devices like self-powered hard disc, etc.

This product will automatically detect the USB device after connecting to it via an OTG cable. You have access to the USB device files, as you do the files on your machine.

With a low battery or the DC charger not plugged in and charging, please do not use the OTG function, or the machine may turn off automatically because of low power.

7. External USB Keyboard and Mouse

After the mouse is connected, the pointer will appear on the screen. The left button is to select, the right button is to return and the middle slider to slide up and down.

Note: Some keys cannot work on this machine. The keyboard will be revised as per the definition of the Android system. We recommend a standard USB keyboard to be used.

8. Usage of Micro SD/SCHC (TF) Card (following TF)

This product comes with TF-card slot. It supports reading files on the TF-card. When using, Insert the TF-card into the machine. To take out the TF-card, push the TF-card inside a little then release. The TF-card will then pop out automatically, and you can now remove it. This product supports a TF-card from 1 GB to 16 GB.

Tips:

A. Please insert the TF-card into the card slot correctly.

B. When the TF-card is working (such as reading, copying, etc.), please do not pull out the card as this will lead to data errors.

C. Avoid using the memory card in a high temperature or humid environment.

D. Keep the memory card away from liquid or corrosive material.

Note: if you cannot take out the memory card, or it is stuck in the machine, you can use tweezers or other tools to pull it out slowly and carefully.

9. Basic Setting

Click the icon to enter the settings menu: Wireless & Networks, Sound, Display, Storage, Battery, Applications, Accounts & Sync, Location Services, Security, Language & Input, Backup & Reset, Date & Time, Accessibility, and Developer. Press and drag the screen up or down to turn pages.

9-1 Wireless & Network Setting

Click WLAN in Wireless & Network in the "Settings" menu to enter (shown here):

1. WI-FI: Click "ON" to open WI-FI.
2. Mobile networks: Click "More", then "Mobile networks", and turn on the Modem power. If WI-FI is on, this will bring up a box saying, "Please turn off Wi-Fi first". Click "Yes", now Wi-Fi will shut down automatically.
3. Mobile network settings: Click to set Data Enabled, Data Roaming, Access Point Names, Network Operators, etc.
4. Ethernet Settings: Please refer to the chapter 4-3 relating to Ethernet Settings.

9-2 Display Settings

Click Display in the Settings menu to enter the settings screen (as below):

A. Brightness: Click here to adjust the brightness of the screen.
B. Wallpaper: Click here to set Live Wallpaper, Wallpapers.
C. Screen Auto-rotation: Screen Auto-rotation: Click here to activate or deactivate screen
auto-rotation function.
D. Sleep: Click here to adjust the time for automatic screen lock with choices of 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, or 30 minutes.
E. Font size: Click here to adjust the font size.
F. Accelerometer coordinate system: Click here to set a special coordinate for some games.
G. Screen adaption: Click here to adjust the screen size for some games.

9-3 Security

You can set up device administration, screen lock and password visibility.

1. Unknown sources: Allow installation of non-Market applications.
2. Screen Unlock
   A. None: Disable screen unlock security
   B. Pattern: Draw pattern to unlock screen
   C. PIN: Enter a numeric PIN to unlock screen
   D. Password: Enter a password to unlock screen

9-4 Setting Date and Time

Click "date & time" in the men to enter into setting interface, cancel auto selection, then you can change the date, time zone and time manually.

A: Set Date:

Click 📄 to set up year, month, day, click 📋 confirm.
B: Select Time Zone - select your time zone and confirm.

C: Set Time - Click 📄 to set up hour, minute, for example, 10:56 then click to confirm.

D: Set Date Format - Click the date format you prefer and confirm.

10. Trouble Shooting

1. The tablet turns on slowly the first time

- After a system update, or a factory restore, it takes about 2-3 minutes to install some pre-installed applications the first time, then this will speed up.

1. Unable to connect WI-FI or there is a weak signal

- Ensure the Network is working properly.

- Ensure the username and password are correct.

- Ensure the internal antenna is not blocked.

- Ensure the tablet is within the proper distance of the Network and there is no obstruction in between.

1. Fail to copy files

- Ensure the tablet is connected to the computer correctly.

- Ensure there is still disc space.

- Ensure the USB cable is functioning well.

1. No sound in the earphone

- Ensure that the volume is not set to 0.

- Check whether the headset is correctly connected and if the wire is broken.

1. General issues with the system

- When you install some third-party applications it may lead to various issues. You can restart the tablet or uninstall the applications.

1. Unable to set up E-Mail or use registration applications.

- Ensure your Network is working properly.

- Ensure the E-Mail account is correctly set up.

- Ensure your system time is the same as the local time.

- Run the "Advanced Task Manager" to stop some other applications running.

1. The memory capacity is different from the nominal figure

- Just like the hard disc on a computer, the capacity shown is usually less than the nominal capacity; this is due to different unit conversion used by computer and storage device manufacturers. On a computer, 1 GB = 1024 MB, but storage device manufacturers use 1 GB = 1000 MB as default. The actual capacity is not lower.

- The OS of this tablet pre-installs some applications, games and the OS itself takes up some capacity. This is also one reason why the capacity that can be used for storage is less than the nominal figure.

1. Specification

Dimension ca. 204,5 mm x 153,5 mm x 13,5 mm
Display 8 inch, G+ G capacitive 5 point touch-screen, 800 x 600 pixel resolution
PC connection High speed USB 2.0
Configuration	CPU Boxchip A10, 1.2	GHz
	RAM DDR III 1 GB
	Memory 8 GB
	Micro SD/SDHC (TF)-card	up to 32 GB
	Operation System Android 4.0.4
Access Network WI-FI IEEE802.11b/g/n
Power	Battery Lithium battery, 4600 mAh
	DC Adapter	DC 5V/2.0A
Audio Parameter	max. earphone output	(L) 7 mW +(R) 7 mW (32 ohm)
	MP3 bit rate	32 K bps - 320 K bps
	WMA bit rate	16 K bps -320 K bps
	Frequency response	20 Hz-20 KHz +/-3 dB
	SNR	>= 85 dB
	Distortion degree	<0.6%
Music Formats	MP3, M4A, WMA, APE, FLAC, AAC, MID, WAV, AMR, OGG etc.
Video Formats	supporting Full HD video decoding (2160P, 1080P, 720P, 480P); Video formats: MKV, AVI, RM/RMVB, WMV, 3GP, MOV, MP4, ASF, MPG, DAT, VOB, FLV etc.
Image Formats	JPG, JPEG, BMP etc.
Environment Temperature	-5 to 40 °C
Language	multi-languages supported
OS Supported	from WindowsXP/Linux2.4/MAC OS 10.4

Two smartphones with charging devices and a battery pack, shown against a plain background (no visible text or symbols)

• Charging time: PB-5000: ca. 6 h
  • Standby time: PB-5000: up to 780 h
  • Talk time: PB-5000: up to 3G/18 h; 2G/6 h
  • Audio: PB-5000: up to 100 h
  • Video: PB-5000: up to 26 h

Powerbank PB-3000/PB-5000

Product photo of a battery pack and two connected devices with a highlighted '1 EURO PLUG' logo (no text on main objects)

PB-3000PB-5000

• Charging time: PB-3000: ca. 3,5 h
• Standby time: PB-3000: up to 420 h
• Talk time: PB-3000: up to 15 h
• Audio: PB-3000: up to 55 h
• Video: PB-3000: up to 14 h

i.onik mobile
