USER MANUAL Router 3032 3COM

3Com Router Safety, Regulatory, and Compliance Information

www.3Com.com

Part Number: 10014938 Rev. AB

Published May 2006

Mfg. No: 3122A01Q

Table of Contents

1. Product Overview....3

3Com Router 3000 Family....3
3Com Router 3000 DSL Family....3
3Com Router 5000 Family....4
3Com Router 6000 Family....5

2. Regulatory Compliance Information ....6

Regulatory Compliance Standards for 3Com Router 3000, 3000 DSL, 5000 and 6000

Family 6

CISPR 22 Compliance....16

3. Safety Information....17

Overview 17

Conventions Used 17

General Requirements 18

High Voltage....19

Laser....20

General Laser Information....20

Laser Safety Guidelines 21

Handling Fibers 21

Miscellaneous 21

Lifting Heavy Objects....21
Sharp Objects....21

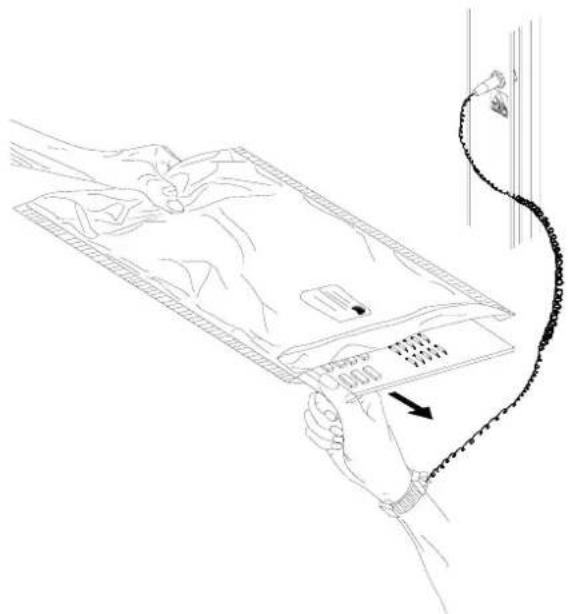

Interface Card Installation and Removal 22
Routing of Signal Lines....22

4. Sicherheitsinformationen....23

Überblick 23

5. Telecom Compliance Information....30

Voice Module Compliance 30
Australia 30

1. Product Overview

3Com Router 3000 Family

3Com Router 3012, 3013, 3015, 3016, 3018 & 3036

The 3Com Router 3000 family is designed in fixed platform for branch office with attractive price to performance ratio. The routers support integrated Fast Ethernet (FE) interfaces, AUX ports and console (Async) port.

3Com Router 3036

In addition, each of the following routers has dedicated WAN interfaces as described below:

3Com Router 3012: 2 Sync/Async serial ports

3Com Router 3013: 1 Sync/Async serial port & 1 ISDN BRI S/T interface

3Com Router 3015: 1 Sync/Async serial ports & 1 ISDN BRI U interface

3Com Router 3016: 1 T1/CT1/PRI interface

3Com Router 3018: 1 E1/CE1/PRI interface

3Com Router 3000 DSL Family

3Com Router 3030, 3031, 3032, 3033, 3034, 3035, 3040 & 3041

The 3Com Router 3000 DSL family is designed in fixed platform for high speed DSL interface with attractive price to performance ratio. The routers support integrated 4 Fast Ethernet (FE) interfaces, AUX ports and console (Async) port. In addition, each router has its dedicated WAN interfaces as being described below:

3Com Router 3030: 1 ADSL over POTS

3Com Router 3031: 1 ADSL over POTS & 1 ISDN BRI S/T

3Com Router 3032: 1 ADSL over POTS

3Com Router 3033: 1 G.SHDSL

3Com Router 3034: 1 G.SHDSL & 1 ISDN BRI S/T

3Com Router 3035: 1 ADSL over ISDN & 1 ISDN BRI S/T

3Com Router 3040: 1 ADSL2+over POTS

3Com Router 3041: 1 ADSL2+over POTS & 1 ISDN BRI S/T

3Com Router 5000 Family

The 3Com Router 5009 & 5012 are designed with a modular structure which can support not only integrated Fast Ethernet (FE) interfaces, AUX and Console ports, but also abundant optional Smart Interface Cards (SICs) and Multifunction Interface Modules (MIMs). The Router 5009 & 5012 deliver high cost-performance ratio while compared with similar products. Therefore, it can serve as not only an access router in a large-sized branch but also a core router in a small-and-medium-sized Intranet. The Router 5012 is a rack-mounted 5009 with 32 Mbytes of flash memory.

The 3Com Router 5231, 5640 & 5680 has 8 MB flash memory. 5231 has 3 MIM slots, 5640 has 4 MIM slots and 5680 has 8 MIM slots. The 3Com Router 5232, 5642 & 5682 has 32 MB flash memory. They share the same slot configurations as 5231, 5640 & 5680. All the 5000 routers in this class have integrated AUX & Console ports and 5231/5232 also has 2 built-in 10/100 ports. These routers offer high performance with high scalability which can be used for Regional Office and Head Quarters.

3Com Router 5000 Family supports the following Smart Interface Cards (SICs):

• 1-port 10/100 SIC (SIC-1FE)
• 1-port Serial SIC (SIC-1SA)
• 2-port ISDN S/T SIC (SIC-2BS)
• 1-port Fractional T1 SIC (SIC-T1-F)
• 1-port Fractional E1 SIC (SIC-E1-F)
• 1-port Analog Modem (SIC-AM)

3Com Router 5000 Family supports a large number of Multi-function Interface Modules (MIMs) which are listed below:

LAN interface module

• 1-port 10/100 Ethernet interface module (1FE)
• 2-port 10/100 Ethernet interface module (2FE)

WAN interface module

• 4-port Serial MIM (4SA)
• 4-port Enhanced Serial MIM (4SAE)
• 2-port Channelized E1/PRI MIM (2E1)
• 4-port Channelized E1/PRI MIM (4E1)
• 2-port Channelized T1 MIM (2T1)
• 4-port ISDN S/T MIM (4BS)
• 1-port ADSL MIM (1ADSL)
• 2-port ADSL MIM (2ADSL)
• 1-port Channelized T3 MIM (1CT3)
• 1-port Channelized E3 MIM (1CE3)

3Com Router 6000 Family

The 3Com Router 6040 (4-slot) and 6080 (8-slot) offer high performance and high scalability. They are targeted at core router applications in medium- to large-size intranets. This router family supports redundant power supplies and a large number of high-performance hot-swappable Flexible Interface Cards (FICs) which are listed below:

LAN interface module

• 1-port 100BASE-FX MM interface module (1MFX)
• 1-port 100BASE-FX SM interface module (1SFX)
• 2-port 10/100 interface module (2FE)

WAN interface module

• 4-port Enhanced Serial FIC (4SAE)
• 8-port Enhanced Serial FIC (8SAE)
• 4-port Channelized E1/PRI FIC (4E1)
• 4-port Channelized T1/PRI FIC (4T1)
• 2-port ADSL (over POTS) FIC (2ADSL)
• 4-port Fractional T1 FIC (4T1-F)
• 4-port Fractional E1 FIC (4E1-F)
• 1-port OC-3 ATM, MM FIC (1ATM-OC3MM)
• 1-port OC-3 ATM, SM FIC (1ATM-OC3SM)
• 1-port OC-3 ATM, SML FIC (1ATM-OC3SML)
• 1-port Channelized E3 FIC (1CE3)
• 1-port Channelized T3 FIC (1CT3)

2. Regulatory Compliance Information

Regulatory Compliance Standards

Regulatory Compliance Standards for 3Com Router 3000, 3000 DSL, 5000 and 6000 Family

Discipline	Standards
EMC FCC Part 15 (CFR 47) Class	A (Class B for Router 3000 & 3000 DSL )CISPR22 Class A (Class B for Router 3000 & 3000 DSL Family)EN55022 Class A (Class B for Router 3000 & 3000 DSL Family)ICES-003 Class A (Class B for Router 3000 & 3000 DSL Family)EN55024EN300 386 V1.2.1EN 61000-3-2EN 61000-3-3EN 61000-4-2EN 61000-4-3EN 61000-4-4EN 61000-4-5EN 61000-4-6EN 61000-4-11
Safety	IEC 60950-1999UL 60950CAN/CSA-C22.2 NO. 60950-00EN 60950-2000AS/NZS 60950-2000

European Directive Compliance

The following products comply with the European Low Voltage Directive 73/23/EEC and EMC Directive 89/336/EEC as amended by European Directive 93/68/EEC.

SIC-1FEA3Com Router 1-Port 10/100 SIC[3C13712]	RPURouter 6000 RPU [3C13804]	2FXS3Com Router 2-Port FXS FIC[3C13890]
Router 3036 [3C13636] 10/100 LAN Router	RPU2Router 6000 RPU2 [3C13805]	4FXS3Com Router 4-Port FXS FIC[3C13891]
2FE3Com Router 2-Port10/100BASE-T MIM [3C13761]	Router 6000 RPU2 Encryption Accelerator [3CR13806-75]	3Com Router 1-Port GbE FiberFIC [3C13879]
NDEC3Com Router EncryptionAccelerator MIM [3CR13771-75]	NDEC23Com Router NDEC2 EncryptionAccelerator FIC [3CR13873-75]

3Com Router Safety, Regulatory, and Compliance Information

The following products comply with the European Radio and Telecommunication Terminal Equipment Directive 1999/5/EC

Equipment For Connection to Equipment For connection to
3000 Series
Router 3012 [3C13612] Serial WAN interfaces (X.21, V.24, V.35)		Router 3033 [3C13633A]	G.SHDSL interfaces
Router 3013 [3C13613] ISDN Basic Rate S/T interfaces		Router 3034 [3C13634A]	G.SHDSL interfaces and ISDN Basic Rate interfaces
Router 3018 [3C13618] ISDN Primary Rate Interfaces (2.048Mbps) and E1 leased lines		Router 3035 [3C13635]	ADSL over ISDN and ISDN Basic Rate interfaces
Router 3030 [3C13630] ADSL over POTS interfaces		Router 3040 [3C13640]	ADSL2+ over POTS
Router 3031 [3C13631] ADSL over POTS and ISDN Basic Rate S/T interfaces		Router 3041 [3C13641]	ADSL2+ over POTS and ISDN Basic Rate interfaces
Router 3032 [3C13632] ADSL over ISDN interfaces
5000 Series
Router 5009 [3C13700] Serial WAN interfaces (X.21, V.24, V.35), plus dependant on installed modules		SIC-1AM3Com Router 1-Port Analog Modem SIC [3C13724]	Analog PSTN interfaces
Router 5012 [3C13701] Serial WAN interfaces (X.21, V.24, V.35), plus dependant on installed modules		2SAE3Com Router 2-Port Enhanced Serial MIM [3C13762]	Serial WAN interfaces (X.21, V.24, V.35)
Router 5231 [3C13750] Dependant on installed modules		4SA3Com Router 2-Port Enhanced Serial MIM [3C13763]	Serial WAN interfaces (X.21, V.24, V.35)
Router 5232 [3C13751] Dependant on installed modules		4SAE3Com Router 4-Port Enhanced Serial MIM [3C13764]	Serial WAN interfaces (X.21, V.24, V.35)
Router 5640 [3C13754] Dependant on installed modules		2E13Com Router 2-Port Channelized E1/PRI MIM [3C13765]	ISDN Primary Rate Interfaces (2.048Mbps) and E1 leased lines
Router 5642 [3C13755] Dependant on installed modules		4E13Com Router 4-Port Channelized E1/PRI MIM [3C13766]	ISDN Primary Rate Interfaces (2.048Mbps) and E1 leased lines
Router 5680 [3C13758] Dependant on installed modules		4BS3Com Router 4-Port ISDN S/T MIM [3C13767]	ISDN Basic Rate S/T interfaces
Router 5682 [3C13759] Dependant on installed modules		2T13Com Router 2-Port Channelized T1/PRI MIM [3C13769]	ISDN Primary Rate Interfaces (1.544Mbps) and T1 leased lines
SIC-1SA3Com Router 1-Port Serial SIC [3C13714]	Serial WAN interfaces (X.21, V.24, V.35)	1ADSL3Com 1-Port ADSL MIM [3C13770]	ADSL over POTS interfaces
SIC-2BS3Com Router 2-Port ISDN S/T SIC [3C13716]	ISDN Basic Rate S/T interfaces	2ADSL3Com 2-Port ADSL MIM [3C13772]	ADSL over POTS interfaces
SIC-2BU3Com Router 2-Port ISDN U SIC [3C13718]	ISDN Basic Rate U interfaces	1CT33Com Router 1-Port Channelized T3 MIM [3C13775]	T3 leased lines (44.736Mbps)

3Com Router Safety, Regulatory, and Compliance Information

Equipment For Connection to Equipment For connection to
SIC-T1-F3Com Router 1-Port Fractional T1 SIC[3C13720]	T1 (1.544Mbps and fractional) leased lines	1CE33Com Router 1-Port Channelized E3 MIM[3C13777]	E3 leased lines(34.368Mbps)
SIC-E1-F3Com Router 1-Port Fractional E1 SIC[3C13722]	E1 (2.048Mbps and fractional) leased lines	SIC-1SAE3Com Router 1-Port Enhanced Serial SIC[3C13715]	Serial WAN interfaces(X.21, V.24, V.35)
1CT33Com Router 1-Port FT3/CT3 MIM[3C13775A]	T3 leased lines(44.736Mbps)
6000 series
Router 6040 [3C13840]	Dependant on installed modules	4E13Com Router 4-Port Channelized E1/PRI FIC[3C13866]	ISDN Primary Rate Interfaces (2.048Mbps)and E1 leased lines
Router 6080 [3C13880]	Dependant on installed modules	4T13Com Router 4-Port Channelized T1/PRI FIC[3C13870]	ISDN Primary Rate Interfaces (1.544Mbps)and T1 leased lines
4T1-F3Com Router 4-Port Fractional T1 FIC[3C13821]	T1 (1.544Mbps and fractional) leased lines	2ADSL3Com Router 2-Port ADSL FIC [3C13872]	ADSL over POTS interfaces
4E1-F3Com Router 4-Port Fractional E1 FIC[3C13823]	E1 (2.048Mbps and fractional) leased lines	1ATM-OC3MM3Com Router 1-Port OC-3 ATM MM FIC[3C13882]	SDH STM-1 or SONET OC-3 interfaces(155Mbps)
1MFX3Com Router 1-Port 100BASE-FX MM FIC[3C13860]	Fiber LAN interfaces 1ATM-OC3SM3Com Router 1-Port OC-3 ATM SM FIC[3C13884]		SDH STM-1 or SONET OC-3 interfaces(155Mbps)
2FE3Com Router 2-Port 10BASE-T/100BASAE-TX FIC [3C13861]	LAN interfaces 1ATM-OC3SML3Com Router 1-Port OC-3 ATM SML FIC[3C13886]		SDH STM-1 or SONET OC-3 interfaces(155Mbps)
1SFX3Com Router 1-Port 100BASE-FX SM FIC[3C13862]	Fiber LAN interfaces 1CE33Com Router 1-Port Channelized E3 FIC[3C13888]		E3 leased lines(34.368Mbps)
4SAE3Com Router 4-Port Enhanced Serial FIC[3C13863]	Serial WAN interfaces(X.21, V.24, V.35)	1CT33Com Router 1-Port Channelized T3 FIC[3C13889]	T3 leased lines(44.736Mbps)
8SAE3Com Router 8-Port Enhanced Serial FIC[3C13864]	Serial WAN interfaces(X.21, V.24, V.35)	1CT33Com Router 1-Port FT3/CT3 FIC[3C13889A]	T3 leased lines(44.736Mbps)
2FXO3Com Router 2-Port FXO FIC [3C13893]	Analog PSTN interfaces 2E&M3Com Router 2-Port E&M FIC [3C13895]		Analog PSTN interfaces
4FXO3Com Router 4-Port FXO FIC [3C13894]	Analog PSTN interfaces 4E&M3Com Router 4-Port E&M FIC [3C13896]		Analog PSTN interfaces
E1VI3Com Router 1-Port E1 Voice FIC [3C13897]	E1 (2.048Mbps) leased lines	3Com Router 1-Port OC3 POS FIC[3C13881]	SDH STM-1 or SONET OC-3 interfaces(155Mbps)
T1VI3Com Router 1-Port T1 Voice FIC [3C13898]	T1 (1.544Mbps) leased lines	3Com OC3 SM SFP Transceiver [3CSFP71]	SDH STM-1 or SONET OC-3 interfaces(155Mbps)

Intended use: Data router with WAN and LAN interfaces

3Com Router Safety, Regulatory, and Compliance Information

RTTE Directive declaration statements:

Česky [Czech]	3Com Coporation tímto prohlašuje, že tento Router device je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk [Danish] Undertegnede 3Com	Corporation erklærer herved, at følgende udstyr Router device overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt 3Com	Corporation, dass sich das Gerät Router device in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian] Käesolevaga kinnitab	3Com Corporation seadme Router device vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätelele.
English Hereby, 3Com Corporation	declares that this Router device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish] Por medio de la presente 3Com	Corporation declara que el Router device cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek]	ME THN ΠΑΡΟΥΣΑ 3Com Corporation ΔΗΛΩΝΕΙ OTI Router device ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]	Par la présente 3Com Corporation déclare que l'appareil Router device est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente 3Com	Corporation dichiara che questo Router device è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]	Ar šo 3Com Corporation deklarē, ka Router device atbilst Direktīvas 1999/5/EK būtiskajām prasibām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian]	Siuo 3Com Corporation deklarujoja, kad šis Router device atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch] Hierbij verklaar	3Com Corporation dat het toestel Router device in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, 3Com Corporation, jiddikjara li dan Router device jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian]	Alulírott, 3Com Corporation nyllatkozom, hogy a Router device megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
Polski [Polish]	Niniejszym 3Com Corporation oświadcza, że Router device jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]	3Com Corporation declara que este Router device está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian]	3Com Corporation izjavlja, da je ta Router device v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]	3Com Corporation týmto vyħlasuje, že Router device splňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]	3Com Corporation vakuuttaa täten että Router device tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sită koskevien direktiivin muiden ehtojen mukainen.

A copy of the signed Declaration of Conformity can be downloaded from:

Router 3000 series:

http://support.3com.com/doc/3000series_EU_DOC.pdf

Router 5000 series:

http://support.3com.com/doc/5000series_EU_DOC.pdf

Router 6000 series:

http://support.3com.com/doc/6000series_EU_DOC.pdf

USA Regulatory Compliance

Class A Devices
The following components meet FCC Part 15 Class A requirements:

5000 Series
Router 5009 [3C13700] S	C-1FEA3Com Router 1-Port10/100 SIC [3C13712]	2SAE3Com Router 2-PortEnhanced Serial MIM[3C13762]	NDEC3Com Router EncryptionAccelerator MIM[3CR13771-75]
Router 5012 [3C13701] S	C-1SA3Com Router 1-PortSerial SIC [3C13714]	4SA3Com Router 2-PortEnhanced Serial MIM[3C13763]	2ADSL3Com 2-Port ADSL MIM[3C13772]
Router 5231 [3C13750] S	C-2BS3Com Router 2-PortISDN S/T SIC [3C13716]	4SAE3Com Router 4-PortEnhanced Serial MIM[3C13764]	1CT33Com Router 1-PortChannelized T3 MIM[3C13775]
Router 5232 [3C13751] S	C-2BU3Com Router 2-PortISDN U SIC [3C13718]	2E13Com Router 2-PortChannelized E1/PRIMIM [3C13765]	1CE33Com Router 1-PortChannelized E3 MIM[3C13777]
Router 5640 [3C13754] S	C-T1-F3Com Router 1-PortFractional T1 SIC[3C13720]	4E13Com Router 4-PortChannelized E1/PRIMIM [3C13766]	1CT33Com Router 1-PortChannelized FT3/CT3MIM [3C13775A]
Router 5642 [3C13755] S	C-E1-F3Com Router 1-PortFractional E1 SIC[3C13722]	4BS3Com Router 4-PortISDN S/T MIM[3C13767]	SIC-1SAE3Com Router 1-PortEnhanced Serial SIC[3C13715]
Router 5680 [3C13758] S	C-1AM3Com Router 1-PortAnalog Modem SIC[3C13724]	2T13Com Router 2-PortChannelized T1/PRIMIM [3C13769]
Router 5682 [3C13759] 2FE	3Com Router 2-Port10/100BASE-T MIM[3C13761]	1ADSL3Com 1-Port ADSL MIM[3C13770]
6000 series
Router 6040 [3C13840] 2FE	3Com Router 2-Port10BASE-T/100BASAE-TX FIC [3C13861]	4T13Com Router 4-PortChannelized T1/PRI FIC[3C13870]	1CE33Com Router 1-PortChannelized E3 FIC[3C13888]
Router 6080 [3C13880] 1SFX	3Com Router 1-Port100BASE-FX SM FIC[3C13862]	2ADSL3Com Router 2-PortADSL FIC [3C13872]	1CT33Com Router 1-PortChannelized T3 FIC[3C13889]
4T1-F3Com Router 4-PortFractional T1 FIC[3C13821]	4SAE3Com Router 4-PortEnhanced Serial FIC[3C13863]	1ATM-OC3MM3Com Router 1-Port OC-3 ATM MM FIC[3C13882]	RPU3Com Router 6000 RPU[3C13804]
4E1-F3Com Router 4-PortFractional E1 FIC[3C13823]	8SAE3Com Router 8-PortEnhanced Serial FIC[3C13864]	1ATM-OC3SM3Com Router 1-Port OC-3 ATM SM FIC[3C13884]	RPU23Com Router 6000RPU2 [3C13805]
1MFX3Com Router 1-Port100BASE-FX MM FIC[3C13860]	4E13Com Router 4-PortChannelized E1/PRI FIC[3C13866]	1ATM-OC3SML3Com Router 1-Port OC-3 ATM SML FIC[3C13886]	3Com Router 6000RPU2 EncryptionAccelerator [3CR13806-75]
NDEC23Com Router NDEC2Encryption AcceleratorFIC [3CR13873-75]	3Com Router 1-PortOC3 PSO FIC[3C13881]	3Com Router 1-PortGbE Fiber FIC[3C13889A]	1CT33Com Router FT3/CT3FIC [3C13889A]

3Com Router Safety, Regulatory, and Compliance Information

2FXS3Com Router 2-PortFXS FIC [3C13890]	4FXS3Com Router 4-PortFXS FIC [3C13891]	2FXO3Com Router 2-PortFXO FIC [3C13893]	4FXO3Com Router 4-PortFXO FIC [3C13894]
2E&M3Com Router 2-PortE&M FIC [3C13895]	4E&M3Com Router 4-PortE&M FIC [3C13896]	E1VI3Com Router 1-Port E1Voice FIC [3C13897]	T1VI3Com Router 1-Port T1Voice FIC [3C13898]
3Com Router OC3 SMSFP Transceiver[3CSFP71]

FCC Part 15 Class A Verification Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by 3Com could void the user's authority to operate this equipment.

Class B Devices

The following components meet FCC Part 15 Class B requirements:

3000 series
Router 3012 [3C13612]	Router 3033 [3C13633A]
Router 3013 [3C13613]	Router 3034 [3C13634A]
Router 3015 [3C13615]	Router 3035 [3C13635]
Router 3016 [3C13616]	Router 3036 [3C13636]
Router 3018 [3C13618]	Router 3040 [3C13640]
Router 3030 [3C13630]
Router 3031 [3C13631]
Router 3032 [3C13632]

FCC Part 15 Class B Compliance Statement:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

3Com Router Safety, Regulatory, and Compliance Information

The user may find the following booklet prepared by the Federal Communications Commission helpful:

The Interference Handbook

This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Stock No. 004-000-0034504.

3Com is not responsible for any radio or television interference caused by unauthorized modification of these devices, or the substitution or attachment of connecting cables and equipment other than specified by 3Com.

The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

FCC Part 15 Class B Declaration of Conformity

3Com Corporation

350 Campus Drive

Marlborough, MA 01752-3064, USA

[phone]

Date: April 14, 2006

Declares that the Product:

Brand Name: 3Com Corporation

Model Number:

Router 3012 [3C13612]	Router 3033 [3C13633A]
Router 3013 [3C13613]	Router 3034 [3C13634A]
Router 3015 [3C13615]	Router 3035 [3C13635]
Router 3016 [3C13616]	Router 3036 [3C13636]
Router 3018 [3C13618]	Router 3040 [3C13640]
Router 3030 [3C13630]

Equipment Type: Data Routers

Complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Routers

3040

Changes or modifications not expressly approved by 3Com could void the user's authority to operate this equipment.

Part 68 Compliance

The products listed below comply with Part 68 of the FCC Rules and the requirements adopted by ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested this number must be provided to the telephone company.

Equipment USOC (Universal Service Ordering Codes)		SOC (Service Order Codes)	FIC (Facility Interface Codes)
Router 3015 [3C13615] RJ41 6.0N 02IS5
Router 3016 [3C13616] RJ48C 6.0N			04DU9.BN,04DU9.1KN,04DU9.1SN
Router 3030 [3C13630] RJ11C 9.0F METALLIC
Router 3040 [3C13640] RJ11C 9.0F METALLIC
Router 5009, 5231, 5640, 5680
SIC-2BU3Com Router 2-Port ISDN U SIC [3C13718]	RJ41	6.0N	02IS5
SIC-T1-F3Com Router 1-Port Fractional T1 SIC [3C13720]	RJ48C	6.0N	04DU9.BN,04DU9.1KN,04DU9.1SN
2T13Com Router 2-Port Channelized T1/PRI MIM [3C13769]	RJ48C	6.0N	04DU9.BN,04DU9.1KN,04DU9.1SN
Router 6040, 6080
4T1-F3Com Router 4-Port Fractional T1 FIC [3C13821]	RJ48C	6.0F	04DU9.BN,04DU9.1KN,04DU9.1SN
4T13Com Router 4-Port Channelized T1/PRI FIC [3C13870]	RJ48C	6.0F	04DU9.BN,04DU9.1KN,04DU9.1SN
2ADSL3Com Router 2-Port ADSL FIC [3C13872]	RJ11C	9.0Y	METALLIC

This equipment contains FCC compliant modular jacks. It is designed to be connected to the telephone network or premises wiring using compatible modular plugs and cabling that comply with the requirements of Part 68 rules.

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

For repair or warranty information please contact 3Com Corporation. See “OBTAINING SUPPORT FOR YOUR PRODUCT” in your Installation Manual. If the equipment is causing harm to the telephone network the telephone company may request that you disconnect the equipment until the problem is resolved.

Only the manufacturer or its authorized agents can make repairs to this equipment. In the event that this equipment requires service, contact your equipment vendor or the manufacturer.

3Com Router Safety, Regulatory, and Compliance Information

This equipment does not contain any parts that can be repaired by the user.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

UL 60950 Compliance:

The 3Com Router 3000, 3000 DSL, 5000 and 6000 Family Routers comply with the requirements of UL60950 and bear the Underwriters Laboratories Inc. listing mark

Canada Regulatory Compliance

Class A Devices

The following components meet Industry Canada ICES-003 Class A requirements:

5000 Series
Router 5009 [3C13700] SIC-1FEA3Com Router 1-Port10/100 SIC [3C13712]	2SAE3Com Router 2-PortEnhanced Serial MIM[3C13762]	NDEC3Com Router EncryptionAccelerator MIM[3CR13771-75]
Router 5012 [3C13701] SIC-1SA3Com Router 1-PortSerial SIC [3C13714]	4SA3Com Router 2-PortEnhanced Serial MIM[3C13763]	2ADSL3Com 2-Port ADSL MIM[3C13772]
Router 5231 [3C13750] SIC-2BS3Com Router 2-PortISDN S/T SIC [3C13716]	4SAE3Com Router 4-PortEnhanced Serial MIM[3C13764]	1CT33Com Router 1-PortChannelized T3 MIM[3C13775]
Router 5232 [3C13751] SIC-2BU3Com Router 2-PortISDN U SIC [3C13718]	2E13Com Router 2-PortChannelized E1/PRIMIM [3C13765]	1CE33Com Router 1-PortChannelized E3 MIM[3C13777]
Router 5640 [3C13754] SIC-T1-F3Com Router 1-PortFractional T1 SIC[3C13720]	4E13Com Router 4-PortChannelized E1/PRIMIM [3C13766]	1CT33Com Router 1-PortChannelized FT3/CT3MIM [3C13775A]
Router 5642 [3C13755] SIC-E1-F3Com Router 1-PortFractional E1 SIC[3C13722]	4BS3Com Router 4-PortISDN S/T MIM[3C13767]	SIC-1SAE3Com Router 1-PortEnhanced Serial SIC[3C13715]
Router 5680 [3C13758] SIC-1AM3Com Router 1-PortAnalog Modem SIC[3C13724]	2T13Com Router 2-PortChannelized T1/PRIMIM [3C13769]
Router 5682 [3C13759] 2FE3Com Router 2-Port10/100BASE-T MIM[3C13761]	1ADSL3Com 1-Port ADSL MIM[3C13770]
6000 series
Router 6040 [3C13840] 2FE3Com Router 2-Port10BASE-T/100BASAE-TX FIC [3C13861]	4T13Com Router 4-PortChannelized T1/PRI FIC[3C13870]	1CE33Com Router 1-PortChannelized E3 FIC[3C13888]

3Com Router Safety, Regulatory, and Compliance Information

Router 6080 [3C13880]	1SFX3Com Router 1-Port100BASE-FX SM FIC[3C13862]	2ADSL3Com Router 2-PortADSL FIC [3C13872]	1CT33Com Router 1-PortChannelized T3 FIC[3C13889]
4T1-F3Com Router 4-PortFractional T1 FIC[3C13821]	4SAE3Com Router 4-PortEnhanced Serial FIC[3C13863]	1ATM-OC3MM3Com Router 1-Port OC-3 ATM MM FIC[3C13882]	RPU3Com Router 6000 RPU[3C13804]
4E1-F3Com Router 4-PortFractional E1 FIC[3C13823]	8SAE3Com Router 8-PortEnhanced Serial FIC[3C13864]	1ATM-OC3SM3Com Router 1-Port OC-3 ATM SM FIC[3C13884]	RPU23Com Router 6000RPU2 [3C13805]
1MFX3Com Router 1-Port100BASE-FX MM FIC[3C13860]	4E13Com Router 4-PortChannelized E1/PRI FIC[3C13866]	1ATM-OC3SML3Com Router 1-Port OC-3 ATM SML FIC[3C13886]	3Com Router 6000RPU2 EncryptionAccelerator [3CR13806-75]
NDEC23Com Router NDEC2Encryption AcceleratorFIC [3CR13873-75]	3Com Router 1-PortOC3 PSO FIC[3C13881]	3Com Router 1-PortGbE Fiber FIC[3C13889A]	1CT33Com Router FT3/CT3FIC [3C13889A]
2FXS3Com Router 2-PortFXS FIC [3C13890]	4FXS3Com Router 4-PortFXS FIC [3C13891]	2FXO3Com Router 2-PortFXO FIC [3C13893]	4FXO3Com Router 4-PortFXO FIC [3C13894]
2E&M3Com Router 2-PortE&M FIC [3C13895]	4E&M3Com Router 4-PortE&M FIC [3C13896]	E1VI3Com Router 1-Port E1Voice FIC [3C13897]	T1VI3Com Router 1-Port T1Voice FIC [3C13898]
3Com Router OC3 SMSFP Transceiver[3CSFP71]

This Class A digital apparatus complies with Canadian ICES-003.

The following components meet Industry Canada ICES-003 Class B requirements:

3000 series
Router 3012 [3C13612]	Router 3032 [3C13632]
Router 3013 [3C13613]	Router 3033 [3C13633A]
Router 3015 [3C13615]	Router 3034 [3C13634A]
Router 3016 [3C13616]	Router 3035 [3C13635]
Router 3018 [3C13618]	Router 3036 [3C13636]
Router 3030 [3C13630]	Router 3040 [3C13640]
Router 3031 [3C13631]

This Class B digital apparatus complies with Canadian ICES-003.

The products listed below meet the applicable Industry Canada technical specifications.

Router 3015 [3C13615] SIC-2BU3Com Router 2-Port ISDN USIC [3C13718]		4T1-F3Com Router 4-Port Fractional T1 FIC[3C13821]
Router 3016 [3C13616] SIC-T1-F3Com Router 1-Port Fractional T1 SIC [3C13720]		4T13Com Router 4-Port Channelized T1/PRI FIC[3C13870]
Router 3030 [3C13630] 2T1	3Com Router 2-Port Channelized T1/PRI MIM[3C13769]	2ADSL3Com Router 2-Port ADSL FIC [3C13872]
Router 3040 [3C13640]

NOTICE: The Industry Canada (IC) label identifies certified equipment. This certification means that the equipment meets the telecommunications network protective, operational, and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The department does not guarantee the equipment will work to the user's satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The user should be aware that compliance with the above conditions might not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

This equipment does not contain any parts that can be repaired by the user.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electrical inspection authority or electrician, as appropriate.

The Ringer Equivalence Number (REN) is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed five.

CISPR 22 Compliance

3Com Router 5000 and 6000 Family comply with the requirements of CISPR 22 for Class A Information Technology Equipment (ITE) and 3Com Router 3000 and 3000 DSL Family comply with CISPR 22 Class B.

Warning:

For a class A or B product, in a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

3. Safety Information

Overview

This section introduces part of the safety precautions that should be followed during the installation and maintenance of the 3Com Router 3000, 3000 DSL, 5000, and 6000 Family.

Note:

Before any operation is performed, please read the operation instructions and precautions carefully to minimize the possibility of accidents. The Note, Caution, Warning and Danger items in other manuals do not cover all safety precautions that should be followed. They are only the supplements to the safety precautions for operations as a whole. Therefore, the personnel in charge of the installation and maintenance of the 3Com products are required to understand these basics of safety operation.

In performing various operations, please follow the local safety regulations. The safety precautions introduced in the product manuals are supplementary and subject to the local safety regulations.

When various operations are executed on the products, the precautions and special safety instructions provided by 3Com must be followed to the full.

The personnel in charge of the installation and maintenance of the 3Com products must be trained as to r the proper operating methods and all safety precautions. Only the trained and qualified personnel can perform operations such as equipment installation and maintenance.

Conventions Used

The symbols in this manual are shown in the following table. They are used to remind the reader of the safety precautions during equipment installation and maintenance.

Table 1-1 Safety symbol and description

Safety Symbol	Description
	Generic alarm symbol: To suggest a general safety concern.
	ESD protection symbol: To suggest electrostatic-sensitive equipment.
	Electric shock symbol: To suggest a danger of high voltage.

Safety precautions are classified into the following levels: Danger, Warning, Caution and Note.

Danger: Suggests the possibility of a fatal accident or body injury if safety precautions are ignored.

Warning: Suggests the possibility of a major accident or severe injury, or equipment damage, if safety precautions are ignored.

Caution: Suggests the possibility of a severe injury, or that the equipment may be damaged, if safety precautions are ignored.

Note: Suggests the possibility of an injury or equipment damage, if safety precautions are ignored.

General Requirements

In order to reduce the technically unavoidable residual risk to a minimum, it is imperative to follow the rules below:

• Read all the instructions before operation.
  ■ The unit/system must be installed/used in the restricted accession location.
  ■ When installing the unit, always make the ground connection first and disconnect it last.
  ■ Do not block ventilation openings while the system is on, and keep at least 5 cm distance from ventilation openings and walls or other things which may block the openings.
  ■ Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection.
  The unit/system must be permanently connected to the protective ground before operation. The cross-section of protective earthing conductor shall be at least 4mm2.
  ■ The device applies to TN power systems.
  ■ The plug-socket combination must be accessible at all times because it serves as the main disconnecting device.
  ■ To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.
  ■ No operation can be done on the device and cables when lightning.
  ■ To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits.
  ■ When moving or lifting the router, lift the chassis by grasping its lower edges.
  For safety of the user and the equipment, it is not recommended to wear jewelry or watches during the operation of the device.
  ■ Installation, configuration and disassembly must be done only by trained personnel in accordance with the documents concerned.
  ■ The unit/system must be operated by experts and authorized users only.
  ■ Any replacement or change to the system or parts of the system (including the software) must be done by qualified personnel.
  ■ Any fault and error that might affect safety must be reported immediately by the user to the person in charge.
  ■ Removal or disabling of any safety features, troubleshooting, and maintenance of the equipment must be done by qualified personnel only.

All parts of the document must be followed. The document also serves as a guide to the selection of measuring and test equipment.

Electrical Safety

High Voltage

Danger:

High voltage power supply offers electric power for equipment operation. Direct contact or indirect contact (via damp objects) with high voltage and AC mains supply may result in fatal danger.

• During installation of the AC power supply assembly, local safety regulations must be followed. The personnel who install the AC facility must be qualified for high voltage and AC operations.
• Conducting articles, such as a watch, hand chain, bracelet and ring are prohibited during the operation.
• When operation is performed in a damp environment, make sure that water is kept away from the equipment.

Warning:

Non-standard and improper high voltage wiring may result in fire and electric shock. Therefore, AC cable installation and wiring must follow the local rules and regulations. The personnel who perform high voltage operations should be qualified for high voltage and AC operations.

Electrostatic Discharge

Caution:

The electrostatic (static electricity) generated by human body may damage the electrostatic-sensitive components on the circuit board, such as large-scale integrated (LSI) circuits.

The human body moving, friction on clothes, friction between shoes and the ground, holding ordinary plastic with hands, will generate a static electricity field that will remain with the human body for a long time.

Before touching the equipment, hand-holding, circuit boards, or ASICs, a grounded electrostatic discharge(ESD) wrist strap should be worn to prevent the sensitive components from being damage by the electrostatic in human body.

3Com Router Safety, Regulatory, and Compliance Information

Diagram of wearing electrostatic protection wrist strap

Laser

The laser hazard level of this equipment is Class 1

Warning:

When performing installation and maintenance operations of optical fibers, you should not stand close to, or look into the optical fiber outlet directly with unaided eyes.

General Laser Information

Laser transceiver/ transmitter are used in optical transmission system and associated test instruments. The wavelength of the laser is above 780nm, and lower than 1600nm. Because the laser being transmitted through the optical fiber produces a small beam of light, it has very high power density and is invisible to human eyes. When a beam of light enters the eye, retinal may be burned.

The damage mechanism at the wavelengths used in telecommunications is thermal in origin i.e., damage caused by heating. Therefore, a specific amount of energy is required for a definite time to heat an area of retinal tissue.

Lasers used in lightwave systems have a larger beam divergence, typically 10 to 20 degrees. Inadvertently viewing an un-terminated fiber or damaged fiber with the unaided eye at distances greater than 150 mm (6 inches) will normally not cause eye injury. However, damage may occur if an optical instrument such as a microscope, magnifying glass or eye loupe is used to view the energized fiber end.

In its normal operating mode, a lightwave system is totally enclosed and presents no risk of eye injury. Additional safety is achieved by the implementation of an Automatic Laser Shut-down (ALS) of the system. The ALS, however, can be applied for bi-directional transmission only. If the receiver side does not detect the laser from the transmission side, it will give the transmission side a signal, so the ALS will shutdown the laser emission in less than 100ms.

Laser Safety Guidelines

Read the following guidelines to avoid laser radiation:

• Read the relevant instructions before installation, operation and maintenance the equipment. Ignoring the instructions can cause in exposure to dangerous laser radiation.
  ■ Eye-protective glasses are recommended when you are handling lasers or fibers.
  All the operation shall be performed by authorized personnel who satisfactorily completed an approved training course.
  ■ Make sure that the optical source is switched off before disconnecting optical fiber connectors.
  ■ Before opening the front door of an optical transmission system, always take care that you are not exposed to laser radiation.
  ■ Never look into the end of an exposed fiber or an open connector as long as you are not sure whether the optical source is switched on or off.
  ■ Please use optical power meter to check that the optical source is switched off by measuring the optical power.
  ■ Never use optical instrument such as a microscope, magnifying glass or eye loupe to view the optical connector or fiber.

Handling Fibers

Read the instructions before handling fibers.

■ Cutting and splicing fibers must be performed by trained personnel only.
■ Before cutting or splicing the fibers, always verify the fiber is disconnected from the optical source. After disconnect the fiber, all the optical connectors must be protected by a protecting cap.

Miscellaneous

Lifting Heavy Objects

Warning:

When lifting heavy objects, it is prohibited to stand or walk under the arm or the lifted object.

Sharp Objects

Warning:

When the equipment is carried by hand, protection gloves should be worn to avoid injury by sharp objects.

Interface Card Installation and Removal

Note:

When plugging the interface card, the operator should not push it too hard, otherwise the pins on the backplane may be distorted.

The board should be inserted along the slot guide. Try to avoid contact between he circuit sides of the board and other boards, which will result in short-circuit or scratch.

When holding a board in hand, do not touch the board circuit, components, connectors, and connection slots.

Routing of Signal Lines

Note:

Signal lines should be routed separately from high current lines or high voltage line. The spacing of the binding should be 150mm at minimum.

3Com Router Safety, Regulatory, and Compliance Information

Illustration of hands holding a printed document with a cable, no text or symbols visible

The following voice modules are not approved for connections to the public network or PSTN, except in the European Union:

2FXS3Com Router 2-PortFXS FIC [3C13890]	4FXS3Com Router 4-PortFXS FIC [3C13891]	2FXO3Com Router 2-PortFXO FIC [3C13893]	4FXO3Com Router 4-PortFXO FIC [3C13894]
2E&M3Com Router 2-PortE&M FIC [3C13895]	4E&M3Com Router 4-PortE&M FIC [3C13896]	E1VI3Com Router 1-Port E1Voice FIC [3C13897]	T1VI3Com Router 1-Port T1Voice FIC [3C13898]

Australia

The following components comply with the EMC Regulatory requirements:

N151

3Com Router 3012 [3C13612] SIC-1	FEA3Com Router 1-Port 10/100 SIC[3C13712]	1MFX3Com Router 1-Port 100BASE-FX MM FIC [3C13860]
3Com Router 3036 [3C13636] SIC-1	SA3Com Router 1-Port Serial SIC[3C13714]	4SAE3Com Router 4-Port Enhanced Serial FIC [3C13863]
3Com Router 5009[3C13700] 2FE	3Com Router 2-Port 10/100BASE-T MIM [3C13761]	8SAE3Com Router 8-Port Enhanced Serial FIC [3C13864]
3Com Router 5012 [3C13701] 4SA	3Com Router 2-Port Enhanced Serial MIM [3C13763]	1ATM-OC3MM3Com Router 1-Port OC-3 ATM MM FIC [3C13882]
3Com Router 5231 [3C13750] NDEC	3Com Router Encryption Accelerator MIM [3CR13771-75]	1ATM-OC3SM3Com Router 1-Port OC-3 ATM SM FIC [3C13884]
3Com Router 5232 [3C13751] 4SAE	3Com Router 4-Port Enhanced Serial MIM [3C13764]	1ATM-OC3-SML3Com Router 1-Port OC-3 ATM SML FIC [3C13886]
3Com Router 5640 [3C13754] 2SAE	3Com Router 2-Port Enhanced Serial MIM [3C13762]	Router 6040 [3C13840]
3Com Router 5642 [3C13755] 2FE	3Com Router 2-Port 10BASE-T/100BASE-TX FIC [3C13861]	Router 6080 [3C13880]
3Com Router 5680 [3C13758] 1SFX	3Com Router 1-Port 100BASE-FX SM FIC [3C13862]	RPU3Com Router 6000 RPU[3C13804]
3Com Router 5682 [3C13759] 1MFX	3Com Router 1-Port 100BASE-FX MM FIC [3C13860]	RPU23Com Router 6000 RPU2[3C13805]
3Com Router 6000 RPU2Encryption Accelerator [3CR13806-75]	NDEC23Com Router NDEC2 Encryption Accelerator FIC [3CR13873-75]	3Com Router 1-Port OC3 PSO FIC [3C13881]
3Com Router 1-Port GbE Fiber FIC[3C13889A]	2FXS3Com Router 2-Port FXS FIC[3C13890]	4FXS3Com Router 4-Port FXS FIC[3C13891]
2FXO3Com Router 2-Port FXO FIC[3C13893]	4FXO3Com Router 4-Port FXO FIC[3C13894]	2E&M3Com Router 2-Port E&M FIC[3C13895]

3Com Router Safety, Regulatory, and Compliance Information

4E&M3Com Router 4-Port E&M FIC[3C13896]	E1VI3Com Router 1-Port E1 Voice FIC[3C13897]	3Com Router OC3 SM SFPTransceiver [3CSFP71]
SIC-1SAE3Com Router 1-Port Enhanced Serial SIC [3C13715]

The following components meet both the EMC and Telecommunications Regulatory requirements:

N151

Component	Technical Standards	Notes
3Com Router 3013 [3C13613] AS/ACIF S031	ISDN Basic Rate
3Com Router 3018 [3C13618] AS/ACIF S038	ISDN Primary Rate
3Com Router 3030 [3C13630] AS/ACIF S043	ADSL
3Com Router 3031 [3C13631] AS/ACIF S031	AS/ACIF S043	ISDN Basic Rate ADSL
3Com Router 3040 [3C13640] AS/ACIF S043	ADSL2+ over POTS
3Com Router 3041 [3C13641] AS/ACIF S031	AS/ACIF S043	ISDN Basic Rate ADSL2+ over POTS
SIC-2BS3Com Router 2-Port ISDN S/T SIC [3C13716]	AS/ACIF S031 ISDN Basic Rate
4BS3Com Router 4-Port ISDN S/T MIM[3C13767]	AS/ACIF S031 ISDN Basic Rate - Point-to-point connections only.
2E13Com Router 2-Port Channelized E1/PRI MIM [3C13765]	AS/ACIF S016AS/ACIF S038	2048kbit/s leased linesISDN Primary Rate
SIC-E1-F3Com Router 1-Port Fractional E1 SIC[3C13722]	AS/ACIF S016 2048kbit/s leased lines
4E13Com Router 4-Port Channelized E1/PRI MIM [3C13766]	AS/ACIF S016AS/ACIF S038	2048kbit/s leased linesISDN Primary Rate
4E13Com Router 4-Port Channelized E1/PRI FIC[3C13886]	AS/ACIF S016AS/ACIF S038	2048kbit/s leased linesISDN Primary Rate
4E1-F3Com Router 4-Port Fractional E1 FIC[3C13823]	AS/ACIF S016 2048kbit/s leased lines
2ADSL3Com Router 2-Port ADSL FIC [3C13872]	AS/ACIF S043 ADSL
