Product Type	Freestanding Fridge-Freezer
Brand	Juno Electrolux
Model	JRG94126
Total Net Capacity	250 L (approx.)
Refrigerator Capacity	180 L
Freezer Capacity	70 L
Energy Class	A+
Annual Energy Consumption	250 kWh
Climate Class	N-ST
Noise Level	39 dB
Dimensions (H x W x D)	1850 x 595 x 650 mm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a
Temperature Control	Mechanical dial
Defrosting	Manual (freezer), auto (fridge)
Shelves Material	Glass
Number of Shelves	4 adjustable
Door Reversibility	Yes
Interior Light	LED
Freezer Star Rating	****
Freezing Capacity	4 kg/24h
Storage Time (power failure)	12 hours
Cleaning and Maintenance	Wipe with soft cloth; clean condenser yearly
Safety Features	Child lock (door), high temperature alarm
Spare Parts Availability	Most parts available online
Warranty	2 years

Frequently Asked Questions - JRG94126 Juno Electrolux

How do I adjust the temperature on my Juno Electrolux JRG94126 fridge?

Use the temperature dial located inside the fridge compartment. Turn clockwise for colder, counterclockwise for warmer. A mid-setting is usually recommended.

Why is my fridge not cooling properly?

Check if the door is closing properly, ensure the condenser coils are clean, and verify that the temperature dial is set correctly. Also, avoid overloading the fridge.

How often should I defrost the freezer?

Defrost when the ice layer reaches about 5 mm thickness. It is recommended to defrost every 6-12 months or when necessary.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You will need a screwdriver and possibly a helper.

What is the correct way to clean the fridge?

Unplug the appliance, remove all food and shelves, wash with warm water and mild detergent, then dry thoroughly. Avoid abrasive cleaners.

How long does food stay frozen during a power outage?

The freezer can keep food frozen for up to 12 hours if the door remains closed. Do not open unnecessarily.

What does the alarm sound mean?

A continuous alarm indicates that the door has been left open for too long. Close the door securely. If the alarm persists, check the door seal.

Where can I find spare parts for my JRG94126?

Spare parts such as shelves, door bins, and thermostats are available on the Juno Electrolux website or through authorized dealers. Use the model number for search.

Why is there water pooling inside the fridge?

Check if the drain hole is blocked. Clean it with a pipe cleaner or small brush. Also ensure the fridge is level to allow proper drainage.

Is the fridge energy efficient?

The JRG94126 is rated A+ for energy efficiency, meaning it consumes less power compared to older models. Annual consumption is approximately 250 kWh.

USER MANUAL JRG94126 Juno Electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2

Control panel 4

First use 6

Daily use 6

Helpful hints and tips 7

Care and cleaning 8

What to do if... 10

Technical data 12

Installation

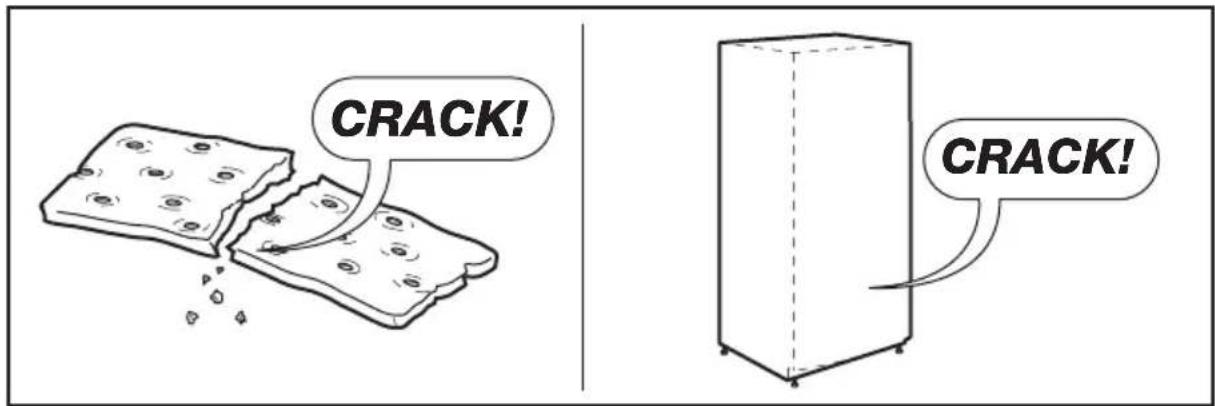

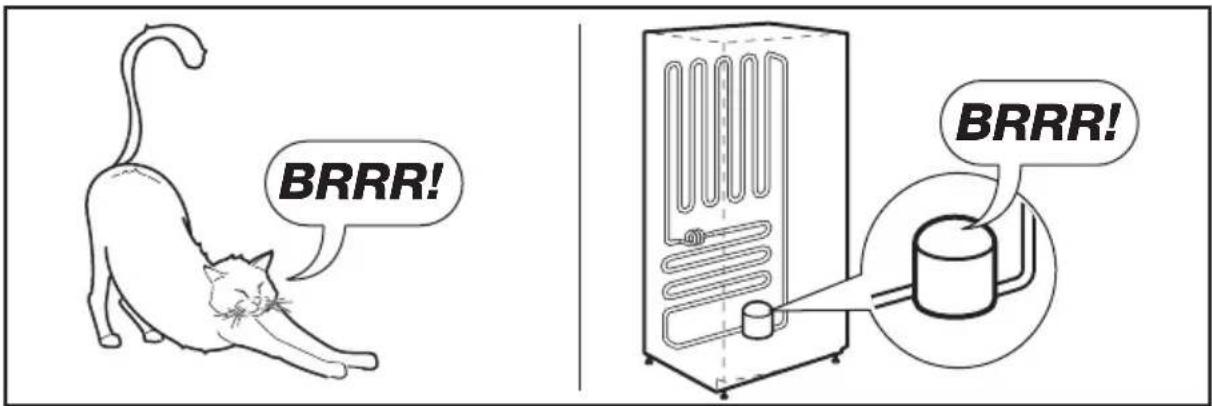

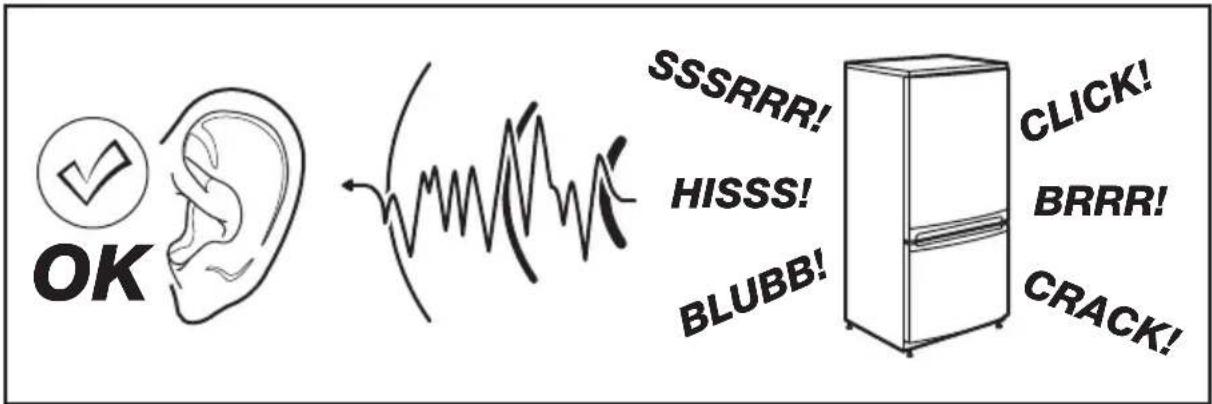

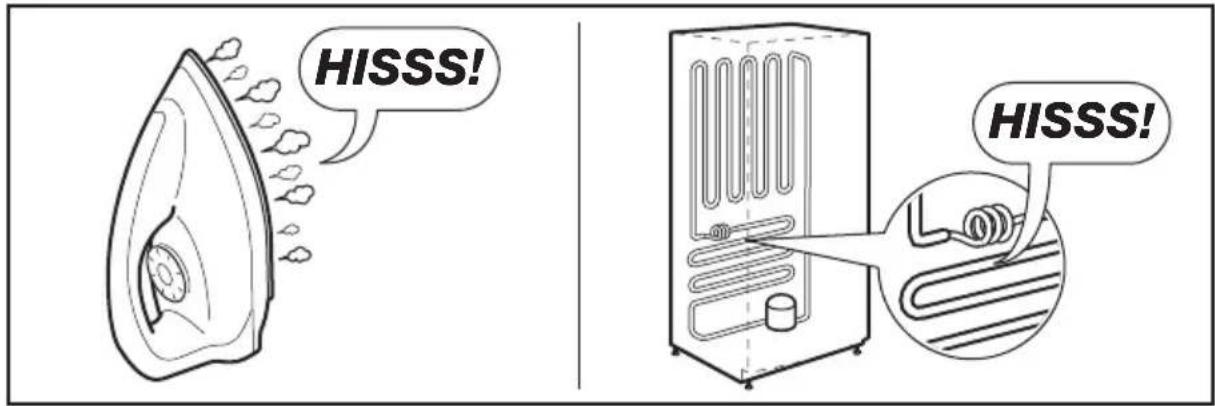

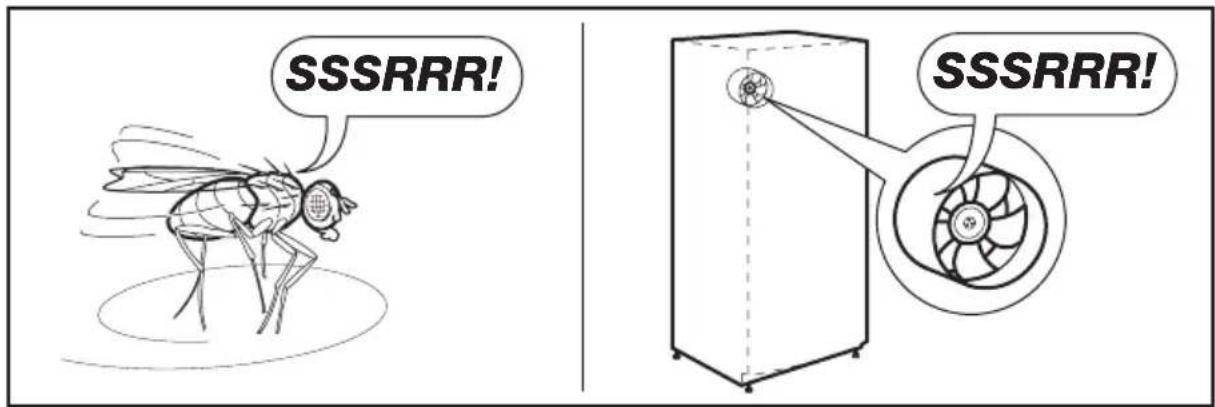

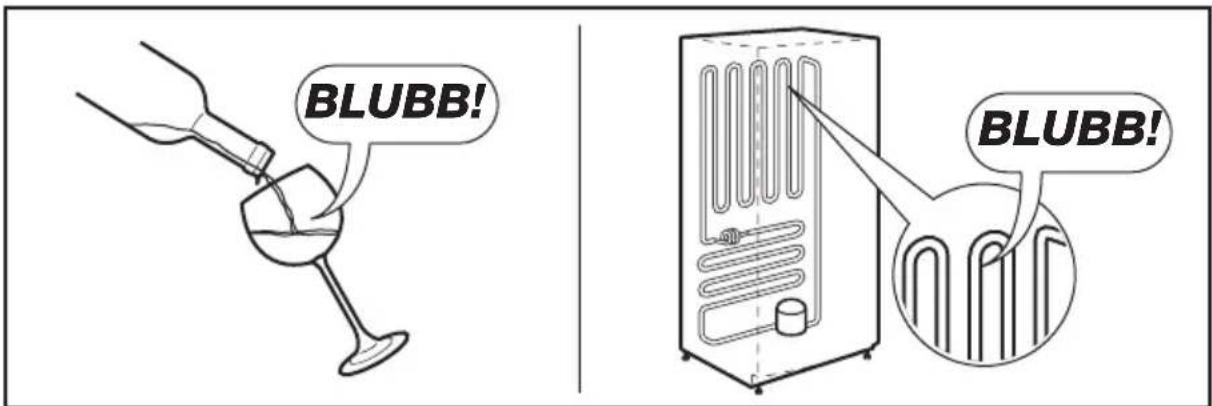

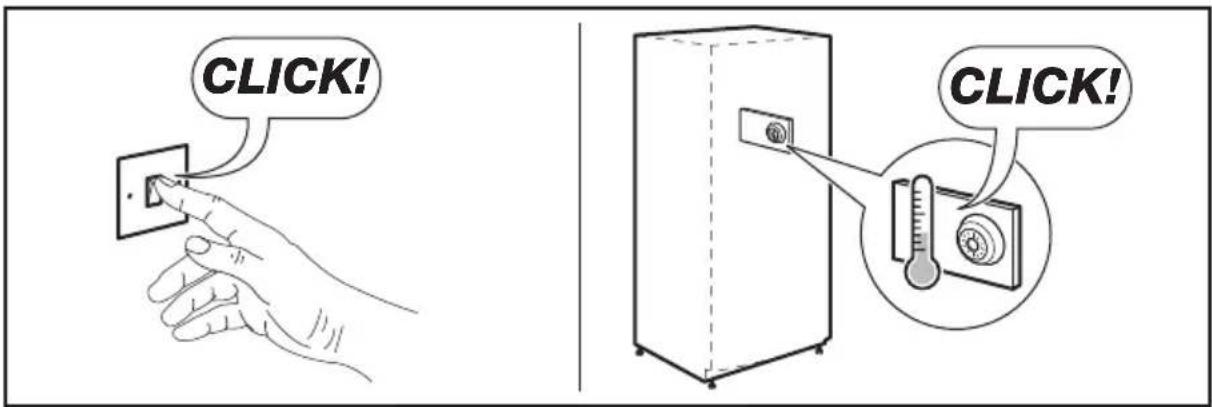

Noises

Environmental concerns 14

Subject to change without notice

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

CHILDREN AND VULNERABLE PEOPLE SAFETY

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

GENERAL SAFETY

Warning!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
  During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
  If the refrigerant circuit should become damaged:

• avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

- Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

DAILY USE

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.

• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)

• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

CARE AND CLEANING

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

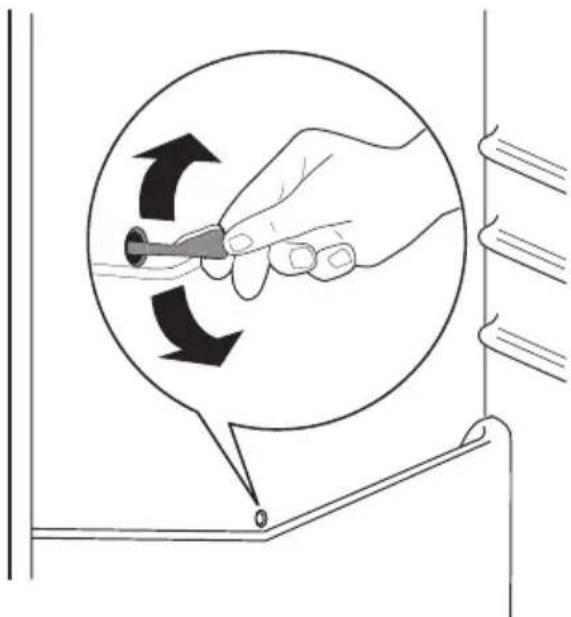

• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

INSTALLATION

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

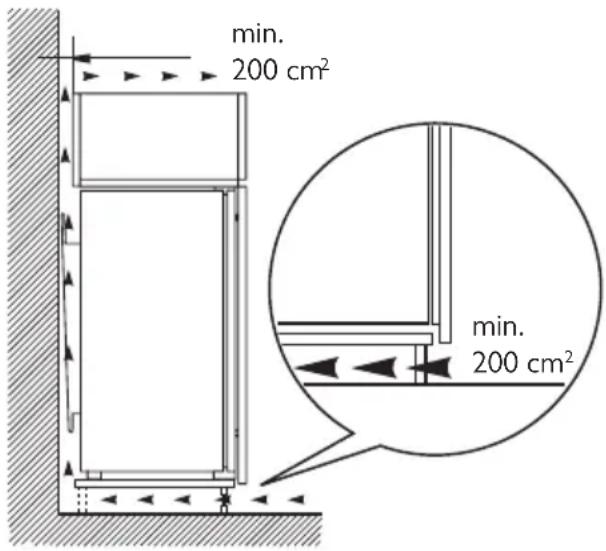

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

4 electrolux

• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen).

SERVICE

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

ENVIRONMENT PROTECTION

This appliance does not contain gasses which could damage the ozone layer,

CONTROL PANEL

SWITCHING ON THE FRIDGE

1. Insert the plug into the mains socket.
2. Press ON/OFF switch.
3. The Pilot Light will light up.

SWITCHING OFF THE FRIDGE

1. Keep ON/OFF switch pressed for more than 5 seconds.

2. A countdown on the temperature indicator, from -3 -2 -1 will be shown. When "1" appears the fridge is turned off. The temperature indicator switches off. The Pilot light switches off.

TEMPERATURE SETTING BUTTONS

The temperature is adjusted using the temperature setting buttons. These buttons are connected to the temperature indicator.

• The temperature indicator is switched over from the indicator of the ACTUAL temperature (Temperature indicator is illuminated) to the indicator of the DESIRED temperature (Temperature indicator flashes) by pressing one of the Temperature setting buttons.

- Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1°C. The DESIRED temperature must be reached within 24 hours.

If neither button is pressed, the temperature indicator automatically switches back after a short period (approx. 5 sec.) to the indicator of the ACTUAL temperature.

DESIRED temperature means:

The temperature that has been selected for inside the fridge. The DESIRED temperature is indicated by flashing numbers.

ACTUAL temperature means:

The temperature indicator shows the current temperature inside the fridge. The ACTUAL temperature is indicated with illuminated numbers.

TEMPERATURE INDICATOR

The temperature indicator shows several information:

• During normal operation, the temperature currently present in the fridge (ACTUAL temperature) is displayed.
• When the temperature is being adjusted a flashing display indicates the fridge temperature currently set (DESIRED temperature).

When changing the temperature setting wait about 24 hours until the temperature display has stabilised.

TEMPERATURE REGULATION

To operate the appliance, proceed as follows:

1. Set the required temperature by pressing the corresponding temperature regulator. The temperature indicator will immediately show the changed setting (DESIRED temperature) and the temperature indicator flashes.
2. Each time the temperature regulator is pressed the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24 hours.
3. Once the required temperature has been set, after a short period (approx. 5 sec.) the temperature indicator will show again the current ACTUAL temperature inside the corresponding compartment. The temperature indicator will change from flashing to continuous illumination.

For a correct storage of the food the following temperature should be set:

- +5 °C in the fridge

Important! When the setting is changed, the compressor does not start immediately if automatic defrosting is currently taking place. As the storage temperature within the fridge is reached quickly you can store food immediately after switching on.

The Schnellkühlen function is suited for quick cooling of large quantities of goods in the refrigerator.

To activate the function, do these steps:

1. Press the Schnellkühlen button.
2. The Schnellkühlen indicator switches on.

The Schnellkühlen function now provides for intensive cooling. A temperature of +3°C is automatically selected.

The Schnellkühlen function is ended automatically after a period of 6 hours.

You can deactivate the function at any time:

1. Press the Schnellkühlen button.
2. The Schnellkühlen indicator switches off.

You can activate the Super Frost function by pressing the Super Frost button.

The Super Frost light will light up.

This function stops automatically after 52 hours.

It is possible to deactivate the function at any time by pressing the Super Frost button.

The Super Frost light will switch off.

FIRST USE

CLEANING THE INTERIOR

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

DAILY USE

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator.
• do cover or wrap the food, particularly if it has a strong flavour.
• position food so that air car freely round it.

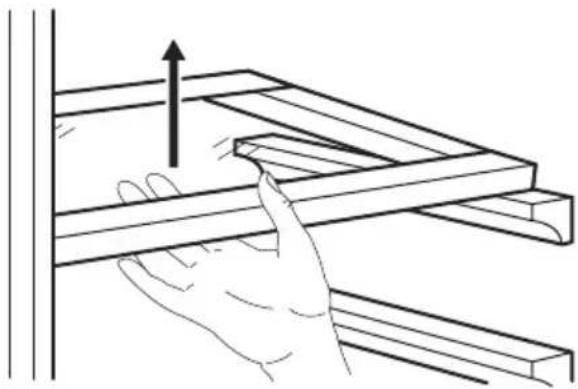

MOVABLE SHELVES

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

For better use of space, the front half-shelves can lie over the rear ones.

Line drawing of a hand using a tool to lift or adjust a wooden beam, with an upward arrow indicating force (no text or symbols)

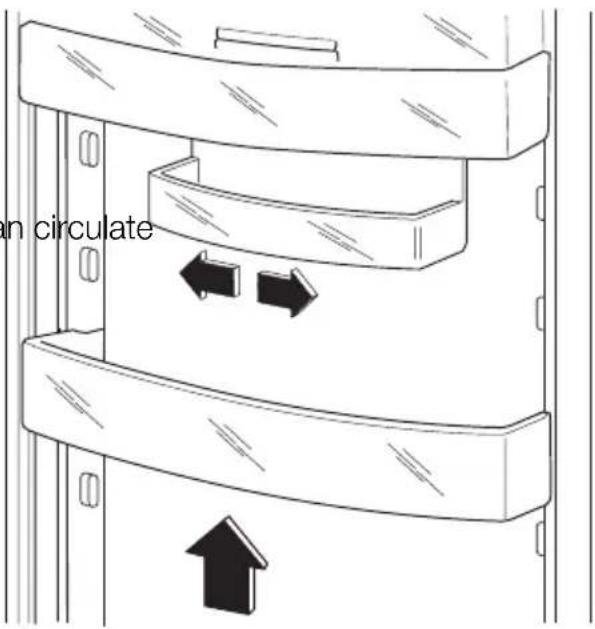

POSITIONING THE DOOR SHELVES

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

To make these adjustments proceed as follow: gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

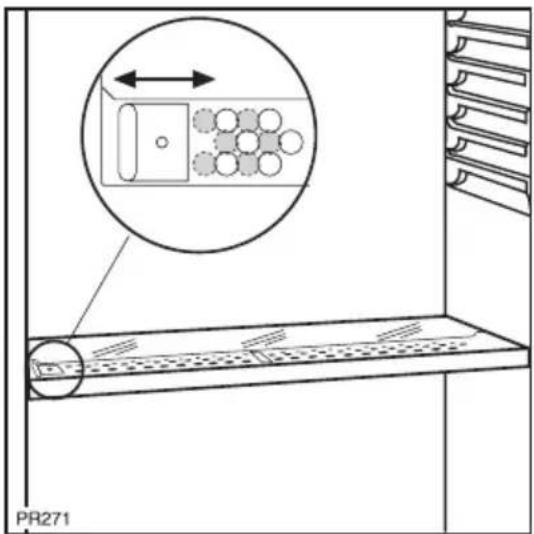

HUMIDITY CONTROL

The glass shelf incorporates a device with slits (adjustable by means of a sliding lever), which makes it possible to regulate the temperature in the vegetable drawer(s).

When the ventilation slots are closed: the natural moisture content of the food in the fruit and vegetable compartments is preserved for longer.

When the ventilation slots are opened: more air circulation results in a lower air moisture content in the fruit and vegetable compartments.

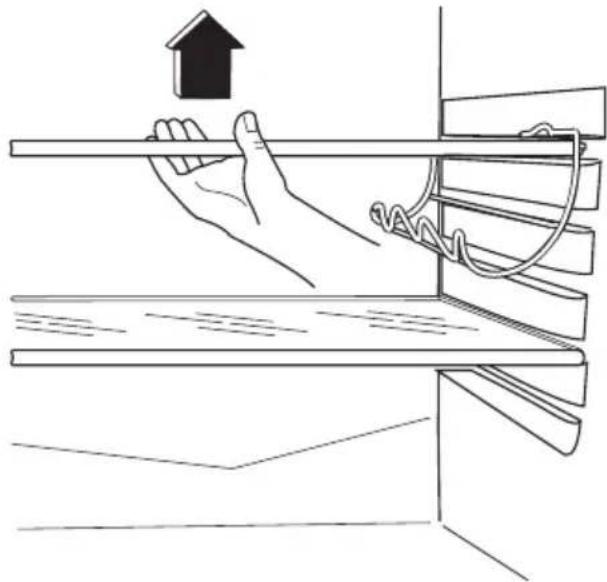

BOTTLE HOLDER

The bottle holder hooked onto one of the internal shelves can be used to store bottles or cans.

To remove this holder, lift the back of the shelf, press and pull it out.

Slide the holder out and refit the shelf.

Line drawing of a hand holding a horizontal bar with a spring attached, showing a mechanical setup (no text or symbols)

FREEZING FRESH FOOD

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

HELPFUL HINTS AND TIPS

HINTS FOR ENERGY SAVING

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low

To freeze fresh food activate the Superfrost function at least 24 hours before placing the food to be frozen in the freezer compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

When the freezing process is completed, return to the required temperature (see "Superfrost Function").

STORAGE OF FROZEN FOOD

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

THAWING

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to

allow automatic defrosting and so a saving in electricity consumption.

HINTS FOR FRESH FOOD REFRIGERATION

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour

- position foods so that air can be able and make sure that the packages freely around it are airtight;

HINTS FOR REFRIGERATION

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

HINTS FOR FREEZING

To help you make the most of the freezing process, here are some important hints:

- the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or pol-an cylinder and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

HINTS FOR STORAGE OF FROZEN FOOD

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
- not open the door frequently or leave it open longer than absolutely necessary;
- once defrosted, food deteriorates rapidly and cannot be refrozen;
- do not exceed the storage period indicated by the food manufacturer.

CARE AND CLEANING

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and re-charging must therefore only be carried out by authorized technicians.

PERIODIC CLEANING

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

DEFROSTING OF THE REFRIGERATOR

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping on-to the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

DEFROSTING THE FREEZER

i A certain amount of frost will always form around the top compartment.

Important! Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

To remove the frost, do these steps:

1. Switch off the appliance.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.
3. Open the door.
4. When defrosting is completed, dry the interior thoroughly.
5. Switch on the appliance.
6. Set the temperature regulator to obtain the maximum coldness and run the appliance for two or three hours using this setting.
7. Reload the previously removed food into the compartment.

Warning! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

PERIODS OF NON-OPERATION

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food

• defrost (if foreseen) and clean the appliance and all accessories

• leave the door/doors ajar to prevent unpleasant smells.
  If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WHAT TO DO IF...

Warning! Before troubleshooting, disconnect the mains plug from the mains socket. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance is noisy	The appliance is not supported properly	Check if the appliance stands stable (all the four feet should be on the floor)
The appliance does not operate. The lamp does not operate.	The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power.	There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The lamp does not work.	The lamp is in stand-by. Close and	open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
The compressor operates continually.	The temperature is not set correctly.	Set a higher temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.		Do not keep the door open longer than necessary.
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
The room temperature is too high.		Decrease the room temperature.
The compressor does not start immediately after pressing the Action Freezeor Action Cool-switch, or after changing the temperature.	This is normal, no error has occurred.	The compressor starts after a period of time.
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost defrosts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean the water outlet.
Products prevent that water flows into the water collector.		Make sure that products do not touch the rear plate.
Temperature cannot be set .	Action Freeze or Action Cool functions switched on.	Switch off Action Freeze or Action Cool manually, or wait to set the temperature until the function has reset automatically. Refer to "Action Freeze or Action Cool function"..
The temperature in the appliance is too low/ high.	The temperature regulator is not set correctly.	Set a higher/lower temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
Many products are stored at the same time.		Store less products at the same time.
The temperature in the refrigerator is too high.	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.
The temperature in the freezer is too high.	Products are too near to each other.	Store products so that there is cold air circulation.
There is too much frost.	Food is not wrapped correctly. Wrap the food correctly.
	The door is not closed correctly.	Refer to "Closing the door".
The temperature regulator is not set correctly.		Set a higher temperature.

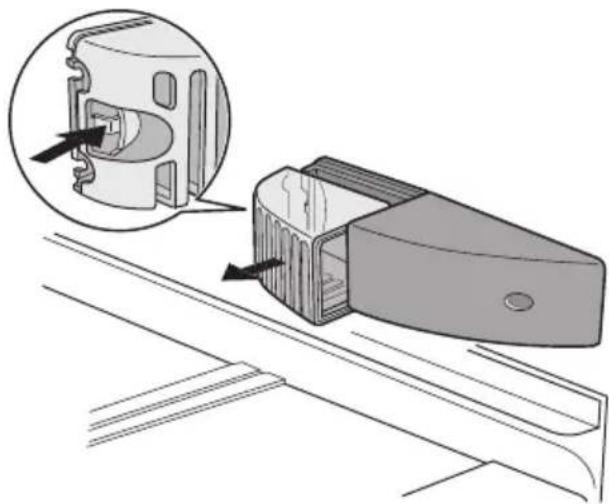

REPLACING THE LAMP

1. Disconnect the mains plug from the mains socket.
2. Press on the rear hook and at the same time slide the lamp cover in the direction of the arrow.
3. Replace the lamp with one of the same power and specifically designed for household appliances. (the maximum power is shown on the light lamp cover)
4. Install the lamp cover by sliding it into its original position.
5. Connect the mains plug to the mains socket.
6. Open the door. Make sure that the lamp comes on.

Diagram showing a device with a close-up view of its internal structure, no text or symbols present

CLOSING THE DOOR

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets. Contact the Service Center.

TECHNICAL DATA

Dimension of the recess
Height 1225 mm
Width 560 mm
Depth 550 mm
Rising Time 12 h
Voltage 230-240 V
Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

INSTALLATION

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

POSITIONING

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

ELECTRICAL CONNECTION

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with

NOISES

There are some sounds during normal running (compressor, refrigerant circulation).

current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

VENTILATION REQUIREMENTS

The airflow behind the appliance must be sufficient.

ENVIRONMENTAL CONCERNS

The symbol ☐ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Electrolux. Thinking of you.

Line drawing of a hand using a tool to lift or adjust a wooden beam, with an upward arrow indicating force (no text or symbols)

Diagram of a mechanical device with two directional arrows indicating movement or force (no text or symbols present)

Illustration of a hand holding a horizontal bar with a rope and upward arrow, no text or symbols present

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

ABTAUEN DES GEFRIERFACHES

Diagram showing a device being inserted into a housing, with an inset close-up highlighting the internal structure (no text or symbols present)

SCHLIESSEN DER TÜR
