USER MANUAL JKU6038 Juno Electrolux

Technical line drawing of a mechanical assembly with mounting feet and support brackets (no text or symbols)

Juno

Electrolux

JKU 6038

GEBRAUCHSANWEISUNG

Please read these operating instructions carefully before installing the appliance. These warnings are provided in the interests of your safety. Ensure you fully understand them before installing or using the appliance. If you are unsure about the meaning of these warnings contact the Customer Care Department.

Domestic Use

• The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.
• Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.
• This appliance is heavy. The edges and projecting parts of the cabinet may be sharp. Be careful when moving the cabinet and always use gloves.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Ensure that the appliance does not stand on the electrical supply cable.
• Do not use electrical appliances inside the appliance

• Do not keep carbonated drinks or bottles in the freezer compartment. The glass bottles may break.

• Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.

• It is dangerous to try and alter the specifications or modify this product in any way.
• Under no circumstances should you attempt to repair the appliance yourself. Refer to your local Service Centre, and always insist on genuine spare parts.

Child Safety

• This appliance is designed to be operated by adults only. There is a risk of suffocation! Keep packaging material away from children!
• In case of disposal of the appliance, cut off the supply cable as close as possible and make the lock unusable, to prevent children from closing themselves inside the appliances.

Environment Protection

- This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from your municipal authorities.

Index

Safety Instructions ....13

Disposal 14

Use and Control Before Use / Starting the appliance / Temperature control / Internal parts ....14 Hints ....15

Maintenance Defrosting / Cleaning / Changing the light bulb 16

Something not Working 17

Customer Service and Spare Parts 17

Technical Specifications 17

Door reversal 18

Installation Positioning / Electrical connection / Grid preparation .....19

Building-in the appliance under a worktop ....20 Fitting the plinth ....23

Instructions for the use of the instructions booklet

Notes which are important for your safety or for the proper functioning of the appliance

Supplementary information regarding operation and practical applications of the appliance.

Tips and notes concerning economical and environmentally sound use of the appliance

Disposal

Appliance Packaging Information

- The materials used on this appliance marked with the symbol are recyclable.

>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene

All materials are environmentally sound!

Disposal of old Appliances

Information concerning collection schedules or locations can be obtained from your local Council or Environmental Health Office.

Use and Control

Before Use

Wait two hours before connecting the appliance to allow the oil to flow back in the compressor.

- Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

- Remove safety elements used for transportation.

Refrigerator compartment Starting the appliance

- Insert the plug into the wall socket and turn the thermostat knob clockwise beyond position «O» (OFF).

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

- Turn the thermostat control to the required setting.

Temperature Control

• The thermostat control situated inside the fridge compartment regulates the temperature of the appliance.
• It allows you to adjust the temperature inside the refrigerator according to use and external conditions.
• Setting „1“ = hightest temperature, warmest setting
• Setting „6“ = lowest temperature, coldest setting.
• Setting „0“ = Off

A medium setting is generally the most suitable.

Internal Parts

Storage shelves

• The shelves can be removed for cleaning.
• To permit storage of food packages of various sizes, the shelves can be placed at different heights.
• To remove the internal shelf pull forward until it can be tipped up or down and removed.
• Please do the same in reverse to insert the shelf at a different height.

Line drawing of a hand holding a shelf with shelves, no text or symbols present

- For better use of space, the front half-shelves can lie over the rear ones.

The glass shelf above the vegetable drawers and the bottle shelf should always remain in position, to ensure correct air circulation.

Door shelves

- This model is equipped with a variable storage box which is fitted under a door shelf compartment and can be slid sideways.

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

- For more thorough cleaning, the top and bottom door sheves can be removed by pulling them in the direction of the arrow, then refitting them in position.

Hints

Saving Energy

• Pay careful attention to where the cabinet is placed. See the section "Installation". When installed correctly the cabinet will consume less energy.
• Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
• If the ambient temperature is high, the thermostat knob is on the coldest setting (higher numbers) and the appliance is fully loaded, the compressor may run continuously, causing frost or ice to form on the evaporator. If this happens, turn the knob to a warmer setting (lower numbers) to allow automatic defrosting and so a saving in electricity consumption.
• Do not place warm foods inside the appliance. Allow warm foods to cool first.

Hints for refrigeration

- Do not store warm food or evaporating liquids in the refrigerator and do cover or wrap up the food, particularly if it has a strong smell.

To help you use your refrigerator correctly, here are some useful hints:

- Raw meat (beef, pork, lamb & poultry): wrap in polythene bags and place on top of the salad compartment, this being the coldest spot in the refrigerator.

Meat can only be stored safely in this way for one or two days at the most.

• Cooked food, cold cuts, jelly, etc.: these should be well covered and can be stored on any of the glass shelves.
• Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom drawer/s.
• Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to keep out as much air as possible.
• Milk bottles: these should have a top and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit maintenance and recharging must therefore only be carried out by authorised technicians.

Defrosting

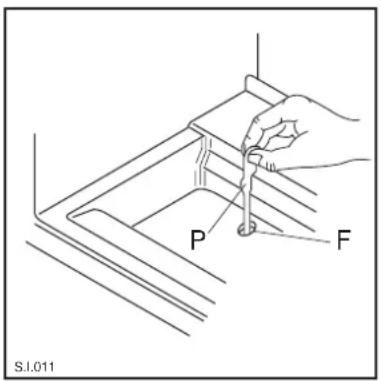

• Defrosting the refrigerator compartment is automatic. The defrost water drains out through a trough into a container at the back of the appliance, above the motor compressor, where it evaporates.
• It is important to periodically clean the defrost water drain hole (F) situated under the salad drawers to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided (P), which you will find already inserted into the drain hole.

P F S.I.011

Cleaning

Never use metal objects for cleaning your appliance as it may get damaged.

NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

Clean the inside with warm water and bicarbonate of soda. Rinse and dry thoroughly.

The appliance is equipped with a ventilation grid. Keep clean to guarantee good ventilation and good working order of the appliance.

An accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

The structure of the appliance permits cleaning of the rear zone close to the wall, using a vacuum cleaner.

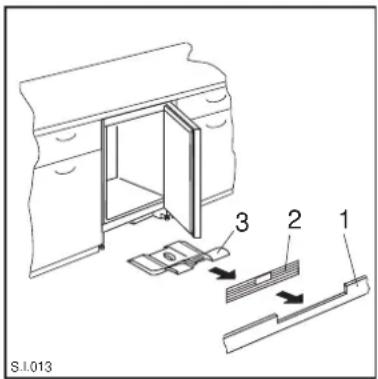

1. Remove the plinth (1), then the ventilation grid (2);
2. Carefully pull the air deflector out (3), checking that there is no water left from the defrosting.

S.1.013

When the appliance is not in use

Disconnect the appliance from the electricity supply. Empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Changing the light bulb

- Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows:

1. unscrew the light cover securing screws.
2. unhook the moving part by pressing it as shown in the figure.
3. Replace the bulb by other with another with the same characteristics.

Illustration of a hand using a screwdriver to apply a tool on a surface, with arrows indicating direction (no text or symbols)

Problems may be due to causes which can easily be solved before calling the Technical Service. Please follow these instructions:

SYMPTOM SOLUTION
Door does not close	Weight surpasses the storage limit of the door shelf so spread weight more evenly or take some products out.The appliance is not properly installed. Please look in the “Building-in” section.
It is too warm inside the refrigerator	Set a lower temperature.Distribute the food products to allow cold air to circulate around them.Make sure that the door is completely closed and that the insulating strip is complete and clean.The temperature where the cabinet is placed is above normal room temperature.
It is too cold inside the refrigerator.	Set a warmer temperature.
The compressor works continuously.	Turn the thermostat knob to a lower number.The temperature where the cabinet is placed is above normal room temperature.Check that the ventilation is sufficient and that the ventilation openings are unobstructed.The cause could be the introduction of large quantities of food and/or frequent opening/closing of the door.
There is water inside/outside the refrigerator.	Sometimes is normal. During automatic defrosting frost thaws on the cooling plate.
Water comes out on the floor.	Place the drain hose at the back of the cabinet above the drain bowl.
Noises	Sometimes this is normal. Temperature control may cause clicking sounds when the system is connected or disconnected.The injected cooling gas may produce a gurgling sound while passing through the tubes.The motor may cause a humming noise and/or slight bumping.The insulation material used has a tendency to slightly increase noise levels, how ever it allows for much better insulation and a lower energy consumption.

Customer service and spare parts

If you cannot find the remedy for a malfunction in these operating instructions, please contact your dealer or our customer service department and consult the Guarantee card.

Selective ordering of replacement parts can save unnecessary travel and costs.

For this reason always provide the following appliance information:

- Model Name

• Model Number (PNC)
• Serial Number (S-No.)

This information can be found on the rating plate inside the cabenit on the left hand wall. We recommend that you enter this information here, so that it is handy if needed.

Technical specifications

Dimensions
Height	815 mm
Width	596 mm
Depth	540 mm

The technical data is indicated in the rating plate on the right side inside the appliance.

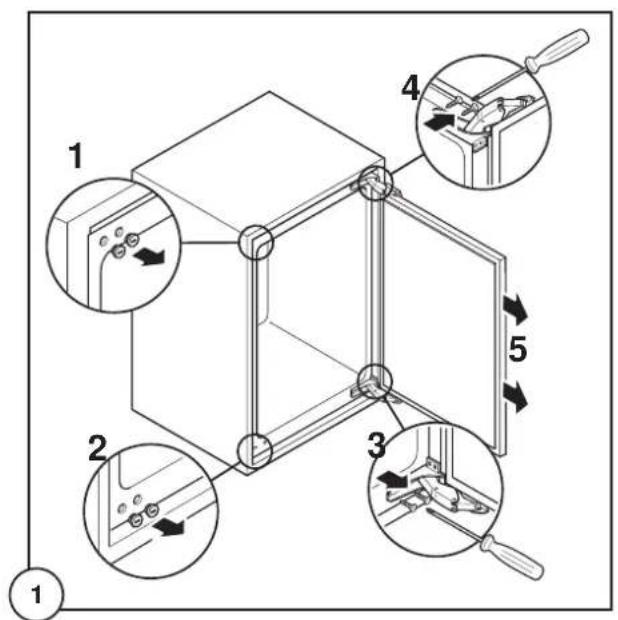

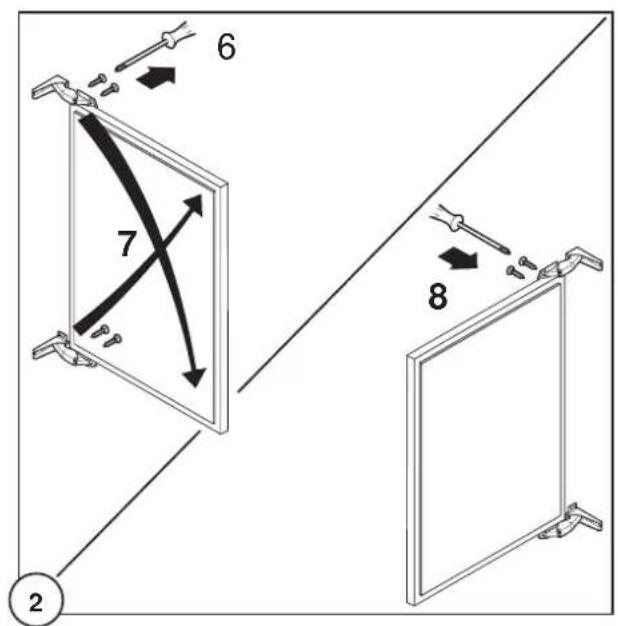

Door reversal

Technical diagram showing a 3D cube assembly with numbered components and directional arrows indicating assembly steps.

2 6 7 8

10 9 13 12 11 3

Warning! If the am

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier.

Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

• During normal operation, the condenser and compressor at the back of the appliance heat up considerably. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Important: if the supply cable is damaged, it must be replaced by authorized service or qualified personnel using a special cable of the same type.

Positioning

• Unpack the cabinet and check that it is in good condition and free of any transport damage.
• Place the refrigerator away from direct sunlight and heat sources.
• Avoid prolonged exposure of the appliance to direct sunlight.

The climate classification can be found on the rating plate, which is located inside the cabinet on the right hand wall.

The following table shows which ambient temperature is correct for each climate classification:

Climate classification	for an ambient temperature of
SN +10 to +32°C
N	+16 to +32°C
ST	+18 to +38°C
T	+18 to +43°C

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply.

Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

Important

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the following E.E.C. Directives:

- 87/308 EEC of 2/6/87 relative to radio interference suppression.

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications.

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Attention!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Grid preparation

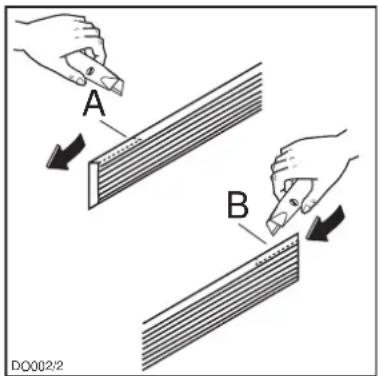

Left door opening:

Remove the left side (A) of the grid cutting it from the rear (see figure).

A B DO002/2

Right door opening:

Remove the right side (B) of the grid cutting it from the rear (see figure).

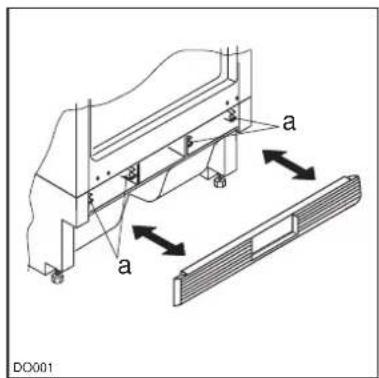

To position the grid on the appliance proceed as follows:

Apply the grid to the base of the appliance by pushing on to the clasps (a) until they click.

DO001 a a

Building in the appliance under a worktop

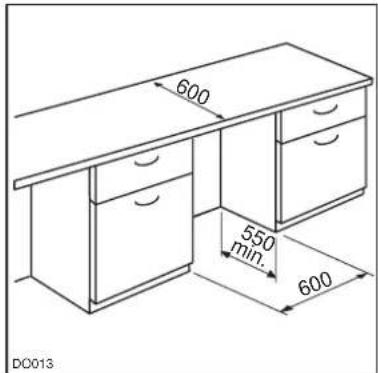

Dimensions of the recess

The dimensions of the recessed installation area must correspond with those indicated in the figure.

600 550 min. 600 DO013

Installation kit

1xA 1xB 2xC 12 2 1 2 1 2 1 1 ①

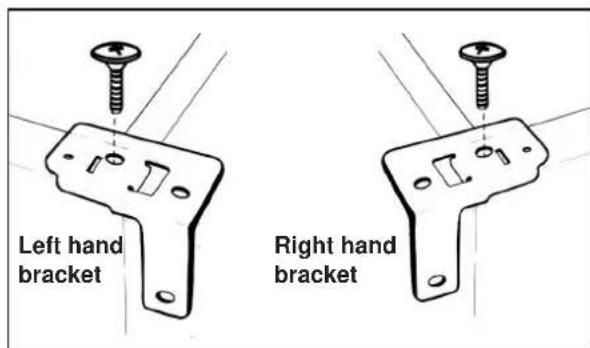

1. Two cabinet securing brackets are supplied with the installation pack. They need to be assembled onto the cabinet prior to cabinet being pushed into the Kitchen aperture.

2. To fit these brackets remove the two screws at the top left and right hand front corners of the cabinet.

3. Position the two brackets as shown in the figure and replace the two securing screws.

Left hand bracket Right hand bracket

1. Push the appliance into place. The plug socket necessary for connection of the appliance to the electricity supply should be positioned, so that the plug is not placed in the recess.

Technical line drawing of a rectangular enclosure with a curved pipe and labeled component (no text or symbols)

1. To adjust the height proceed as follows:

2. Loosen or tighten the two front feet.

3. The rear feet are adjusted by turning the screw in the front kick plate to the left or right.

Li89

1. If necessary, pads are supplied for the rear feet to make sliding the appliance in and out of the recess easier. To fit the pads, press them onto the rear feet.

If required, the dimensions of these pads can be reduced by breaking them where marked.

Pure diagram of concentric circles with arrows indicating direction, no text or symbols present

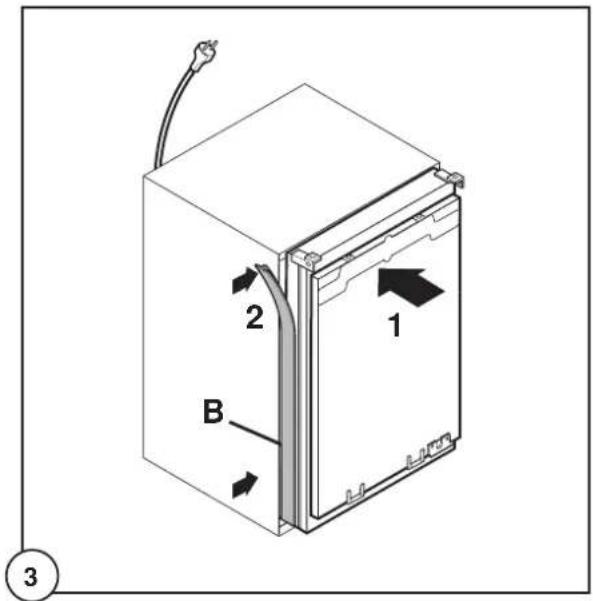

1. The joint cover (B) is to be assembled after having installed the appliance in the recess.

1 2 B 3

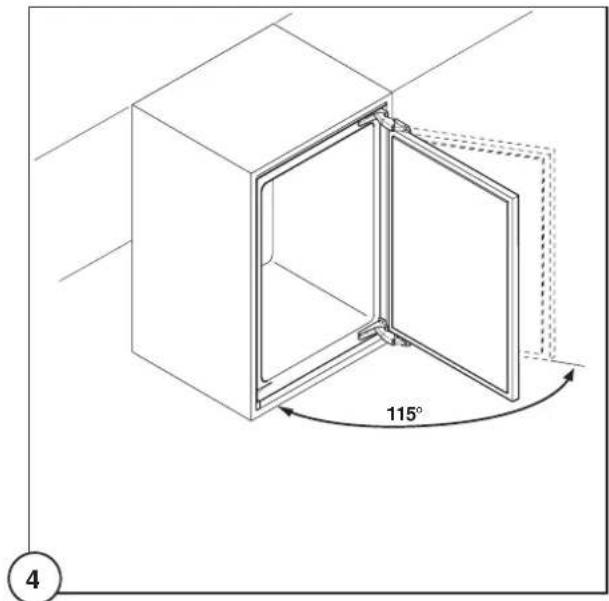

Technical line drawing of a 3D cabinet with an open door and 115° angle标注 (no text or symbols beyond the angle indicator)

1. Screw appliance into place and retain the cabinet with screws through the securing brackets into the worktop or adjacent woodwork as necessary.

5 42 42

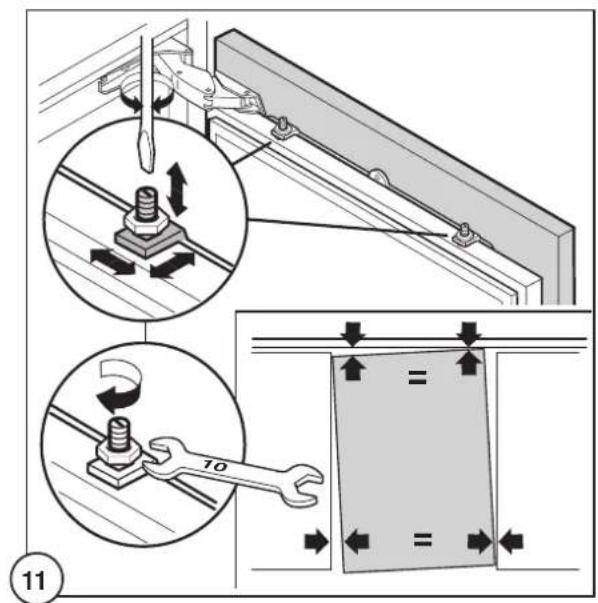

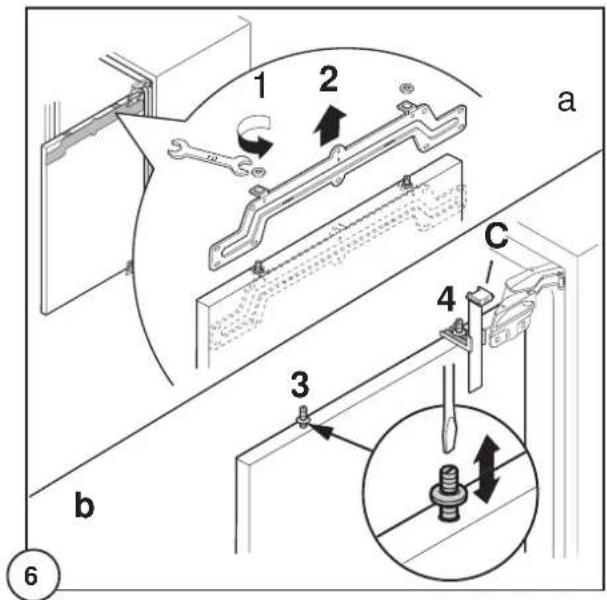

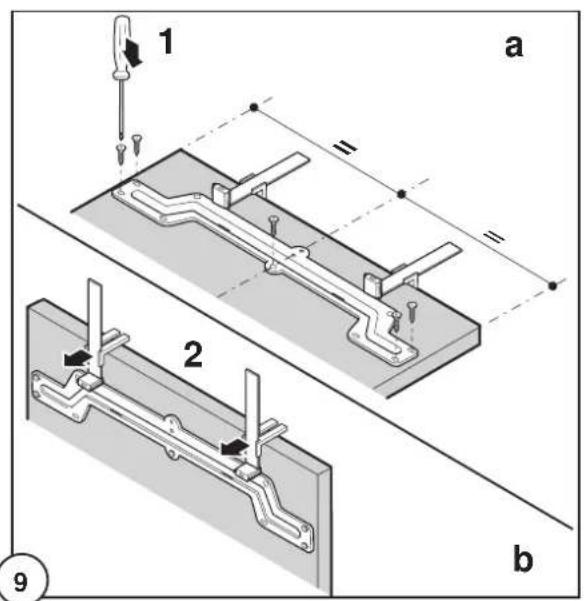

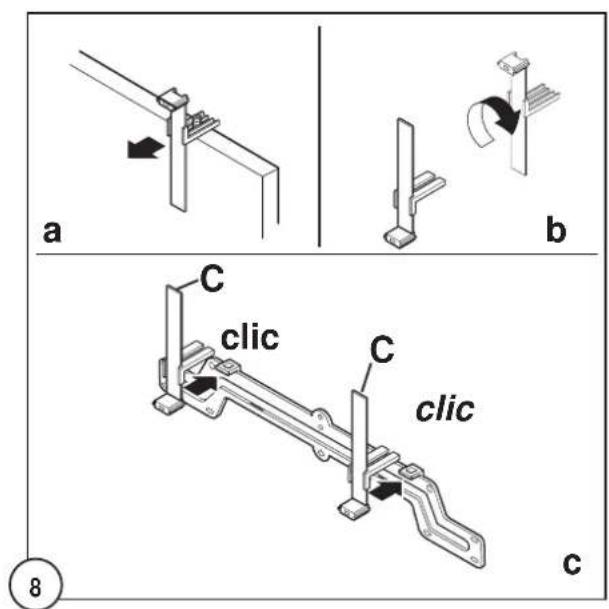

1. To mount the furniture door proceed as shown in the figures:

1 2 a C 4 3 b 6

Technical line drawing of a kitchen cabinet with an inset close-up showing a door handle and a hanging fixture (no text or symbols)

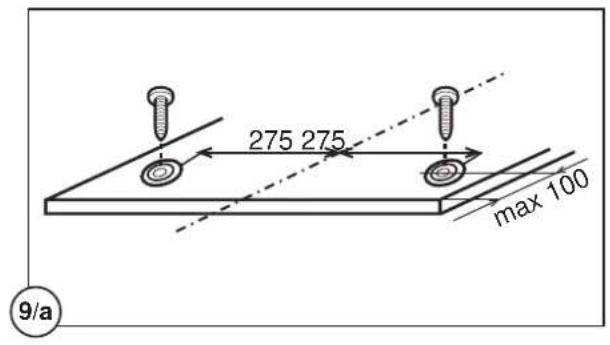

LOWER PART OF KITCHEN FURNITURE PANEL

275 275 max 100 9/a

a b C clic C clic c 8

1 2 45 3 10

UPPER PART OF KITCHEN FURNITURE PANEL

1 a = = 2 b 9

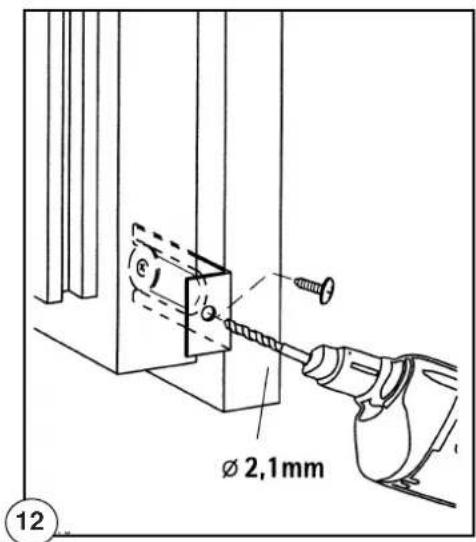

Technical diagram illustrating screw fastening and mounting mechanism with labeled components and directional arrows

Ø 2,1mm 12

1. Refit the covering strip.


A 13

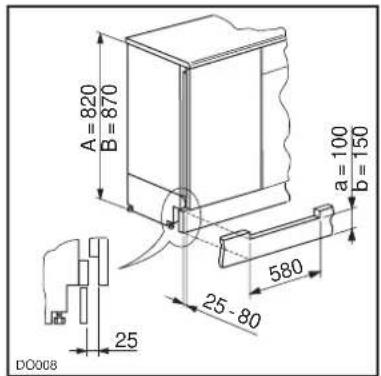

Fitting the plinth

A Important

For the efficient operation of the appliance, it is important that the original ventilation grid is used.

- For an opening height dimension A=820 mm and a plinth height dimension a=100 mm, the plinth may be fitted without adjustments. The same applies to an opening height dimension B=870 mm and a plinth height dimension b=150 mm.

- For plinth heights greater than a=100 mm, b=150 mm, a cut should be made in the plinth, 580 mm wide, in the centre of the appliance position, leaving a remaining height of a=100 mm, b=150 mm.

- Attach plinth to the kitchen units.

A=820 B=870 a=100 b=150 580 25-80 25 DO008

Important

The plinth must be positioned at a minimum distance of 25 mm from the door.

The Electrolux Group. The world's No.1 choice.

The Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
