USER MANUAL JCZ94181 Juno Electrolux

We were thinking of you

when we made this product

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Diagram of a door handle mechanism with arrows indicating direction (no text or symbols)

"Natura fresh" 0°C Kaltraum

Line drawing of a multi-tiered storage cabinet with mesh netting (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of internal components (no text or symbols)

Abtauen

Technical line drawing of a mechanical component with a black arrow indicating direction, no text or symbols present

Achtung

Welcome to the world of Electrolux

You've chosen a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety of quality products that would make your life even more comfortable. You can look at some examples on the cover in this manual. But now it's time to study this manual and start using and enjoying the benefits from your new machine. We promise that it'll make your life a little easier. Good luck!

The following symbols are used in this manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance.

General information and tips

Environmental information

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CONTENTS

Safety Information 30

Use 3

Cleaning the interior 33

Use of the fridge 33

Control panel 33

Operation 34

Fresh food refrigeration 34

Movable shelves 35

Positioning the door shelves 35

“Natura fresh” 0°C compartment 35

Humidity control 36

"Natura fresh" 0°C compartment -

Interior Accessories 36

Hints 3

Storage time in the "Natura fresh" 0°C

compartment for fresh food 38

Use of the freezer 39

Control panel 39

Operation 40

Freezing fresh food 40

Storage of frozen food 41

Cold accumulator 41

Thawing 41

Ice-cube production 41

Hints 42

Hints for refrigeration 42

Hints for freezing 33 42

Hints for storage of frozen food 42

Maintenance 43

Periodic cleaning 43

Periods of non-operation 43

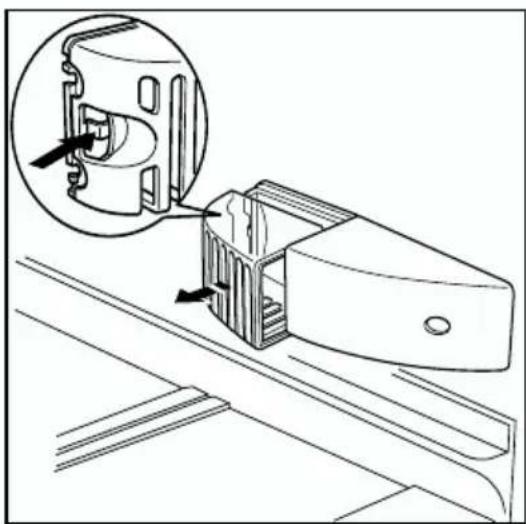

Interior light 43

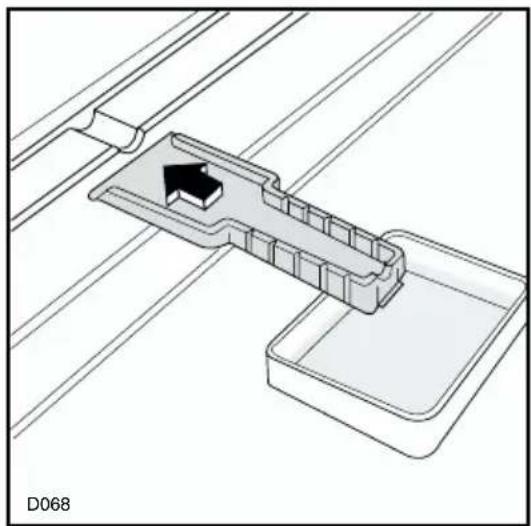

Defrosting 44

Customer service and spare parts 45

Installation 46

Location 46

Electrical connection 46

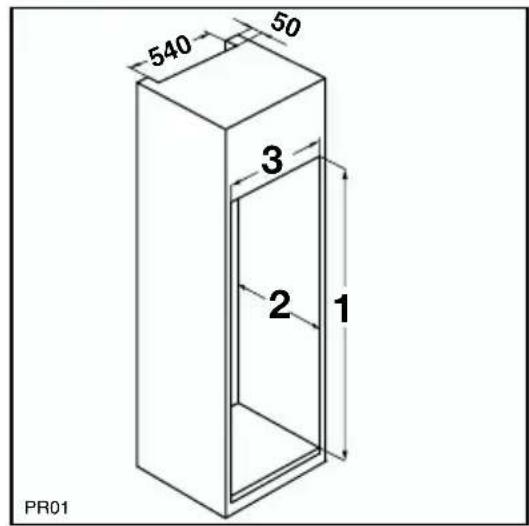

Dimensions of housing 46

European Guarantee 37 47

www.electrolux.com 48

SAFETY INFORMATION

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.

If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child.

These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

General Safety

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
• It is dangerous to alter the specifications or modify this product in any way.
• Before any cleaning or maintenance work is carried out, be sure to switch off and unplug the appliance.
• This appliance is heavy. Care should be taken when moving it

• Ice lollies can cause frost burns if consumed straight from the appliance.

• Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

• The appliance must not be located close to radiators or gas cookers.
• Avoid prolonged exposure of the appliance to direct sunlight.
• There must be adequate ventilation round the back of the appliance and any damage to the refrigerant circuit must be avoided.
• For freezers only (except built-in models): an ideal location is the cellar or basement.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances.

Service/Repair

• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person
• This product should be serviced by an authorized Service Centre, and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunctioning. Refer to your local Service Centre, and always insist on genuine spare parts.
• This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Use

• The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.
• Best performance is obtained with ambient temperature between +18°C and +43°C (class T); +18°C and +38°C (class ST); +16°C and +32°C (class N); +10°C and +32°C (class SN). The class of your appliance is shown on its rating plate.

Warning: when the ambient temperature is not included within the range indicated for the class of this appliance, the following instructions must be observed: when the ambient temperature drops below the minimum level, the storage temperature in the freezer compartment cannot be guaranteed; therefore it is advisable to use the food stored as soon as possible.

• Frozen food must not be re-frozen once it has been thawed out.
• Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
• The inner lining of the appliance consists of channels through which the refrigerant passes. If these should be punctured this would damage the appliance beyond repair and cause food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Frost may

be removed by using the scraper provided. Under no circumstances should solid ice be forced off the liner. Solid ice should be allowed to thaw when defrosting the appliance.

- Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. Never use metal objects for cleaning your appliance as it may get damaged.

Installation

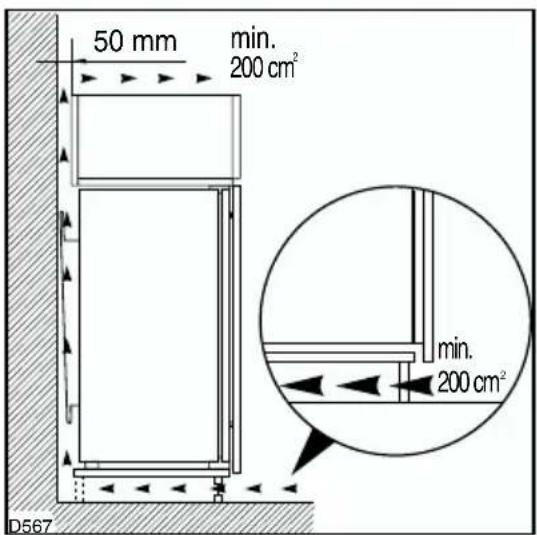

- During normal operation, the condenser and compressor at the back of the appliance heat up considerably. For safety reasons, minimum ventilation must be as shown in the instructions.

Attention: keep ventilation openings clear of obstruction.

- Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

Important: if the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

- If the appliance is transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is advisable to wait at least two hours

before connecting the appliance to allow the oil to flow back in the compressor.

• There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Parts which heat up should not be exposed. Wherever possible the back of the product should be against a wall.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from municipal authorities. The materials used on this appliance marked by the symbol are recyclable.

USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with luke-warm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

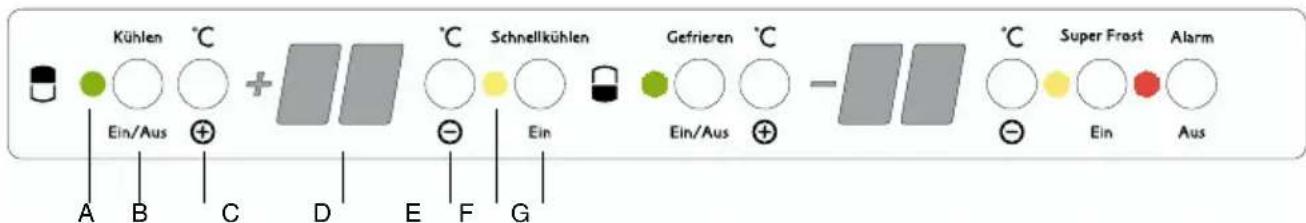

Use of the fridge Control Panel

E - Temperature setting button (coldest)

F - Super cooling light

G - Super cooling button

A - Light ON/OFF

B - Button ON/OFF

ON: Press the button (B). The pilot light (A) switches on.

OFF: Keep pressed the button (B) until the pilot light (A) and the temperature indicator switches off.

C - E. Temperature setting buttons

The temperature can be adjusted between +2°C and +8°C.

By pressing the button (C or E), the current temperature setting flashes on the indicator. It is possible to modify the setting temperature only with flashing indicator. To set a warmer temperature, press button (C). To set a colder temperature, press button (E). The indicator displays the newly selected temperature for a few seconds and then shows again the inside compartment temperature.

The newly selected temperature must be reached after 24 hours.

Attention!

During the stability period and when first starting the appliance the temperature displayed does not correspond to the setting temperature. During this time it is possible that the temperature displayed is lower than the setting temperature.

D. Temperature indicator

During normal functioning the indicator shows the temperature inside the fridge.

Attention!

A difference between the temperature displayed and the temperature setting is normal. Especially when:

• a new setting has recently been selected
• the door has been left open for a long time
• warm food has been placed in the compartment

F - Super cooling pilot light

G - Super cooling button

The maximum performance is obtained by setting the supercooling function. It's recommended when loading large quantities of food.

Press the supercooling button (G). The relevant pilot light (F) switches on.

The internal temperature goes down to +2^ C.

After about 6 hours the supercooling function switches off automatically.

Operation

Insert the plug in the power socket. Press the button ON/OFF (B). The fridge is switched on.

The fridge is pre-set to run at +5°C. This temperature will be reached in a few hours.

As soon as the appliance is switched on the temperature indicator (D) shows the current temperature inside the fridge.

Fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator;
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely round it.

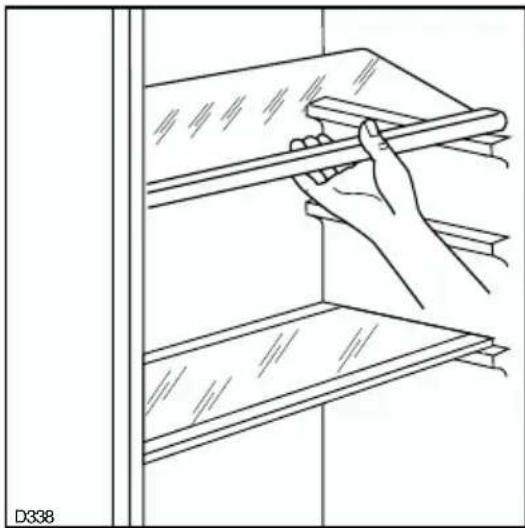

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand holding a shelf with a tool, no text or symbols present

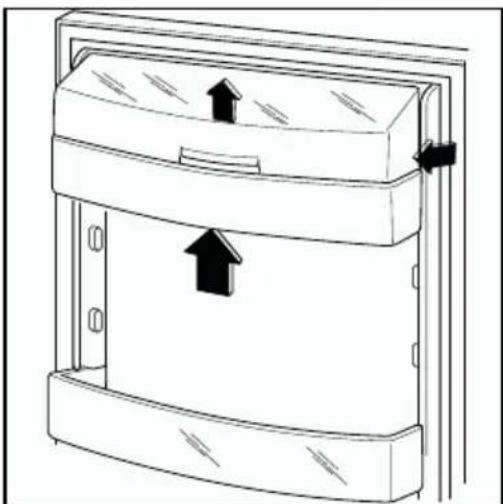

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

To make these adjustments proceed as follows: Gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

Diagram of a door handle mechanism with arrows indicating direction (no text or symbols)

“Natura fresh” 0°C compartment

- In the “Natura fresh” 0°C compartment the temperature is controlled automatically. It stays constantly at about 0°C, no adjustment is necessary.

- The constant storage temperature of about 0°C and the relative humidity of between 45 and 90 % provide optimal conditions for the various kinds of food.

- You can therefore store a variety of fresh food in the “Natura fresh” 0°C compartment, where it will last up to 3 times longer with better quality compared to normal refrigerator compartments.

This allows you to stock more fresh food. Taste, degree of freshness, quality and nutritional values (vitamins and minerals) are well preserved. Loss of weight in vegetables and fruit diminishes. Food yields a higher degree of nutritional value.

- The “Natura fresh” 0°C compartment is also suitable for defrosting food. In this case the thawed food can be stored up to two days in the “Natura fresh” 0°C compartment.

- The compartment has stops to prevent the drawers from falling out when fully extended.

To remove the drawers (e.g. for cleaning purposes), pull them out as far as the stops, lift and extract.

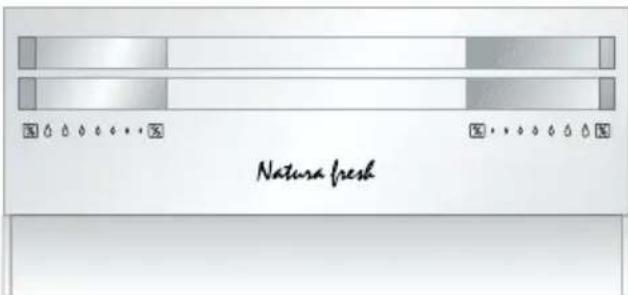

Humidity control

- Both drawers can be used according to the desired storage conditions independently of each other with lower or higher humidity.

Regulation for each drawer is separate and is controlled using the slide valve at the front of the drawer.

- "Dry": low air humidity - up to 50 % relative humidity. This humidity level is reached when both sliders are set into this

position and the ventilation openings are wide open.

- "Humid": high relative humidity - up to 90 %. This humidity level is reached when both sliders are set in this position

A and the ventilation openings are closed. Humidity is kept and can not escape.

"Natura fresh" 0°C compartment - Interior Accessories

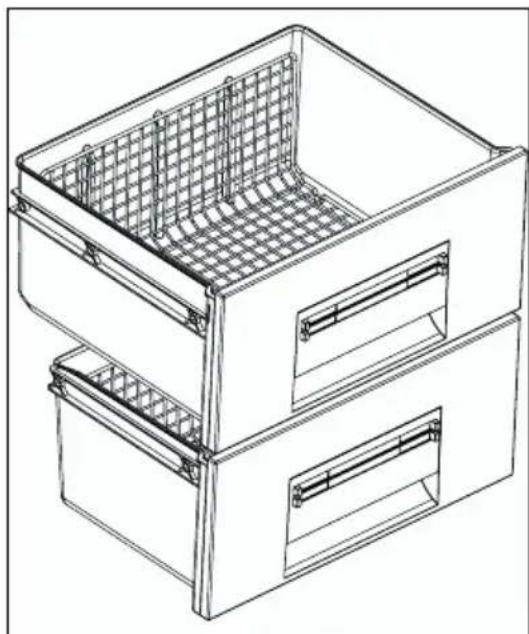

Drawers

- The wire shelves inside the drawers permit that air can circulate freely and consequently a better conservation of foods.

Line drawing of a multi-tiered storage cabinet with mesh netting and side compartments (no text or symbols)

Note : if large quantities of foods are to be stored in the 0°C compartment, it is possible to remove the bottom drawer.

Hints

• Pay attention to the freshness of the food, especially on the expiry date. Quality and freshness influence the storage time.
• Foods, and especially salad, must be kept well covered or packaged in such a way that they do not dry out and that their flavours and fragrances remain unchanged. Animal food always store packed and dry.
• Food rich in proteins will go bad quicker. This means seafood will spoil before fish which in turn will spoil before meat. While storing food in a 0°C compartment storage time for that kind of food can be increased by up to three times as well without loss on quality.
• All food stored in a 0°C compartment should be taken out of the drawers roughly 15-30 min before consumption, particularly fruit and vegetables to be consumed without any additional cooking process. Allowing fruit and vegetables to return to room temperature will improve the texture and flavour.
• The level of air humidity in the drawers depends on the content of humidity in the stored food, vegetable and fruit and on the frequency of door opening.
• The “Natura fresh” 0°C compartment is also suitable for slow thawing of food. In this case the thawed food can be stored in the “Natura fresh” 0°C

compartment for up to two days. Not to be placed in the “Natura fresh” 0°C compartment:

- cold sensitive fruit which have to be stored at cellar or room temperature like pineapple, bananas, grapefruit, melons, mango, papaya, oranges, lemons, kiwi fruit.

Storage time in the “Natura fresh” 0°C compartment for fresh food

TYPE OF FOOD	AIR HUMIDITY ADJUSTMENT	STORAGE TIME
Onion “dry” up to 5 months
Butter “dry” up to 1 month
Large pork cuts “dry” up to 10 days
Beef, venison, small pork cuts, poultry “dry” up to 7 days
Tomato sauce “dry” up to 4 days
Fish, shellfish, cooked meat products “dry” up to 3 days
Cooked seafood	“dry” up to 2 days
Salad, vegetables - Carrots, herbs, Brussels sprouts, celery	“humid”	up to 1 mounth
Artichokes, cauliflower, chicory, iceberg lettuce, endive, lamb's lettuce, lettuce, leeks, radicchio	“humid”	up to 21 days
Broccoli, Chinese leaves, kale, cabbage, radishes, Savoy cabbage	“humid”	up to 14 days
Peas, kohlrabi	“humid”	up to 10 days
Spring onions, asparagus, spinach	“humid”	up to 7 days
Fruit (*) - Pears, dates (fresh), strawberries, peaches (*)	“humid”	up to 1 mounth
Plums (*), rhubarb, gooseberries	“humid”	up to 21 days
Apples (not sensitive to cold), quinces	“humid”	up to 20 days
Apricots, cherries	“humid”	up to 14 days
Damsons, grapes	“humid”	up to 10 days
Blackberries, currants	“humid”	up to 8 days
Figs (fresh)	“humid”	up to 7 days
Blueberries, raspberries	“humid”	up to 5 days

(*) The riper the fruit, the shorter the storage time

Cakes containing cream and other kinds of pastry products can be stored in the “Natura fresh” 0°C compartment for 2 or 3 days.

The types of food not mentioned above should be stored in the refrigerator compartment (e.g. all sorts of cheese, cold cuts, etc.).

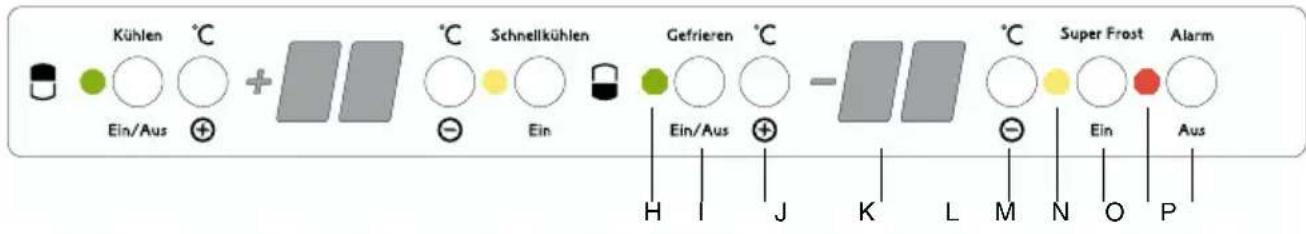

Use of the freezer Control Panel

L - Temperature setting button (coldest)

M - Super frost light

N - Super frost button

O - Alarm reset light

P - Alarm reset button

H - Light ON/OFF I. Button ON/OFF

ON: Press the button (I). The pilot light (H) switches on.

OFF: Keep pressed the button (I) until the pilot light (H) and the temperature indicator switches off.

J - L. Temperature setting buttons

The temperature can be adjusted between -15^ and -24^ .

By pressing the button (J or L), the current temperature setting flashes on the indicator. It is possible to modify the setting temperature only with flashing indicator. To set a warmer temperature, press button (J). To set a colder temperature, press button (L).

The indicator displays the newly selected temperature for a few seconds and then shows again the inside compartment temperature.

Attention!

During the stability period and when first starting the appliance the temperature displayed doesn not correspond to the setting temperature. During this time it is possible that the temperature displayed is lower than the setting temperature.

K - Temperature indicator

During normal functioning the indicator shows the warmest temperature inside the freezer.

Differences up to 5^ C inside the compartment are quite normal.

Attention!

A difference between the temperature displayed and the temperature setting is normal. Especially when:

• a new setting has recently been selected
• the door has been left open for a long time
• warm food has been placed in the compartment

M - Super frost pilot light N - Super frost button

To freeze fresh foods, the “Super frost” function must be activated. Press the super frost button (N). The relevant pilot light (M) switches on

The function can be deactivated at any time, by pressing the button (N), otherwise it automatically switches off. With deactivated function the pilot light (M) switches off.

O - Alarm reset light

P - Alarm reset button

In the event of an abnormal temperature rise inside the freezer (e.g. power cut) the warning light (O) will start to flash and a buzzer will sound.

After the temperature has returned to normal, the warning light (O) will continue to flash, although the buzzer has stopped.

When the alarm button (P) is pressed, the warmest temperature reached in the compartment flashes on the indicator (K).

If the power has been off for a long time, frozen food should be consumed as quickly as possible, or cooked and then re-frozen.

Operation

Insert the plug in the power socket. Press the button ON/OFF (I). The appliance is switched on.

The freezer is pre-set to run at -18°C. this temperature will be reached in a few hours.

As soon as the appliance is switched on the temperature indicator (K) shows the current temperature inside the freezer, the alarm reset light (O) flashes and a buzzer sounds. Press the alarm reset button (P). The buzzer stops and the alarm light (O) continues to flash until the setting temperature is reached.

Freezing fresh food

To freeze fresh food, press the Super Frost button (N).

Place the food to be frozen in the upper compartment. The maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

Warning!

When the “Super Frost” function is to be used:

about 6 hrs before	Introducing small quantities of fresh food (about 5 kg)
about 24 hrs before	Introducing the maximum quantity of food (see rating plate)
not needed	Introducing frozen food
not needed	Introducing small quantities of fresh food daily 2 kg maximum

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run for at least two hours on the fast frost setting, then push again the Super-frost button.

Important

If there is a power failure when food is in the freezer, do not open the door of the freezer compartment. The frozen food will not be affected if the power cut is of short duration (up to 6-8 hours) and the freezer compartment is full, otherwise, it is recommended that the food should be used within a short time (a temperature increase of the frozen food shortens its safe storage period).

Cold accumulator

The freezer contains two cold accumulators which increases storage times in the event of a power cut or breakdown. They are located in the upper compartment.

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.

Do not use metallic instruments to remove the trays from the freezer.

HINTS

Hints for refrigeration

Useful hints:

Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottlethese should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
  • prepare food in small portions to

enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause frost burns;
• it is advisable to show the freezing-in date on each individual pack to enable you to keep a tab of the storage time;
• do not put carbonated liquids (fizzy drinks, etc.) in the freezer compartment as they may burst.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
- not open the door frequently or leave it open longer than absolutely necessary.
- Once defrosted, food deteriorates rapidly and cannot be refrozen.
- Do not exceed the storage period indicated by the food manufacturer.

MAINTENANCE

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Periodic cleaning

Clean the inside with warm water and bicarbonate of soda.

Rinse and dry thoroughly.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption.

"Natura fresh" 0°C compartment

The lowest shelf, dividing the cooler compartment from the “Natura fresh” 0°C compartment can be removed for cleaning. To remove pull out the shelf straight.

The cover plates above the drawers in the 0°C compartment can be taken out for cleaning. To make sure fully functionality of the “Natura fresh” 0°C compartment the cover must be put back in their original position after cleaning.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• remove the plug from the wall socket;
• remove all food;
• defrost and clean the interior and all accessories;
• leave the door ajar to allow air to circulate to prevent unpleasant smells.

Interior light

If it becomes necessary to replace the lamp, press on the rear hook and at the same time slide the cover in the direction indicated by the arrow.

Replace the lamp with one of the same power (the maximum power is shown on the light diffuser).

Technical line drawing of a mechanical component with an inset showing a close-up view of a housing (no text or symbols present)

Defrosting

Defrosting the refrigerator compartment is automatic. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water from overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

The freezer compartment, however, will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 4 mm. During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to carry out this operation when the appliance is empty.

To carry out complete defrosting of the freezer compartment

proceed as follows:

1. Press button ON/OFF (I);

2. leave the door open, insert the plastic scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water;

Technical diagram of a mechanical assembly with a central component and two rectangular parts, no visible text or symbols.

1. when defrosting is completed, dry the interior thoroughly and refit the plug; keep the scraper for future use;

2. Press button ON/OFF (I). After letting the appliance run for at least half an hour, replace the previously removed food into the compartment.

Important

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

CUSTOMER SERVICE AND SPARE PARTS

If the appliance is not functioning properly, check that:

• the plug is firmly in the wall socket and the mains power switch is on;
• there is an electricity supply (find out by plugging in another appliance);
• If there are water drops on the bottom of the cabinet, check that the defrost water drain opening is not obstructed (see “Defrosting” section).
• If your appliance is still not working properly after making the above checks, contact the nearest service centre.

To obtain fast service, it is essential that when you apply for it you specify the model and serial number of your appliance which can be found on the guarantee certificate or on the rating plate located inside the appliance, on the bottom left-hand side.

INSTALLATION Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

CE This appliance complies with the following E.E.C. Directives:

• 87/308 EEEOf 2/6/87 relative to radio interference suppression.
• 73/23 EEEG of 19.2.73 (Low Voltage Directive) and subsequent modifications;
• 89/336 EEEOf 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

ATTENTION!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

i Dimensions of housing

Height 1780 mm

Depth 550 mm

Width 560 mm

For safety reasons, minimum ventilation must be as shown in Fig.

Attention: keep ventilation openings clear of obstruction.

It is necessary that the niche is provided with a ventilation conduct having the following dimensions:

Depth 50 mm

Width 540 mm

EUROPEAN GUARANTEE

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed, the appliance guarantee will move with you subject to the following qualifications:

• The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.
• The appliance is installed in accordance with all relevant regulations in force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

www.electrolux.com

Albania	[phone]	Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien	[phone]	Bergensesteenweg 719, 1502 Lembeek
Česká republika	[phone]	Budějovická 3, Praha 4, 140 21
Danmark	[phone]	Sjællandsgade 2, 7000 Fredericia
Deutschland	[phone]	Muggenhofer Str. 135, 90429 Nürnberg
Eesti	[phone]	Mustamäe tee 24, 10621 Tallinn
España	[phone]	Carretera M-300,Km.29,900 Alcalá de Henares Madrid
France	www.electrolux.fr
Great Britain	[phone]	Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas	[phone]	4, Limnou Str., 54627 Thessaloniki
Hrvatska	[phone]	Slavonska avenija 3, 10000 Zagreb
Ireland	[phone]	Long Mile Road Dublin 12
Italia	[phone]	C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija	[phone]	Kr. Barona iela 130/2, LV-1012, Riga
Lietuva	[phone]	Verkių 29, LT-09108 Vilnius
Luxembourg	[phone]	Rue de Bitbourg, 7, L-1273 Hamm
Magyarország	[phone]	H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland	[phone]	Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge	[phone]	Risløkkvn. 2 , 0508 Oslo
Österreich	[phone]	Herziggasse 9, 1230 Wien
Polska	[phone]	ul. Kolejowa 5/7, Warsaw
Portugal	[phone]	Quinta da Fonte-Edificio Gonçalves Zarco-Q 35-2774-518 Paço de Arcos
Romania	[phone]	Str. Garii Progresului 2, S4, 040671 RO
Schweiz-Suisse-Svizzera	[phone]	Industriestrasse 10, CH-5506 Mägenwil
Slovenija	[phone]	Tržaška 132, 1000 Ljubljana
Slovensko	[phone]	Electrolux Slovakia s.r.o., Electrolux Domáce spotrebč e SK, Seberíniho 1, 821 03 Bratislava
Suomi	[phone]	Konepajanranta 4, 28100 Pori
Sverige	[phone]	Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
Türkiye	[phone]	Tarłabași caddesi no : 35 Taksim İstanbul
Россия	[phone]	129090 Москва, Олимпийский проспект, 16, БЦ "Олимпик"

www.electrolux.com www.juno-e-electrolux.de
