Product Type	Freestanding Refrigerator
Brand	Juno Electrolux
Model	JCG94181
Energy Class	A+
Total Net Capacity	250 L
Height	1800 mm
Width	600 mm
Depth	650 mm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	100 W
Climate Class	N-ST
Noise Level	42 dB
Defrost Type	Automatic
Cooling System	Static with auto defrost
Control Type	Thermostat knob
Interior Lighting	LED
Number of Shelves	3 glass shelves
Vegetable Drawer	Yes, 1 crisper
Door Reversibility	Yes
Refrigerant	R600a
Installation	Freestanding, leave 10 cm clearance
Maintenance	Clean with mild detergent, avoid abrasive
Spare Parts Availability	Authorized service centers

Frequently Asked Questions - JCG94181 Juno Electrolux

How do I adjust the temperature on my JCG94181 refrigerator?

Use the thermostat knob located inside the refrigerator. Turn it to a higher number for cooler temperatures. Typically, medium setting (3-4) is recommended for normal operation.

How often should I defrost the refrigerator?

The JCG94181 features automatic defrost, so you do not need to manually defrost. Ice buildup is automatically melted and drained.

What is the correct way to clean the refrigerator?

Unplug the appliance. Remove all food and shelves. Clean interior surfaces with warm water and a mild detergent. Avoid using abrasive cleaners or solvents. Dry thoroughly before plugging back in.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You will need a screwdriver and possibly a helper to hold the door.

The refrigerator is not cooling properly. What should I check?

First, check that the temperature setting is appropriate. Ensure the door is fully closed and the seal is clean. Confirm there is proper air circulation around the back. Also, inspect the condenser coils (usually at the back) for dust buildup.

What is the recommended temperature for storing food?

The ideal refrigerator temperature is between 3°C and 5°C (37°F to 41°F). Use the thermostat to maintain this range.

How much clearance should I leave around the refrigerator?

For proper ventilation, leave at least 10 cm (4 inches) of space behind and on the sides of the refrigerator. This ensures efficient cooling and prevents overheating.

Why is there water pooling inside the refrigerator?

This may be due to a blocked defrost drain. Clean the drain hole at the back of the fridge with a pipe cleaner or soft wire. Also check that the drainage tray is properly positioned.

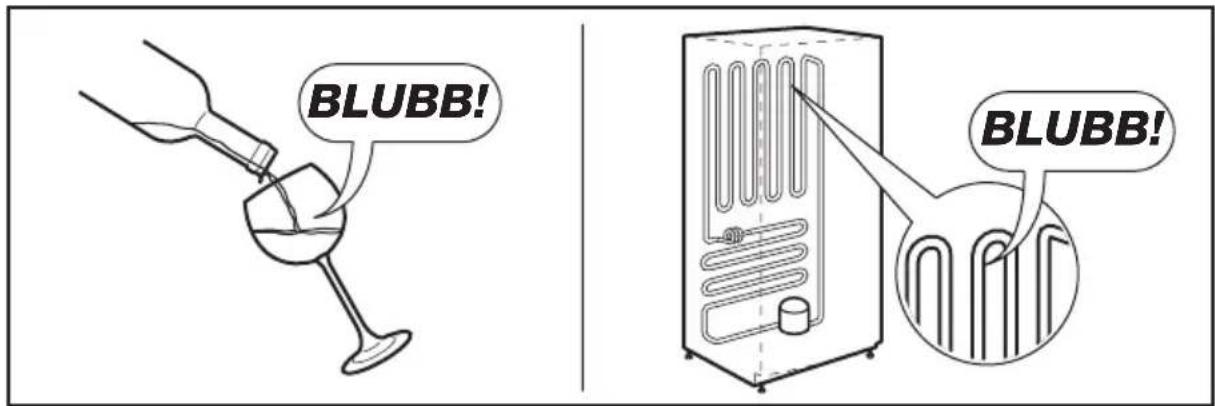

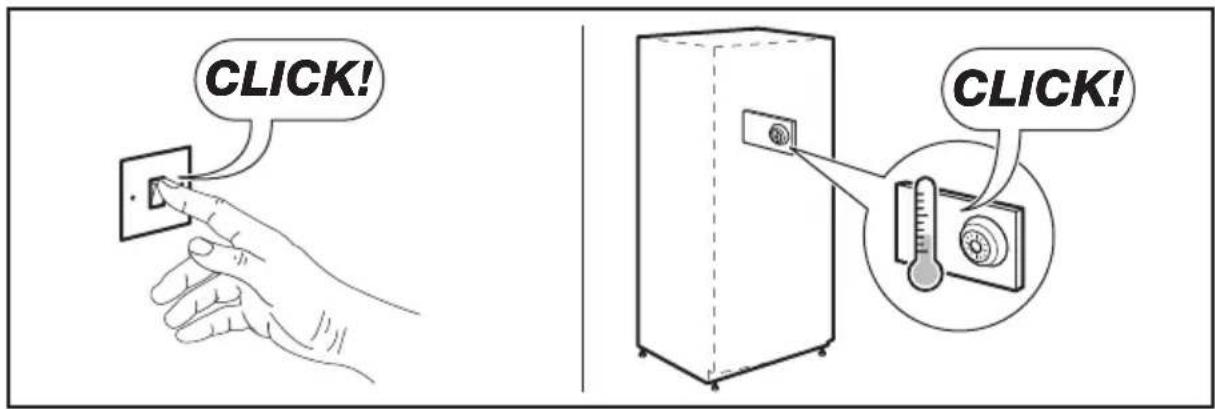

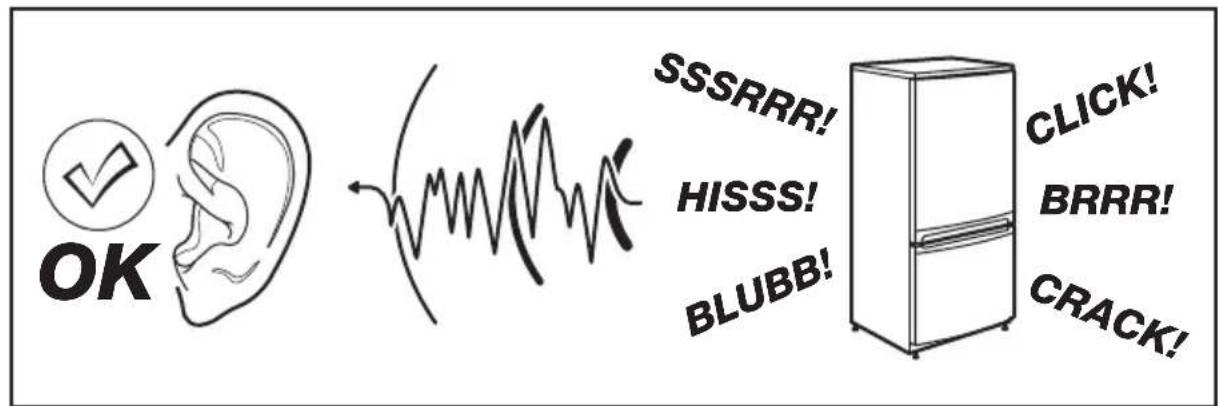

Is it normal for the refrigerator to make clicking or gurgling sounds?

Yes, gurgling sounds are from refrigerant flow, and clicking sounds from the thermostat or compressor relay are normal. If you hear loud or persistent noise, check for levelness.

Where can I find replacement parts or get service?

Contact an authorized Juno Electrolux service center. You can find the nearest one on the official Electrolux website or by calling customer support. Provide your model number JCG94181.

USER MANUAL JCG94181 Juno Electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2

Control panel 4

First use 6

Daily use 6

Helpful hints and tips 8

Care and cleaning 9

What to do if... 11

Technical data 12

Installation

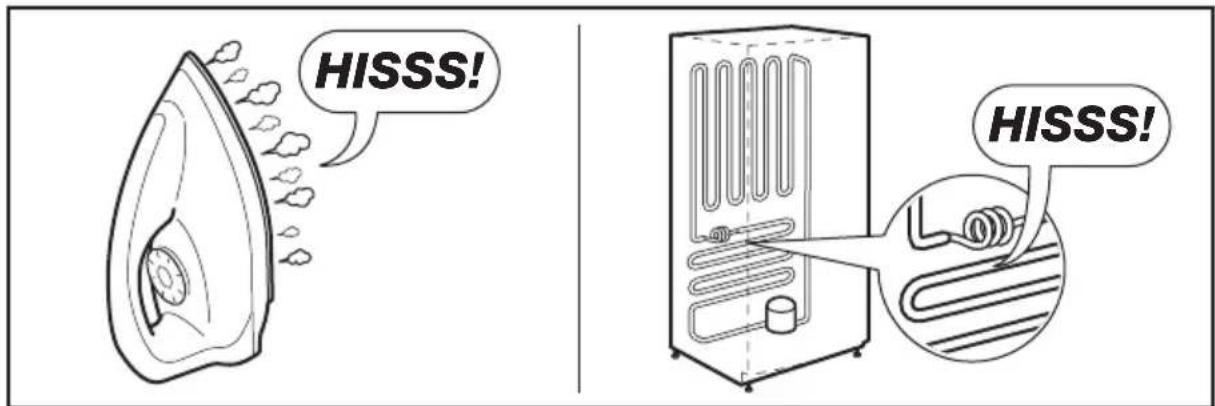

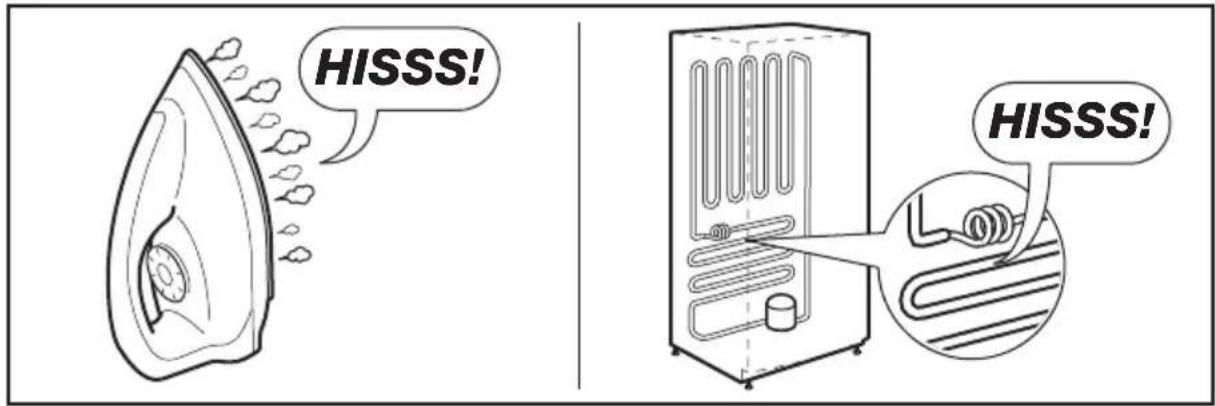

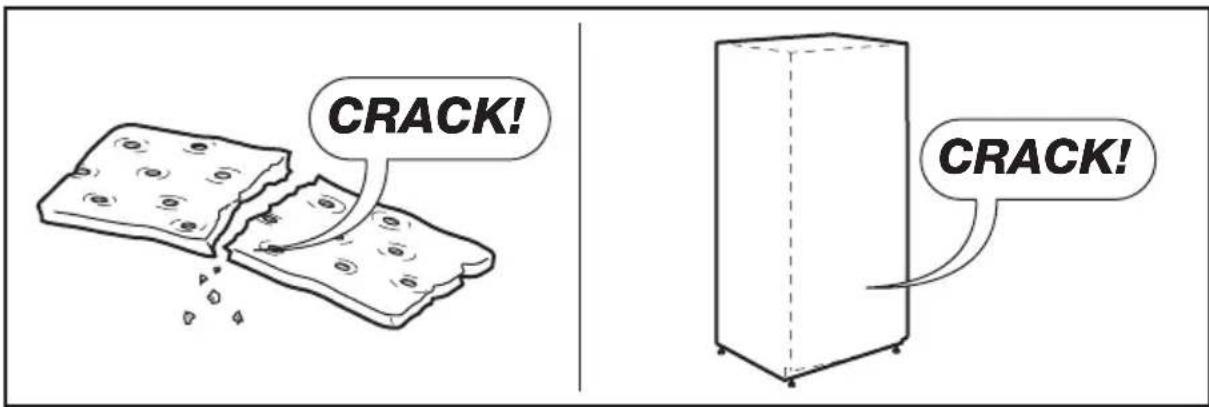

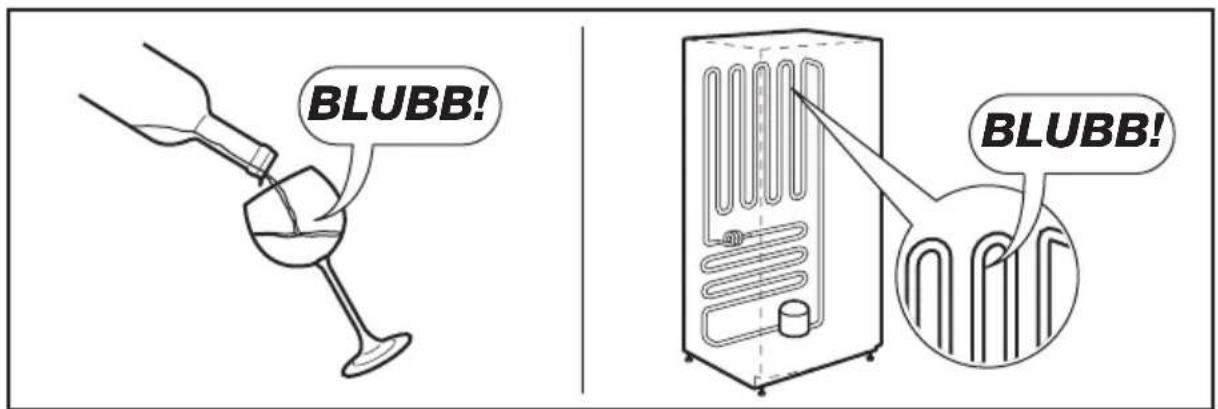

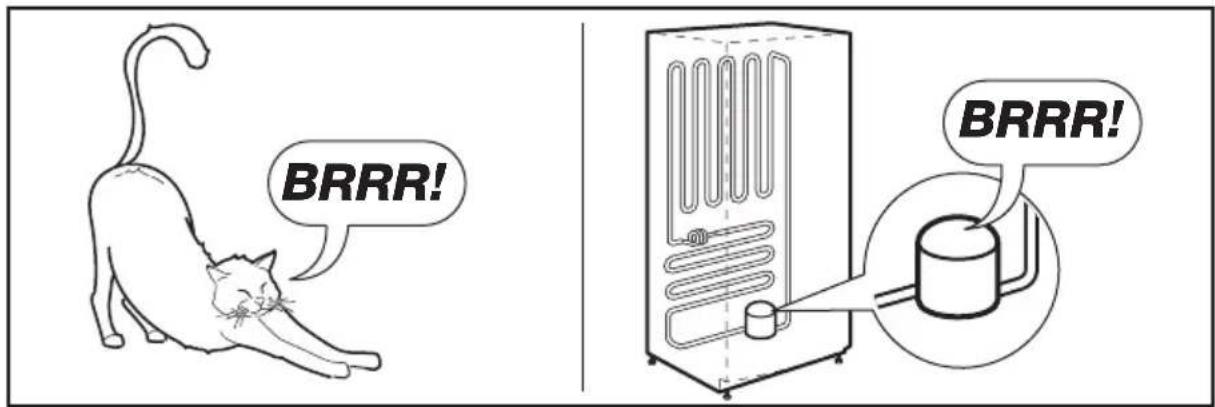

Noises

Environmental concerns 15

Subject to change without notice

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

CHILDREN AND VULNERABLE PEOPLE SAFETY

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

GENERAL SAFETY

Warning!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
  During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
  If the refrigerant circuit should become damaged:

• avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

- Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

DAILY USE

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.

• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)

• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

CARE AND CLEANING

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

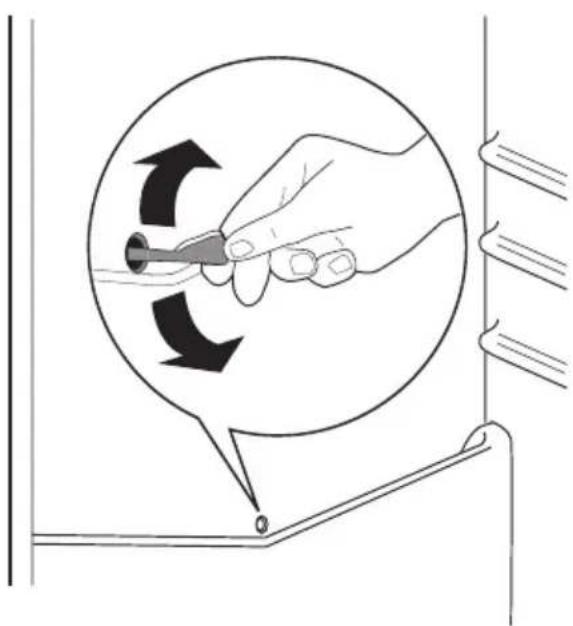

• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

INSTALLATION

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

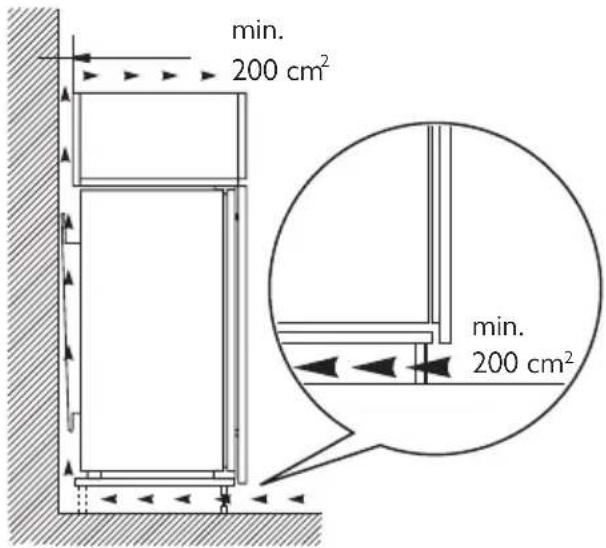

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

4 electrolux

• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen).

SERVICE

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

ENVIRONMENT PROTECTION

This appliance does not contain gasses which could damage the ozone layer,

CONTROL PANEL

Insert the plug into the wall socket. Press the ON/OFF switch . The Pilot Light will light up.

SWITCHING OFF

The freezer is shut off by pressing the ON/OFF switch until the Pilot light and the Temperature indicator switched off.

TEMPERATURE REGULATION

The temperature can be adjusted between -15^ and -24^ .

By pressing the Temperature regulators, the current temperature setting flashes on the Temperature indicator. It is possible to modify the setting temperature only with flashed indicator. To set a warmer temperature, press warmest Temperature regulator. To set a colder temperature, press coldest Temperature regulator. The Temperature indicator displays the newly selected temperature for a few seconds and then shows again the inside compartment temperature.

The newly selected-temperature must be reached after 24 hours.

Caution! During the stability period by the first starting the temperature displayed can not correspond to the setting temperature.

TEMPERATURE INDICATOR

During normal functioning the Temperature indicator shows the temperature inside the freezer.

Important! Difference between the temperature displayed and temperature setting is normal. Especially when:

• a new setting has recently been selected.
• the door has been left open for a long time.
• warm food has been placed in the compartment.

You can activate the Super Frost function by pressing the Super Frost button.

The Super Frost light will light up.

This function stops automatically after 52 hours.

It is possible to deactivate the function at any time by pressing the Super Frost button.

The Super Frost light will switch off.

EXCESSIVE TEMPERATURE ALARM

In the event of an abnormal temperature rise inside the freezer (e.g. power cut) Alarm light will start to flash and a buzzer will sound.

After the temperature has returned to normal, the Alarm light will continue to flash, although the buzzer has stopped.

When the Alarm reset switch is pressed, the warmest temperature reached in the compartment flashes on the Temperature indicator.

If the power has been off for a long time, frozen food should be consumed as quickly as possible, or cooked and then re-frozen.

1 Pilot light
2 ON/OFF switch
3 Temperature regulator (warmest)
4 Temperature indicator
5 Temperature regulator (coldest)
6 Action Cool light
7 Action Cool button

SWITCHING ON

Insert the plug into the wall socket.

Press the ON/OFF switch.

The Pilot Light will light up.

SWITCHING OFF

The fridge is shut off by pressing the ON/OFF switch until the Pilot light and the Temperature indicator switched off.

TEMPERATURE REGULATION

The temperature can be adjusted between +2°C and +8°C.

By pressing the Temperature regulators, the current temperature setting flashes on the Temperature indicator. It is possible to modify the setting temperature only with flashed indicator. To set a warmer temperature, press warmest Temperature regulator. To set a colder temperature, press coldest Temperature regulator. The Temperature indicator displays the newly selected temperature for a few seconds and then shows again the inside compartment temperature. The newly selected-temperature must be reached after 24 hours.

Caution! During the stability period by the first starting the temperature displayed can not correspond to the setting temperature. During this time it is possible that the temperature displayed is lower than the setting temperature.

TEMPERATURE INDICATOR

During normal functioning the Temperature indicator shows the temperature inside the fridge.

Important! Difference between the temperature displayed and temperature setting is normal. Especially when:

• a new setting has recently been selected.
• the door has been left open for a long time.

FIRST USE

CLEANING THE INTERIOR

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

DAILY USE

FREEZING FRESH FOOD

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh food activate the Super Frost function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the in the upper part of the freezer, as this is the coldest point.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Important! When use the Super Frost function:

about 6 hours before

Introducing small quantities of fresh food (about 5 kg)

- warm food has been placed in the compartment.

ACTION COOL FUNCTION

The maximum performance is obtained by setting the Action Coolfunction. It's recommended when loading large quantities of food.

You can activate the Action Cool function by pressing the Action Cool switch.

The Action Cool light will light up.

Important! The internal temperature goes down to +2°C.

After about 6 hours the Action Cool function switches off automatically.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

about 24 hours before	Introducing the maximum quantity of food (see rating plate)
not needed	Introducing frozen food
not needed	Introducing small quantities of fresh food daily 2 kg maximum

STORAGE OF FROZEN FOOD

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

THAWING

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

ICE-CUBE PRODUCTION

This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.

Important! Do not use metallic instruments to remove the trays from the freezer.

COLD ACCUMULATORS

The freezer contains at least one cold accumulator which increases storage time in the event of a power cut or breakdown.

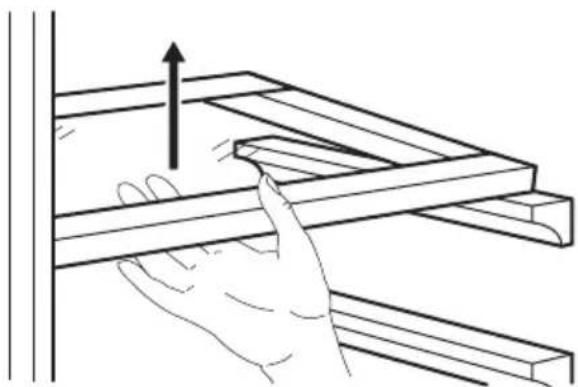

MOVABLE SHELVES

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

For better use of space, the front half-shelves can lie over the rear ones.

Line drawing of a hand using a tool to lift or install a wooden beam, with an upward arrow indicating force (no text or symbols)

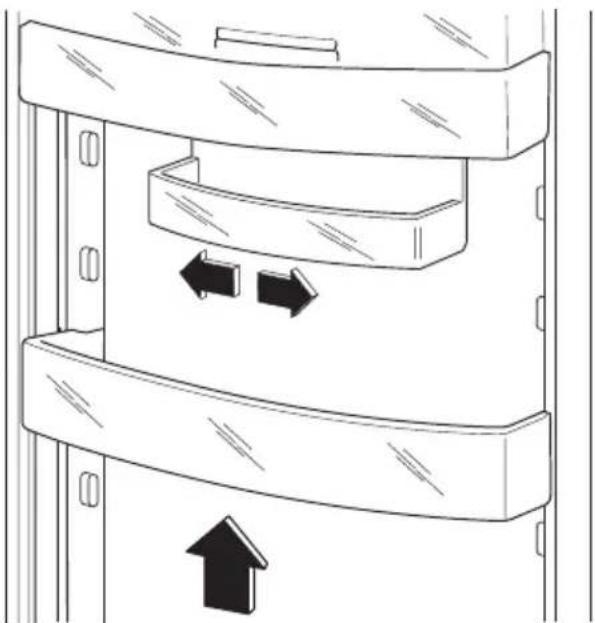

POSITIONING THE DOOR SHELVES

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

To make these adjustments proceed as follow: gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

Diagram of a mechanical device with three horizontal plates and directional arrows indicating movement or force (no text or symbols)

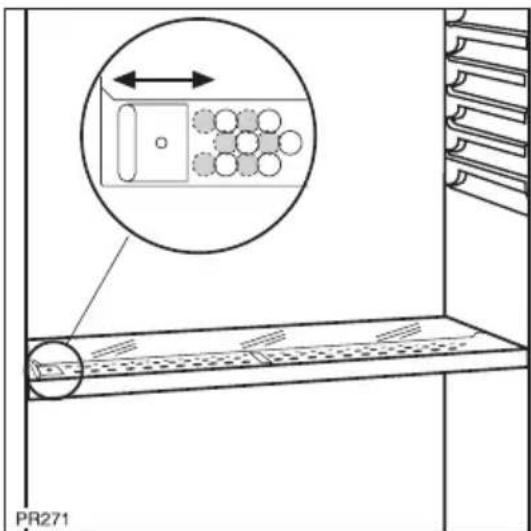

HUMIDITY CONTROL

The glass shelf incorporates a device with slits (adjustable by means of a sliding lever), which makes it possible to regulate the temperature in the vegetable drawer(s).

When the ventilation slots are closed: the natural moisture content of the food in the fruit and vegetable compartments is preserved for longer.

When the ventilation slots are opened: more air circulation results in a lower air moisture content in the fruit and vegetable compartments.

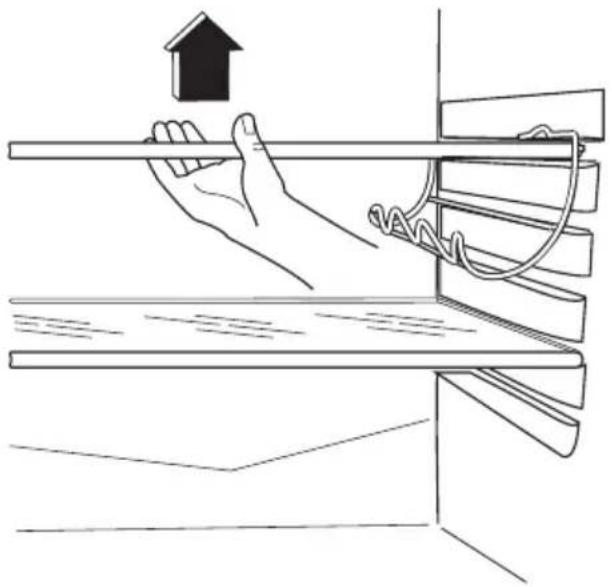

BOTTLE HOLDER

The bottle holder hooked onto one of the internal shelves can be used to store bottles or cans.

To remove this holder, lift the back of the shelf, press and pull it out. Slide the holder out and refit the shelf.

Illustration of a hand holding a horizontal bar with a rope and upward arrow, no text or symbols present

HELPFUL HINTS AND TIPS

HINTS FOR ENERGY SAVING

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

HINTS FOR FRESH FOOD REFRIGERATION

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
- do cover or wrap the food, particularly if it has a strong flavour
- position foods so that air freely around it

HINTS FOR REFRIGERATION

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

HINTS FOR FREEZING

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
  • do not allow fresh, unfrozen food to touch food which is already frozen, thus

avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

HINTS FOR STORAGE OF FROZEN FOOD

To obtain the best performance from this appliance, you should:

CARE AND CLEANING

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and re-charging must therefore only be carried out by authorized technicians.

PERIODIC CLEANING

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

DEFROSTING OF THE REFRIGERATOR

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping on-to the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

DEFROSTING THE FREEZER

A certain amount of frost will always form on the freezer shelves and around the top compartment.

Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

Important! About 12 hours prior to defrosting, set the Temperature regulator toward higher settings, in order to build up sufficient chill reserve for the interruption in operation.

To remove the frost, follow the instructions below:

1. Switch off the appliance.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

Caution! Do not touch frozen goods with wet hands. Hands can freeze to the goods.

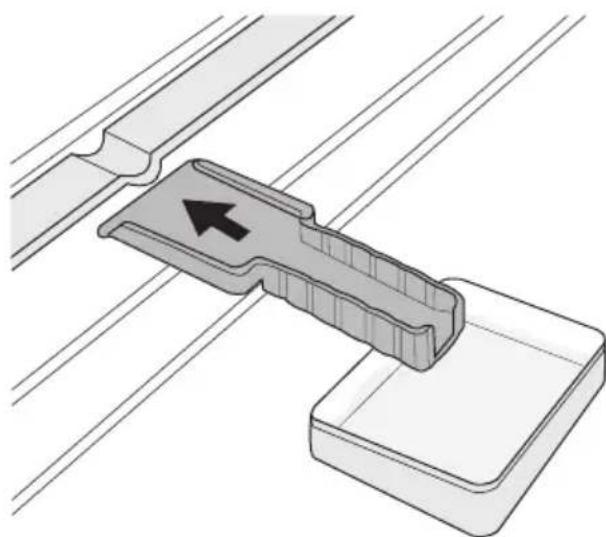

1. Leave the door open and insert the plastic scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water

In order to speed up the defrosting process, place a pot of warm water in the freezer compartment. In addition, remove pieces of ice that break away before defrosting is complete.

Mechanical component diagram showing a lever mechanism interacting with two plates (no text or symbols)

1. When defrosting is completed, dry the interior thoroughly and keep the scraper for future use.

2. Switch on the appliance.

3. After two or three hours, reload the previously removed food into the compartment.

Warning! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

PERIODS OF NON-OPERATION

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost (if foreseen) and clean the appliance and all accessories

- leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WHAT TO DO IF...

Warning! Before troubleshooting, disconnect the mains plug from the mains socket. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance does not operate. The lamp does not operate.	The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.	Connect the mains plug to the mains socket correctly.
The appliance has no power.	There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The buzzer sounds.	The temperature in the freezer is too high.	Refer to "Excessive Temperature Alarm"
The lamp does not work.	The lamp is in stand-by. Close and open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
The compressor operates continually.	The temperature is not set correctly.	Set a higher temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.	Do not keep the door open longer than necessary.
The product temperature is too high.	Let the product temperature decrease to room temperature before storage.
The room temperature is too high.	Decrease the room temperature.
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost defrosts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean the water outlet.
Products prevent that water flows into the water collector.	Make sure that products do not touch the rear plate.
Water flows on the ground.	The melting water outlet does not flow in the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too low.	The temperature regulator is not set correctly.	Set a higher temperature.
Problem Possible cause Solution
The temperature in the appliance is too high.	The temperature regulator is not set correctly.	Set a lower temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
Many products are stored at the same time.		Store less products at the same time.
The temperature in the refrigerator is too high.	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.
The temperature in the freezer is too high.	Products are too near to each other.	Store products so that there is cold air circulation.
There is too much frost.	Food is not wrapped correctly.	Wrap the food correctly.
	The door is not closed correctly.	Refer to "Closing the door".

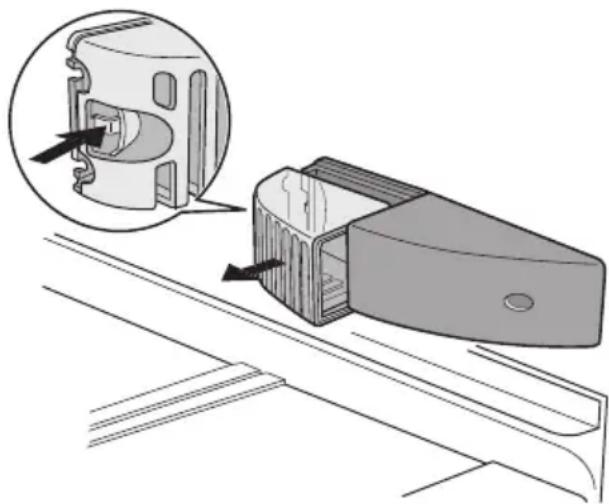

REPLACING THE BULB

If you want to replace the bulb, do these steps:

1. Break the circuit of the appliance.
2. Press on the rear hook and at the same time slide the cover in the direction of the arrow.

3. Replace the bulb with one of the same power and specifically designed for household appliances. (the maximum power is shown on the light bulb cover)

4. Replace the light cover by sliding it into its original position.

5. Reconnect the appliance.

6. Open the door and check if the light comes on.

Technical illustration of a mechanical component with an inset showing a close-up view of a component (no text or symbols present)

CLOSING THE DOOR

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.

TECHNICAL DATA

Dimension of the recess
Height 1780 mm
Width 560 mm
Depth 550 mm
Rising Time	24 h
Voltage	230-240 V
Frequency	50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

INSTALLATION

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

POSITIONING

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C

ELECTRICAL CONNECTION

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with

current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

VENTILATION REQUIREMENTS

The airflow behind the appliance must be sufficient.

NOISES

There are some sounds during normal running (compressor, refrigerant circulation).

ENVIRONMENTAL CONCERNS

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Electrolux. Thinking of you.

Line drawing of a hand pressing down on a wooden beam with an upward arrow (no text or symbols)

Diagram of a mechanical device with two directional arrows indicating movement or force (no text or symbols present)

Line drawing of a hand holding a horizontal bar with a spring attached, showing mechanical assembly (no text or symbols)

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

ABTAUEN DES GEFRIERSCHRANKS

Mechanical component diagram showing a lever mechanism interacting with a base plate (no text or symbols)

Diagram showing a device with a close-up view of its internal structure, no text or symbols present

SCHLIESSEN DER TÜR
