Product Type	Strap for BlueTouch pain relief patch
Brand	PHILIPS
Model	PR3081/02
Material	95% polyester, 5% elastane
Intended use	Lumbar and upper back area
Compatibility	BlueTouch pain relief patch (PR3092)
Available sizes	S-M, L-XL (depending on reference)
Cleaning method	Machine wash at max 30°C, in a fine mesh bag
Drying instructions	Air dry, do not use a dryer
Ironing	Do not iron
Dry cleaning	Do not dry clean
Bleaching agents	Do not use
Warranty	Does not cover normal wear; void if used improperly
Approximate weight	200 g
Dimensions (approximate)	Adjustable length, approx. 80-120 cm
Certifications	Compliant with EU directives, Oeko-Tex® 100
Manufacturer	Philips Consumer Lifestyle B.V., Tussendiepen 4, 9206 AD Drachten, Netherlands
Consumer service	www.philips.com/support

Frequently Asked Questions - PR3081/02 PHILIPS

What is the PR3081/02 strap used for?

This strap is designed to hold the BlueTouch pain relief patch (PR3092) on the lumbar or upper back area during treatment.

How to insert the BlueTouch patch into the strap?

Place the strap on a table. Slide one side of the patch behind the elastic edge of the opening, then the other side. Make sure the LEDs are not covered by the fabric.

Can I machine wash the strap?

Yes, but use a fine mesh laundry bag, a delicate cycle at max 30°C. Do not machine dry, do not iron, and do not use bleach.

Is the strap compatible with all BlueTouch patches?

It is specifically designed for the BlueTouch pain relief patch (PR3092). Use only compatible Philips straps.

What are the differences between models PR3081/02 and PR3081/03?

The PR3081/02 is 95% polyester and 5% elastane. The PR3081/03 is similar but may vary in composition (see manual). Both are for the upper back.

How to wear the strap for the upper back?

Put it on like a jacket: pass one arm through a shoulder strap, then the other. Fasten the belt with Velcro straps and adjust the straps to the desired length.

Can I wear the strap under clothing?

Avoid tight or thick clothing over the patch, as the infrared sensor may measure too high a temperature and turn off the device before the end of the treatment.

Where can I buy replacement straps?

Replacement straps are available under references PR3083/02 (S-M) and PR3083/03 (L-XL) for lumbar and upper back areas.

What to do if there is a problem with the strap?

Visit www.philips.com/support or contact your country's consumer service. The numbers are in the manual.

Does the warranty cover normal wear of the strap?

No, the warranty excludes normal wear. It is void if the strap is not used according to the instructions.

USER MANUAL PR3081/02 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

Question? Contact Philips

PR3083

PR3081

White medical sphygmomanometer with perforated central patch and side band, no visible text or symbols on the device itself.

User manual

PHILIPS

Illustration of an open book with a grid layout and an arrow indicating the page direction (no text or symbols present)

ENGLISH 6

DEUTSCH 9

FRANÇAIS 12

ITALIANO 15

NEDERLANDS 18

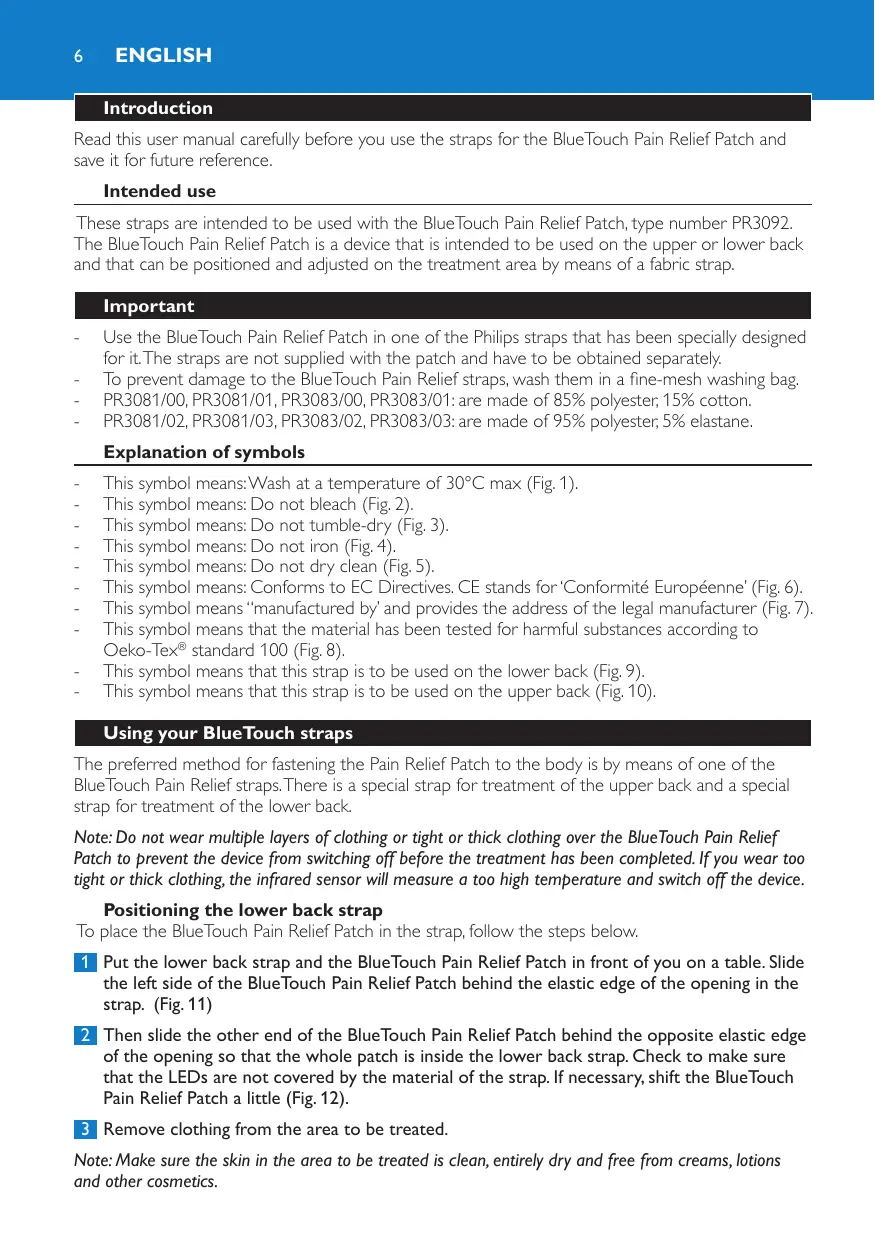

Introduction

Read this user manual carefully before you use the straps for the BlueTouch Pain Relief Patch and save it for future reference.

Intended use

These straps are intended to be used with the BlueTouch Pain Relief Patch, type number PR3092. The BlueTouch Pain Relief Patch is a device that is intended to be used on the upper or lower back and that can be positioned and adjusted on the treatment area by means of a fabric strap.

Important

• Use the BlueTouch Pain Relief Patch in one of the Philips straps that has been specially designed for it. The straps are not supplied with the patch and have to be obtained separately.
• To prevent damage to the BlueTouch Pain Relief straps, wash them in a fine-mesh washing bag.
• PR3081/00, PR3081/01, PR3083/00, PR3083/01: are made of 85% polyester, 15% cotton.
• PR3081/02, PR3081/03, PR3083/02, PR3083/03: are made of 95% polyester, 5% elastane.

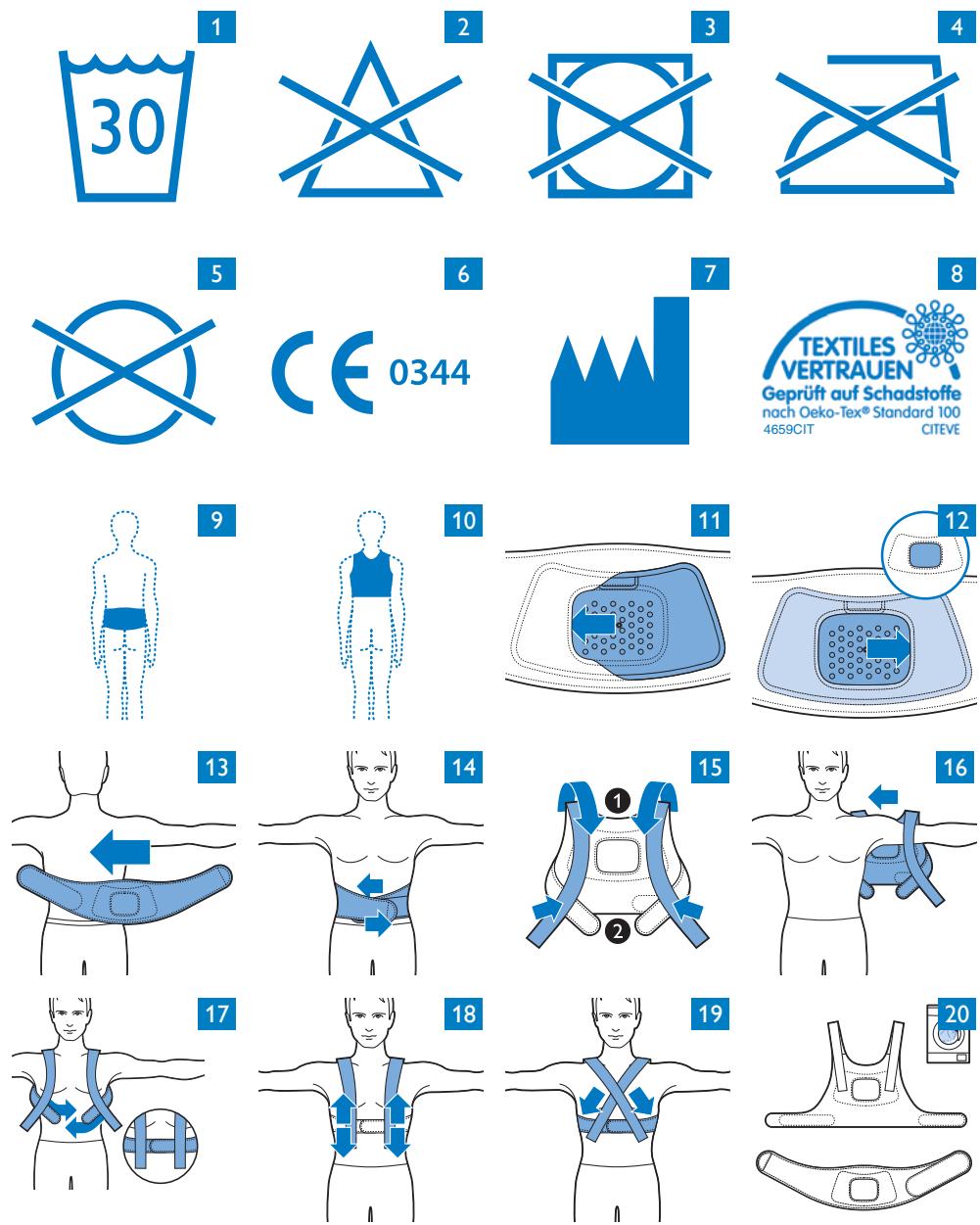

Explanation of symbols

• This symbol means: Wash at a temperature of 30^ C max (Fig. 1).
• This symbol means: Do not bleach (Fig. 2).
• This symbol means: Do not tumble-dry (Fig. 3).
• This symbol means: Do not iron (Fig. 4).
• This symbol means: Do not dry clean (Fig. 5).
• This symbol means: Conforms to EC Directives. CE stands for ‘Conformité Européenne’ (Fig. 6).
• This symbol means “manufactured by” and provides the address of the legal manufacturer (Fig. 7).
• This symbol means that the material has been tested for harmful substances according to Oeko-Tex® standard 100 (Fig. 8).
• This symbol means that this strap is to be used on the lower back (Fig. 9).
• This symbol means that this strap is to be used on the upper back (Fig. 10).

Using your BlueTouch straps

The preferred method for fastening the Pain Relief Patch to the body is by means of one of the BlueTouch Pain Relief straps. There is a special strap for treatment of the upper back and a special strap for treatment of the lower back.

Note: Do not wear multiple layers of clothing or tight or thick clothing over the BlueTouch Pain Relief Patch to prevent the device from switching off before the treatment has been completed. If you wear too tight or thick clothing, the infrared sensor will measure a too high temperature and switch off the device.

Positioning the lower back strap

To place the BlueTouch Pain Relief Patch in the strap, follow the steps below.

1 Put the lower back strap and the BlueTouch Pain Relief Patch in front of you on a table. Slide the left side of the BlueTouch Pain Relief Patch behind the elastic edge of the opening in the strap. (Fig. 11)
2 Then slide the other end of the BlueTouch Pain Relief Patch behind the opposite elastic edge of the opening so that the whole patch is inside the lower back strap. Check to make sure that the LEDs are not covered by the material of the strap. If necessary, shift the BlueTouch Pain Relief Patch a little (Fig. 12).

3 Remove clothing from the area to be treated.

Note: Make sure the skin in the area to be treated is clean, entirely dry and free from creams, lotions and other cosmetics.

4 Wrap the lower back strap with the BlueTouch Pain Relief Patch in it around your waist with the opening of the strap facing your back (Fig. 13).
5 Fasten the lower back strap with the Velcro strips on both ends of the lower back strap. (Fig. 14)

Note: Make sure the BlueTouch Pain Relief Patch in the strap is located on the area to be treated and the LED area is in contact with the skin.

Positioning the upper back strap

1 To put the BlueTouch Pain Relief Patch in the upper back strap, follow the same procedure as described in steps 1 and 2 in section 'Positioning the lower back strap' above.
2 Pull the shoulder slings forward (1) and fasten them to the Velcro strips on the waistband (2) (Fig. 15).
3 Remove clothing from the area to be treated.

Note: Make sure the skin in the area to be treated is clean, entirely dry and free from creams, lotions and other cosmetics.

4 Put the upper back strap on like a jacket. First put one arm through the shoulder sling attached to the waistband on one side and then do the same on the other side (Fig. 16).

Note: Make sure the BlueTouch Pain Relief Patch in the strap is located on the area to be treated and the LED area is in contact with the skin.

5 Fasten the waistband with the Velcro strips (Fig. 17).

6 Adjust the shoulder slings to the preferred length. (Fig. 18)

7 Alternatively, you can first put the upper back strap on your back, fasten the waistband and then attach the Velcro strips of the shoulder slings crosswise to the waistband. This may provide a better fit for some individuals (Fig. 19).

Cleaning

Always remove the BlueTouch Pain Relief Patch from the strap before you put the strap in the washing machine to clean it.

- The BlueTouch Pain Relief straps can be washed in the washing machine (Fig. 20).

Caution: To prevent damage to the BlueTouch Pain Relief straps, wash them in a fine-mesh washing bag.

- Use a gentle cycle and a temperature of 30^ C maximum. Dry the BlueTouch Pain Relief straps on the air and not in the tumble dryer. Do not iron the straps.

Replacement

You can purchase new straps. Check the tables below for the type numbers and sizes.

Lower back straps

• PR3083/02: Lower back strap S - M
• PR3083/03: Lower back strap L - XL

Upper back straps

• PR3083/02: Upper back strap S - M
• PR3083/03: Upper back strap L - XL

Guarantee and support

If you need support or information, or if you have a problem, please visit our website

www.philips.com/support or contact the Philips Consumer Care Centre in your country. Its telephone number is:

Germany: 0800 000 75 22 (free of charge for calls within Germany).

Austria: 0800 880 932 (free of charge for landline calls within Austria. Costs for mobile phone calls depend on provider).

Switzerland: 0800 002 050 (free of charge for landline calls). 0848 000 292 (costs for mobile phone calls depend on provider).

United Kingdom: 0844 338 04 89 (5p/min. from a BT landline, other landline and mobile providers may charge more).

Netherlands: 0900 202 11 77 (€ 0.10/min. Costs for mobile phone calls depend on provider).

Guarantee restrictions

The guarantee does not cover standard wear and tear. The guarantee becomes invalid if the BlueTouch Pain Relief strap is not used according to the instructions in this user manual.

Manufacturer's legal address

Philips Consumer Lifestyle B.V.

Tussendiepen 4,9206 AD Drachten

The Netherlands.
