Product Type	Freestanding Washing Machine
Brand	Hotpoint
Model	ECOT7D 149
Capacity	7 kg
Maximum Spin Speed	1400 rpm
Energy Efficiency Class	A+++
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	72 kg
Noise Level (Wash/Spin)	56 / 76 dB(A)
Number of Programs	16
Water Consumption per Cycle	48 L
Annual Energy Consumption	176 kWh
Annual Water Consumption	9900 L
Power Consumption (Off/Left-on)	0.1 / 1.0 W
Wash Performance Class	A
Spin Drying Efficiency Class	B
Remaining Top Spinning Speed	Adjustable from 0 to 1400 rpm
Delay Start	Up to 24 hours
Child Lock	Yes
Drum Material	Stainless steel
Motor Type	Inverter
Type of Installation	Freestanding
Door Hinge	Left
Door Opening Angle	180°

Frequently Asked Questions - ECOT7D 149 HOTPOINT

How to install the washing machine correctly?

Ensure the appliance is on a level floor. Remove transport bolts (save for future moves). Connect water inlet hose (with anti-leak device) to cold water tap. Connect drain hose to a standpipe or sink outlet. Plug into a grounded socket.

What is the maximum load capacity?

The maximum dry laundry capacity is 7 kg. Overloading may reduce wash performance and increase wear.

How to select the right program?

Use the program dial to choose from 16 programs. Options include Cotton, Synthetics, Delicates, Wool, Rapid 30', and Eco. Adjust temperature and spin speed as needed.

What does the 'Delay Start' function do?

You can delay the start of the cycle by up to 24 hours. Press the Delay button repeatedly to set the desired delay time, then press Start/Pause.

How to clean the washing machine?

Run a maintenance wash (90°C cotton cycle with detergent) monthly. Clean the detergent drawer and filter regularly. Wipe the door seal to prevent mold.

How to clean the drain pump filter?

Unplug the machine. Open the lower cover, place a container, unscrew the filter cap (turn counterclockwise). Remove residue and reinsert. Tighten securely.

What to do if the machine does not start?

Check that the door is properly closed and latched. Ensure water supply is open and the drain hose is not kinked. Verify the machine is plugged in and the fuse is working.

How to activate the child lock?

Press and hold the Child Lock button (if available) for 3 seconds until the symbol appears. To deactivate, repeat the action.

What is the recommended detergent type?

Use high-efficiency (HE) detergent in powder or liquid form. For heavily soiled items, pre-treat stains. Do not overdose.

Where can I find spare parts?

Contact Hotpoint customer service or authorized service centers. Provide the model number (ECOT7D 149) and serial number. Common spare parts include drum belts, filters, and door gaskets.

USER MANUAL ECOT7D 149 HOTPOINT

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged knob (no text or symbols)

Diagram of a mechanical device with a piping bag and valve, showing a rotational arrow (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a device (no text or symbols present)

Pure geometric diagram showing two horizontal lines with arrows indicating direction, no text or symbols present

Simple line drawing of a mechanical component with a circular feature on a rectangular base (no text or symbols)

Line drawing of a hand placing a bag into a trash bin (no text or symbols)

Fig. 1 Fig. 2

Illustration of hands cleaning a car interior with a device (no text or symbols visible)

Illustration of a hand washing a small container with a faucet, no text or symbols present

Fig. 3

Line drawing of a mechanical component with two cylindrical pins and a top bracket (no text or symbols)

Fig. 4

Consumo in off-mode: 0,5 W

Consumo in Left-on: 0,5 W

Diagram of a kitchen appliance with a directional arrow indicating rotation (no text or symbols)

Fig. 1

Hand inserting a small electronic device into a multi-tiered appliance (no text or symbols visible)

Fig. 2

Illustration of a hand inserting a plastic into a shared drawer (no text or symbols visible)

Fig. 3

Illustration of hands inserting a component into a device (no text or symbols visible)

Fig. 4

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Care and maintenance, 16

Cutting off the water or electricity supply

Cleaning your appliance

Caring for your appliance door and drum

Cleaning the pump

Checking the water inlet hose

How to clean the detergent dispenser

Precautions and tips, 17

General safety

Disposal

Saving energy and respecting the environment

ECOT7D 149

Description of the washing machine, 18-19

Control panel

Display

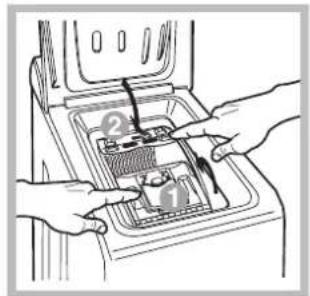

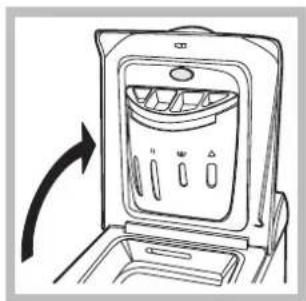

How to open and shut the drum

Running a wash cycle, 20

Load balancing system

Wash cycles and functions, 21

Table of wash cycles

Wash functions

Detergents and laundry, 22

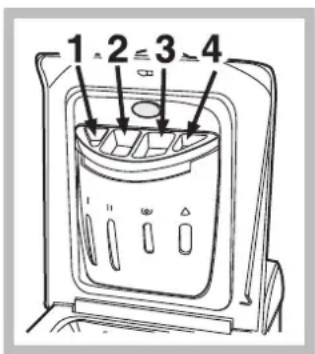

Detergent dispenser drawer

Preparing the laundry

Special wash cycles

Troubleshooting, 23

Service, 24

! Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.
! Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

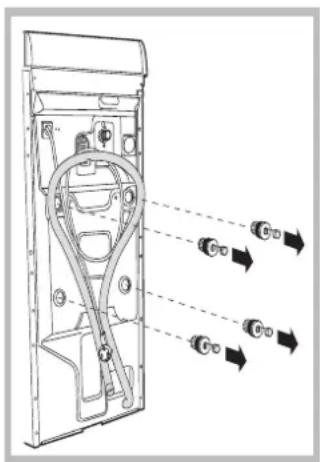

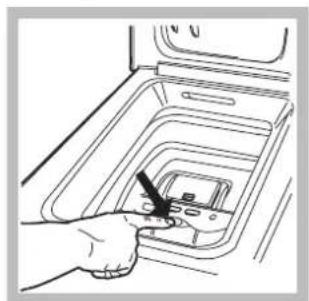

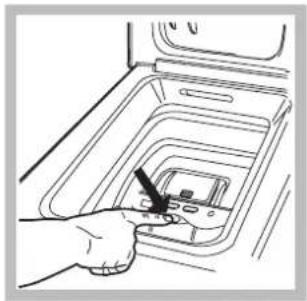

1. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).
2. Seal the gaps using the plastic plugs provided.
3. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you fasten the shorter ones at the top.

! Packaging materials are not children's toys.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your applian-

ce correctly will provide it with stability and avoid any vibrations, noise and shifting during operation.

If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections Connecting the water inlet hose

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

1. Connect the supply pipe by screwing it to a cold water tab using a 34 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

Diagram of a mechanical device with a piping bag and valve, showing a rotational arrow (no text or symbols)

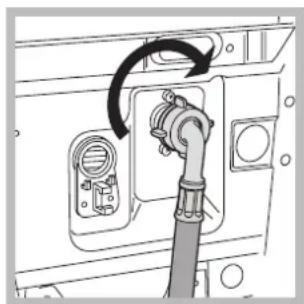

1. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

2. Make sure there are no kinks or bends in the hose.

! The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).
! If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.
! Never use hoses that have already been used.

Connecting the drain hose

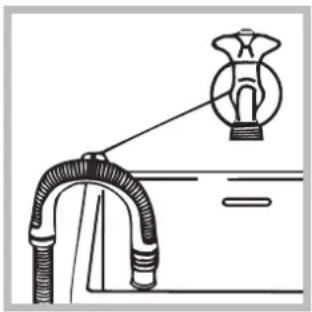

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

Simple line drawing of a bulb connected to a pipe, no text or symbols present

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle (60^) .

Technical details
Model	ECOT7D 149
Dimensions	40 cm wide85 cm high60 cm deep
Capacity	from 1 to 7 kg
Electric connections	Please refer to the technical data plate fixed to the machine.
Water connections	maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 42 litres
Spin speed	up to 1400 rpm
Test wash cycles in accordance with directives 1061/2010 and 1015/2010	Programme (1° press of the button): Cotton standard 60°C;Programme 2^ press of the button): Cotton standard 40°C.
	This appliance is compliant with the following European Community Directives:- 2004/108/CE (Electromagnetic Compatibility)- 2006/95/CE (Low Voltage)- 2002/96/CE

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

Pure geometric diagram showing a right triangle with two arrows indicating direction (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure); 2. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

Pure technical diagram of a mechanical component with a circular feature and directional arrows, no text or symbols present.

1. clean the inside thoroughly;
2. screw the lid back on;
3. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

How to clean the detergent dispenser

Disassembly:

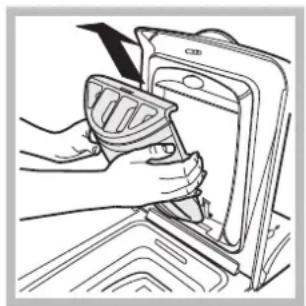

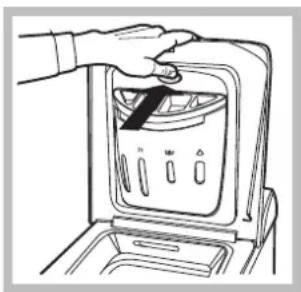

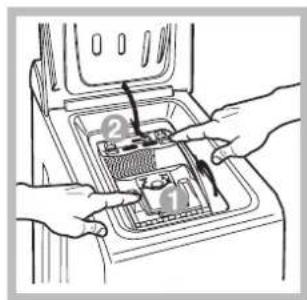

Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1).

Cleaning:

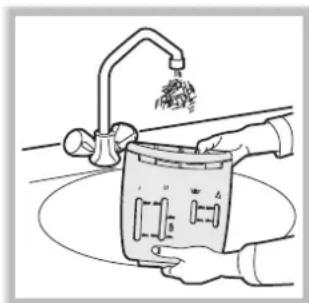

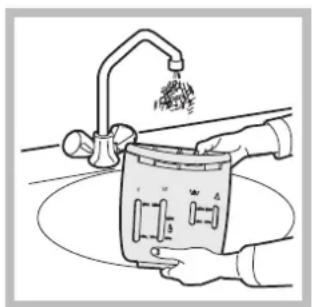

Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them.

Reassembly:

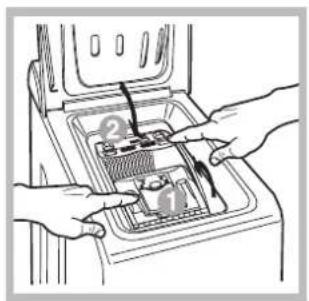

Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1).

Line drawing of a hand placing a small object into a trash bin (no text or symbols)

Fig. 1 Fig. 2

Illustration of hands cleaning a door panel with a tool (no text or symbols visible)

Illustration of hands using a manual pump to clean or wash material (no text or symbols visible)

Fig. 3

Line drawing of a mechanical component with two cylindrical pins (no text or symbols)

Fig. 4

! This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not touch the machine when barefoot or with wet or damp hands or feet.
- Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
- Do not touch the drained water as it may reach extremely high temperatures.
- Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
- If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
- Always keep children well away from the appliance while it is operating.
- If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

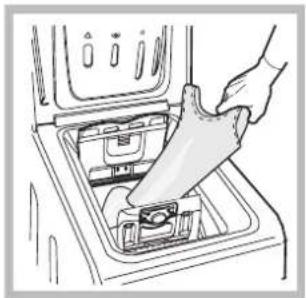

- Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The "DELAYED START" option helps to organise your wash cycles accordingly.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Description of the washing machine

Control panel

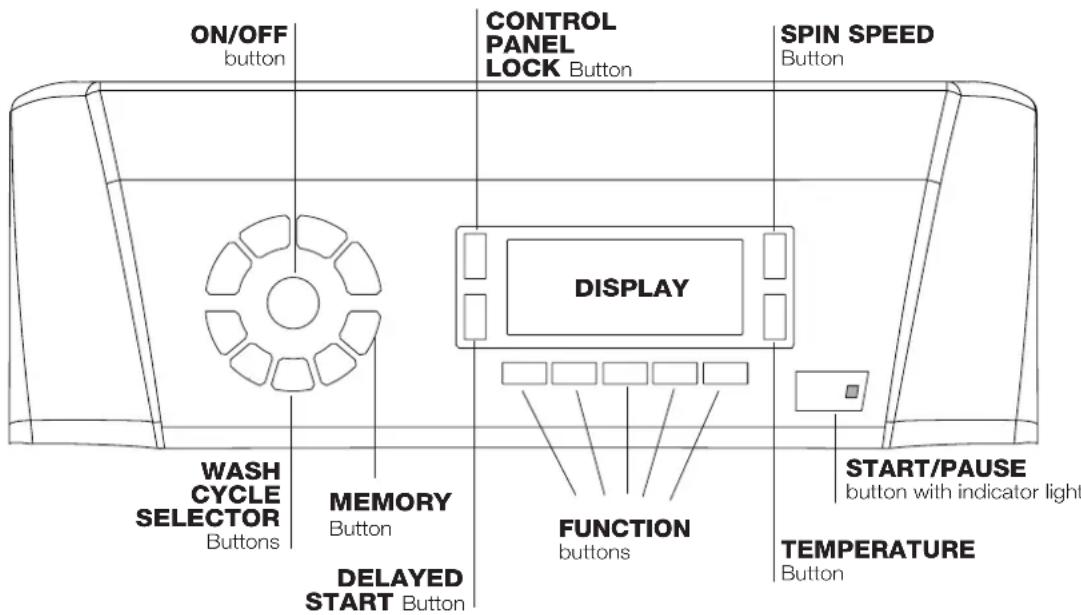

ON/OFF button ⏻press this briefly to switch the machine on or off. The START/PAUSE indicator light, which flashes slowly in a green colour shows that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 2 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR buttons: used to set the desired wash cycle (see "Table of wash cycles").

MEMORY button: press and hold the button to store a cycle with your own set of preferences in the memory of the machine. To recall a previously stored cycle, press the MEMO button.

FUNCTION buttons: press the button to select the desired function. The corresponding indicator light on the display will switch on.

SPIN button press to reduce or completely exclude the spin cycle - the value is indicated on the display.

TEMPERATURE button press to decrease the temperature: the value will be shown on the display.

CONTROL PANEL LOCK button 🙏: to activate the control panel lock, press and hold the button for approximately 2 seconds. When the symbol 🙏 is illuminated, the control panel is locked (apart from the ON/OFF key).

This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

DELAYED START button press to set a delayed start time for the selected wash cycle. The delay time will be shown on the display.

START/PAUSE button with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the symbol is not illuminated, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

Consumption in off-mode: 0,5 W Consumption in Left-on: 0,5 W

Display

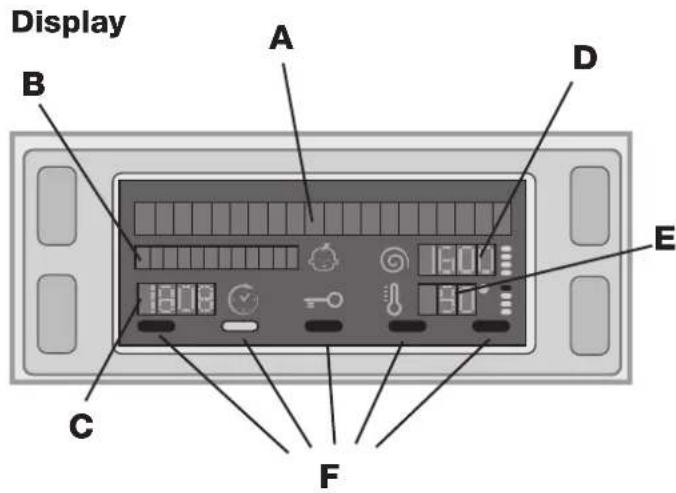

The display is useful when programming the machine and provides a great deal of information.

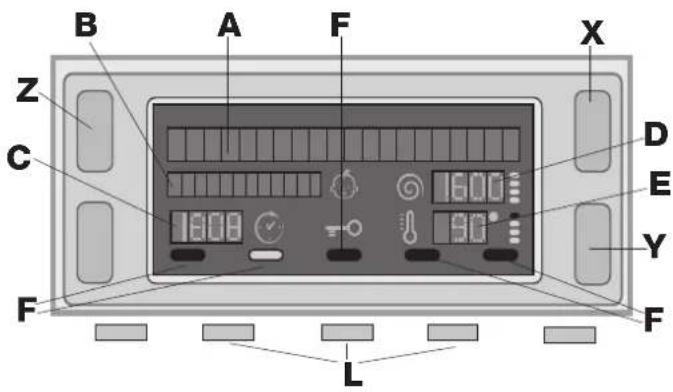

The two upper strings A and B provide details of the wash cycle selected, the wash cycle phase in progress and all information relating to the progress status of the wash cycle.

String C shows the time remaining until the end of the wash cycle in progress and, if a DELAYED START has been set, the time remaining until the start of the selected wash cycle.

String D shows the maximum spin speed value (this depends on the selected wash cycle); if the wash cycle does not include a spin cycle, the string remains unused.

String E shows the maximum temperature value which may be selected (this depends on the wash cycle used); if the temperature of the wash cycle cannot be modified, the string remains unused.

Indicator lights F correspond to the functions and light up when the selected function is compatible with the set wash cycle.

Door locked symbol =0

If the symbol is lit, this indicates that the washing machine door is blocked to prevent it from being opened accidentally. To prevent any damage from occurring, wait for the symbol to switch itself off before opening the appliance door (it will take about three minutes).

N.B.: if the DELAYED START function has been activated, the door cannot be opened; pauses the machine by pressing the START/PAUSE button if you wish to open it.

! The first time the machine is switched on, you will be asked to select the language and the display will automatically show the language selection menu.

To select the desired language press the X and Y buttons; to confirm the selection press the Z button. If you wish to change the selected language, simultaneously press and hold all the three buttons marked with an L in the figure, until you hear a beep. Switch the machine on again; the language selection menu will be displayed.

How to open and to close the drum

Line drawing of a kitchen appliance with a directional arrow indicating rotation (no text or symbols)

Fig. 1

Line drawing of a hand inserting a small electronic device into a multi-tiered storage unit (no text or symbols visible)

Fig. 2

Illustration of a hand inserting a plastic bag into a shared appliance inside a washing machine (no text or symbols visible)

Fig. 3

Illustration of hands installing or adjusting a component inside a device (no text or symbols visible)

Fig. 4

Lift the external lid and open it completely.

B) Opening the drum (Soft opening):

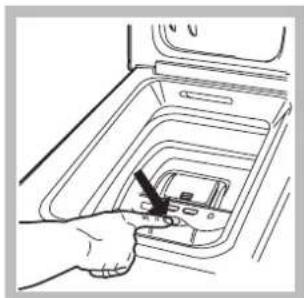

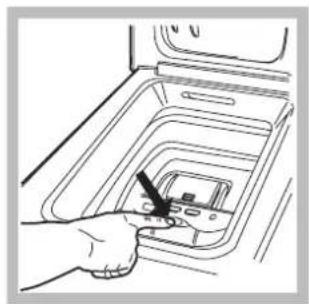

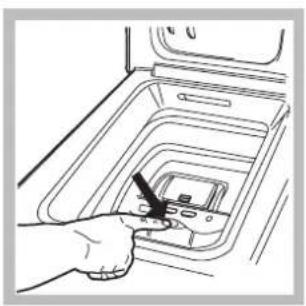

With one finger, push the button indicated in fig. 2 and the drum will open delicately.

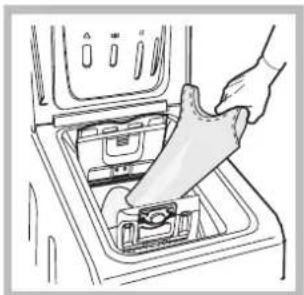

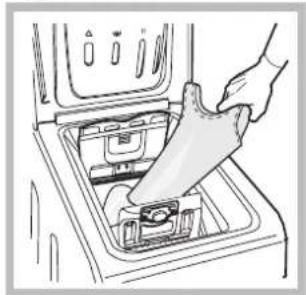

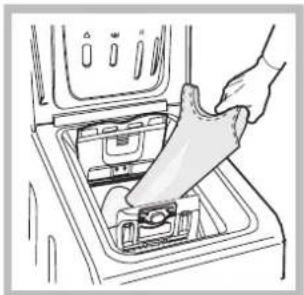

C) Loading the washing machine (Fig. 3).

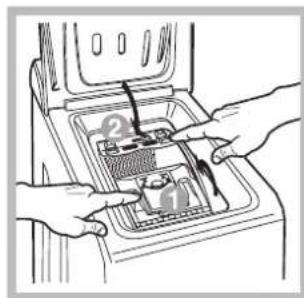

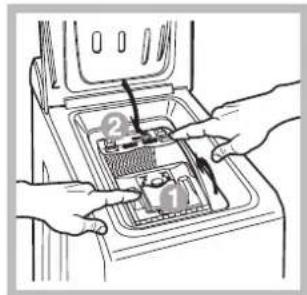

• close the drum fully by first shutting the front door followed by the rear one;
• then ensure the hooks on the front door are perfectly housed within the seat of the rear door;
• after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose;
• finally shut the external lid.

E) Drum End Stop (Fig. 2):

Once the wash cycle has been completed, the drum will position itself with doors facing upward for ease pf opening.

1. SWITCH THE MACHINE ON. Press the button; the text WELCOME will appear on the display and the START/PAUSE indicator light will flash slowly in a green colour.
2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes on the following page.
3. MEASURE OUT THE DETERGENT. Pour the detergent into the relevant compartments as described in "Detergents and laundry".
4. CLOSE THE DOOR.
5. SELECT THE WASH CYCLE. Press one of the WASH CYCLE SELECTOR buttons to select the required wash cycle; the name of the wash cycle will appear on the display. A temperature and spin speed is set for each wash cycle; these may be adjusted. The duration of the cycle will appear on the display.
6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

ifying the temperature and/or spin

speed. The machine automatically selects the maximum temperature and spin speed set for the selected wash cycle; these values cannot therefore be increased. The temperature can be decreased by pressing the button, until the cold wash "OFF" setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the "OFF" setting). If these buttons are pressed again, the maximum values are restored.

Setting a delayed start.

To set a delayed start for the selected programme, press the corresponding button repeatedly until the required delay period has been reached. When this option is enabled, the symbol lights up on the display. To remove the delayed start function press the button until the text "OFF" appears on the display.

Modifying the cycle settings.

• Press the button to enable the function; the indicator light corresponding to the button will switch on.
• Press the button again to disable the function; the indicator light will switch off.

! If the selected function is not compatible with the programmed wash cycle, the indicator light will flash and the function will not be activated.

! If the selected function is not compatible with another function which has been selected previously, the indicator light corresponding to the first function selected will flash and only the second function will be activated; the indicator light corresponding to the enabled function will remain lit.
! The functions may affect the recommended load value and/or the duration of the cycle.

1. START THE PROGRAMME. Press the START/PAUSE button. The corresponding indicator light will become green, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol will be on). During the wash cycle, the name of the phase in progress will appear on the display. To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an orange colour); then select the desired cycle and press the START/PAUSE button again.

To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

1. THE END OF THE WASH CYCLE. This will be indicated by the text "END OF CYCLE" on the display; when the DOOR LOCKED symbol switches off the door may be opened. Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun, press and hold the ⏻ button. The cycle will be stopped and the machine will switch off.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Wash cycles and functions

Table of wash cycles

Wash cycles	Description of the wash cycle	Max. temp. (°C)	Max. speed (rpm)	Detergents			Max. load (kg)	Residual dampness %	Energy consumption kWh	Total water It	Cycle duration
				Prewash	Wash	Fabric softener
Everyday wash cycles (Daily)
	Cotton: extremely soiled whites.	90°	1400	●	●	●	7	53 1	99 62	145'
	Cotton Standard 60° (1) (1° press of the button): heavily soiled whites and resistant colours.	60°	1400	-	●	●	7	53 1	31 52,5	195'
	Cotton Standard 40° (2) (2° press of the button): lightly soiled whites and delicate colours.	40°	1400	-	●	●	7	53 1	09 92	190'
	Cotton Standard 20° (3° press of the button): lightly soiled whites and delicate colours.	20°	1400	-	●	●	7	-	-	-	180'
	Synthetics (1° press of the button): heavily soiled resistant colours.	60°	800	●	●	●	3	44 0	85 39	110'
	Synthetics (3) (1° press of the button): lightly soiled resistant colours.	40°	800	●	●	●	3	44 0	53 39	100'
	Synthetics (2° press of the button): lightly soiled whites and delicate colours.	40°	800	●	●	●	3	-	-	-	75'
	Mix 30' (1° press of the button): to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800	-	●	●	3	71 0	25 33	30'
	Mix 15' (2° press of the button): to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800	-	●	●	1,5	71 0,0	8 29	15'
Special cycles / Memory
M	Memory: allows for any wash cycle to be stored.
	Baby cycle: heavily soiled delicate colours.	40°	800	-	●	●	2	-	-	-	120'
	Silk/Curtains: for garments in silk and viscose, lingerie.	30°	0	-	●	●	1	-	-	-	55'
	Wool: for wool, cashmere, etc.	40°	800	-	●	●	1	-	-	-	65'
Partial wash cycles
	Spin (1° press of the button)	-	1400	-	-	-	7	-	-	-	16'
	Rinse (2° press of the button)	-	1400	-	-	●	7	-	-	-	36'
	Pump out (3° press of the button)	-	0	-	-	-	7	-	-	-	2'

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle (1° press of the button) with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with directive 1061/2010: set wash cycle (2° press of the button) with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle (2° press of the button) with a temperature of 40°C.

3) Synthetic program along: set wash cycle ⚡️ (1° press of the button) with a temperature of 40°C.

Wash functions

P Prewash

If this function is selected, the pre-wash cycle will run; this is useful for removing stubborn stains.

N.B.: put the detergent in the relevant compartment.

! It cannot be used with the , , , , , , programmes.

Extra rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

! It cannot be used in conjunction with the ⏻, Spin, Pump out, programmes.

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. The wash cycles ends with the laundry being left to soak in the machine; the EASY IRON and START/PAUSE indicator lights will flash (orange) and the text "STOP WITH WATER" will appear on the display.

To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

! It may not be used with the 📁, 🌐, programmes.

Fast wash

Reduces the duration of the wash cycle, while making it possible to save water and electricity.

! It cannot be used with the Mix 15, 📄, 🙏, 🕒, 🌐, programmes.

Eco Wash

The Eco Wash function saves energy by not heating the water used to wash your laundry – an advantage both to the environment and to your energy bill. Instead, intensified wash action and water optimisation ensure great wash results in the same average time of a standard cycle. For the best washing results we recommend the usage of a liquid detergent.

! It cannot be used with the Mix 15, 📋, 🙏, 🚪, 🟩, programmes.

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

! Do not use hand washing detergents because these create too much foam.
! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash

compartment 2: Detergent for the wash cycle (powder or liquid)

It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup.

compartment 3: Additives (softener, etc.)

When pouring the softener in compartment 3, avoid exceeding the "max" level indicated.

The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see "Care and maintenance".

compartment 4: Do not pour detergent into this compartment.

Preparing the laundry

• Divide the laundry according to:
• the type of fabric/the symbol on the label
• the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
• Do not exceed the values listed in the “Table of wash cycles”, which refer to the weight of the laundry when dry.

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g

Special wash cycles

Cotton Standard 20°: (programme 📋ideal for heavily soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks.

Mix 30': this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle (at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 3 kg.

Mix 15': this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg.

Baby cycle: this wash cycle can be used to remove the soiling typically caused by babies, while ensuring that all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent. At the end of the wash cycle, the machine will slowly rotate the drum to prevent the formation of creases; to end the cycle press the START/PAUSE button.

Silk: use special wash cycle ✿ wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle

Wool: The wool wash cycle on this Hotpoint-Ariston machine has been tested and approved by The Woolmark Company for washing wool garments labelled as hand washable provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. Hotpoint-Ariston is the first washing machine brand to be approved by The Woolmark Company for Apparel Care- Platinum for its washing performance and

consumption of energy and water.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be not solved easily using the following list.

GB

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not take in water (the text “NO WATER, CHECK SUPPLY” appears on the display).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The machine is locked and the display flashes, indicating an error code (e.g. F-01, F-..).

There is too much foam.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or is not making contact.
  • There is no power in the house.

- The appliance Lid is not shut properly.

- The ON/OFF button has not been pressed.

- The START/PAUSE button has not been pressed.

- The water tap has not been opened.

- A delayed start has been set (see "Running a wash cycle").

- The water inlet hose is not connected to the tap.

- The hose is bent.

- The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

- The START/PAUSE button has not been pressed.

- The drain hose is not fitted at a height between 65 and 100 cm from the floor (see "Installation").

- The free end of the hose is under water (see "Installation").

- The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

- The wash cycle does not include draining: some wash cycles require the drain phase to be started manually (see "Wash cycles and functions").

- The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button (see "Wash cycles and functions").

- The drain hose is bent (see "Installation").

- The drainage duct is clogged.

- The drum was not unlocked correctly during installation (see "Installation").

- The washing machine is not level (see "Installation").

- The washing machine is trapped between cabinets and walls (see "Installation").

- The water inlet hose is not screwed on properly (see "Installation").

- The detergent dispenser drawer is blocked (for cleaning instructions, see "Care and maintenance").

- The drain hose is not fixed properly (see "Installation").

- Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

- The detergent is not suitable for machine washing (it should display the text "for washing machines" or "hand and machine wash", or the like).

- Too much detergent was used.

Before calling for Assistance:

• Check whether you can solve the problem alone (see "Troubleshooting");
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;
  • the appliance model (Mod.);
  • the serial number (S/N).
  This information can be found on the data plate situated on the rear of the washing machine.

Ελληνικά

Περιεχόμενα

Εγκατάσταση, 26-27

Line drawing of a car door corner with a circular vent or sensor mounted on the side (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged pin (no text or symbols)

Diagram of a mechanical device with a lever and valve, showing no text or symbols

Diagram of a pipe connection to a bulb with a magnified inset showing the bulb's tip (no text or symbols)

Pure structural diagram showing a trapezoidal beam with two downward-pointing arrows indicating load or compression (no text or symbols)

Simple line drawing of a mechanical component with a circular feature on a rectangular base (no text or symbols)

Line drawing of a hand placing a bag into a trash bin (no text or symbols)

E1K. 1

Line drawing of hands cleaning a kitchen appliance with a tool (no text or symbols)

E1K. 2

Line drawing of hands using a tool to clean or wash a container with a faucet (no text or symbols)

E1K. 3

Line drawing of a mechanical component with a handle and internal compartments (no text or symbols)

E1K. 4

Line drawing of a kitchen appliance with a directional arrow indicating rotation (no text or symbols)

Line drawing of a hand inserting a device into a multi-tiered appliance (no text or symbols visible)

E1k. 1 E1k. 2

Line drawing of a hand inserting a plastic into a washing machine (no text or symbols)

Illustration of hands installing or adjusting a component on a device (no text or symbols visible)

E1K. 3
E1K. 4

Installation Installation

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

Diagram of a mechanical device with a pipe inserted into a housing panel, showing internal components and a rotational arrow (no text or symbols)

Diagram of a pipe connection to a water level with a valve, showing no text or symbols

Pure geometric diagram showing a right triangle with two arrows indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and diagonal line (no text or symbols)

Line drawing of a hand placing a small object into a container with outlets (no text or symbols)

Abb. 1

Illustration of hands cleaning a device with a tool, no text or symbols present

Abb. 2

Illustration of hands cleaning a kitchen sink with a faucet (no text or symbols)

Abb. 3 Abb. 4

Line drawing of a mechanical component with a handle and internal slots (no text or symbols)

Line drawing of a kitchen appliance with a scroll wheel and directional arrow indicating rotation (no text or symbols)

Abb. 1

Line drawing of a hand inserting a device into a storage unit (no text or symbols visible)

Abb. 2

Line drawing of a hand inserting a plastic bag into a shared internal appliance (no text or symbols)

Abb. 3

Illustration of hands inserting a component into a device (no text or symbols visible)

Abb. 4

A) Öffnen (Abb. 1):

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawings of two mechanical components: a cap and a flanged bolt (no text or symbols)

Diagram of a mechanical device with a pipe and valve, showing rotational motion (no text or symbols)

Diagram of a pipe fitting with a magnified inset showing the tip of the valve (no text or symbols present)

Line drawing of a kitchen appliance with a scroll wheel and directional arrow (no text or symbols)

рис. 1

Line drawing of a hand inserting a device into a multi-tiered appliance (no text or symbols visible)

рис. 2

Line drawing of a hand inserting a plastic into a washing machine (no text or symbols)

рис. 3

рис. 4

Выдвиньте

распределитель и

заполните его

отделения моющим

Pure structural diagram showing a beam with two downward forces and a central support (no text or symbols)

Simple line drawing of a mechanical component with a circular feature on a rectangular base (no text or symbols)

Line drawing of a hand placing a bag into a trash bin (no text or symbols)

рис. 1

Line drawing of hands cleaning a device with a tool (no text or symbols)

рис. 2

Illustration of a hand washing a small container with a faucet above it (no text or symbols visible)

рис. 3

Line drawing of a mechanical component with a bracket and four cutouts (no text or symbols)

рис. 4
