Product Type	Metal Table Fan (Pedestal Fan)
Model	INN-530B
Brand	Innoliving
Power Supply	220-240V ~ 50/60Hz, 35W
Air Flow Rate (Max)	37.28 m³/min
Service Value	1.14 (m³/min)/W
Max Air Velocity	2.73 m/s
Sound Power Level	57.52 dB(A)
Seasonal Electricity Consumption	10.46 kWh/a
Standby Power Consumption	0 W
Speed Settings	Off (0), Low (I), Medium (II), High (III)
Oscillation	Push-button swing activation
Tilt Adjustment	Adjustable via knob on motor bracket
Protection Grille	Front and rear safety grilles with screws
Assembly	Requires screwdriver; attach base, pedestal, grilles, and blades
Material	Metal body and blades
Cleaning	Soft dry cloth; do not use abrasives or immerse in water
Safety Features	Do not operate without grilles; keep away from children; disconnect before maintenance
Intended Use	Indoor domestic use only
Compliance	CE marked, complies with European directives
Manufacturer	Innoliving Spa, Via Merloni 2/B, 60131 Ancona, Italy
Origin	Made in China

Frequently Asked Questions - INN-530B Innoliving

How do I assemble the INN-530B fan?

Attach the rear grille to the motor body with the supplied screws, then place the blades on the blade holder and tighten the knob to the left. Position the front grille and tighten its screws. Finally, attach the base to the pedestal using the knob, and insert the fan body onto the pedestal. Secure the motor bracket with the bolt and two knobs.

How do I adjust the fan speed?

Use the wheel on the motor head: position 0 stops the fan, I is low speed, II is medium, and III is high.

How do I activate the oscillation function?

Push down the swing button located on the fan body to start oscillation. Push it up again to stop.

How do I clean the fan?

Always unplug the fan before cleaning. Use a soft, dry cloth for metal parts. Do not use abrasive cleaners, chemicals, or solvents, and never immerse the fan in water.

What should I do if the fan does not start?

Check that the power cord is properly plugged into a working outlet and that the speed selector is not set to 0. Ensure the voltage matches your local supply (220-240V). If the problem persists, contact an authorized service center.

Is the fan safe to leave unattended?

No, never leave the fan unattended while operating. Always disconnect it from the power supply before moving, cleaning, or during thunderstorms.

Can I use the fan outdoors?

No, the fan is intended for indoor domestic use only. Do not use it outdoors or near open windows to avoid short circuits from rain or moisture.

What is the noise level of the fan?

The fan has a sound power level of 57.52 dB(A) at maximum speed.

How do I adjust the tilt of the fan head?

Loosen the big knob on the side of the motor bracket, tilt the fan head to the desired angle, then retighten the knob securely.

What are the dimensions and weight of the fan?

The dimensions and weight are not specified in the manual. The fan is a pedestal model with a metal head and base, typical for a table fan.

USER MANUAL INN-530B Innoliving

innoliving easy tech, easy life

VENTILATORE DA TAVOLO IN METALLO

METAL TABLE FAN

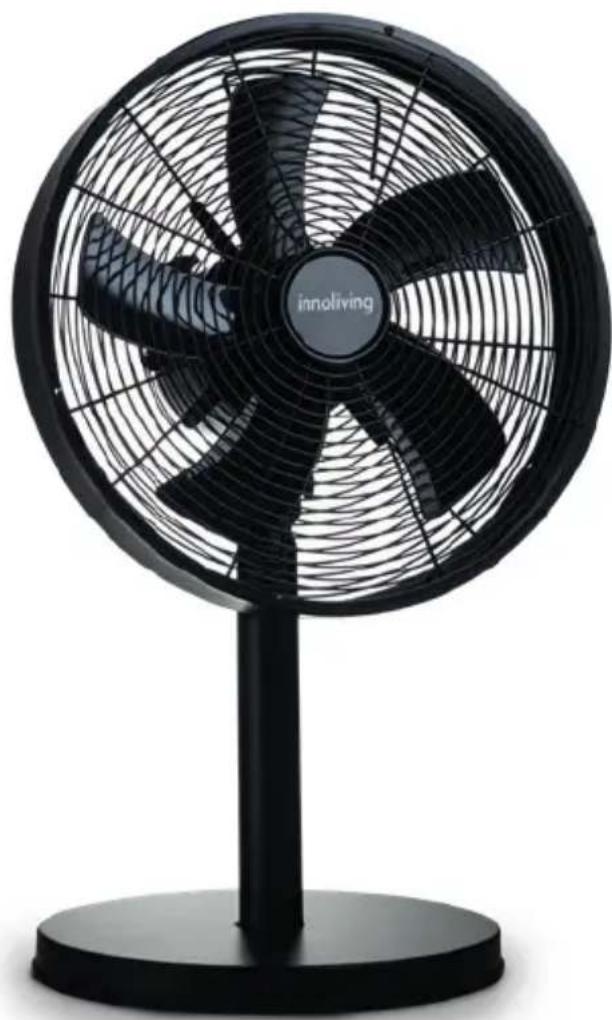

Black office fan with radial blades mounted on a stand, no visible text or symbols on the fan body.

INN-530B

MANUALE D'USO

USER MANUAL

MANUALE D'ISTRUZIONE

ASSEMBLAGGIO

Close-up of a black industrial fan with visible blades and central hub, no text or symbols present.

Close-up of a black fan with red directional arrows indicating airflow or blades (no text or symbols)

Close-up of a black and white fan with a red circular icon highlighting the blades (no text or symbols)

Close-up of a black industrial fan with five blades, mounted on a grid-patterned circular base (no text or symbols visible)

TThank you for purchasing the INN-530B INNOLIVING digital stand fan.

Read the instructions carefully before use and keep this manual for future reference.

WARNINGS AND SAFETY RULES

• Before using the appliance, carefully read the instructions for use, especially the safety warnings, and follow them. Keep this manual for the entire lifespan of the appliance for reference. Failure to follow the instructions may result in accidents and void the warranty, releasing the manufacturer from any liability.
• This product is not intended for use by persons (including children) with reduced physical, mental, or sensory capabilities, or by those lacking experience and knowledge, unless they are supervised or instructed on the use of the appliance by a person responsible for their safety and understand the potential hazards.
• This product is not a toy. Ensure that children do not play with the appliance. Keep the product and its cord out of the reach of children.
• Disconnect the fan from the power supply before removing the protective grills, before any maintenance or cleaning operations, before moving the product, before long periods of non-use, or during thunderstorms.
• Never operate the fan without the protective grills. RISK OF INJURY DUE TO ACCIDENTAL CONTACT WITH

MOVING BLADES!

- This appliance must be used solely for its intended purpose as an indoor domestic fan. Any other use is considered improper and therefore dangerous.

- This appliance is intended for DOMESTIC USE ONLY.

- Packaging elements (plastic bags, cardboard, polystyrene, etc.) must not be left within the reach of children as they can pose a danger and should be disposed of in compliance with current regulations.

- After unpacking the appliance, check for any transport damage and verify the integrity of the supplied components according to the diagram. If damaged or if there are any doubts about its integrity, do not use the appliance and contact an authorized service center.

- Before connecting the appliance, ensure that the mains voltage data on the data label matches the local power supply. The data label is located on the appliance itself.

- The appliance plug must fit perfectly into the socket. Do not modify the plug in any way. Do not use adapters or extension cords.

- Do not use the product if it has fallen to the ground, shows visible signs of damage, or leaks.

- Do not pull the power cord to lift, carry, or unplug the appliance from the power socket.

- Ensure that the cord is not knotted or bent.

- Check the condition of the power cord. Damaged or

knotted cords increase the risk of electric shock.

• Do not touch or use the product with wet or damp hands or feet. Do not touch the plug or cord with wet or damp hands or feet.
• Do not leave the product unattended while it is operating.
• If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center to prevent any risk. Do not use the appliance if the cord or plug is damaged.
• In case of malfunction or fault, switch off the appliance and do not tamper with it. For repairs, contact only an authorized service center.
• Never immerse the product in water or other liquids. Risk of electric shock!
• Do not use the product if it has fallen or shows visible damage or leaks.
• Do not use the product outdoors. For operation, place the product on a flat and stable surface. Do not use the fan near an open window to avoid short circuits due to dripping or rainwater.
• Protect the product from extreme temperatures, direct sunlight, strong vibrations, excessive humidity, moisture, flammable gases, vapors, or solvents.
• Ensure that there are no parts, such as textiles or hair, that could get caught in the fan blades.

• Use the appliance only with the protective grill properly closed.

• Never cover the product while it is in operation.

• Risk of injury! 'Do not insert objects through the protective grill while the product is in operation.
• Ensure that the cord does not come into contact with hot surfaces, incandescent elements, open flames, pots, or other hot utensils.
• For cleaning instructions, refer to the “Cleaning and Maintenance” section of the manual.
• User cleaning and maintenance must not be carried out by children without supervision.
• Store the product in a dry, dust-free environment, away from direct sunlight and heat sources, and out of reach of children.
• Use the appliance only with the accessories and spare parts provided.
• When placing the fan on a table or shelf, always check that the power cord is not hanging, preventing it from being accidentally pulled causing the fan to fall.

DESCRIPTION OF THE PARTS

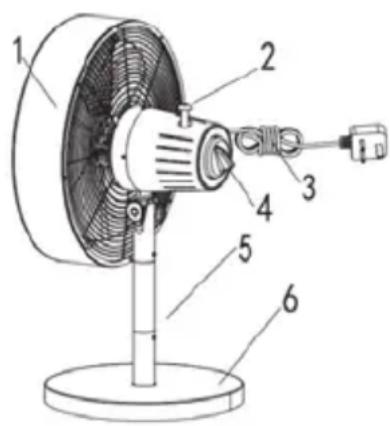

1. Main body
2. Swing button
3. Power cord and plug
4. Speed selector
5. Column
6. Base

ASSEMBLY INSTRUCTIONS

Do not use the fan unless properly assembled.

Attaching the grilles and blades

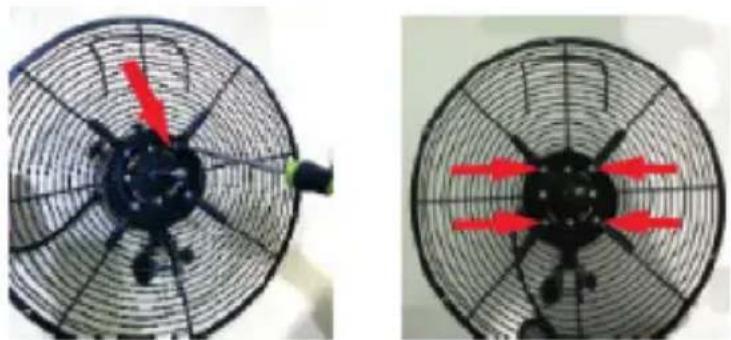

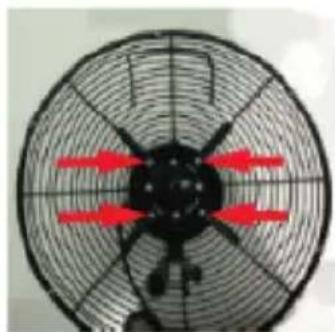

1. Unscrew the four screws from the motor body, place the rear grille and tighten the screws.

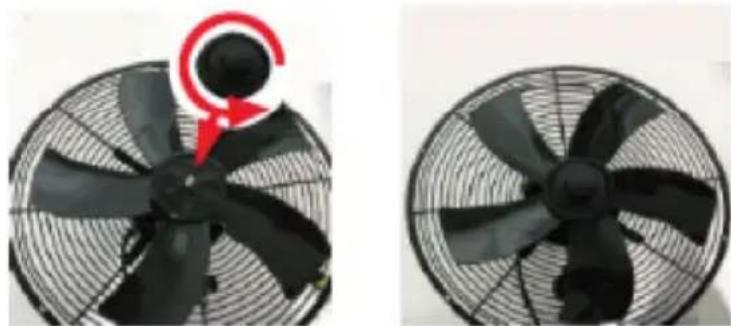

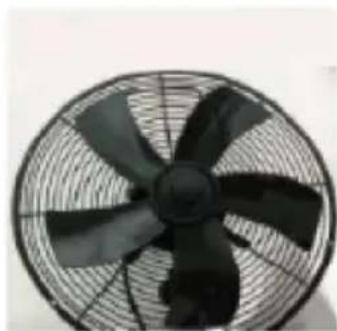

1. Place the blades on the blade holder and fix them by turning the knob to the left.

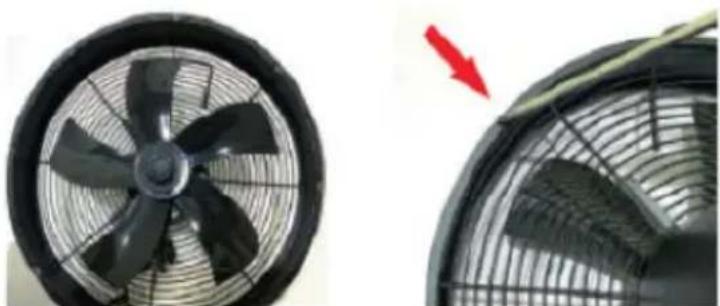

3.Positionate the front grille and fix it by tightening the screws.

Attaching the fan base to the pedestal

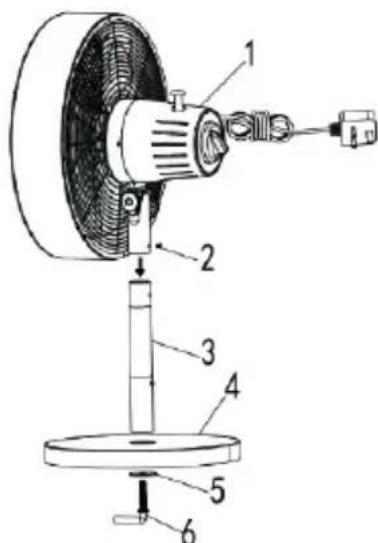

• Unscrew the knob (6) from the bottom of the pedestal (3) and use it to attach the base (4) to the pedestal.
• Place the fan body (2) on the pedestal (3).

Attaching the fan head and motor to the pedestal

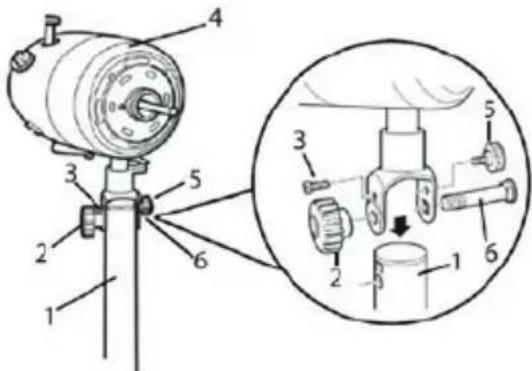

1. Pedestal
2. Big knob to adjust the inclination
3. Fixing screw
4. Motor body
5. Small knob

6. Bolt

7. To begin with, remove the knob (2) and bolt (6) from the top of the tube, then remove the fixing screw (3) and small knob (5) from the motor body bracket.

8. Place the fan head and motor on the top of the pedestal and thread the bolt (6) through the bracket. Tighten the fastening screw (3) and tighten it, but do not overdo it.
9. Tighten the small knob (5) on the other side and tighten the big knob on the other end (2) while keeping the fan motor upright.

INSTRUCTIONS FOR USE

1. Place the fan on a dry, flat and solid surface.
2. Connect the fan's electrical socket to the electricity supply.
3. Make sure the fan voltage complies with your local power supply conditions before using the fan.
4. When placing the fan on a table or shelf, always check that the power cord is not hanging, preventing it from being accidentally pulled causing the fan to fall.

Adjust the swing angle

1. Push down the button to activate the swing function, push up again to deactivate this function.

Speedcontrol

Adjust the speed using the wheel on the motor head:

0--- Stop I--- Low II --- Medium III --- High

Cleaning and maintenance

1. Turn off and unplug the appliance before proceeding with any cleaning operation and maintenance.
2. Metal parts can be cleaned using a soft, dry cloth.
   Caution: Do not use abrasive cleaners, chemicals or solvents that could damage the surface of the components.

RATING LABEL

Innoliving Spa The product supplies with all Via Merloni 2/B - 60131 Ancona - Italy

INN-530B

VENTILATORE DA TAVOLO IN METALLO

METAL TABLE FAN

220-240V \~ 50-60Hz 35W

MADE IN CHINA

Lot n.

CE

applicable European directives.

Read carefully the instruction manual

I INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)". The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 cm. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoiding possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree

DESCRIPTION SYMBOL VALUE UNIT
Type of fan according to mounting Pedestal fan
Maximum fan flow rate F 37,28 m			^3/min
Fan power input P 32,70 W
Service value SV 1,14 (m			^3/min)/W
Standby power consumption P	SB	-	W
Off power consumption P	OFF	0	W
Fan sound power level	LWA	57,52 dB(A)
Maximum air velocity	C	2,73	m/sec
Seasonal electricity consumption	Q	10,46	(kWh/a)
Measurement standard for service value	EN IEC 60879:2019
Referent	Innoliving Spa Via Merloni 2/B Ancona
