USER MANUAL Transporter North 13.5

Line drawing of a two-wheeled cart with wheels and handlebars (no text or symbols)

Transporter Wagon

IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY.

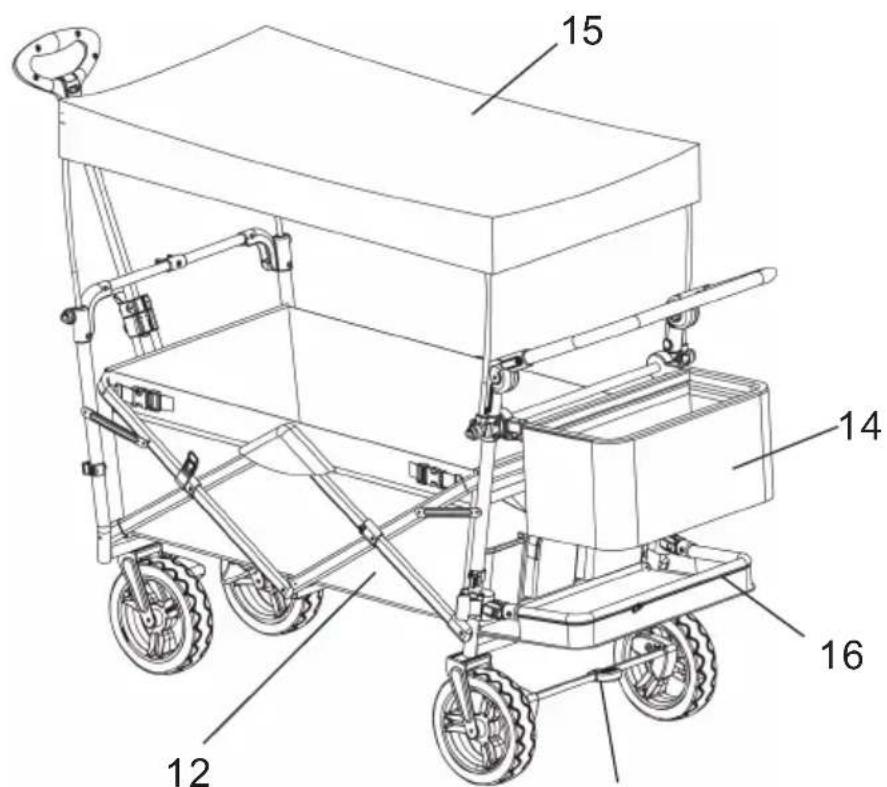

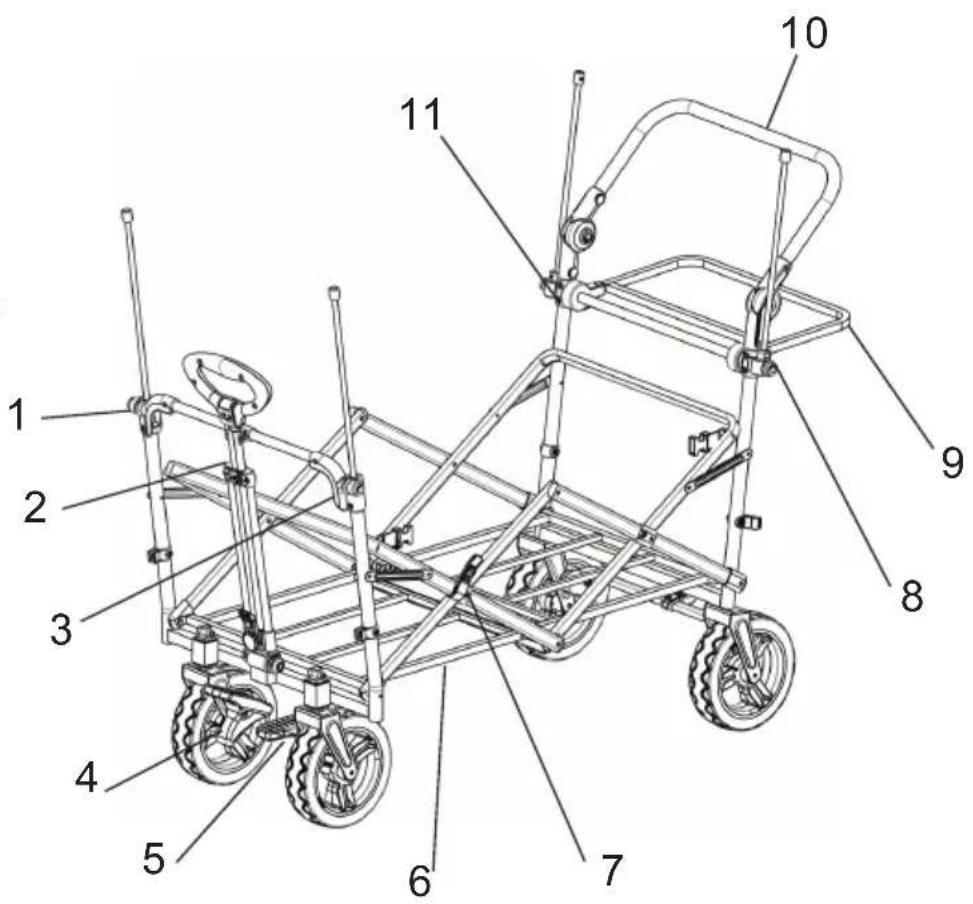

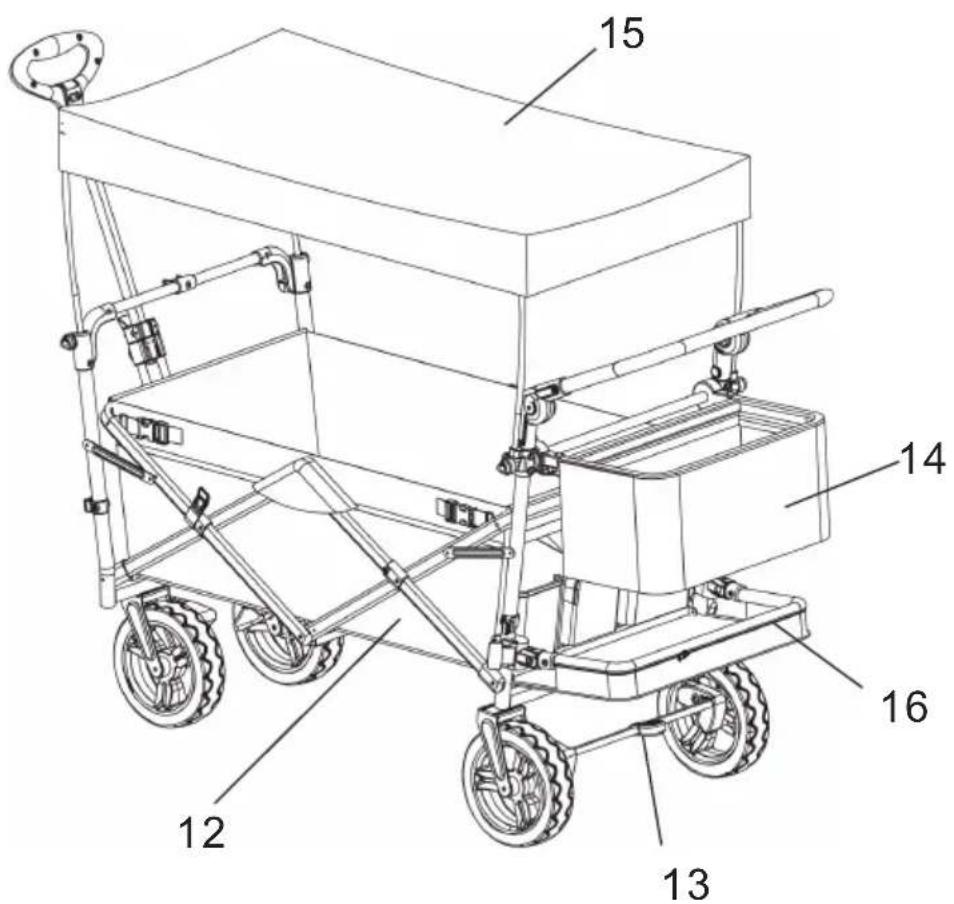

PARTS

1. Right front canopy pole
2. Front handle
3. Left front canopy pole
4. Right front wheel

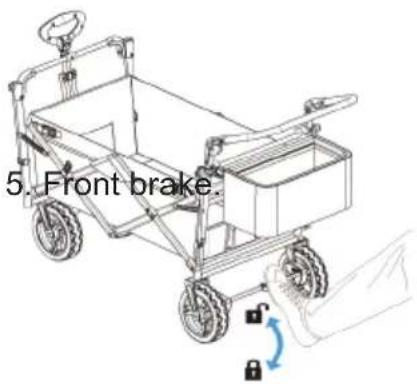

5. Front Brake
6. Bottom
7. Semi-automatic locking catch
8. Left back canopy pole
9. Basket frame
10. Back handle
11. Right back canopy pole
12. Main basket
13. Back brake
14. Back basket
15. Canopy
16. Lengthen parts

MAINTENANCE

1. Keep the cart clean and maintained, this is important to keep it in a good condition.

2. Regularly check your cart & accessories of any damage, wear and tear.

3. Check the metal components of any dents or cracks. Do not use the cart if the metal components are damaged.

4. Check the fasteners, if any are bent, broken, missing or loose. Tighten any loose fasteners and replace broken or missing parts.

5. Regularly check the fabric of any tears, spots or any other signs of damage.

6. Regularly wash the product with a warm soap solution. Do not use damaging detergent or solvent.

7. Clean the wheel axle and use lubricating oil. Check and maintain at least once a year.
8. Store the cart in a dry place, avoid direct sunlight.

WARNING

1. Loading weight may not exceed 75kg, or there will be risk of damage.
2. Do not use motorcycle or bicycle to carry or drag the cart.
3. It is not recommended to have hot food in the cart, this may damage the seat pocket.
4. The weight limit of the back basket is 5kg, please do not overload.
5. This product is not suitable use on stairs or escalators.
6. Do not leave children in the cart without adult supervision.
7. When folding or unfolding the cart, it should be done away from children. Be careful not to get fingers trapped.
8. Do not place a child seat or other unapproved third-party products in the cart.
9. Don't modify this product, this will reduce it's stability.
10. Use the brake when children are getting on/off the cart.
11. Age range from 12-72 months. Children should be able sit straight without any assistance.
12. Warranty service exclude damage which is caused by an accident, improper use, normal wear or use of unauthorised parts and accessories.
13. Check that the cart has been assembled correctly before use. To be assembled by an adult only.
14. Before use, ensure that all locking devices are closed.
15. Do not sit on the sides. Danger of tipping.
16. Read this information carefully before use and keep the instructions in a safe place. If you fail to read this information, the safety of your child may be impaired.

USE

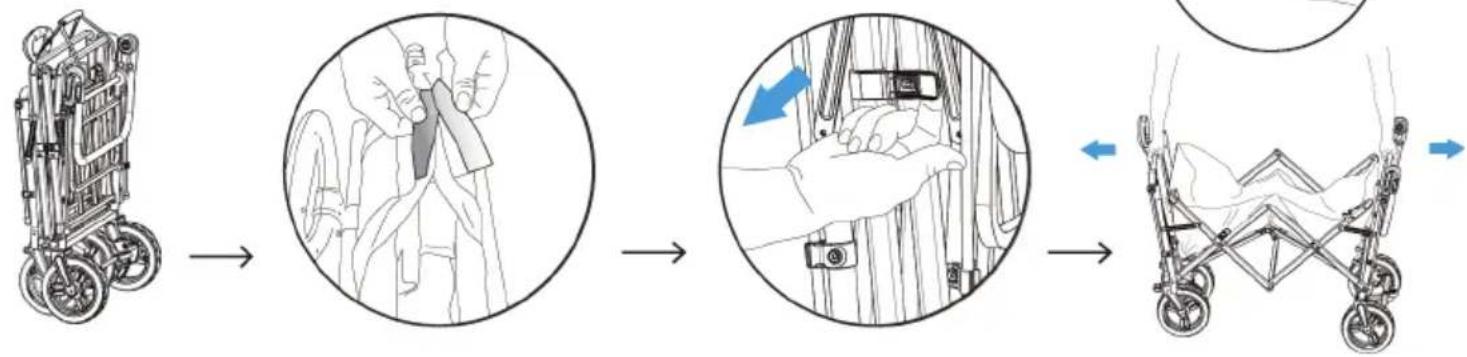

1. Gently flip the semi-automatic locking catch.


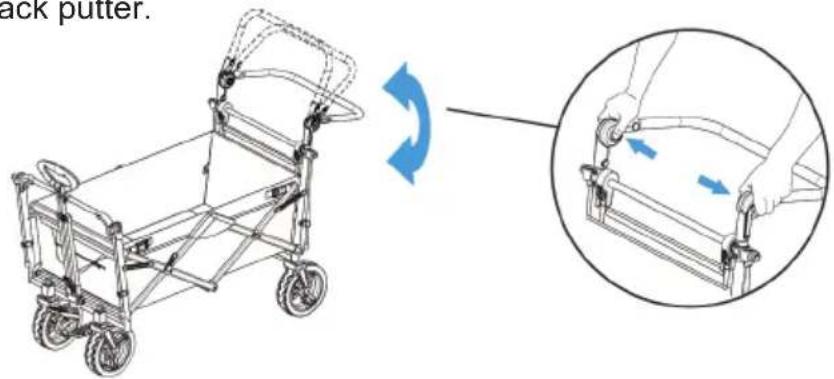

1. Back putter.

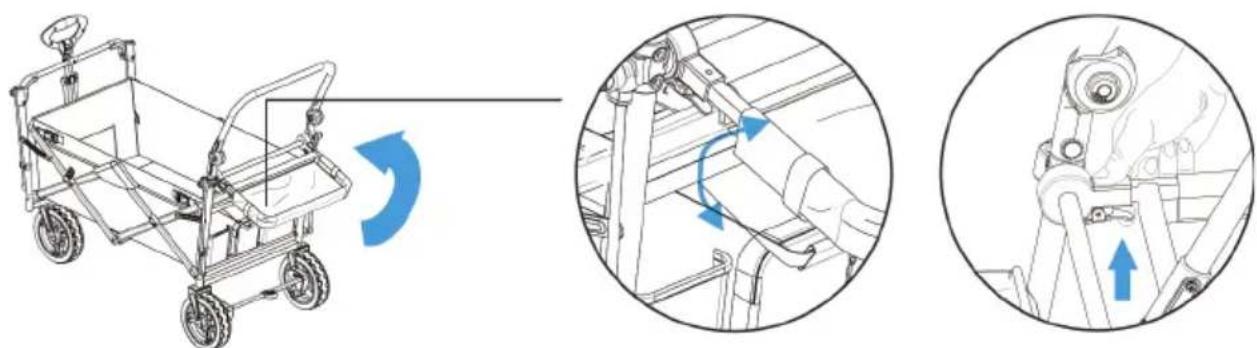

1. Use with the back handle

To use the back handle, lift it upwards and unlock the velcro on both sides. To fold down the back handle, hold the metal buckles with both hands and push the handle down

Illustration of a small wheeled cart with blue directional arrows indicating motion, alongside two circular diagrams showing hand positioning and wheel movement (no text or symbols)

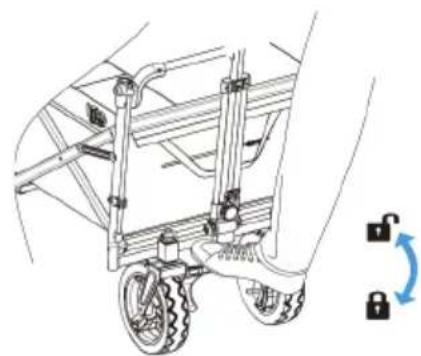

1. Back brake.

Technical line drawing of a vehicle chassis with wheels and lock components (no text or symbols)

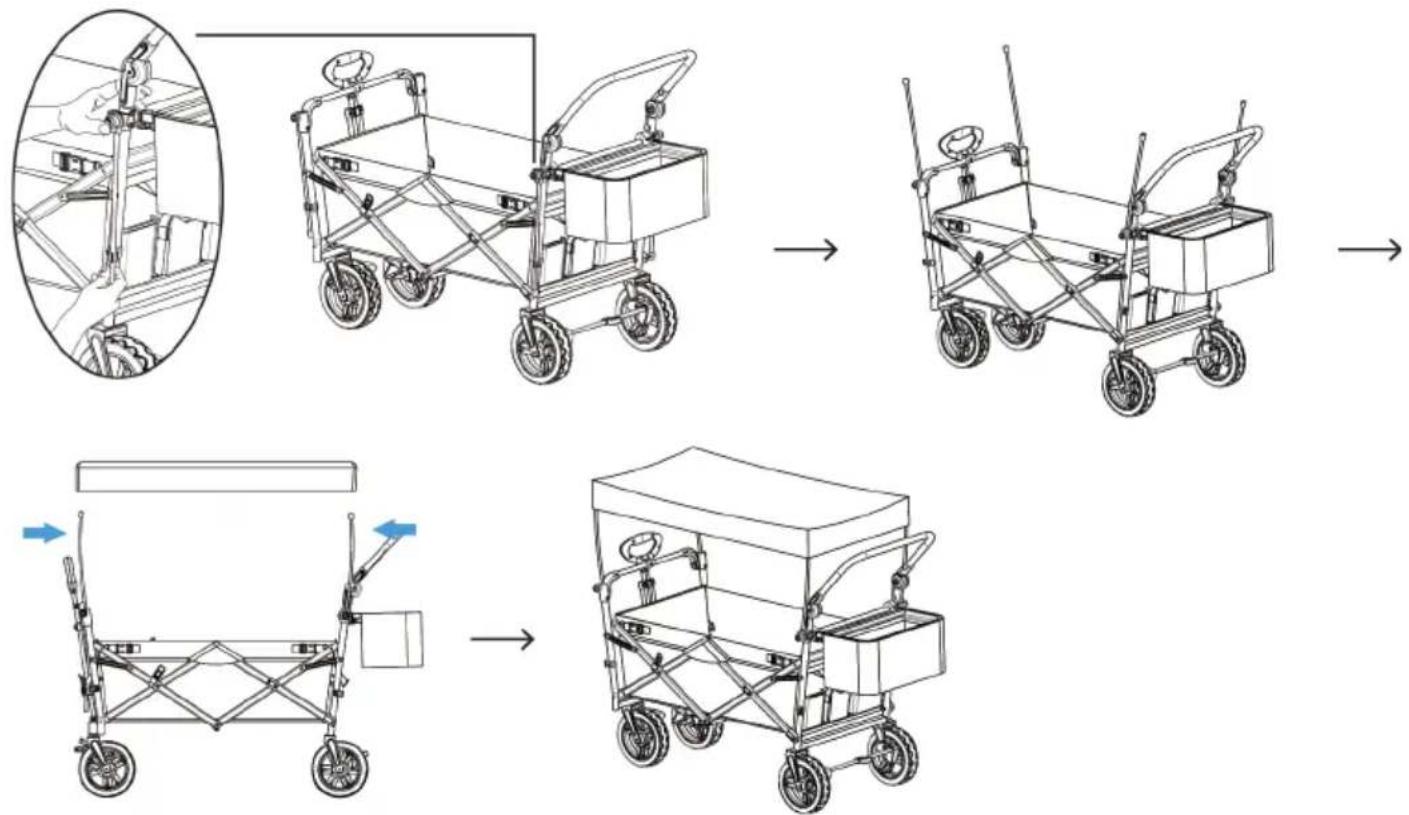

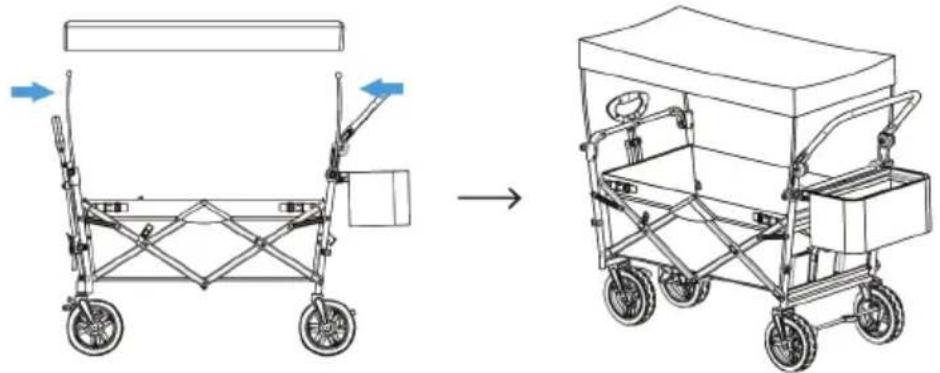

6. Canopy

Step 1: Set up the 4 canopy poles by turning them. Canopy poles in normal position. Step 2: Bend the canopy poles slightly inwards, and then attach the canopy.


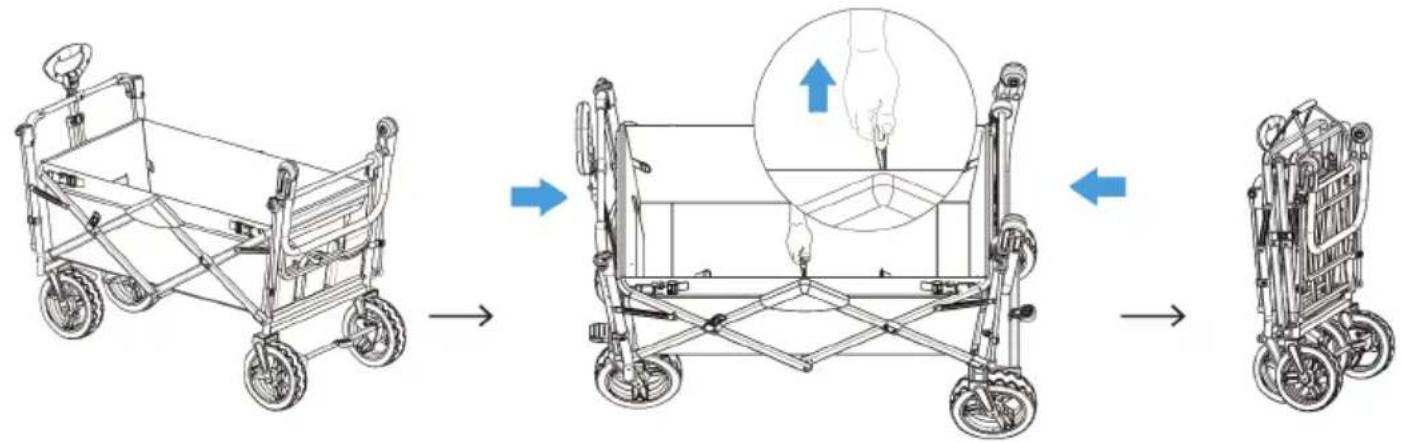

7. Folding

The wagon must look like this before folding.

Any long parts need to be folded away or moved before folding.

Line drawing of a four-wheeled cart with hand positioning and blue directional arrows indicating motion (no text or symbols)

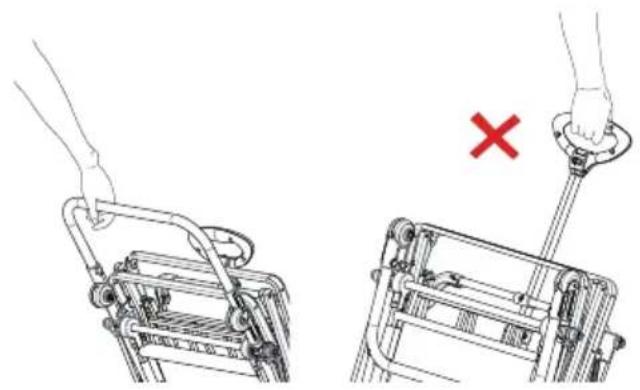

8. Short-haul storage.

When moving the cart, any short distance, please fold the back handle down. Pull the folded cart with the back handle.

Never use the front handle when moving the folded cart.

Illustration of two hand-pulling exercises showing a cart being lifted by a tool, with a red X mark indicating the operation (no text or symbols present)


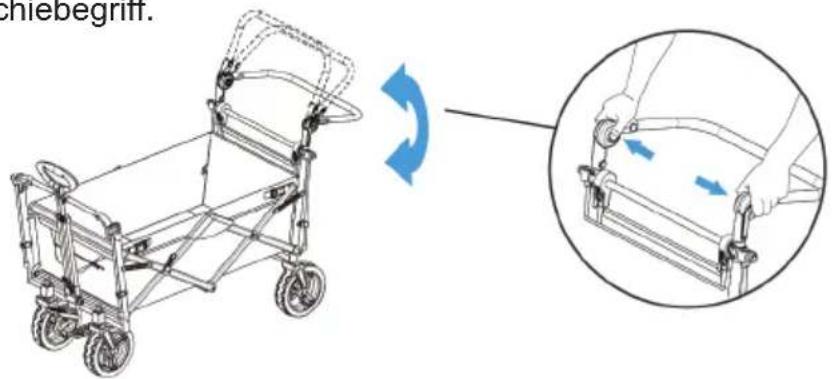

1. Schiebegriff.

1. Rahmen Gepäcktasche

Line drawings of a small wheeled cart with control panel and wheels, showing sequential assembly from top-left to bottom-right (no text or symbols)

Line drawing of a two-wheeled cart with wheels and a canopy, showing structural change from left to right (no text or symbols)

7. Zusammenklappen

Line drawing of a four-wheeled cart with hand gestures and a magnified inset showing hand positioning (no text or symbols)

8. Transport

Illustration of two hand-painted views of a bicycle lift with a red X mark indicating a collision or failure (no text or symbols present)

VIGTIGT: LÆS GRUNDIGT OG GEM TIL EVENTUEL FREMTIDIG BRUG.

DELE

1. Højre baldakinstang foran
2. Håndtagssamling
3. Venstre baldakinstang foran
4. Højre forhjul
5. Bremse forhjul
6. Bund stelsamling
7. Halvautomatisk låsekrog
8. Venstre baldakinstang bagpå
9. Bagerste stelsamling
10. Bagerste håndtagssamling
11. Højre baldakinstang bagpå
12. Vognkasse i stof
13. Bremse baghjul
14. Opbevaringskurv
15. Baldakin
16. Extension tilbehør

VEDLIGEHOLDELSE

Line drawing of a four-wheeled cart with hand positioning and a magnified inset showing hand positioning (no text or symbols)

Illustration of two hand-painted views of a bicycle lift with a red X mark indicating a collision or failure (no text or symbols present)

TÄRKEÄÄ: LUE OHJEET HUOLELLISESTI LÄPI JA SÄILYTÄ NE TULEVAA KÄYTTÖÄ VARTEN.

OSAT

HUOLTO

Technical illustration of a stroller with a hand operating the frame, showing rotational motion and adjustment (no text or symbols)

1. Tavarankorin käyttö

Technical illustration of a stroller with rotation arrow and close-up view of hand positioning (no text or symbols)

Line drawing of a four-wheeled cart with hand gestures and a magnified inset showing hand positioning (no text or symbols)

Illustration of a hand using a cart to lift a bicycle, with a red X mark indicating the correct position (no text or symbols present)

VIKTIGT: BEHÅLL FÖR FRAMTIDA BRUK. LÄS NOGGRANT.

DELER


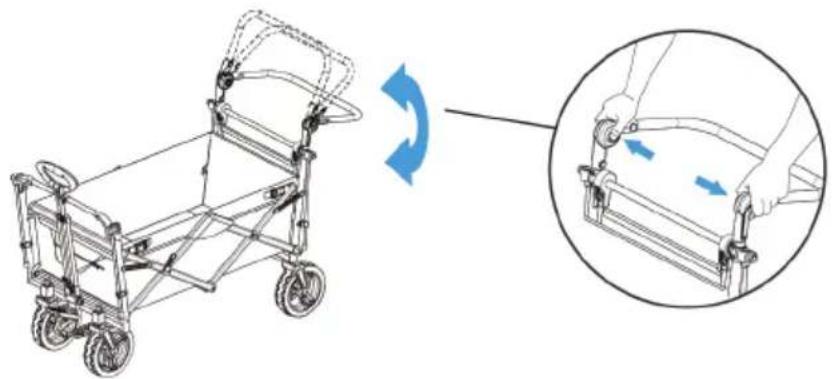

1. Justera tryckshandtaget.

Technical illustration of a stroller with rotation arrow and magnified view showing hand positioning (no text or symbols)

1. Justera varukorgen.

1. Bakbroms.

2. Frambroms.

3. Installera soltaket.

1. Fäll ihop skrindan.

1. Transportera skrindan.

Illustration of two hand-painted views of a bicycle lift mechanism, showing no text or symbols
