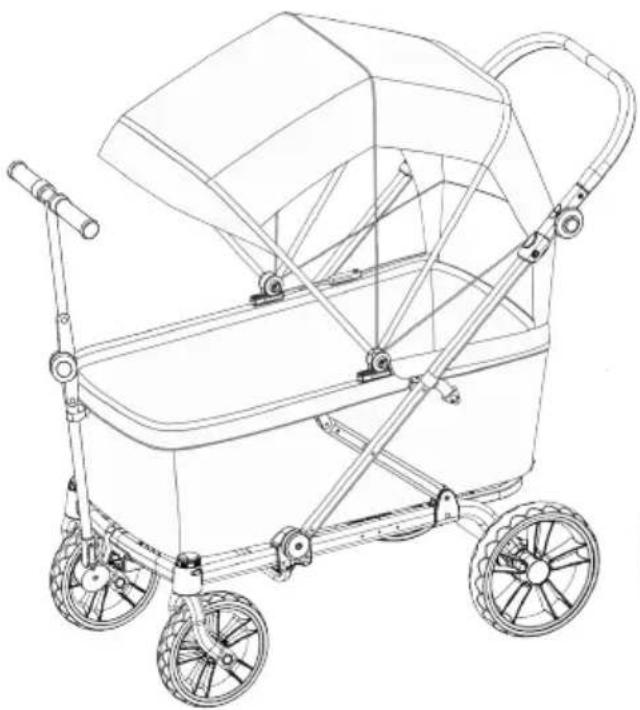

USER MANUAL Cruiser XL North 13.5
NORTH ^13.5^
CRUISER X L
IMPORTANT! VIKTIGT! ADVARSEL!
READ CAREFULLY AND
KEEP FOR FUTURE
REFERENCE.
Model: North 13.5 Cruiser XL
Wagon, 10251129
LÄS NOGA OCH
BEHÅLL FÖR FRAMTIDA
REFERENS.
Modell: North 13.5 Cruiser XL
Skrinda, 10251129
LES N∅YE OG BEHOLD
FOR FREMTIDIG
REFERANSE.
Modell: North 13.5 Cruiser XL
Tralle, 10251129
ADVARSEL! TÄRKEÄÄ!
LÆS OMHYGGELIGT
OG GEM TIL
FREMTIDIG
REFERENCE.
Model: North 13.5 Cruiser
- When folded: L 112 cm, W 58cm, H 33 cm.
- Approximate net weight: 20kg.
- Canopy has UV 50+ sun protection.
Materials:
Fabric cover: 100% polyester
Fabric filling: 100% polyester
Chassis: Steel
Wagon
Skrinda
Vogn
Vogn
Vaunu
Wagen


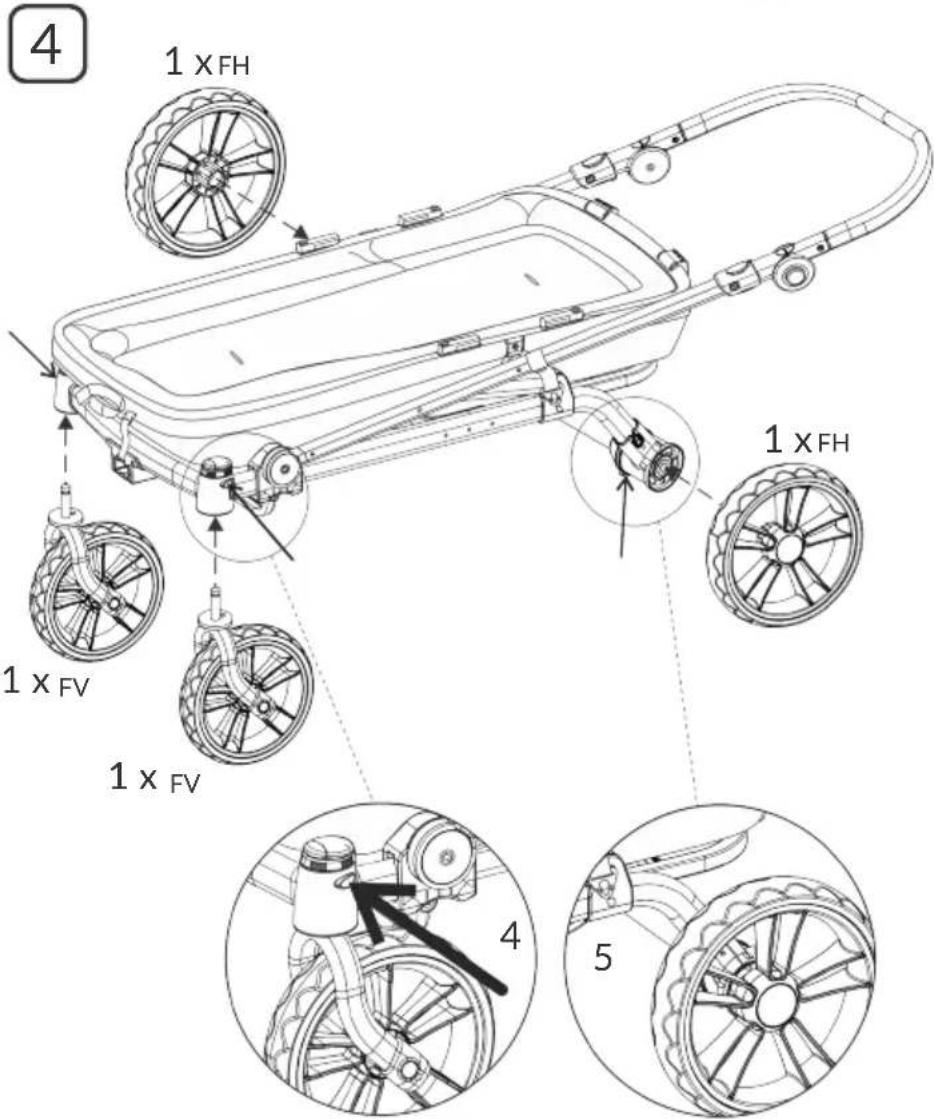

Front wheel
Framhjul
Forhjul
Forhjul
Eturengas
Vorderrad
Bakhjul
Bakhjul
Baghjul
Takarengas
Hinterrad


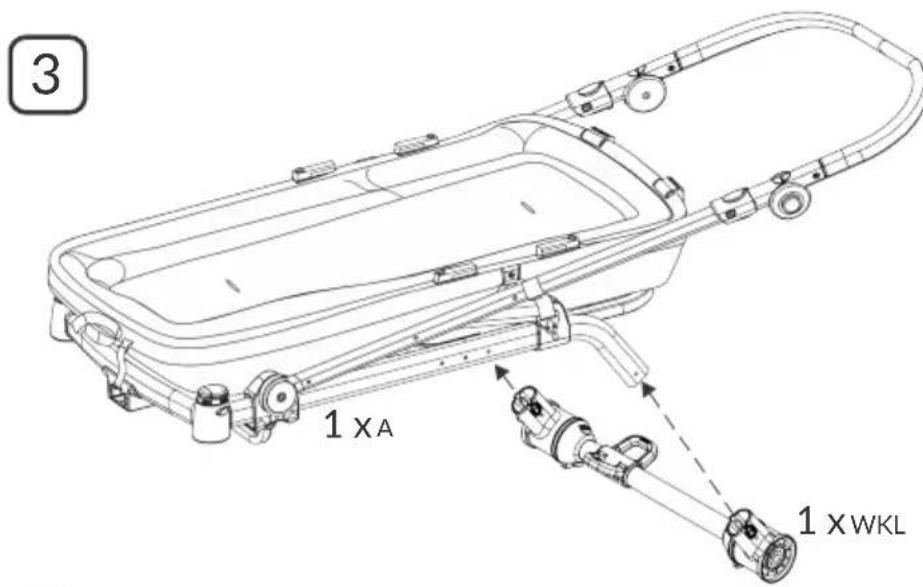

Technical line drawing of a mechanical assembly with two cylindrical components (no text or symbols)1 xWKL
Shaft
Axel
Stang
Aksel
Akseli
Welle
1 x z

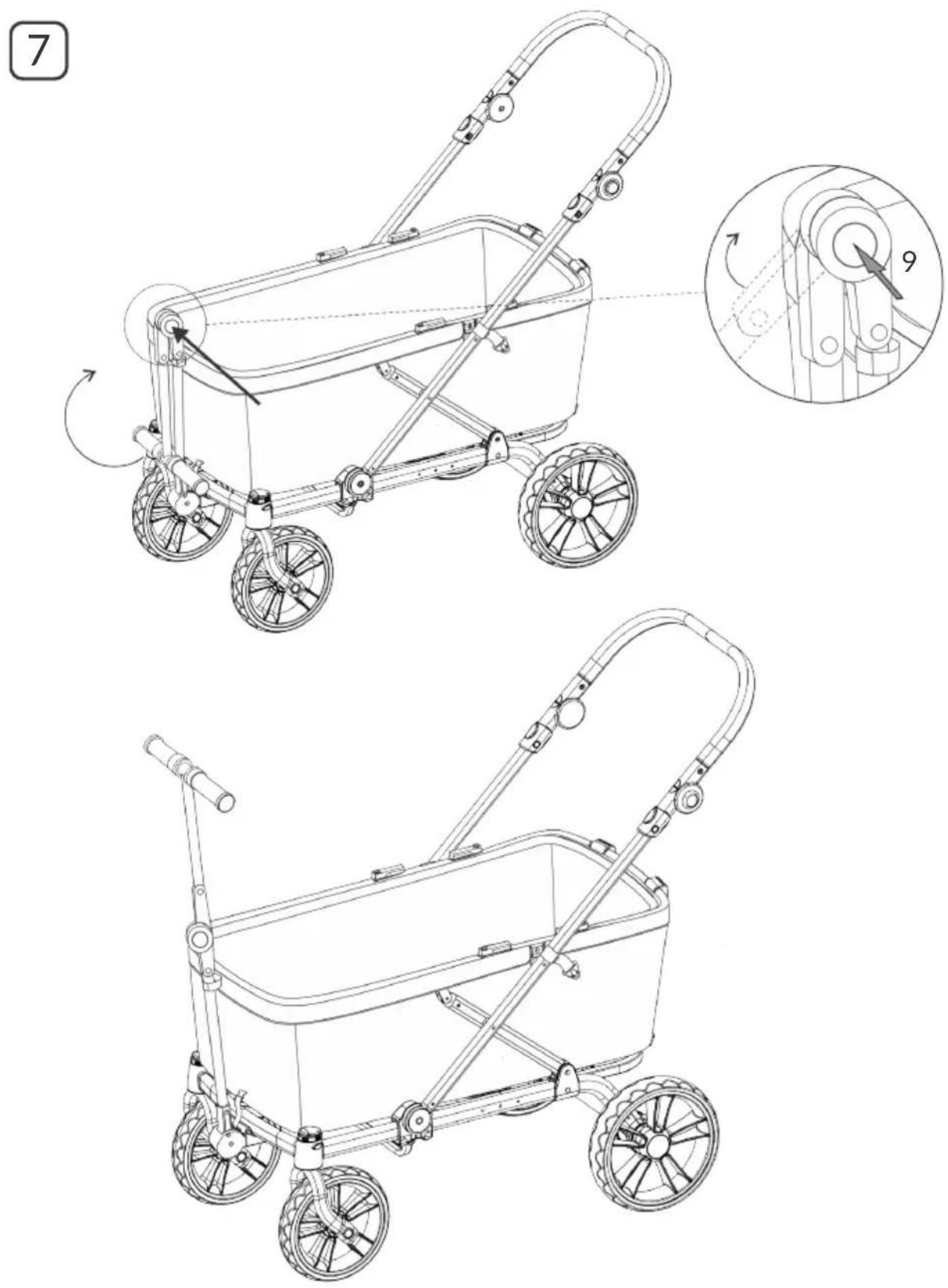

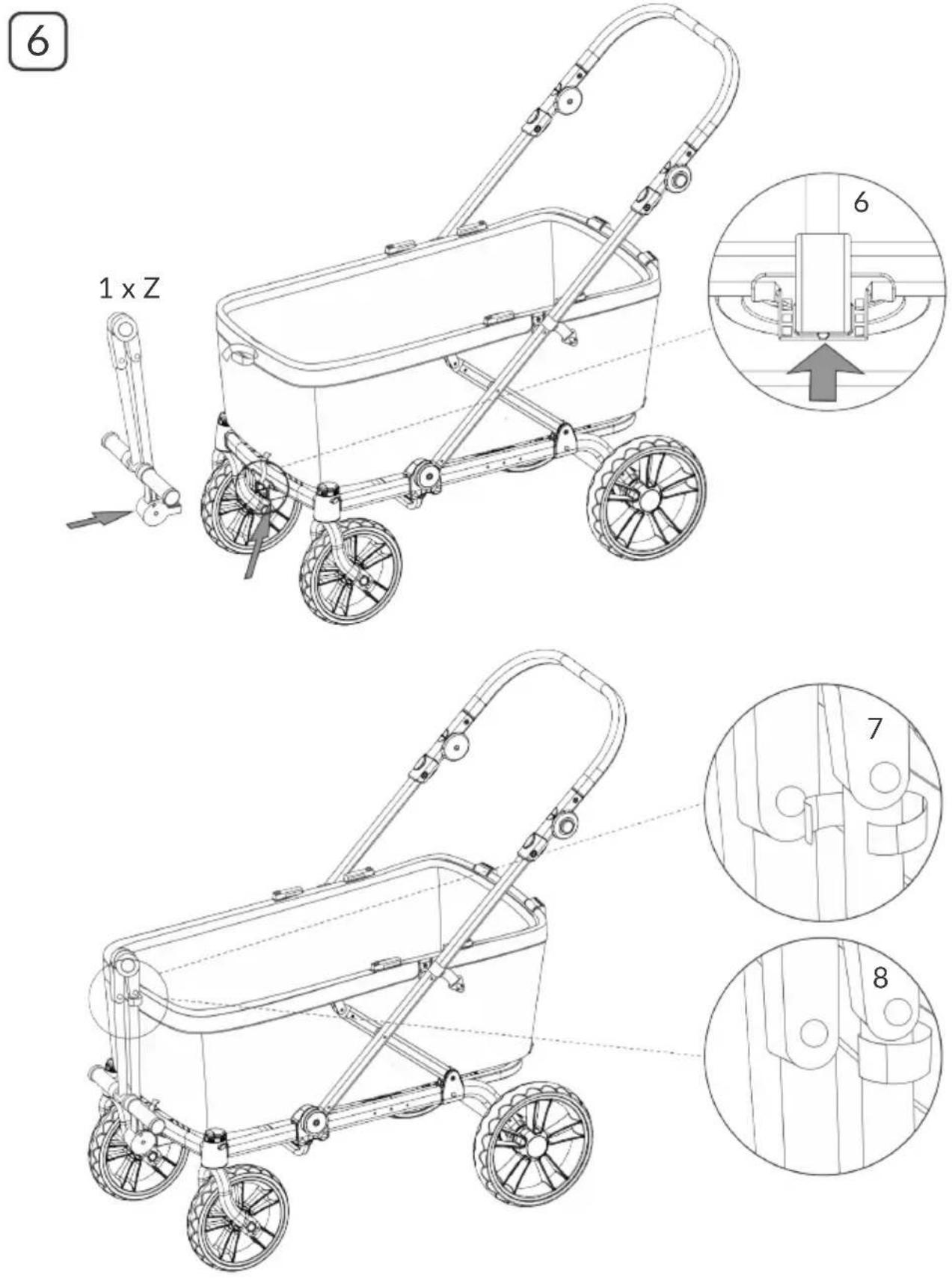

Drawbar
Dragstång
Trekkstang
Trækstang
Vetoaisa
Deichsel


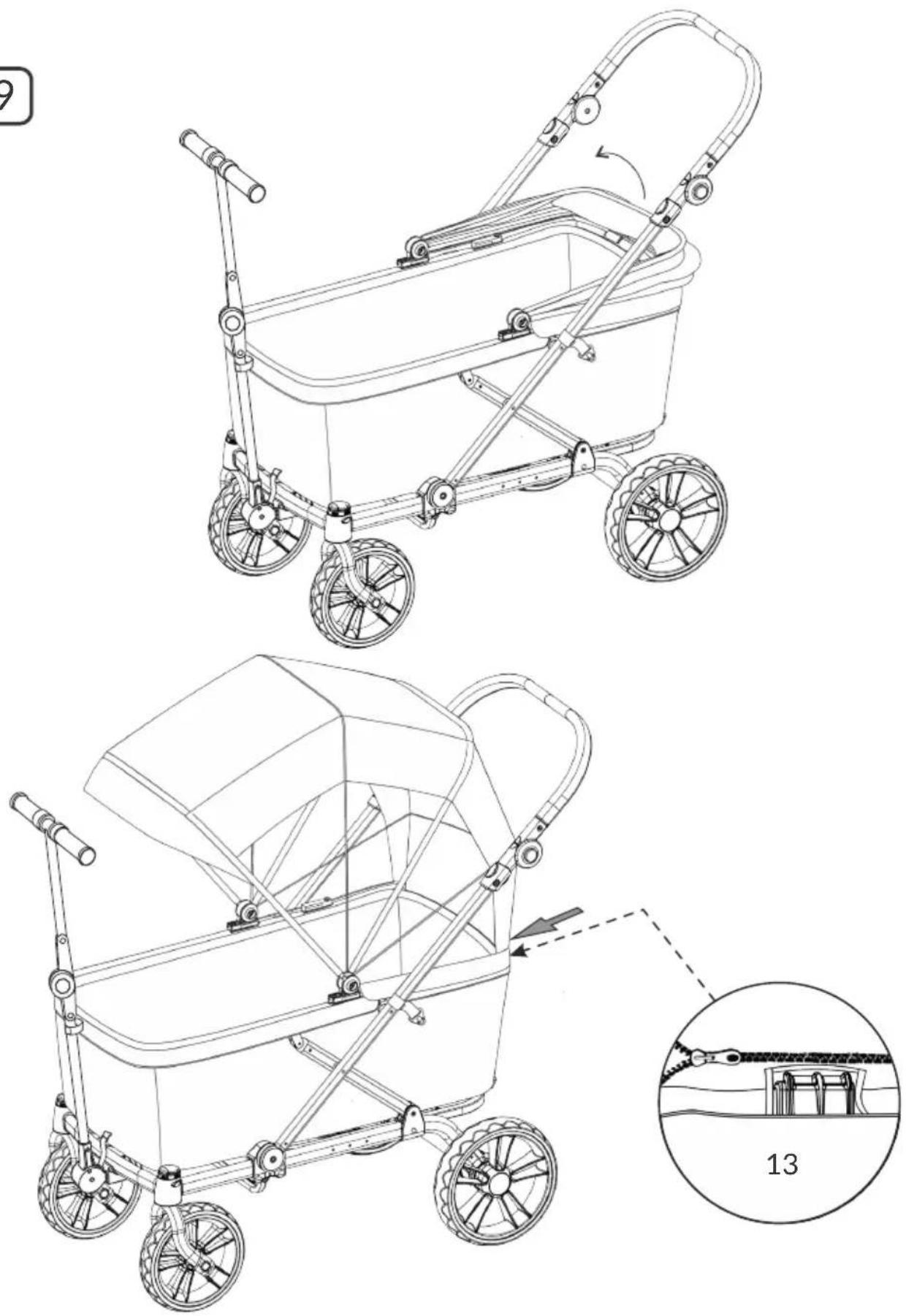

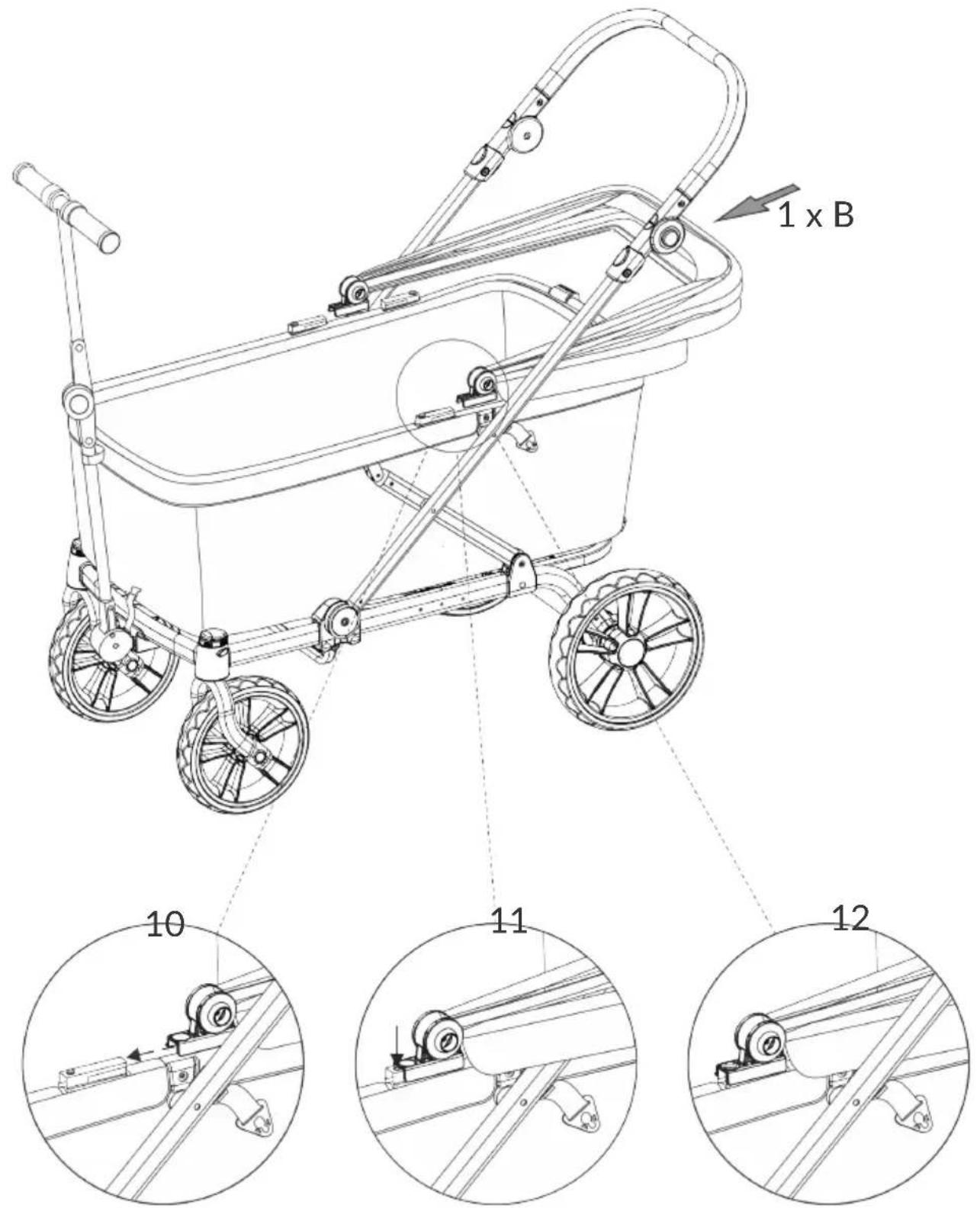

Canopy
Sufflett
Kalesje
Kaleche
Kuomu
Verdeck
2 x s

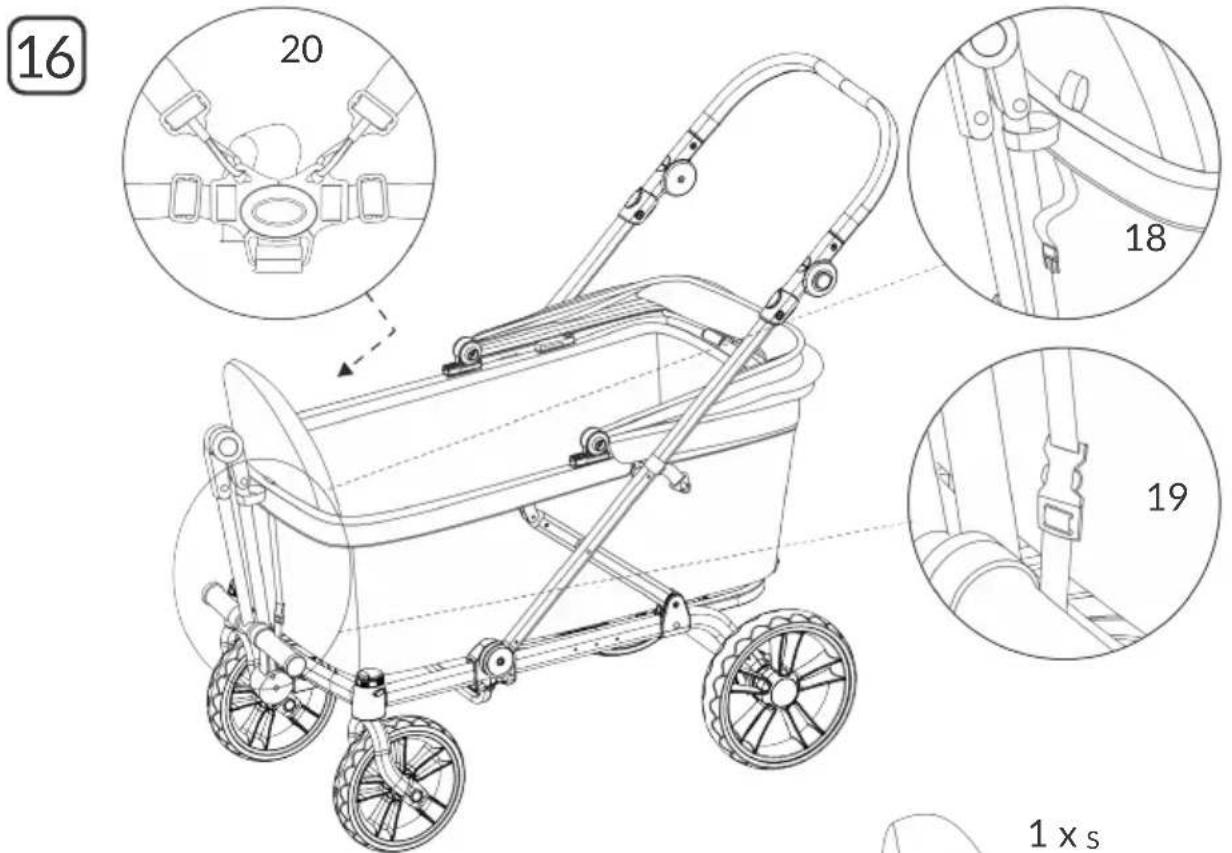

Seat with harness
Säte med sele
Sete med sele
Sæde med sele
Istuin valjailla
Sitz mit Gurt
The assembly must be carried out by 1 adult!
5
8
9
10
EN Locking the parking brake.
EN Release the parking brake.
SE Lossa parkeringsbromsen.
NO Slippe opp parkeringsbremsen.
DK Slip parkeringsbremsen.
EN Locking the front wheels.
EN Release the front wheels.
SE Lossa framhjulen.
17

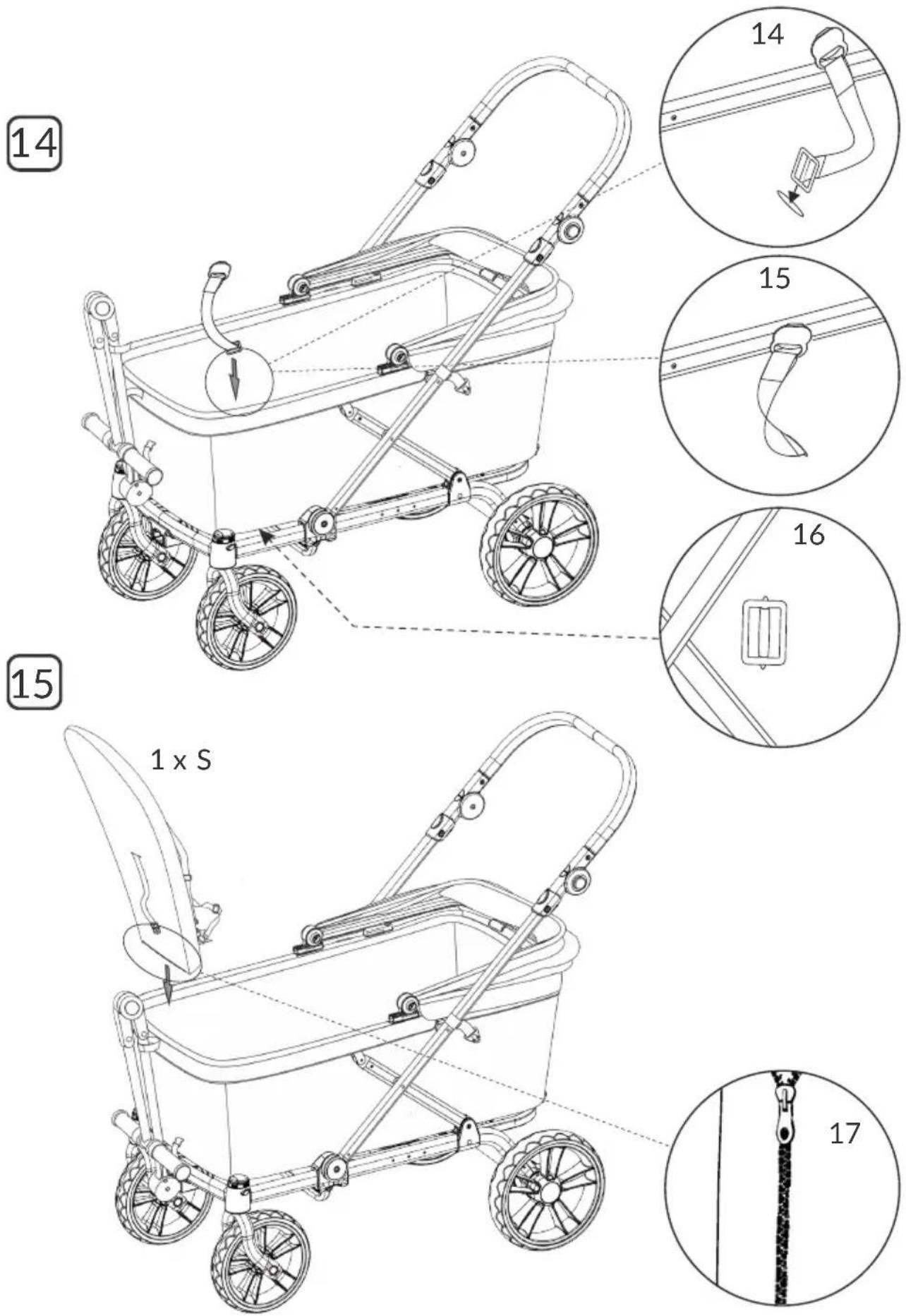

EN Inserting the seat sections.
SE Installera sittsektionerna.
- WARNING! Never leave the child unattended.
- WARNING! Ensure that all the locking devices are engaged before use.
- WARNING! To avoid injury ensure that the child is kept away when unfolding and folding this product.
- WARNING! Do not let the child play with this product.
- WARNING! Use a harness as soon as the child can sit unaided.
- WARNING! This seat unit is not suitable for children under 6 months.
- WARNING! Always use the restraint system.
- WARNING! Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
- WARNING! This product is not suitable for running or skating.
- WARNING! Maximum weight of a child for which the product is intended is up to 22 kg/seat or 4 years whichever comes first.
The maximum load of this wagon is 70 kg, including the weight of children.
This product is tested and approved according to European Standards: EN 1888-1 & EN 1888-2:2018+A1:2022.
SAFETY ADVICE
- Please check regularly that all screws and fasteners are tight and tighten them if necessary.
- Please do not use this item if all components are not properly fitted and adjusted, if any part is defective, torn off or missing.
- Use only accessories and spare parts provided and approved by the manufacturer.
- Plastic bags, packaging and any other plastic elements must be removed immediately or kept out of reach of children.
- During assembly, place a suitable base under the components to protect the product and the floor from damage.
- To avoid damage to the product, do not use a cordless screwdriver to screw on the fittings.
- No additional mattress may be used.
- Assembly and disassembly must be carried out by an adult.
• Always ensure that the brake is engaged when putting children in or taking them out of the wagon. - Note that additional loads have a negative effect on stability and driving characteristics, as well as stability.
- Do not exceed the maximum load of 70 kg.
- Do not lean more than 45 ~kg on the push handle, in case of doubt lift the drawbar of the front wheels to overcome obstacles.
- Before use, make sure that the wagon attachment and the seat units are correctly engaged.
Product notice: In the manufacture of these products, oils, lacquers, and glazes are used. Sometimes, there might be a development of smells from the brand-new product due to the production process. Please note that the smell is completely harmless.
WASHING INSTRUCTIONS
Wipe metal parts and fabric cover with damp cloth. Hand wash of removable parts might be necessary (removable lid, bottom plate, and seat sections).
Note! All removable parts must be properly reassembled after washing.
VIKTIGT!
