Product Type	Docking station for mobile phone / FM transmitter
Brand	Philips
Model	DLA 44000
Compatibility	iPhone, iPhone 3G, iPod (except iPod 3G)
Power supply	12 - 16 V DC, <300 mA
Connector	30-pin connector cable, length 120 cm
FM frequency range	88.1 - 107.9 MHz (0.1 MHz increments)
Default preset frequencies	88.1 / 94.9 / 100.9 / 107.9 MHz
Number of presets	4 (programmable)
IntelliTune function	Automatic search for the best frequency
Display	OLED screen
Control	Keyboard with rotation and press
Listening modes	Mono and stereo
Charging function	Charges iPhone/iPod when connected
Settings	Volume (low/medium/high), brightness, display duration, factory reset
Max audio input	180 mV SS
Operating temperature	Use in vehicle (not specified, estimated 0-40 °C)
Maintenance and cleaning	Clean with a dry cloth; do not use chemical products
Safety	Do not expose to water or weather; do not disassemble; keep away from high-voltage devices
Spare parts and repairability	Do not attempt to repair yourself; contact Philips or www.philips.com/welcome
General information	Warranty: see Philips website; CE compliance (R&TTE 1999/5/EC)

Frequently Asked Questions - DLA 44000 PHILIPS

What to do if I hear static or distortion during playback?

Use the IntelliTune function to automatically search for the best frequency. You can also switch to Mono mode to improve signal clarity.

How to use IntelliTune?

Press the keyboard on your TransDock. The screen displays 'IntelliTune' during the search. Once the frequency is found, set your car radio to that frequency.

My radio only scans occupied stations, what to do?

Switch your car radio to manual tuning mode (refer to your radio manual). You can then manually set the frequency.

Music is overloaded and distorted, how to adjust?

Disable the equalizer (EQ) on your iPhone and set the bass and treble of your car radio to 0. Use IntelliTune to find a free frequency.

My iPhone doesn't charge when connected to the TransDock, why?

Make sure the TransDock is properly inserted in the 12V socket and that the connection cable is correctly attached to the iPhone.

Will the TransDock drain my car battery if left plugged in?

Probably not, but it is advisable to disconnect everything if you leave the vehicle for an extended period.

Can I use the TransDock with other devices besides the iPhone?

No, this TransDock is specially designed for use with iPhone/iPod.

How to manually set a frequency?

Turn the keyboard to the right to increase the frequency, to the left to decrease it. Scan the spectrum to find a free frequency.

How to save a frequency as a preset?

Set the desired frequency, press and hold the keyboard to enter the menu, select 'Preset store', then choose a location (Preset 1 to 4).

What to do if the screen does not turn on?

Check that the TransDock is properly connected to a functioning 12V socket. If the problem persists, visit www.philips.com/welcome.

USER MANUAL DLA 44000 PHILIPS

Smartphone setup with a Philips stand and a digital display showing 88.5 (no readable text or symbols on device)

TransDock micro

DLA44000/10

www.philips.com/support

EN TransDock micro	3
FR TransDock micro	17
DE TransDock micro	31
ES TransDock micro	45
NL TransDock micro	59
IT TransDock micro	73
PT TransDock micro	87
SV TransDock micro	101

EL TransDock micro 115

PL TransDock micro 129

RU TransDock micro 143

CS TransDock micro 157

HU TransDock micro 171

TR TransDock micro 185

FN TransDock micro 199

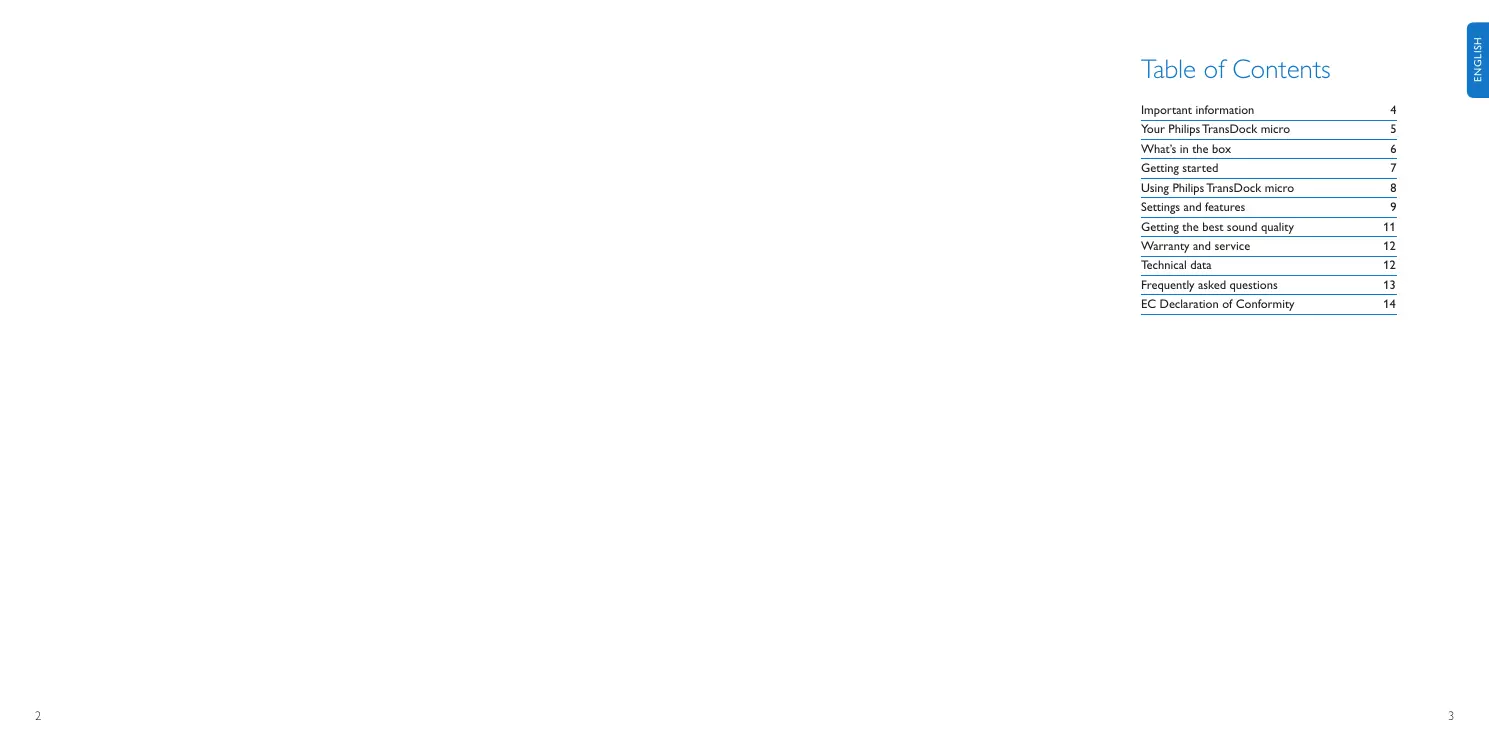

Table of Contents

Important information 4
Your Philips TransDock micro 5
What's in the box 6
Getting started 7
Using Philips TransDock micro 8
Settings and features 9
Getting the best sound quality 11
Warranty and service 12
Technical data 12
Frequently asked questions 13
EC Declaration of Conformity 14

Important information

Take time to read this manual before you use your Philips TransDock micro (DLA44000/10). It contains important information about operating your Philips TransDock micro DLA44000/10.

© 2008 Philips Consumer Lifestyle.

All rights reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. Trademarks are the property of Koninklijke Philips N.V. or their respective owners. iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

Hereby, Philips, BG P&A, declares that this DLA44000/10 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Note

Audio input limiting threshold is maximum 180 mVSS

Disposal of your old product:

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

WEEE logo: When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Warnings

• Do not expose the product to rain or water.
• Keep way from sunlight to prevent heat build-up.
• Do not disassemble or repair:
• Keep away from high voltage devices.

Take the package to your local recycling center.

Your Philips TransDock micro

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Product overview

Your Philips TransDock micro (DLA44000/10) is an FM transmitter that broadcasts your iPhone audio to the FM radio in your car, while simultaneously charging your iPhone. This FM transmitter features IntelliTune™ technology, which scans the airwaves and automatically finds the best stations for transmitting.

Your Philips TransDock micro also features a unique dial-based interface that provides a simple and intuitive way to adjust your FM transmitter's settings and frequencies. Your Philips TransDock micro also comes with the ability to set preset stations for the frequencies you use most.

Philips offers an entire line of products to enhance your iPhone experience.

Product highlights

• Plays iPhone audio over your car stereo
• Charges iPhone
  • IntelliTune technology finds the best station for transmitting iPhone audio
• Simple and intuitive dial based interface
• Controllable OLED display
  • Four programmable presets
  • Monaural and stereo listening modes

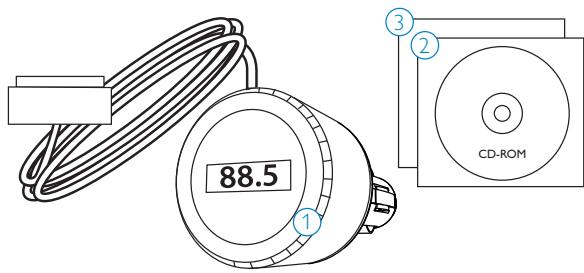

What's in the box

Included

1. TransDock micro DLA44000/10
2. CD-ROM Manual
3. Quick Start Guide

88.5 ① ③ ② CD-ROM

What you will also need

1. iPhone
2. FM car stereo
3. 12V auto power outlet

Line drawing of a smartphone with a button and label '1' (no text or symbols on the device itself)

② FN RADIO 88.5

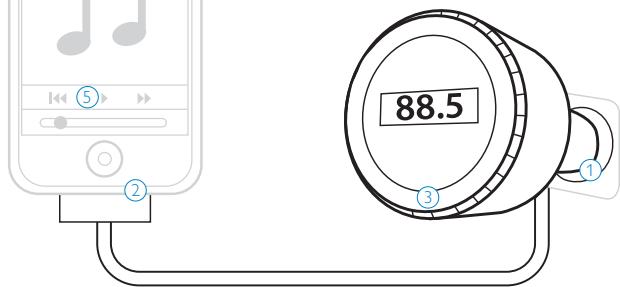

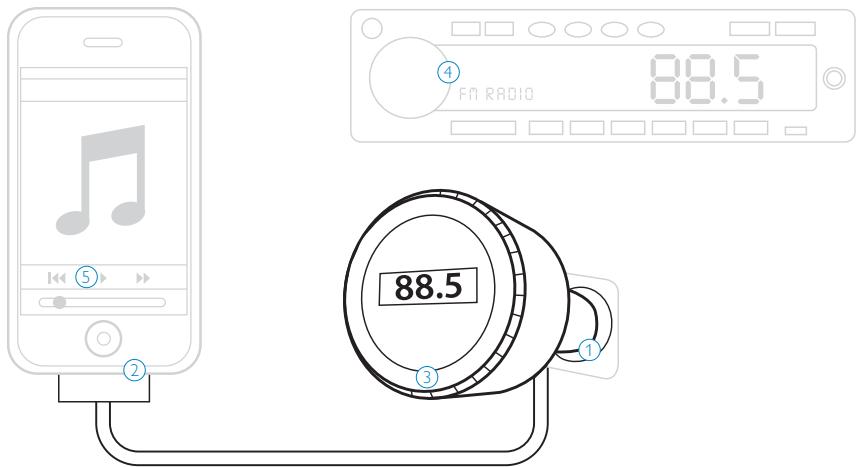

Getting started

Important: Read the safety precautions on page 4 carefully before connecting your PhilipsTransDock micro. This section helps you with the first time installation of your PhilipsTransDock micro.

1. Plug your Philips TransDock micro into your auto power outlet
2. Connect your iPhone to your Philips TransDock micro by inserting the Connector Cable into the iPhone dock connector. Your iPhone will now begin charging if your car is on.

Note: Your iPhone will automatically pause playback when your PhilipsTransDock micro is powered off.

1. Press the dial on your TransDock micro to activate Intellitune. IntelliTune will automatically find the optimal frequency to broadcast your iPhone over your car's FM stereo.
2. Tune your car's FM radio to the frequency displayed on your Philips TransDock micro.
3. Click Play on your iPhone to enjoy your music over your car's FM radio.

FM RADIO 88.5 88.5

Using Philips TransDock micro

Detailed instructions

1. Turn on your car radio and set it to FM radio mode.
2. Insert your Philips TransDock micro into your car's power outlet.
   Note: You can also slightly alter the angle of your TransDock micro by tilting the dial head up or down. See drawing below.

Technical line drawing of a mechanical component with no visible text or symbols

1. Plug the Connector Cable into the iPhone dock connector:
2. To activate your Philips TransDock micro's IntelliTune feature, press the dial. Your Philips TransDock micro will display the word IntelliTune as it searches for the optimal frequency. This should only take a few seconds. Once the search is complete, the display will instruct you to tune your radio to the frequency found by IntelliTune.

3. Match the FM station on your radio with the corresponding FM frequency shown on your TransDock micro's display. Click Play on your iPhone to enjoy your music over your car's FM radio.

4. To control the overall volume of your music while using your Philips TransDock micro, use the car radio's volume control, not the iPhone volume.

Turning your Philips TransDock micro on and off

Your Philips TransDock micro will turn on and off automatically with your car.

To manually turn your Philips TransDock micro on or off while your car power is on, press and hold the dial for approximately 5 seconds.

Finding empty radio frequencies using IntelliTune

To find an empty frequency using IntelliTune:

1. Press the dial on your Philips TransDock micro. This will activate the IntelliTune search. While it is searching, the word IntelliTune will appear on your TransDock micro's display.
2. Once IntelliTune finds an empty frequency, it will display “Tune Radio to XXX.X”. Then, tune your FM radio to that station and begin enjoying your iPhone music over your car stereo.

Manually finding empty radio frequencies

Your Philips TransDock micro also allows you to manually tune the transmitter to desired FM frequencies. Turn your Philips TransDock micro dial to the right to tune to higher stations and left to tune to lower stations.

Tips for manually finding an empty station:

• Be sure to search the entire spectrum of FM frequencies.
• When using scan/seek on your car's radio, if your tuner stops on 101 and then jumps to 103, look in the 102 frequencies for empty stations.
• Try tuning to a strong station, then backing down two frequencies - for example 103.5 to 103.1. You can often find empty frequencies this way.
  Note: If that frequency is taken, scan to the next station and try again.

Settings and features

To enter the Settings Menu press and hold your Philips TransDock micro dial until the display flashes "Settings". Then, turn the dial to scroll through the various Settings, and press the dial to enter your desired Setting. Turn the dial to the right or left to view the chosen Settings options, and press the dial to confirm your selection. Once you've made your selection, you will return to the Settings Menu. Press the center button to exit the Settings Menu.

Note: Your Philips TransDock micro will automatically exit the Settings Menu after a few seconds of inactivity.

Preset Store

Preset Store allows you to save up to four preset stations. The default presets are 88.1, 94.9, 100.9, and 107.9.

To store your own preset stations, follow these simple steps:

1. Using the dial, tune Philips TransDock micro to the station you'd like to set – turning right to tune to higher stations and left to tune to lower stations.
2. Press and hold the dial to enter the Settings Menu.
3. Once in the Settings Menu, scroll to Preset Store and press the dial to select. Next, scroll to and select the preset number (SET 1, SET 2, SET 3, or SET 4) and press to select.
4. Repeat steps 1-3 to store the remaining presets.

Note: Your new preset will override the preset that was last saved, including the default presets.

Preset Mode

Preset Mode gives you the option to scroll through your presets in Manual Mode.

To turn Preset Mode on, follow these simple steps:

1. Press and hold the dial to enter the Settings Menu.

2. Scroll to Preset Mode and press the dial to select. Then choose Preset Mode On and press to select. Now you can scroll through the four presets (P1, P2, P3, P4) in Manual Mode.

3. Leave your Philips TransDock micro on the desired preset and tune your radio to the corresponding frequency to begin broadcasting.

Audio Level

Audio Level gives you the option of selecting the volume output level that fits your particular audio. Turn the dial right or left to select from: Low, Medium or High.

Listening Mode

Listening Mode allows you to choose between Mono and Stereo. Your Philips TransDock micro defaults to Mono for optimal transmitter performance. To learn more about Listening Mode please read Getting the Best Sound Quality.

Brightness Time

Brightness Time allows you to change the length of time that your Philips TransDock micro's display screen stays active. Scroll through to select: Always On, 2 seconds, 5 seconds, 10 seconds, 15 seconds, or 20 seconds

Brightness Level

Brightness Level controls the brightness of the OLED display while your PhilipsTransDock micro is active. To adjust brightness, turn the dial right for higher intensity and left for lower intensity.

Dim Level

Dim Level controls the brightness of the OLED display while your PhilipsTransDock micro is inactive. Turn the dial right for higher intensity and left for lower intensity or completely off.

Reset Settings

Reset Settings allows you to revert back to the factory settings. To do so, press the dial when on Reset Settings. Your Philips TransDock micro will ask you if you are sure you would like to reset your settings. Press the dial once to accept, or turn right or left to return to the Settings Menu.

Getting the best sound quality

• Use IntelliTune to automatically find the optimal frequency to broadcast your iPhone over your car's FM stereo. Then, tune your car's FM stereo to the frequency displayed on your PhilipsTransDock micro.
• Choose between Mono and Stereo in Listening Mode: Mono allows for much better transmitter performance, while Stereo allows for the best sonic musical performance.
  Note: If static or distortion increases, switch to Mono for the best transmitter performance possible.
• To get the best initial performance from your Philips TransDock micro, it is very important that you set your iPhone EQ to Off and adjust your car's bass and treble controls to 0. Then you can experiment with adding bass and treble to your desired level.

Warranty and service

For warranty information and product support please visit http://www.philips.com/welcome.

Technical data

Compatibility

iPhone

iPhone 3G

All dockable iPods (excluding 3G iPod)

FM Transmitter

Modulation: FM Stereo

Default preset frequencies (MHz): 88.1, 94.9, 100.9, and 107.9

Frequency adjustment: 0.1 MHz per step

Frequency response: 20Hz \~ 15KHz

Frequency range: from 88.1 - 107.9

Tuning

Digitally controlled crystal oscillator

Connector

30-Pin iPhone Dock Connector Cable: Length 48"

Power

Input voltage: 12 – 16 VDC

Input current: <300mA @ DC12V\~16V

Display

OLED display

Frequently asked questions

Here you will find the most frequently asked questions and answers about you're your Philips TransDock micro.

To keep the warranty valid, never try to repair the product yourself. If you encounter problems when you use your TransDock micro, check the following points before you contact Philips. If the problem remains unsolved, go to the Philips website www.philips.com/welcome. When you contact Philips, make sure that your Philips TransDock micro is nearby and the model number and serial number are available.

What do I do if I hear static or distortion when my music is playing?

Use IntelliTune to automatically find the optimal frequency to broadcast your iPhone over your car's FM stereo. Then, tune your car's FM stereo to the frequency displayed on your PhilipsTransDock micro.

Note: Also try setting the Listening Mode to Mono, which will improve the clarity of your PhilipsTransDock micro's signal.

What do I do if my radio will only scan/seek to occupied FM stations?

Many car radios default to scan/seek mode for tuning, so they automatically tune to a radio station. Most of these radios can be switched to manual tuning (consult your car or radio manual on how to do this).

What do I do if my music sounds overdriven and distorted?

Be sure that the FM station you're using is still unoccupied as you drive through different areas. FM signals can intrude on an unused frequency.

Be sure to set your iPhone EQ to Off and adjust your car's bass and treble controls to 0. Then you can experiment with adding bass and treble to your desired level.

My iPhone does not appear to be charging when it's connected to Philips TransDock micro?

Make sure your Philips TransDock micro is securely positioned in your car's power outlet.

Note: You may also check to ensure that the connector cable is securely attached to the iPhone dock connector.

If I leave my Philips TransDock micro plugged into my car's power outlet, will it drain my car battery?

Probably not, but it's always a good idea to unplug anything when leaving your car for a long period of time.

Note: Your Philips TransDock micro will continue to draw power from your car's battery as long as a device is attached.

Can I use my Philips TransDock micro with other devices?

No, your Philips TransDock micro is designed specifically for use with an iPhone/iPod.

EC Declaration of Conformity

PHILIPS

AQ95-56F-1040

(report No.)

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -/10

(type or model)

TransDock Micro II

(product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager

(signature, name and function)

Made in China

CE0359①

European regulations:

This product has been designed, tested and manufactured according the European R&TTE directive 1999/5/EC

Following this directive, this product can be brought into service in the following states:

This equipment may be operated in the following checked countries under license exemption, For usage details please consult your local authority

√	AT	√	DE	√	GB	☐	IT	√	MT	√	RU
√	BE	√	DK	√	GR	√	LI	√	NL	√	SE
√	BG	√	EE	☐	HR	√	LT	√	NO	√	SI
√	CH	√	ES	√	HU	√	LU	√	PL	√	SK
√	CY	√	FI	√	IE	√	LV	√	PT	☐	TR
√	CZ	√	FR	√	IS	☐	MK	√	RO

Warning! This is a Class II Radio Frequency Device. The frequency range 87.5-108.5 is reserved for other applications in France, Cyprus, Greece, Hungary, Ireland, Italy, Latvia and Poland. This device cannot cause harmful interference while

in use. If interferences occur, please disable its transmitter immediately. The operating frequencies of this device is configured as 88.1-107.9MHz.

Table des matières

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and label '1' (no text or symbols on the device itself)

2 FA RADIO 88.5

Pour commencer

Technical line drawing of a mechanical component with no visible text or symbols

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function)

Fabriqué en Chine.

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and label '1' (no text or symbols on the device itself)

2 FA RADIO 88.5

Erste Schritte

FM RADIO 88.5 88.5

Technical line drawing of a mechanical component with no visible text or symbols

Modulation: FM Stereo

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -/10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function)

Made in China

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and circular icon labeled '1' (no text or symbols on the device itself)

2 FA RADIO 88.5

Cómo empezar

FM RADIO 88.5 88.5

Technical line drawing of a mechanical component with no visible text or symbols

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function

Fabricado en China

CE0359①

Normativas europeas:

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a circular badge labeled '1' (no text or symbols on the device itself)

② FA RADIO 88.5

Starten

88.5 FO RADIO 88.5 ① ② ③

Technical line drawing of a mechanical component with no visible text or symbols

Helderheidsniveau (Brightness Level)

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -/10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function)

Made in China

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and circular icon labeled '1' (no text or symbols on the device itself)

2 FA RADIO 88.5

Introduzione

Technical line drawing of a mechanical component with no visible text or symbols

Domande Frequenti (Frequently Asked Questions)

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function

Fabbricato in Cina

CE0359①

Norme europee:

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and circular label (no text or symbols on the device itself)

2 FA RADIO 88.5

Começar

Technical line drawing of a mechanical component with no visible text or symbols

Cabo 30-Pin iPhone Dock Connector: comprimento 48"

Energia

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager

(signature, name and function)

Fabricado na China

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a circular badge labeled '1' (no text or symbols on the device itself)

2 FA RADIO 88.5

Komma igång

FM RADIO 88.5 88.5

Technical line drawing of a mechanical component with no visible text or symbols

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips (name)

DLA44000 -/10 (type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function)

Tillverkad i Kina

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a circular button labeled '1' (no text or symbols on the device itself)

2 FA RADIO 88.5

Ξεκινώντας

Technical line drawing of a mechanical component with no visible text or symbols

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -/10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function)

Φτιαγμένο στην Κίνα

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a circular badge labeled '1' (no text or symbols on the device itself)

2 FA RADIO 88.5

Na początek

Technical line drawing of a mechanical component with no visible text or symbols

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips (name)

DLA44000 -/10 (type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman Approbation manager (signature, name and function)

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and circular label (no text or symbols on the device itself)

2 FA RADIO 88.5

Начало работы

Technical line drawing of a mechanical component with no visible text or symbols

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -/10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function

Сделано в Китае

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and circular label (no text or symbols on the device itself)

2 FA RADIO 88.5

Jak začít

Technical line drawing of a mechanical component with no visible text or symbols

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function

Vyrobeno v Číně

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and label '1' (no text or symbols on the device itself)

② FN RADIO 88.5

Fogjunk hozzá

Technical line drawing of a mechanical component with no visible text or symbols

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function

Készült Kínában

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and label '1' (no text or symbols on the device itself)

2 FA RADIO 88.5

Başlarken

FM RADIO 88.5

88.5 ① ② ③

Technical line drawing of a mechanical component with no visible text or symbols

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips

(name)

DLA44000 -10

(type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager (signature, name and function

Çin'de Üretilmiş

CE0359①

© 2008 Philips Consumer Lifestyle.

Line drawing of a smartphone with a button and circular label (no text or symbols on the device itself)

2 FA RADIO 88.5

Aloitusohjeet

Technical line drawing of a mechanical component with no visible text or symbols

Brightness Time (Valoaika)

EC DECLARATION OF CONFORMITY

We, Philips Consumer lifestyle, BU P&A: Building SFF6 (manufacturer's name)

P.O.Box 80002, 5600 JB Eindhoven, The Netherlands (manufacturer's address)

declare under our responsibility that the electrical product:

Philips (name)

DLA44000 -/10 (type or model)

TransDock Micro II (product description)

to which this declaration relates is in conformity with the following standards:

EN301 489-1 v 1.5.1

EN301 489-9 v 1.3.1

EN301 357-1 v 1.3.1

EN301 357-2 v 1.3.1

EN60065 ed 7.1

(title and/or number and date of issue of the standards)

following the provisions of annex IV of the R&TTE directive 1999/5/EC and is produced by a manufacturing organisation on ISO 9000 level.

Eindhoven, 12/06/2008

(place, date)

K.Rysman

Approbation manager

(signature, name and function)
