Product Type	Built-in Range Hood
Model	Leo SF190SVA
Brand	Cylinda
Width	90 cm
Depth	50 cm
Height	15 cm (built-in part)
Net Weight	Approx. 15 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	250 W
Extraction Rate	Up to 700 m³/h
Noise Level	45-65 dB(A)
Grease Filter	Aluminum, washable
Lighting	2 x 3 W LED
Controls	Soft-touch buttons with timer
Modes	Extraction (ducted) or recirculation (charcoal filter)
Installation	Built-in under cabinet, 65 cm min. distance to gas hob
Cleaning	Grease filter monthly, surfaces with damp cloth
Safety	Auto-off, motor protection
Spare Parts	Grease filters, charcoal filters, LED lamps
Repairability Index	7.5 / 10

Frequently Asked Questions - Leo SF190SVA Cylinda

How do I install the Leo SF190SVA range hood?

Install the hood at least 65 cm above a gas hob and 50 cm above an electric hob. Ensure secure mounting to a sturdy wall or cabinet. Connect to a 220-240V outlet and if using extraction mode, duct to the outside. For recirculation, install the charcoal filter.

How often should I clean the grease filter?

Clean the aluminum grease filter every month under warm water with mild detergent. Let it dry completely before reinstalling. More frequent cleaning may be needed with heavy use.

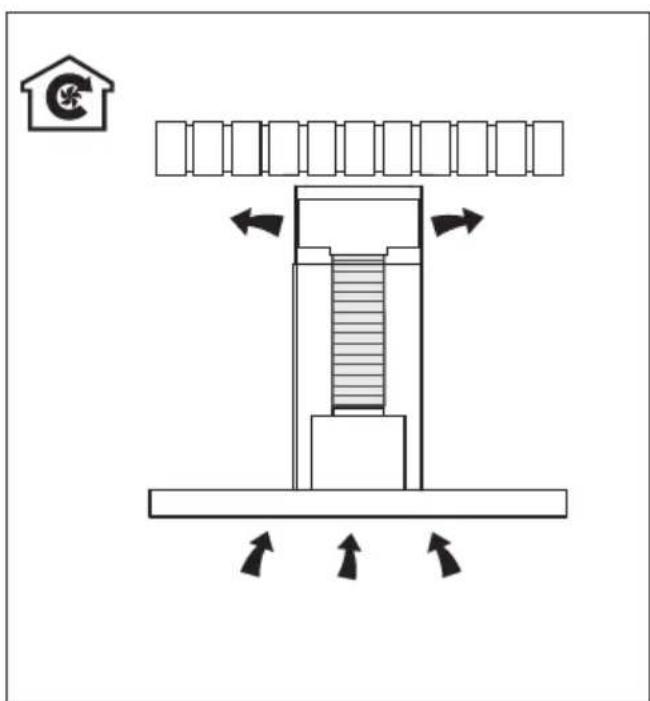

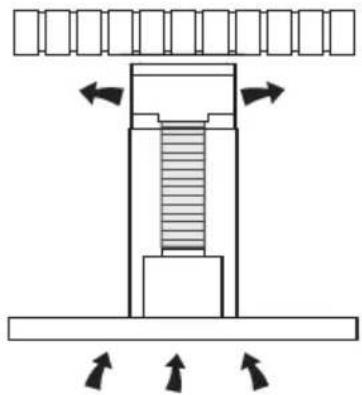

Can I use the hood without ducting?

Yes, the hood supports recirculation mode. You must install the included charcoal filter to remove odors. The filter should be replaced every 3-6 months.

The hood is noisy. What can I do?

Check if the grease filter is dirty or if there is an obstruction in the duct. Ensure the hood is securely installed. Noise levels up to 65 dB are normal at maximum speed.

How do I replace the LED lights?

Disconnect power, then gently pry out the old LED module and disconnect the connector. Insert the new LED module and reconnect. Ensure the LED is compatible with the 3W specification.

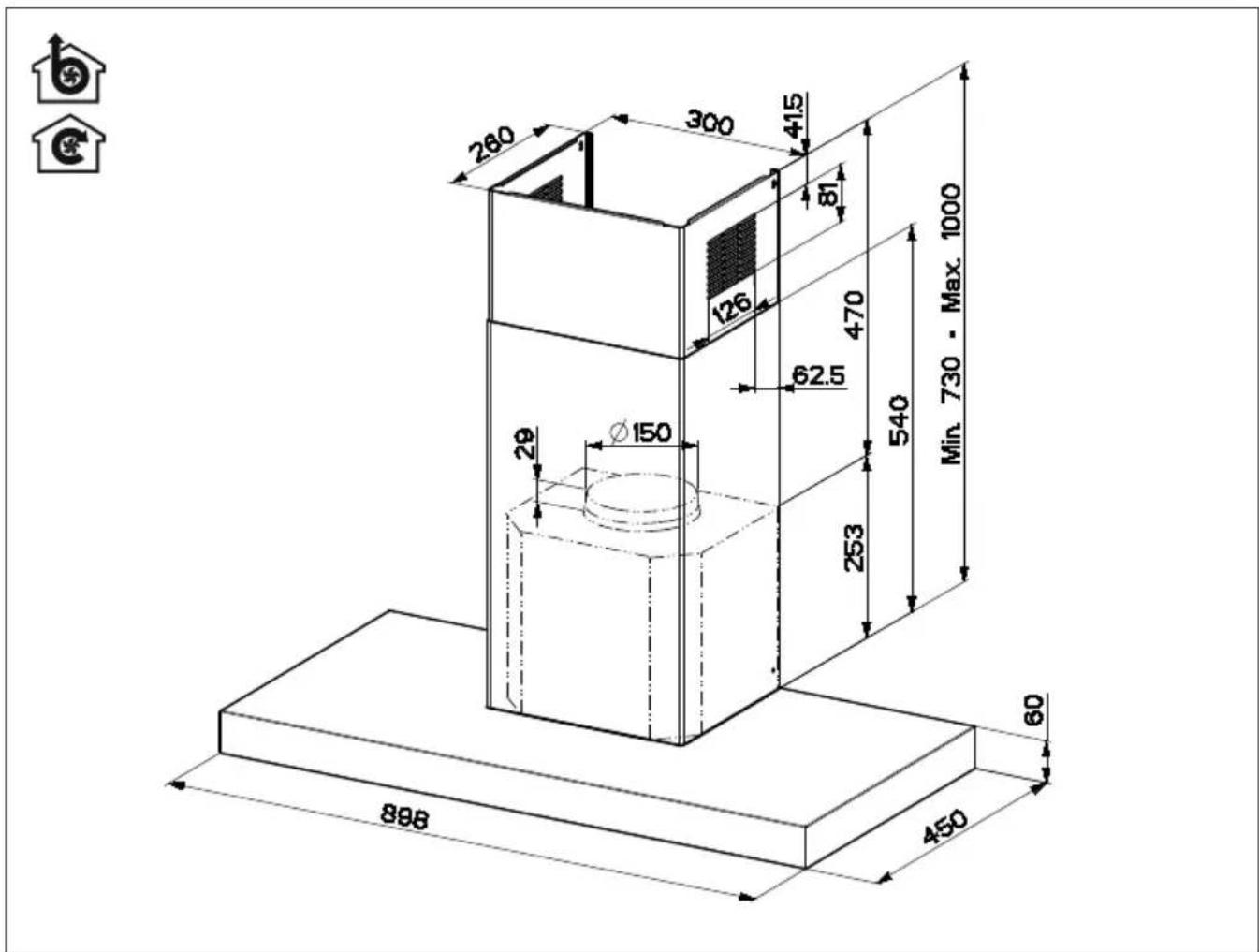

What are the dimensions of the Leo SF190SVA?

The hood is 90 cm wide, 50 cm deep, and 15 cm high for the built-in part. The chimney height is adjustable from 60 to 90 cm.

Does the hood have a timer?

Yes, the touch controls include a timer function that can be set to automatically turn off the hood after 1 to 15 minutes.

Where can I find spare parts?

Spare parts such as grease filters, charcoal filters, and LED lamps are available through your local Cylinda dealer or authorized online stores.

What should I do if the hood does not start?

Check that the hood is plugged in and the circuit breaker is not tripped. Ensure the touch controls are dry. If the problem persists, contact customer support.

Is a professional installation required?

While a handy person can install the hood, it is recommended to have a qualified electrician handle the electrical connection, especially if hardwiring is needed.

USER MANUAL Leo SF190SVA Cylinda

Simple grayscale icon depicting a kitchen scene with oven, refrigerator, and washing machine (no text or symbols)

Leo SF190SVA

EN 3
NO 7
DA 10
FI 14
SV 18

EN

1. SAFETY INFORMATION

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.

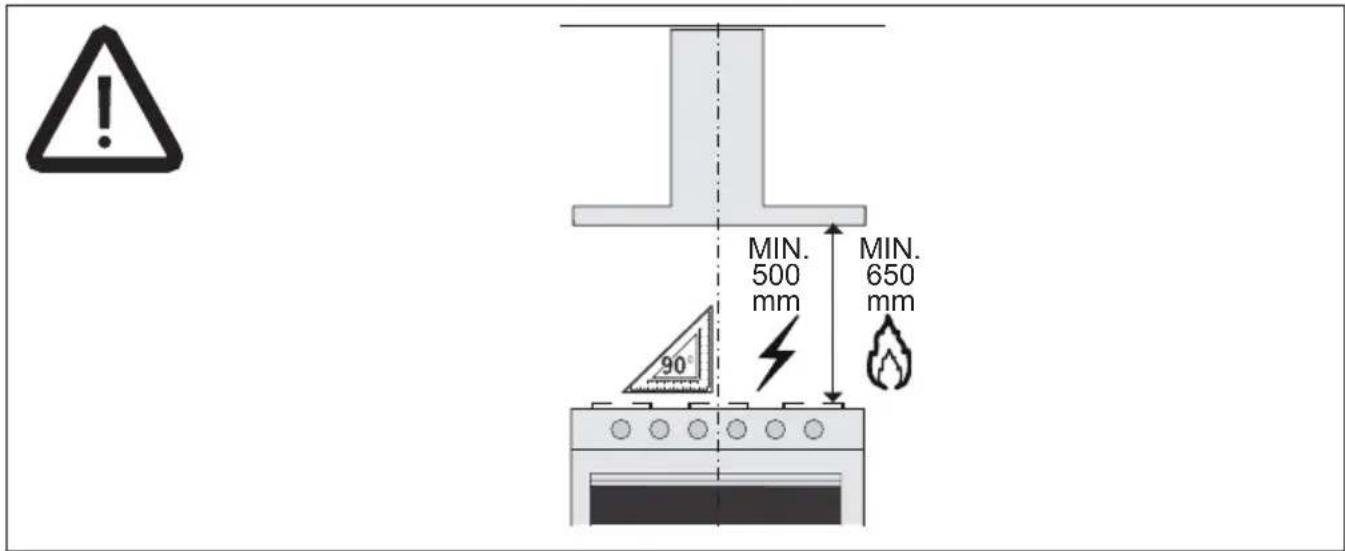

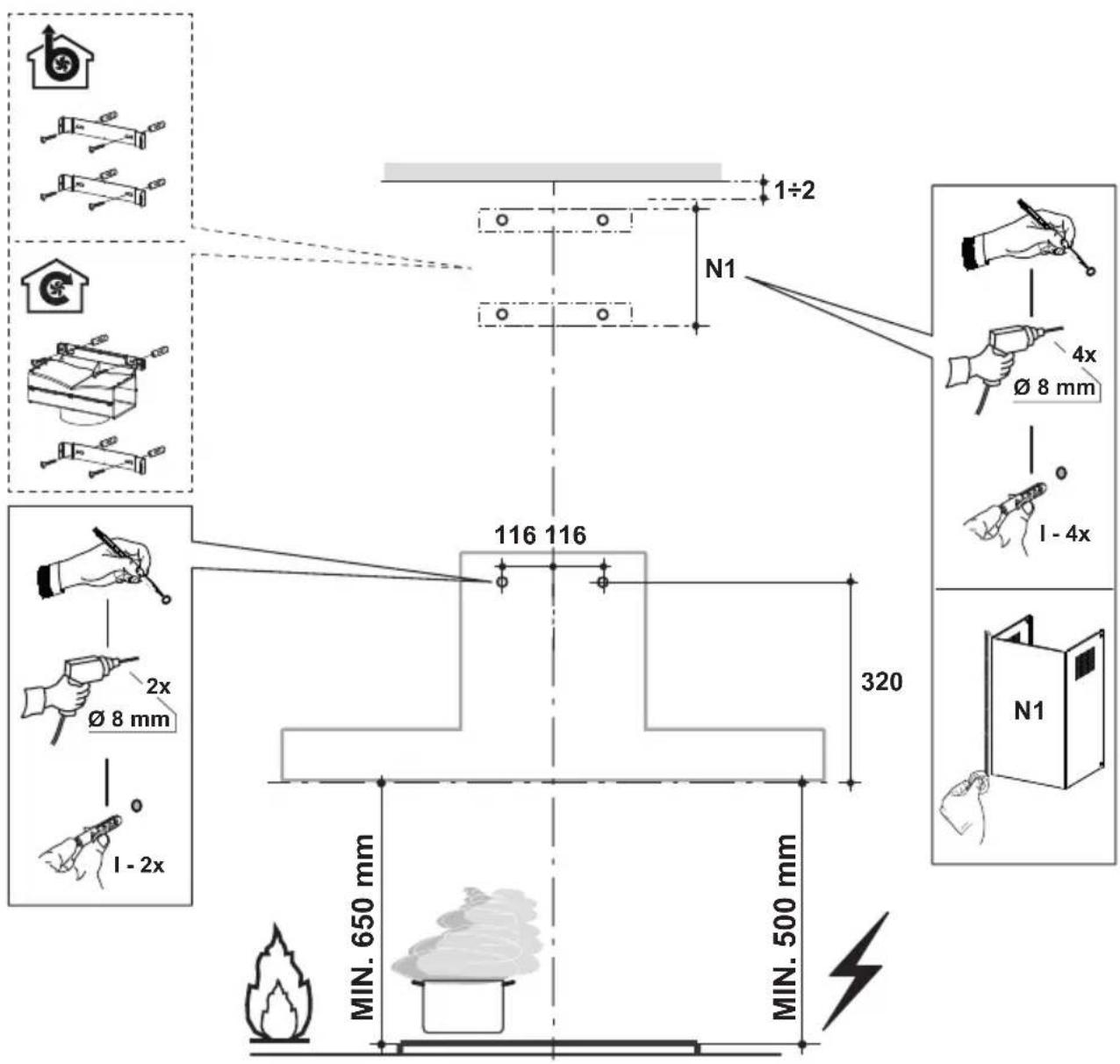

• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

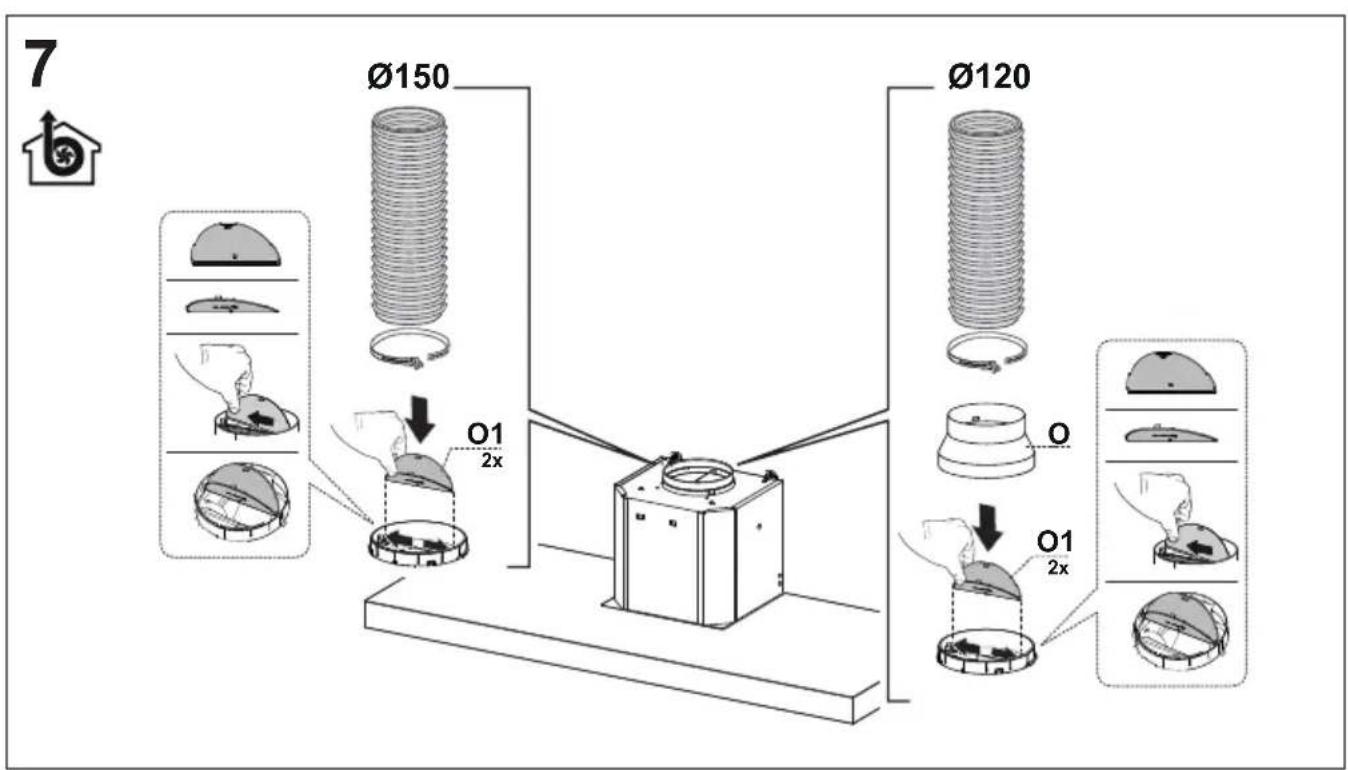

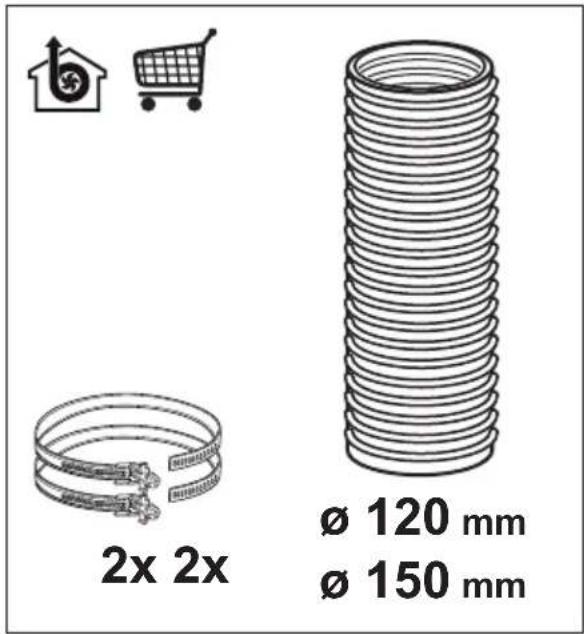

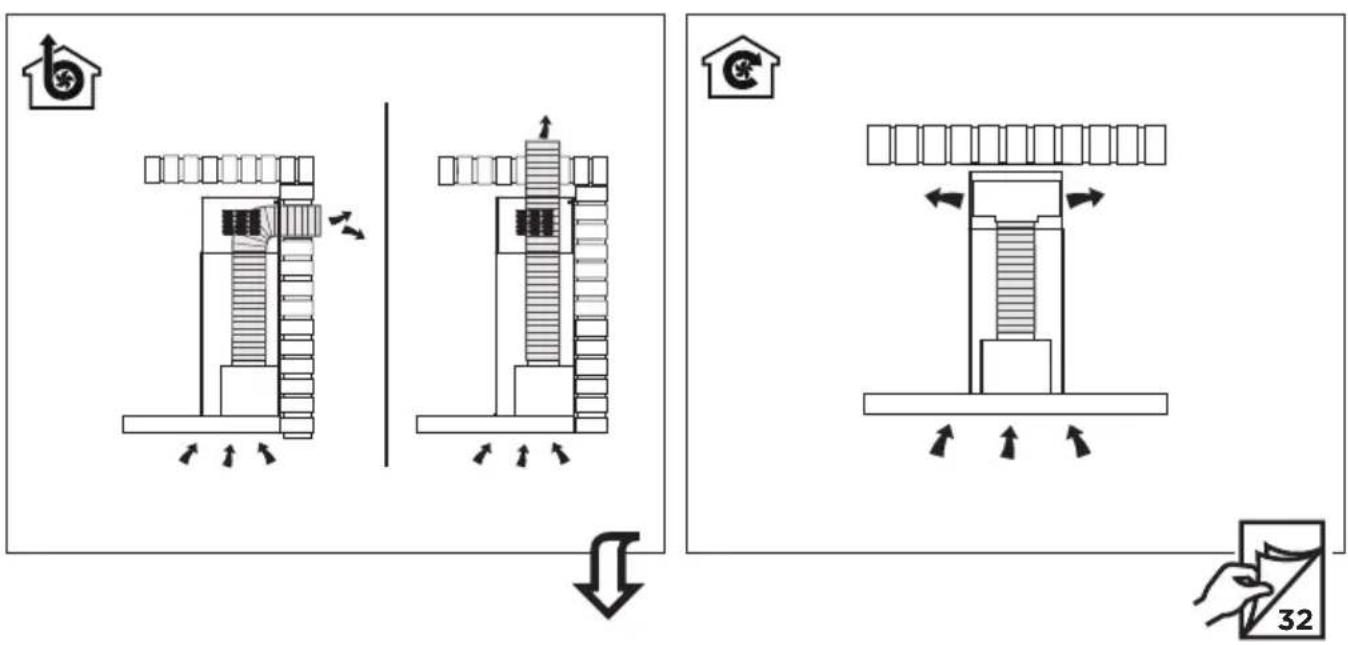

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.

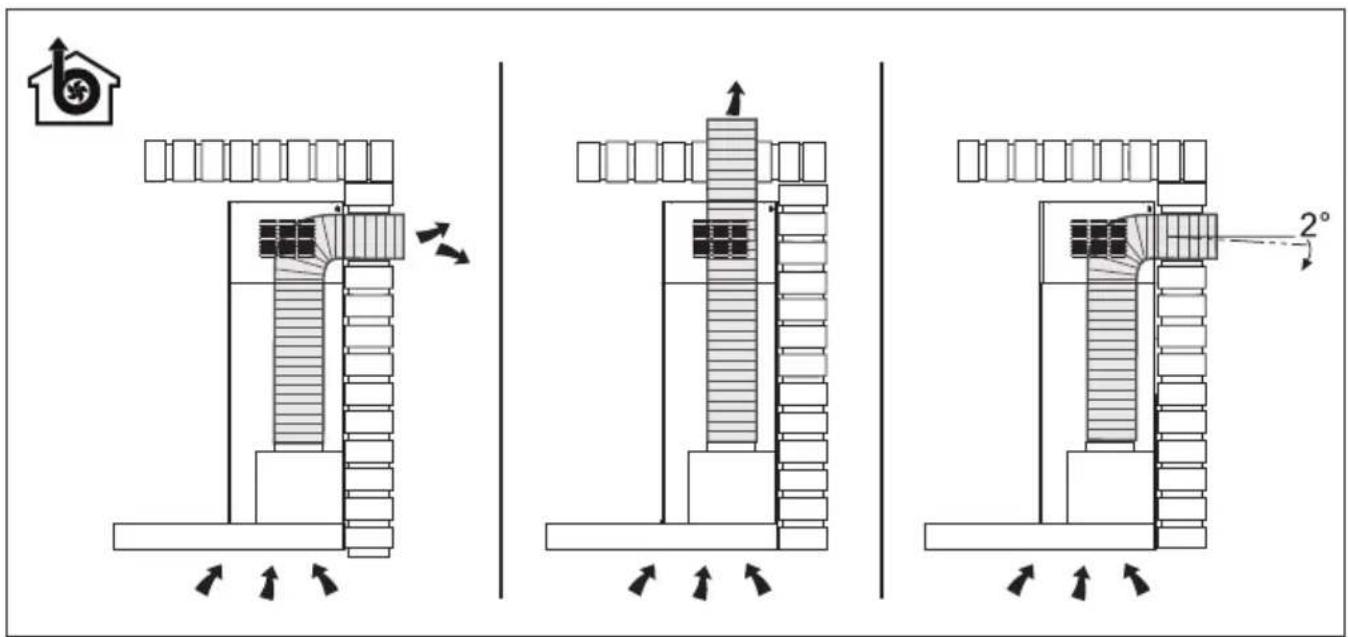

• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psychophysical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol 📄 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

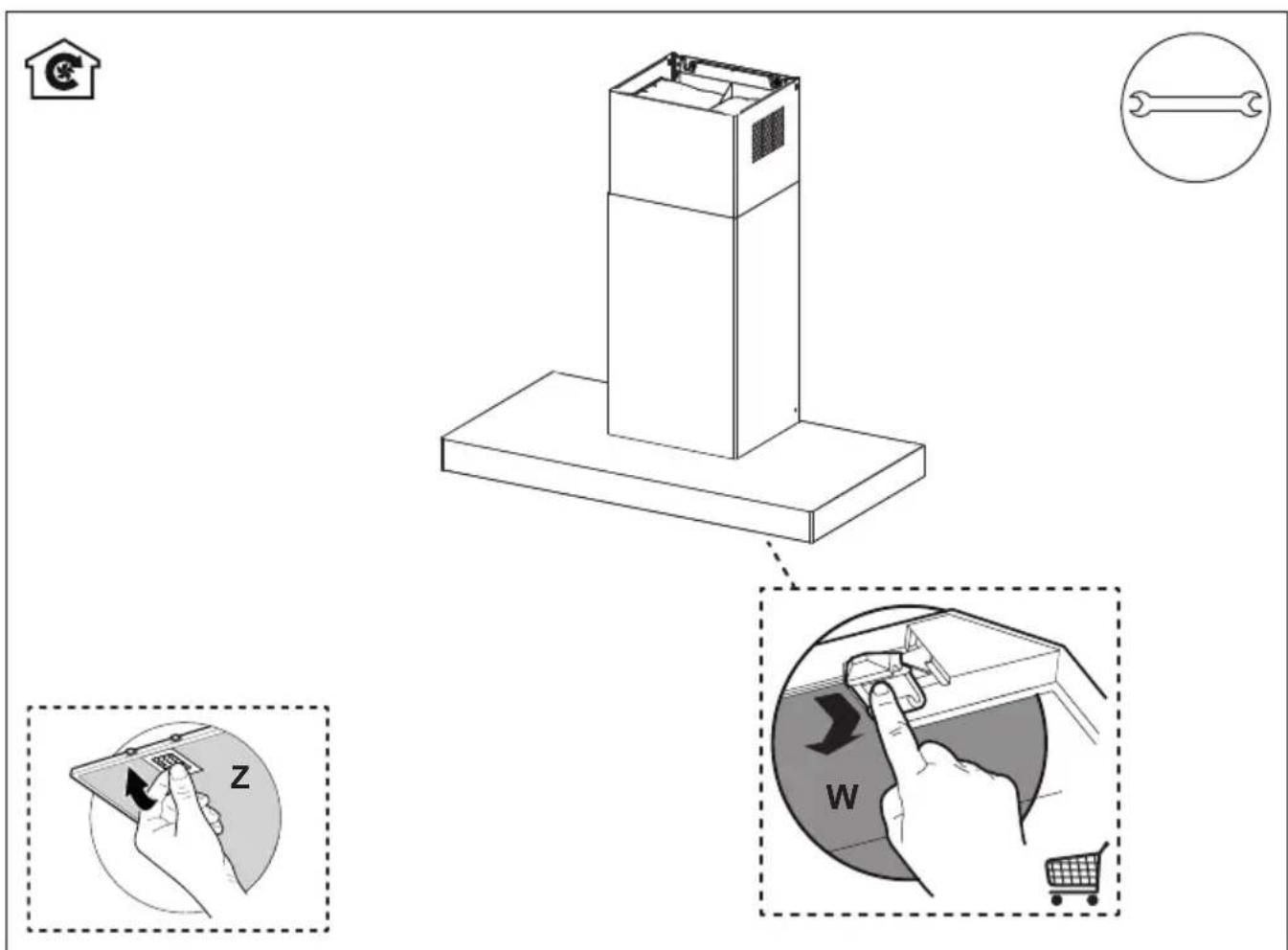

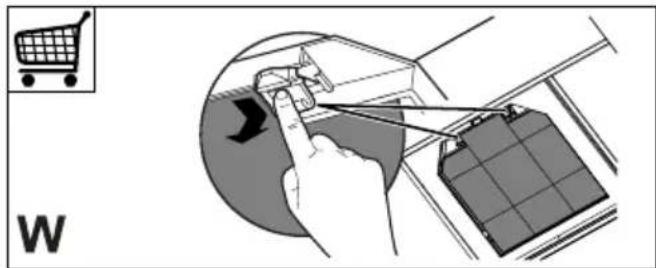

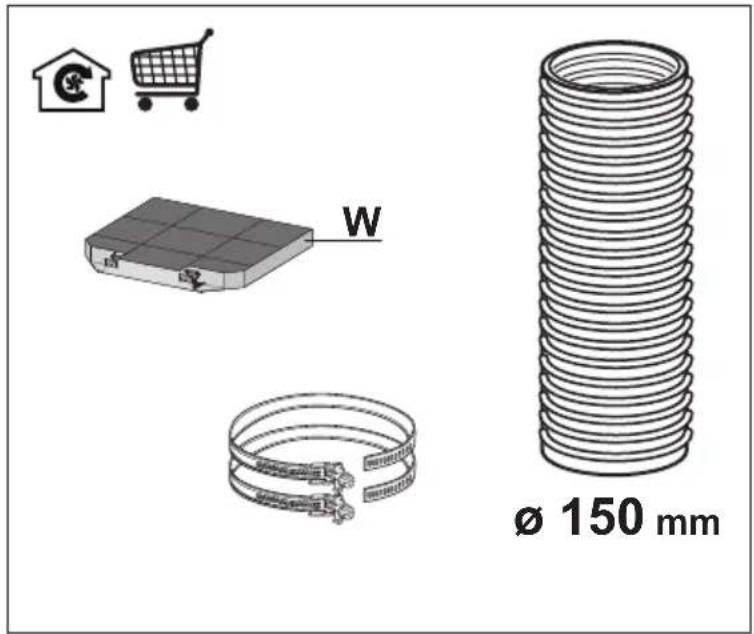

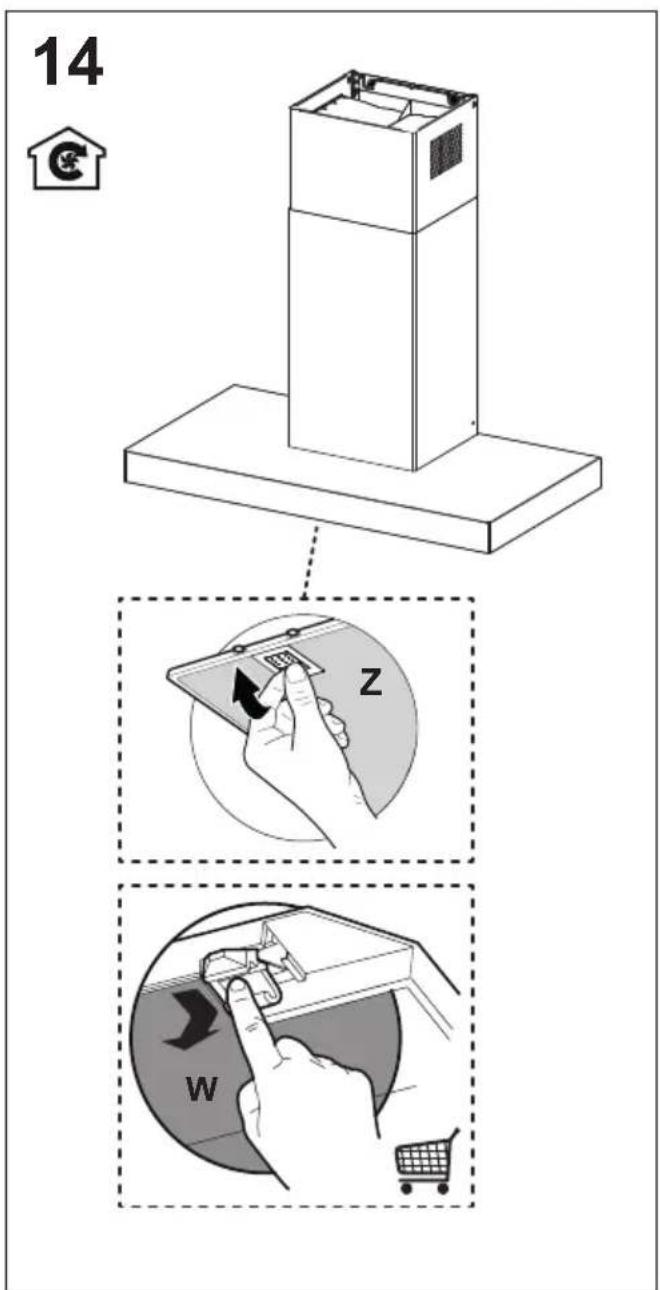

- The active carbon filter cannot be washed or regenerated and must be replaced after every 4 months of operation or, more frequently, in case of very intense use (W).

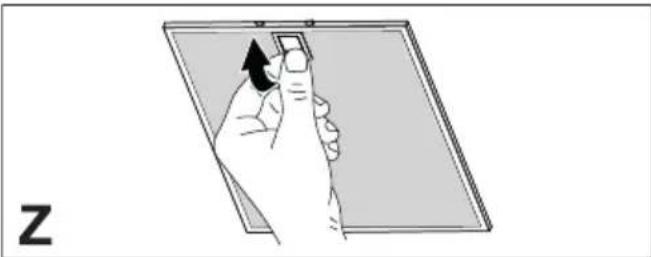

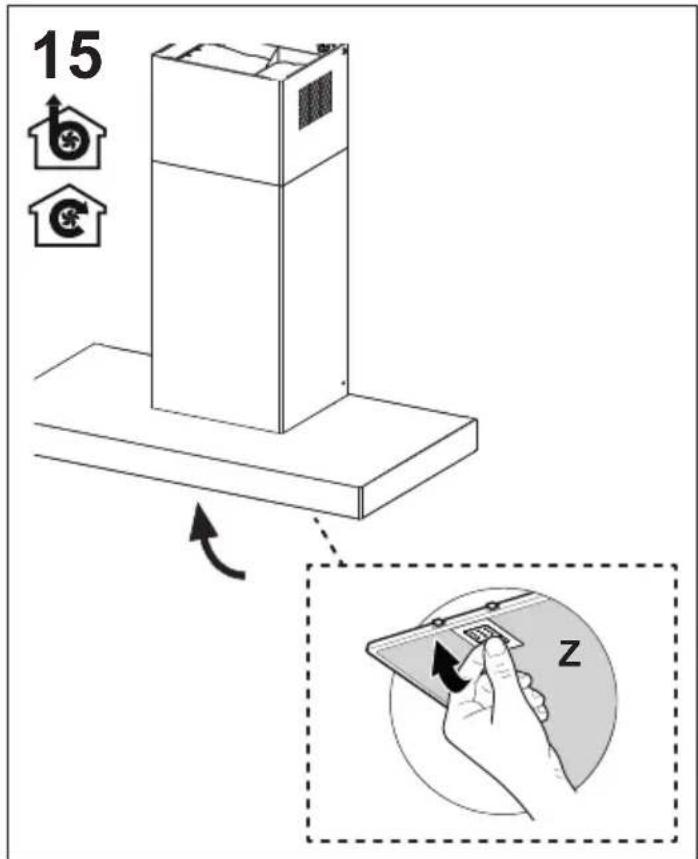

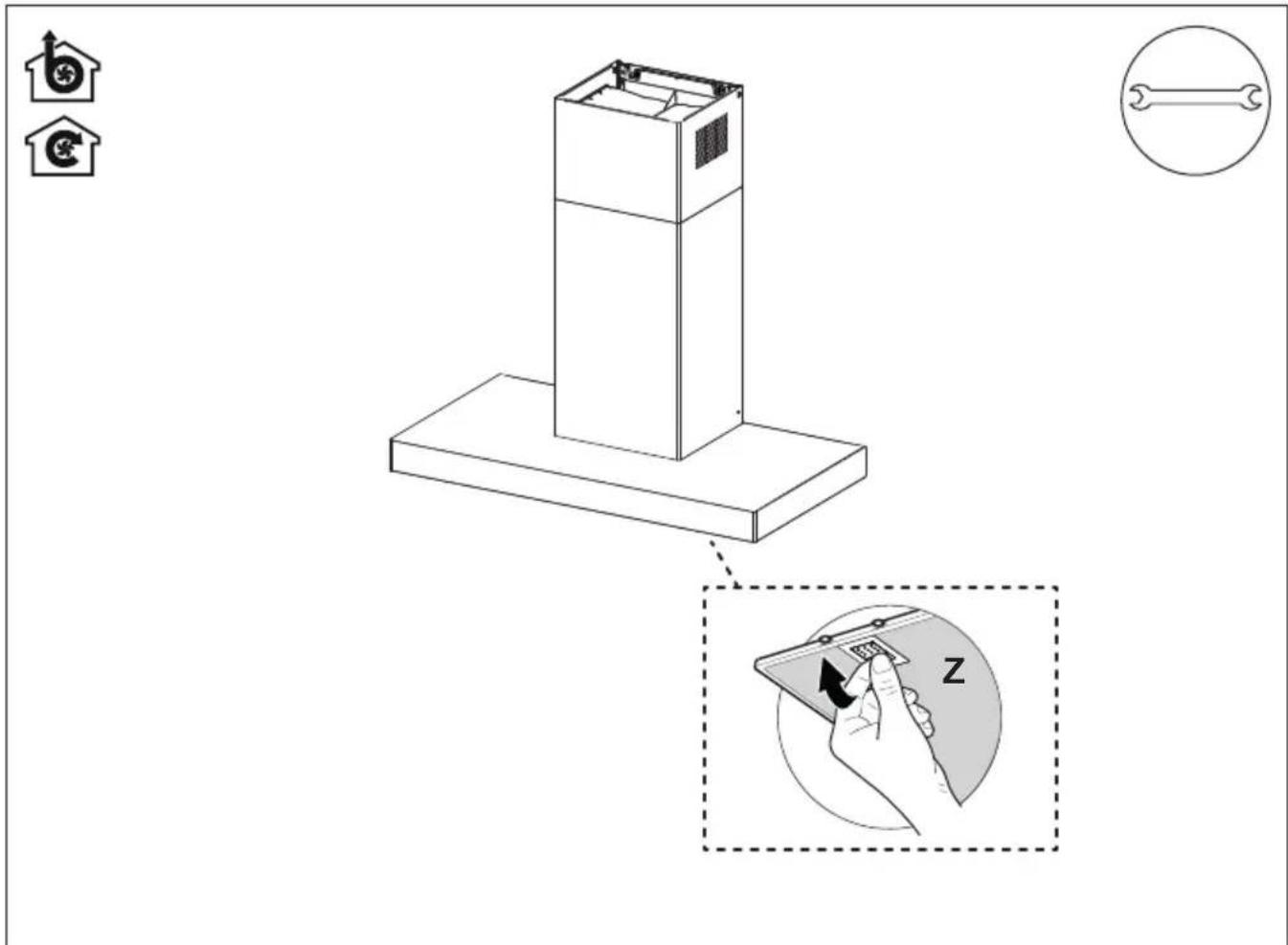

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

Illustration of a hand holding a smartphone with an arrow indicating the tip, against a plain background (no text or symbols)

• Clean the hood using a damp cloth and a neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-ab-rasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

	T1	T2	T3	L
Button Functions LED
T1Speed	Starts the motor at first speed. On
	Stops the motor. -
T2Speed	Starts the motor at second speed. On
T3Speed	Pressed briefly starts the motor at third speed. Fixed
	Pressed for 2 seconds. Activates the fourth speed for 6 minutes, at the end of which it returns to the previously set speed. Suitable for dealing with peaks of cooking fume emissions.			Blinking
LLight	Turns the lighting system on and off. -
Warning: Button T1 always switching to first speed before stopping the motor.

5. LIGHTING

- Please contact the Service Department to change it ("Please contact the service department to purchase it").

NO

1. SIKKERHETSINFORMA SJON

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Illustration of a hand holding a tablet device with an arrow indicating the fold (no text or symbols present)

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Simple line drawing of a wrench and screwdriver (no text or symbols)

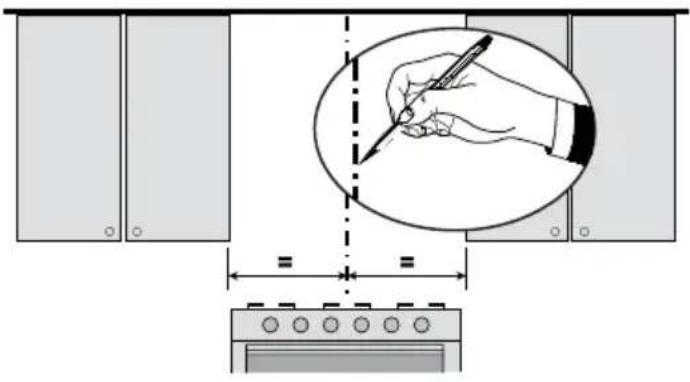

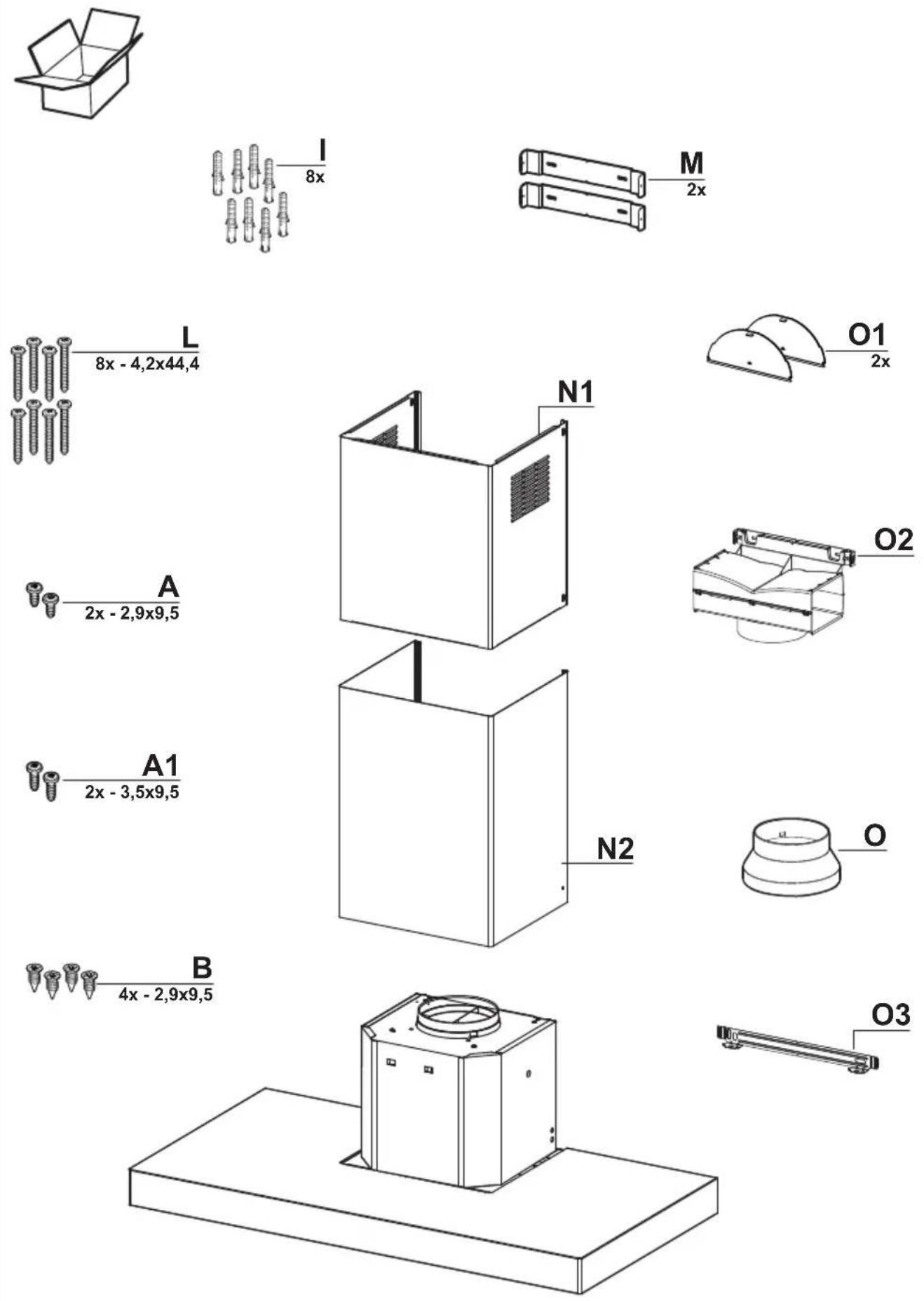

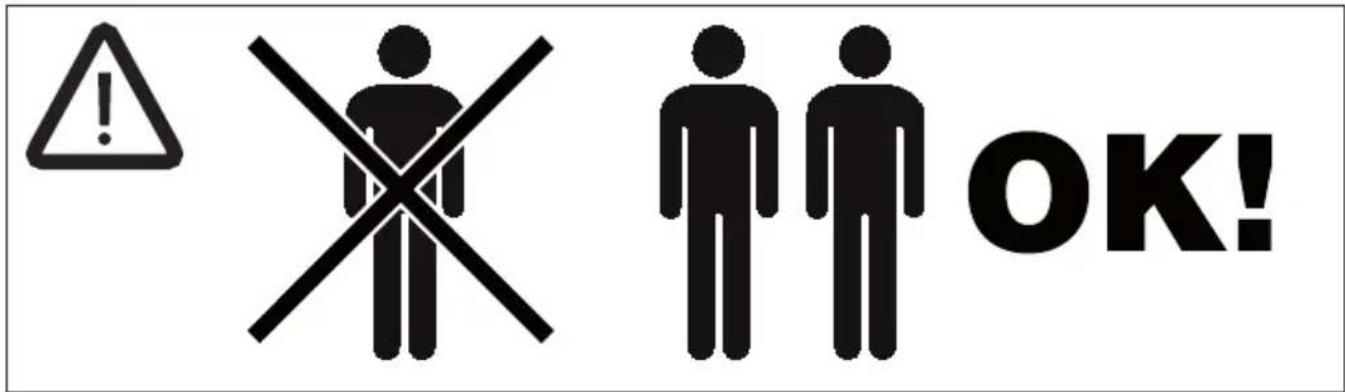

EN Warning! Before proceeding with installation, read the safety information in the User Manual.
NO Advarsel! Les sikkerhetsinstruksjonene i bruksveiledningen før apparatet installeres.
DA Advarsel! Læs sikkerhedsreglerne i brugsanvisningen inden installation.
FI Varoitus! Ennen laitteen asentamista lue käyttöoppaassa olevat turvallisuustiedot.
SV Varning! Läs säkerhetsföreskrifterna i bruksanvisningen innan apparaten installeras.

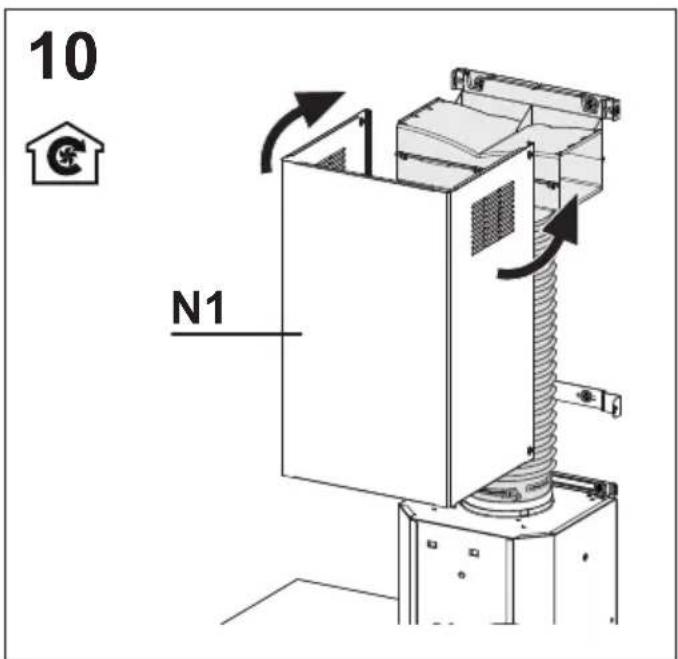

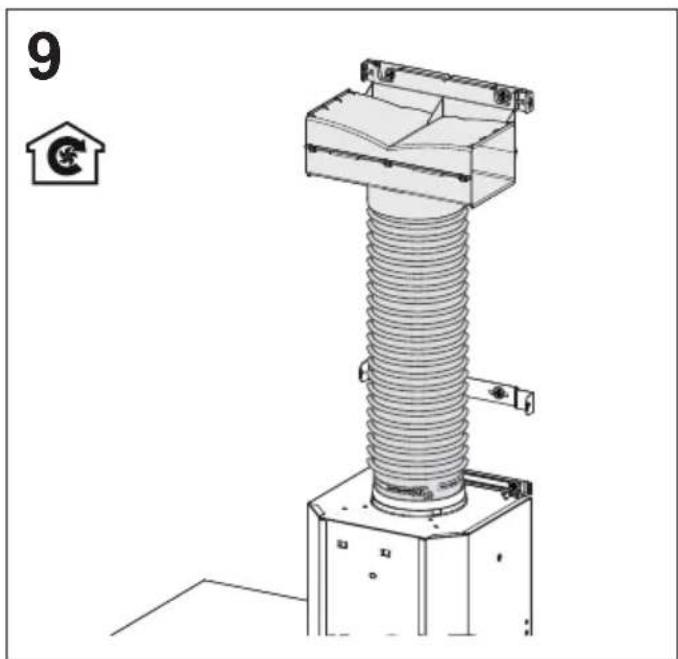

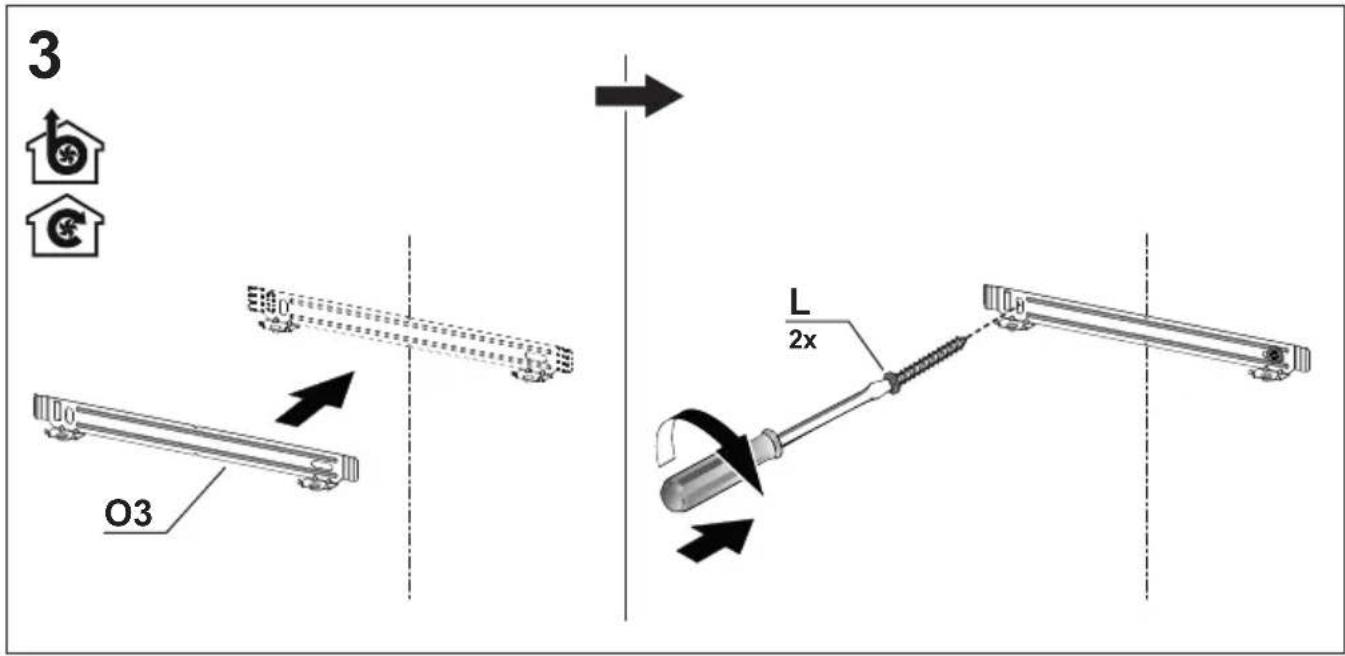

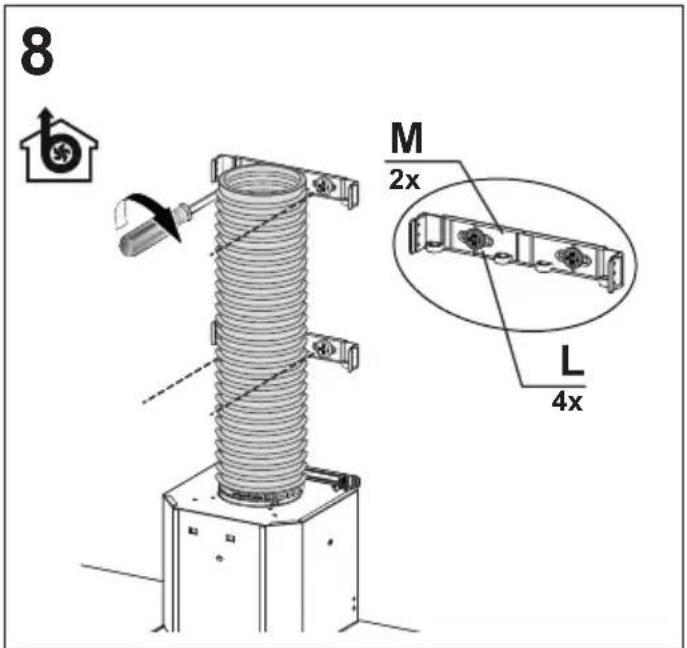

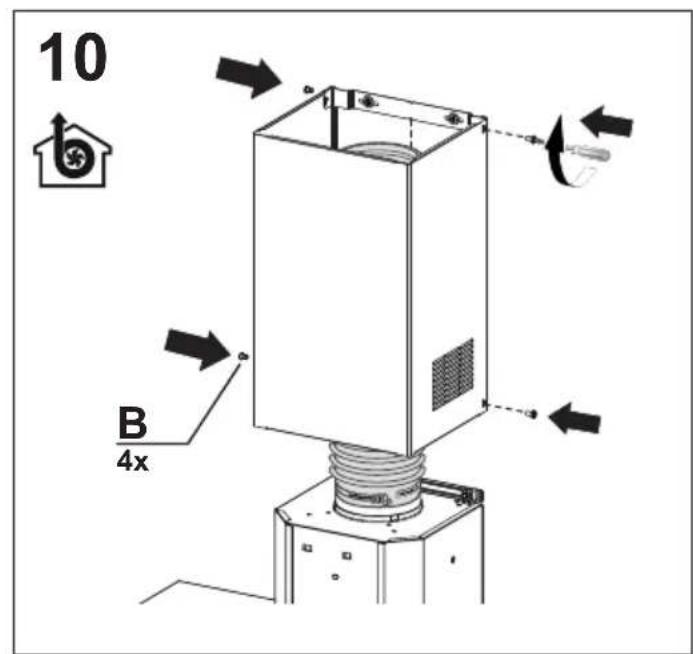

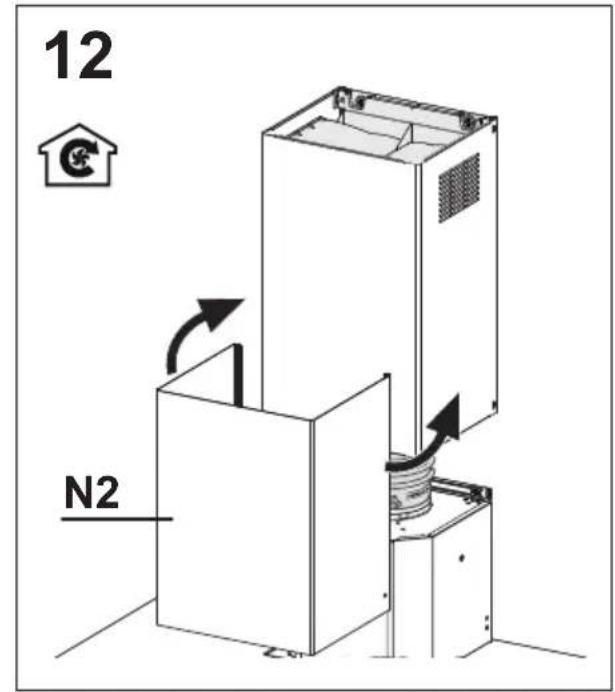

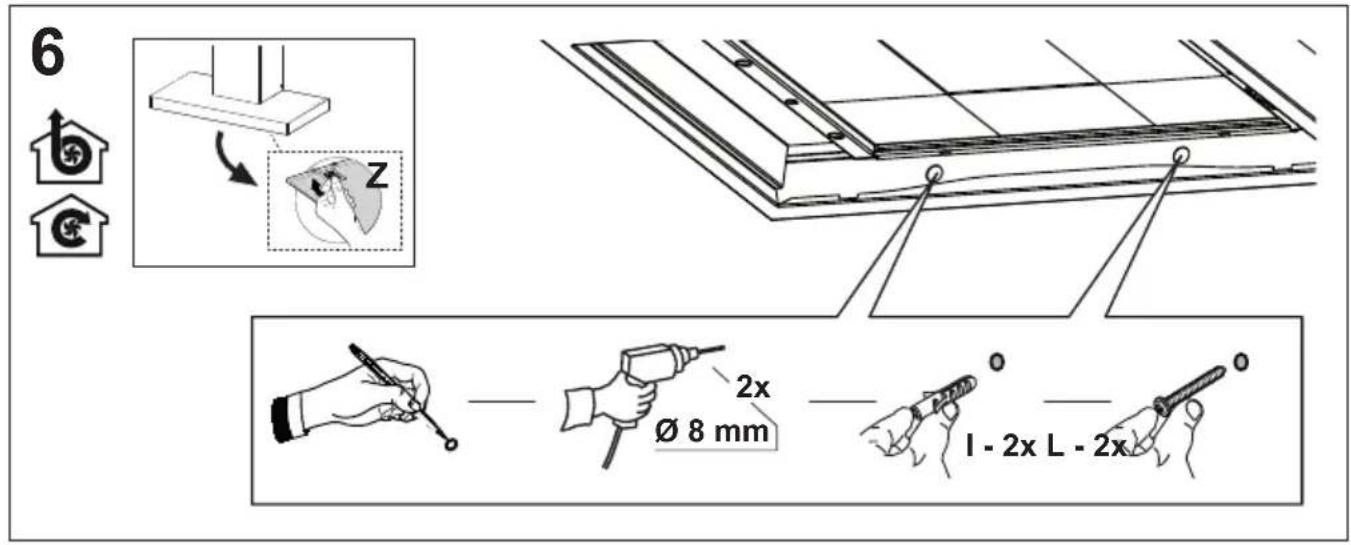

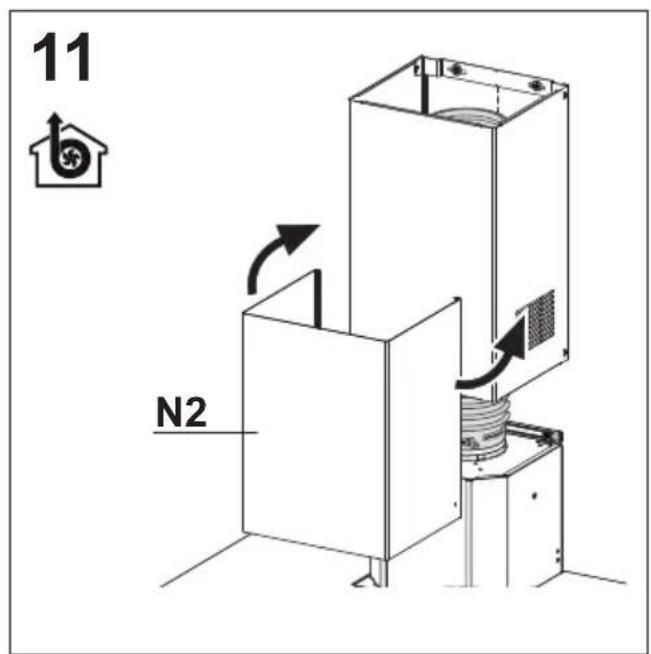

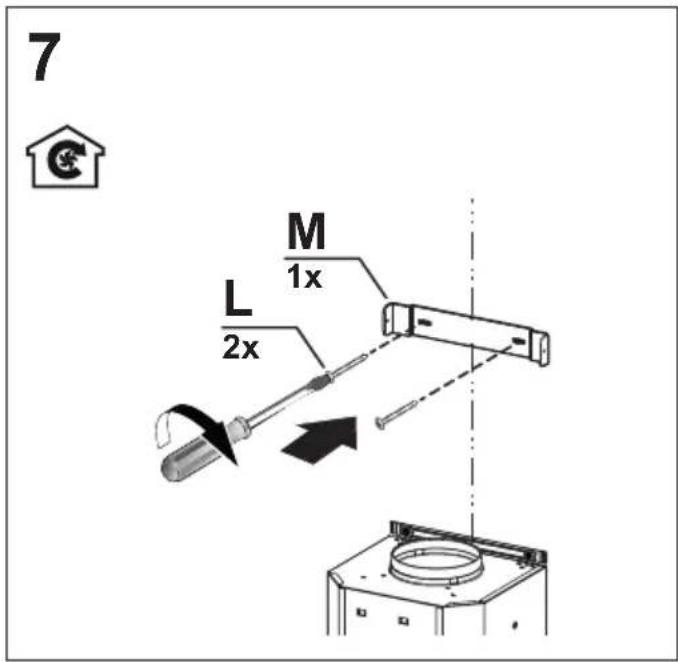

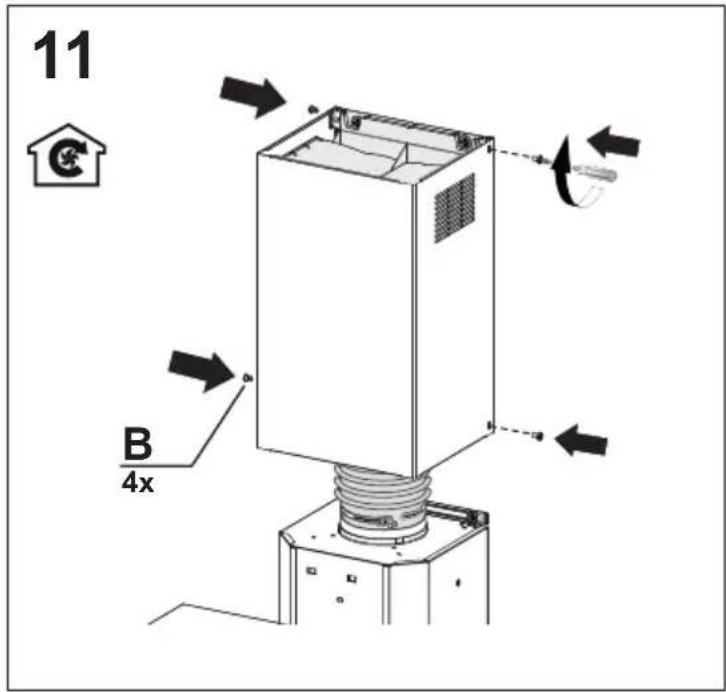

1

2

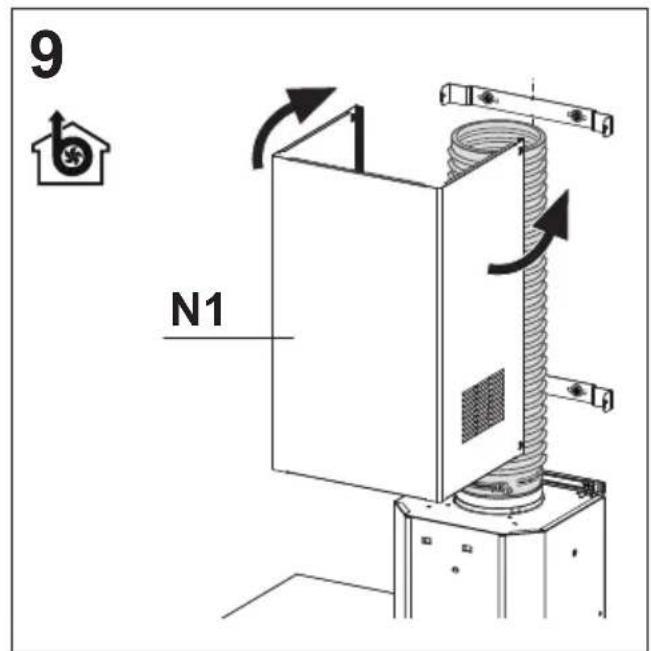

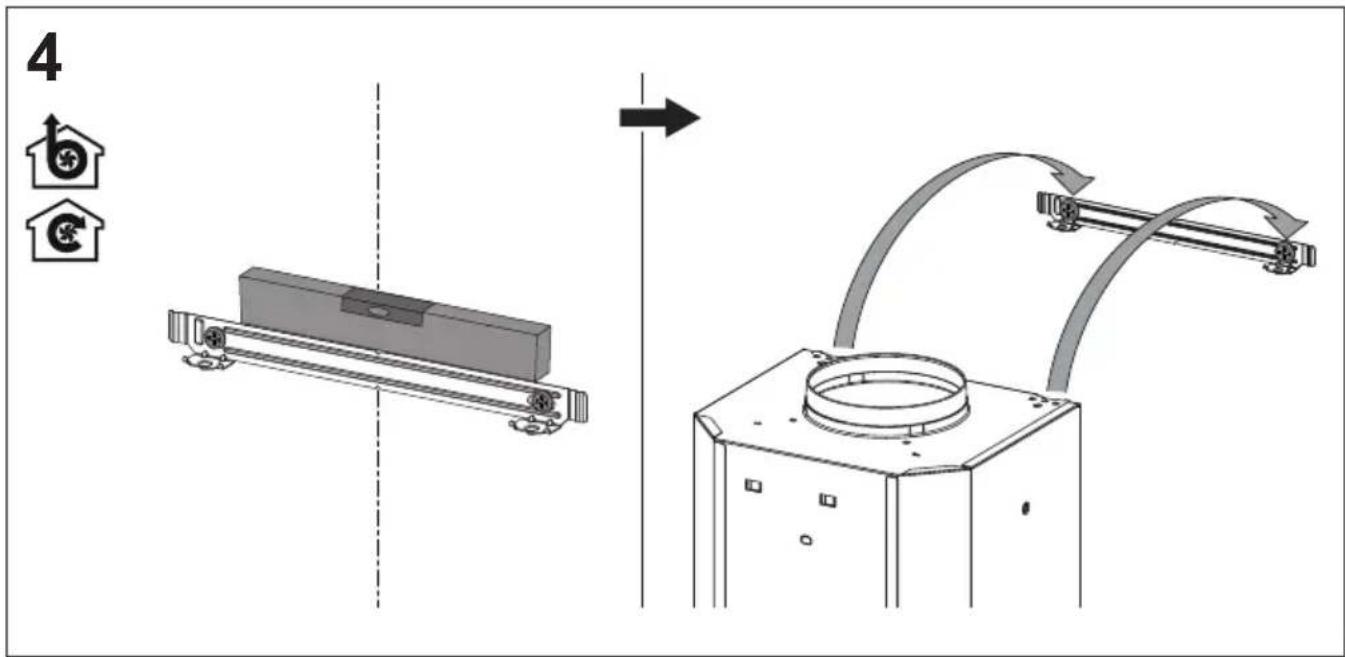

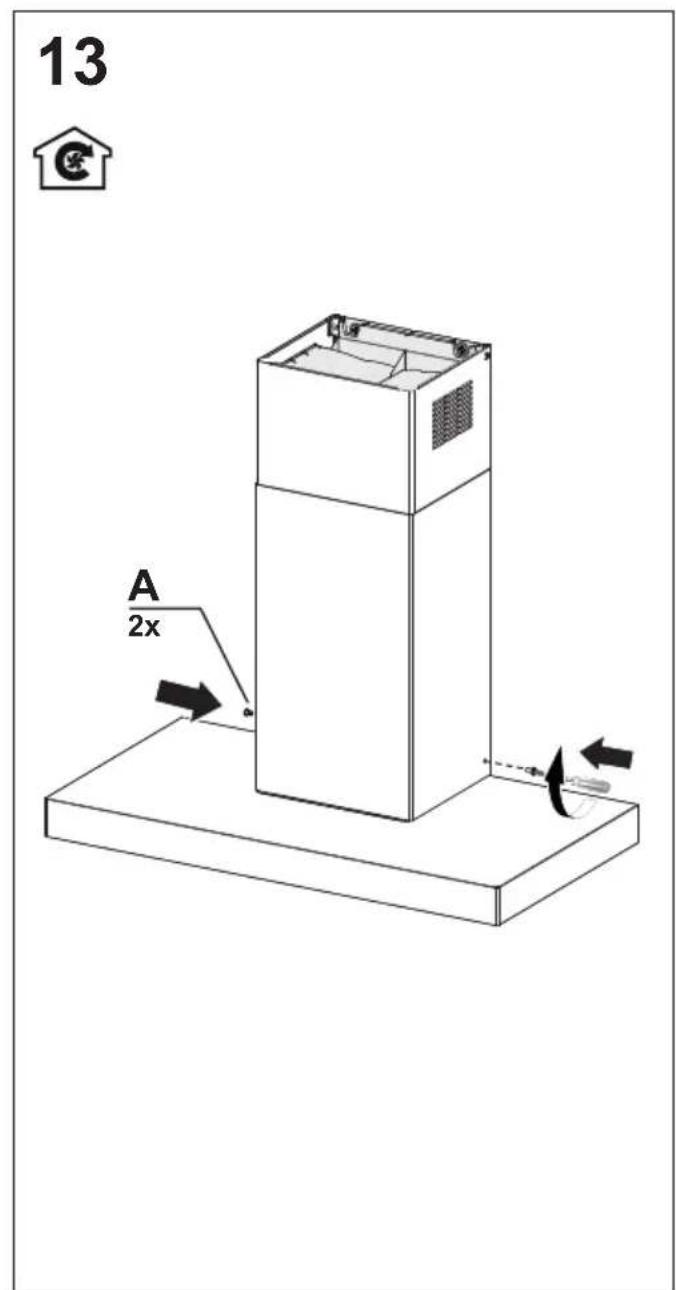

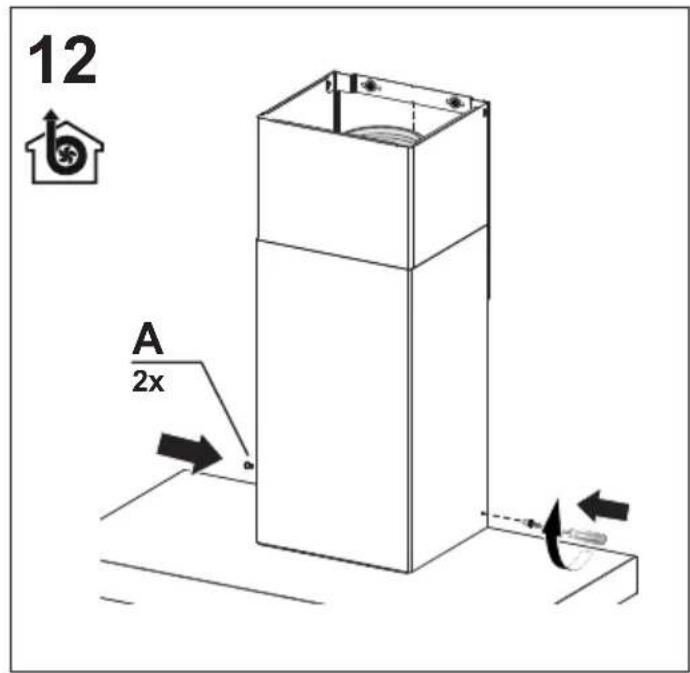

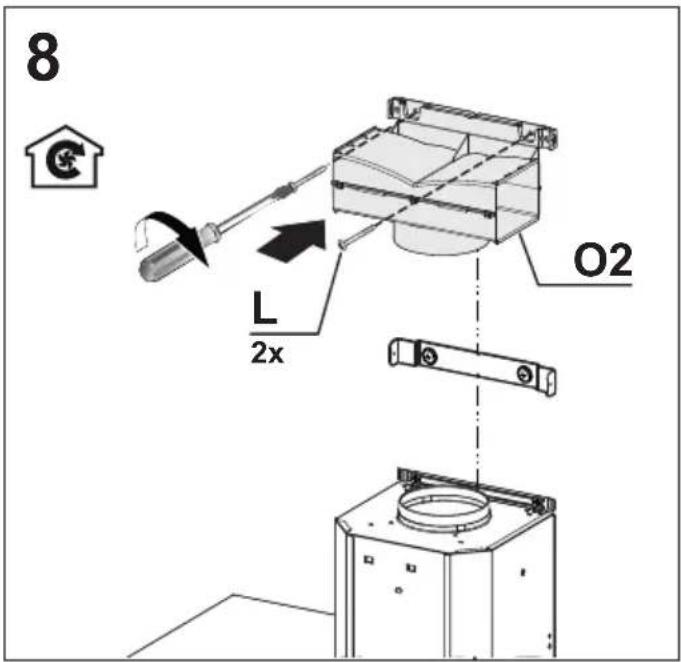

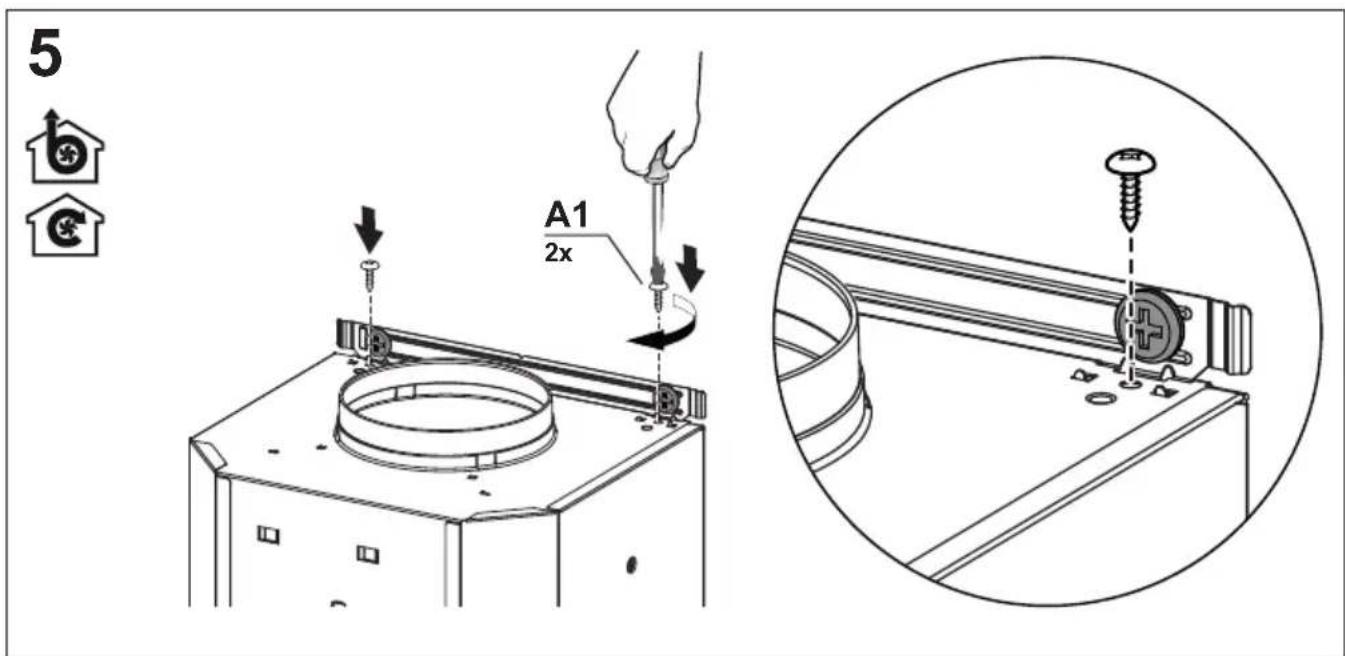

Pure mechanical diagram showing a piston-cranked mechanism with directional arrows indicating force or motion (no text or symbols)

Technical illustration of a mechanical assembly with a coiled spring mounted on a base, no visible text or symbols.

NO

Service: Nationwide service in

Sweden

Visit: www.cylinca.se

Call 0771-25 25 00

Declare: Model code, Serial number, Purchase date, Problem description, Name and address, Phone number

Contact us:

www.cylinda.se
