Lara SF160RFB - Range hood Cylinda - Free user manual and instructions

Product Type	Range Hood
Brand	Cylinda
Model	Lara SF160RFB
Installation Type	Wall-mounted

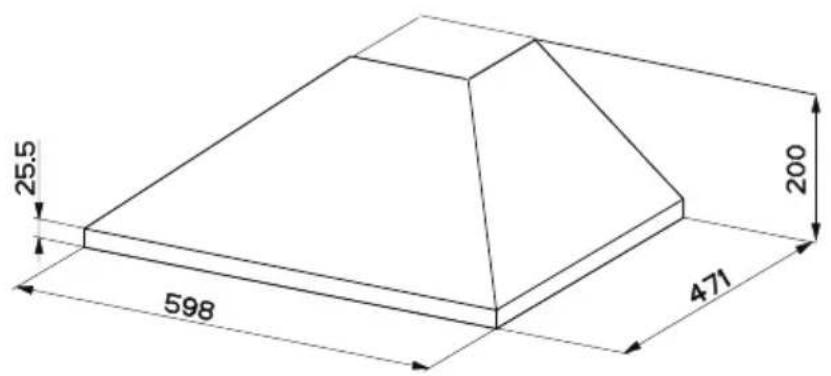

Width	60 cm
Height	15 cm
Depth	50 cm
Weight	10 kg
Maximum Extraction Rate	600 m³/h
Number of Speeds	3
Noise Level (max)	55 dB
Lighting	LED, 2 x 1.5 W
Filter Type	Aluminum grease filter
Filter Cleaning	Every 2 months in dishwasher
Charcoal Filter	Optional, replace every 6 months
Motor Power	200 W
Energy Class	B
Duct Diameter	150 mm
Voltage	220-240 V, 50 Hz
Control Type	Push-button
Color	Stainless steel

Frequently Asked Questions - Lara SF160RFB Cylinda

What is the recommended installation height above the hob?

For optimal performance, install the hood 65-75 cm above an electric hob and 75-85 cm above a gas hob.

How often should I clean the grease filter?

Clean the aluminum grease filter every 2 months using a dishwasher or hand wash with mild detergent.

How do I replace the charcoal filter?

Remove the grease filter, then slide out the old charcoal filter and insert a new one. Replace every 6 months or more often if used heavily.

Can the hood be used in recirculation mode?

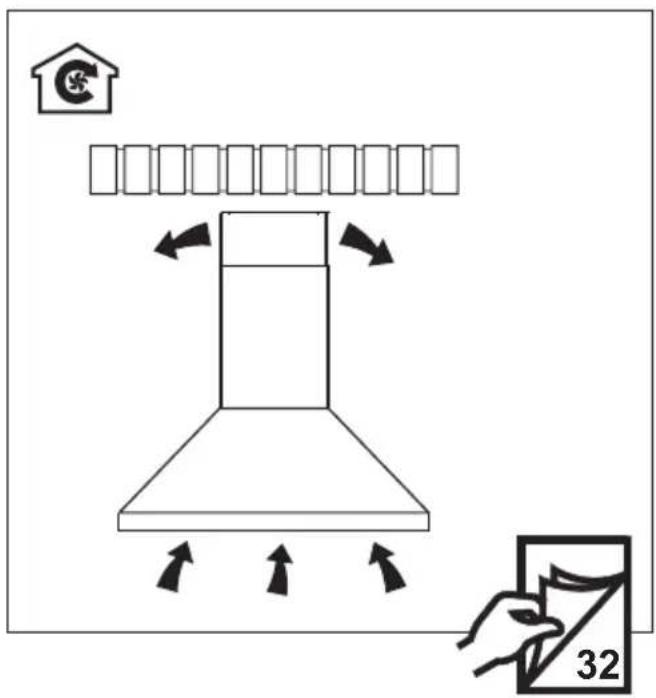

Yes, the hood can be used in recirculation mode by installing an optional charcoal filter. The air is then cleaned and returned to the room.

What should I do if the hood is noisy?

Check that the filter is clean and properly installed. Also ensure the duct is not blocked. If noise persists, contact service for motor inspection.

How do I reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold the reset button (usually the light button) for 3 seconds until the indicator turns off.

What type of light bulb does the hood use?

The hood uses LED modules (2 x 1.5 W). These are not user-replaceable; contact a qualified technician for replacement.

Can I install the hood myself?

Installation should be performed by a qualified electrician to ensure proper electrical connection and adherence to safety regulations.

What is the energy class of this hood?

The Cylinda Lara SF160RFB has an energy class of B on a scale from A+++ to D.

Where can I purchase spare parts?

Spare parts such as filters and motors are available through authorized Cylinda service centers or online retailers.

USER MANUAL Lara SF160RFB Cylinda

Simple grayscale icon depicting a kitchen scene with a chimney, oven, and washing machine (no text or symbols)

Lara SF160RFB

Lara SF160SVB

EN 3
NO 7
DA 11
FI 15
SV 19

EN

1. SAFETY INFORMATION

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.

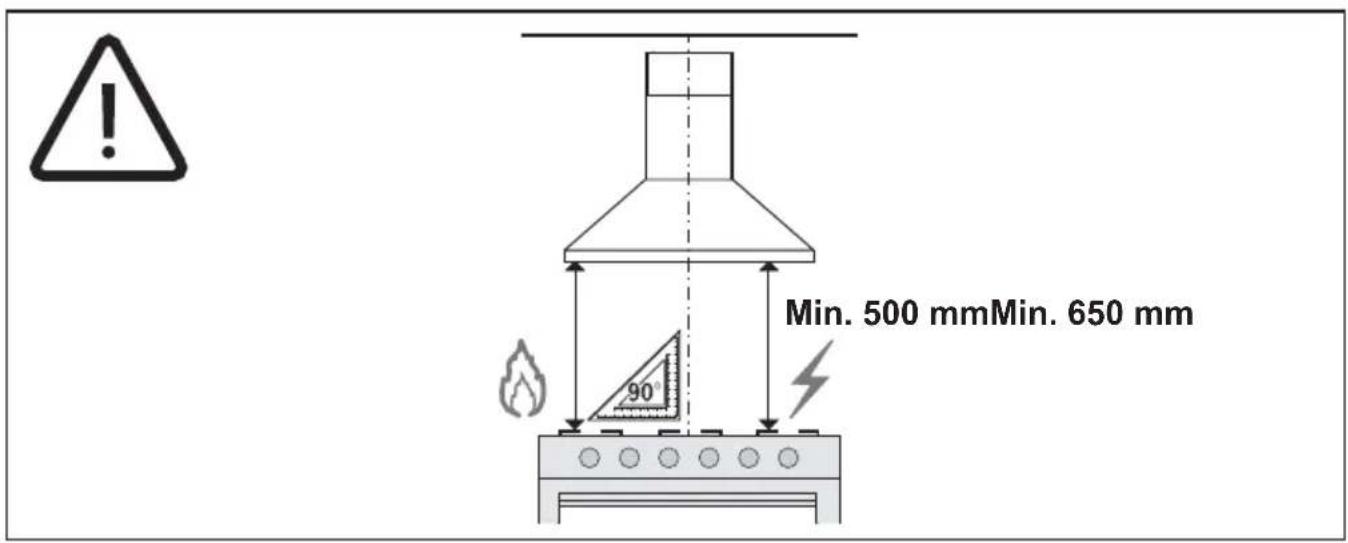

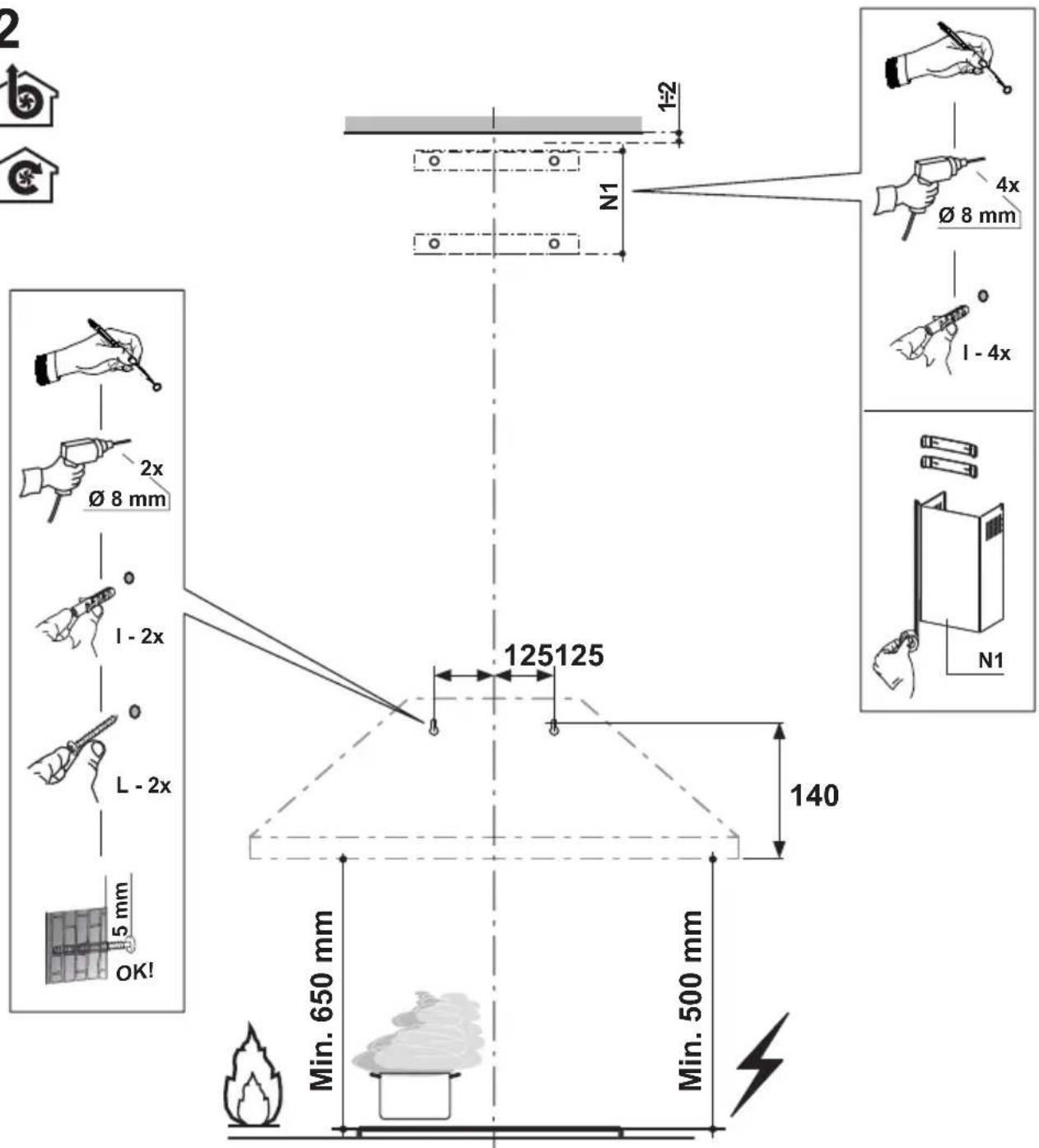

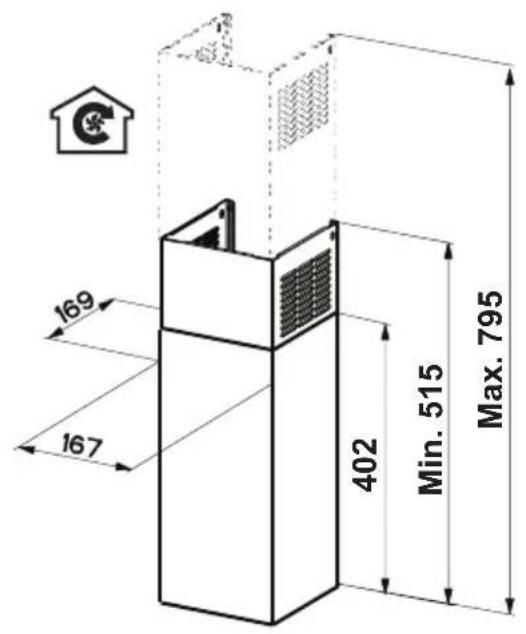

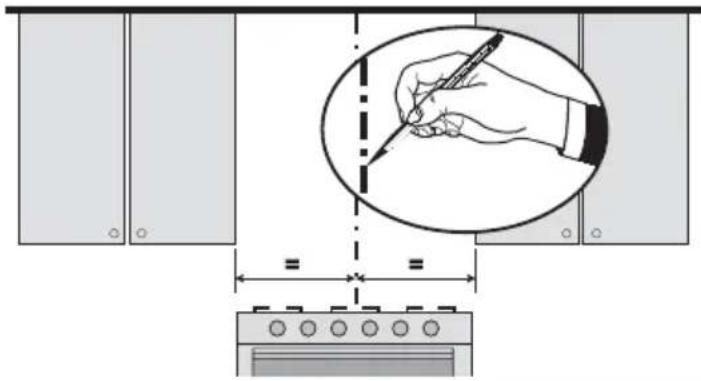

• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

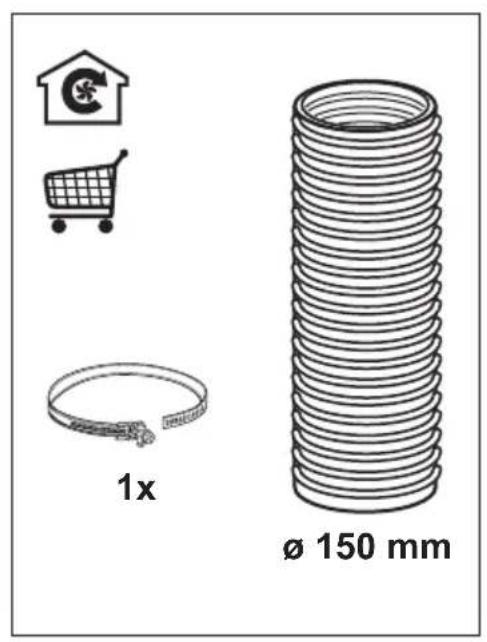

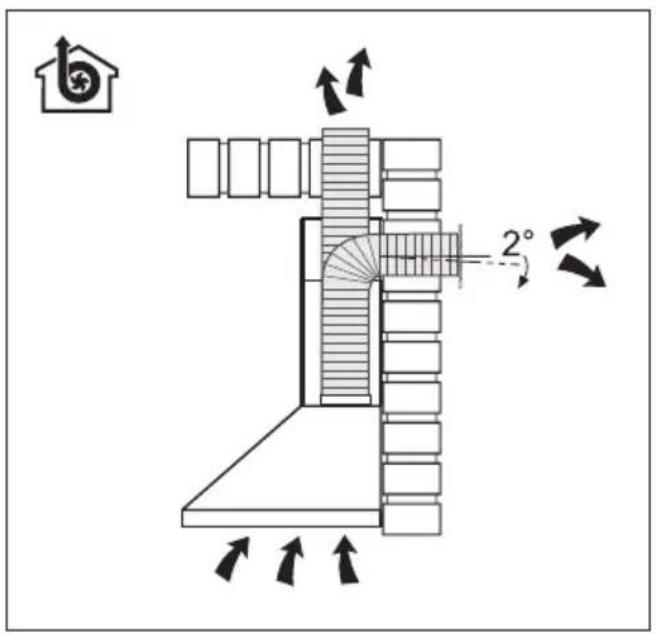

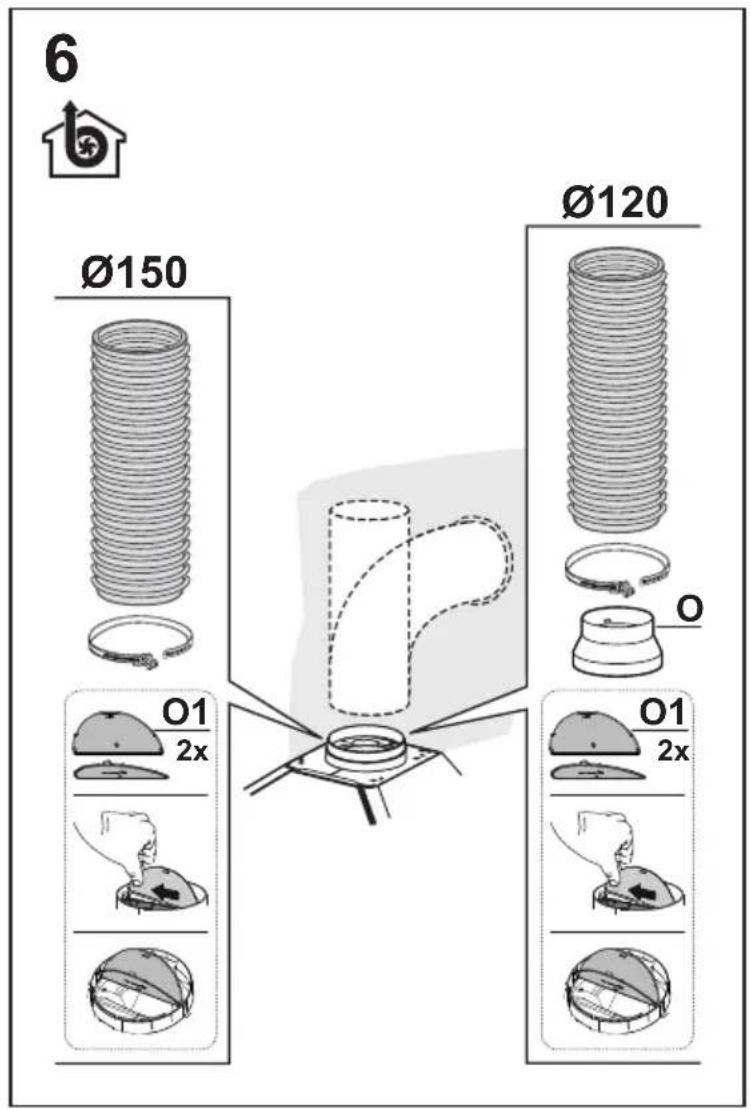

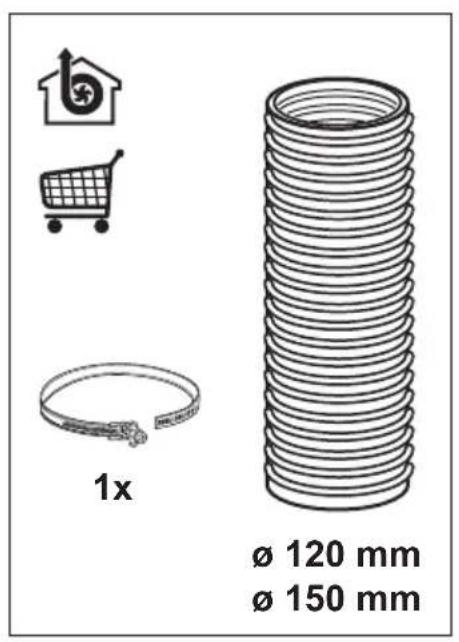

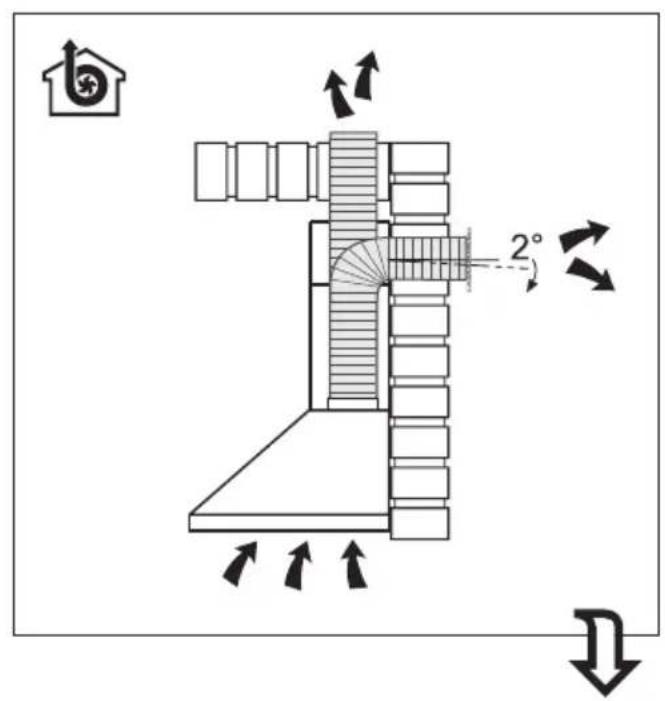

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psychophysical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol 📄 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

- “In case of replacement with halogen lamp use only self-shielded tungsten halogen lamps or self-shielded metal halide lamps.”

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

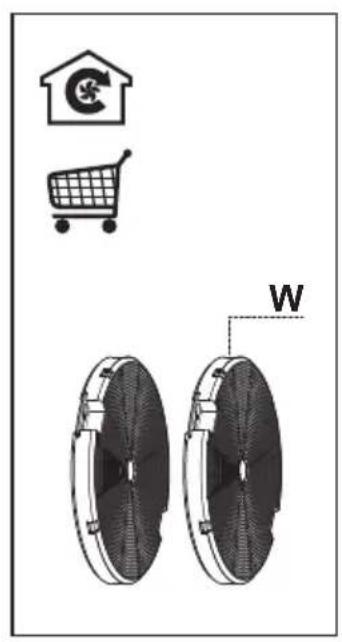

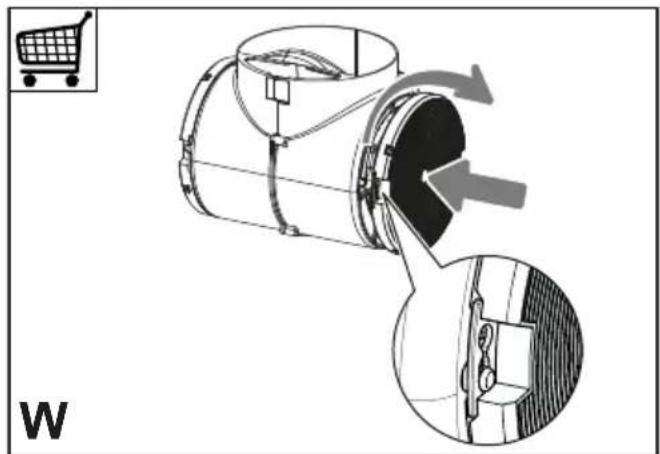

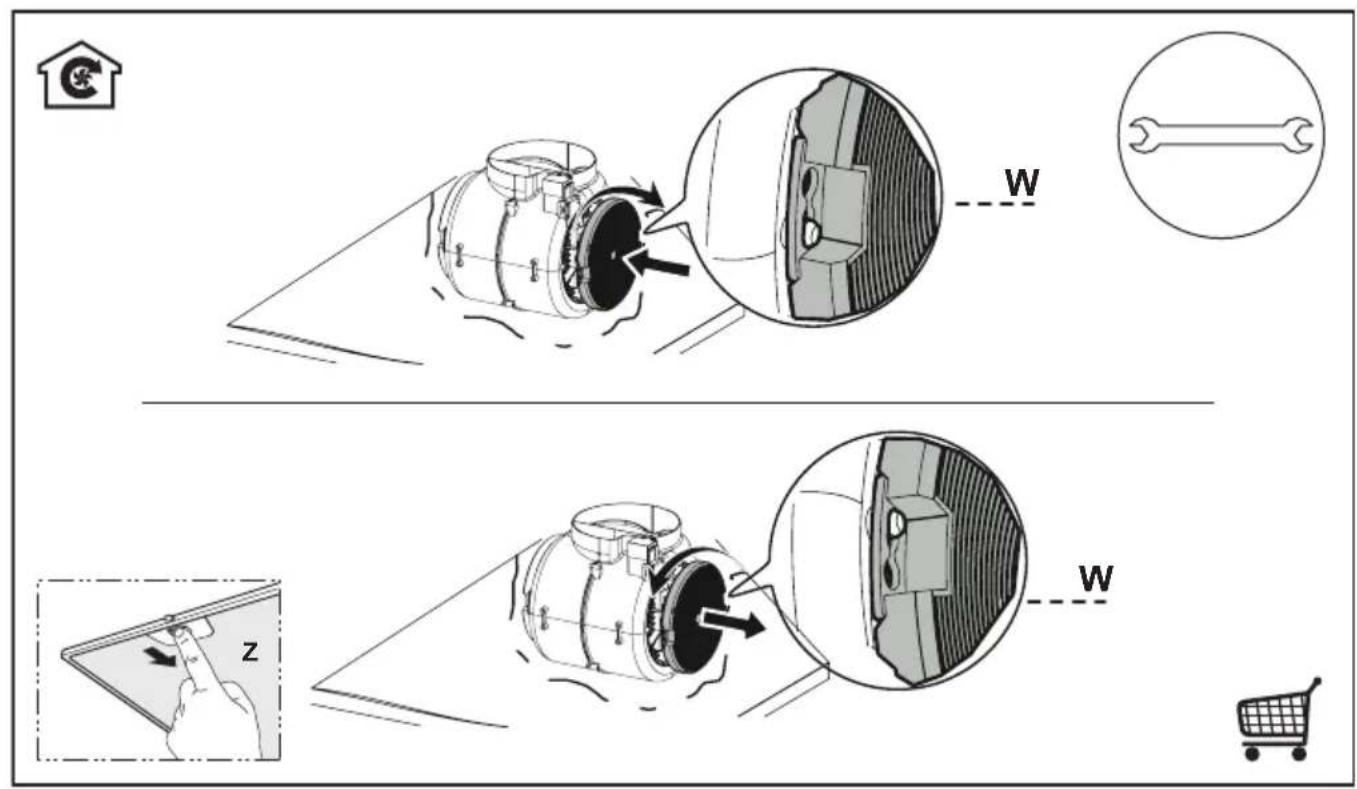

- The activated carbon filter is neither washable nor regenerable and must be replaced approximately every 4 months of operation or more frequently in case of very intense use (W).

Technical diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

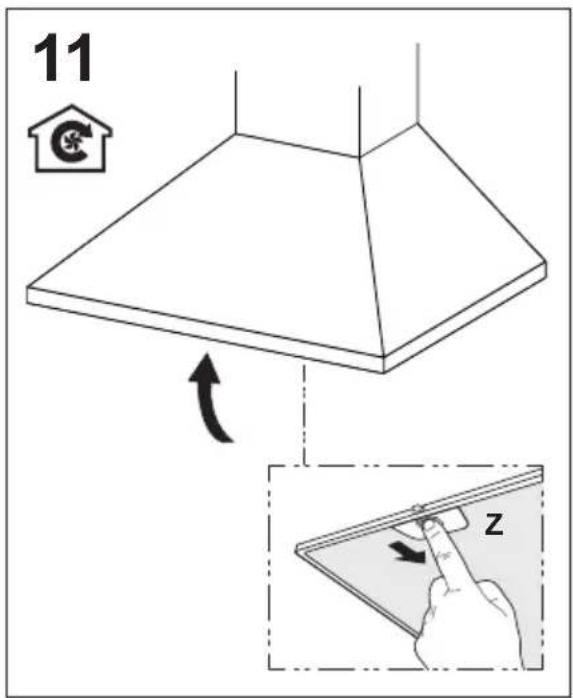

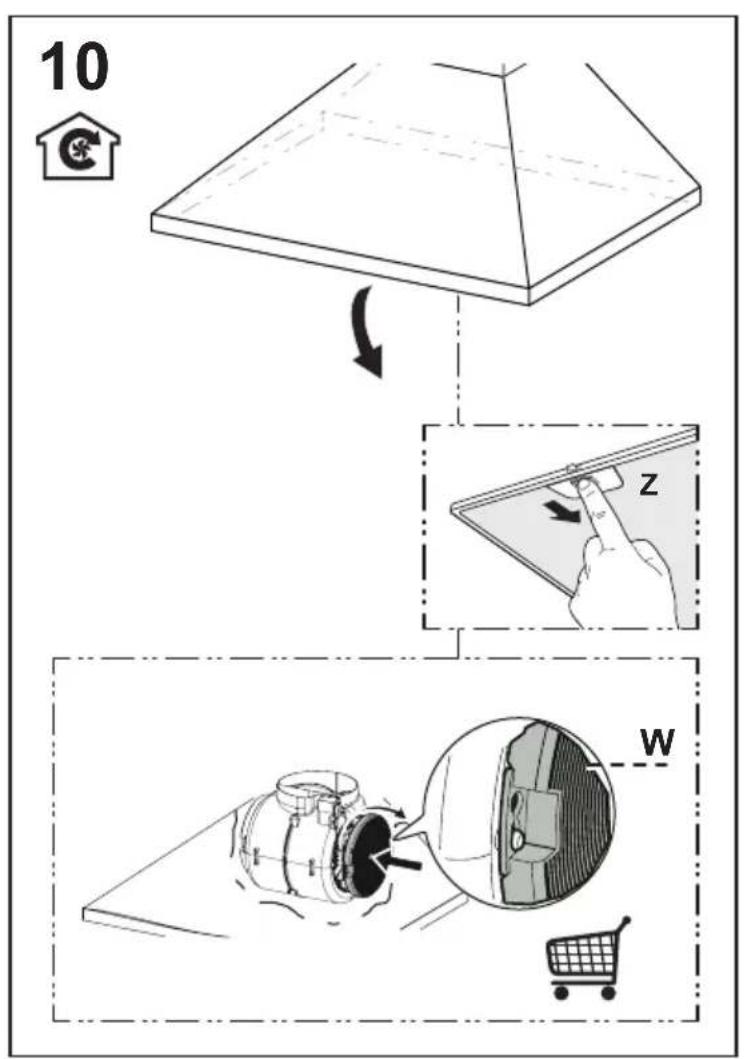

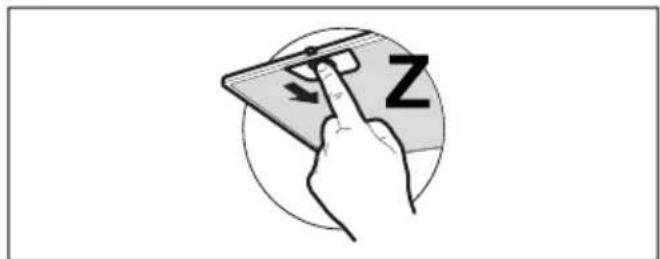

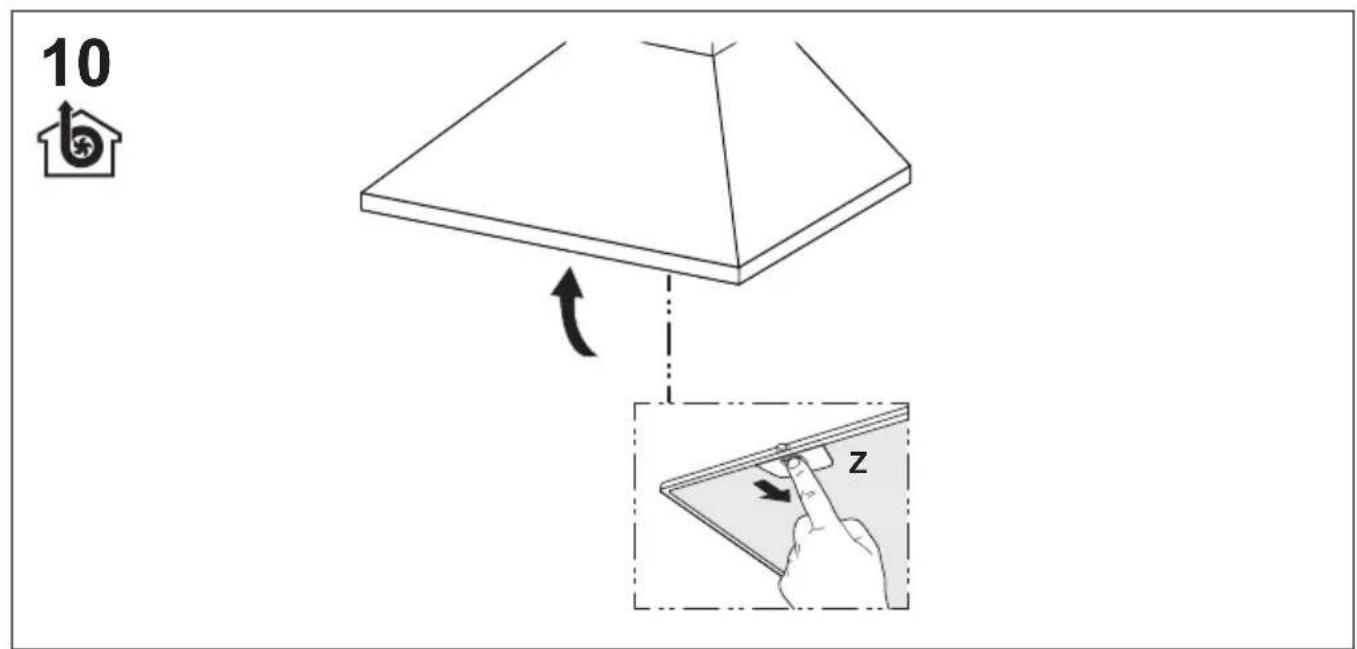

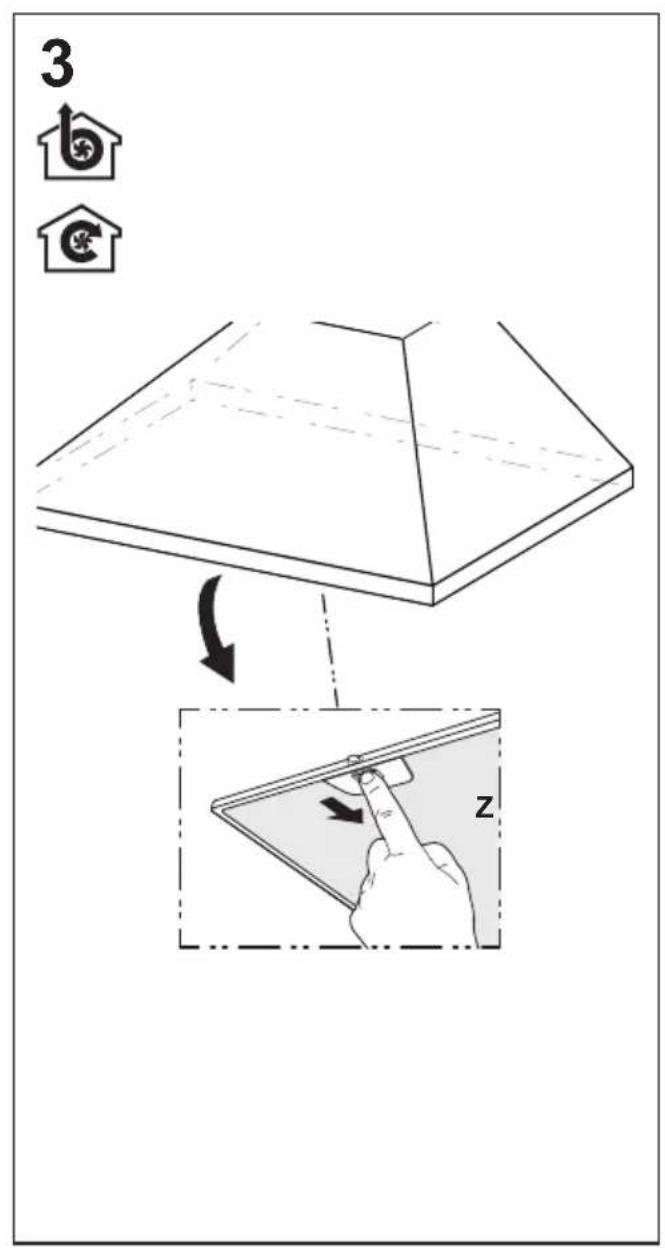

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

Illustration of a hand holding a smartphone with a finger pointing at it, inside a circular frame (no text or symbols)

• Clean the hood using a damp cloth and a neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-ab-rasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

Key Function
T1	Turns the suction motor on and off at the first speed.
T2	Turns the motor on at the second speed.
T3	Turns the motor on at the third speed.
L	Turns the lighting system on and off at maximum intensity.

5. LIGHTING

Lamp Power (W)	Socket Voltage (V)	Dimension (mm)	ILCOS Code
	4 E14 220-240	107x37	DRBB/F-4-220-240-E	14-35/100

NO

1. SIKKERHETSINFORMA SJON

Technical diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Illustration of a hand holding a smartphone with a finger, featuring a stylized 'Z' logo (no text or symbols on the device itself)

Technical diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Illustration of a hand holding a smartphone with a finger, next to a stylized 'Z' logo (no text or symbols on the device itself)

Technical diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Illustration of a hand holding a smartphone with a Z symbol on the screen (no text or symbols present)

Technical diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Hand holding a tablet with a finger pointing at it, no text or symbols visible

Simple line drawing of a wrench and screwdriver (no text or symbols)

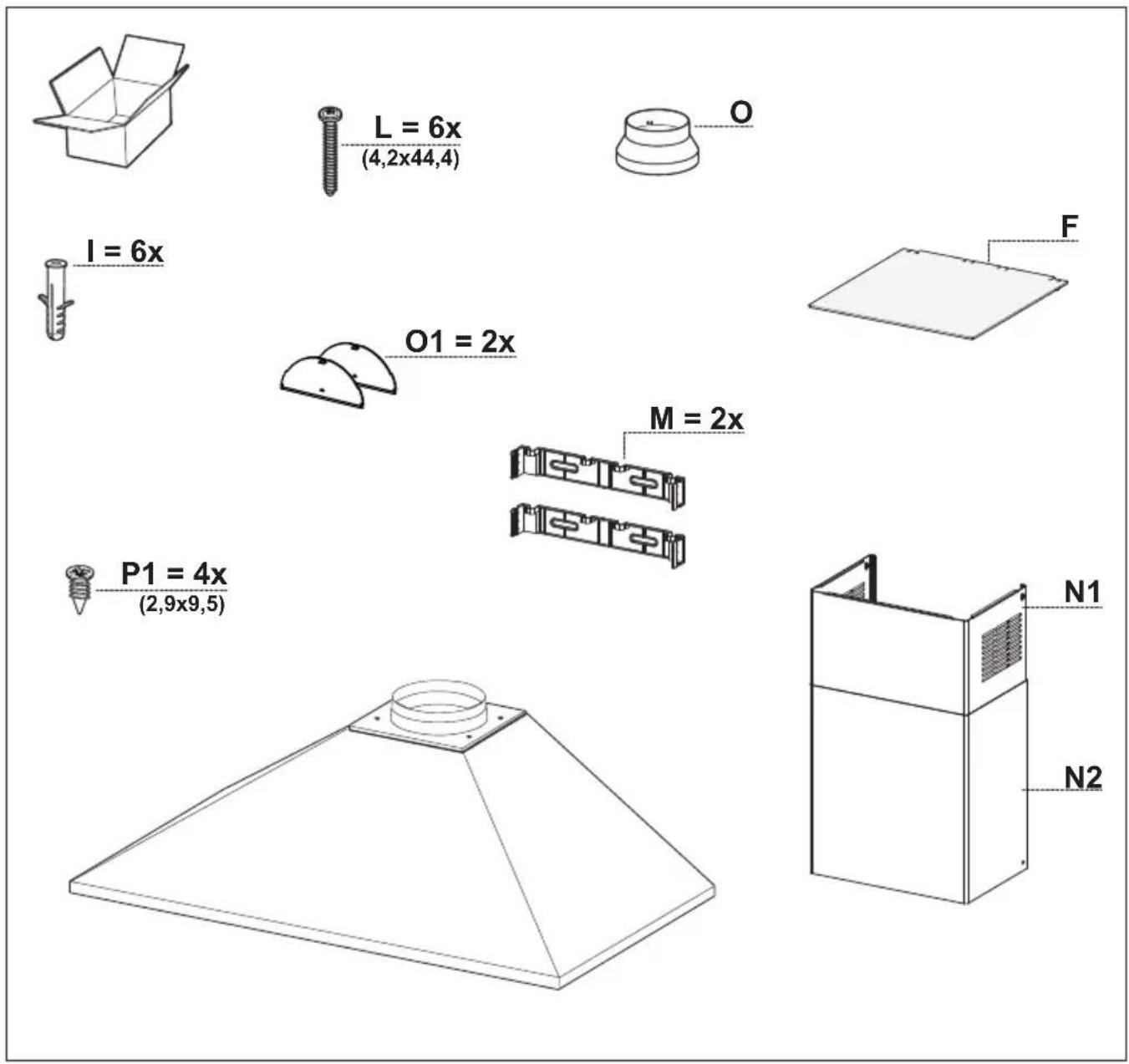

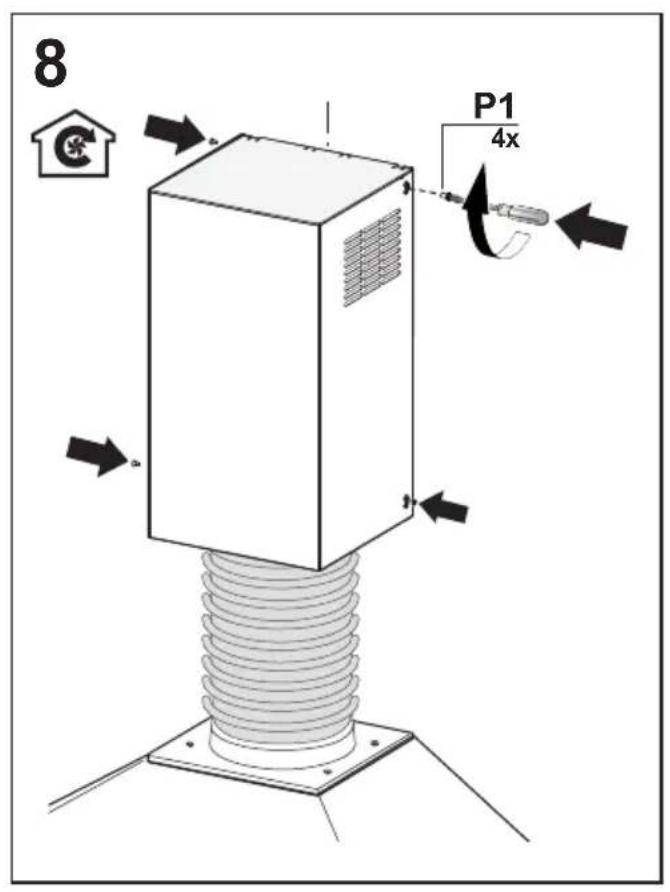

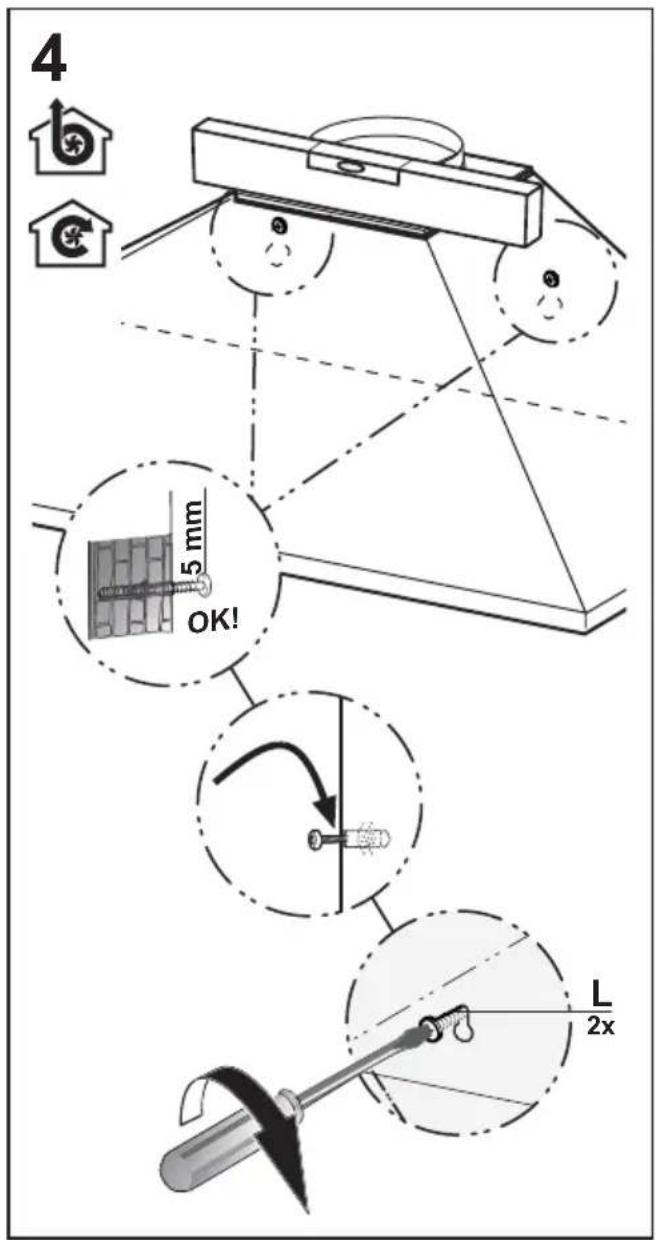

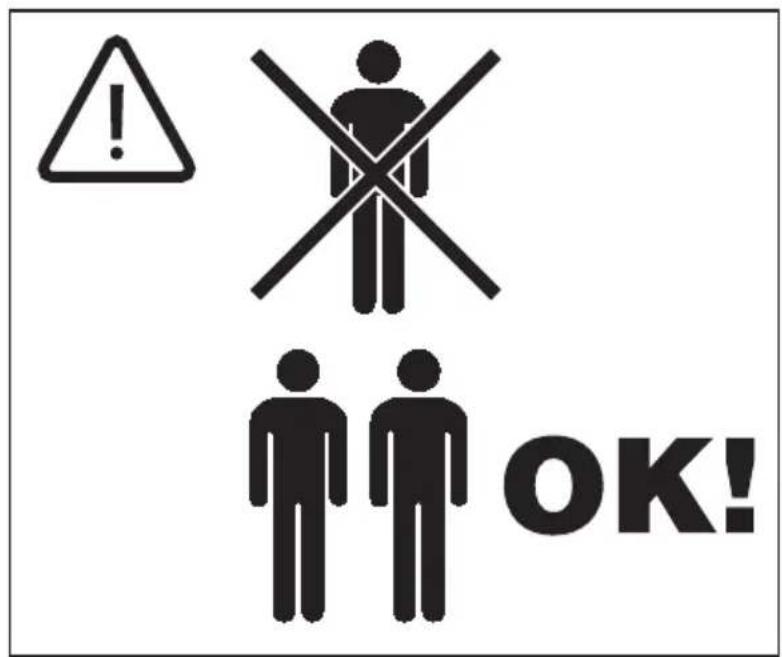

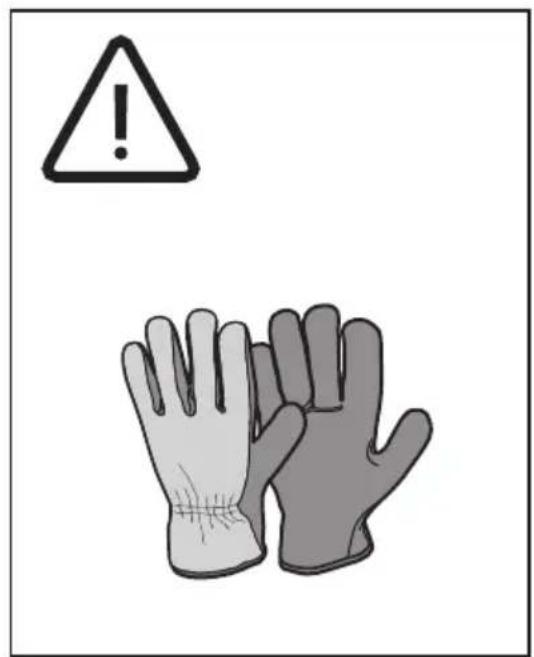

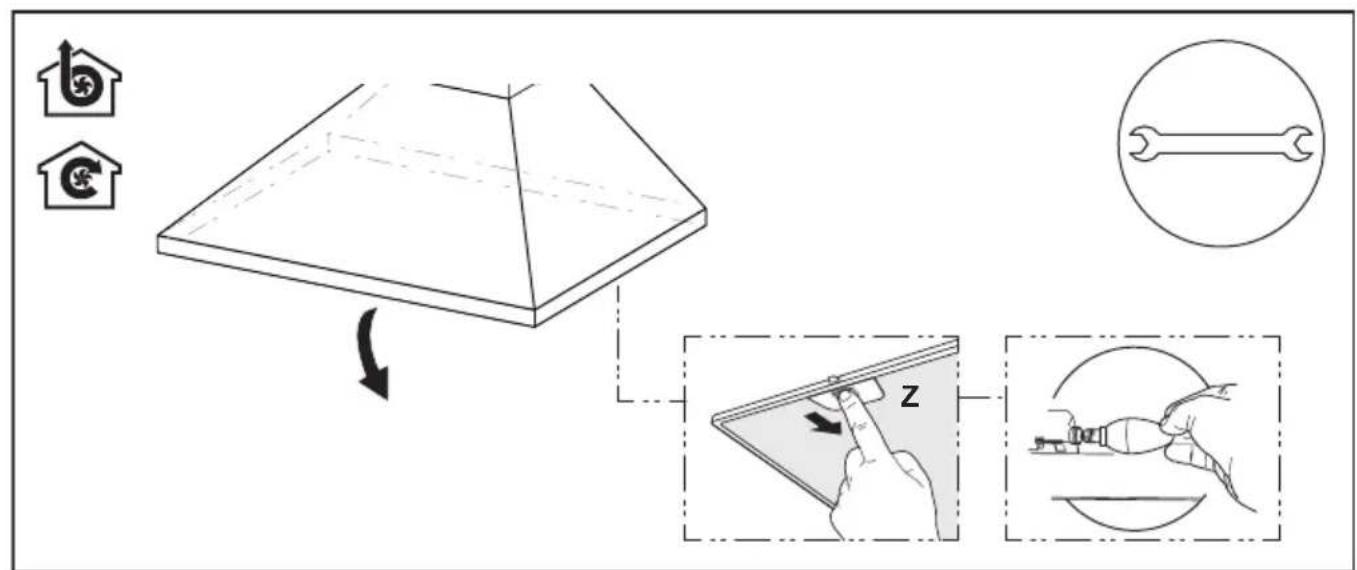

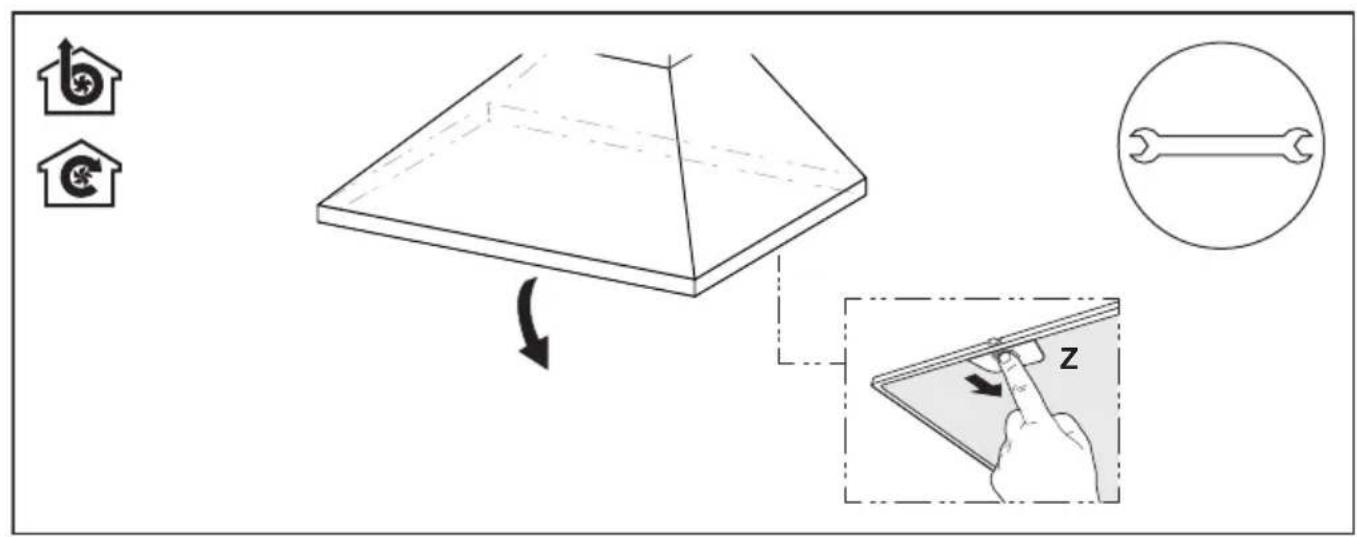

EN Warning! Before proceeding with installation, read the safety information in the User Manual.
NO Advarsel! Les sikkerhetsinstruksjonene i bruksveiledningen før apparatet installe-res.
DA Advarsel! Læs sikkerhedsreglerne i brugsanvisningen inden installation.
FI Varoitus! Ennen laitteen asentamista lue käyttöoppaassa olevat turvallisuustiedot.
SV Varning! Läs säkerhetsföreskrifterna i bruksanvisningen innan apparaten installeras.

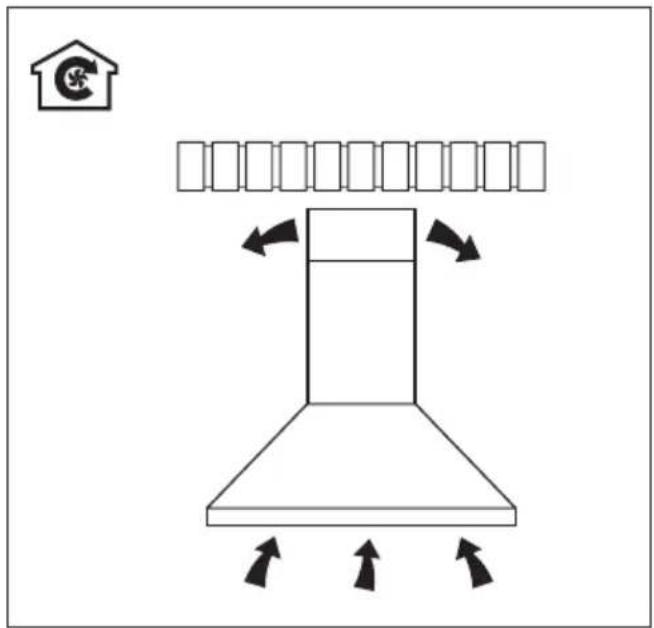

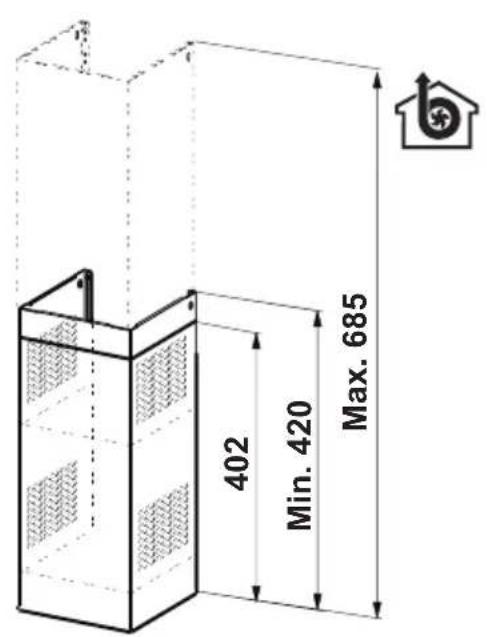

Diagram of a kitchen chimney with directional arrows indicating airflow or movement (no text or symbols)

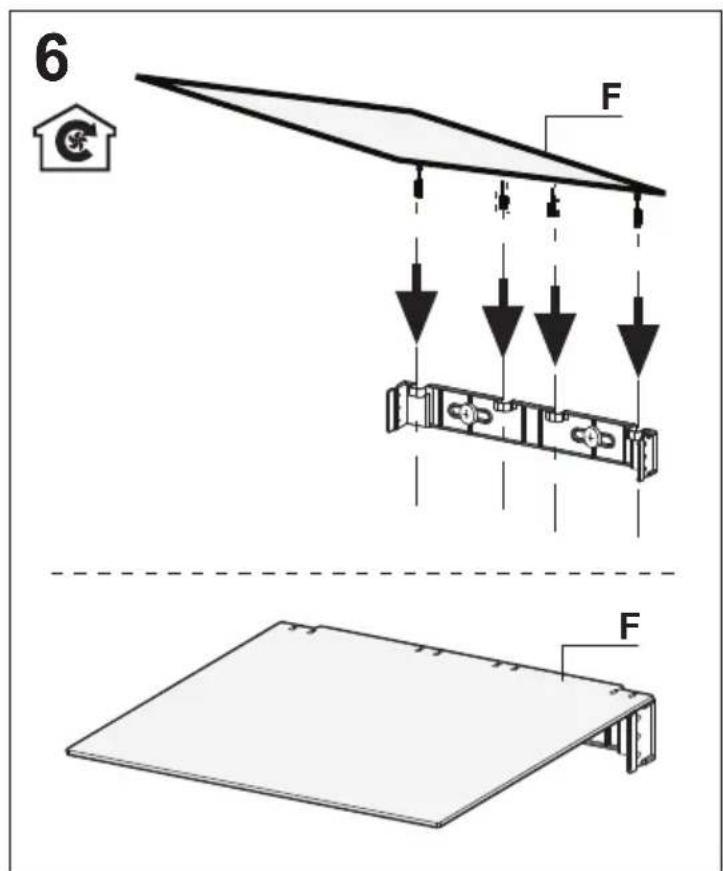

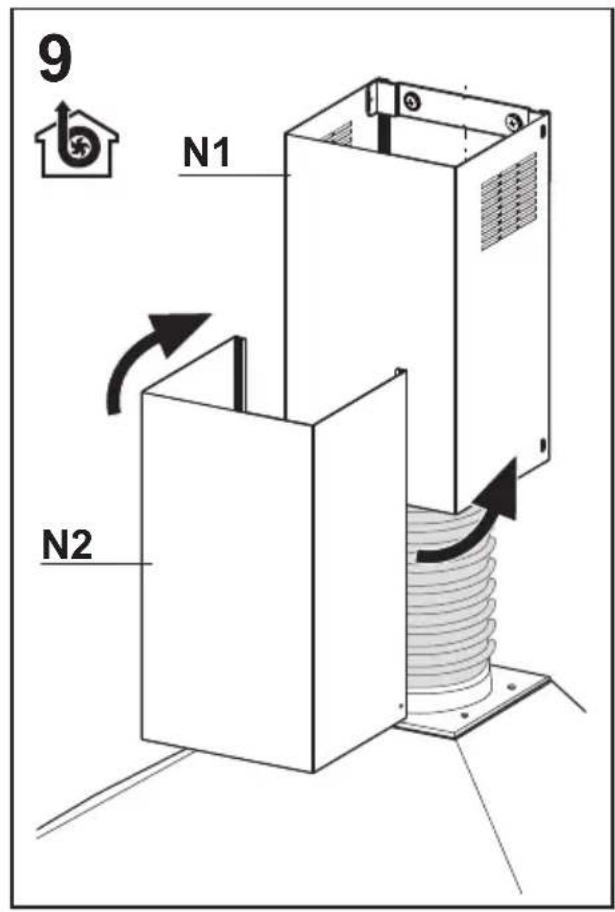

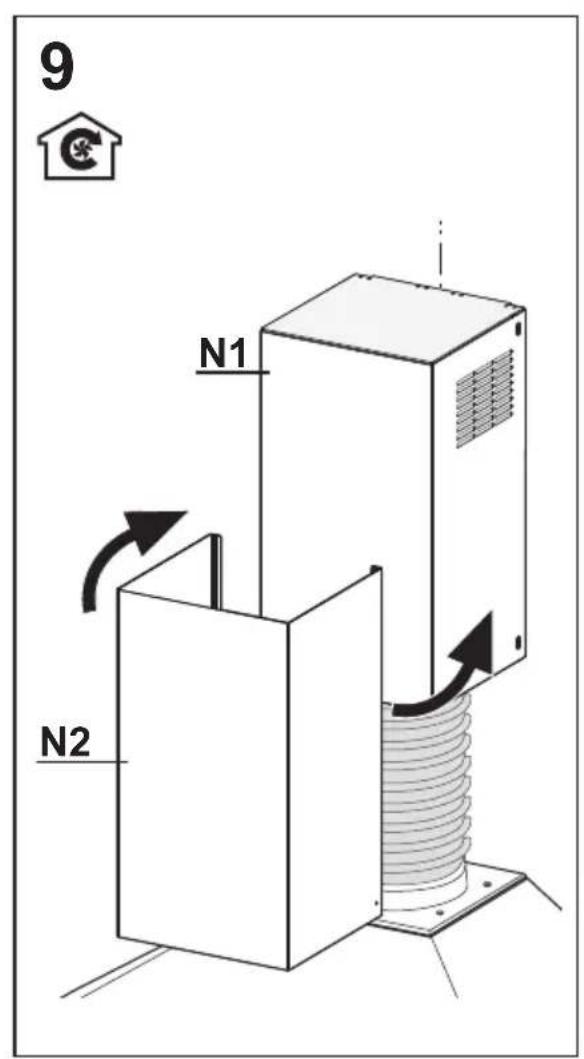

1

2

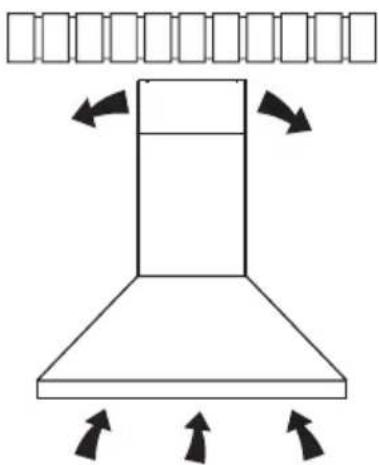

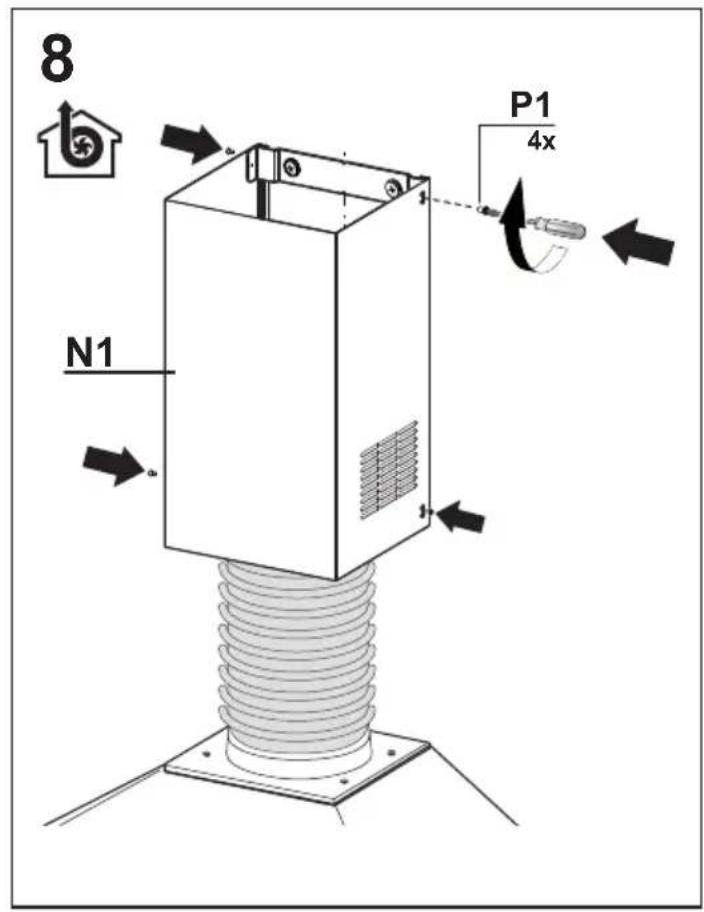

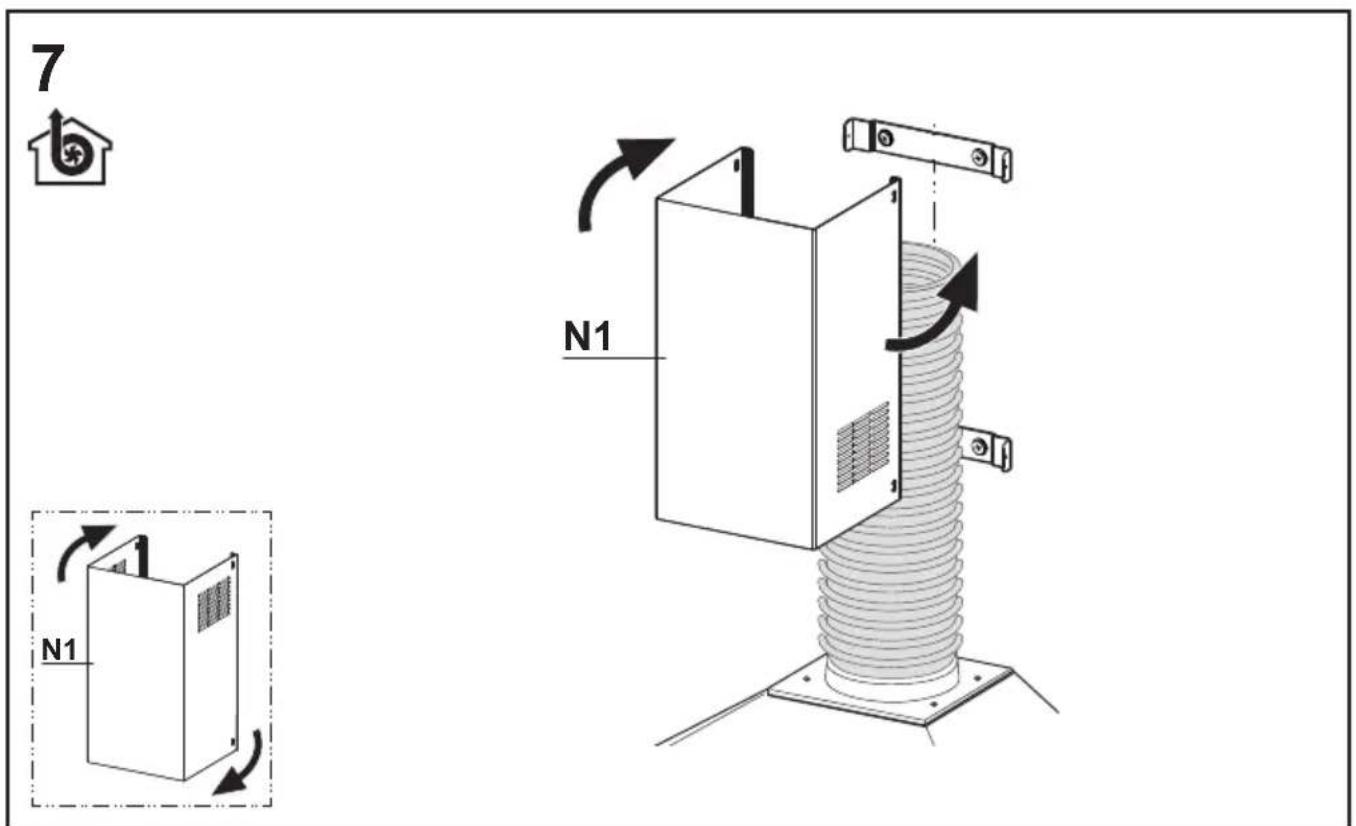

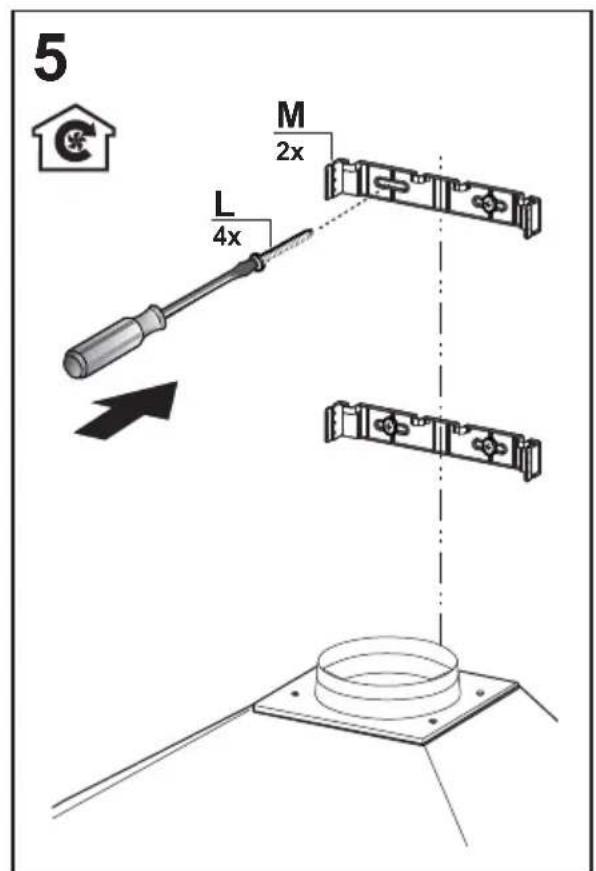

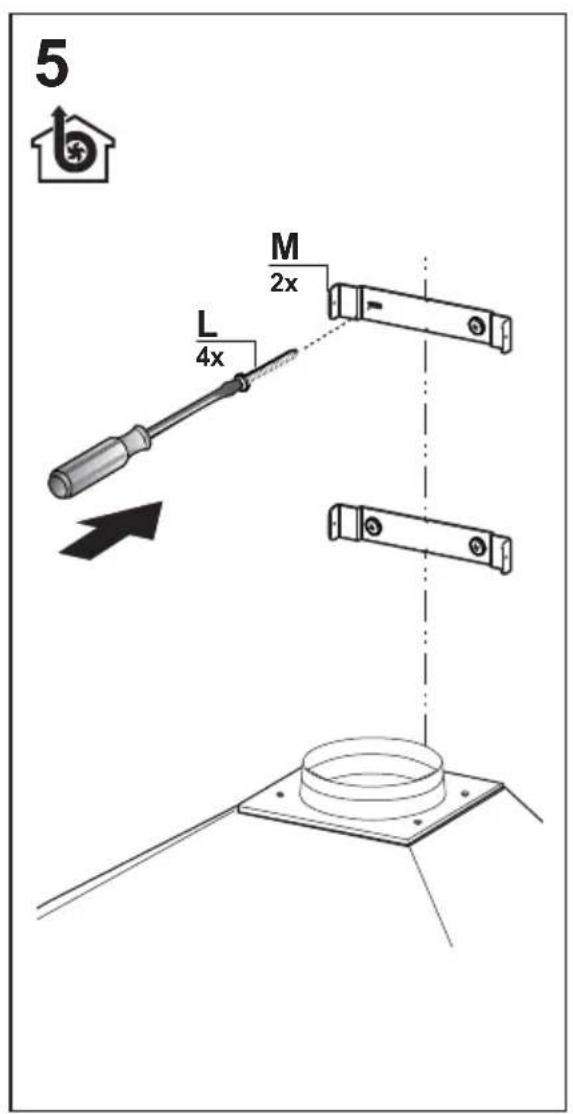

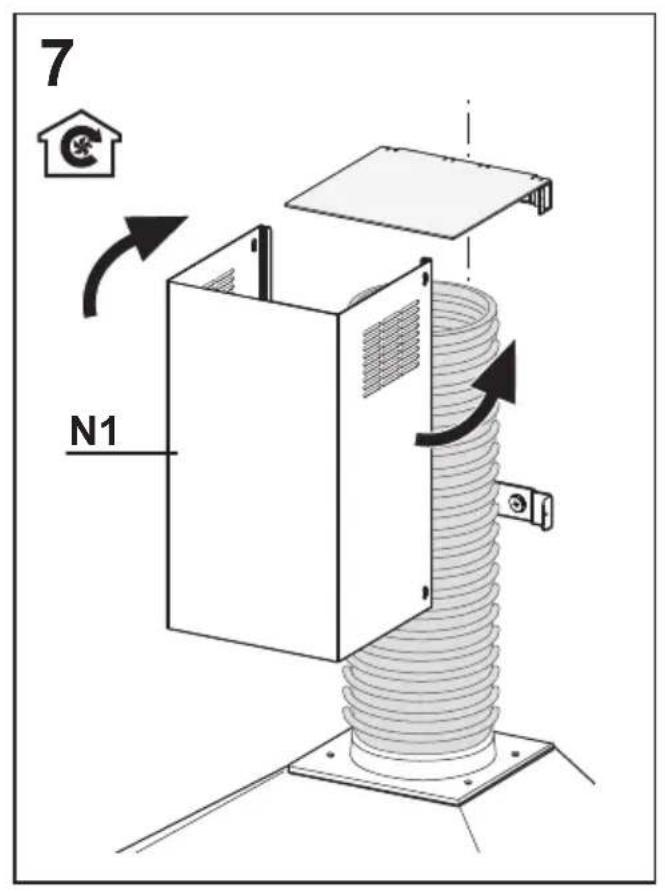

Simple line drawing of a chimney with arrows indicating airflow or movement (no text or symbols)

NO

Service: Nationwide service in

Sweden

Visit: www.cylinca.se

Call 0771-25 25 00

Declare: Model code, Serial number, Purchase date, Problem description, Name and address, Phone number

Contact us:

www.cylinda.se
