Product Type	LCD Display Wall Unit
Model Number	LS460UCM-BF
Brand	Dahua Technology
Display Size	46 inches (estimated)
Resolution	1920 x 1080 (Full HD)
Input Interfaces	HDMI, DVI, VGA, CVBS, USB (for update), LAN (RS-232 in/out)
Power Supply	100–240 VAC, 50/60 Hz, single phase
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Relative Humidity	30% to 70% (non-condensing)
Cleaning Solvent	Isopropanol or n-hexane; do not use ketone (e.g., acetone)
Cleaning Cloth	Degreasing cotton or soft cloth
Ventilation	Do not block vents; install in well-ventilated area with air conditioner
Electrical Safety Class	Class I appliance, requires protective earthing
Power Cord	AC power cable included (region-specific)
Remote Control	Included with AAA batteries (2x)
Networking	LAN port for RS-232 control and loop-through
System Update	Via USB port; must be performed by technicians
Image Modes	User, dynamic, standard, soft light
Menu Language	Chinese and English
Backlight Mode	Configurable via menu
Noise Reduction	Off, Low, Middle, High
Aspect Ratio	16:9, 4:3, Panorama
Color Temperature	Adjustable

Frequently Asked Questions - LS460UCM-BF Dahua Technology

What should I do if the screen is blank when turning on the device?

Check whether the power source (220 V AC) is connected. Ensure the power cord is not broken, the power switch is on, and the indicator light is on. If using a power strip, verify it is working.

Why is there no signal displayed on the screen?

Check if the signal wires are properly connected or broken. Verify that the signal source is outputting and that the input signal type (HDMI, DVI, VGA, etc.) is supported by the device.

The colors are missing or abnormal. What should I check?

Inspect the signal wires for loose connections or damage. Ensure the wires are not bent or broken. If using VGA, check the pins.

The remote control does not work. How can I fix it?

Check if the AAA batteries are installed correctly with the right polarity. Replace with fresh batteries if needed. Ensure there are no obstructions between the remote and the IR sensor.

The device temperature is too high. What can I do?

Ensure the ventilation around the device is unobstructed. The ambient temperature should be between 0°C and 50°C. If the device has been running for a long time, turn it off for 15–30 minutes to cool down.

How should I clean the LCD screen?

Use a degreasing cotton or soft cloth dampened with isopropanol or n-hexane. Do not use ketone solvents like acetone. Always unplug the device before cleaning. Never use a wet cloth to avoid water damage.

Can I update the firmware myself?

No, system updates must be performed by authorized technicians due to the complexity of the device. Do not dismantle or attempt to update the system on your own.

What are the recommended environmental conditions for this device?

Operate the device in an indoor environment with temperature 22°C ±4°C and relative humidity 30%–70% (non-condensing). Avoid high dust, humidity, and drastic temperature changes.

How can I prevent image burn-in from static images?

Avoid displaying static images for prolonged periods. If static content is necessary, alternate with dynamic video every two hours for at least 15 minutes. Use motion screen savers when connected to a computer.

What cybersecurity measures should I take for this device?

Use strong passwords (at least 8 characters with mixed types), update firmware regularly, enable HTTPS, disable unnecessary services (e.g., SNMP, UPnP), and enable account lock to prevent brute-force attacks.

USER MANUAL LS460UCM-BF Dahua Technology

LCD Display Wall Unit

User's Manual

Abstract geometric composition with gray and blue color blocks (no text or symbols)

Foreword

General

This manual introduces the maintenance and configuration of the LCD Display Wall Unit (hereinafter referred to as "the Device"). Read carefully before using the Device, and keep the manual safe for future reference.

Safety Instructions

The following signal words might appear in the manual.

Signal Words Meaning
DANGER	Indicates a high potential hazard which, if not avoided, will result in death or serious injury.
WARNING	Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
CAUTION	Indicates a potential risk which, if not avoided, could result in property damage, data loss, reductions in performance, or unpredictable results.
TIPS	Provides methods to help you solve a problem or save time.
NOTE	Provides additional information as a supplement to the text.

Revision History

Version	Revision Content	Release Time
V1.0.2	Updated maintenance tips.	December 2022
V1.0.1	Updated product name.	July 2022
V1.0.0	First release.	December 2021

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face, fingerprints, and license plate number. You need to be in compliance with your local privacy protection laws and regulations to protect the legitimate rights and interests of other people by implementing measures which include but are not limited: Providing clear and visible identification to inform people of the existence of the surveillance area and provide required contact information.

About the Manual

• The manual is for reference only. Slight differences might be found between the manual and the product.
• We are not liable for losses incurred due to operating the product in ways that are not in compliance with the manual.
• The manual will be updated according to the latest laws and regulations of related jurisdictions. For detailed information, see the paper user's manual, use our CD-ROM, scan the QR code or visit our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version.
• All designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation.
• There might be errors in the print or deviations in the description of the functions, operations and technical data. If there is any doubt or dispute, we reserve the right of final explanation.
• Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened.
• All trademarks, registered trademarks and company names in the manual are properties of their respective owners.
• Please visit our website, contact the supplier or customer service if any problems occur while using the device.
• If there is any uncertainty or controversy, we reserve the right of final explanation.

Important Safeguards and Warnings

This section introduces content covering the proper handling of the Device, hazard prevention, and prevention of property damage. Read carefully before using the Device, and comply with the guidelines when using it.

Installation Requirements

• This is a class A product. In a domestic environment this may cause radio interference in which case you may be required to take adequate measures.
• Do not place the Device in a place exposed to sunlight or near heat sources.
• Keep the Device away from dampness, dust, and soot.
  • Install the Device on a stable surface to prevent it from falling.
• Install the Device in a well-ventilated place, and do not block its ventilation.
• The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no higher than PS2. Note that the power supply requirements are subject to the device label.
• The Device is a class I electrical appliance. Make sure that the power supply of the Device is connected to a power socket with protective earthing.
• The appliance coupler is a disconnection device. Keep it at a convenient angle when using it.

Operation Requirements

WARNING

• Improper use of the battery might result in a fire or explosion.
• Replace unwanted batteries with new batteries of the same type and model.
• Use the standard power adapter. We will assume no responsibility for any problems caused by the use of a nonstandard power adapter.
• Use the power cords that are recommended for the region and conform to the rated power specifications.

• Do not drop or splash liquid onto the Device, and make sure that there is no object filled with liquid on the Device to prevent liquid from flowing into it.
• Operate the Device within the rated range of power input and output.
• Do not disassemble the Device without professional instruction.
• Use the Device under allowed humidity and temperature conditions.
• Operating temperature: 0 °C–50 °C (32 °F–122 °F).

Table of Contents

Foreword....I

Important Safeguards and Warnings.... III

1 Maintenance .... 1

1.1 Environmental Requirements....1
1.2 Maintenance Tips....1

2 Packing List.... 4

3 Device Introduction....5

3.1 Appearance 5
3.2 Ports 5
3.3 Remote Control....6

4 Local Configuration....8

4.1 Picture 9
4.2 System....10
4.3 Input Source....12

5 System Update.... 14

6 FAQ 15

Appendix 1 Cybersecurity Recommendations.... 16

1 Maintenance

1.1 Environmental Requirements

• The Device can only be installed indoors. It is recommended that the room where the Device is installed be equipped with air conditioner. The Device cannot be operated in environment with high humidity and heavy dust.
• Do not block the vent of the Device and the airflow around it; otherwise the temperature of the Device will increase, and fire might occur.

1.2 Maintenance Tips

Comply with the maintenance rule strictly to prolong the life span of the Device and to implement energy conservation and emission reduction.

Operating Time

Because of high temperature, electronic products will age rapidly if they are operated for a long time. The relation of operating time and performance of the Device is as follows.

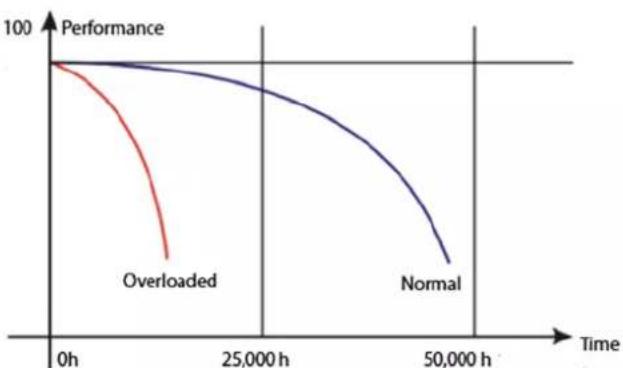

Figure 1-1 Performance

To prolong the life span of the Device and save maintenance expenses, follow the suggestions bellow.

• If the Device has worked for ten hours, turn it off and then turn it on after 15–30 minutes.
• If the Device has worked for 7 × 24 hours, turn it off and then turn it on after two hours.

Temperature, Humidity and Ventilation

• The appropriate ambient temperature range for the Device is 22 ^ ± 4 ^ , and the appropriate relative humidity range is 30%–70%, no condensation. There must be no great temperature and humidity difference.
• If the Device is used in environment with high temperature and humidity, there will be tiny water drops on the surface and frame of the Device. The water drops will flow inside the Device. As a

result, the glass structure will be damaged, and the liquid crystal molecule aggregation and outflow will occur. The phenomenon is displayed in Figure 1-2.

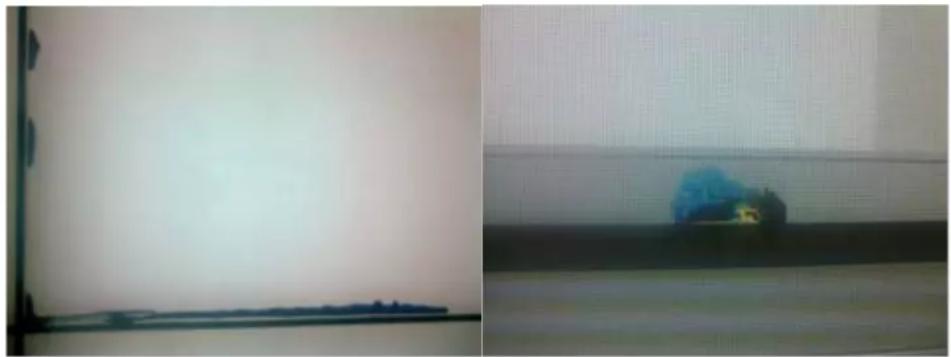

Figure 1-2 Liquid crystal leakage

Two-panel image showing a dark object on the left and a blue object on the right, both without any visible text or symbols.

During the operation, pay attention to the following points.

• Before turning off the Device, make sure that the temperatures of the air conditioners in the server room and the room where the Device is installed are the same.
• If the Device has been off for a long time, check if there are water drops on the surface. If there are water drops, do not dry the surface with wet cloth. Dry the surface with absorbent paper, do not power the device, and contact the after-sales personnel.

Free warranty service is not applicable to damage (includes but not limited to the damage to the Device and damage to the user or the third party) caused by incorrect use and maintenance.

Cleaning

• Use degreasing cotton or cloth to clean the screen.
• The ideal detergent is isopropanol or n-hexane. Do not use ketone (such as acetone) to clean the screen.
  ● Before you clean the screen, pull the plug out of the socket.
• Wet cloth is not allowed to clean the Device because there will be tiny water drops on the surface and frame of the Device. The water drops will flow inside the Device. As a result, the glass structure will be damaged, and the liquid crystal molecule aggregation and outflow will occur.
• The panel is fragile. As a result, you cannot press or scratch the surface of the screen with great force.

Power Supply

Stable 100–240 VAC single phase power supply is needed; otherwise the Device cannot work normally. To get stable voltage and prevent damage result from electrical surge, use the stabilized voltage supply.

Storage Requirement

• If the Device is not in use for a long time, cover it with the dust-cloth.
• If the Device has not been used for over six months before you start to use it again, do dust removal first, or contact professional company to do the maintenance.

If the Device is not in use for a long time, it will gather dust and heat radiation will be influenced.

Dust-Proof Requirement

During debugging and operation, the dust concentration of the working area should not exceed 10 mg/m ^3 .

If the Device must be used in environment with high temperature and high humidity, or the Device must be in single display mode for a long time, we strongly recommend you to contact engineers of our company to get suggestions. Otherwise the reliability and performance could be greatly influenced.

Airports, banks and stock markets are places with great dust and wide differences in temperature and humidity.

Playing a static image for a long time can cause a burning screen. If you want to play a static image, switch to a dynamic video every two hours and play it for more than 15 minutes.

Screen Usage Requirements

Playing static images for a long time can damage the screen and cause images to glitch. If this cannot be avoided, take the following measures:

• Avoid playing static images 24/7.
  • We recommend playing static and motion images alternately.
  For example, you can alternate between playing static images for 5 minutes and motion images for 10 seconds.
• When the screen is connected to a computer, use motion images as the screen saver.

2 Packing List

Check Table 2-1 to see whether the components are complete.

The appearance, items, or quantity might be different depending on the model that you purchased.

Table 2-1 Packing list

Component Quantity
LCD display wall unit 1
AC power cable 1
Network cable 1
Remote control 1
AAA battery 2

3 Device Introduction

3.1 Appearance

Figure 3-1 Appearance

Solid dark gray gradient background with no text, symbols, or discernible objects

3.2 Ports

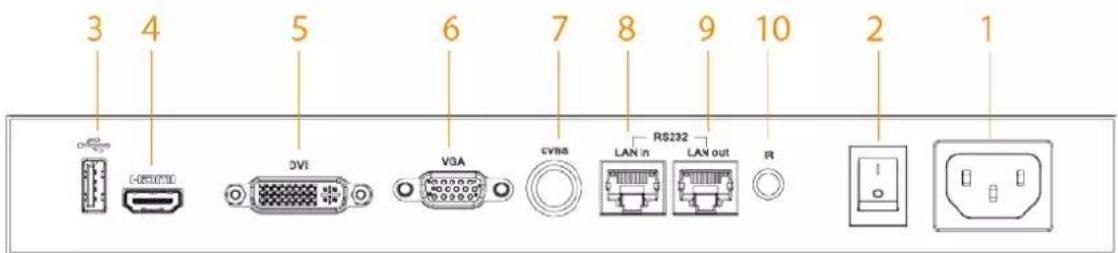

Figure 3-2 Ports

Table 3-1 Port description

No.	Port	Function
1	Power input port	Inputs AC power.
2	Power switch	Controls the on and off of the AC input port.
3	USB port	Used for system update.
4	HDMI in	Inputs HDMI signals. Supports up to 1080p@60 Hz.
5	DVI in	Inputs DVI signals. Supports up to 1080p@60 Hz.
6	VGA in	Inputs VGA signals. Supports up to 1080p@60 Hz.
7	CVBS input	Inputs CVBS signals.
8	LAN in	An RJ-45 port that inputs RS-232 signals. It controls the screen.
9 LAN	out	An RJ-45 port that outputs RS-232 signals. It controls signal loop-through.
10	IR port	Connected to the IR extension cord.

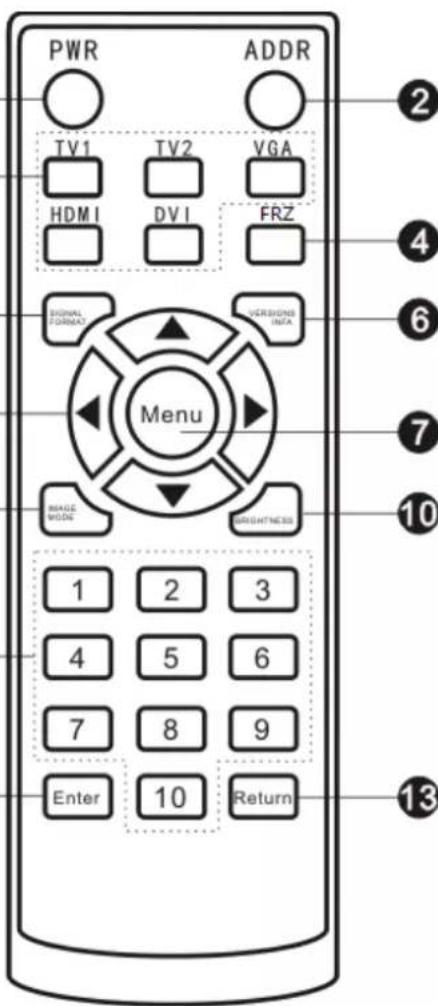

3.3 Remote Control

Remote control is a must-have device.

Table 3-2 Button functions

Picture	No.	Name	Function
135891112		1 Power Power on/Standby.
		2 Address	Address setting (dedicated to monitors).
		3 Signal source	Signal source selection.TV1: Switch signals to CVBS signal.TV2: Not available.VGA: Switch signals to VGA signal.HDMI: S witch signals to HDMI signal.DVI: Switch signals to DVI signal.
		4 FRZ	Pause button, used to stop playing videos.
		5 Signal format	Displays current input signals.
		6 Version info	Displays version of the system.
		7 Menu	Press Menu to display or exit the menu interface.
			Press Menu to confirm the operation you have done.
		8	Direction button
			Up and down direction button:Use it to select items up or below the current item you have selected on the screen.
	9	Image mode	Select image mode.
	10	Brightness	Select brightness mode.
	11	Number buttons	Press number buttons to enter numbers.
	12 Enter		Press Enter to confirm and enter the multimedia interface.
	13 Return		Press Return to exit the multimedia interface.

4 Local Configuration

Use the remote control to configure parameters for the Device. Press the menu button, the menu of the Device is displayed in Figure 4-1.

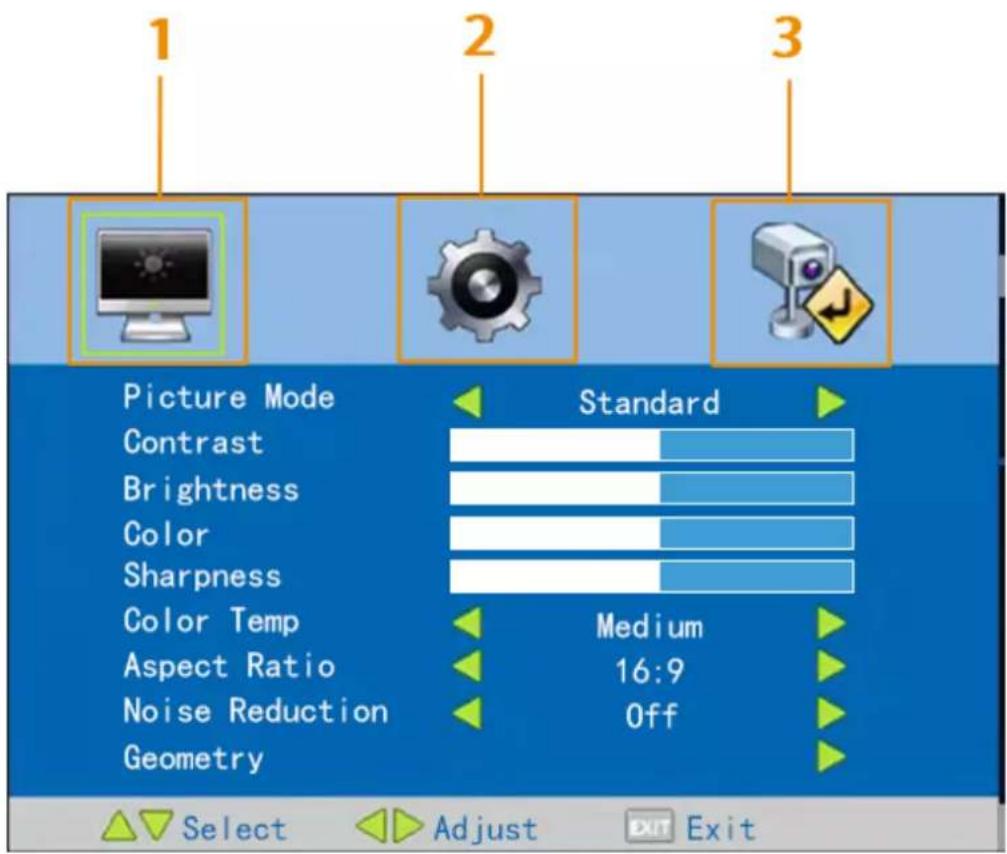

Figure 4-1 Menu

For introduction of icons on the menu, see Table 4-1.

Table 4-1 Icon description

No. Menu Description
1	Picture	Set imaging effect for the Device.
2 System	settings	Configure parameters for the system.
3	Input source	Select signal mode.

• Press Menu on the remote control, the menu bar is displayed on the Device, and then you can adjust relevant parameters.
• Press Menu on the remote control or select Menu on the menu bar to exit the current menu.

4.1 Picture

Press Menu on the remote control, the menu bar is displayed on the Device. The default menu bar is Picture menu bar.

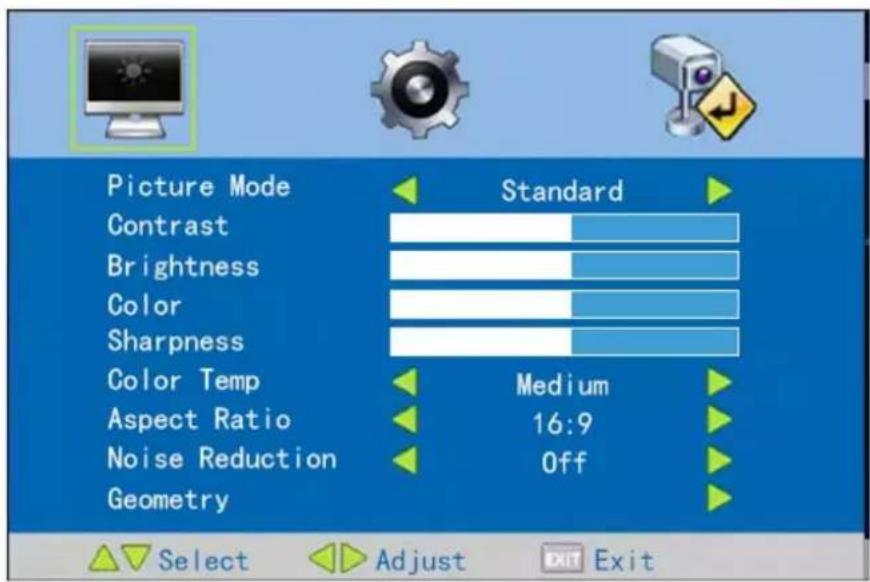

Figure 4-2 Picture

Table 4-2 Picture parameters

Parameter Description
Picture Mode	Select a mode for the overall effects of images. There are four image modes:User mode, dynamic mode, standard mode, and soft light mode.
Contrast	Adjust contrast to make objects in images distinguishable. The value ranges from 0 through 100.
Brightness	Adjust the brightness of images. The value ranges from 0 through 100.
Color	Adjust color saturation. The value ranges from 0 through 100.
Sharpness	The higher the sharpness, the clearer the images but meanwhile the more noise. The value ranges from 0 through 100.
Color Temp	Adjust the color temperature of images.
Aspect Ratio	Adjust the display scales of images. You can select 16:9, 4:3 or panorama.
Noise Reduction	Reduce noise to improve image quality. You can select the level of noise reduction from Off, Low, Middle, and High.
Geometry	Adjust the position and size of images.1. Press ▲ or ▼ to select Geometry, and then press ▶.2. Press ▲ or ▼ to select the geometry parameter to be adjusted.3. Press ◀ or ▶ to adjust the value. The value ranges from 0 through 50.

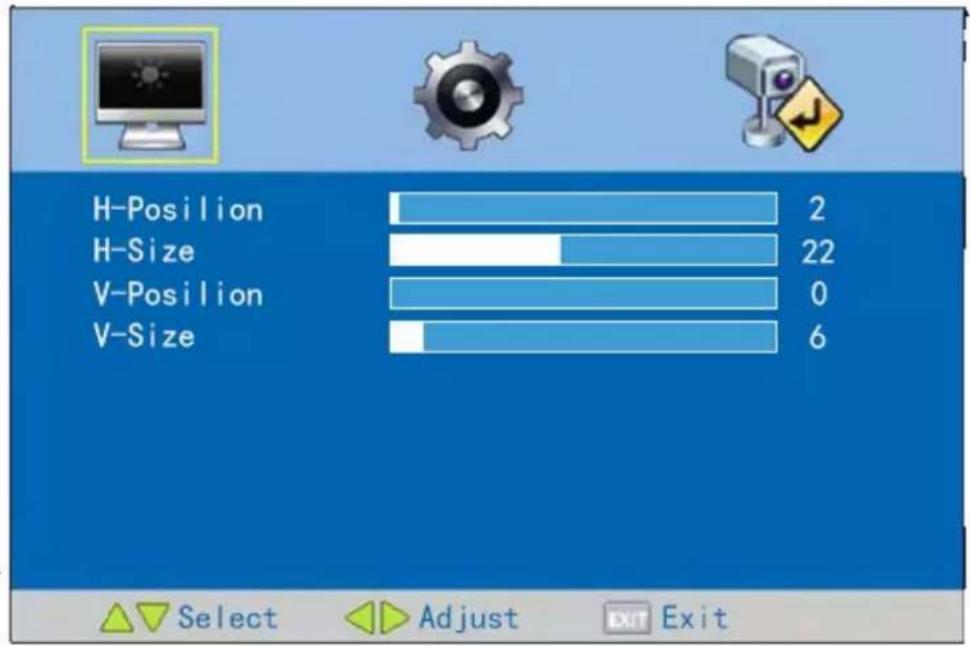

Figure 4-3 Geometry

4.2 System

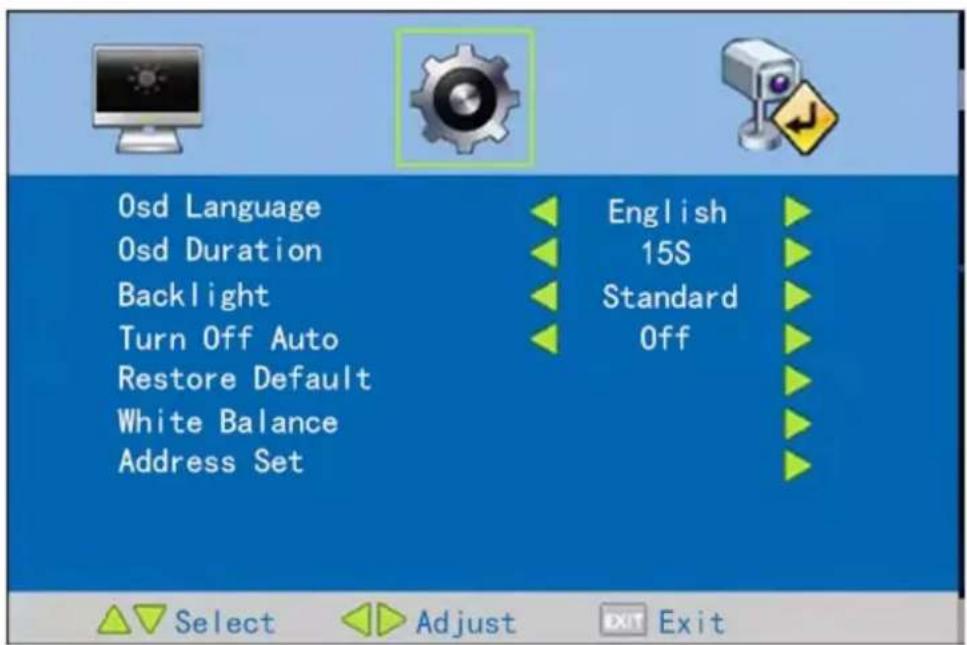

Figure 4-4 System settings

Table 4-3 Parameters of system settings

Parameter Description
Osd Language	Select a system language from Chinese and English.
Parameter Description
Osd Duration	Set how long the menu is displayed on the screen. You can select 15 s, 30 s, off or 5 s.
Backlight	Select a backlight mode for the screen.
Turn Off Auto	If the function is enabled, the screen will automatically become off when there is no input signal.
Restore Default	Restore all the parameters except language to default settings.
White Balance	Adjust the white balance to balance the color temperature of images.1. Press ▲ or ▼ to select White Balance, and then press ▶.2. Select a white balance color and then adjust the value.
Address Set	1. Press ▲ or ▼ to select Address Set, and then press ▶.2. Select the parameter to be adjusted.3. Press ▲ or ▲ to adjust the value.

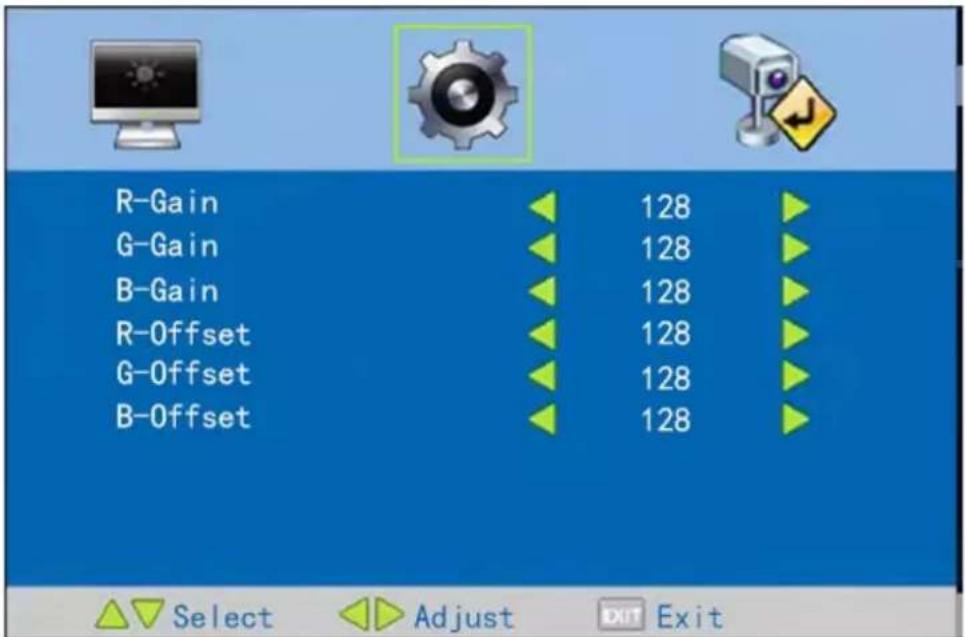

Figure 4-5 White balance

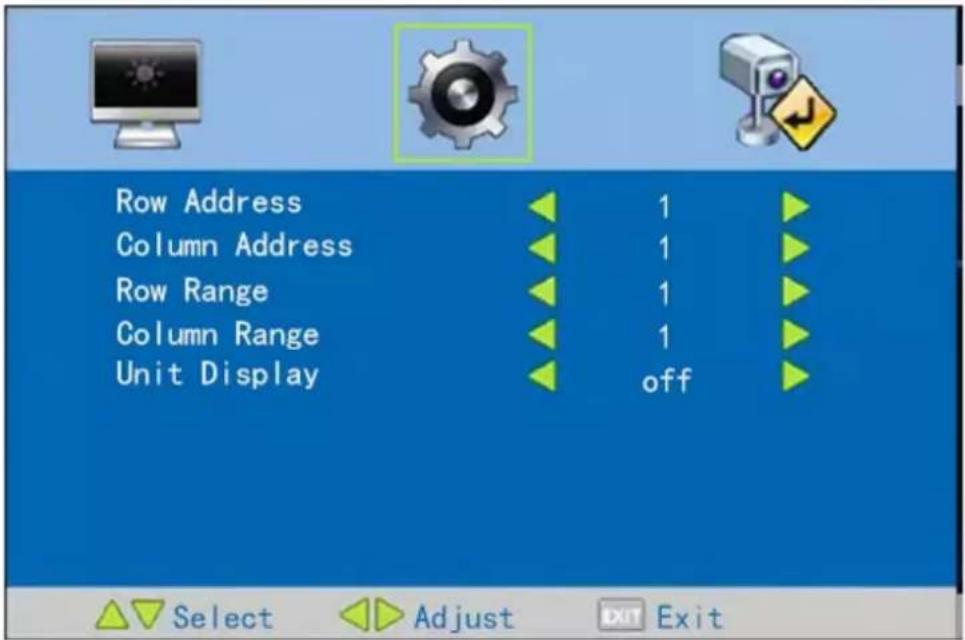

Figure 4-6 Address setting

Table 4-4 Soft address parameters.

Parameter Description
Row Address	Row address of the screen.
Column Address	Column address of the screen.
Row Range	Row range of the screen.
Column Range	Column range of the screen.
Unit Display	Enable or disable unit display.

4.3 Input Source

You can select a type of input signal source for the Device. HDMI, DVI, VGA, AV, and USB are available.

Step 1 On the main menu, press ◀ or ▶ to select

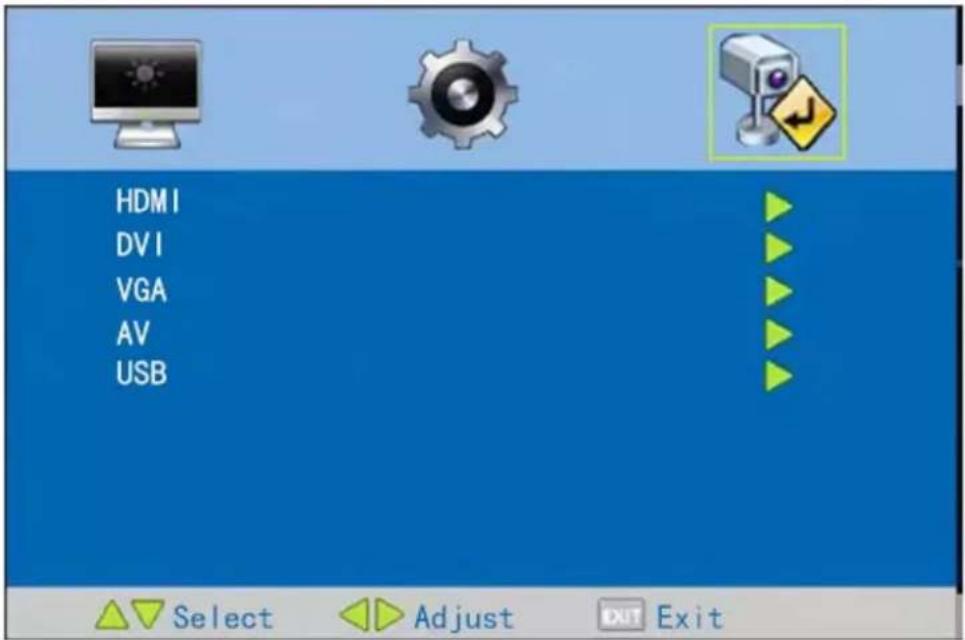

Figure 4-7 Input source

Step 2 Press ▲ or ▼ to select an input signal type, and then ▶ to configure the parameters.

You can press the signal source buttons to set the input source.

5 System Update

The product involves complicated operations. To protect the rights of the customer, update and maintenance must be conducted by our technicians. Do not dismantle the Device or update the system on your own. We are not liable for any errors or damages incurred therefrom.

6 FAQ

Most problems can be solved by the following solutions. If problems that you encountered are not covered in the following table, contact after-sales personnel.

Table 6-1 FAQ

Problems Solutions
When you turn on the Device, there are no images on the screen (blank screen).	Check whether the power source (220 V AC) is connected to alternating current.Check whether the power cord is broken.Check whether the power switch is on.Check whether the power switch is broken.Check whether the indicator light is on.
Blank screen (no signal displayed).	Check whether the signal wires are in bad contact.Check whether there is signal source output.Check whether the signal wires are broken.Check whether the input signal type does not belong to the types allowed by the Device.
Color missing.	Check whether the signal wires are in bad contact.Check whether the signal wires are broken.
Remote control cannot control the screen.	Check whether batteries of the remote control are installed correctly.
Temperature of the Device is too high.	Check whether the ventilation around the Device is good.

Appendix 1 Cybersecurity Recommendations

Mandatory actions to be taken for basic device network security:

1. Use Strong Passwords

Please refer to the following suggestions to set passwords:

● The length should not be less than 8 characters.
- Include at least two types of characters; character types include upper and lower case letters, numbers and symbols.
- Do not contain the account name or the account name in reverse order.
- Do not use continuous characters, such as 123, abc, etc.
- Do not use overlapped characters, such as 111, aaa, etc.

2. Update Firmware and Client Software in Time

- According to the standard procedure in Tech-industry, we recommend to keep your device (such as NVR, DVR, IP camera, etc.) firmware up-to-date to ensure the system is equipped with the latest security patches and fixes. When the device is connected to the public network, it is recommended to enable the "auto-check for updates" function to obtain timely information of firmware updates released by the manufacturer.

- We suggest that you download and use the latest version of client software.

"Nice to have" recommendations to improve your device network security:

1. Physical Protection

We suggest that you perform physical protection to device, especially storage devices. For example, place the device in a special computer room and cabinet, and implement well-done access control permission and key management to prevent unauthorized personnel from carrying out physical contacts such as damaging hardware, unauthorized connection of removable device (such as USB flash disk, serial port), etc.

2. Change Passwords Regularly

We suggest that you change passwords regularly to reduce the risk of being guessed or cracked.

3. Set and Update Passwords Reset Information Timely

The device supports password reset function. Please set up related information for password reset in time, including the end user's mailbox and password protection questions. If the information changes, please modify it in time. When setting password protection questions, it is suggested not to use those that can be easily guessed.

4. Enable Account Lock

The account lock feature is enabled by default, and we recommend you to keep it on to guarantee the account security. If an attacker attempts to log in with the wrong password several times, the corresponding account and the source IP address will be locked.

5. Change Default HTTP and Other Service Ports

We suggest you to change default HTTP and other service ports into any set of numbers between 1024–65535, reducing the risk of outsiders being able to guess which ports you are using.

6. Enable HTTPS

We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.

7. MAC Address Binding

We recommend you to bind the IP and MAC address of the gateway to the device, thus reducing

the risk of ARP spoofing.

8. Assign Accounts and Privileges Reasonably

According to business and management requirements, reasonably add users and assign a minimum set of permissions to them.

9. Disable Unnecessary Services and Choose Secure Modes

If not needed, it is recommended to turn off some services such as SNMP, SMTP, UPnP, etc., to reduce risks.

If necessary, it is highly recommended that you use safe modes, including but not limited to the following services:

• SNMP: Choose SNMP v3, and set up strong encryption passwords and authentication passwords.
• SMTP: Choose TLS to access mailbox server.
• FTP: Choose SFTP, and set up strong passwords.
  ● AP hotspot: Choose WPA2-PSK encryption mode, and set up strong passwords.

10. Audio and Video Encrypted Transmission

If your audio and video data contents are very important or sensitive, we recommend that you use encrypted transmission function, to reduce the risk of audio and video data being stolen during transmission.

Reminder: encrypted transmission will cause some loss in transmission efficiency.

11. Secure Auditing

• Check online users: we suggest that you check online users regularly to see if the device is logged in without authorization.
• Check device log: By viewing the logs, you can know the IP addresses that were used to log in to your devices and their key operations.

12. Network Log

Due to the limited storage capacity of the device, the stored log is limited. If you need to save the log for a long time, it is recommended that you enable the network log function to ensure that the critical logs are synchronized to the network log server for tracing.

13. Construct a Safe Network Environment

In order to better ensure the safety of device and reduce potential cyber risks, we recommend:

• Disable the port mapping function of the router to avoid direct access to the intranet devices from external network.
• The network should be partitioned and isolated according to the actual network needs. If there are no communication requirements between two sub networks, it is suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect.
• Establish the 802.1x access authentication system to reduce the risk of unauthorized access to private networks.
• Enable IP/MAC address filtering function to limit the range of hosts allowed to access the device.
