MC32J7085CT - Microwave SAMSUNG - Free user manual and instructions

Product Type	Microwave Oven with Grill and Convection
Brand	Samsung
Model	MC32J7085CT
Power Source	230 V ~ 50 Hz AC
Power Consumption	2100 W (max)
Microwave Output Power	900 W (max), 6 levels
Grill Power	1500 W
Convection Power	2100 W (max)
Operating Frequency	2450 MHz
Dimensions (W x H x D)	523 x 309 x 506 mm
Oven Cavity Dimensions (W x H x D)	373 x 233 x 370 mm
Capacity	32 liters
Net Weight	20.0 kg
Cooking Modes	Microwave, Grill, Convection, Combination (Microwave+Grill, Microwave+Convection)
Auto Programs	Slim Fry (12), Sensor Cook (8), Healthy Cooking (15), Dough Proof/Yogurt (5), Power Defrost (5), Auto Reheat/Cook (6)
Special Features	Child Lock, Turntable On/Off, Energy Save Mode, Beeper On/Off, Crusty Plate, Metal Racks (High/Low)
Control Panel	15 buttons including Multi Function Selector Dial, Touch controls
Cleaning	Wipe with damp cloth, mild detergent; do not use abrasive cleaners
Safety Features	Safety interlock holes, door latches, child lock, automatic shut-off when empty, overheat protection
Accessories Included	Roller ring, turntable, high rack, low rack, crusty plate

Frequently Asked Questions - MC32J7085CT SAMSUNG

What should I do if the microwave does not start?

Ensure the power cord is plugged in and the door is properly closed. If the child lock is activated, press the Child Lock button for 3 seconds to deactivate. Also check if the Eco mode is on; press STOP/ECO to exit.

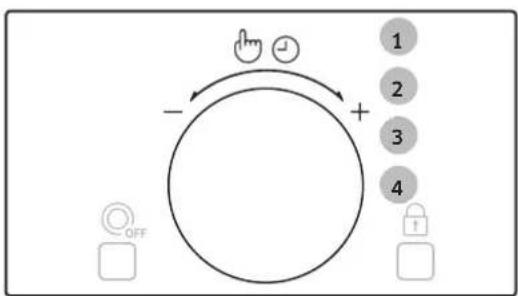

How do I set the clock?

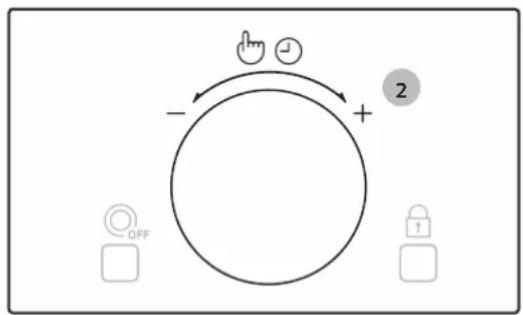

Press the Multi Function Selector Dial. Turn it to select 12H or 24H format, then press the dial. Turn to set the hour, press dial, then set minutes and press dial again to confirm.

Why does the oven make a popping sound during cooking?

Poping sounds may occur if food is in a sealed container or if a metal object is used. Always use microwave-safe containers and avoid sealed lids. If sparks appear, stop immediately and remove any metal.

How do I use the Slim Fry function?

Press the Slim Fry button. Turn the dial to select category (Potatoes/Vegetables, Seafood, or Chicken) and press dial. Then select the specific food type and serving size. Press START/+30s to begin. Use the crusty plate for best results.

Can I use metal containers in the microwave?

No, metal containers are not microwave-safe and can cause arcing or fire. Only use microwave-safe cookware such as glass, ceramic, or plastic marked microwave-safe. The metal racks are only for grill, convection, or combination modes.

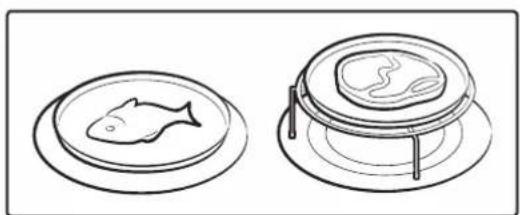

How do I clean the crusty plate?

Clean the crusty plate with warm water and mild detergent, then rinse. Do not use abrasive sponges or brushes as they may damage the non-stick coating. The crusty plate is not dishwasher-safe.

What does the error code C-10 mean?

Code C-10 indicates a cooking sensor issue. Press STOP/ECO to cancel and try again. If it persists, unplug the oven for 30 seconds and reset. If the code reappears, contact Samsung Customer Care.

How do I switch off the beeper?

Press the START/+30s and STOP/ECO buttons simultaneously. The oven will no longer beep at the end of a cycle. Repeat the same action to turn the beeper back on.

Why is steam coming out from the door?

Some steam may escape during cooking, which is normal. If excessive, check that the door seals are clean and not damaged. Wipe any moisture after use. If the problem persists, contact service.

Can I use the turntable off feature?

Yes. Press the Turntable On/Off button during manual cooking modes (Microwave, Grill, etc.) to stop rotation. This allows for larger dishes. However, cooking may be less even, so we recommend turning the dish manually halfway through.

USER MANUAL MC32J7085CT SAMSUNG

Black-and-white photo of sliced bread on a plate, with Samsung logo visible in corner (no text on bread or plate)

Innehåll

Simple line drawing of an oval-shaped object with three small protrusions and a central dot (no text or symbols)

Simple diagram of concentric ovals with small dots inside, no text or symbols present

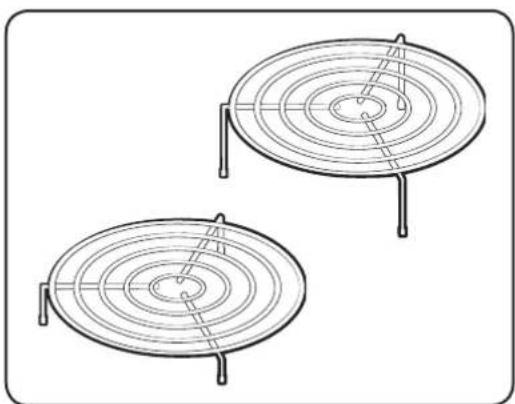

Two circular metal fans with concentric rings and radial supports, no text or symbols present

Simple line drawing of an oval shape with no text or symbols

04 Brynplatta, se sidan 44.

Technical line drawing of a circular mechanical component with mounting holes and a downward arrow indicating rotation (no text or symbols)

Simple line drawing of a triangular structure with an arrow and label 'A' (no text or symbols beyond labels)

01 Knappen Slim Fry (Smal fritering)
02 Knappen Sensor
03 Knappen Healthy Cooking (Hälsosam tillagning)
04 Knappen Dough Proof/Yogurt (Degsäker/Yoghurt)
05 Knappen Power Defrost (Snabb upptining)
06 Knappen Auto Reheat/Cook (Automatisk uppvärmning/Tillagning)
07 Knappen Convection (Varmluft)
08 Knappen Grill
09 Knappen Microwave (Mikrovågsugn)
10 Knappen Combi (Kombi)
11 Knappen Roterande tallrik På/Av
12 Multifunktionsväljare
13 Barnläsknapp
14 Knappen Stop/Eco (Stopp/Eko)
15 Knappen Start/+30s

Använda ugnen

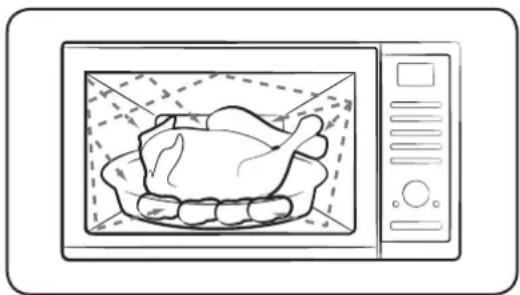

Line drawing of a microwave oven with a roasted chicken inside (no text or symbols)

1. Tryck på knappen Microwave (Mikrovågsugn).

- Tryck på knappen STOP/ECO (STOPP/EKO).

Resultat: Display av.

Line drawing of a microwave oven with lid, vent, and door (no text or symbols)

Two plate illustrations: one with a fish silhouette, the other with meat and meat inside (no text or symbols)

Line drawing of two food containers: a fish-shaped plate and a lid with meat, both placed on different plates (no text or symbols)

1. Tryck på knappen Convection (Varmluft).

Line drawing of a laboratory apparatus with a central chamber and surrounding components (no text or symbols)

Line drawing of a circular container with a central irregular shape and three protruding elements (no text or symbols)

1. Tryck på knappen Combi (Kombination).

1. Tryck på knappen Combi (Kombination).

Black-and-white photo of sliced bread on a plate, with Samsung logo visible in corner (no text on bread or plate)

Innhold

Simple line drawing of an oval-shaped object with two small protrusions and a central dot (no text or symbols)

Simple diagram of concentric ovals with small dots inside, no text or symbols present

Two circular metal fans with radial lines and support legs, no text or symbols present

01 Roterende ring, skal plasseres midt i ovnen.

Hensikt: Tallerkenen plasseres på den roterende ringen.

Simple oval shape with no text, numbers, or symbols

04 Crisp-tallerkenen, se side 44.

Diagram of a circular mechanical component with a central hub and two downward arrows indicating rotation or force (no text or symbols)

Fjern alt emballasjemateriale inne i ovnen. Installer den roterende ringen og tallerkenen. Kontroller at tallerkenen roterer fritt.

Vedlikehold

Rengjøring

• Tining
  • Gjenoppvarming
• Koking

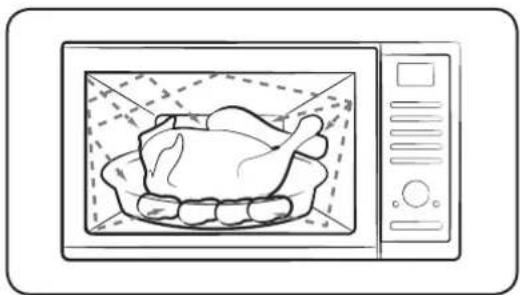

Tilberedningsprinsipp.

Line drawing of a microwave oven with a roasted chicken inside (no text or symbols)

MERK

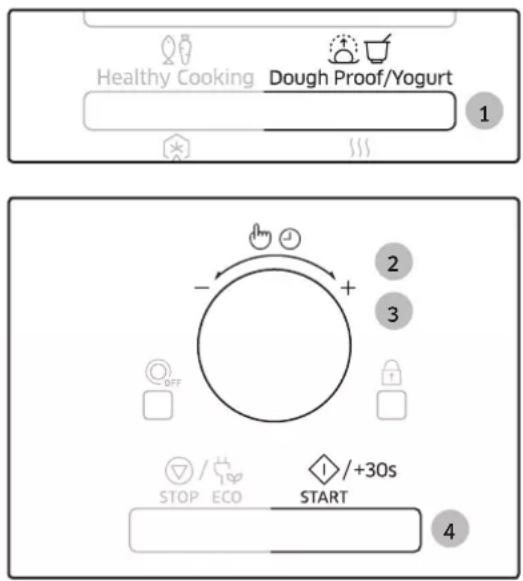

1) Dough proof (deigsikker)
2) Yogurt (yoghurt)

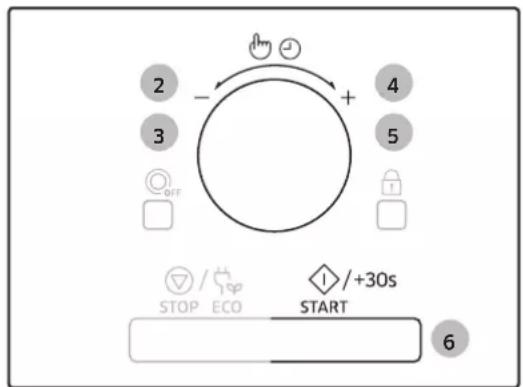

1. Velg mattypen du tilbereder, ved å dreie på flerfunksjonsvelgeren.

Line drawing of a microwave oven with lid and ventilation slots (no text or symbols)

Two plate illustrations: one with a fish silhouette, the other with meat and meat inside (no text or symbols)

Line drawing of two food containers: a fish-shaped plate and a lid with meat, both placed on different plates (no text or symbols)

Line drawing of a laboratory apparatus with a central chamber and surrounding components (no text or symbols)

Line drawing of a circular container with a central irregular shape and two side handles (no text or symbols)

1. Trykk på Barnesikring-knappen i 3 sekunder.

Resultat:

Black-and-white photo of sliced bread on a plate, with Samsung logo visible in corner (no text on bread or plate)

Sisällysluettelo

Simple line drawing of an oval-shaped object with three small protrusions and a central dot (no text or symbols)

Simple diagram of concentric ovals with small dots inside, no text or symbols present

Two circular mechanical or electrical components with concentric rings and metal supports (no text or symbols)

Simple oval shape with no text, numbers, or symbols

Technical line drawing of a circular mechanical component with mounting holes and a central hub, showing internal flow arrows (no text or symbols)

Paina START/+30s (KÄYNNISTYS/+30s)

-painiketta.

Line drawing of a microwave oven with a roasted chicken inside (no text or symbols)

Paina START/+30s (KÄYNNISTYS/+30s)

1. Paina Microwave (mikroaalto) -painiketta.

1. Paina START/+30s (KÄYNNISTYS/+30s) -painiketta.

• Paina STOP/ECO (PYSÄYTYS/EKO)

-painiketta.

HUOM.

1. Paina START/+30s (KÄYNNISTYS/+30s) -painiketta.

Line drawing of a microwave oven with lid and ventilation slots (no text or symbols)

Two plate illustrations: one with a fish silhouette, the other with meat and meat inside (no text or symbols)

Line drawing of two food containers: a fish-shaped plate and a lid with meat, both placed on different plates (no text or symbols)

5. Paina START/+30s (KÄYNNISTYS/+30s) -painiketta.

Line drawing of a laboratory apparatus with a central chamber and surrounding components (no text or symbols)

1. Paina START/+30s (KÄYNNISTYS/+30s) -painiketta.

Line drawing of a circular container with a central irregular shape and three side supports (no text or symbols)

1. Paina START/+30s (KÄYNNISTYS/+30s) -painiketta.

1. Paina START/+30s (KÄYNNISTYS/+30s) -painiketta.

Tulos: Valmistus

KYSYMYKSET JA KOMMENTIT

MAA SOITA	TAI KÄY OSOITTEESSA
AUSTRIA	0800-SAMSUNG (0800-7267864)[Only for Premium HA] 0800-366661[Only for Dealers] 0810-112233	www.samsung.com/at/support
BELGIUM 02-	201-24-18	www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
DENMARK 70	70 19 70 www.samsung.com/dk/support
FINLAND 030	-6227 515 www.samsung.com/fi/support
FRANCE 01 48	63 00 00 www.samsung.com/fr/support
GERMANY	0180 6 SAMSUNG bzw. 0180 6 7267864*(0,20 €/Anruf aus dem dt. Festnetz,aus dem Mobilfunk max. 0,60 €/Anruf)	www.samsung.com/de/support
ITALIA 800	SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS 8009	4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864)only from land line([phone] from mobile and land line
LUXEMBURG 26	1 03 710 www.samsung.com/support
NETHERLANDS	0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com/nl/support
NORWAY	815 56480	www.samsung.com/no/support
PORTUGAL	808 20 7267	www.samsung.com/pt/support
SPAIN	0034902172678	www.samsung.com/es/support
SWEDEN	0771 726 7864 (0771-SAMSUNG)	www.samsung.com/se/support
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
UK	0330 SAMSUNG (7267864)	www.samsung.com/uk/support
EIRE	0818 717100	www.samsung.com/ie/support

DE68-04319H-01

Mikrobølgeovn

Brugervejledning

MC32J7085C*

Indhold

Simple line drawing of an oval-shaped object with two small protrusions and a central dot (no text or symbols)

Simple diagram of concentric ovals with small dots inside, no text or symbols present

Two circular metal fans with concentric rings and support legs, no text or symbols present

01 Rotationsring skal anbringes midt i ovnen.

Formål: Rotationsringen understøtter drejeskiven.

02 Drejeskive skal anbringes oven på rotationsringen med det midterste beslag på koblingen.

Simple oval shape with no text, numbers, or symbols

04 Bruningstallerken, se side 44.

Technical line drawing of a circular mechanical component with mounting holes and a downward arrow indicating rotation (no text or symbols)

Fjern al emballage inde i ovnen. Installer rotationsringen og drejeskiven. Kontroller, at drejeskiven roterer frit.

Vedligeholdelse

Rengøring

START/+30s (START/+30sek.).

01 Knappen Slim fry (Svag stegning)
02 Knappen Sensor
03 Knappen Healthy Cooking (Sund tilberedning)
04 Knappen Dough Proof/Yogurt (Dejfremstilling/Yoghurt)
05 Knappen Power Defrost (Lynoptøning)
06 Knappen Auto Reheat/Cook (Automatisk opvarmning/tilberedning)
07 Knappen Convection (Varmluft)
08 Knappen Grill
09 Knappen Microwave (Mikrobølge)
10 Knappen Combi (Kombination)
11 Knappen drejeskive Til/Fra
12 Multifunktionsvælger
13 Knap til børnesikring
14 Knappen Stop/Eco (Stop/∅ko)
15 KNAPPEN Start/+30s (Start/+30sek.)

Line drawing of a microwave oven with a roasted chicken inside (no text or symbols)

BEMÆRK

Line drawing of a microwave oven with lid and vent, showing open doors and ventilation grille (no text or symbols)

Two plate illustrations: one with a fish silhouette, the other with meat and meat inside (no text or symbols)

Line drawing of two food containers: a fish-shaped plate and a lid with meat, both placed on different plates (no text or symbols)

1. Tryk på knappen Convection (Varmluft).

Resultat: Følgende indikatorer vises:

(varmluftstilstand)

180 °C (temperatur)

Line drawing of a laboratory apparatus with a central chamber and surrounding components (no text or symbols)

Line drawing of a circular container with a central cavity and three side supports (no text or symbols)

1. Tryk på knappen Combi (Kombi).

Resultat: Følgende indikatorer vises:

1. Tryk på knappen Combi (Kombi).
   Resultat: Følgende indikatorer vises:
   Cb1 (Mikrobølger + Grill)

1. Tryk på knapperne START/+30s (START/+30sek.) og STOP/ECO (STOP/∅KO) på samme tid.

Using this user manual 4

The following symbols are used in this User Manual: 4

Safety instructions 5

Important safety instructions 5

Installation 13

Accessories	13
Installation site 15
Turntable	15

Maintenance 16

Cleaning	16
Replacement (repair) 18
Care against an extended period of disuse 18

Quick look-up guide 19

Oven features 20

Oven	20
Control panel 21

Oven use 22

How a microwave oven works 22
Checking that your oven is operating correctly	23
Setting the time	23
Cooking/Reheating	24
Power levels and time variations	25
Adjusting the cooking time	26
Stopping the cooking	26
Setting the energy save mode	27
Using the slim fry cook features	28
Slim fry guide	29
Using the sensor cook features	31
Sensor cook guide	32
Using the healthy cooking features	35
Healthy cooking guide	36
Using the dough proof/yogurt features	38
Dough proof/yogurt guide	39
Using the power defrost features	40
Power defrost guide	41

2 English

Using the auto reheat/cook features 42

Auto reheat/cook guide 43

Using the crusty plate 44

Convection 46

Grilling 47

Choosing the accessories 48

Combining microwaves and grill 48

Combining microwaves and convection 50

Switching the beeper off 52

Using the child lock features 52

Using the turntable on/off features 53

Cookware guide 54

Cooking guide 56

Microwaves 56

Cooking 56

Reheating 61

Reheating liquids 61

Reheating baby food 62

Remark: 62

Defrosting 65

Grill 67

Microwave + Grill 67

Convection 70

Microwave + Convection 70

Tips and tricks 73

Troubleshooting 74

Troubleshooting 74

Information codes 80

Technical specifications 81

English 3

Using this user manual

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contains valuable information on cooking with your microwave oven:

• Safety precautions
  • Suitable accessories and cookware
  • Useful cooking tips
• Cooking tips

The following symbols are used in this User Manual:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

NOTE

Useful tips, recommendations, or information that helps users manipulate the product.

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

MAKE SURE THAT THESE SAFETY PRECAUTIONS ARE OBEYED AT ALL TIMES.

BEFORE USING THE OVEN, CONFIRM THAT THE FOLLOWING INSTRUCTIONS ARE FOLLOWED.

Microwave function only

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

This appliance is intended to be used in household only and it is not intended to be used such as:

• staff kitchen areas in shops, offices and other working environments;
- farm houses;
• by clients in hotels, motels and other residential environments;
• bed and breakfast type environments.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Safety instructions

WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

Only use utensils that are suitable for use in microwave ovens.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

If smoke is emitted (observed), switch off or unplug the appliance and keep the door closed in order to stifle any flames.

WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

The oven should be cleaned regularly and any food deposits removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The appliance should not be cleaned with a water jet.

This oven should be positioned proper direction and height permitting easy access to cavity and control area.

Before using the your oven first time, oven should be operated with the water during 10 minute and then used.

If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.

The microwave oven has to be positioned so that plug is accessible.

The microwave oven is intended to be used on the counter top (freestanding) use only, the microwave oven shall not be placed in a cabinet.

Safety instructions

Oven function only - Optional

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

A steam cleaner is not to be used.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The temperature of accessible surfaces may be high when the appliance is operating.

The door or the outer surface may get hot when the appliance is operating.

Keep the appliance and its cord out of reach of children less than 8 years.

Appliances are not intended to be operated by means of an external timer or separate remote-control system.

General safety

WARNING

Only qualified staff should be allowed to modify or repair the appliance.

Do not heat liquids and other food in sealed containers for microwave function.

For your safety, do not use high-pressure water cleaners or steam jet cleaners.

Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground.

This appliance must be properly grounded in accordance with local and national codes.

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

Do not pull or excessively bend or place heavy objecton the power cord.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.

Do not touch the power plug with wet hands.

Do not turn the appliance off by unplugging the power plug while an operation is in progress.

Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.

Do not apply excessive pressure or impact to the appliance.

Do not place the oven over a fragile object such as a sink or glass object.

English 9

Safety instructions

Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance.

Ensure that the power voltage, frequency and current are the same as those of the product specifications.

Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer.

Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.

Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.

Do not pour or directly spray water onto the oven.

Do not place objects on the oven, inside or on the door of the oven.

Do not spray volatile material such as insecticide onto the surface of the oven.

Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven.

Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.

WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating.

In the event of scalding, follow these FIRST AID instructions:

• Immerse the scalded area in cold water for at least 10 minutes.
  • Cover with a clean, dry dressing.
  • Do not apply any creams, oils or lotions.

Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack.

Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of the hot liquid.

CAUTION

Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc.

Remove wire twist ties from paper or plastic bags.

Reason: Electric arcing or sparking may occur and may damage the oven.

Do not use your microwave oven to dry papers or clothes.

Use shorter times for smaller amounts of food to prevent overheating and burning food.

Do not immerse the power cable or power plug in water and keep the power cable away from heat.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc.

Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it cools sufficiently.

Always use oven mitts when removing a dish from the oven to avoid unintentional burns.

Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.

Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.

Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally.

Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven.)

Take care when connecting other electrical appliances to sockets near the oven.

Precautions to avoid possible exposure to excessive microwave energy. (Microwave function only)

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

A. Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.

English 11

Safety instructions

B. Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.
C. Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

D. The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include:

A. A dented, scratched, or broken door, handle, out-panel, or control panel.
B. A broken or missing tray, guide roller, coupler, or wire rack.

• Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

12 English

Installation

Accessories

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

Simple line drawing of an oval-shaped object with three small protrusions and a central dot (no text or symbols)

Simple diagram of concentric ovals with small dots inside, no text or symbols present

Two circular metal grates with internal concentric rings and support legs, no text or symbols present

01 Roller ring, to be placed in the centre of the oven.

Purpose: The roller ring supports the turntable.

02 Turntable, to be placed on the roller ring with the centre fitting on to the coupler.

Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.

03 High rack, Low rack, to be placed on the turntable.

Purpose: The metal racks can be used to cook two dishes at the same time. A small dish may be placed on the turntable and a second dish on the rack. The metal racks can be used in grill, convection and combination cooking.

Installation

Simple oval shape with no text, numbers, or symbols

04 Crusty plate, see page 44.

Purpose: The crusty plate is used to brown food better in the microwave or grill combination cooking modes. It helps keep pastry and pizza dough crisp.

CAUTION

DO NOT operate the microwave oven without the roller ring and turntable.

Installation site

• Do not install the oven in hot or damp surroundings, such as next to other microwave ovens or radiators.

• Conform to the power supply specifications of this oven. Use only approved extension cables if you need to use.

• Select a flat, level surface approx. 85 cm above the floor. The surface must support the weight of the oven.

• Secure room for ventilation, at least 10 cm from the rear wall and both sides, and 20 cm from above.
• Wipe the interior and the door seal with a damp cloth before using your oven for the first time.

Turntable

Technical line drawing of a circular mechanical component with a central hub and two downward arrows indicating rotation or movement (no text or symbols)

Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

Maintenance

Cleaning

Clean the oven regularly to prevent impurities from building up on or inside the oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only).

If the door won't open or close smoothly, first check if the door seals have built up impurities. Use a soft cloth in soapy water to clean both the inner and outer sides of the oven. Rinse and dry well.

To remove stubborn impurities with bad smells from inside the oven

1. With an empty oven, put a cup of diluted lemon juice on the centre of the turntable.

2. Heat the oven for 10 minutes at max power.

3. When the cycle is complete, wait until the oven cools down. Then, open the door and clean the cooking chamber.

To clean inside swing-heater models

Simple line drawing of a triangular structure with an arrow and label 'A' (no text or symbols beyond labels)

To clean the upper area of the cooking chamber, lower the top heating element by 45^ (A) as shown. This will help clean the upper area. When done, reposition the top heating element.

CAUTION

• Keep the door and door sealing clean and ensure the door opens and closes smoothly. Otherwise, the oven's lifecycle may be shortened.
  • Take caution not to spill water into the oven vents.

• Do not use any abrasive or chemical substances for cleaning.
  • After each use of the oven, use a mild detergent to clean the cooking chamber after waiting for the oven to cool down.

Replacement (repair)

WARNING

This oven has no user-removable parts inside. Do not try to replace or repair the oven yourself.

• If you encounter a problem with hinges, sealing, and/or the door, contact a qualified technician or a local Samsung service centre for technical assistance.
• If you want to replace the light bulb, contact a local Samsung service centre. Do not replace it yourself.

- If you encounter a problem with the outer housing of the oven, first unplug the power cord from the power source, and then contact a local Samsung service centre.

Care against an extended period of disuse

- If you don't use the oven for an extended period of time, unplug the power cord and move the oven to a dry, dust-free location. Dust and moisture that builds up inside the oven may affect the performance of the oven.

Quick look-up guide

If you want to cook some food.

Place the food in the oven.

Press the START/+30s button.

Result: Cooking starts. When it has finished.

1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

If you want to add an extra 30 seconds.

1. Press START/+30s button one or more times for each extra 30 seconds that you wish to add.
2. By turning the Multi Function Selector Dial, You can set the time as you want.

Oven features

Oven

01 Safety interlock holes
04 Door latches
07 Door Handle
10 Control Panel

02 Heating element
05 Turntable
08 Roller Ring

03 Ventilation holes
06 Coupler
09 Door

English

Control panel

01 Slim Fry Button
02 Sensor Button
03 Healthy Cooking Button
04 Dough Proof/Yogurt Button
05 Power Defrost Button
06 Auto Reheat/Cook Button
07 Convection Button
08 Grill Button
09 Microwave Button
10 Combi Button
11 Turntable On/Off Button
12 Multi Function Selector Dial
13 Child Lock Button
14 Stop/Eco Button
15 Start/+30s Button

How a microwave oven works

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour.

You can use your microwave oven to:

• Defrost
• Reheat
• Cook

Cooking principle.

Line drawing of a microwave oven with a roasted chicken inside (no text or symbols)

1. The microwaves generated by the magnetron reflected at cavity and are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.
3. Cooking times vary according to the container used and the properties of the food:

• Quantity and density

- Water content

- Initial temperature (refrigerated or not)

CAUTION

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre.
- The same temperature throughout the food.

Checking that your oven is operating correctly

The following simple procedure enables you to check that your oven is working correctly at all times. If you are in doubt, refer to the section entitled "Troubleshooting" on the page 74-79.

NOTE

The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum (100% - 900 W) is used, the water takes longer to boil.

Open the oven door by pulling the handle on the upper side of the door.

Place a glass of water on the turntable.

Close the door.

Press the START/+30s button and set the time to 4 or 5 minutes, by pressing the

START/+30s button the appropriate number of times.

Result: The oven heats the water for 4 or 5 minutes. The water should then be boiling.

Setting the time

When power is supplied, "88:88" and then "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock:

• When you first install your microwave oven
  • After a power failure

NOTE

Do not forget to reset the clock when you switch to and from summer and winter time.

1. Press the Multi Function Selector Dial.
2. Turn the Multi Function Selector Dial to set time display type. (12H or 24H)
3. Press the Multi Function Selector Dial to complete the setup.
4. Turn the Multi Function Selector Dial to set the hour.

1. Press the Multi Function Selector Dial.
2. Turn the Multi Function Selector Dial to set the minute.
3. When the right time is displayed, press the Multi Function Selector Dial to start the clock.

Result: The time is displayed whenever you are not using the microwave oven.

Cooking/Reheating

The following procedure explains how to cook or reheat food.

CAUTION

ALWAYS check your cooking settings before leaving the oven unattended.

Open the door. Place the food in the centre of the turntable. Close the door. Never switch the microwave oven on when it is empty.

1. Press the Microwave button.

Result: The following indications are displayed:

(microwave mode)

1. Turn the Multi Function Selector Dial until the appropriate power level is displayed.

At that time, press the Multi Function Selector Dial to set the power level.

- If don't set the power level within 5 seconds, Automatically changes to the cooking time setting stage.

Power levels and time variations

The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity.

You can choose between six power levels.

Power level Percentage Output
HIGH 100 % 900 W
MEDIUM HIGH 67 % 600 W
MEDIUM 50 % 450 W
MEDIUM LOW 33 % 300 W
DEFROST 20 % 180 W
LOW 11 % 100 W

1. Set the cooking time by turning the Multi Function Selector Dial.

Result: The cooking time is displayed.

1. Press the START/+30s button.

Result: Cooking starts. When it has finished.

1) The oven beeps 4 times.

2) The end reminder signal will beep 3 times (once every minute).

3) The current time is displayed again.

The cooking times given in recipes and in this booklet correspond to the specific power level indicated.

If you select a... Then	the cooking time must be...
Higher power level DecreasedLower power level Increased

Adjusting the cooking time

You can increase the cooking time by pressing the START/+30s button once for each 30 seconds to be added.

• Check how cooking is progressing at any time simply by opening the door
• Increase the remaining cooking time

Method 1

To increase the cooking time of your food during cooking, press the START/+30s button once for each 30 seconds that you wish to add.

• Example: To add three minutes, press the START/+30s button six times.

Method 2

Just turning Multi Function Selector Dial to adjust cooking time.

- To increase cooking time, turn to right and to decrease cooking time, turn to left.

Stopping the cooking

You can stop cooking at any time so that you can:

• Check the food
  • Turn the food over or stir it
• Leave it to stand

To stop the cooking... Then...
Temporarily	Temporarily: Open the door or press the STOP/ECO button once.Result: Cooking stops.To resume cooking, close the door again and press the START/+30s button.
Completely	Completely: Press the STOP/ECO button once.Result: Cooking stops.If you wish to cancel the cooking settings, press the STOP/ECO button again.

Setting the energy save mode

The oven has an energy save mode.

• Press the STOP/ECO button.
  Result: Display off.
• To remove energy save mode, open the door or press the STOP/ECO button and then display shows current time. The oven is ready for use.

NOTE

Auto energy saving function

If you do not select any function when appliance is in the middle of setting or operating with temporary stop condition, function is canceled and clock will be displayed after 25 minutes.

Oven Lamp will be turned off after 5 minutes with door open condition.

Using the slim fry cook features

The 12 Slim Fry cook features include/provide pre-programmed cooking times.

You do not need to set either the cooking times or the power level.

You can adjust the slim fry cook category by press the Slim Fry button.

First, place the food in the centre of the turntable and close the door.

NOTE

- ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly

- ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot.

1. Press the Slim Fry button.
2. Select the category of food by turning the Multi Function Selector Dial and press the Multi Function Selector Dial.

1) Potatoes/Vegetables
2) Seafood
3) Chicken

1. Select the type of food that you are cooking by turning the Multi Function Selector Dial.

Refer to the table on the following page for a description of the various pre-programmed settings.

At that time, press the Multi Function Selector Dial to select the type of food.

1. Select the size of the serving by turning the Multi Function Selector Dial.
2. Press the START/+30s button.

Slim fry guide

The following table presents the 12 Slim Fry auto programmes for frying. It contains its quantities and appropriate instructions. You will use less oil compared to frying with oil fryer, while you will get tasty results. Programmes are running with a combination of convection, top heater and microwave energy.

1. Potatoes/Vegetables

Code/Food Serving Size Instructions
1-1Frozen Oven Chips	300-350 g450-500 g	Distribute frozen oven chips evenly on the crusty plate. Set plate on high rack.Turnover after beep sounds. Press start to continue. (The oven keeps operating if you do not turn over). Stand for 1-2 minutes.
1-2Frozen Potato Croquettes	200-250 g300-350 g	Distribute frozen potato croquettes evenly on the crusty plate. Set plate on low rack. Stand for 1-2 minutes.
1-3Homemade French Fries	300-350 g450-500 g	Use hard to medium type of potatoes and wash them.Peel potatoes and cut into sticks with a thickness of 10 x 10 mm.Soak in cold water (for 30 min.).Dry them with a towel, weigh them and brush with 5 g olive oil.Distribute homemade fries evenly on the crusty plate. Set plate on low rack. Turnover after beep sounds. Press start to continue. (The oven keeps operating if you do not turn over). Stand for 1-2 minutes.
1-4Potato Wedges	200-250 g300-350 g400-450 g	Wash normal sized potatoes and cut them into wedges.Brush with olive oil and spices.Put them with the cut side on the crusty plate. Set plate on high rack. Stand for 1-3 minutes.
1-5Frozen Onion Rings	100-150 g200-250 g	Put frozen breaded onion rings or frozen breaded squid rings evenly on the crusty plate. Set plate on low rack. Stand for 1-2 minutes.

Oven use

Code/Food Serving Size Instructions
1-6Sliced Courgettes	100-150 g200-250 g	Rinse and slice courgettes. Brush with 5 g olive oil and add spices. Put slices evenly on the crusty plate and set plate on high rack. Turnover after beep sounds. Press start to continue. (The oven keeps operating if you do not turn over). Stand for 1-2 minutes.

2. Seafood

Code/Food Serving Size Instructions
2-1Frozen Prawns	200-250 g300-350 g	Distribute frozen breaded prawns evenly on the crusty plate. Set plate on low rack. Stand for 1-2 minutes.
2-2Fish Cutlets	200-250 g300-350 g	Distribute breaded fish cutlets evenly on the crusty plate. Set plate on low rack. Stand for 1-2 minutes.
2-3Frozen Fried Squids	100-150 g200-250 g	Distribute breaded squid rings evenly on the crusty plate. Set plate on low rack. Stand for 1-2 minutes.

3. Chicken

Code/Food Serving Size Instructions
3-1FrozenChickenNuggets	200-250 g300-350 g	Distribute frozen chicken nuggets evenly on the crusty plate. Set plate on high rack.Turnover after beep sounds. Press start to continue.(The oven keeps operating if you do not turn over).Stand for 1-2 minutes.
3-2ChickenDrumsticks	200-250 g300-350 g400-450 g	Weigh drumsticks and brush with oil and spices.Place them evenly on high rack.Turnover after beep sounds, oven will stop process.Press start to continue. Stand for 1-3 minutes.
3-3ChickenWings	200-250 g300-350 g	Weigh chicken wings and brush with oil and spices.Place them evenly on high rack.Turnover after beep sounds, oven will stop process.Press start to continue. Stand for 1-2 minutes.

Using the sensor cook features

The 8 Sensor Cook features include/provide pre-programmed cooking times.

You do not need to set either the cooking times or the power level.

You can adjust the Sensor Cook category by turning the Multi Function Selector Dial.

First, place the food in the centre of the turntable and close the door.

NOTE

Use only dishes that are microwave-safe.

NOTE

Use only recipients that are microwave-safe

1. Press the Sensor button.
2. Select the type of food that you are cooking by turning the Multi Function Selector Dial. Refer to the table on the following page for a description of the various pre-programmed settings.
3. Press the START/+30s button.

Result: Cooking starts. When it has finished.

1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Sensor cook guide

The following table presents 8 Sensor Cook programmes. It contains its recommended weight range per item after cooking and appropriate instructions. In the beginning of the programme the display shows the sensor period. After this period the cooking time and power level is calculated automatically and the remaining cooking time will be displayed. The cooking process is controlled by the sensor system for your convenience.

CAUTION

Use oven gloves while taking out!

Code/Food Serving Size Instructions
1 Drinks	150-250 g Pour the liquid (room-temperature) into ceramic cup or mug. Reheat uncovered.Place in the centre of turntable. Leave them to stand in the oven. Stir drinks before and after standing time. Be careful while taking the cup out (see safety instructions for liquids). Stand for 1-2 minutes.
2 Broccoli Florets	200-500 g Rinse and clean fresh vegetables, such as broccoli and prepare florets. Put them evenly into a glass bowl with lid. Add 30-45 ml water (2-3 tbsp).Put bowl in the centre of turntable.Cook covered. Stir after cooking.This programme is suitable for broccoli as well as sliced courgette, egg plant, pumpkin or pepper.Stand for 1-2 minutes.
3 Sliced Carrots	200-500 g Rinse and clean fresh vegetables, such as carrots and cut into round slices evenly. Put them into a glass bowl with lid. Add 30-45 ml water (2-3 tbsp).Put bowl in the centre of turntable.Cook covered. Stir after cooking.This programme is suitable for sliced carrots as well as cauliflower florets or turnip cabbage.Stand for 1-2 minutes.
4Cauliflower Florets	200-500 g Rinse and clean fresh vegetables, such as cauliflower florets and prepare florets. Put them evenly into a glass bowl with lid. Add 30-45 ml water (2-3 tbsp).Put bowl in the centre of turntable.Cook covered. Stir after cooking.This programme is suitable for broccoli as well as sliced courgette, egg plant, pumpkin or pepper.Stand for 1-2 minutes.
5Jacket Potatoes	200-800 g Rinse and clean potatoes, each 200 g.Brush with olive oil and pierce skin with a knife. Put in a circle on the turntable. Stand for 2-3 minutes.
6Boiling Pasta	100-300 g Use a large glass ovenware dish with lid.Add hot boiling water of 4 times, a pinch of salt and stir well. Cook uncovered. Stir before standing time and drain thoroughly afterwards. Stand for 1-3 minutes.
7Mini Ravioli	200-400 g Put mini ravioli in a deep ceramic plate.Put plate in the centre of turntable. Cover with plastic lid. Stand for 2-3 minutes.
8Chicken Pieces	400-700 g Brush chilled chicken pieces with oil and spices. Put skin-side down on the low rack. Turnover, as soon as the oven beeps. Push start button to continue process.Stand for 2-3 minutes.

Auto sensor cooking instructions

The Auto Sensor allows you to cook your food automatically by detecting the amount of gases generated from the food while cooking.

- When cooking food, many kinds of gases are generated.

The Auto Sensor determines the proper time and power level by detecting these gases from the food, eliminating the need to set the cooking time and power level.

• When you cover a container with its lid or plastic wrap during Sensor Cooking, the Auto Sensor will detect the gases generated after the container has been saturated with steam.
• Shortly before cooking ends, the remaining cooking time will begin its count down. This will be a good time for you to rotate or stir the food for even cooking if it is necessary.

Oven use

- Before auto sensor cooking food may be seasoned with herbs, spices or browning sauces. A word of caution though, salt or sugar may cause burn spots on food so these ingredients should be added after cooking.

Utensils & Cover for sensor cooking

• To obtain good cooking results with this function, follow the directions for selecting appropriate containers and covers in the charts in this book.
• Always use microwave-safe containers and cover them with their lids or with plastic wrap. When using plastic wrap, turn back one corner to allow steam to escape at the proper rate.
• Always cover with the lid intended for the utensil being used. If the utensil does not have its own lid, use plastic wrap.
  • Fill containers at least half full.
• Foods that require stirring or rotating should be stirred or turned toward the end of the Sensor Cook cycle, after the time has started to count down on the display.

Important

• After installing the oven and plugging into an electrical outlet, do not unplug the power cord. The gas sensor needs time to stabilize in order to cook satisfactorily.
• It is not advisable to use the auto sensor cooking feature on a continuous cooking operation, i.e. one cooking operation immediately after another.
  • Install the oven in a well ventilated location for proper cooling and airflow and to ensure the sensor will operate accurately.
• To avoid poor results, do not use the Auto sensor when the room ambient temperature is too high or too low.
• Do not use volatile detergent to clean your oven. Gas resulting from this detergent may affect the sensor.
• Avoid placing the oven near high moisture or gas emitting appliances, since this will interfere with the proper performance of the Auto Sensor.
• Always keep the inside of the oven clean. Wipe all spills with a damp cloth. This oven is designed for household use only.

Using the healthy cooking features

The 15 Healthy Cooking features provide pre-programmed cooking times.

You do not need to set either the cooking times or the power level.

You can adjust the size of the serving by turning the Multi Function Selector Dial.

CAUTION

Use only recipients that are microwave-safe. Open the door. Place the food in the centre of the turntable. Close the door.

1. Press the Healthy Cooking button.
2. Select the category of food by turning the Multi Function Selector Dial and press the Multi Function Selector Dial.

1) Grain/Pasta
2) Vegetables
3) Poultry/Fish

1. Select the type of food that you are cooking by turning the Multi Function Selector Dial. Refer to the table on the following page for a description of the various pre-programmed settings. At that time, press the Multi Function Selector Dial to select the type of food.

2. Select the size of the serving by turning the Multi Function Selector Dial.

3. Press the START/+30s button.

Result: The food is cooked according to the pre-programmed setting selected. When it has finished.

1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Healthy cooking guide

The following table presents quantities and appropriate instructions about 15 Healthy

Cooking programmes. This is composed of Grain/Pasta(1), Vegetables(2) and Poultry/Fish(3).

CAUTION

Use oven gloves when taking out food.

1. Grain/Pasta

Code/Food Serving Size Instructions
1-1Brown Rice	150-200 g200-250 g	Use a large glass ovenware dish with lid. Add cold water of double quantity. Cook covered.Stir before standing time and add salt and herbs.Stand for 5-10 minutes.
1-2Quinoa	150-200 g200-250 g	Use a large glass ovenware dish with lid. Add cold water of double quantity. Cook covered. Stir before standing time and add salt and herbs. Stand for 1-3 minutes.
1-3Macaroni	100-150 g200-250 g	Use a large glass ovenware dish with lid. Add hot boiling water of 4 times, a pinch of salt and stir well.Cook uncovered. Stir before standing time and drain thoroughly afterwards. Stand for 1-3 minutes.

2. Vegetables

Code/Food Serving Size Instructions
2-1Green Beans	200-250 g300-350 g	Rinse and clean green beans. Put them evenly into a glass bowl with lid. Add 30 ml (2 tbsp) water when cooking for 200-250 g and add 45 ml (3 tbsp) for 300-350 g. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.
2-2Spinach	100-150 g200-250 g	Rinse and clean spinach. Put into a glass bowl with lid. Do not add water. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.
2-3PeeledPotatoes	300-350 g400-450 g500-550 g	Wash and peel potatoes, cut into halves and put into a glass bowl with lid. Add 15-30 ml of water (1-2 tbsp). Stir after cooking. When cooking higher quantities stir once during cooking. Stand for 3-5 minutes.
2-4PotatoesGratin	400-450 g800-850 g	Put the fresh potato gratin into a glass pyrex dish.Put the dish on the low rack. Stand for 2-3 minutes.
2-5GrilledEggplants	100-150 g200-250 g	Rinse and slice eggplants. Brush with oil and spices.Put slices evenly on the high rack. Turnover after beep sounds. Press start to continue (The oven keeps operating if you do not turnover). Stand for 1-2 minutes.
2-6GrilledTomatoes	400-450 g600-650 g	Rinse and clean tomatoes. Cut them into halves and put in an ovenware dish. Add grated cheese on top. Put dish on the high rack. Stand for 1-2 minutes.

3. Poultry/Fish

Code/Food Serving Size Instructions
3-1ChickenBreasts	300-350 g400-450 g	Rinse chicken breast and put on a ceramic plate.Cover with microwave cling film and pierce film.Put dish on the turntable. Stand for 2 minutes.
3-2TurkeyBreasts	300-350 g400-450 g	Rinse turkey breast and put on deep glass ovenware dish.Cover with microwave cling film and pierce film.Put dish on the turntable. Stand for 2 minutes.
3-3GrilledChickenBreasts	300-350 g400-450 g	Rinse chicken breast, marinate and put them on the high rack. Turnover as soon as the beep sounds.Stand for 2 minutes.
3-4Grilled Fish Fillets	200-300 g400-500 g	Put fish fillets evenly on the high rack. Turnover as soon as the beep sounds. Stand for 1-2 minutes.
3-5GrilledSalmonSteaks	200-250 g300-350 g	Put fish steaks evenly on the high rack. Turnover as soon as the beep sounds. Stand for 2 minutes.
3-6Roast Fish	300-350 g400-500 g	Brush skin of whole fish (trout or gilthead) with oil and add herbs and spices. Put fish side by side, head to tail on the high rack. Turnover as soon as the beep sounds.Stand for 3 minutes.

Using the dough proof/yogurt features

The 5 Dough Proof/Yogurt features include/provide pre-programmed cooking times. You do not need to set either the cooking times or the power level.

You can adjust the dough proof/yogurt category by turning the Multi Function Selector Dial after press the Dough Proof/Yogurt button.

First, place the food in the centre of the turntable and close the door.

1. Press the Dough Proof/Yogurt button.
2. Select the Dough Proof or Yogurt and press the Multi Function Selector Dial.

1) Dough proof

2) Yogurt

1. Select the type of food that you are cooking by turning the Multi Function Selector Dial. You have to choose the number that you want to use for cooking by turning the Multi Function Selector Dial. Refer to the table on the following page for a description of the various pre-programmed settings. At that time, press the Multi Function Selector Dial to select the type of food.

2. Press the START/+30s button.

CAUTION

Turntable is not operating during yogurt cooking.

Dough proof/yogurt guide

The following table presents how to use the auto programmes for rising yeast dough or homemade yogurt.

1. Dough Proof

Code/Food Serving Size Instructions
1-1 Pizza Dough	300-500 g Put dough in suitable sized bowl and set on the low rack. Cover with aluminium foil.
1-2 Cake Dough	500-800 g Put dough in suitable sized bowl and set on the low rack. Cover with aluminium foil.
1-3 Bread Dough	600-900 g Put dough in suitable sized bowl and set on the low rack. Cover with aluminium foil.

2. Homemade Yogurt

Code/Food Serving Size Instructions
2-1 Small Cups	500 g Distribute 150 g natural yogurt into 5 ceramic cups or small glass jars evenly (30 g each). Add 100 ml milk into each cup. Use long-life milk (room-temperature; 3, 5 % fat). Cover each with cling film and set in a circle on turntable. After finish, keep 6 hours in a refrigerator. For the first time we recommend to use dried yoghurt bacteria ferment.
2-2 Large Bowl	500 g Mix 150 g natural yogurt with 500 ml long-life milk (room-temperature; 3, 5 % fat). Pour evenly into large glass bowl. Cover with cling film and set on turntable. After finish, keep 6 hours in a refrigerator. For the first time we recommend to use dried yoghurt bacteria ferment.

Using the power defrost features

The Power Defrost features enable you to defrost meat, poultry, fish, bread, cake and fruit. The defrost time and power level are set automatically. You simply select the programme and the weight.

NOTE

Use only containers that are microwave-safe.

Open the door. Place the frozen food on a ceramic in the centre of the turntable. Close the door.

1. Press the Power Defrost button.
2. Select the type of food that you are cooking by turning the Multi Function Selector Dial. Refer to the table on the following page for a description of the various pre-programmed settings. At that time, press the Multi Function Selector Dial to select the type of food.
3. Select the size of the serving by turning the Multi Function Selector Dial.
4. Press the START/+30s button.

Result:

• Defrosting begins.

• The oven beeps through defrosting to remind you to turn the food over.

• Press the START/+30s button again to finish defrosting.

Result: When it has finished.

1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Power defrost guide

The following table presents the various Power Defrost programmes, quantities and appropriate instructions. Remove all kind of package material before defrosting. Place meat, poultry and fish on a flat glass plate or on a ceramic plate, arrange bread, cake and fruit on kitchen paper.

Code/Food Serving Size Instructions
1 Meat	200-1500 g Shield the edges with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops, minced meat. Stand for 20-90 minutes.
2 Poultry	200-1500 g Shield the leg and wing tips with aluminium foil. Turn the poultry over, when the oven beeps. This programme is suitable for whole chicken as well as for chicken portions. Stand for 20-90 minutes.
3 Fish	200-1500 g Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the oven beeps. This programme is suitable for whole fishes as well as for fish fillets. Stand for 20-80 minutes.
4 Bread/Cake	125-1000 g Put bread horizontally on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door.) This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping. Stand for 10-60 minutes.
5 Fruit	100-600 g Spread fruits evenly into a flat glass dish. This programme is suitable for all kind of fruits. Stand for 5-20 minutes.

Using the auto reheat/cook features

The 6 Auto Reheat/Cook features include/provide pre-programmed cooking times.

You do not need to set either the cooking times or the power level.

You can adjust the size of the serving by turning the Multi Function Selector Dial.

CAUTION

Use only recipients that are microwave-safe. Open the door. Place the food in the centre of the turntable. Close the door.

1. Press the Auto Reheat/Cook button.
2. Turn the Multi Function Selector Dial to select Cook category. (Auto Reheat or Auto Cook)
3. Select the Auto Reheat by pressing the Multi Function Selector Dial.
4. Select the type of food that you are cooking by turning the Multi Function Selector Dial. Refer to the table on the following page for a description of the various pre-programmed settings. At that time, press the Multi Function Selector Dial to select the type of food.
5. Select the size of the serving by turning the Multi Function Selector Dial.
6. Press the START/+30s button.

Result: The food is cooked according to the pre-programmed setting selected. When it has finished.

1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again

Auto reheat/cook guide

The following table presents quantities and appropriate instructions for auto reheat and cook.

CAUTION

Use oven gloves when taking out food.

1. Auto Reheat

Code/Food Serving Size Instructions
1-1 Ready Meal (Chilled)	300-350 g 400-450 g	Put on a ceramic plate and cover with microwave cling film. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta). Stand for 2-3 minutes.
1-2 Frozen Pizza	300-350 g 400-450 g	Put frozen pizza on the low rack.
1-3 Frozen Lasagne	400-450 g 600-650 g	Put frozen lasagne into a suitable sized ovenproof dish. Put dish on low rack. Stand for 3-4 minutes.
1-4 Quiche (Chilled)	600-650 g This program is suitable for refrigerated quiche. Remove a package and put on the dish. Place on turntable in oven. After cooking, stand for 1-2 minutes.

2. Auto Cook

Code/Food Serving Size Instructions
2-1 Roast Chicken	1100-1150 g 1200-1250 g	Brush chilled chicken with oil and spices. Put breast-side-down, in the middle of the low rack. Turnover, as soon as the oven beeps. Push start button to continue process. Stand for 5 minutes.
2-2 Muffins	250-300 g Pour dough into 6-8 paper or silicone cups for muffins (each 45 g) and set on low rack. Start programme (oven is preheating). After beep sounds insert rack with food.

Using the crusty plate

This crusty plate allows you to brown food not only on the top with the grill, but also the bottom of the food turns crispy and brown due to the high temperature of the crusty plate. Several items which you can prepare on the crusty plate can be found in the chart (see next page). The crusty plate can also be used for bacon, eggs, sausages, etc.

Line drawing of a microwave oven with lid and ventilation slots (no text or symbols)

Two plate illustrations: one with a fish silhouette, the other with meat and meat inside (no text or symbols)

Line drawing of two food containers: a fish-shaped plate and a lid with meat, both placed on different plates (no text or symbols)

1. Place the crusty plate directly on the turntable and preheat it with highest Microwave-Grill-Combination [300 W + Grill] by following the times and instructions in the chart.
2. Brush the plate with oil if you are cooking food, such as bacon and eggs, in order to brown the food nicely.
3. Place the food on the crusty plate.
4. Place the crusty plate on the metal rack (or turntable) in the microwave.
5. Select the appropriate cooking time and power. (Refer to the table on the side)

CAUTION

Always use oven gloves to take out the crusty plate, as will become very hot.

NOTE

Please note that the crusty plate has a teflon layer which is not scratch-resistant. Do not use any sharp objects like a knife to cut on the crusty plate.

CAUTION

Do not place any objects on the crusty plate that are not heat-resistant.

CAUTION

Never place the crusty plate in the oven without turntable.

NOTE

Clean the crusty plate with warm water and detergent and rinse off with clean water.

NOTE

Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged.

CAUTION

Please note that the crust plate is not dish washer-safe.

Convection

The convection mode enables you to cook food in the same way as in a traditional oven. The microwave mode is not used. You can set the temperature, as required, in a range varying from 40 °C to 200 °C. The maximum cooking time is 60 minutes.

• Always use oven gloves when touching the recipients in the oven, as they will be very hot.
  • You can get better cooking and browning, if you use the low rack.

Check that the heating element is in the horizontal position. Open the door and place the recipient on the low rack and set on turntable.

1. Press the Convection button.

Result: The following indications are displayed:

(4) (convection mode) 180 °C (temperature)

1. Set the temperature by turning the Multi Function Selector Dial.

(Temperature : 40-200 °C, 10 °C interval)

- If don't set the temperature within 5 seconds, Automatically changes to the cooking time setting stage.

1. Press the Multi Function Selector Dial.

2. Set the cooking time by turning the Multi Function Selector Dial.

(If you want to preheat the oven, select " : 0")

1. Press the START/+30s button.

Result: Cooking starts. When it has finished.

1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Grilling

The grill enables you to heat and brown food quickly, without using microwaves.

• Always use oven gloves when touching the recipients in the oven, as they will be very hot.
  • You can get better cooking and grilling results, if you use the high rack.

Line drawing of a circular object with internal structure and two vertical supports (no text or symbols)

1. Open the door and place the food on the rack.

2. Press the Grill button.

Result: The following indications are displayed:

(grill mode)

- You cannot set the temperature of the grill.

1. Set the grilling time by turning the Multi Function Selector Dial.

• The maximum grilling time is 60 minutes.

1. Press the START/+30s button.

Result: Grilling starts. When it has finished.

1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Choosing the accessories

Line drawing of a circular container with a central cavity and three side supports (no text or symbols)

Traditional convection cooking does require cookware. You should, however, use only cookware that you would use in your normal oven.

Microwave-safe containers are not usually suitable for convection cooking; don't use plastic containers, dishes, paper cups, towels, etc.

If you wish to select a combined cooking mode (microwave and grill or convection), use only recipients that are microwave-safe and oven-proof.

CAUTION

For further details on suitable cookware and utensils, refer to the Cookware Guide on page 54-55.

Combining microwaves and grill

You can also combine microwave cooking with the grill, to cook quickly and brown at the same time.

CAUTION

ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.

CAUTION

ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot.

You can improve cooking and grilling, if you use the high rack.

Open the door. Place the food on the rack best suited to the type of food to be cooked. Place the rack on the turntable. Close the door.

1. Press the Combi button.

Result: The following indications are displayed:

1. Make the display indicating Cb-1, and then press the Multi Function Selector Dial.

Result: The following indications are displayed:

(microwave & grill combi mode)

• You cannot set the power level for combi mode.

1. Set the cooking time by turning the Multi Function Selector Dial.

• The maximum cooking time is 60 minutes.

1. Press the START/+30s button.

Result: Combination cooking starts. When it has finished.

1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Combining microwaves and convection

Combination cooking uses both microwave energy and convection heating. No preheating is required as the microwave energy is immediately available.

Many foods can be cooked in combination mode, particularly:

• Roast meats and poultry
• Pies and cakes
  • Egg and cheese dishes

CAUTION

ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.

CAUTION

ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. You can get better cooking and browning, if you use the low rack.

Open the door. Place the food on the turntable or on the low rack which should then be placed on the turntable. Close the door. The heating element must be in the horizontal position.

1. Press the Combi button.
   Result: The following indications are displayed:
   Cb-1 (Microwave + Grill)

2. Make the display indicating Cb-2 (Microwave + Convection) by turning the Multi Function Selector Dial, and then press the Multi Function Selector Dial.

1. Select the appropriate temperature by turning the Multi Function Selector Dial (Temperature: 40-200 °C). At that time, press the Multi Function Selector Dial to set the temperature.

- If don't set the temperature within 5 seconds, Automatically changes to the cooking time setting stage.

Result: The following indications are displayed:

(microwave &

convection combi mode)

180 °C (temperature)

- You cannot set the power level for combi mode.

1. Set the cooking time by turning the Multi Function Selector Dial.

- The maximum cooking time is 60 minutes.

1. Press the START/+30s button.

Result: Combination cooking starts.

The oven is heated to the required temperature and then microwave cooking continues until the cooking time is over. When it has finished.

1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Switching the beeper off

You can switch the beeper off whenever you want.

1. Press the START/+30s and STOP/ECO button at the same time.

Result: The oven does not beep to indicate the end of a function.

1. To switch the beeper back on, press the START/+30s and STOP/ECO button again at the same time.

Result: The oven operates normally.

Using the child lock features

Your microwave oven is fitted with a special child lock programme, which enables the oven to be “locked” so that children or anyone unfamiliar with it cannot operate it accidentally.

1. Press the Child Lock button for 3 second. Result:

2. The oven is locked (no functions can be selected).
   • The display shows "L".

1. To unlock the oven, press the Child Lock button for 3 second.

Result: The oven can be used normally.

Using the turntable on/off features

The Turntable On/Off button enables you to use large dishes which fill the whole oven by stopping the turntable from rotating (only manual cooking mode).

CAUTION

The results will be less satisfactory in this case as the cooking is less even. We recommend that you turn the dish by hand halfway through the cooking process.

WARNING

Never operate the turntable without food in the oven.

Reason: This may cause fire or damage to the unit.

1. Press the Turntable On/Off button during setting Microwave, Grill, Convection, Preheat and Combi function.

- It is not available with pre-programmed function or before press the Microwave, Grill, Convection, Preheat and Combi button.

Result: Turntable on/off symbol appears on the display, the turntable will not rotate during the cooking.

OFF (Turntable off mode)

1. To switch the turntable rotating back on, press the Turntable On/Off button again.

Result: Turntable on/off symbol disappears on the display, the turntable will rotate.

NOTE

This Turntable On/Off button is available only during cooking.

Cookware guide

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used.

Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry.

The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware Microwave	ave-safe Comments
Aluminum foil	√×	Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
Crust plate	√	Do not preheat for more than 8 minutes.
China and earthenware	√	Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim.
Disposable polyester cardboard dishes	√	Some frozen foods are packaged in these dishes.
Fast-food packagingPolystyrene cups containersPaper bags or newspaperRecycled paper or metal trims	√××	Can be used to warm food. Overheating may cause the polystyrene to melt.May catch fire.May cause arcing.
GlasswareOven-to-tablewareFine glasswareGlass jars	√√√√	Can be used, unless decorated with a metal trim.Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.Must remove the lid. Suitable for warming only.
MetalDishesFreezer bag twist ties	××	May cause arcing or fire.
Cookware Microwave-Safe Comments
Paper
• Plates, cups, napkins and kitchen paper	√	For short cooking times and warming. Also to absorb excess moisture.
• Recycled paper	×	May cause arcing.
Plastic
• Containers	√	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.
• Cling film	√	Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.
• Freezer bags	√×	Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

√ : Recommended

√X : Use caution

x : Unsafe

Cooking guide Cooking guide

Microwaves

Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content.

The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

Cooking

Cookware for microwave cooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.

Food suitable for microwave cooking:

Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).

Covering during cooking

To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.

Standing times

After cooking is over food the standing time is important to allow the temperature to even out within the food.

Cooking Guide for frozen vegetables

Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer.

Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking.

Cover during standing time.

Food Serving Size Power Time (min.)
Spinach 150 g 600 W 5-6
		InstructionsAdd 15 ml (1 tbsp) cold water. Serve after 2-3 minutes standing.
Broccoli 300 g 600 W 8-9
		InstructionsAdd 30 ml (2 tbsp) cold water. Serve after 2-3 minutes standing.
Peas 300 g 600 W 7-8
		InstructionsAdd 15 ml (1 tbsp) cold water. Serve after 2-3 minutes standing.
Green Beans 300 g 600 W 712 - 812
		InstructionsAdd 30 ml (2 tbsp) cold water. Serve after 2-3 minutes standing.
Mixed Vegetables(Carrots/Peas/Corn)	300 g 600 W 7-8
	InstructionsAdd 15 ml (1 tbsp) cold water. Serve after 2-3 minutes standing.
Mixed Vegetables(Chinese style)	300 g 600 W 712 - 812
	InstructionsAdd 15 ml (1 tbsp) cold water. Serve after 2-3 minutes standing.

Cooking guide for fresh vegetables

Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp) for every 250 g unless another water quantity is recommended – see table. Cook covered for the minimum time – see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes.

Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook.

Food Serving Size Power Time (min.)
Broccoli 250 g	500 g	900 W 41⁄2-5	7-8
	InstructionsPrepare even sized florets. Arrange the stems to the centre. Serve after 3 minutes standing.
Brussels Sprouts 250 g	900 W 6-61⁄2
	InstructionsAdd 60-75 ml (5-6 tbsp) water. Serve after 3 minutes standing.
Carrots 250 g 900 W 5	-51⁄2
	InstructionsCut carrots into even sized slices. Serve after 3 minutes standing.
Cauliflower 250 g	500 g	900 W 5-51⁄2	71⁄2-81⁄2
	InstructionsPrepare even sized florets. Cut big florets into halves. Arrange stems to the centre. Serve after 3 minutes standing.
Courgettes 250 g 900 W	W 4-41⁄2
	InstructionsCut courgettes into slices. Add 30 ml (2 tbsp) water or a knob of butter. Cook until just tender. Serve after 3 minutes standing.
Egg plants 250 g 900 W	W 31⁄2-4
	InstructionsCut egg plants into small slices and sprinkle with 1 tbsp lemon juice. Serve after 3 minutes standing.
Leeks	250 g 900 W 4-41⁄2
	InstructionsCut leeks into thick slices. Serve after 3 minutes standing.
Mushrooms 125 g	250 g	900 W 1 12 -2	2 12 -3
	InstructionsPrepare small whole or sliced mushrooms. Do not add any water.Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving. Serve after 3 minutes standing.
Onions 250 g 900 W 5	5 12
	InstructionsCut onions into slices or halves. Add only 15 ml (1 tbsp) water.Serve after 3 minutes standing.
Pepper 250 g 900 W 4	12 -5
	InstructionsCut pepper into small slices. Serve after 3 minutes standing.
Potatoes 250 g	500 g	900 W 4-5	7-8
	InstructionsWeigh the peeled potatoes and cut them into similar sized halves or quarters. Serve after 3 minutes standing.
Turnip Cabbage 250 g	900 W 5 12 -6
	InstructionsCut turnip cabbage into small cubes. Serve after 3 minutes standing.

Cooking guide for rice and pasta

Rice: Use a large glass pyrex bowl with lid - rice doubles in volume during cooking.

Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is finished.

Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

Food Serving Size Power Time (min.)
White Rice (Parboiled)	250 g375 g	900 W 15-16	1712-1812
	InstructionsAdd cold water of double quantity. Serve after 5 minutes standing.
Brown Rice (Parboiled)	250 g375 g	900 W 20-21	22-23
	InstructionsAdd cold water of double quantity. Serve after 5 minutes standing.
Mixed Rice (Rice + Wild Rice)	250 g 900 W 16-17
	InstructionsAdd 500 ml cold water. Serve after 5 minutes standing.
Mixed Corn (Rice + Grain)	250 g 900 W 17-18
	InstructionsAdd 400 ml cold water. Serve after 5 minutes standing.
Pasta 250 g 900 W 10-	11
	InstructionsAdd 1000 ml hot water. Serve after 5 minutes standing.
Instant Noodle 1 Small	pack (80 g)1 Big pack (120 g)	900 W 7-7 12	9-912
	InstructionsUse a glass pyrex bowl. Put the noodle and add room temperature 350 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and mix instant noodle spices.

Reheating

Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take.

Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C.

Arranging and covering

Avoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.

Power levels and stirring

Some foods can be reheated using 900 W power while others should be reheated using 600 W, 450 W or even 300 W.

Check the tables for guidance.

In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example).

Stir well or turn food over during reheating for best results. When possible, stir again before serving.

Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food. It is preferable to underestimate cooking time and add extra heating time, if necessary.

Heating and standing times

When reheating food for the first time, it is helpful to make a note of the time taken - for future reference.

Always make sure that the reheated food is piping hot throughout.

Allow food to stand for a short time after reheating - to let the temperature even out.

The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart.

Take particular care when heating liquids and baby food. See also the chapter with the safety precautions.

Reheating liquids

Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

English 61

Reheating baby food

Baby food:

Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40 °C.

Baby milk:

Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37 °C.

Remark:

Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating.

Reheating liquids and food

Use the power levels and times in this table as a guide lines for reheating.

Food Serving Size Power Time (min.)
Drinks(Coffee, Tea and Water)	150 ml (1 cup)300 ml (2 cups)450 ml (3 cups)600 ml (4 cups)	900 W 1-1 12	2-2 12 3-3 12 3 12 -4
	InstructionsPour into cups and reheat uncovered: 1 cup in the centre, 2 cups opposite of each other, 3 cups in a circle. Keep in microwave oven during standing time and stir well. Serve after 1-2 minutes standing.
Soup(Chilled)	250 g350 g450 g550 g	900 W 21⁄2-3	3-31⁄231⁄2-441⁄2-5
	InstructionsPour into a deep ceramic plate or deep ceramic bowl. Cover with plastic lid. Stir well after reheating. Stir again before serving. Serve after 2-3 minutes standing.
Stew(Chilled)	350 g 600 W 41⁄2-51⁄2
	InstructionsPut stew in a deep ceramic plate. Cover with plastic lid.Stir occasionally during reheating and again before standing and serving. Serve after 2-3 minutes standing.
Pasta with Sauce(Chilled)	350 g 600 W 31⁄2-41⁄2
	InstructionsPut pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate.Cover with microwave cling film. Stir before serving. Serve after 3 minutes standing.
Filled Pasta withSauce(Chilled)	350 g 600 W 4-5
	InstructionsPut filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Serve after 3 minutes standing.
Plated Meal(Chilled)	350 g450 g550 g	600 W 41⁄2-5	51⁄2-61⁄261⁄2-71⁄2
	InstructionsPlate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling-film. Serve after 3 minutes standing.
Cheese FondueReady-to-Serve(Chilled)	400 g 600 W 6-7
	InstructionsPut the ready-to-serve cheese fondue in a suitable sized glass pyrex bowl with lid. Stir occasionally during and after reheating. Stir well before serving. Serve after 1-2 minutes standing.

Reheating baby food and milk

Use the power levels and times in this table as guide lines for reheating.

Food Serving Size Power Time
Baby Food (Vegetables + Meat)	190 g 600 W 30 sec.
	InstructionsEmpty into ceramic deep plate. Cook covered. Stir after cooking time. Before serving, stir well and check the temperature carefully. Serve after 2-3 minutes standing.
Baby Porridge (Grain + Milk + Fruit)	190 g 600 W 20 sec.
	InstructionsEmpty into ceramic deep plate. Cook covered. Stir after cooking time. Before serving, stir well and check the temperature carefully. Serve after 2-3 minutes standing.
Baby Milk 100 ml 300	W 30-40 sec.200 ml 1 min. to		1 min. 10 sec.
	InstructionsStir or shake well and pour into a sterilized glass bottle. Place into the centre of turntable. Cook uncovered. Before serving, shake well and check the temperature carefully. Serve after 2-3 minutes standing.

Defrosting

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away.

Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible.

Check the food occasionally to make sure that it does not feel warm.

If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting.

Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below.

Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food.

For defrosting of frozen food with a temperature of about -18 to -20 °C, use the following table as a guide.

Food Serving Size Power Time (min.)
MeatMinced Meat 250 gPork Steaks 250 g 180	500 gW 7-8	180 W 6-7	8-13
	InstructionsPlace the meat on turntable. Shield thinner edges with aluminium foil. Turn over after half of defrosting time!Serve after 15-30 minutes standing.

Cooking guide

Food Serving Size Power Time (min.)
PoultryChicken Pieces 500 g (2 pcs) 180 W 14-15Whole Chicken 1200 g	180 W 32-34
	InstructionsFirst, put chicken pieces first skin-side down, whole chicken first breast-side-down on a flat ceramic plate. Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time!Serve after 15-60 minutes standing.
FishFish Fillets 200 g 180 W 6-7Whole Fish 400 g 180 W 11-13
	InstructionsPut frozen fish in the middle of a flat ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends of fillets and tail of whole fish with aluminium foil. Turn over after half of defrosting time!Serve after 10-25 minutes standing.
FruitsBerries 300 g 180 W 6-7
	InstructionsSpread fruit on a flat, round glass dish (with a large diameter).Serve after 5-10 minutes standing.
BreadBread Rolls(each ca. 50 g)Toast/Sandwich 250 gGerman bread(Wheat + Rye Flour)	2 pcs4 pcs180 W 4-4 12 500 g 180 W 7-9	180 W 1-1 12	2 12 -3
	InstructionsArrange rolls in a circle or bread horizontally on kitchen paper in the middle of turntable. Turn over after half of defrosting time!Serve after 5-20 minutes standing.

Grill

The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 3-5 minutes will make the food brown more quickly.

Cookware for grilling:

Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt.

Food suitable for grilling:

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings.

Important remark:

Whenever the grill only mode is used, please remember that food must be placed on the high rack, unless another instruction is recommended.

Microwave + Grill

This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. The default power level for this mode is 300 W + Grill.

Cookware for cooking with microwave + grill

Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt.

Food suitable for microwave + grill cooking:

Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details.

Important remark:

Whenever the combination mode (microwave + grill) is used, the food should be placed on the high rack, unless another instruction is recommended. Please refer to the instructions in the following chart. The food must be turned over, if it is to be browned on both sides.

Cooking guide

Grill guide for fresh food

Preheat the grill with the grill-function for 2-3 minutes.

Use the power levels and times in this table as guide lines for grilling.

Use oven gloves when taking out.

Fresh food Serving Size Power 1 step (min.) 2 step (min.)
Toast Slices 4 pcs (each 25 g) Grill only 4-4 12 3-4
InstructionsPut toast slices side by side on the high rack.
Grilled Tomatoes 400 g (2 pcs) 300 W + Grill 6-8 -
InstructionsCut tomatoes into halves. Put some cheese on top. Arrange in a circle in a flat glass pyrex dish. Place it on the high rack. Stand for 2-3 minutes.
Tomato-Cheese Toast	4 pcs (300 g) 300 W + Grill 5 12 -7 12 -
InstructionsToast the bread slices first. Put the toast with topping on the high rack. Stand for 2-3 minutes.
Toast Hawaii (Ham, Pineapple, Cheese slices)	4 pcs (500 g) 300 W + Grill 6-8 -
InstructionsToast the bread slices first. Put the toast with topping on the high rack. Stand for 2-3 minutes.
Baked Potatoes	500 g	300 W + Grill	10-12
InstructionsCut potatoes into halves. Put them in a circle on the high rack with the cut side to the grill.
Gratin Potatoes/ Vegetables (Chilled)	450 g	300 W + Grill	10-12
InstructionsPut the fresh gratin into a small glass pyrex dish. Put the dish on the high rack. After cooking stand for 2-3 minutes.
Baked Apples	2 apples (ca. 400 g)	300 W + Grill	7-8
InstructionsCore the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish. Place the dish directly on the low rack.
Chicken Pieces	500 g (2 pcs)	300 W + Grill	10-12
InstructionsBrush chicken pieces with oil and spices. Put them in a circle on the high rack. After grilling stand for 2-3 minutes.
Roast Fish 400-500 g 300 W + Grill 6-8 7-8
InstructionsBrush skin of whole fish with oil and add herbs and spices. Put two fishes side by side (head to tail) on the high rack. After grilling stand for 2-3 minutes.
Plantain 1 ea (200 g) 1 step 300 W + Grill 2 step Grill		7-7 12 4-5
Instructionspeel and slice plantain 1 cm thick and put on the crusty plate with grill rack. Brush all sides with oil. If plantain becomes soft, reduce time 1-2 minute soft type. Stand for 1-2 minutes.
Yam 200 g 300 W + Grill 11-11 12 -
InstructionsPeel and slice yam 1.5 cm thick and put on the crusty plate and brush all sides with oil. Put on the high rack and cook. Stand for 1-2 minutes.

English 69

Cooking guide

Convection

Cooking with convection is the traditional and well known method of cooking food in a traditional oven with hot air.

The heating element and the fan position is at the back-wall, so that the hot air is circulating. This mode is supported by the top heating element.

Cookware for convection cooking:

All conventional ovenproof cookware, baking tins and sheets – anything you would normally use in a traditional convection oven – can be used.

Food suitable for convection cooking:

All biscuits, individual scones, rolls and cakes should be made by this mode as well as rich fruit cakes, choux pastry and soufflés.

Microwave + Convection

This mode combines the microwave energy with the hot air and is therefore reducing the cooking time while giving the food a brown and crispy surface.

Cooking with convection is the traditional and well known method of cooking food in an oven with hot air circulated by a fan on the back-wall.

Cookware for cooking with microwaves + convection:

Should be able to let the microwaves pass through. Should be ovenproof (like glass, pottery or china without metal trims); similar to the cookware described under Microwave + Grill.

Food suitable for microwave + convection cooking:

All kinds of meats and poultry as well as casseroles and gratin dishes, sponge cakes and light fruit cakes, pies and crumbles, roast vegetables, scones and breads.

Convection guide for fresh and frozen food

Preheat the convection with the auto pre-heat function to the desired temperature. Use the power levels and times in this table as guide lines for convection cooking. Use oven gloves when taking out.

Fresh food Serving Size Power		1 step (min.) 2 step (min.)
PizzaFrozen Pizza(Ready baked)	300-400 g 1	step 300 W + 200 °C2 step Convt. 180 °C	7-9 5-6
	InstructionsPlace the pizza on the low rack.After baking stand for 2-3 minutes.
PastaFrozen Lasagne 400	g 300 W + 200 °C 18-23 -
	InstructionsPut into a suitable sized glass pyrex dish or leave in the original packaging (take care that this is suitable for microwaves and oven heat). Put frozen pasta gratin on the low rack. After cooking stand for 2-3 minutes.
MeatRoast Beef/Roast Lamb(Medium)Roast Chicken 1200	1200-1300 g	300 W + 180 °C 22-24 24-26
	InstructionsBrush beef/lamb with oil and spice it with pepper, salt and paprika. Put it on the low rack, first with the fat side down. After cooking wrap in aluminium foil and stand for 10-15 minutes.
	g 300 W + 200 °C 27-29 18-20
	InstructionsBrush chicken with oil and spices. Put chicken first breast side down, second side breast side up on the low rack. Stand for 5 minutes.

Cooking guide

Fresh food Serving Size Power		1 step (min.) 2 step (min.)
BreadFresh Bread Rolls 6Garlic Bread(Chilled, Prebaked)	pcs (350 g) 300 W + 180 °C 10-12 -
	InstructionsPut bread rolls in a circle on the low rack. Stand for 2-3 minutes.
	200 g (1 pc) 300 W + 200 °C 5-6 -
	InstructionsPut the chilled baguette on baking paper on the low rack. After baking stand for 2-3 minutes.
CakeMarble Cake(Fresh Dough)Small Cakes(Fresh Dough)Cookies(Fresh Dough)Frozen Cake	500 g Only	180 °C 38-43 -
	InstructionsPut the fresh dough in a small rectangular black metal baking dish(length 25 cm). Put the cake on the low rack. After baking stand for5-10 minutes.
	10 x 28 g	Only 160 °C 31-34 -
	InstructionsFill the fresh dough evenly in paper cups and set on baking tray on thelow rack.After baking stand for 5 minutes.
	200-250 g	Only 200 °C 15-20 -
	InstructionsPut the chilled croissants on baking paper on the low rack.
	1000 g	300 W + 180 °C	15-20	-
	InstructionsPut the frozen cake directly on the low rack. After defrost and warmingstand for 15-20 minutes.

Tips and tricks

Melting butter

Put 50 g butter into a small deep glass dish. Cover with plastic lid.

Heat for 30-40 seconds using 900 W, until butter is melted.

Melting chocolate

Put 100 g chocolate into a small deep glass dish.

Heat for 3-5 minutes, using 450 W until chocolate is melted.

Stir once or twice during melting. Use oven gloves while taking out!

Melting crystallized honey

Put 20 g crystallized honey into a small deep glass dish.

Heat for 20-30 seconds using 300 W, until honey is melted.

Melting gelatine

Lay dry gelatine sheets (10 g) for 5 minutes into cold water.

Put drained gelatine into a small glass pyrex bowl.

Heat for 1 minute using 300 W. Stir after melting.

Cooking glaze/icing (for cake and gateaux)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 900 W, until glaze/icing is transparent. Stir twice during cooking.

Cooking jam

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid.

Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 900 W.

Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

Cooking pudding

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 900 W. Stir several times well during cooking.

Browning almond slices

Spread 30 g sliced almonds evenly on a medium sized ceramic plate.

Stir several times during browning for 3½ to 4½ minutes using 600 W.

Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

Troubleshooting

If you have any of the problems listed below try the solutions given.

Problem Cause Action
General
The buttons cannot be pressed properly.	Foreign matter may be caught between the buttons.	Remove the foreign matter and try again.
	For touch models: Moisture is on the exterior.	Wipe the moisture from the exterior.
	Child lock is activated. Deactivate Child lock.
The time is not displayed.	Power is not supplied. Make sure power is supplied.
	The Eco (power-saving) function is set.	Turn off the Eco function.
The oven does not work.	Power is not supplied. Make sure power is supplied.
	The door is open. Close the door and try again.
	The door open safety mechanisms are covered in foreign matter.	Remove the foreign matter and try again.
The oven stops while in operation.	The user has opened the door to turn food over.	After turning over the food, press the Start button again to start operation.
The power turns off during operation.	The oven has been cooking for an extended period of time.	After cooking for an extended period of time, let the oven cool.
	The cooling fan is not working. Listen for the sound of the cooling fan.
	Trying to operate the oven without food inside.	Put food in the oven.
	There is not sufficient ventilation space for the oven.	There are intake/exhaust outlets on the front and rear of the oven for ventilation. Keep the gaps specified in the product installation guide.
	Several power plugs are being used in the same socket.	Designate only one socket to be used for the oven.
There is no power to the oven.	Power is not supplied. Make sure power is supplied.
There is a popping sound during operation, and the oven doesn't work.	Cooking sealed food or using a container with a lid may causes popping sounds.	Do not use sealed containers as they may burst during cooking due to expansion of the contents.
The oven exterior is too hot during operation.	There is not sufficient ventilation space for the oven.	There are intake/exhaust outlets on the front and rear of the oven for ventilation. Keep the gaps specified in the product installation guide.
	Objects are on top of the oven. Remove all objects on the top of the oven.
The door cannot be opened properly.	Food residue is stuck between the door and oven interior.	Clean the oven and then open the door.
The oven does not heat.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom.
Heating is weak or slow.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom.

Troubleshooting

Problem Cause Action
The warm function does not work.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom.
The thaw function does not work.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom.
The interior light is dim or does not turn on.	The door has been left open for a long time.	The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the Cancel button.
	The interior light is covered by foreign matter.	Clean the inside of the oven and check again.
A beeping sound occurs during cooking.	If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing.	After turning over the food, press the Start button again to restart operation.
The oven is not level.	The oven is installed on an uneven surface.	Make sure the oven is installed on flat, stable surface.
There are sparks during cooking.	Metal containers are used during the oven/thawing functions.	Do not use metal containers.
When power is connected, the oven immediately starts to work.	The door is not properly closed. Close the door and check again.
There is electricity coming from the oven.	The power or power socket is not properly grounded.	Make sure the power and power socket are properly grounded.
There is water dripping.	There may be water or steam in some cases depending on the food. This is not an oven malfunction.	Let the oven cool and then wipe with a dry dish towel.
There is steam through a crack in the door.	There may be water or steam in some cases depending on the food. This is not an oven malfunction.	Let the oven cool and then wipe with a dry dish towel.
There is water left in the oven.	There may be water or steam in some cases depending on the food. This is not an oven malfunction.	Let the oven cool and then wipe with a dry dish towel.
The brightness inside the oven varies.	Brightness changes depending on power output changes according to function.	Power output changes during cooking are not malfunctions. This is not an oven malfunction.
Cooking is finished, but the cooling fan is still running.	To ventilate the oven, the cooling fan continues to run for about 3 minutes after cooking is complete.	This is not an oven malfunction.
Pressing the +30sec button operates the oven.	This happens when the oven was not operating.	The microwave oven is designed to operate by pressing the +30sec button when it was not operating.
Turntable
While turning, the turntable comes out of place or stops turning.	There is no roller ring, or the roller ring is not properly in place.	Install the roller ring and then try again.
The turn table drags while turning.	The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave.	Adjust the amount of food and do not use containers that are too large.

Troubleshooting

Problem Cause Action
The turn table rattles while turning and is noisy.	Food residue is stuck to the bottom of the oven.	Remove any food residue stuck to the bottom of the oven.
Grill
Smoke comes out during operation.	During initial operation, smoke may come from the heating elements when you first use the oven.	This is not a malfunction, and if you run the oven 2-3 times, it should stop.
	Food is on the heating elements. Let the oven cool and then remove the food from the heating elements.
	Food is too close to the grill. Put the food a suitable distance away while cooking.
	Food is not properly prepared and/or arranged.	Make sure food is properly prepared and arranged.
Oven
The oven does not heat.	The door is open. Close the door and try again.
Smoke comes out during preheating.	During initial operation, smoke may come from the heating elements when you first use the oven.	This is not a malfunction, and if you run the oven 2-3 times, it should stop.
	Food is on the heating elements. Let the oven cool and then remove the food from the heating elements.
There is a burning or plastic smell when using the oven.	Plastic or non heat-resistant cookware is used.	Use glass cookware suitable for high temperatures.
There is a bad smell coming from inside the oven.	Food residue or plastic has melted and stuck to the interior.	Use the steam function and then wipe with a dry cloth. You can put a lemon slice inside and run the oven to remove the odour more quickly.
The oven does not cook properly.	The oven door is frequently opened during cooking.	Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lowered and this may affect the results of your cooking.
	The oven controls are not correctly set.	Correctly set the oven controls and try again.
	The grill or other accessories are not correctly inserted.	Correctly insert the accessories.
	The wrong type or size of cookware is used.	Reset the oven controls or use suitable cookware with flat bottoms.

NOTE

If the above guidelines do not enable you to solve the problem, then contact your local SAMSUNG customer service centre.

Please have the following information read;

• The model and serial numbers, normally printed on the rear of the oven
• Your warranty details
  • A clear description of the problem
  Then contact your local dealer or SAMSUNG aftersales service.

Troubleshooting

Information codes

Check code Cause Action
C-10	Cooking sensor is needed to check.	Press the Stop/Cancle button and operate again. If it occurs again, turn off the microwave oven over 30 seconds and try setting again.If it appears again, call your local SAMSUNG Customer Care Centre.
C-20	Temperature sensor is needed to check.
C-21	Temperature sensor detect higher temperature than setting temperature.	Turn off the microwave oven for cooling the product and then try setting again.If it appears again, call your local SAMSUNG Customer Care Centre.
C-d0	Control buttons are pressed over 10 seconds.	Clean the keys and check if there is water on the surface around key. If it occurs again, turn off the microwave oven over 30 seconds and try setting again. If it appears again, call your local SAMSUNG Customer Care Centre.

NOTE

For any codes not listed above, or if the suggested solution does not solve the problem, contact your local SAMSUNG Customer Care Centre.

Technical specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model MC32J7085C*
Power source 230 V	~ 50 Hz AC
Power consumptionMaximum powerMicrowaveGrill (heating element)Convection (heating element)	2100 W1400 W1500 WMax. 2100 W
Output power 100 W / 900 W - 6 levels (IEC-705)
Operating frequency 2450 MHz
Dimensions (W x H x D)Outside (Inclued Handle)Oven cavity	523 x 309 x 506 mm373 x 233 x 370 mm
Volume 32 liter
WeightNet 20.0 kg approx.

Memo

Memo

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
AUSTRIA	0800-SAMSUNG (0800-7267864)[Only for Premium HA] 0800-366661[Only for Dealers] 0810-112233	www.samsung.com/at/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
DENMARK 70	70 19 70 www.samsung.com/dk/support
FINLAND 030	-6227 515 www.samsung.com/fi/support
FRANCE 01 48	63 00 00 www.samsung.com/fr/support
GERMANY	0180 6 SAMSUNG bzw. 0180 6 7267864 ^* (*0,20 €/Anruf aus dem dt. Festnetz,aus dem Mobilfunk max. 0,60 €/Anruf)	www.samsung.com/de/support
ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS 8009	4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864)only from land line([phone] from mobile and land line
LUXEMBURG 261	03 710 www.samsung.com/support
NETHERLANDS	0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com/nl/support
NORWAY	815 56480	www.samsung.com/no/support
PORTUGAL	808 20 7267	www.samsung.com/pt/support
SPAIN	0034902172678	www.samsung.com/es/support
SWEDEN	0771 726 7864 (0771-SAMSUNG)	www.samsung.com/se/support
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
UK	0330 SAMSUNG (7267864)	www.samsung.com/uk/support
EIRE	0818 717100	www.samsung.com/ie/support

DE68-04319H-01
