Type	Combined RJ45 data and RJ11 telephone outlet
Number of Ports	2 (1x RJ45, 1x RJ11)
Compliance (RJ45)	IEC 60603-7, TIA/EIA 568-B.2
Compliance (RJ11)	YD/T 577
Transmission Bandwidth	Up to 500 MHz (Cat.6A modules)
Connection Type	IDC terminals
Voltage Proof (contact-to-contact)	1000 V DC or AC peak
Current Rating	0.75 A
Insulation Resistance	≥ 500 MΩ at 100 V DC
Signal Contact Resistance	≤ 20 mΩ
Protection Feature	Dust protection sliders on each jack
Installation Type	Flush-mounted in standard wall boxes
Minimum Wall Box Depth	35 mm
Operating Environment	Indoor, no drip or spray water
Color Codes Supported	TIA/EIA 568A and 568B
Conductor Diameter (Solid)	0.41 - 0.64 mm (AWG 26-22)
Frame Compatibility	Hager Muse and Inspire series
Multi-gang Support	Up to 5-gang frames available
Safety Certification	Designed for qualified electrician installation

Frequently Asked Questions - WGCT2RJRJ6 HAGER

How do I connect an RJ45 cable to the outlet?

Strip 30 mm of cable jacket, then terminate the wires according to TIA/EIA 568A or 568B color code using the IDC terminals. Ensure each pair is fully inserted and the cover plate is replaced.

How do I connect an RJ11 telephone cable?

Strip 10 mm of cable jacket, then position the first pair (typically blue/white) according to the pin assignment (pins 2-5). Terminate and replace the cover plate.

What tools are needed for installation?

You will need a flat-blade screwdriver to remove the frame and cover plates, and an IDC punch-down tool for wire termination.

Is this outlet compatible with Cat6A cables?

Yes, if the module inside is Cat6A rated. The outlet supports up to 500 MHz bandwidth and conductor diameters of 0.41-0.64 mm.

Can I install this outlet outdoors?

No, it is only suitable for indoor use in areas without drip or spray water.

How do I test the installation?

Perform a functional test for each data or telephone outlet using a network tester or continuity checker.

What is the minimum wall box depth required?

The recommended minimum wall box depth is 35 mm for proper flush installation.

How do I remove the frame for wiring?

Carefully insert a flat-blade screwdriver into the notches on the frame and gently pry it loose. Lift and remove the frame (and cover plate for Inspire series).

What are the differences between Hager Muse and Inspire frames?

Muse frames snap directly onto the device, while Inspire frames require placing the cover plate first and then fixing with the frame. Both are compatible with this outlet.

Can I combine multiple outlets in one wall box?

Yes, use 2-5 gang frames to combine multiple units in a single location.

USER MANUAL WGCT2RJRJ6 HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

The RJ45 outlets are used for data transmission in local area networks. The RJ11 outlets are designed for telephone and data applications. Each jack is equipped with a dust protection slider.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

RJ45 outlets

Voltage proof (contact-to-contact): 1000 V DC or AC peak

Current rating: 0.75 A

Insulation resistance: ≥ 500 M at 100 V DC

Signal contact resistance: ≤ 20 mΩ

Type of connection: IDC terminals

Design: according to IEC 60603-7

Colour code A and B: according to TIA/EIA 568-B.2

RJ45 Cat.5e modules

Transmission bandwidth: max. 100 MHz

Conductor ∅ (solid): 0.51 ... 0.64 mm (AWG 24-22)

Cat.5e, unshielded (UTP): according to ISO/IEC 11801

RJ45 Cat.6 modules

Transmission bandwidth: max. 250 MHz

Conductor ∅ (solid): 0.51 ... 0.64 mm (AWG 24-22)

Cat.6, unshielded (UTP): according to ISO/IEC 11801, 2nd edition

RJ45 Cat.6A modules

Transmission bandwidth: max. 500 MHz

Conductor ∅ (solid): 0.41 ... 0.64 mm (AWG 26-22)

Cat.6A, unshielded (UTP): according to ISO/IEC 11801, edition 2.2

RJ11 outlet

Compliance: YD/T 577

Information for electricians

Installation and electrical connection

Preparing the device for installation

(for example "RJ11 + RJ45 outlet")

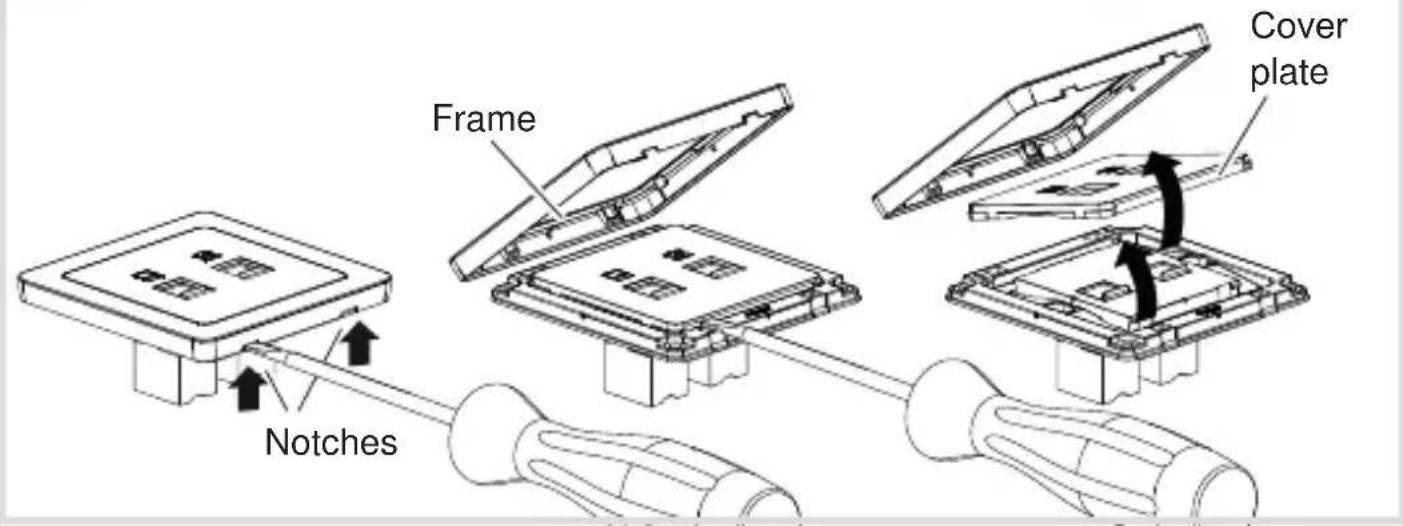

1A

Hager Muse

Hager Inspire1B

• Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1A/1B).
  ■ Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).

Connecting the RJ45 data module

■ Remove the cover plate of the data module with a flat-blade screwdriver.

2A

- Strip 30 mm of cable jacket (2A).

■ Position and terminate first pair according to colour code A or B:

RJ45 pin assignment TIA/EIA 568B TIA/EIA 568A
	1 white/orange white/green
	2 orange green
	3 white/green white/orange
	4 blue blue
	5 white/blue white/blue
	6 green orange
	7 white/brown white/brown
	8 brown brown

As with the first pair position and terminate each subsequent pair one at a time until termination is complete.

- Fix the cover plate back to the module.

Connecting the RJ11 telephone module

3A

- Strip 10 mm of cable jacket (3A).

■ Position first pair according to colour code:

RJ11 pin assignment
	2 blue/white
	3 white/blue
	4 white/red
	5 red/white

- Fix the cover plate back to the module.

Checking of the installation:

A functional test of the installation should be made for each data or telephone outlet.

Installing the device into the wall box

(for example "RJ11 + RJ45 outlet")

4

Technical diagram showing a mechanical assembly with a bracket and tool, no visible text or symbols

■ After wiring, fix the device with the two screws attached into the wall box (4).

Assembling the covers

(for example "RJ11 + RJ45 outlet")

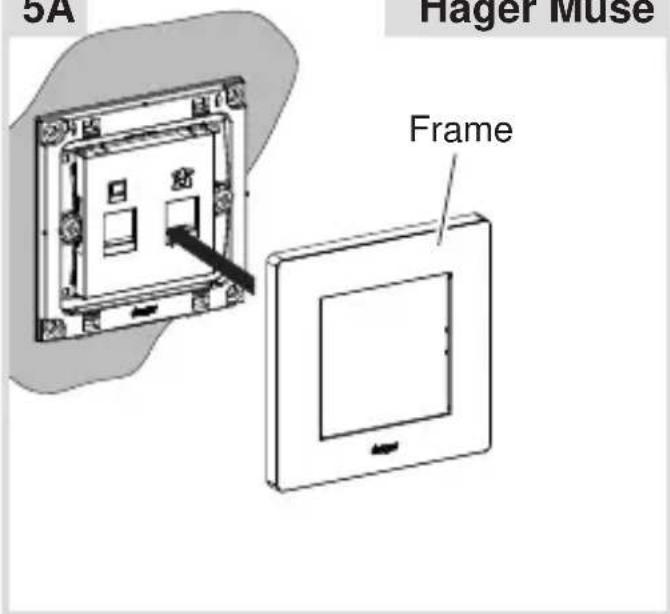

5A

Hager Muse

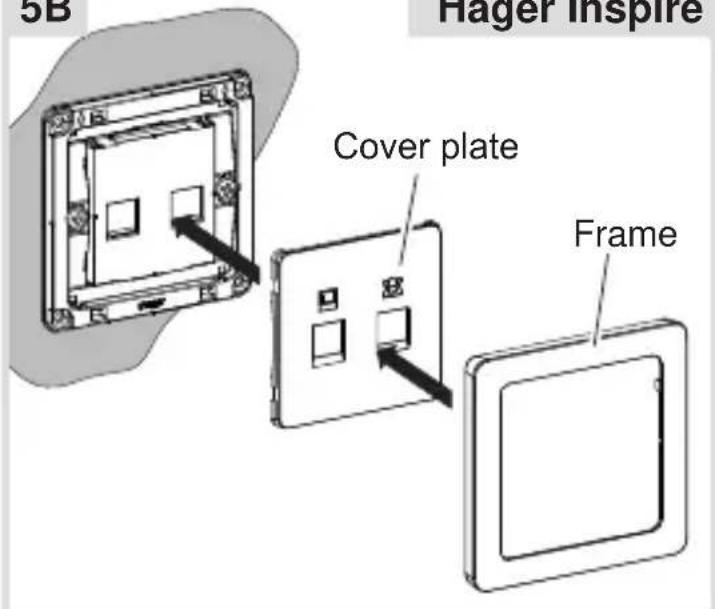

5B

Hager Inspire

■ Hager Muse: Snap the frame onto the device (5A).
■ Hager Inspire: Place the cover plate in the correct position and fix with frame (5B).

2-5gang frames are available for multiple combinations.
