Product Type	RJ45/RJ11 Data and Telephone Outlet
Brand	Hager
Model	WGCXT2RJ5KB
Number of Ports	2 (1x RJ45 + 1x RJ11)
Connection Type	IDC terminals (punch-down)
Standards	TIA/EIA 568-B.2, IEC 60603-7, ISO/IEC 11801 (Cat.5e/6/6A)
Voltage Proof	1000 V DC or AC peak (contact-to-contact)
Current Rating	0.75 A
Insulation Resistance	≥ 500 MΩ at 100 V DC
Signal Contact Resistance	≤ 20 mΩ
Supported Cable Categories	Cat.5e (100 MHz), Cat.6 (250 MHz), Cat.6A (500 MHz) – UTP
Conductor Diameter (Solid)	0.41 – 0.64 mm (AWG 26-22) depending on category
Mounting	Flush-mounted in standard wall box (min. depth 35 mm)
Environment	Indoor, no drip or spray water
Protection	Dust protection slider on each jack
Compatible Frames	Hager Muse and Hager Inspire
Installation	By qualified electrician only; follow national regulations
Maintenance	Clean with a dry cloth; do not use liquids or sprays
Standards Compliance (RJ11)	YD/T 577

Frequently Asked Questions - WGCXT2RJ5KB HAGER

What is the Hager WGCXT2RJ5KB?

The Hager WGCXT2RJ5KB is a combination RJ45 and RJ11 outlet for flush-mounted installation. It supports data (Ethernet) and telephone connections in residential or commercial networks.

What cable categories are supported?

The RJ45 module supports Cat.5e (up to 100 MHz), Cat.6 (up to 250 MHz), and Cat.6A (up to 500 MHz) unshielded twisted pair (UTP) cables. The RJ11 module is for telephone applications.

How do I connect the wires?

Strip the cable jacket (30 mm for RJ45, 10 mm for RJ11), then terminate each pair into the IDC terminals following the color code (TIA/EIA 568A or 568B for RJ45, and the pin assignment for RJ11). Use a punch-down tool.

Can I use this outlet in a wall box?

Yes, it is designed for flush mounting in standard wall boxes. The recommended wall box depth is at least 35 mm.

Is this outlet suitable for outdoor use?

No, it is only suitable for indoor areas with no dripping or spray water.

What is the voltage rating?

The voltage proof between contacts is 1000 V DC or AC peak. The current rating is 0.75 A.

Do I need a special frame?

The outlet is compatible with Hager Muse and Hager Inspire frames. For multiple outlets, use 2-5 gang frames.

How do I test the installation?

After wiring, perform a functional test for each data or telephone outlet using a network or telephone tester to ensure correct continuity and polarity.

Can I use shielded cables?

The manual specifies unshielded (UTP) cables. For shielded cables, you may need a different outlet. Check compatibility before installation.

What tools do I need for installation?

You need a flat-blade screwdriver (to remove frames), a cable stripper, a punch-down tool for IDC terminals, and a wire cutter. Installation must be done by a qualified electrician.

USER MANUAL WGCXT2RJ5KB HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

The RJ45 outlets are used for data transmission in local area networks. The RJ11 outlets are designed for telephone and data applications. Each jack is equipped with a dust protection slider.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

RJ45 outlets

Voltage proof (contact-to-contact): 1000 V DC or AC peak

Current rating: 0.75 A

Insulation resistance: ≥ 500 M at 100 V DC

Signal contact resistance: ≤ 20 mΩ

Type of connection: IDC terminals

Design: according to IEC 60603-7

Colour code A and B: according to TIA/EIA 568-B.2

RJ45 Cat.5e modules

Transmission bandwidth: max. 100 MHz

Conductor ∅ (solid): 0.51 ... 0.64 mm (AWG 24-22)

Cat.5e, unshielded (UTP): according to ISO/IEC 11801

RJ45 Cat.6 modules

Transmission bandwidth: max. 250 MHz

Conductor ∅ (solid): 0.51 ... 0.64 mm (AWG 24-22)

Cat.6, unshielded (UTP): according to ISO/IEC 11801, 2nd edition

RJ45 Cat.6A modules

Transmission bandwidth: max. 500 MHz

Conductor ∅ (solid): 0.41 ... 0.64 mm (AWG 26-22)

Cat.6A, unshielded (UTP): according to ISO/IEC 11801, edition 2.2

RJ11 outlet

Compliance: YD/T 577

Information for electricians

Installation and electrical connection

Preparing the device for installation

(for example "RJ11 + RJ45 outlet")

1A

Hager Muse

Hager Inspire1B

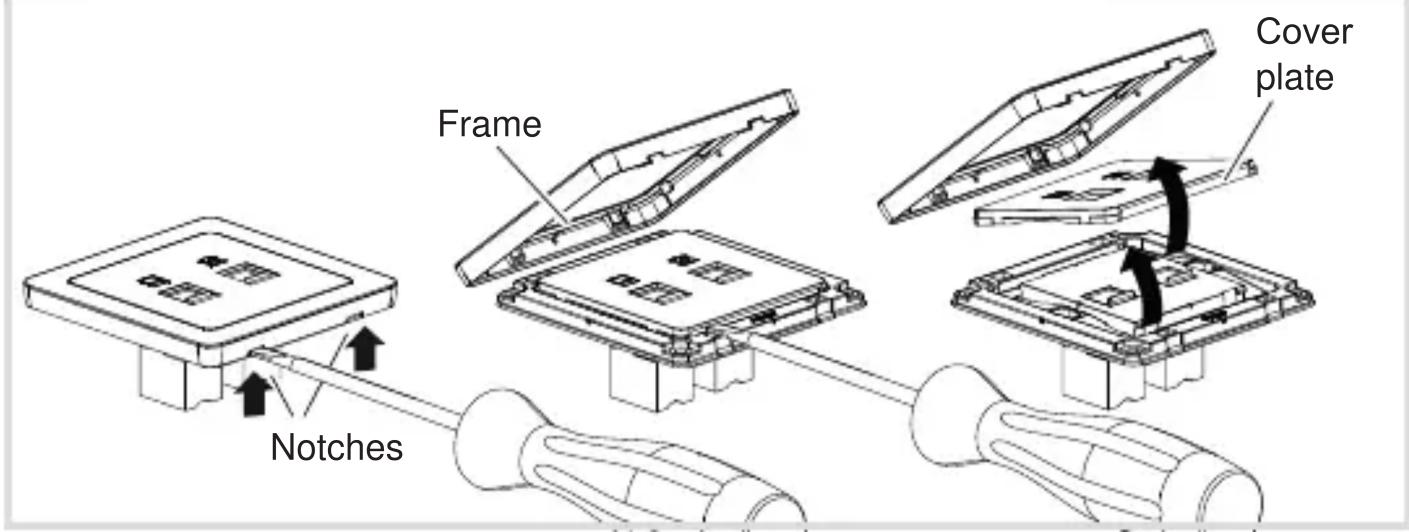

• Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1A/1B).
  ■ Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).

Connecting the RJ45 data module

■ Remove the cover plate of the data module with a flat-blade screwdriver.

2A

• Strip 30 mm of cable jacket (2A).
  ■ Position and terminate first pair according to colour code A or B:

RJ45 pin assignment TIA/EIA 568B TIA/EIA 568A

	1 white/orange white/green
	2 orange green
	3 white/green white/orange
	4 blue blue
	5 white/blue white/blue
	6 green orange
	7 white/brown white/brown
	8 brown brown

As with the first pair position and terminate each subsequent pair one at a time until termination is complete.
- Fix the cover plate back to the module.

Connecting the RJ11 telephone module

3A

• Strip 10 mm of cable jacket (3A).
  ■ Position first pair according to colour code:

RJ11 pin assignment

	2 blue/white
	3 white/blue
	4 white/red
	5 red/white

- Fix the cover plate back to the module.

Checking of the installation:

A functional test of the installation should be made for each data or telephone outlet.

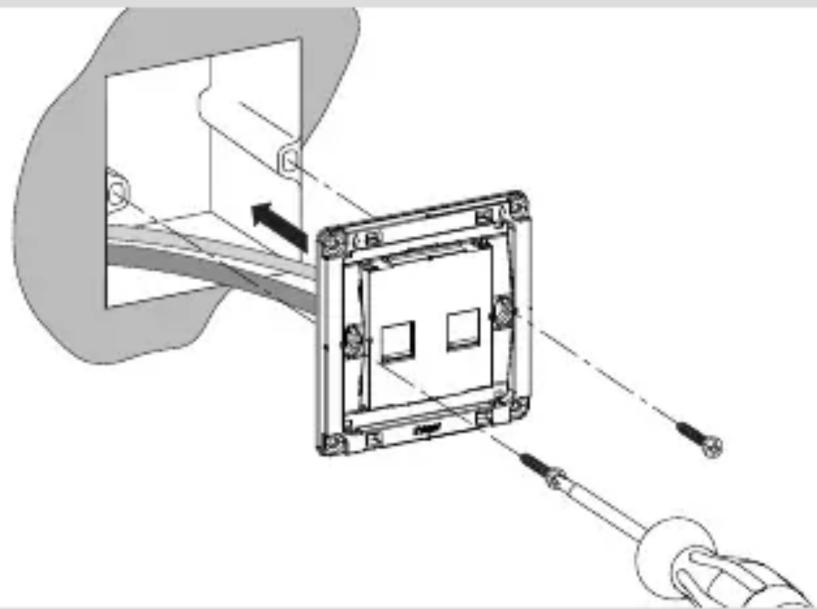

Installing the device into the wall box

(for example "RJ11 + RJ45 outlet")

4

Technical diagram of a mechanical assembly with a bracket and tool, showing no text or symbols

■ After wiring, fix the device with the two screws attached into the wall box (4).

Assembling the covers

(for example "RJ11 + RJ45 outlet")

5A

Hager Muse

5B

Hager Inspire

■ Hager Muse: Snap the frame onto the device (5A).
■ Hager Inspire: Place the cover plate in the correct position and fix with frame (5B).

2-5gang frames are available for multiple combinations.
