HIF79FM - Hi-Fi System Reflexion - Free user manual and instructions

Product Type	Micro Hi-Fi System
Model	HIF79FM
Brand	Reflexion
Power Supply	DC 9V 1A (included adapter)
Power Consumption	9W max
Main Unit Dimensions (W x D x H)	170 x 210 x 95 mm
Speaker Dimensions (W x D x H)	130 x 142 x 180 mm
Total Weight	2.2 kg
FM Frequency Range	87.5 - 108 MHz
FM Presets	20 stations
CD Support	CD, CD-R/RW, MP3 CD
USB Playback	MP3 files (max 32 GB USB)
Bluetooth Version	V5.0 (A2DP), range ~15 m
AUX Input	3.5 mm stereo jack
Headphone Output	3.5 mm stereo jack
Speaker Output Power	2 x 16 W max music power
Backup Battery	2 x AA (for clock memory)
Equalizer Presets	Rock, Pop, Jazz, Classic, Flat
Sleep Timer	10 - 90 minutes
Alarm Clock	Yes, with snooze function
Safety Class	Class II (double insulated)
Warranty	24 months (audio devices)
Care Instructions	Clean with dry cloth; avoid moisture

Frequently Asked Questions - HIF79FM Reflexion

How do I set the time on the HIF79FM?

In standby mode, press and hold the TIME SET MEMORY button. Use ▶/◀ to select 12H or 24H format, then confirm. Set hours and minutes using the same buttons and confirm with TIME SET MEMORY.

How can I connect my phone via Bluetooth?

Press MODE until 'BT' appears. The Bluetooth symbol will flash. On your phone, search for devices and select 'HIF79FM'. Once connected, the symbol stays lit. Play music from your phone.

Can I program the CD to play tracks in a specific order?

Yes. Stop CD playback, press TIME SET MEMORY. 'P01' flashes. Use ▶/◀ to select a track, press TIME SET MEMORY to save. Repeat for up to 20 tracks (audio CD) or 99 (MP3 CD). Press ▶/|| to start programmed playback.

How do I manually store FM radio stations?

Tune to a station. Press and hold TIME SET MEMORY for 3 seconds. 'P06' (example) flashes. Use ▶/◀ to choose a preset location (P01-P20) and press TIME SET MEMORY again to save.

What should I do if the unit automatically switches to standby?

The unit enters standby after 15 minutes of no audio signal in CD, AUX, Bluetooth or USB mode. This can happen if the volume is too low. Press the On/Standby button to turn it back on.

Can I charge devices via the USB port?

No. The USB socket is only for MP3 playback from USB drives up to 32 GB. It does not support charging external devices.

How do I set the alarm clock?

In standby mode, press and hold the ALARM button on the remote. The hour flashes. Set hours with TUNE-/+, press ALARM to confirm. Repeat for minutes, then select source (buzzer, radio, CD) and confirm.

What type of batteries does the backup require?

Two AA batteries (not included) for storing the time during power loss. Insert them in the compartment on the bottom of the main unit, observing correct polarity.

How do I clean the CD player?

Keep CDs clean by wiping from center outward with a soft cloth. For the player, use a dry cloth only. Never use solvents or commercial cleaners. Avoid touching the playback side of the disc.

Is there a headphone output?

Yes, there is a 3.5 mm headphone jack on the front of the unit. Inserting headphones will mute the speakers automatically.

USER MANUAL HIF79FM Reflexion

Simple line drawing of concentric circles with a top circle, no text or symbols present

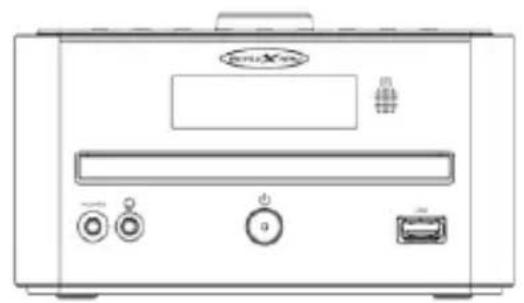

Front view of a portable electronic device with control buttons and indicator lights (no visible text or symbols)

Simple line drawing of concentric circles and a circle above a rectangular frame (no text or symbols)

Micro hifi system with FM, USB, MP3/CD, Bluetooth

Model No.: HIF79FM

Simple line drawing of concentric circles with a vertical border (no text or symbols)

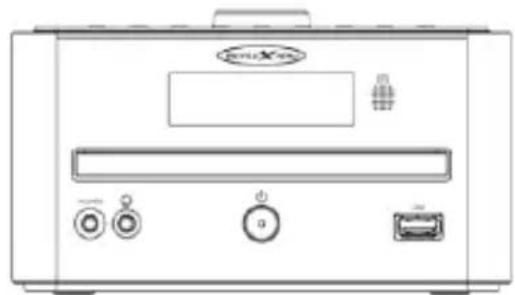

Front view of a portable electronic device with buttons and display (no visible text or symbols)

Simple line drawing of concentric circles and a circle above a rectangular frame (no text or symbols)

Read the entire manual of the appliance carefully before using the product.

Keep them in a safe place for future use.

CE

SAFETY INSTRUCTIONS

		The operating and maintenance instructions (service) in this manual must be followed. Any other use may result in damage to health.
		The CD player is classified as a class 1 LASER PRODUCT.
		To avoid the risk of electric shock, do not open the housing under any circumstances. There are no parts inside that can be repaired by the user. Repairs may only be carried out by an authorised specialist workshop.
		This appliance is a Class II or double insulated electrical appliance. It has been designed so that it does not require a safety connection to electrical earth.
		This unit is designed for DC 9V mains voltage. If the unit is not to be used for a long period of time, unplug it from the mains.
		Do not expose the unit to moisture or rain.
		Do not switch on the system until you have carefully checked all connections.
		Position the unit so that an undisturbed supply of fresh air is always ensured. Do not place the unit on carpets or near curtains and do not install it in bookshelves.
		Do not expose the unit to direct sunlight or heat sources.

SAFETY INSTRUCTIONS:

1) Read these operating instructions before using the appliance for the first time.
2) Keep these operating instructions in a safe place for future reference.
3) Do not expose the appliance to dripping or splashing and do not place objects filled with liquids, such as vases, on the appliance. Use only in dry areas.
4) Do not place naked flames such as candles on the appliance and keep the appliance away from naked flames.
5) Children should be supervised to ensure that they do not play with the appliance.
6) Do not obstruct ventilation by covering the vents.
7) Ensure that the unit is connected to a DC 9V 1A power supply. Using higher voltage may cause the unit to malfunction. Switch off the unit before disconnecting it from the mains to turn it off completely.
8) If your hands are wet or damp, do not touch the mains plug.
9) Do not use force to insert the mains plug into the socket.
10) Only use accessories and spare parts approved by the manufacturer.
11) Install the appliance according to the manufacturer's instructions.
12) Install the unit only in adequately ventilated environments. Place the unit on a flat and stable surface.
13) Do not expose to temperatures above 40^ C.
14) When placing the unit, make sure that there is 30 cm to the rear and the top of the unit and 5 cm from each side.
15) Do not operate the unit's buttons with excessive force as this may cause damage.
16) When inserting the backup batteries, pay attention to the correct polarity. See the illustration in the battery compartment.
17) Dispose of batteries in an environmentally friendly way. When disposing of batteries, pay attention to environmental aspects. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
18) Always make sure that the unit is disconnected from the power supply before transport or cleaning. Clean the unit only with a dry cloth.

19) In the event of a thunderstorm or if the unit is not to be used for a long period of time, disconnect the unit from the mains.
20) This unit has no user-serviceable parts. Do not attempt to repair this unit yourself. Only qualified service personnel should perform maintenance. In the event of a defect, complain about the unit to your dealer.
21) Do not allow anyone, especially children, to push anything into holes, slots or any other openings in the unit's casing as this could result in a fatal electric shock.
22) Do not attach this unit to a wall or ceiling.
23) Do not place the unit near televisions, speakers and other objects that generate strong magnetic fields.
24) Do not leave the unit unattended when it is switched on.
25) If the unit does not respond to the inputs, disconnect the unit from the power supply for a few seconds and then switch it on again.
26) After receiving the unit, please check that the delivery is complete. If the delivery is not complete, please contact your dealer or our customer support.

ACCESSORIES

Main unit 1x

Loudspeaker (left/right) 1x

Power supply unit 1x

Remote control (incl. battery) 1x

Operating instructions 1x

POWER SUPPLY

This unit can be operated as follows:

DC operation:

Connect the included power supply (DC9V 1A) to the unit and your home power outlet.

Backup battery:

The unit has a battery compartment for two AA batteries on the bottom. This serves to store the time in case of a power failure or if the unit is disconnected from the mains when it is switched on again.

ATTENTION:

Please check at regular intervals whether the batteries are full to ensure the backup battery function. Inserted batteries or rechargeable batteries will not be charged.

OPERATING KEYS

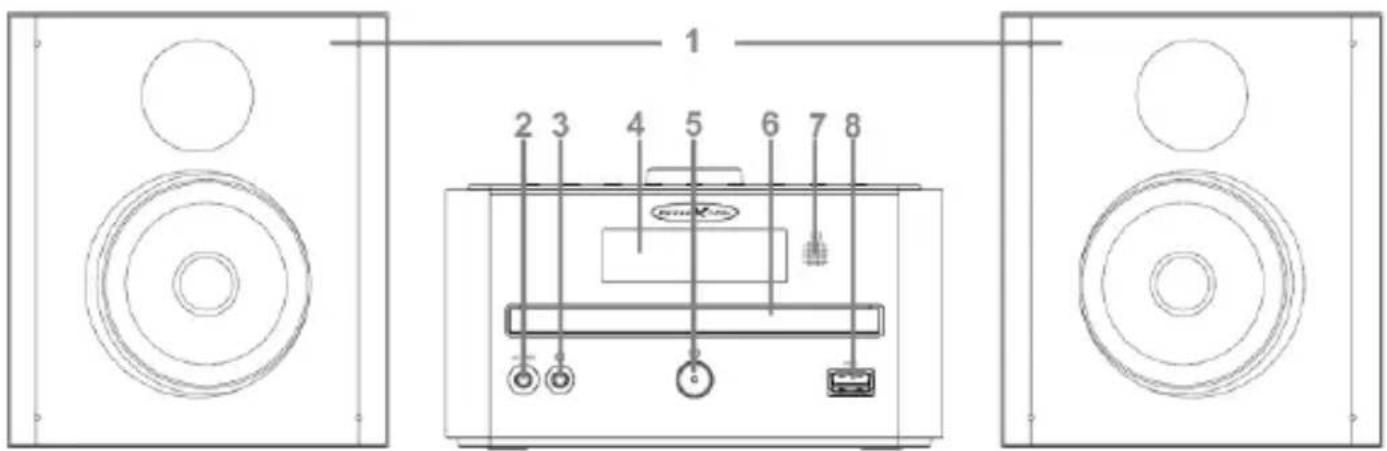

Front view:

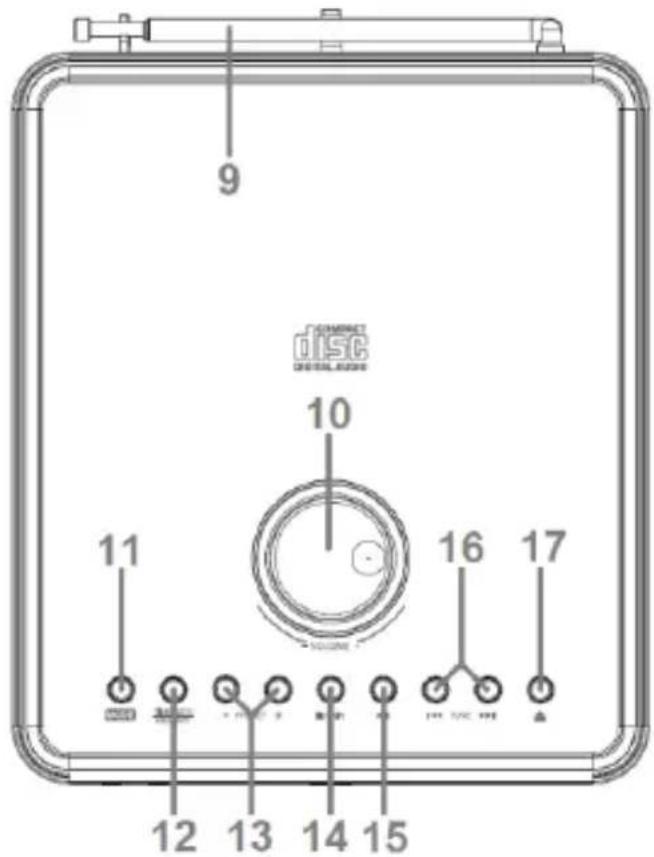

Top view:

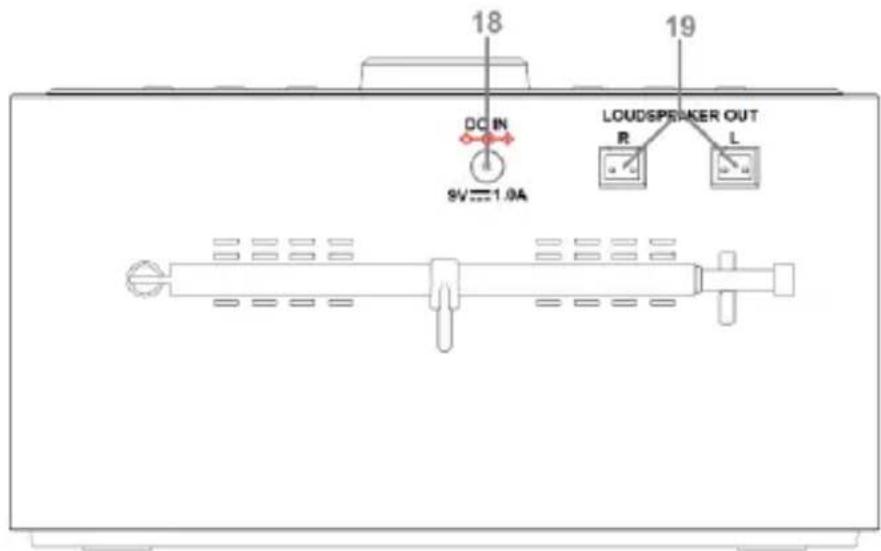

Back view:

Below view:

1.	LAUTSPRECHER	- Loudspeaker: Left / Right
2.		- 3,5mm AUX-IN connection
3.		- 3,5mm Headphone output
4.		- Displays frequency, title and time
5.		- Switch on / switch off (standby)
6.	LAUFWERK	- CD compartment for CD playback
7.		- Remote control receiverNote:Please do not place any object in front oft he receiver, otherwise the remote control may not function
8.		- USB socket for USB-MP3 playbackNote:The USB socket is not suitable for charging external devices
9.		- Antenna for FM reception
10.		+: Louder -: Quieter
11.		- Select function mode:FM / CD / USB / AUX / Bluetooth
12.		- Set time- FM station preset- Programming CD playback
13.		+: Next saved radio station -: Previous saved radio station
14.		- Stop playback- Bluetooth pairing mode
15.		- Play / Pause- Press and hold the button to start the FM search.
16.		▶▶: Next title◀◀: Previous title
17.		- CD-Drive: Open / Close
18.		- DC mains socket for connecting the external power supply unit.
19.		- Loudspeaker Connection for the loudspeakers included in the scope of delivery.

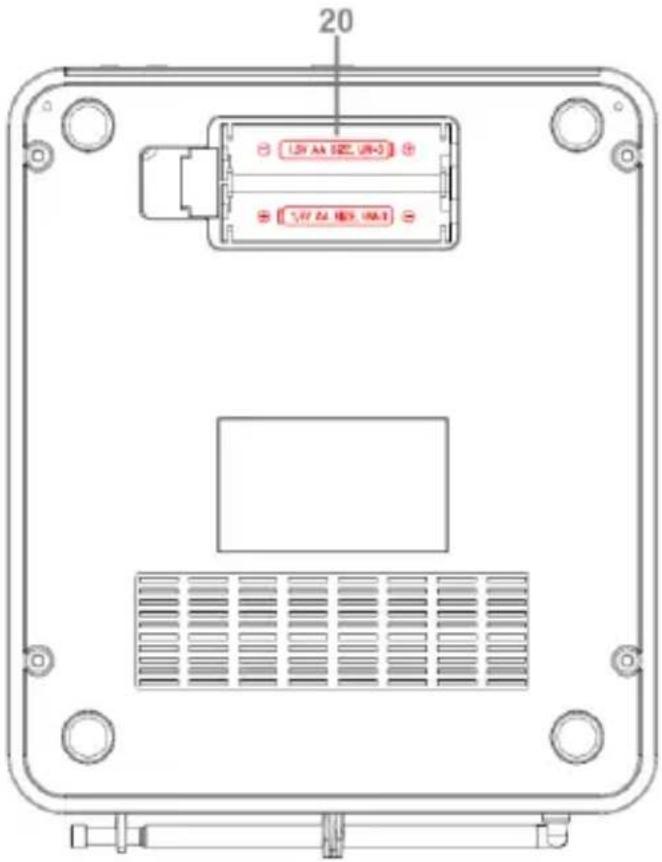

20.		- Back Up Battery Compartment: 2x AA batteries. For storing the time in the event of a power failure or when the unit is disconnected from the mains.

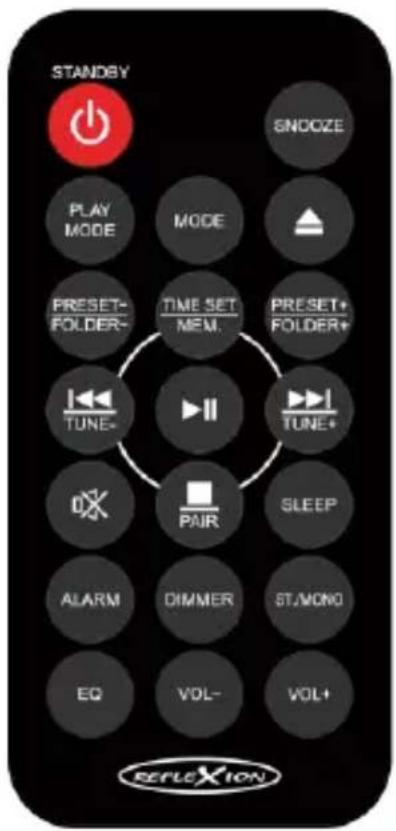

	- Switch on / switch off (standby)
	- Switch off the alarm clock. The alarm sounds again after 10 minutes.
	- Set playback mode:REP: Repeat one titleREP all: Repeat all titleRAND: Random playback
MODE	- Select function mode:FM / CD / USB / AUX / Bluetooth
	- CD-drive: Open / Close
	- FM: Previous stored radio station- USB playback: Previous folder
	- Set time- FM station preset- Program CD playback
	- FM: Next stored radio station- USB playback: Next folder
	- Previous title- FM: Set frequency
	- Play / Pause
	- Next title- FM: Set frequency
	- Mute: On / Off
	- Stop playback- Bluetooth: Pairing mode
	- Set sleep timer
	- Set alarm clock
	- The display can be dimmed in three steps
	- Switching between stereo and mono in FM modeStereo: STE (ST.) Shown in the displayMono: ONO Shown in the display
	- Select equalizer: Rock, Pop, Jazz, Classic, Flat
	- Adjust the volume: Quieter

- Adjust the volume: Louder

BASIC OPERATION

Switching on the unit

• Switch on: Press the key [5] to switch on the unit.
• Switch off: Press key [5] to switch off the unit.

Remark:

- Before switching on the unit, please make sure that the unit is properly connected to the power supply.

Note:

The unit will automatically switch to standby mode if no audio signal is active in CD, AUX, Bluetooth or USB mode within 15 minutes.

Please note that a low volume setting on the unit may be detected as "no audio signal" and the unit will automatically switch to standby mode. To switch the unit back on, press the button [5].

Notes on electrostatic discharge

The unit may reset due to electrostatic discharge.

If the unit can no longer be operated, disconnect the unit from the mains for a few seconds and then restart the unit.

Volume: Adjusting the volume

Turn the [10] to increase or decrease the volume.

Setting the time

1. To set the time, proceed as follows.
2. Press and hold button [12] in standby mode.

3. Press the ▶ or ◀ buttons TUNE [16] to set the time display.

4. 12 H = 12 hour display.

5. 24H = 24 hours display.

6. Press the TIME SET MEMORY [12] button to confirm and enter the hour selection. The hour display flashes.

7. Press the or buttons [16] to set the hours.

8. Press the MEMORY [12] button to confirm and enter the minutes selection. The minutes display flashes.
9. Press the ▶ or ◀ buttons TUNE [16] to set the minutes.
10. Press the MEMORY [12] button to confirm and complete the time setting.

Note:

• The time can only be set in standby mode.
• Make sure that two AA batteries are inserted in the Back Up battery compartment so that the time remains stored in the event of a power failure or disconnection from the mains when the unit is switched on again.

Setting the alarm clock

1. To set the alarm clock, proceed as follows.
2. Press and hold the remote control button in standby mode.

3. The hour display flashes in the display.

4. Press the following buttons TUNE- / TUNE+ to set the hours.

5. Press the remote control button ALARM to confirm the hours and switch to the minute selection. The minute display flashes.

1. Press the following buttons TUNE- / TUNE+ to set the minutes.

2. Press the remote control key ALARM to confirm the minutes and switch to source selection.

1. Press the following TUNE- / TUNE+ buttons to set the source. The following sources are available for selection.

2. BUZ = Beep tone
   • TUN = The last radio station listened to

3. CD = Starts with the first track of the CD.

4. Press the remote control button ALARM to confirm the source and complete the alarm setting.

Switching off the alarm tone

1. When the alarm sounds, you have two options to turn off the alarm sound.

2. Snooze function: Press the button SNOOZE to switch off the alarm tone and the alarm will sound again after 10 minutes.

3. Turn off the alarm tone: Press the 🔊 or ALARM button to switch off the alarm tone.

Switching the alarm clock on / off

1. Press the button ALARM in standby mode to switch the alarm clock "On" or "Off".

Note:

- If the alarm clock is set to "On", an alarm clock symbol appears in the display.

SLEEP Timer

1. Press the remote control button SLEEP to switch the sleep timer on or off.
2. When the sleep timer is on, a bed symbol appears in the display.
3. The unit switches to standby mode after the set time has elapsed.
4. The following settings are available for selection:
   10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 / 90 / Off (Off) minutes.

FM MODE

1. Press the button MODE [11] repeatedly until "FM" appears in the display.
2. Use the or buttons [16] to adjust the frequency.

• / : Press briefly to adjust the frequency.

• / : Press and hold to automatically search for the next or previous radio station.

Note:

- To get the best FM reception, pull the [9] fully out. Avoid proximity to equipment that may interfere with reception such as speakers and TV sets.

Automatically save FM stations

1. Press and hold button [15] for about 3 seconds to start the search.
2. The unit searches for all available FM radio stations and stores them automatically.
3. After the search, the unit starts playback with the first radio station.

Storing FM stations manually

1. Select a radio station to be stored.
2. Press and hold the key [12] for approx. 3 seconds. "P06", for example, flashes in the display.

3. Use the / [16] TUNE buttons to select the memory location (P01 - P20) and press the [12] button again to save the radio station.

4. Repeat process 1-3 until all desired radio stations are stored manually.

Note:

• The unit can store a maximum of 20 radio stations "P01 - P20".

Selecting stored FM radio stations

Press the ☐ [13] buttons to select the stored radio stations.

CD MODE

Starting CD playback

1. Press button MODE [11] repeatedly until "CD" appears in the display.
2. Open the CD compartment by pressing the button [17].
3. "OP" appears in the display.
4. Insert the CD into the CD compartment with the title side facing up.
5. Press the button [17] to close the CD drive. "CL" appears in the display.
6. The CD is now read in and then the total number of tracks is shown in the display.
7. The unit automatically starts playing the first track of the CD.
8. After all tracks have been played, the unit stops automatically and the total number of tracks is shown again on the display.

Control playback:

• Play / Pause:
• Stop playback:
• Next track:
• Previous track:
• Fast forward:
• Rewind:

• Playback mode:
• Playback order:
• Set volume:

Set the playback mode:

1. Press the remote control button to set the playback mode.
2. The playback mode is shown in the display.

3. The following playback modes are available:

4. REP: Only the current track is repeated.
   • REP ALL: All tracks are repeated.
   • RAND: Random playback

CD playback Programming

1. Stop the CD playback with the /PAIR [14] button.
2. Press the TIME SET MEMORY [12] button. "P01" flashes in the display.
3. Select the desired track with the ▶/◀[16] TUNE button and press the TIME SET MEMORY [12] button again to save the track under "P01".
4. "P02" now flashes in the display.
5. Repeat steps 2 and 3 to programme more titles for playback.
6. After programming all the titles you want, press button [15] and the unit will play the programmed titles. "MEM" is shown in the display.
7. To stop the programmed playback, press button /PAIR [14] once and the playback stops. Press button /PAIR [14] again and "MEM" playback is finished.

Note:

• Audio CD: A maximum of 20 tracks can be programmed ("P01 - P20").
• MP3 CD: A maximum of 99 tracks can be programmed ("P01 - P99").
• The following CD types are supported CD, CD-R/RW, MP3/CD.

Care of the CD disc

• Do not touch the playback side of the CD.
• Do not stick paper, tape or any other material on the CD.
• Fingerprints and dust on the disc will cause deterioration of playback. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.
• If dust or stains cannot be removed with a soft cloth, wipe the disc with a slightly damp soft cloth and then wipe with a soft, dry cloth.
• DO NOT use solvents, commercial cleaners or anti-static sprays for vinyl as these may damage the disc.
• Do not store CDs in places exposed to direct sunlight or near a heat source.
• Do not store CDs in locations exposed to moisture or dust, such as in a bathroom or near a humidifier.
  • Always store CDs vertically in a case.

USB MODE

1. Press the button MODE [11] repeatedly until "USB" appears in the display.
2. Insert a USB stick into the connection [8].
3. The USB stick is now read in and the total number of titles is shown in the display.
4. The unit automatically starts playing the first track from the USB stick.
5. When all the tracks have been played, the unit will stop automatically and the total number of tracks will be shown on the display again.

Control playback:

• Play / Pause:
• Stop playback:

- Next track / folder: /

• Previous title / folder: /
• Fast forward: (keep button pressed)
• Rewind: (keep button pressed)

• Playback mode: (only via remote control)
• Playback order:
• Adjust volume: VOLUME

USB playback Programming

1. Stop USB playback with the /PAIR [14] button.
2. Press the TIME SET MEMORY [12] button. "P01" flashes in the display.
3. Select the desired track with the ▶ / ◀ [16] TUNE buttons and press the TIME SET IN [12] button again to save the track under "P01".
4. "P02" now flashes in the display.
5. Repeat steps 2 and 3 to programme more titles for playback.
6. After programming all the titles you want, press button [15] and the unit will play the programmed titles. "MEM" is shown in the display.
7. To stop the programmed playback, press button /PAIR [14] once and the playback stops. Press the /PAIR [14] button again and "MEM" playback is finished.

NOTE:

• A maximum of 99 tracks can be programmed ("P01 - P99").
- USB sticks are supported up to a maximum of 32GB.

AUX IN MODE

1. You can play music from any external audio device (with a 3.5mm stereo jack) with the HIF79FM unit.
2. To do this, connect the HIF79FM to your external audio device using a 3.5mm audio cable (not included).
3. Plug the audio cable into the jack AUX-IN [2] of the HIF79FM and into the line out jack or headphone jack of your external audio device (e.g. smartphone, MP3 player).
4. Press the button MODE [11] until "AUX" is shown in the display.
5. You control the playback on your external audio device.
6. Control the volume on the HIF79FM unit with the slider . VOLUME

BLUETOOTH MODE

1. Press the button MODE [11] repeatedly until "BT" appears in the display.

2. Not connected: Bluetooth symbol flashes in the display.

3. Connected: The Bluetooth symbol lights up in the display.

4. Start the Bluetooth search on your external Bluetooth device and select "HIF79FM" from the list of devices found.

5. Start playback on your external Bluetooth device to play music from on the HIF79FM.

Control playback:

• Play / Pause:
• Next track:
• Previous track:
• Adjust volume:

Note:

• Bluetooth works best in the open up to approx. 15m.
• Bluetooth can only receive, not transmit.
  • The HIF79FM automatically connects to the last connected device.

TECHNICAL DATA

General

Power supply unit Input AC: 100-240V\~50/60Hz

Power supply unit output DC: 9V / 1A

Unit Input DC: 9V / 1A

Max. Power consumption 9W

Main unit dimensions (W x D x H) 170 x 210 x 95mm

Loudspeaker dimensions (W x D x H) 130 x 142 x 180mm

Weight 2,2Kg

Operating temperature + 5°C - + 35°C

Radio

Receiver band FM

Frequency range FM 87.5 - 108 MHz

Memory locations 20 memory locations

Audio

Max. Music power 2x 16 Watt

AUX-IN socket Φ3.5mm

Headphone socket 3.5mm

USB socket MP3 playback / max. 32GB

Bluetooth

Version V5.0 (A2DP)

Frequency 2.4GHz

All information without guarantee.

Design and specifications are subject to change without notice.

BATTERIES AND RECHARGEABLE BATTERIES MUST NOT BE DISPOSED OF WITH HOUSEHOLD WASTE! NON-PROFESSIONAL DISPOSAL OF BATTERIES AND RECHARGEABLE BATTERIES CAUSES ENVIRONMENTAL POLLUTION / DAMAGE.

EVERY CONSUMER IS REQUIRED BY LAW TO RETURN BATTERIES AND ACCUMULATORS AT THE END OF THEIR WORKING LIFE CYCLE TO APPROPRIATE COLLECTION POINTS, SUCH AS THEIR MUNICIPALITY/BOROUGH OR RETAIL OUTLET. DROP-OFF AT COLLECTION POINTS IS FREE OF CHARGE. BY HANDING THEM IN AT COLLECTION POINTS, BATTERIES AND ACCUMULATORS ARE RECYCLED AND THUS DISPOSED OF IN AN ENVIRONMENTALLY FRIENDLY WAY. DISPOSING OF BATTERIES AND RECHARGEABLE BATTERIES IN HOUSEHOLD WASTE DOES NOT ENSURE ENVIRONMENTALLY FRIENDLY DISPOSAL AND MAY CAUSE DAMAGE TO THE ENVIRONMENT.

BATTERIES AND ACCUMULATORS MUST BE REMOVED FROM THE DEVICE BEFORE DISPOSAL. PLEASE RETURN ONLY IN DISCHARGED CONDITION!

*) MARKED WITH:
CD = CADMIUM,
HG = MERCURY,
PB = LEAD

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, UltraMedia GmbH & Co. Handels KG that the radio equipment type HIF79FM is in conformity with Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be requested at the following e-mail address.

We wish you much pleasure with the device.

Your UltraMedia Team

DISPOSAL INSTRUCTIONS

This symbol on the device or in the user manual means that the device as well as electrical and electronic equipment and batteries must be disposed of separately from your household waste at the end of their operating life. There are separate collection systems for recycling in the EU. Batteries must be removed from the device before disposal and disposed of separately at collection points. For more information, please contact the local authority or your dealer from whom you purchased the device.

WARRANTY

Dear Customer,

Thank you for choosing one of our products. Our products undergo precise quality control in the course of production. If one of our devices gives you cause for complaint, or you have questions about one of our devices, please call our customer support.

We give a 36 month warranty on TV and SAT devices, and a 24 month warranty on portable DVD and audio devices from the date of purchase. Outside of the warranty, we offer you a paid repair based on a cost estimate. Please contact our customer support before submitting.

The warranty relates to material and production defects. Your device will be repaired or replaced during the warranty period. Unfortunately, UltraMedia cannot reimburse the purchase price. Damage caused by improper use, the use of third-party accessories, falls, dust, water damage and signs of wear (e.g. scratches, optical wear and tear) caused by the customer or external influences are excluded from the guarantee.

In order to assert the warranty claims, send the device with all accessories, a copy of the invoice and the description of the fault to the address given below. Devices that do not have a proof of purchase cannot be guaranteed. Please do not forget to include your full address and a telephone number / email address for any queries.

Shipping to us takes place at your own expense. Unpaid parcels cannot be accepted and are returned to the sender.

Please pack the device securely for transport. UltraMedia assumes no liability for damage in transit that occurs on the way to us. After receiving your submission, we will process your device as soon as possible and send it back to you.

Before sending your device in, please contact our customer support or your specialist dealer, as many problems can also be solved over the phone.

UltraMedia GmbH & Co. Handels KG	[e-mail]
Friedrich-Penseler-Str. 28	Tel.: +49 / (0) 4131/9239-20
D-21337 Lüneburg	Mo.-Do.: 08:00-17:00
www.ultramedia.de	Fr.: 08:00-14:30
