IBU3114RF - Cooker Cylinda - Free user manual and instructions

Product Type	Freestanding Cooker
Brand	Cylinda
Model	IBU3114RF
Dimensions (HxWxD)	85 x 60 x 60 cm
Weight	Approximately 50 kg
Power Supply	230 V / 50 Hz
Energy Rating	A+
Hob Type	4 Induction Zones
Oven Capacity	65 Litres
Oven Functions	Conventional, Fan, Grill, Pizza
Cleaning Method	Easy-clean Enamel Interior
Safety Features	Child Lock, Automatic Shut-off, Residual Heat Indicators
Spare Parts Availability	Through Cylinda Service Network
Warranty	2 Years Standard Warranty
Included Accessories	Oven Rack, Drip Tray, Baking Tray

Frequently Asked Questions - IBU3114RF Cylinda

How do I use the induction hob?

Place compatible cookware on the desired zone. Touch the on/off button, then select the zone and adjust the power level (1-9). The hob will heat only when cookware is detected.

How do I set the oven timer?

Press the timer button, use +/- to set the desired time, then confirm. The oven will turn off automatically when the timer ends.

How to clean the oven interior?

Use a damp cloth with mild detergent. For stubborn stains, use a non-abrasive cleaner. Avoid cleaning the self-cleaning surfaces (if equipped) with harsh chemicals.

What should I do if the hob shows an error code?

Refer to the user manual for error code explanations. Common codes: E1 (no pan), E2 (overheating). Usually, reset the appliance by turning it off and on.

Can I use aluminium foil in the oven?

Yes, but avoid covering the oven floor or heating elements as it may cause poor heat circulation and damage. Use foil only on baking trays.

How to activate the child lock?

Press and hold the child lock button (usually a key icon) for 3 seconds until the indicator lights up. Repeat to deactivate.

Where can I find spare parts?

Contact Cylinda authorized service centers or visit the official website. Provide the model number IBU3114RF for accurate parts.

What is the recommended oven preheating time?

Preheat for 10-15 minutes to reach the desired temperature. The indicator light will turn off when ready.

How do I troubleshoot if the oven doesn't heat?

Check the power supply, ensure the timer is not set, and verify the function selector is correctly positioned. If still not working, contact service.

Can I bake on multiple shelves?

Yes, the oven supports baking on two shelves. It is recommended to use the fan function to ensure even cooking.

USER MANUAL IBU3114RF Cylinda

Simple line drawing of a kitchen appliance with oven, refrigerator, and washing machine (no text or symbols)

IBU3114RF

IBU3114V

Viktig!

The packaging materials 100% recyclable and is marked with the recycle symbol. The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal.

SCRAPPING OF HOUSEHOLD APPLIANCES

When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves (if present) so that children cannot easily climb inside and become trapped.

This appliance is manufactured with recyclable or reusable materials.

Dispose of it in accordance with local waste disposal regulations.

For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchase the appliance.

This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of th is product.

The symbol 📄 on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Only preheat the oven if specified in the cooking table or your recipe. Use dark lacquered or enamelled baking moduls as they absorb heat far better. Standard cycle (PYRO): which is suitable for cleaning a very dirty oven. Energy-saving cyde (PYRO EXPRESS/ECO) - only in some models -: which consumes approximately 25% less energy than the standard cycle.

Select it at regular intervals (after cooking meat on 2 or 3 consecutive occasions).

DECLARATION OF CONFORMITY

This appliance has been designed, constructed and distributed in compliance with the requirements of European Directives:

LVD 2014/35/EU, EMC 2014/30/EU and RoHS 2011/65/EU.

This appliance, which is intended to come into contact with foodstuffs, complies with European Regulation CE n. 1935/2004.

This appliance meets the Eco Design requirements of European Regulations n. 65/2014, and n. 66/2014 in conformity to the European standard EN 60350-1.

Material Chemicals

REACH Regulation (EU) 1907/2006

RoHS Directive 2011/65/EU

Energy

CE mark (LVD, EMC, RED, MD, etc.)

General Product Safety Directive (GPSD)

Directive 2001/95/EC

EcoDesign Directive 2009/125/EC + ErP:

Energy Labelling Regulation (EU) 2017/1369

Waste Management

Waste Framework Directive (SCIP) 2008/98/EC

Packaging Waste Directive 94/62/EC

Waste from Electrical and Electronic Equipment

(WEEE) Directive 2012/19/EU

Installasjon

Montering av ovnen

Top-down schematic of a rectangular device with internal grid pattern and directional arrows (no text or symbols)

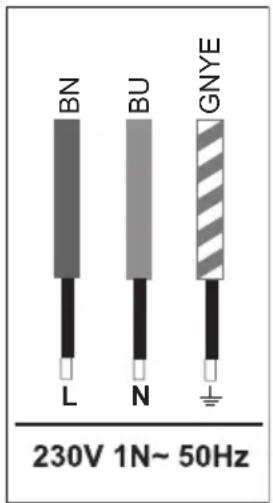

Strømtilkobling

Installasjonen skal kun utføres av en autorisert elektrisk installatør Med det sikres at gjeldende regler i "Stærkstrømsbekendtgørelsen" blir overholdt.

Faseleder L: BN - brun

Diagram showing a curved arrow with a diagonal line and a label 'O' (no text or symbols present)

Diagram of a cylindrical device with a rotating arrow and base, no text or symbols present

Elektronisk programmerer

Forsiktig!

Technical diagram of a mechanical component with an inset close-up showing a threaded fastener inserted into a housing (no text or symbols present)

Hvis steketermometeret er koblet til, viser de to sifrene på venstre side den faktiske temperaturen for steketermometeret, mens de to sifrene på høyre side viser innstillingsverdien.

500 ml melk (helmelk)

12 ts salt

135 g sukker

Kardemomme

900 g mel

Smuldre gjæren, og bland den med litt av melka. Smelt margarinen, og hell i resten av melka. Bland alt til du har en smidig deig. La deigen heve 15 minutter i bollen. Form små boller, og legg dem i former. Etterhev i 30-40 minutter på brettet. Pensle med egg og strø over perlesukker.

Stekes ved 160-180 °C ved over- og undervarme i 30-40 minutter eller med varmluft ved 150-170 °C i 30-40 minutter.

Muffins

rundt 20 stk.

TABLE 5: Anbefalt innstiling for ∅KO-program

Rett Ovnsfunksjon Temperatur		[°C]	Ovnsinnstil-lingfra bunnen	Steketid[min.]
Sukkerbrød	[WADS]	180 - 200 2 - 3	50 - 70
Kaker	[HBO4]	180 - 200 2 50	- 70
Fisk		190 - 210 2 - 3	45 - 60
Storfe	[TBT5]	200 - 220 2 90	- 120
Svin		200 - 220 2 90	- 160
Kylling		180 - 200 2 80	- 100

Technical diagram of a microwave oven with internal grid pattern and control knob (no text or symbols)

Technical line drawing of a mechanical device with internal components and a magnified inset showing internal structure (no text or symbols)

Damprengjøring

Sett en beholder med 0,25 liter vann nede i ovnen og lukk døren. Sett ovnen 50 °C og velg undervarme Varm ovnen i rundt 30 min. Deretter åpner du ovnsdøren. Tørk ovnen med en klut eller svamp før du rengjør ovnen med varmt vann med oppvaskmiddel.

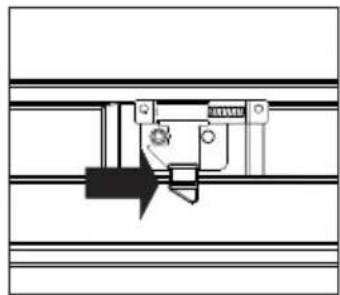

Fjerne ovnsdøren

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

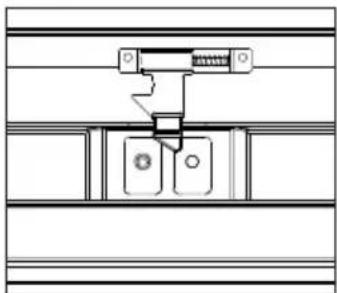

Trekk sikkerhetsinnretningen ned på hengselen.

Technical line drawing of a mechanical assembly with a rectangular plate and a separate cylindrical component (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a highlighted section (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Fjern barnesik- ringen.

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a door handle assembly with mounting holes and a directional arrow (no text or symbols)

The packaging materials 100% recyclable and is marked with the recycle symbol. The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal.

SCRAPPING OF HOUSEHOLD APPLIANCES

When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves (if present) so that children cannot easily climb inside and become trapped.

This appliance is manufactured with recyclable or reusable materials.

Dispose of it in accordance with local waste disposal regulations.

For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchase the appliance.

This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of th is product.

The symbol 📂 on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Only preheat the oven if specified in the cooking table or your recipe. Use dark lacquered or enamelled baking moduls as they absorb heat far better. Standard cycle (PYRO): which is suitable for cleaning a very dirty oven. Energy-saving cyde (PYRO EXPRESS/ECO) - only in some models -: which consumes approximately 25% less energy than the standard cycle.

Select it at regular intervals (after cooking meat on 2 or 3 consecutive occasions).

DECLARATION OF CONFORMITY

This appliance has been designed, constructed and distributed in compliance with the requirements of European Directives:

LVD 2014/35/EU, EMC 2014/30/EU and RoHS 2011/65/EU.

This appliance, which is intended to come into contact with foodstuffs, complies with European Regulation CE n. 1935/2004.

This appliance meets the Eco Design requirements of European Regulations n. 65/2014, and n. 66/2014 in conformity to the European standard EN 60350-1.

Material Chemicals

REACH Regulation (EU) 1907/2006

RoHS Directive 2011/65/EU

Energy

CE mark (LVD, EMC, RED, MD, etc.)

General Product Safety Directive (GPSD)

Directive 2001/95/EC

EcoDesign Directive 2009/125/EC + ErP:

Energy Labelling Regulation (EU) 2017/1369

Waste Management

Waste Framework Directive (SCIP) 2008/98/EC

Packaging Waste Directive 94/62/EC

Waste from Electrical and Electronic Equipment

(WEEE) Directive 2012/19/EU

Installation

Montering af ovnen

Pure technical diagram of a square component with arrows indicating direction, no text or symbols present

Nettilslutning

Fase ledning L: BN - brun

Neutral ledning N: BU - blå

Beskyttende jordledning PE: GNYE -grøn/gul

Simple line drawing of a curved arrow with a diagonal line, no text or symbols present

Elektronisk programmering

Advarsel!

Technical line drawing of a mechanical component with an inset close-up showing a threaded fastener inserted into a housing (no text or symbols)

Technical diagram of a microwave oven with internal grid pattern and control knob (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a magnified inset showing internal structure (no text or symbols)

Damprengøring

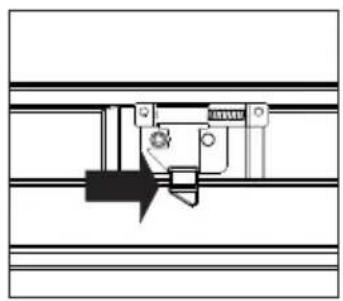

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a rectangular component and a separate cylindrical component (no text or symbols)

1. Du kan derefter fjerne glaspanelet (fig. D). Efter rengøring gentages proceduren i omvendt orden.

Technical line drawing of a mechanical assembly with two circular holes and a black triangular component, no text or symbols present.

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a door handle assembly with mounting brackets and a directional arrow indicating movement (no text or symbols)

The packaging materials 100% recyclable and is marked with the recycle symbol. The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal.

SCRAPPING OF HOUSEHOLD APPLIANCES

When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves (if present) so that children cannot easily climb inside and become trapped.

This appliance is manufactured with recyclable or reusable materials.

Dispose of it in accordance with local waste disposal regulations.

For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchase the appliance.

This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of th is product.

The symbol 📄 on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Only preheat the oven if specified in the cooking table or your recipe. Use dark lacquered or enamelled baking moduls as they absorb heat far better. Standard cycle (PYRO): which is suitable for cleaning a very dirty oven. Energy-saving cyde (PYRO EXPRESS/ECO) - only in some models -: which consumes approximately 25% less energy than the standard cycle.

Select it at regular intervals (after cooking meat on 2 or 3 consecutive occasions).

DECLARATION OF CONFORMITY

This appliance has been designed, constructed and distributed in compliance with the requirements of European Directives:

LVD 2014/35/EU, EMC 2014/30/EU and RoHS 2011/65/EU.

This appliance, which is intended to come into contact with foodstuffs, complies with European Regulation CE n. 1935/2004.

This appliance meets the Eco Design requirements of European Regulations n. 65/2014, and n. 66/2014 in conformity to the European standard EN 60350-1.

Material Chemicals

REACH Regulation (EU) 1907/2006

RoHS Directive 2011/65/EU

Energy

CE mark (LVD, EMC, RED, MD, etc.)

General Product Safety Directive (GPSD)

Directive 2001/95/EC

EcoDesign Directive 2009/125/EC + ErP:

Energy Labelling Regulation (EU) 2017/1369

Waste Management

Waste Framework Directive (SCIP) 2008/98/EC

Packaging Waste Directive 94/62/EC

Waste from Electrical and Electronic Equipment

(WEEE) Directive 2012/19/EU

Asennus

Uunin asennus

Top-down schematic of a rectangular device with internal grid pattern and directional arrows (no text or symbols)

Caution! In the event of any connection the safety wire must be connected to the ⏚PE terminal.

Diagram of a cylindrical device with a rotating arrow, no text or symbols present

Technical line drawing of a microwave oven with a central vent and side-mounted knob (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a magnified inset showing a detail (no text or symbols)

Höyrypuhdistus

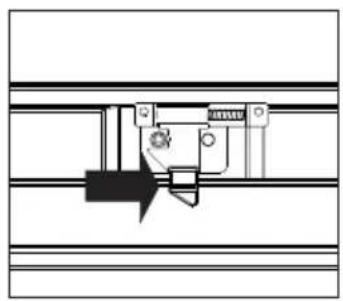

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a component being inserted (no text or symbols)

Technical diagram showing a mechanical assembly with two circular holes and a black triangular component, no text or symbols present.

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a door handle assembly with mounting holes and a black arrow indicating direction (no text or symbols)

Service: Nationwide service in Sweden Visit www.cylinda.se Call 0771-25 25 00

Declare: Model code, Serial number, Purchase date, Problem description, Name and address, Phone number

Contact us: www.cylinda.se
