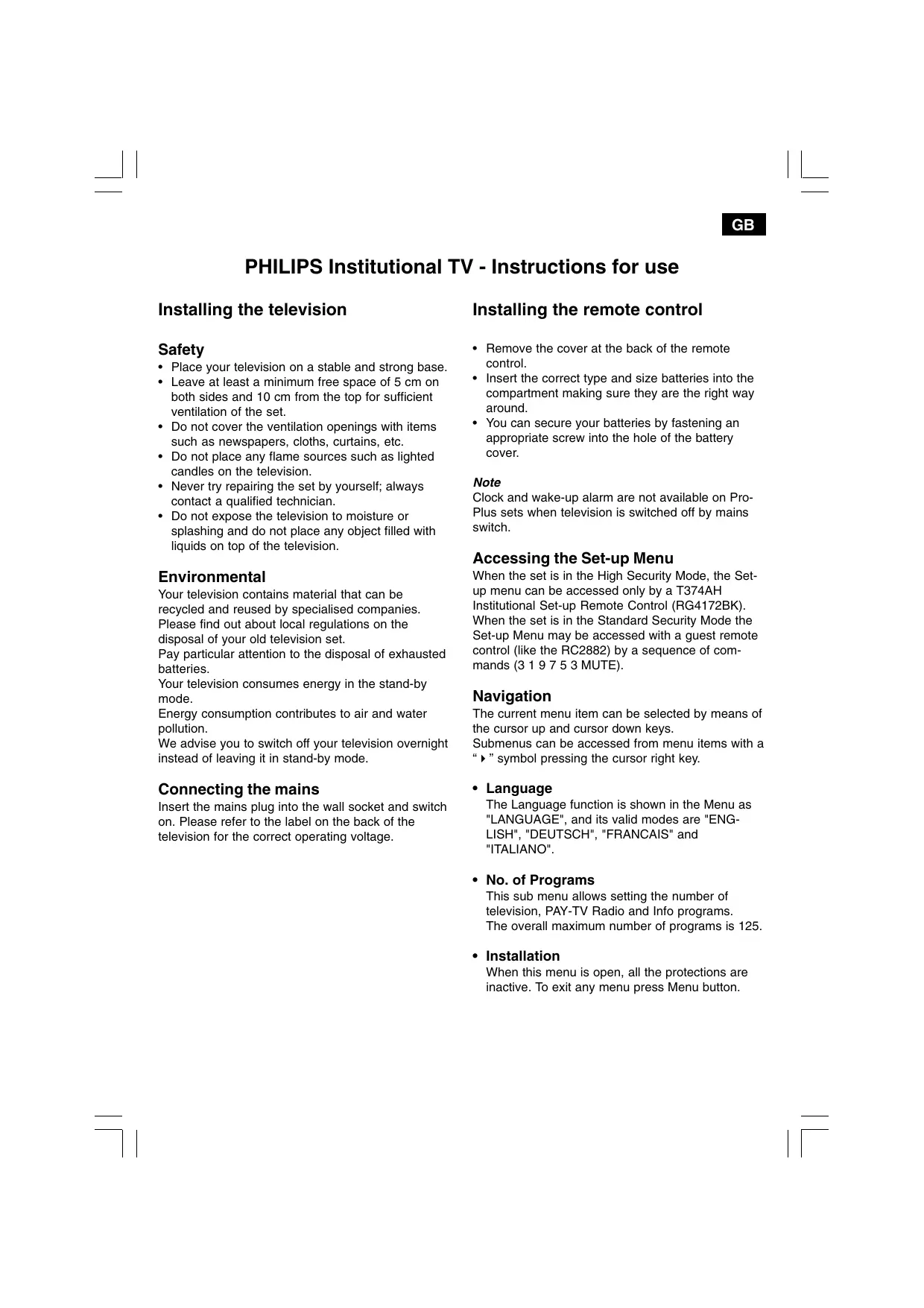

PHILIPS Institutional TV - Instructions for use

Installing the television

Safety

• Place your television on a stable and strong base.
• Leave at least a minimum free space of 5cm on both sides and 10cm from the top for sufficient ventilation of the set.
• Do not cover the ventilation openings with items such as newspapers, cloths, curtains, etc.
• Do not place any flame sources such as lighted candles on the television.
• Never try repairing the set by yourself; always contact a qualified technician.
• Do not expose the television to moisture or splashing and do not place any object filled with liquids on top of the television.

Environmental

Your television contains material that can be recycled and reused by specialised companies. Please find out about local regulations on the disposal of your old television set.

Pay particular attention to the disposal of exhausted batteries.

Your television consumes energy in the stand-by mode.

Energy consumption contributes to air and water pollution.

We advise you to switch off your television overnight instead of leaving it in stand-by mode.

Connecting the mains

Insert the mains plug into the wall socket and switch on. Please refer to the label on the back of the television for the correct operating voltage.

Installing the remote control

• Remove the cover at the back of the remote control.
• Insert the correct type and size batteries into the compartment making sure they are the right way around.
• You can secure your batteries by fastening an appropriate screw into the hole of the battery cover.

Note

Clock and wake-up alarm are not available on ProPlus sets when television is switched off by mains switch.

Accessing the Set-up Menu

When the set is in the High Security Mode, the Setup menu can be accessed only by a T374AH Institutional Set-up Remote Control (RG4172BK). When the set is in the Standard Security Mode the Set-up Menu may be accessed with a guest remote control (like the RC2882) by a sequence of commands (3 1 9 7 5 3 MUTE).

Navigation

The current menu item can be selected by means of the cursor up and cursor down keys.

Submenus can be accessed from menu items with a symbol pressing the cursor right key.

Language

The Language function is shown in the Menu as "LANGUAGE", and its valid modes are "ENGLISH", "DEUTSCH", "FRANCAIS" and "ITALIANO".

No. of Programs

This sub menu allows setting the number of television, PAY-TV Radio and Info programs. The overall maximum number of programs is 125.

Installation

When this menu is open, all the protections are inactive. To exit any menu press Menu button.

Input

The "Input" menu item selects the desired input source that will be assigned to the program. Possible values are Front End, AV1, AV2 and AV2YC (internal interface for system televisions only), and RADIO.

System

WEST EU (PAL/SECAM-BG) and EAST EU (PAL/ SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Manual Search

Digits can be entered for a frequency in MHz. Right cursor starts an auto search; during frequency entry the digits not yet entered are displayed as dashes "-". Enter "0" for frequencies below 100 MHz.

Program no.

The programme type can be selected with the cursor left/right buttons. These buttons will toggle between all available types: "TV", "INFO", "PAY-TV" and "RADIO". If the program number of a certain type is 0, the corresponding type is not displayed. In order to display a program number of the above-mentioned types, always enter two numbers, for example: "01" for TV1 or digit "1" and up/down cursor.

Store

The present program information is stored after pressing the cursor left/right button. Press Menu to exit without storing.

Fine Tune

Using the "control left/right" commands starts finetuning.

Protection

This function indicates whether the selected program has a protection or not. With the cursor left/right keys the protection can toggle between "YES" and "NO".

Label

This menu item will be used to add a label/name for each program. Pressing the left/right buttons you may enter or exit the label field; pressing the up/down cursor you may insert alphanumeric characters. Pressing M (Menu button) you may exit the Label Menu item.

Teletext Language

This menu enables the user to select the Teletext character set to be used for the selected channel. With cursor left/right you can select a letter corresponding to the different language clusters. "W": Pan European (Latin) / West option "E": Pan European (Latin) / East option "G": Greek "A": Arabic "C": Cyrillic

Video Blank

This item can change between "YES" and "NO" to activate or deactivate picture mute.

Audio Mute

This item can change between "YES" and "NO" to activate or deactivate sound mute.

Remarks

TELEVISION up/down, INFO up/down, PAY-TV up/down and RADIO up/down are active in menu mode and the television reacts the same way as in TV mode.

Clock set-up

The Clock set-up menu can be entered from this menu item The Menu items actually displayed depend on whether a LED clock display is available or not.

Display (OSD only)

Defines whether the actual time is displayed on the screen or not.

Display Standby (LED only)

This menu item will be used to set the intensity of the clock display when the television is in standby mode.

Display On (LED only)

This menu item will be used to set the intensity of the clock when the television is in the ON mode.

Time Setting

This menu item will be used to set the time for the clock.

Teletext Time Download

This menu item is used to activate or deactivate the function for automatic time downloading by means of Teletext.

Download Program

This menu item is used to select the channel from which to retrieve the correct time from the Teletext. When this item is selected the television set tunes to the selected program.

Time Offset

This menu item is used to set the offset needed to adjust the time received from the Teletext channel to represent the current time in the current location.

- Brightness

The brightness control contains 63 discrete values from the minimum to maximum setting.

Colour

The colour control contains 63 discrete values from the minimum to maximum setting.

- Contrast

The contrast control contains 63 discrete values from the minimum to maximum setting.

- Sharpness

The sharpness control contains 63 discrete values from the minimum to maximum setting.

- Forced mono (for stereo televisions only)

This command is used to activate or deactivate the stereo feature in stereo sets. Toggle YES, NO using the right/left cursor.

Balance (for stereo televisions only)

To balance the output sound from TELEVISION's speakers left and right

- Treble (for stereo televisions only)

To set the treble frequencies of sound output from TELEVISION's speakers.

- Bass (for stereo televisions only)

To set the bass frequencies of sound output from television's speakers.

AVL (Automatic Volume Leveller)

The Automatic Volume Leveller feature is shown as "AVL" in the menu and its valid states are "YES"; "NO".

Volume Fixed

The valid toggle states are "YES" and "NO": if YES, the volume is fixed at a certain volume, if NO, the volume contains 63 discrete values.

Volume Bar

To display volume bar when adjusting volume, select "YES". Select "NO" to hide the bar.

Min Volume

This item sets the limit for minimum volume allowed for the television set. Use right/left cursor to adjust.

Max Volume

This item sets the limit for the maximum volume allowed for the television set. Use right/left cursor to adjust.

- Switch on Volume

This item sets the television's volume at switch on. Use the right/left cursor to adjust.

- Buzzer Volume

This item sets the volume of the alarm buzzer. Use the right/left cursor to adjust.

- Switch On Program

This item sets the television's program at switch on

Power On

The Power On menu function defines the behaviour of the television whenever AC Power is applied. The valid states are "FORCED", "STANDARD" and "STANDBY".

When "FORCED", the television can only be switched OFF by means of the main switch or a set-up remote control or by ESP function (Energy Saving Programmability controls the maximum continuous viewing time allowed by the control system).

When "STANDARD", the television switches on the previous status, ON or Stand-by. When "STAND-BY", the television always switches on in Stand-by.

- Step Tuning (YES/NO)

If YES, TV programs (1 to 9) are tuned immediately when a digit is pressed. If NO, tuning is performed only after the dash disappears.

- Digit Time-out

This is the time-out to enter the second digit for TV program 10 onwards.

Program Display

Program Display values can be: Number, Label, All, None.

- Keyboard Lock

In Commercial Mode, the Keyboard Lockout menu function disables the television's local keyboard for volume and program control.

Free protected programs

With this item all protected programs can be freed. If "free protected programs" is set to "YES", all programs are accessible for the user, if the item is "NO" protected programs are skipped. A TV program can be selected by relevant digit but with picture blanked and sound muted.

- ESP

Energy Saving Programmability Mode (ESP) controls the maximum continuous viewing time allowed by the control system. It allows the establishment to limit the time the Television remains activated once a Guest has checked-out. The ESP Menu function is shown as "ESP", and its valid values are 00 - 99 (in hours). 00 value means OFF.

- Interface

This item is only present in "system" sets and it is used to enable or disable communication with the DCM (Data Communication Module).

Audio / Video Mute

The Audio/Video Mute menu function determines whether the video should be blanked and the audio should be muted if the currently tuned channel has no signal (Blue, Black, Off).

- Auto Scart

Enable/ disable automatic switching to external Scart source.

Welcome Message

Press cursor left/right to display Welcome message entry menu:
Welcome Message, Line 1, and Line 2.
With the cursor up/down you can set the message characters.

- Program Guide

This feature will enable/disable in a "list" or "page", the program numbers with the associated labels.

- Reminder

This menu function is shown as "REMINDER", and its states are "YES": "NO".

Security

The menu function "SECURITY" allows the user to select one of two states "HIGH" or "STANDARD". The default is "STANDARD". While the set is in the Security High Mode the setup menu can only be accessed by a T374AH Institutional Set-up Remote Control While the set is in the Security Standard Mode the Set-up Menu may be accessed with a guest remote control by a sequence of commands (3 1 9 7 5 3 MUTE).

WEST EU (PAL/SECAM-BG) y EAST EU (PAL/SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Teletext Language (Idioma Teletexto)

Audio Mute (Audio Mudo)

Es possible selectionar "YES" y "NO" para indicar si desea activar o desactivar el audio.

Nota

- Brightness (Brillo)

- Sharpness (Realce)

System (TV Empfangsnorm)

EU OUEST (PAL/SECAM-BG) et EU EST (PAL/SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Recherche manuelle

Display in attesa (solo LED)

- No. of Programs (Antal program)

Medenna undermines kan du stalla in antelet TV-program, betal-TV-program, radio- och informationsprogram. Max. antal instalbara program ar 125.

Teletext Time Download

- Sharpness (Skärpa)

Kontrollen for skärpa omfattar 63 oika varden fran min. till max. installing.

- Forced mono (Forcerad mono) (endast für TV med stereoljud)

- Buzzer Volume (Summers ljudniva)

• Digit Time-out (Knapp for time-out)

• Installation (Instalace)

- Sharpness (Ostrost)

Free protected programs (Vyloučeni ochrany)

Touro polozkou muze byt vyloucena ochrana u vsech chränenych programu. Pokud je "free protected programs" nastaveno na "YES", vsechny programy jsou pro uzivatele zpristupnery;Pokud je nastaveno na "NO",Ize nastavit chranene programa,ale bez obrazu a zvuku.

- ESP

WEST EU (PAL/SECAM-BG) και EAST EU (PAL/SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Program no. (Ap. Ipoypapmuaro)

O tuTnO ts npoypaMuOc mTopei va EeIeXeIe Ie to apioTePo /EeIe IaNkToPO Tou dpouea. Me auta ta IIaNktpa mTopeire VA KIVNtEITE METAQU oawTwv diaTheoiuWuTuTsw: "TV", "INFO", "PAY-TV"Kai "RADIO".

Eav o apiohouc evocuyekipievou tuou npoypauroc ivai 0, oaviroxoc tuoc th euvaroté.

Teletext Language (Γλωσα Teletext)

Auto to evou einnpenei oTo xnoTn va eTIAEe To aepaknpwv Tou Teletext Tou 0a XpoioptoiNtvi To eTIAeYmu KavAaM. Me to apotepo/0e i PAnKtpo Tou dpoua MTOpeIe va eTIAeTe Eva ypaMa Tou v avtoioxie otic diapopetikc ocAoec yawv. W: Pan European (Latin) / West option (TNILOyN Paveupwtaik (Ativik) /AtU.Eup.) E: Pan European (Latin) / East option (TNILOyN Paveupwtaik (Ativik) /Avat.Eup.) G: Greek (EAAnvik)

"A": Arabic (ApaβiKa)

"C":Cyrillic (KupiAiká)

Teletext Time Download

Protection (Bveiliging)

Teletext Time Download

- Brightness (Helderheid)

Volume Fixed (Vast Volume)

Volume Bar (Volumebalk)

- Buzzer Volume (Volume zoemer)

- Step Tuning (YES/NO)

Free protected programs

(Beveiling alle kanalen opheffen)

WEST EU (PAL/SECAM-BG) i EAST EU (PAL/SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L).

Teletext Time Download (Czas download)

Download Program (Program download)

Free protected programs

- No. of Programs (program Sayisi)

BATI AVRUPA (PAL/SECAM-BG) ve DOUGU
AVRUPA (PAL/SECAM-DK), UK (PAL-I)
FRANSA (SECAM-L/L').

Manual Search (Manuel Arama)

Fine Tune (Hassas Ayar)

Teletext Language (Teletext dili)

Teletext Time Download (Teletext Aşaqi Yükleme)

- Sharpness (Netlik)

Netlik kontrlü minimum ile maksimum ayararasinda 63 farkldeger icerir.

- Forced mono

(Cebri Mono) (yalniz stereo TV'ler icin)

Volume Fixed (Sabit Ses)

- Switch On Program (Açma Programi)

- Keyboard Lock (Panel Kilidi)

Free protected programs

(Korunmali programlarinoczulmesi)

WEST EU (PAL/SECAM-BG) a EAST EU (PAL/ SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Teletext time Download

(nastavenie steletextom)

Polożka aktivuje/deaktivuje automaticy funkciu download (nastavenie) v urcitú stanovenú hodinu pomocou teletextu.

Download program

(nastavenie kanalu steletextom)

Free protected programs Odklokováva chränene programy
