Product Type	Freestanding Cooker
Brand	Thermex
Model	TH1CER 60
Width	60 cm
Height	85-90 cm (adjustable)
Depth	60 cm
Weight	Approx. 50 kg
Power Supply	230 V / 50 Hz
Total Power	Approx. 10 kW
Hob Type	Gas or Electric (depends on variant)
Number of Burners/Zones	4
Oven Type	Electric fan-assisted
Oven Capacity	Approx. 60 L
Oven Functions	Bake, grill, fan, defrost
Control Type	Knobs + timer
Cleaning Method	Wipe with damp cloth; avoid abrasive cleaners
Safety Features	Flame failure device (hob), oven door lock, overheating protection
Spare Parts Availability	Contact Thermex service center for genuine parts
Repairability	Repairable by qualified technician; replaceable parts (heating elements, knobs, etc.)
Warranty	2 years (check local regulations)

Frequently Asked Questions - TH1CER 60 Thermex

How do I install the TH1CER 60 cooker?

Installation must be carried out by a qualified technician. Ensure proper electrical connection (230 V / 50 Hz) and adequate ventilation. Follow the installation manual included with the cooker.

Can I use the oven and hob simultaneously?

Yes, the oven and hob can operate at the same time, but be mindful of the total power load to avoid tripping the circuit breaker.

How do I clean the hob?

For gas hobs, remove pan supports and burner caps, wash with warm soapy water. For electric hobs, use a damp cloth and a scraper for stubborn residues. Avoid abrasive cleaners.

What should I do if the oven does not heat up?

Check if the oven is properly set and the timer is not active. Ensure the power supply is on. If the problem persists, contact a qualified technician.

How do I replace the oven light bulb?

Disconnect the cooker from power. Remove the glass cover and replace the bulb with a new one of the same type (usually 40W, G9). Reassemble and reconnect.

Is the cooker gas or electric?

The TH1CER 60 model may be available in both gas and electric versions. Check the type label on the back of the cooker to confirm.

How do I set the timer?

Turn the timer knob to the desired cooking time. The oven will automatically switch off when the time elapses. Use the timer function for precise cooking.

What safety features does the cooker have?

The cooker includes a flame failure device on the hob that cuts off gas if the flame goes out, and an oven door lock to prevent opening during high temperatures.

Where can I find spare parts?

Contact your local Thermex service center or authorized dealer. Order genuine spare parts using the model number TH1CER 60.

How do I defrost food in the oven?

Select the defrost function (usually a fan-only setting) and place the food on a rack. Do not exceed the recommended weight for defrosting.

USER MANUAL TH1CER 60 Thermex

Silhouette of a person reading a book (no text or symbols)

Icon of an open book with gears and a box, symbolizing work or intelligence (no text or symbols)

Simple line drawing of a rectangular block with two vertical arrows indicating width, no text or symbols present.

THERMEX SCANDINAVIA A/S

www.thermex.dk

THERMEX SCANDINAVIA AS

www.thermex.no

THERMEX SCANDINAVIA AB

www.thermex.se

THERMEX SCANDINAVIA S.L.U.

www.thermex.es

THERMEX SCANDINAVIA A/S

www.thermex.fi

THERMEX SCANDINAVIA A/S

www.thermexscandinavia.nl

3 THERMEX THERMEx Tx-SERIES M 900211001207112022

Indhold

Dansk	4
Norsk	13
Svenska	22
Suomi	31
Espanol	41
English	50

4 THERMEX Thermex TX-series M 900211001207112022

INDHOLD

Generel adversel 5

Montering 6

A. 40mm min
B. 40mm max

BETJENING AF ENHEDEN

Betjeningspanel:

1: ON OFF

A. 40mm min
B. 40mm max

Technical diagram showing a component assembly with mounting bracket and internal structure, no text or symbols present

KOBLE ENHETEN TIL STR∅MNETTET

DRIFT AV ENHETEN

Kontrollpanel:

1: ON OFF

INNAN MONTERING/IDRIFTTAGNING

A. 40mm min
B. 40mm max

ANSLUTA ENHETEN TILL ELNÄTET

DRIFT AV ENHETEN

Kontrollpanel:

1: ON OFF

A. 40mm min
B. 40mm max

Technical diagram showing a component assembly with mounting bracket and internal grid layout, plus a downward arrow indicating a process (no text or symbols present)

LAITTEEN LIITTÄMINEN VERKKOVIRTAAN

LAITTEEN TOIMINTA

Ohjauspaneeli:

1: ON OFF

A. 40mm min
B. 40mm max

FUNCIONAMIENTO DEL DISPOSITIVO

Panel de control:

1: ON OFF

Electrical installation 54

Operation of the device 55

Cleaning and maintenance 57

Service

58

GENERAL WARNING

• The hob has been developed and produced in accordance with DS/EN 60335-1.
• This product is only intended for use in private homes, if it is used for other purposes, the right to complain is void.
• All installation must be carried out by a qualified technician in accordance with the instructions from Thermex Scandinavia A/S (Thermex) and applicable legislation.
• Thermex disclaims all liability for damage caused by incorrect installation, assembly, use or incorrect settings.

BEFORE ASSEMBLY/COMMISSIONING

• Check the unit for transport damage, errors and defects immediately upon receipt.
• Transport damage is reported immediately on receipt to the transport company and Thermex.
• Faults and defects must be reported to Thermex within 8 days of receipt, and at the latest before installation/commissioning.
  .
• Do not store magnetizable objects, e.g. credit cards, calculators and diskettes close to a hot hob, as they may be damaged.
• People with pacemakers should bear in mind that in the immediate vicinity of a switched-on induction hob, a magnetic field arises, which may may affect the pacemaker. In case of doubt, you should contact your doctor.
• When scrapping a hob, you should make sure to cut all the cables right inside the hob so that it cannot be a danger to
• children. Be sure to take the product to an authorized recycling center to ensure environmentally correct disposal. Also consider that the product may contain parts that can be reused.
• NEVER try to put out a fire with water. Instead, switch off the hob and smother the fire, e.g. with a lid or a fire blanket.
• The plate must be extra protected (earthed) cf. the High Current Regulations. The manufacturer/importer cannot be held responsible for damage caused by a missing or damaged earth connection.

• Never let children play with the hob or use it without adult supervision.

• Don't forget that a cooking zone gets very hot in use and that it is also hot for some time after it is switched off. Therefore, never leave a pot or pan containing hot oil/hot fat on the cooking zone without keeping an eye on it.

• Never leave the hob unattended when working with fat or oil. Overheated fat or oil can self-ignite and set the hood on fire.
• Fire hazard! If fat or oil starts to burn, never try to extinguish the fire with water. The fire must be smothered with a cloth or with foam from a fire extinguisher.
• The upper plate on your new hob is made of glass ceramic. It is very strong, but can break if you e.g. drop pointed or sharp objects onto it.
• An induction hob must not be installed above an oven that does not have a cooling fan.
• If the plate is installed above a pyrolysis oven, it must not be used during the pyrolysis cleaning of the oven.
• A possibly the drawer directly below the hob must not contain flammable objects, such as spray bottles.
• The hob must not be installed above dishwashers, washing machines, tumble dryers or refrigerators, as the rather high radiant heat from the hob could damage said products.

INSTALLATION

Assembly and installation should only be carried out by qualified personnel who are familiar with applicable building regulations.

Ensure the following before installation begins:

• The surface / table top where the unit is to be mounted must be horizontal and have sufficient space.
• The surface / table top is sufficiently resistant to heat.
• If the unit is mounted above an oven, the oven must have a built-in cooling fan or be insulated.
• If there is any doubt about the applicable building element, it is recommended to consult the local authorities.
  • Always use heat-resistant cleaning agents on and around the unit.

• The installation must comply with the applicable rules and standards for installation, as well as the space requirements around the unit.

Location of the device:

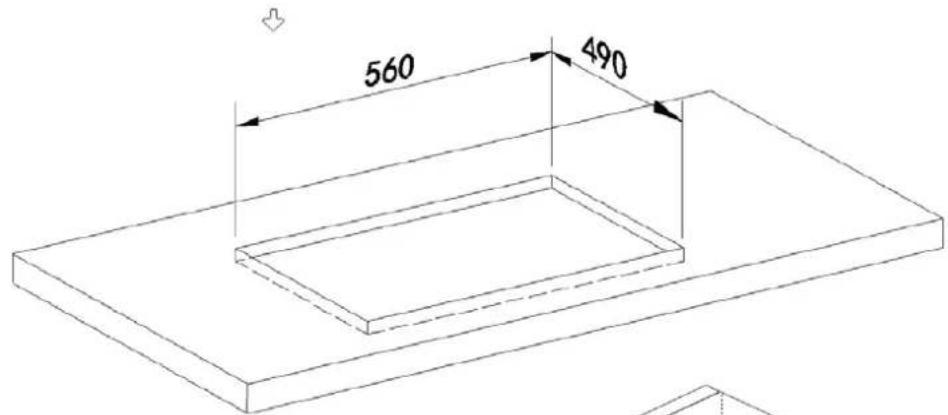

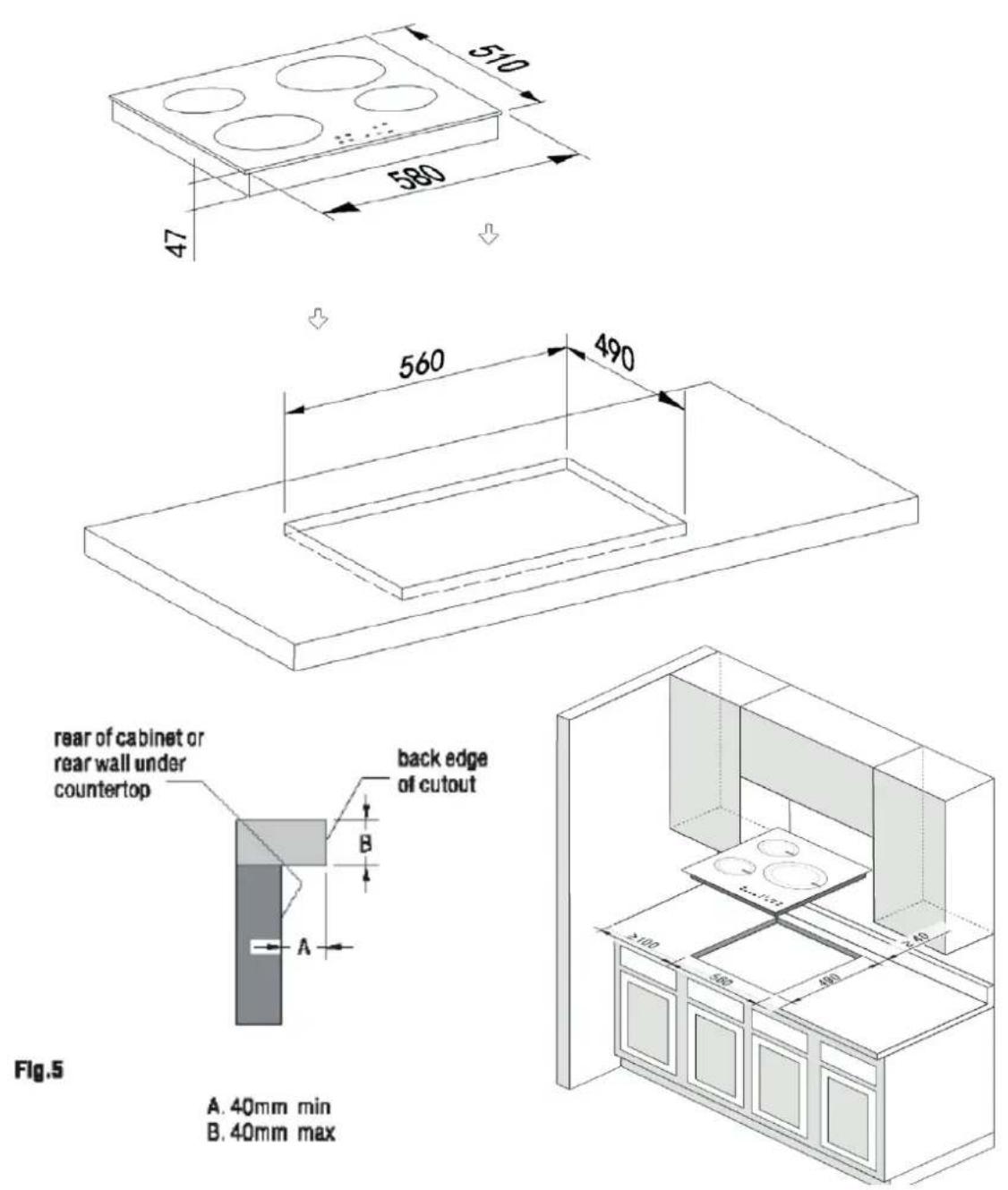

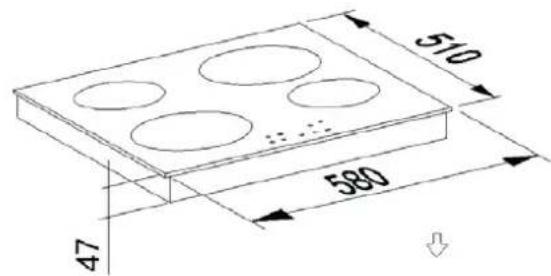

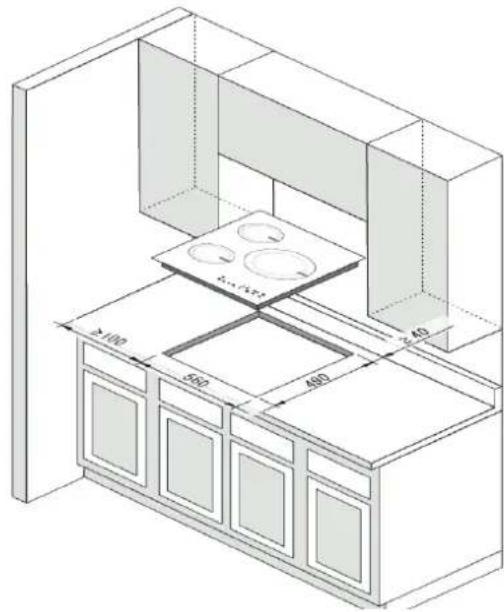

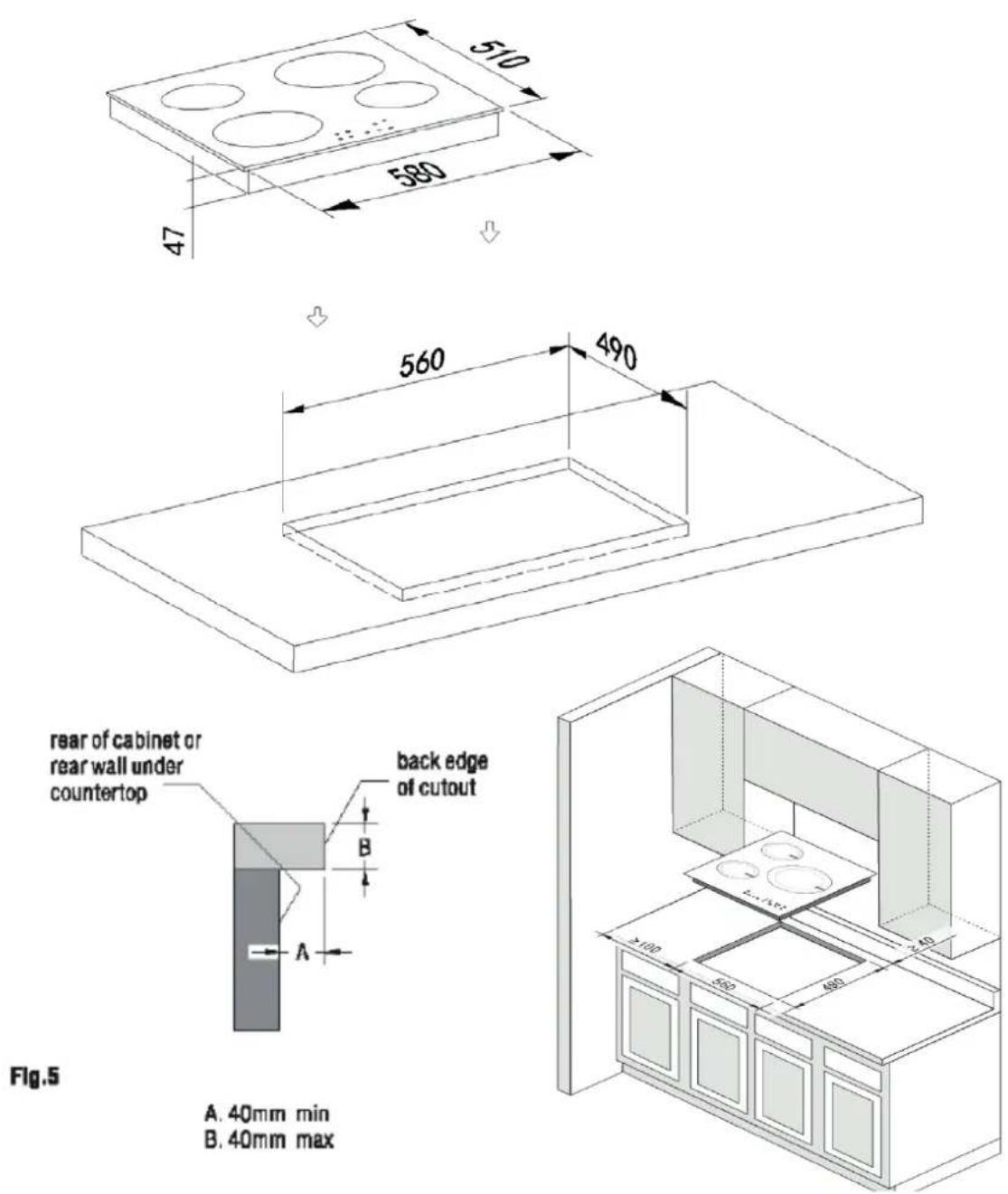

Cut out the hole in the table top according to the sizes shown in the drawing.

For installation and use of the hob, there should be at least 50 mm of space around the hole. This is to protect the table top material from the high heat of the unit.

Make sure that the hob is well ventilated and that the air inlet and outlet are not blocked. Make sure the hob is in good working condition. As shown below.

If the hob is installed above an oven, the oven must have a built-in cooling fan.

The installation must comply with all clearance requirements and applicable standards and regulations.

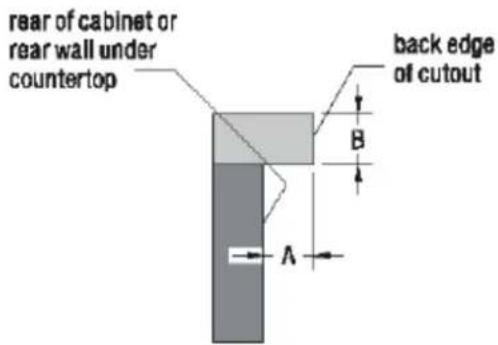

Fig.5
A. 40mm min
B. 40mm max

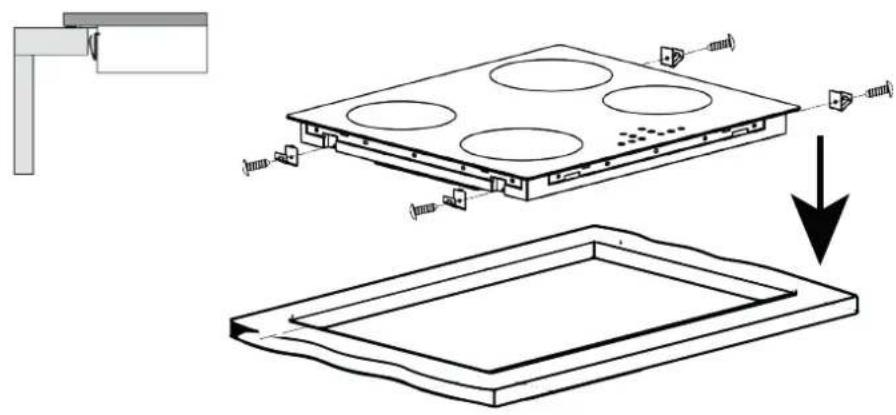

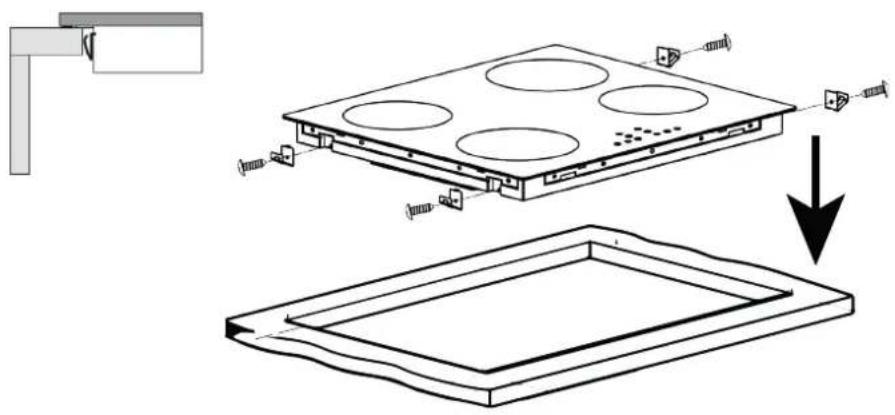

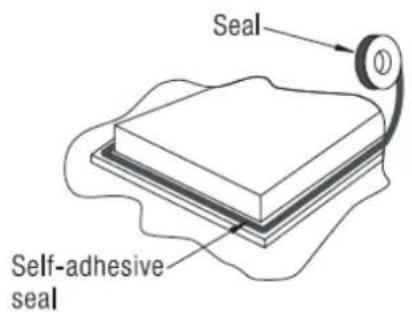

Fit the brackets to the side of the unit as shown in the illustration. The fittings ensure a tight fitting, and the unit sits stably in the hole.

The unit is mounted in the hole in the table top and lightly pressed down so that a tight contact is ensured.

If the unit is mounted above cupboards or drawers, a heat-protective barrier should be fitted between the underside of the unit and the cupboard/drawer.

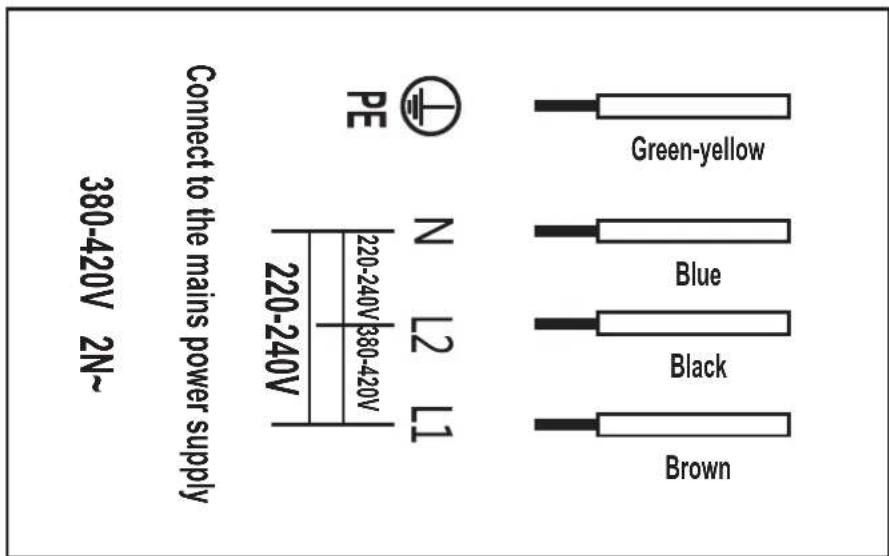

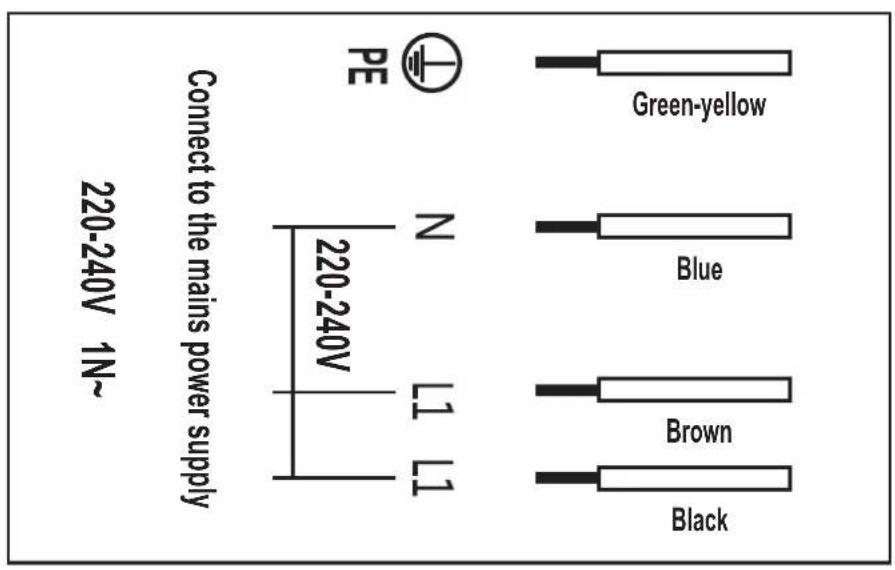

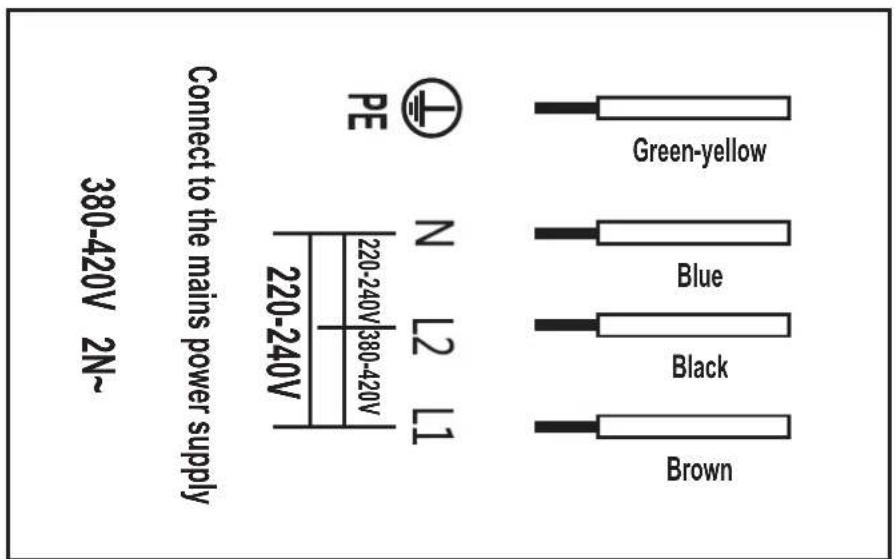

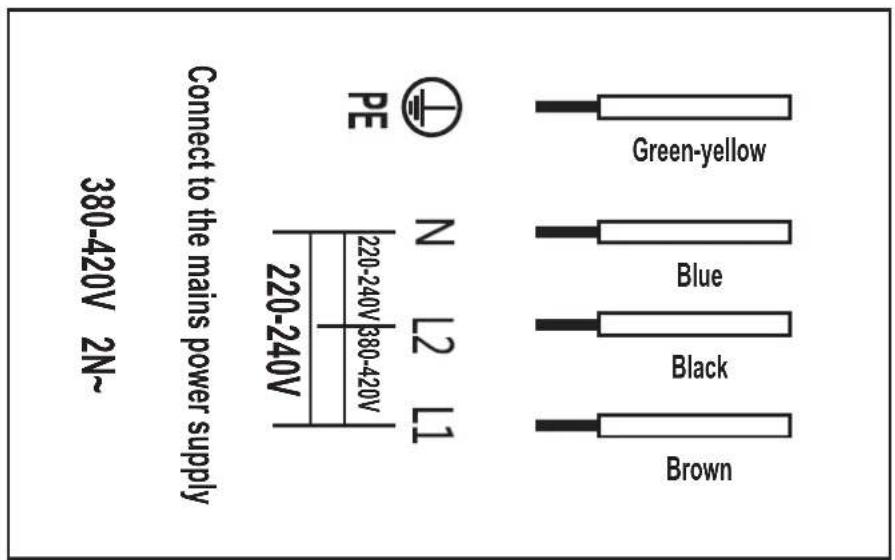

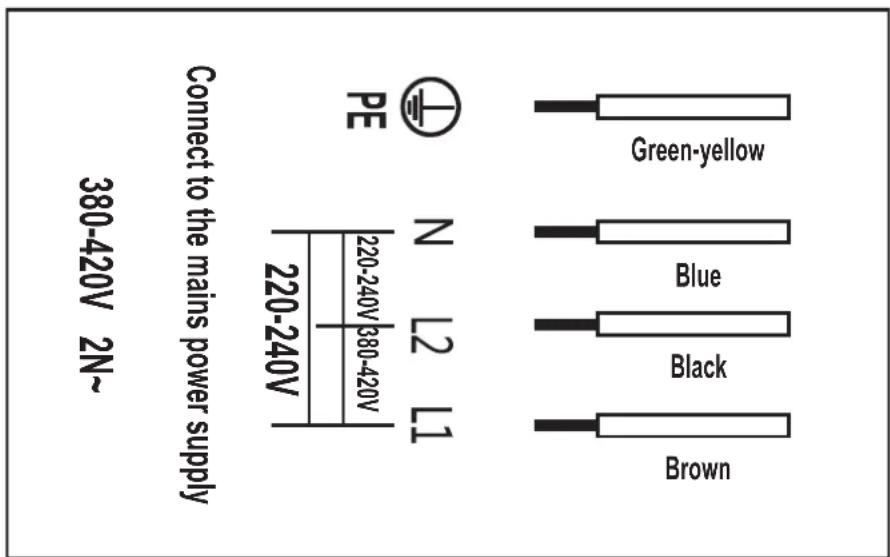

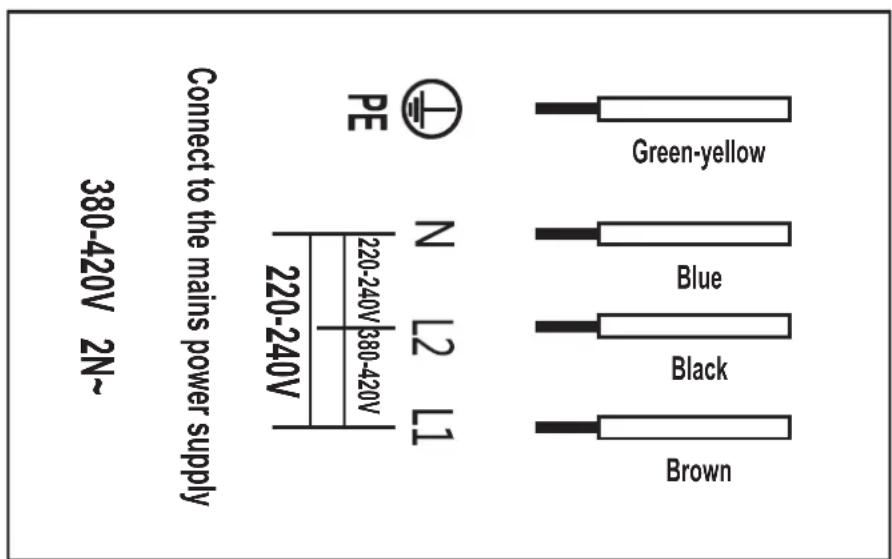

ELECTRICAL INSTALLATION

Connection should only be carried out by qualified personnel who are familiar with the applicable building element.

Before connection, it should be ensured that the mains to which the device is to be connected is suitable for the purpose and meets the requirements:

• Check that the mains is suitable for the device's power consumption.
• The mains voltage must match the values specified on the unit's nameplate.
• The power supply cable must be suitable for the load specified on the device nameplate.
• The power supply cable must be free of surrounding hot bodies.

Press the ON/OFF button to activate the hob. All indicators now show "-"

Place a pot/pan on the desired cooking zone. Make sure that the surface of the hob and the underside of the pot/pan are clean and dry.

Press the cooking zone selector and the indicator next to it will start to flash.

Select the desired heat setting using + and -.

If a heat setting is not selected within 1 minute, the hob switches off automatically.

After the use of the hob is finished, there will be excess heat.

When the "H" icon is displayed, it means that the cooking zone is still hot. When the cooking zone has cooled down to a safe temperature, "H" switches off again.

Activate the boost function by pressing "b". Boost provides a significant temporary increase in the heat efficiency of the cooking zone.

Boost can be canceled at any time by choosing a different speed.

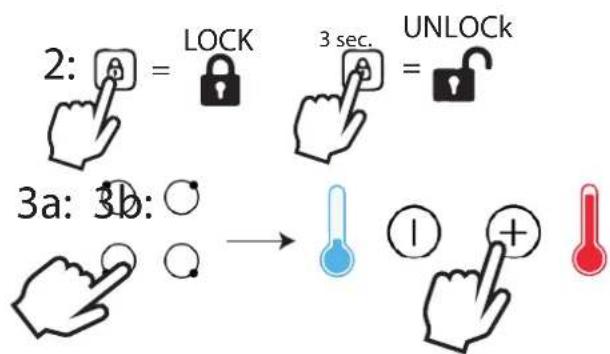

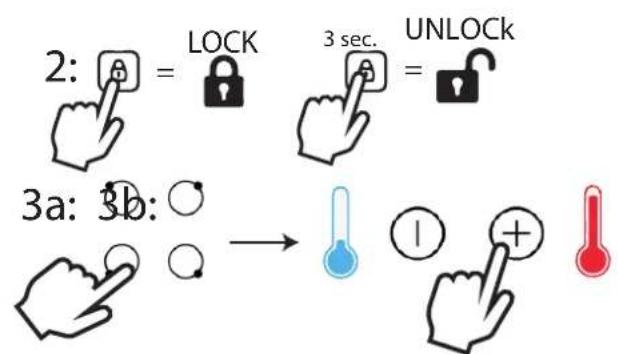

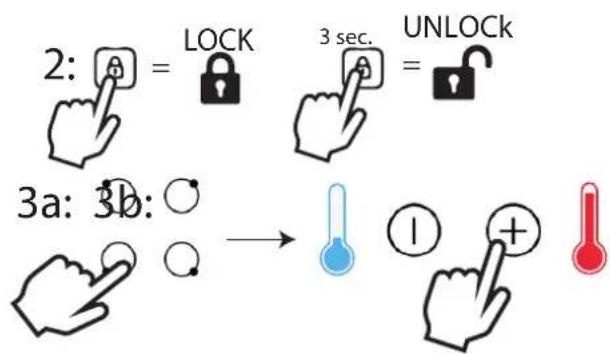

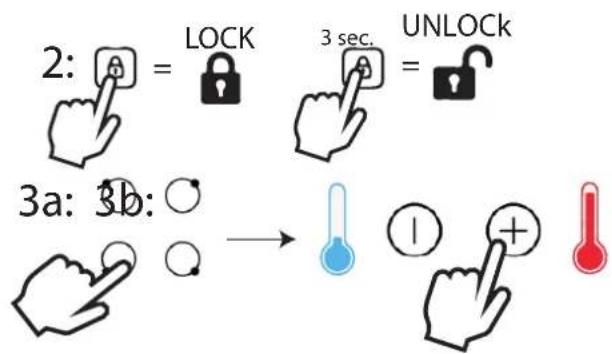

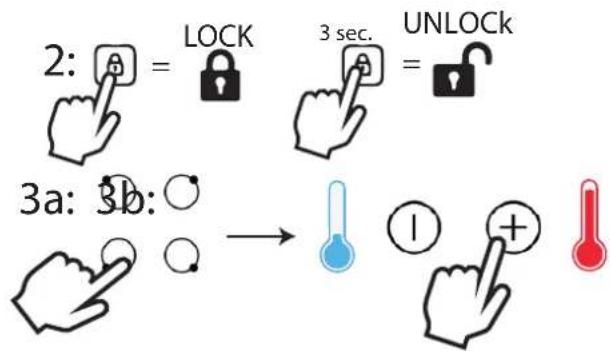

Using the lock function:

Press the lock icon to lock the control panel. The control panel can be unlocked again by pressing the lock icon for 3 seconds. ON/OFF is still active even when the lock function is active.

Timer function

Press the hotplate selector for the hotplate for which the timer is desired.
“0” is now shown in the display.
Set the desired time in minutes using + and -. The two digits must be entered individually. When the first digit is selected, the timer is pressed again and the second digit can now be selected.	03
The timers can be canceled at any time by following the procedure for hob timers from scratch and setting the time to “0”.After the time is up, switch off the hob.

wrong

wrong

right

wrong

wrong

CLEANING AND MAINTENANCE

DAILY CLEANING

• Surfaces and glass plate are cleaned with a damp cloth with washing-up liquid.
• Lacquered surfaces are cleaned with a damp cloth with sulfo/detergent. NEVER use abrasives.

What? How Important!
Everyday dirt on glass (finger-prints, marks, food stains or non-sugary spill-overs on the glass)	1. Turn off the power to the hob.2. Apply a hot plate while the glass is still warm (but not hot!)3. Rinse and dry with a clean cloth or paper towel.4. Switch on the power to the stove again.	·When the power to the hob is switched off, there will be a 'no hot surface' indication, but the cooking zone may still be hot! ·Powerful scrubbers, some nylon scrubbers and harsh/abrasive cleaners can scratch the glass. Always read the label to check if your cleaning or scrubbing machine is suitable. ·Never leave cleaning residue on the hob: the glass may become stained.
Overboil, melted and hot sugary spill on the glass	Remove these immediately with a fish slicer, palette knife or razor blade scraper suitable for induction glass hobs, but beware of hot cooking zone surfaces:1. Turn off the power to the hob at the wall.2. Hold the blade or utensil at a 30° angle and scrape the dirt or spill onto a cool area of the hob.3. Clean the dirt or spill with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday dirt on glass' above.	·Remove stains left by melts and sugary foods or spills as soon as possible. If left to cool on the glass, they can be difficult to remove or even permanently damage the glass surface. ·Cutting hazard: When the safety cover is retracted, the blade of a scraper is razor sharp. Use with extreme caution and always keep safe and out of the reach of children.
Spill on the touch control	1. Turn off the power to the hob.2. Absorb the spill.3. Wipe the touch control area with a clean damp sponge or cloth.4. Dry the area completely with a paper towel.5. Switch on the power to the hob again.	The hob may beep on and off by itself and the touch buttons may not work while there is liquid on them. Be sure to wipe the touch control area dry before switching the hob back on.

SERVICE

Before reporting service on your Thermex produkt, it is important that you read the installation and/or user instructions carefully. It ensures that Thermex can provide you the best possible assistance.

Service department at Thermex can be contacted in preparation to:

• Technical support for installation and installation of your range product.
• Clarification of functionalities in your produkt.
  • Service Request during the warranty on your product.

Before a service request during the warranty always try to disconnect the power to the product for about 5 min. Then plug the power back on to see if the problem is corrected.

If the problem is not corrected, disconnect the power supply to the product for one hour. If the product is still not functioning properly, and the troubleshooting charts are reviewed, contact the service department.

NOTE: For inquiries within the warranty, you will be asked for proof of your purchase in the form of a sales receipt. Therefore, always store your sales receipt

Before the request for service within the warranty, it is important to have all the necessary information ready:

• Error Description
• Product/Model
  • The type and serial number of the product (on the chassis plate)
  • Information of purchase

MILJ∅HENSYN

EMBALLAGE

SKROTNING AF PRODUKTET

The packaging must be disposed of in accordance with local regulations on waste management.

SCRAPPING OF THE PRODUCT

The symbol 📋 on the product or accompanying documentation indicates that this product may not be disposed of as household waste but must be delivered to the nearest collection center for the recycling of electrical and electronic equipment.

MILIEUOVERWEGINGEN

VERPAKKING
