USER MANUAL HW-MS761 SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	CAUTIONRISK OF ELECTRIC SHOCK.DO NOT OPEN.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product has included important literature concerning operation and maintenance.
	Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground).
	AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

WARNING

- To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7\~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can download.

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

USER MANUAL

See this manual for safety instructions, product installation, components, connections, and product specifications.

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

FULL MANUAL

You can access the Full Manual on Samsung's on-line customer support centre by scanning the QR code. To see the manual on your PC or mobile device, download the manual in document format from the website. (http://www.samsung.com/support)

Design, specifications and App screen are subject to change without prior notice.

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ____ 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar 3

Bottom Panel of the Soundbar 4

03 Connecting the Soundbar 5

Connecting Electrical Power ____ 5

04 Connecting to your TV 7

Method 1. Connecting with a Cable ____ 7

• Connecting using an Optical Cable ____ 7
• Connecting a TV using an HDMI Cable 8

Method 2. Connecting Wirelessly ____ 9

• Connecting a TV via Bluetooth 9
• Connecting via Wi-Fi 11

05 Connecting an External Device 13

Connecting using an Optical or Analogue Audio (AUX) Cable 13

Connecting using an HDMI Cable 14

06 Connecting a Mobile Device 15

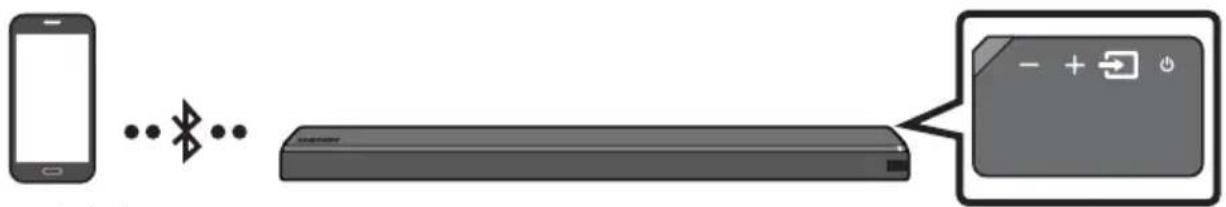

Method 1. Connecting via Bluetooth ____ 15

Method 2. Connecting via Wi-Fi (Wireless Network) ____ 18

07 Using the Remote Control 20

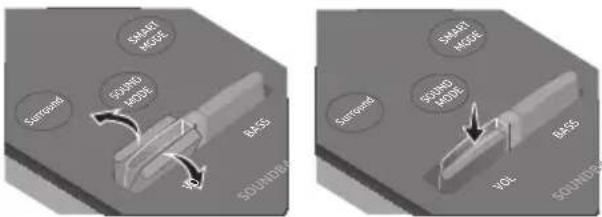

How to Use the Remote Control ____ 20

Adjusting the Soundbar volume with a TV remote control 23

Using the Hidden Buttons ____ 24

Output specifications for the different sound effect modes ____ 24

08 Software Update 25

09 Installing the Wall Mount 25

Installation Precautions 25

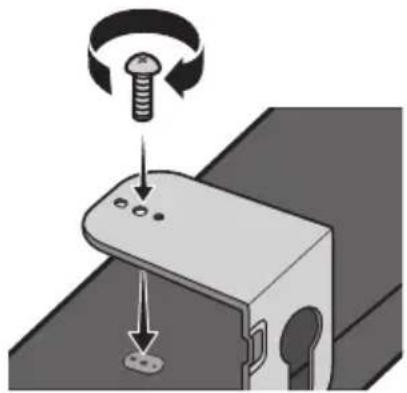

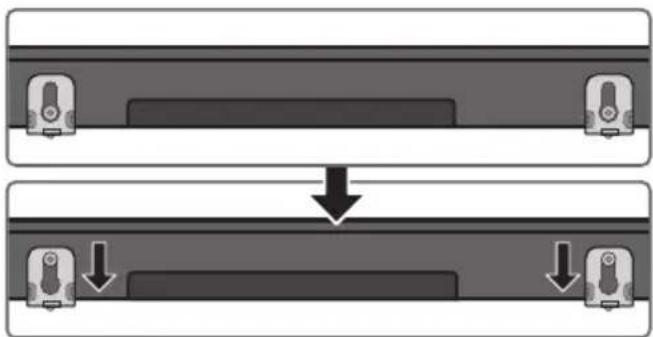

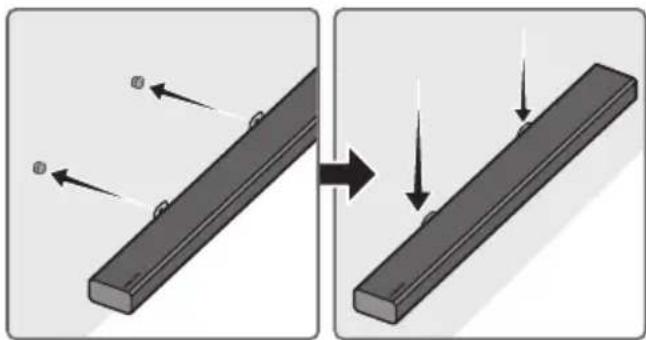

Wallmount Components 25

Assembling the Holder-Cable 27

10 Troubleshooting 28

11 Licence 29

12 Open Source Licence Notice 29

13 Important Notes About Service 30

14 Specifications and Guide 30

Specifications 30

01 CHECKING THE COMPONENTS

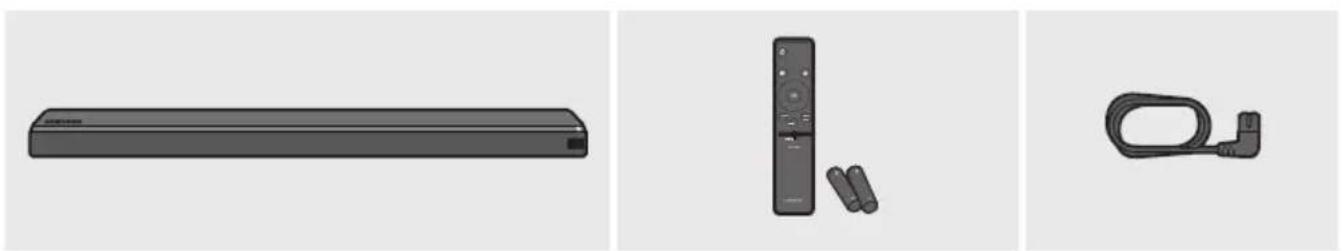

Three black electronic devices: a rectangular remote, a remote control with two batteries, and a coiled cable (no text or symbols visible)

Soundbar Main Unit Remote Control / Batteries Power Cord

Three mechanical component illustrations: a U-shaped clamp, a cross-shaped bracket, and a threaded bolt (no text or symbols)

Optical Cable Holder-Cable Screw

• For Soundbar wall mounting components, see page 25.
  • See page 27 for instructions on how to use the Holder-Cable.
• To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.
• The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

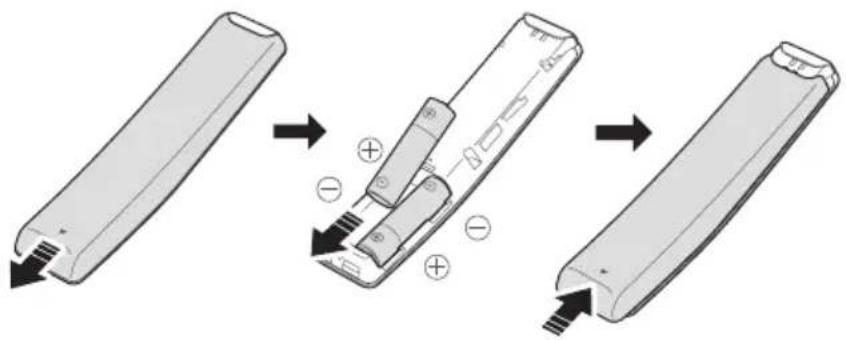

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

02 PRODUCT OVERVIEW

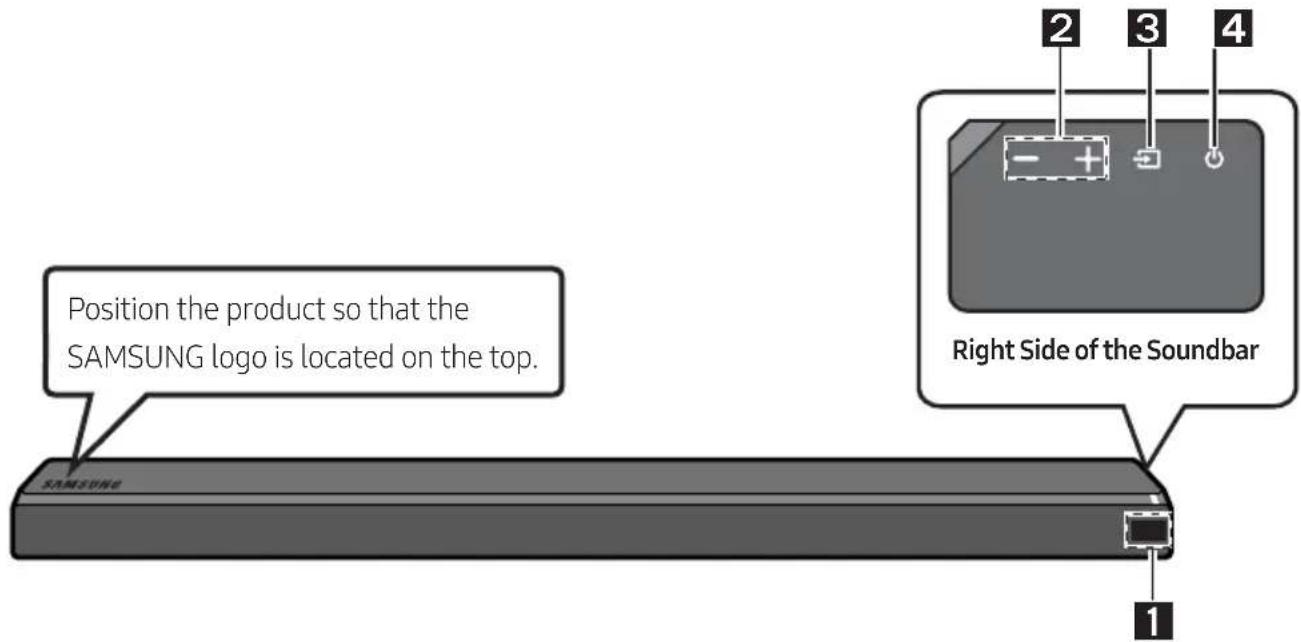

Front Panel / Right Side Panel of the Soundbar

1	DisplayDisplays the product's status and current mode.
2	-/+ (Volume) ButtonAdjusts the volume.When adjusted, the volume level appears on the Soundbar's front display.
3	[GBZG] (Source) ButtonSelects the source input mode.
	Input mode Display
	Optical Digital input D.IN
	ARC (HDMI OUT) input	D.IN → TV ARC (Auto conversion)
	AUX input AUX
	HDMI input HDMI 1 / HDMI 2

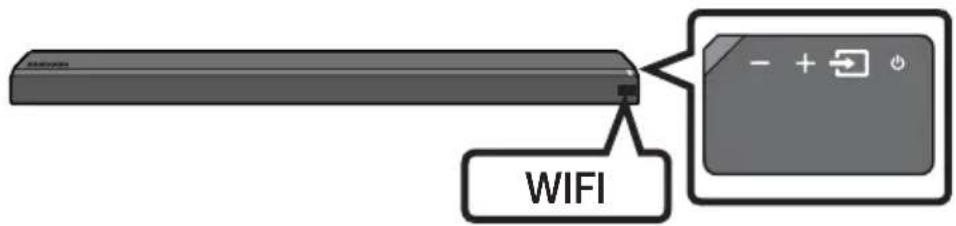

	Wi-Fi mode WIFI
	BLUETOOTH mode BT
	To turn on "BT PAIRING" mode, change the source to "BT" mode, and then press and hold the(Source) button for more than 5 seconds.
4	(Power) ButtonTurns the power on and off.

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

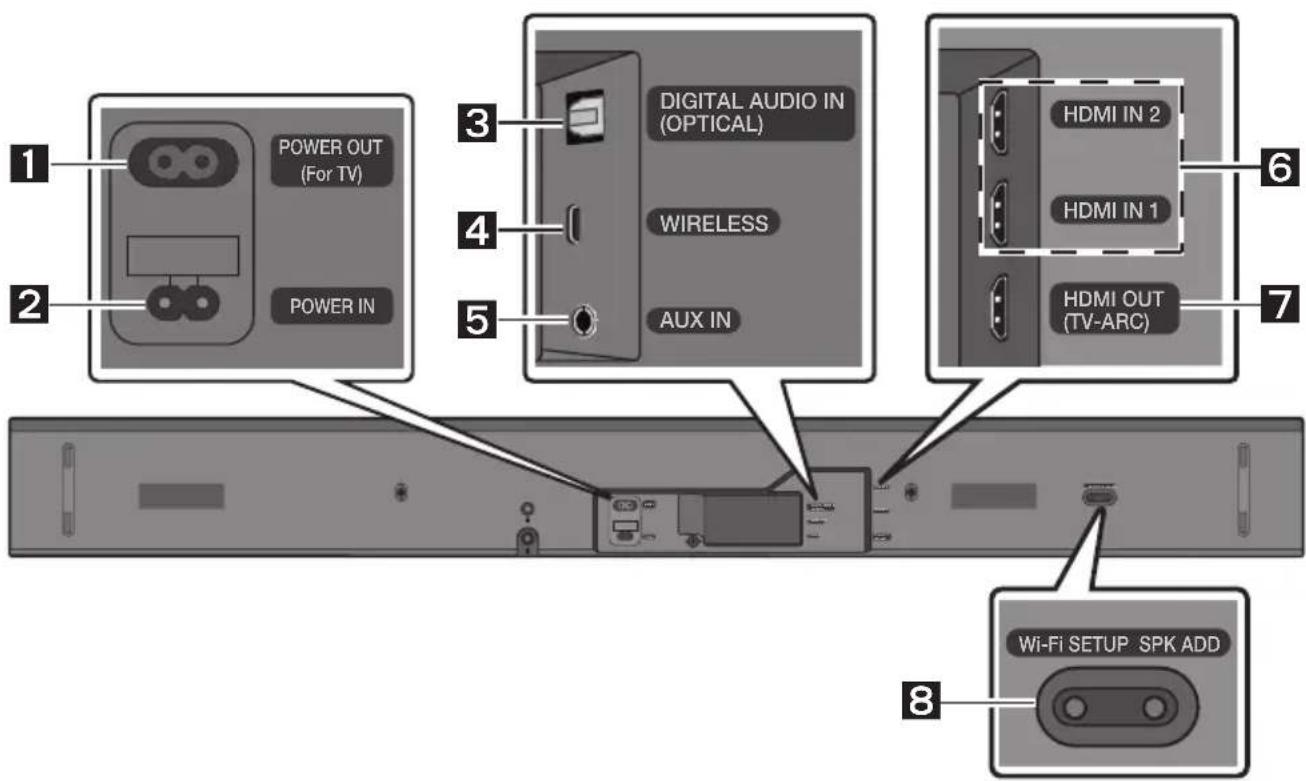

Bottom Panel of the Soundbar

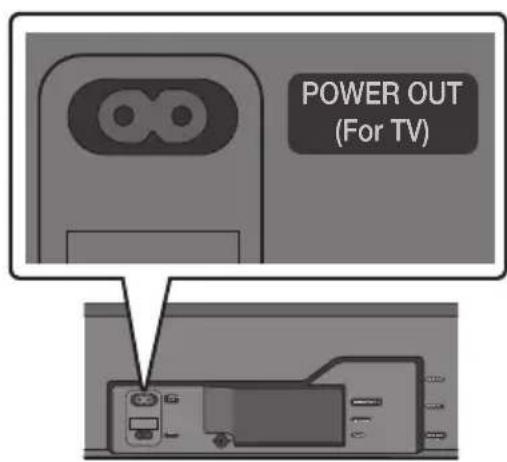

1	POWER OUT (For TV)Connect the power cord of a Samsung TV connected to the Soundbar and mounted on the wall using a Wall Mount Kit (WMN300SB - not supplied).
2	POWER INConnect the Soundbar's AC power cable.

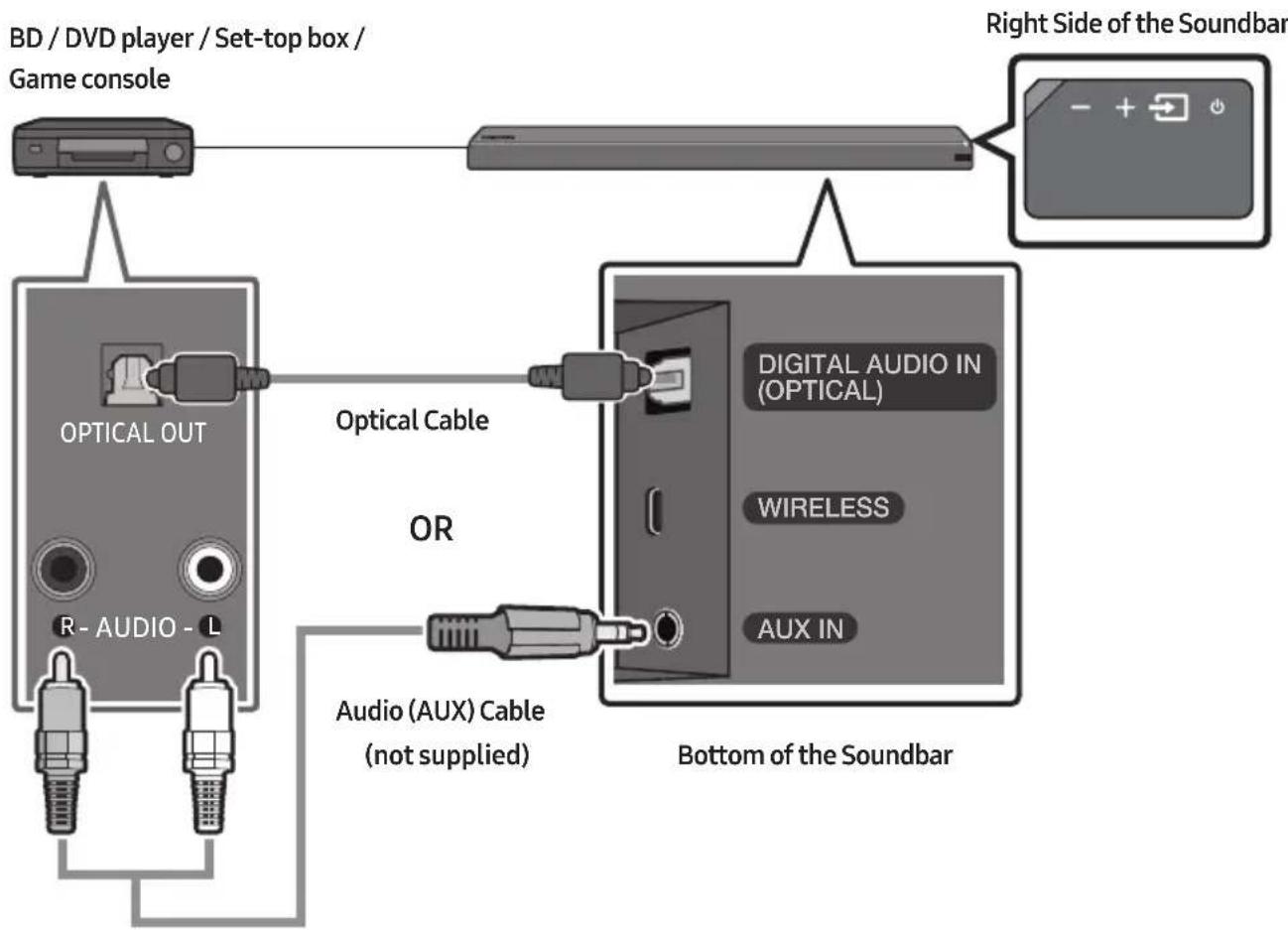

3	DIGITAL AUDIO IN (OPTICAL)Connect to the digital (optical) output of an external device.
4	WIRELESSAttach the wireless dongle that connects the Soundbar to surround speakers and a subwoofer wirelessly. (The surround speaker, subwoofer, and wireless dongle are sold separately.)The WIRELESS jack is not USB-compatible.The availability of subwoofers differs by area. Check the availability at http://www.samsung.com/support.
5	AUX INConnect to the Analogue output of an external device.
6	HDMI IN 1, HDMI IN 2Inputs digital video and audio signals simultaneously using an HDMI cable.Connect to the HDMI output of an external device.
7	HDMI OUT (TV-ARC)Connect to the HDMI (ARC) jack on a TV.
8	Wi-Fi SETUP / SPK ADDConnect to a wireless network (Wi-Fi) via theSamsung Multiroomapp.

• When disconnecting the power cable from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

- For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

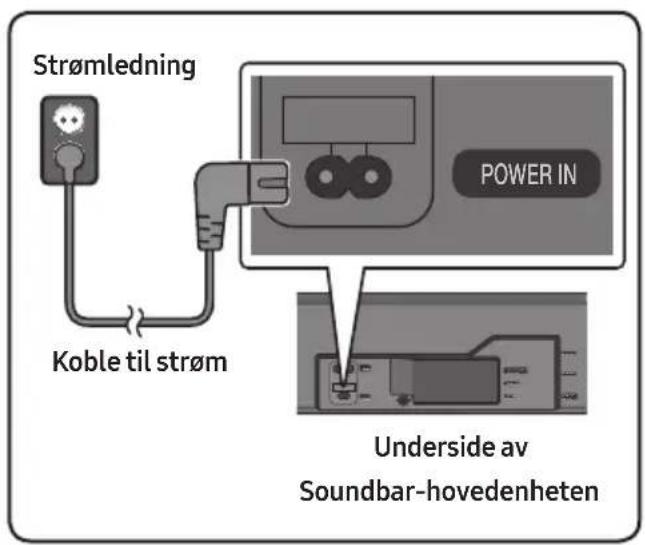

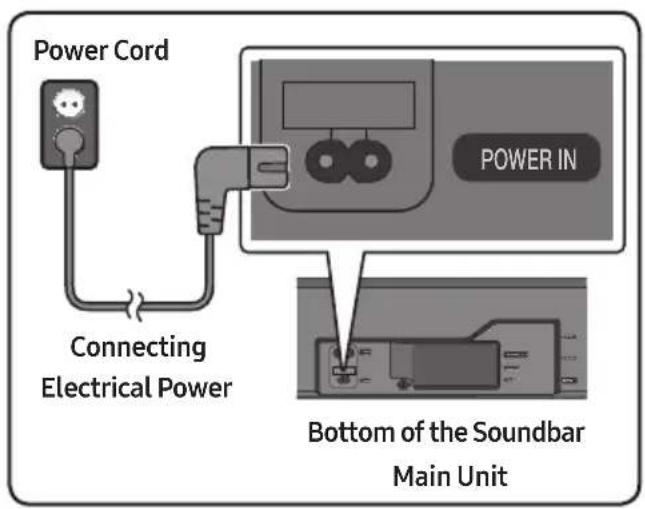

- Connect the supplied power cable to the POWER IN jack.

Bottom of the Soundbar Main Unit

- The POWER OUT jack is used to provide power to a Samsung TV mounted on the wall using a Wall Mount Kit (WMN300SB - not supplied).

- The POWER OUT jack can connect only to Samsung TVs that use a 2-pin power cord and consume 400 W or less. (Connecting the jack to a device that consumes more than 400 W may damage the Soundbar or cause a malfunction.)

For a list of Samsung TVs that are compatible with the WMN300SB Wall Mount Kit and the

POWER OUT jack, see the WMN300SB

Wall Mount Kit user manual.

You can view the manual on line at

http://www.samsung.com/support.

04 CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

- When the Soundbar is connected to a selected Samsung TVs, the Soundbar can be controlled using the TV's remote control.

- When using optical cable, this feature can be supported by 2017 Samsung Smart TVs that support Bluetooth.

- This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

When broadcasting signals are Dolby Digital and the setting for "Digital Output Audio Format" is PCM on your TV, it is recommended to change the setting to Dolby Digital. When the setting is changed, you can experience better sound quality. (The menu may differ depending on the TV manufacturer.)

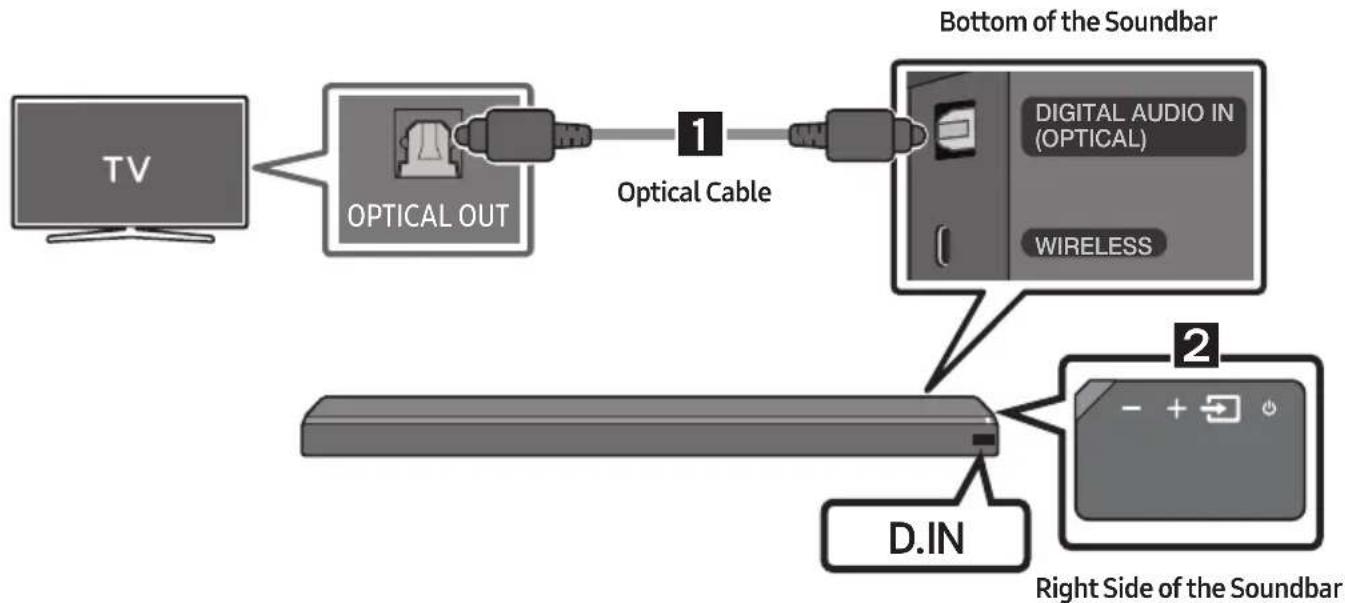

Connecting using an Optical Cable

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable.

2. Press the → (Source) button on the right side panel or remote control, and then select the "D.IN" mode.

Auto Power Link

Auto Power Link automatically turns on the Soundbar when the TV is turned on.

1. Connect the Soundbar and a TV with a digital optical cable.

2. Press the → (Source) button on the right side panel or on the remote control, and then select "D.IN".

3. Press the Left button on the remote control for 5 seconds to turn Auto Power Link on or off.

Circular gray button with a play symbol icon, no text or symbols present

• Auto Power Link is set to ON by default.
(To turn off this function, turn off Auto Power using the Soundbar.)
- Depending on the connected device, Auto Power Link may not function.
- This function is only available in the "D.IN" mode.

Connecting a TV using an HDMI Cable


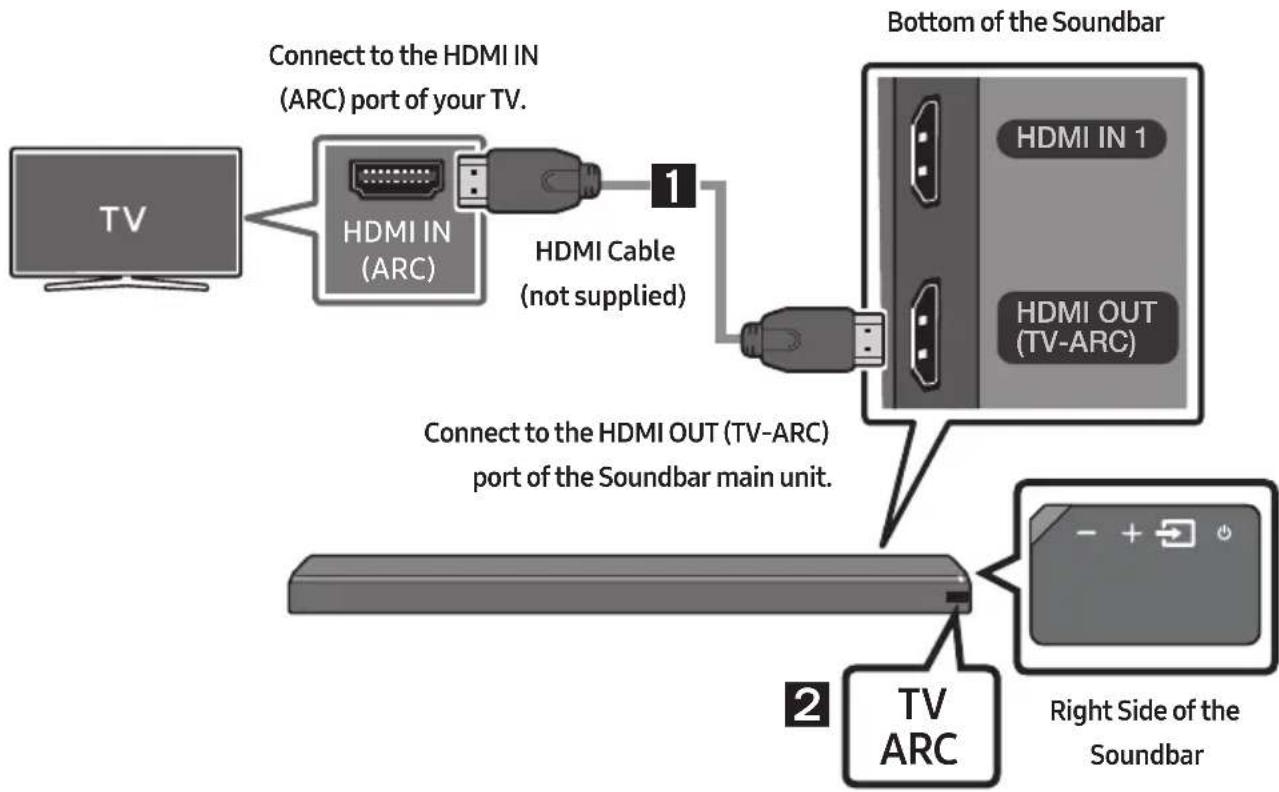

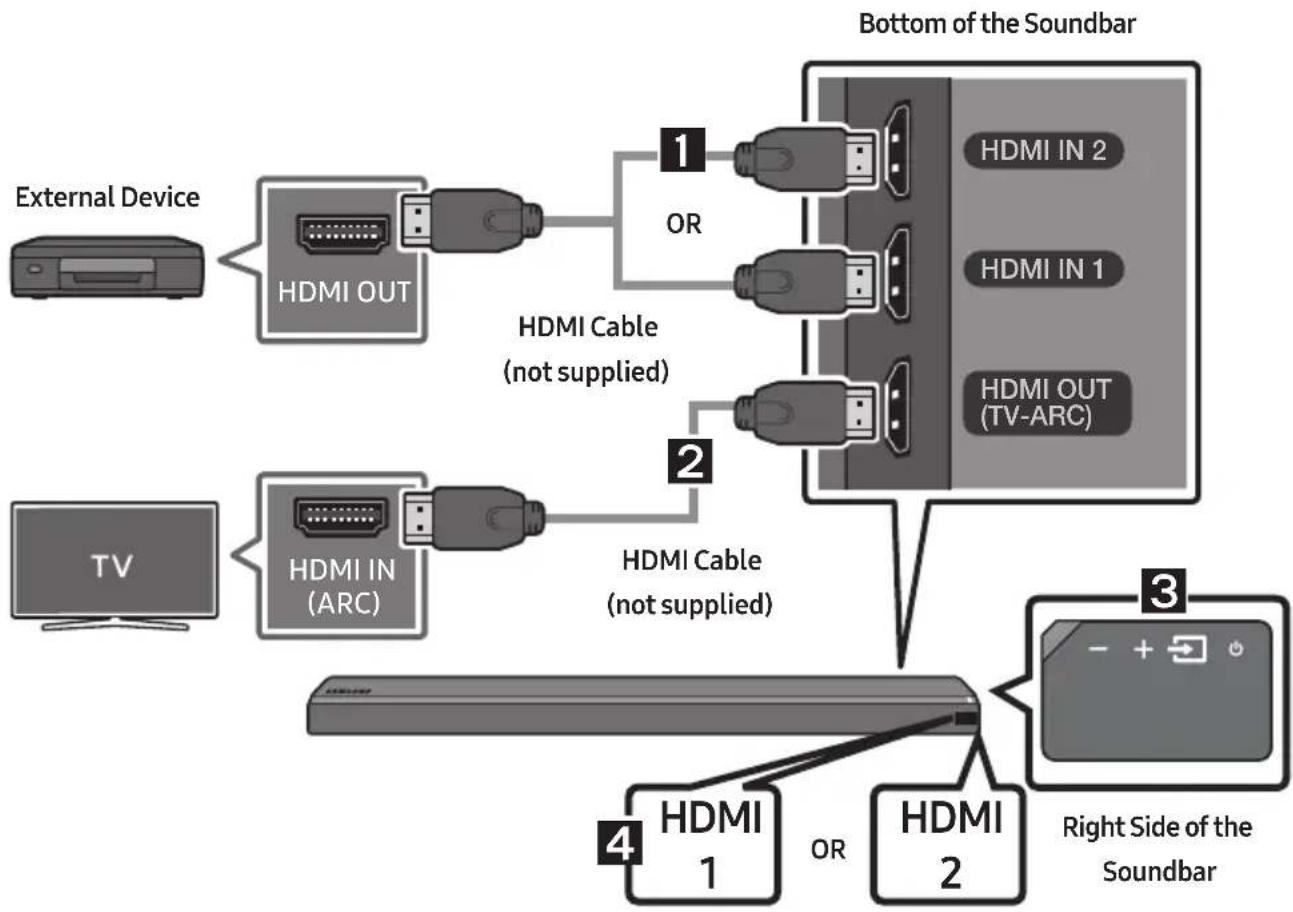

1. With the Soundbar and TV turned on, connect the HDMI cable (not supplied) as shown in the figure.
2. "TV ARC" appears in the display window of the Soundbar main unit and the Soundbar plays TV sound.

- If TV sound is inaudible, press the → (Source) button on the remote control or on the right side of the Soundbar to switch to "D.IN" mode. The screen displays "D.IN" and "TV ARC" in sequence, and TV sound is played.

- If "TV ARC" does not appear in the display window of the Soundbar main unit, confirm that the cable is connected to the correct port.

- Use the volume buttons on the TV's remote control to change the volume of the Soundbar.

NOTES

• HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
• If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.
• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm.
• Anynet+ must be turned on.
• This function is not available if the HDMI cable does not support ARC.

Method 2. Connecting Wirelessly

Connecting a TV via Bluetooth

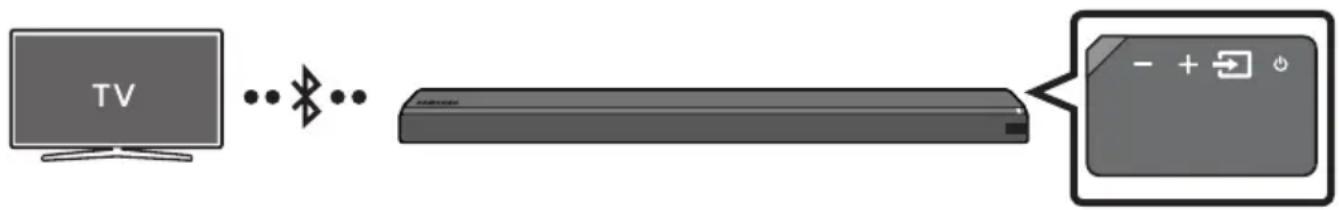

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- Only one TV can be connected at a time.

The initial connection

1. Press the → (Source) button on the right side panel or on the remote control, and then select "BT".

2. Change "BT" to "BT PAIRING".

3. If "BT READY" appears, press and hold the → (Source) button on the right side panel of the Soundbar or on the remote control for more than 5 seconds to display "BT PAIRING".

4. When "BT PAIRING" mode, the blue LED on the right edge of the Soundbar will blink.

5. Select Bluetooth mode on the TV. (For more information, see the TV's manual.)

6. Select "[AV] Samsung Soundbar MSxxx" from the list on TV's screen.

An available Soundbar is indicated with "Need Pairing" or "Paired" on the TV Bluetooth device list. To connect to the Soundbar, select the message and establish a connection.

- When the TV is connected, [TV Name] "BT" appears on the Soundbar's front display.

1. You can now hear TV sound from the Soundbar.

If the device fails to connect

• If the previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar MSxxx") appears in the list, delete it.
• In "BT" mode, press and hold the (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to "BT PAIRING" mode.
  Then, select "[AV] Samsung Soundbar MSxxx" from the TV's search list.

What are the BT READY and BT PAIRING statuses?

• BT READY : In this mode, you can search for previously connected TVs or connect to the Soundbar from a previously connected mobile device.
• BT PAIRING : In this mode, you can connect to a new device. (While in "BT" mode, press and hold the → (Source) button for more than 5 seconds on the right side of the Soundbar or on the remote control.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

Disconnecting the Soundbar from the TV

Press the → (Source) button on the right side panel or on the remote control and switch to any mode but "BT".

• Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.)
• To cancel automatic Bluetooth connection between the Soundbar and TV, press the ▶II (Play/Pause) button on the remote control for 5 seconds in "BT READY" status. (Toggle On → Off)

Connecting via Wi-Fi

Pre-connection Checklist

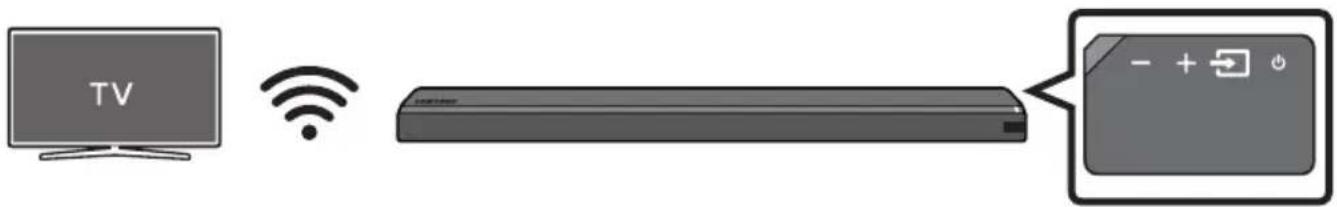

1. Confirm that your Samsung smart TV was released after 2014. This function is compatible only with Samsung smart TVs released after 2014.
2. Make sure your Wireless router (Wi-Fi) is ready and working.
3. Make sure that the TV is connected to the Wireless router (your Wi-Fi network).

Step 1: Connecting the Soundbar to Wi-Fi

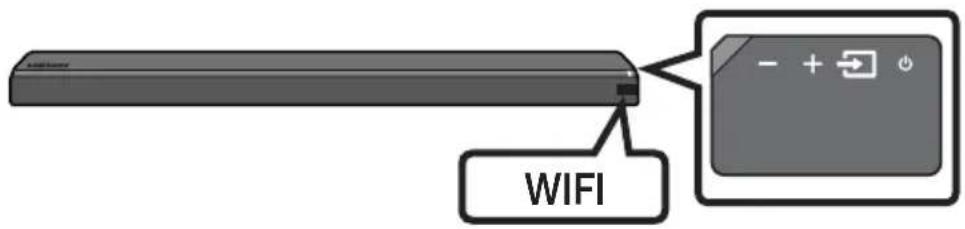

1. Press the → (Source) button on the right side of the Soundbar or on the remote control to select "WIFI" mode.

- When using selected Samsung TV (2016 or 2017 Samsung smart TVs that support Bluetooth.) - If you select "WIFI" mode when the TV is turned on, the TV screen displays a pop-up window providing instructions on how to automatically connect the Soundbar to a wireless router (Wi-Fi). Refer to instructions in the pop-up window of TV.

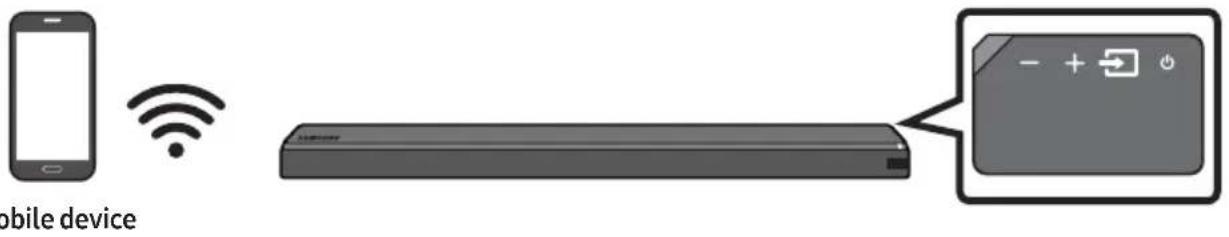

1. Connect your mobile device (smartphone, tablet etc.) to the Wi-Fi network the TV is connected to.

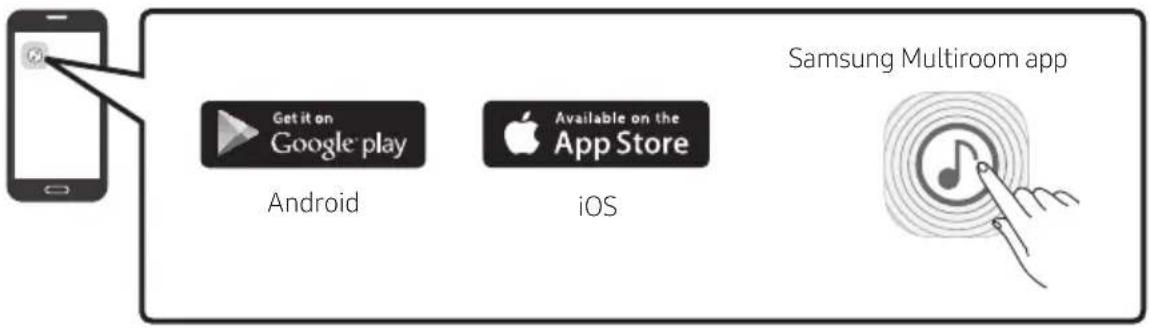

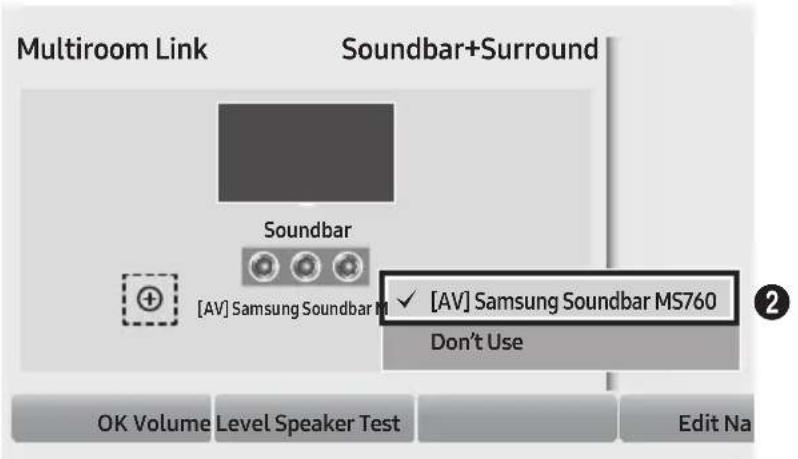

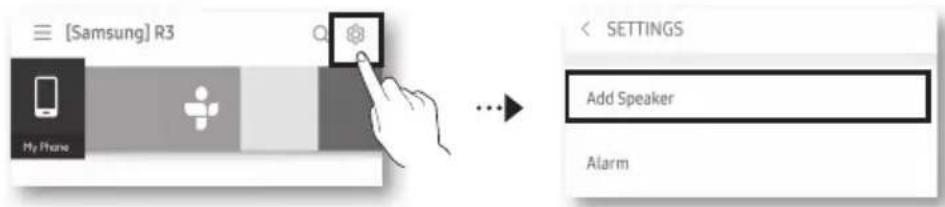

2. Install and launch the Samsung Multiroom app on your mobile device (smartphone, tablet etc.).

1. Follow the instructions in the app screen on the mobile device to connect the Soundbar to your Wi-Fi network.

Step 2 : Configuring Settings on the TV

- If the TV disconnects from your wireless network after you change the input source to the Soundbar, use the TV menu to connect the TV to the network again.

For TVs released in 2017

1. Home menu → Settings (💡) → Sound → Sound Output → Select [AV] Soundbar MSxxx (Wi-Fi)
2. The Soundbar outputs TV sound.

For TVs released in 2016

1. Home menu → Settings (💡) → Sound → Sound Output → Select [AV] Samsung Soundbar MSxxx (Wi-Fi)
2. The Soundbar outputs TV sound.

For TVs released in 2015

1. Home menu → Sound → Speaker List → Select [AV] Samsung Soundbar MSxxx (Wi-Fi)
2. The Soundbar outputs TV sound.

For TVs released in 2014

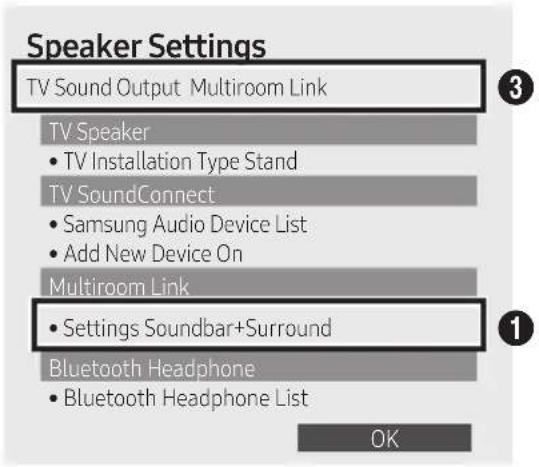

1. Home menu → Sound → Speaker Settings → Select Multiroom Link - Settings → Soundbar+Surround.

2. From the Soundbar menu item, select "[AV] Samsung Soundbar MS760" and then select "OK".

3. Home menu → Sound → Speaker Settings → Select TV Sound Output → Multiroom Link

1. The Soundbar outputs TV sound.

NOTES

• The TV and Soundbar must be connected to the same wireless network (Wi-Fi).
• If your wireless router (Wi-Fi) uses a DFS channel, you will not be able to establish a Wi-Fi connection between the TV and Soundbar. Contact your Internet service provider for details.
• If the 5GHz Wi-Fi connection is not smooth, use the 2.4GHz bandwidth.

05 CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired or wireless network to play the external device's sound through the Soundbar.

Connecting using an Optical or Analogue Audio (AUX) Cable

Optical Cable

1 Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using a digital optical cable.
② Select "D.IN" mode by pressing the →(Source) button on the right side panel or on the remote control.

OR

Audio (AUX) Cable

1 Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable.
② Select "AUX" mode by pressing → (Source) button on the right side panel or on the remote control.

Connecting using an HDMI Cable

1. Connect an HDMI cable (not supplied) from the HDMI IN 1 or HDMI IN 2 jack on the back of the product to the HDMI OUT jack on your digital device.
2. Connect an HDMI cable (not supplied) from the HDMI OUT (TV-ARC) jack on the back of the product to the HDMI IN jack on your TV.
3. Press the (Source) button on the right side panel or on the remote control, and then select "HDMI 1" or "HDMI 2".
4. The selected HDMI mode is displayed on the Soundbar display panel and sound plays.

06 CONNECTING A MOBILE DEVICE

Method 1. Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- You cannot connect more than one Bluetooth device at a time.

Bluetooth device

The initial connection

1. Press the → (Source) button on the right side panel or on the remote control, and then select "BT".

2. Change "BT" to "BT PAIRING".

3. If "BT READY" appears, press and hold the ➞ (Source) button on the right side panel of the Soundbar or on the remote control for more than 5 seconds to display "BT PAIRING".

4. When "BT PAIRING" mode, the blue LED on the right edge of the Soundbar will blink.

5. Select "[AV] Samsung Soundbar MSxxx" from the list.

- When a Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → "BT" appears in the front display.

1. Play music files from the device, connected via Bluetooth, through the Soundbar.

If the device fails to connect

• If the previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar MSxxx") appears in the list, delete it.
• In "BT" mode, press and hold the → (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to "BT PAIRING" mode.

Then, select "[AV] Samsung Soundbar MSxxx" from the Bluetooth device search list.

What are the BT READY and BT PAIRING statuses?

• BT READY : In this mode, you can search for previously connected TVs or connect to the Soundbar from a previously connected mobile device.
• BT PAIRING : In this mode, you can connect to a new device. (While in "BT" mode, press and hold the

(Source) button for more than 5 seconds on the right side of the Soundbar or on the remote petrol.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.

• If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
  • The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
• Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar MSxxx” from the device’s scanned devices list will automatically change the Soundbar to “BT” mode.

- Available only if the Soundbar is listed among the Bluetooth device's paired devices.

(The Bluetooth device and the Soundbar must have been previously paired at least once.)

• The Soundbar will appear in the Bluetooth device's searched devices list only when the Soundbar is displaying "BT READY".
• Soundbar cannot be paired to another Bluetooth device, while using the Bluetooth function.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
- When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the → (Source) button on the right side panel or on the remote control, and then change to any mode except "BT".

• Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if:
• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

Method 2. Connecting via Wi-Fi (Wireless Network)

• Connect a single Soundbar to Wi-Fi to access a variety of music streaming services and Internet radio. Connect multiple Soundbars to Wi-Fi to use grouped playback or stereo sound mode.
• To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the Samsung Multiroom app is required.

The initial connection

1. Press the → (Source) button on the right side of the Soundbar or on the remote control to select "WIFI" mode.

1. Install and launch the Samsung Multiroom app on your mobile device (e.g. smartphone or tablet).

1. Follow the instructions in the app screen on the mobile device to connect the Soundbar to Wi-Fi.

Installing an additional Soundbar when Samsung wireless speakers are already in use

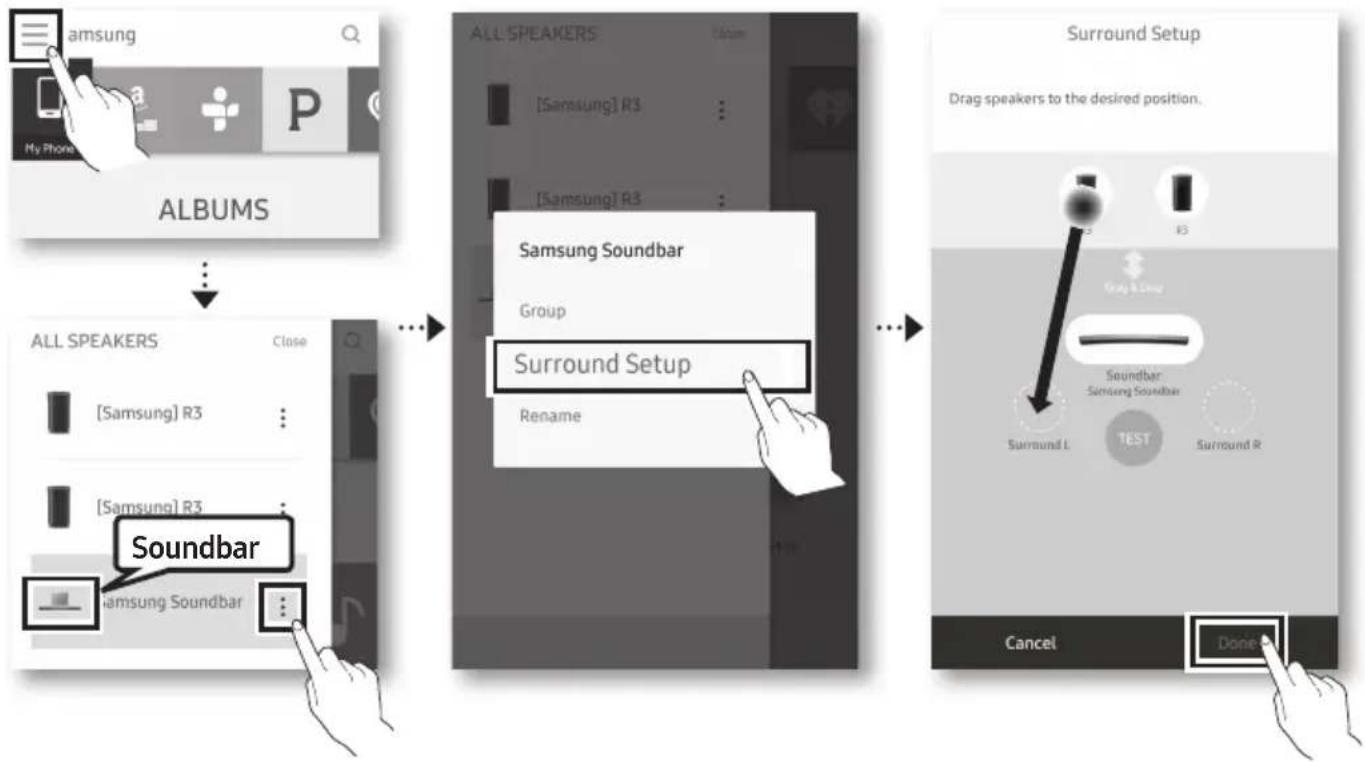

1. On the Home screen of the Samsung Multiroom app, select Settings (💡) at the top, and then select "Add Speaker".

1. To connect the Soundbar to 2 Samsung wireless speakers and configure a surround sound system, follow the steps shown below. (You cannot set up a surround sound system using one audio device and one Soundbar.)

① Touch≡to go to the list of all speakers.
② Touch: on the right of the Soundbar model name.
③ Touch Surround Setup. Select Done after dragging the speaker to the desired location.

4 The Surround connection is complete.

- To connect an additional SWA-9000S (not supplied), disconnect the Samsung wireless speakers from the Soundbar to disable the surround sound system. (If connecting the surround speakers without disconnecting SWA-9000S, sound is played via both the Samsung wireless speaker and the Surround speaker.)

07 USING THE REMOTE CONTROL

How to Use the Remote Control

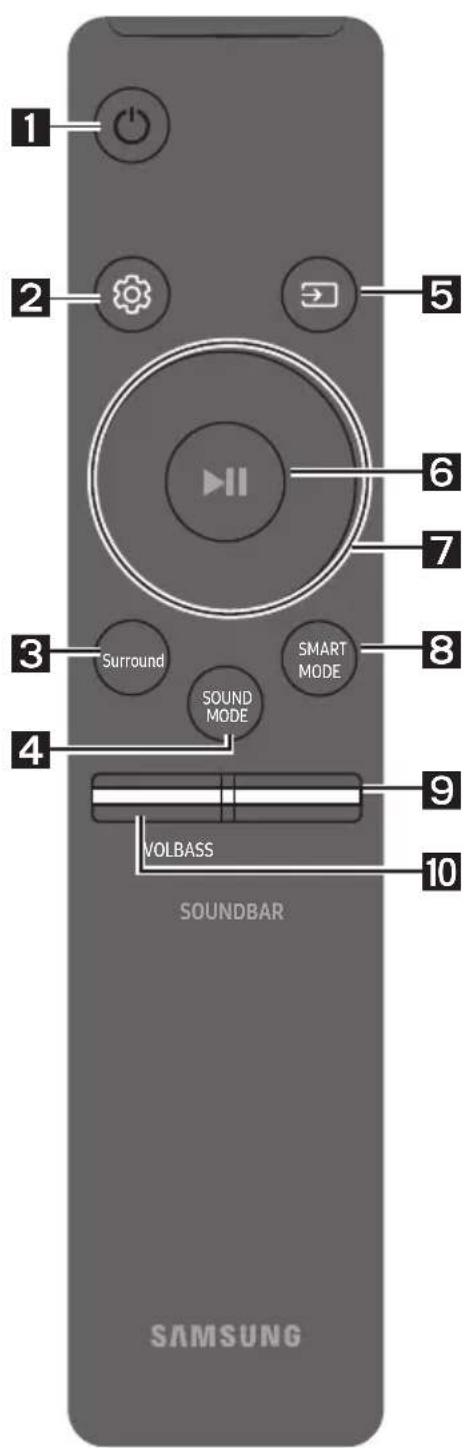

1	Power	Turns the Soundbar on and off.
2	Sound Control	You can select from TREBLE, SYNC, FRONT TOP, REAR LEVEL, or REAR SPEAKER ON/OFF.To adjust the TREBLE or FRONT TOP volume, select Sound Control TREBLE or FRONT TOP, and then use the Up/Down buttons to adjust the volume within the -6 to +6 range.Press and hold the (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz, and 10KHz are selectable (Left/Right) and each can be adjusted to a setting between -6 to +6 (Up/Down).If the video and audio between the TV and your Soundbar are not synchronised, select SYNC in Sound Control, and then set audio delay between 0~300 milliseconds by using the Up/Down buttons.If surround speakers (not supplied) are connected, select REAR LEVEL and use the Up/Down buttons to adjust the volume within the -6 to +6 range.The REAR SPEAKER function can be turned ON/OFF by using the Up/Down buttons.SYNC is only supported in some functions.

3	Surround	The Surround Sound function adds depth and a sense of space to sound.Each time you press this button, ON and OFF alternate.ON : Play sound over all the speakers.OFF : You can hear the sound of the original source channel from several speakers.
4	SOUND MODE	You can select the desired sound effect by choosingSTANDARD,MUSIC,CLEAR VOICE, SPORTS, or MOVIE.Select the “STANDARD” mode if you want to enjoy the original sound.DRC (Dynamic Range Control)Lets you apply dynamic range control to Dolby Digital tracks. If you press and hold the SOUND MODEbutton while in standby mode, DRC (Dynamic Range Control) turns on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.)
5	Source	Press to select a source connected to the Soundbar.BT PAIRING modeTo turn on “BT PAIRING” mode in “BT” mode, press and hold the→(Source) button for more than 5 seconds. See page 15 for details.Auto Power Down FunctionThe unit turns off automatically in the following situations.-D.IN / WIFI / BT Mode: If there is no audio signal for 5 minutes.-HDMI 1 or HDMI 2 Mode: If there is no audio signal for 15 minutes.-AUX Mode:-If the Audio (AUX) Cable is disconnected for 5 minutes.-If there is no KEY input for 8 hours when the Audio (AUX) Cable is connected. (Auto Power Down function can be turned off only in that case.)-To turn off Auto Power Down function, while in “AUX” mode, press and hold the▶II button for 5 seconds. “ON-AUTO POWER DOWN” / “OFF-AUTO POWER DOWN” appears on the display.
6	Play / Pause (BT/Wi-Fi)	Press the▶II button to pause a music file temporarily.If you press the button again, the music file plays.
7	Up/Down/Left/Right	Press the indicated areas to select Up/Down/Left/Right.Press Up/Down/Left/Right on the button to select or set functions.RepeatTo use the repeat function, press theUpbutton.Music SkipPress theRightbutton to select the next music file. Press theLeftbutton to select the previous music file.Anynet+ / Auto Power LinkYou can turn Anynet+ and Auto Power Link on or off.Anynet+ and Auto Power Link are controlled by theRightandLeftbuttons respectively.- Anynet+ : If the Soundbar is connected to a Samsung TV through an HDMI cable, you can control your Soundbar with the Samsung TV's remote control. Press and hold theRightbutton for 5 seconds to toggle Anynet+ ON and OFF.- Auto Power Link : If the Soundbar is connected to your TV through a digital optical cable, the Soundbar can automatically turn on when you turn on your TV. Press and hold theLeftbutton for 5 seconds to toggle Auto Power Link ON and OFF.- Anynet+ / Auto Power Link are set to ON by default.
8	SMART MODE	Automatically optimises sound effects to suit the scene currently playing.The mode turns on or off each time the button is pressed.
9	BASS	Push the button up or down to adjust the BASS volume within the -6 to +6 range.To set the BASS volume level to 0, press the button.When a Subwoofer (not supplied) is connected, the BASS button switches to the Subwoofer Key. Push the button up or down to adjust the subwoofer volume either to -12 or within the -6 to +6 range. To set the subwoofer volume level to 0, press the button.
10	VOL	Push the button up or down to adjust the volume.• MutePress the VOL button to mute the sound. Press it again to unmute the sound.

Adjusting the Soundbar volume with a TV remote control

Use the TV menu to set the TV speaker on a Samsung TV to external speakers. (For more information, see the TV's user manual.)

- After installing the Soundbar, you can adjust the Soundbar's volume using the IR remote control that came with a Samsung TV. (If you do not want to use this function, when the Soundbar is on, press and hold the Surround button for 5 seconds. "OFF-TV REMOTE" appears in the Soundbar's display and the function turns off.) To adjust the volume using only the Samsung TV remote control, press and hold the Surround button for more than 5 seconds until "SAMSUNG-TV REMOTE" appears in the Soundbar display.

- Each time the Surround button is held for 5 seconds, the mode switches in the following order: "SAMSUNG-TV REMOTE" (Default mode) → "OFF-TV REMOTE" → "ALL-TV REMOTE".

- To adjust the Soundbar volume with the remote control that came with a TV made by a third party manufacturer, turn the Soundbar on, press and hold the Surround button for 5 seconds ("OFF-TV REMOTE" appears on the Soundbar's display), release the Surround button, and then press and hold the Surround button again for more than 5 seconds. ("ALL-TV REMOTE" appears on the Soundbar's display.)

• This function may not be available, depending on the remote control.
  – Manufacturers supporting this function:

VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA

Using the Hidden Buttons

Hidden Button		Reference page
Remote Control Button Function
Surround	TV remote control On/Off	page 23
(Source)	BT Paring page 15
▶II (Play / Pause)	Auto Power Down On/Off(AUX mode)	page 21
Left Auto Power Link	ON/OFF page 7
Right Anynet+ ON/OFF page 22
(Sound Control)	7 Band EQ page 20
SOUND MODE	DRC ON/OFF (Standby)	page 21

Output specifications for the different sound effect modes

Effect Input			Output
			Except Wireless Rear Speaker Kit	Include Wireless Rear Speaker Kit
Surround	ON	2.0 ch	*5.0 ch *7.0 ch
		5.1 ch	*5.0 ch *7.0 ch
SOUND MODE	STANDARD	2.0 ch	2.0 ch 4.0 ch
		5.1 ch	3.0 ch 5.0 ch
	MUSIC	2.0 ch	2.0 ch 4.0 ch
		5.1 ch	3.0 ch 5.0 ch
	CLEAR VOICE	2.0 ch	3.0 ch 5.0 ch
		5.1 ch	3.0 ch 5.0 ch
	SPORTS	2.0 ch	*5.0 ch *7.0 ch
		5.1 ch	*5.0 ch *7.0 ch
	MOVIE	2.0 ch	3.0 ch 5.0 ch
		5.1 ch	3.0 ch 5.0 ch

* Top speaker is included in a channel.
- Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from.

08 SOFTWARE UPDATE

When the Soundbar is connected to the Internet, software updates automatically occur even when the Soundbar is turned off.

- To use the Auto Update function, the Soundbar must be connected to the Internet. The Wi-Fi connection to the Soundbar will be terminated if its power cord is disconnected or the power is cut off. If the power is cut off, turn on the Soundbar and reconnect it.

09 INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.
- Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
- Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
- Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

• Diameter: M5
  – Length: 35 mm or longer recommended.

- Connect cables from the unit to external devices before you install the Soundbar on the wall.

- Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Holder-Screw (2 EA) Screw (2 EA)

Simple line drawing of a flip phone case (no text or symbols)

Bracket-Wall Mount (2 EA)

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level.

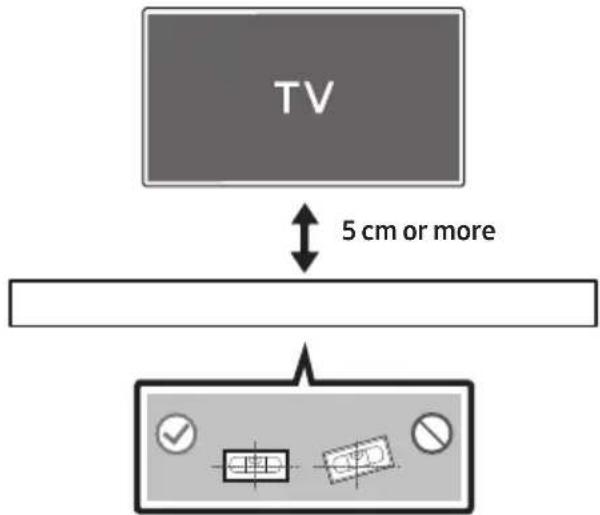

- If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

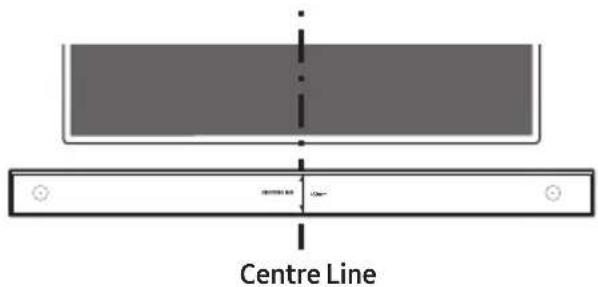

1. Align the Paper Template's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

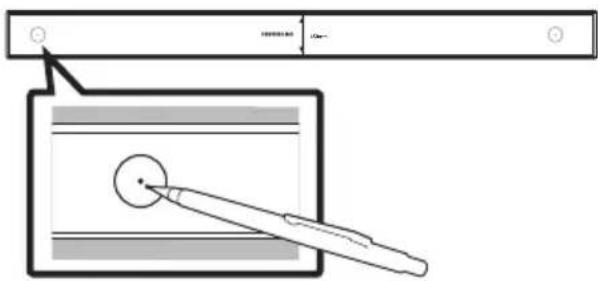

1. Use a sharp object, such as a pen or pencil, to mark the holes' positions, and then remove the Wall mount Guide.

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

Diagram showing a screw being inserted into a housing, with arrows indicating direction (no text or symbols)

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar, using 2 Screws.

Diagram showing a screw being inserted into a device with a circular arrow indicating rotation (no text or symbols present)

- When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

Right end of Soundbar

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

- Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that Bracket-Wall Mounts rest securely on the Holder-Screws.

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

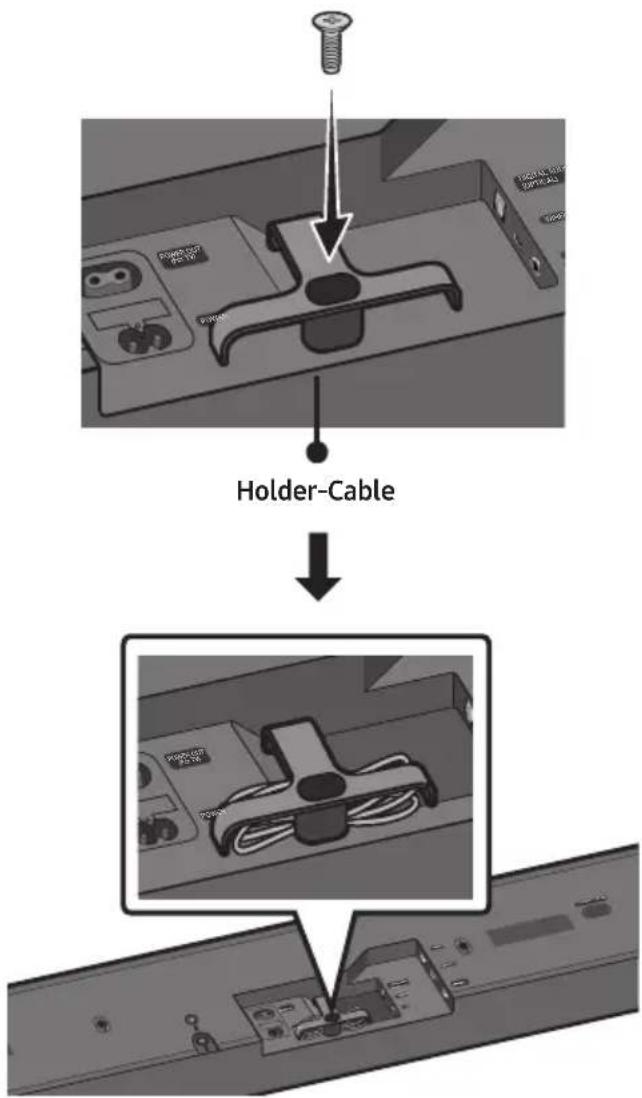

Assembling the Holder-Cable

As shown in the image, use the supplied Screw to fix the Holder-Cable to the Soundbar, and then use the Holder-Cable to organise any cables.

10 TROUBLESHOOTING

Before seeking assistance, check the following.

The unit will not turn on.

Is the power cord plugged into the outlet?

→Connect the power plug to the outlet.

A function does not work when the button is pressed.

Is there static electricity in the air?

→Disconnect the power plug and connect it again.

Sound dropouts occur in BT mode.

→See the Bluetooth connection sections on pages 9 and 15.

Sound is not produced.

Is the Mute function on?

→ Press the VOL button to cancel the function.

Is the volume set to minimum?

→Adjust the Volume.

The remote control does not work.

Are the batteries drained?

→Replace with new batteries.

Is the distance between the remote control and

Soundbar main unit too far?

→ Move the remote control closer to the Soundbar main unit.

Cannot connect to the TV.

If connected via a wired network

→ Check if the cable is connected correctly. (Check the port name to make sure that the cable is connected to the correct port.) (See the corresponding page regarding each connection method.)
→ Press the → (Source) button on the right side of the Soundbar or on the remote control to check if the mode is correct.

If connected via a wireless network

→Connected via Bluetooth

1. Switch the Soundbar to "BT PAIRING" mode, and then use the TV to search again. (See page 9 for details.)

→Connected via Wi-Fi

1. Check if the TV is a compatible model.

- Only Samsung smart TVs released after 2014 are supported.

1. Check if the TV is connected to Wi-Fi.

- If the TV is not connected to Wi-Fi, use the network menu on the TV to establish a connection. (See the TV user manual.)

1. Check if the Soundbar is connected to Wi-Fi.

- When connected, the Soundbar is found in the list of speakers when Samsung Multiroom app is run on the mobile device (e.g. smartphone or tablet). (See page 18 for details.)

1. Check for a DFS channel.

- If your wireless router (Wi-Fi) is using a DFS channel, you cannot establish a Wi-Fi connection between the TV and Soundbar. Contact your Internet service provider for details.

11 LICENCE

DOLBY

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

• The Spotify Software is subject to third party licences found here: www.spotify.com/connect/third-party-licenses.
• For more information about Spotify Connect, please visit www.spotify.com/connect

12 OPEN SOURCE LICENCE NOTICE

For further information on Open Sources used in this product, please visit the website: http://opensource.samsung.com

13 IMPORTANT NOTES ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
  • An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).

(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

- You will be informed of the administration fee amount before a technician visits.

14 SPECIFICATIONS AND GUIDE

Specifications

GENERAL	Weight		6.3 kg
	Dimensions(W x H x D)		1150.0 x 80.0 x 130.4 mm
	Operating Temperature Range		+5°C to +35°C
	Operating Humidity Range		10 % ~ 75 %
HDMI Video			1080p, 1080i, 720p, 576p, 480p2160p@24/25/30Hz 4:4:42160p@60/50Hz 4:2:0
Speaker			Woofer x 6, Tweeter x 5, 4ohm
Supported play formats			LPCM 2ch, Dolby AudioTM (supporting Dolby® Digital), DTS
Wireless device output power	Wi-Fi max transmitter power		100mW at 2.4GHz -2.4835GHz, 5.15GHz-5.35GHz & 5.47GHz-5.725GHz
	BT max transmitter power		100mW at 2.4GHz - 2.4835GHz

NOTES

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.
- For more information about the power supply and power consumption, refer to the label attached to the product. (Label : Bottom of the Soundbar Main Unit)

Precaution : The product will restart automatically if you turn on/off Wi-Fi/Ethernet.

Overall Standby Power Consumption (W)(All the network ports are “ON” condition)		3.7W
Wi-Fi/Ethernet Port deactivation method		Press Wi-Fi SETUP button on the product for 30 seconds to turn Wi-Fi/Ethernet On / Off.
Bluetooth Port deactivation method		Press SPK ADD button on the product for 30 seconds to turn Bluetooth On / Off.

- Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

The 5GHz WLAN(Wi-Fi or SRD) function of this equipment may only be operated indoors.

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit:

http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

SIKKERHEDSINFORMATIONER

SIKKERHEDSINFORMATIONER

FOR AT MINDSKE RISIKO FOR ELEKTRISK ST∅D MÅ BAGBEKLÆDNINGEN IKKE AFTAGES. ENHEDENS INDVENDIGE DELE MÅ KUN EFTERSES AF FAGKYNDIGE. OVERLAD ALT REPARATIONSARBJEDE TIL AUTORISEREDE SERVICEFORHANDLERE.

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

BRUGERVEJLEDNING

Illustration of a person sitting on a couch next to a laptop and TV (no text or symbols)

KOMPLET BRUGERVEJLEDNING

02 PRODUKTOVERSIGT

04 TILSLUTNING TIL DIT TV

Circular play button icon with no text or symbols

Two technical illustrations of screw components: a pulley and a threaded screw (no text or symbols)

Holderskrue (2 stk.) Skrue (2 stk.)

Simple line drawing of a flat-panel electronic device (no text or symbols)

Diagram showing a screw being inserted into a housing component, with no text or symbols present.

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

• Spotify-softwaren er omfattet af tredjepartslicenser, der findes her: www.spotify.com/connect/third-party-licenses.
• For flere informationer om Spotify Connect kan du besøge www.spotify.com/connect

12 BEMAERKNING VEDR. OPEN SOURCE-LICENS

Illustration of a person sitting on a sofa using a laptop (no text or symbols)

KÄYTTÖOPAS

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

TÄYDELLINEN KÄYTTÖOPAS

Three black electronic devices: a rectangular remote, a remote control with two USB cables, and a cable cord (no text or symbols visible)

Three mechanical component icons: a U-shaped connector, a cross-shaped clamp, and a screw (no text or symbols)

02 LAITTEEN YLEISKUVAUS

Circular gray button with a play symbol icon, no text or symbols present

Seinäkiinnitysopas

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Simple line drawing of a bracket or support structure (no text or symbols)

Diagram showing a screw being inserted into a housing, with arrows indicating direction (no text or symbols)

Diagram showing a screw being inserted into a device with a circular arrow indicating rotation (no text or symbols present)

Diagram showing two stages of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

BRUKERHÅNDBOKEN

Illustration of a person sitting on a sofa next to a desk with a computer (no text or symbols visible)

FULLSTENDIG BRUKERHÅNDBOK

Du finner hele håndboken i Samsungs nettbaserte kundestøttesenter ved å skanne QR-koden. Hvis du vil lese brukerhåndboken på en datamaskin eller mobil enhet, laster du ned brukerhåndboken i dokumentformat fra nettstedet. (http://www.samsung.com/support)

Three black-and-white product photos: a rectangular remote, a remote control with two batteries, and a cable cord (no text or symbols visible)

Soundbar-hovedenhet Fjernkontroll/Batterier Strømledning

Three mechanical component illustrations: a U-shaped connector, a cross-shaped clamp, and a screw (no text or symbols)

Diagram showing the internal structure of a battery pack with an open casing, illustrating the process from external to internal components (no text or symbols present)

02 PRODUKOVERSIKT

03 KOBLE TIL SOUNDBAR

Koble til strøm

- Se etiketten på produktet for informasjon om strømforsyningen som kreves, og om strømforbruk. (Etikett: Underside av Soundbar-hovedenheten)

Circular gray button with a play symbol icon at center (no text or symbols)

Diagram showing a screw being inserted into a pinhole, with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two stages of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Montere kabelholderen

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

ANVÄNDARHANDBOK

Illustration of a person sitting on a couch next to a desk with a computer (no text or symbols visible)

FULLSTÄNDIG HANDBOK

INNEHÅLLSFÖRTECKNING

01 Kontrollera komponenterna 2

Three black electronic devices: a rectangular remote, a remote control with two batteries, and a USB cable (no text or symbols visible)

Three mechanical component icons: a U-shaped connector, a cross-shaped clamp, and a screw (no text or symbols)

Diagram showing three stages of battery charging process: before, after, and after, with no visible text or symbols.

02 PRODUKTÖVERSIKT

Circular play button icon with double arrow symbol (no text or numbers)

Two technical illustrations of screw components: a pulley and a threaded screw (no text or symbols)

Simple line drawing of a mobile phone case (no text or symbols)

Väggfäste (2 st.)

Diagram showing a screw being inserted into a pinhole, with motion arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two stages of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

12 LICENSMEDDELANDE FÖR OPEN SOURCE

© 2017 Samsung Electronics Co., Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country Contact Centre	[IMAGE]	Web Site
▪ Europe
U.K 0330 SAMSUNG (7267864)		www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100		www.samsung.com/ie/support
GERMANY 06196 77 555 77		www.samsung.com/de/support
FRANCE 01 48 63 00 00		www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864)		www.samsung.com/it/support
SPAIN 0034902172678		www.samsung.com/es/support
PORTUGAL 808 207 267		www.samsung.com/pt/support
LUXEMBURG 26103 710		www.samsung.com/be_fr/support
NETHERLANDS 088-9090100 (lokaal tarief)		www.samsung.com/nl/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY 815 56480		www.samsung.com/no/support
DENMARK 707 019 70		www.samsung.com/dk/support
FINLAND 030-6227 515		www.samsung.com/fi/support
SWEDEN 0771 726 786		www.samsung.com/se/support
POLAND	801-172-678* lub [phone]** (koszt potączenia według taryfyoperatora)	www.samsung.com/pl/support
HUNGARY 0680SAMSUNG (0680-726-7864)		www.samsung.com/hu/support

Country Contact Centre		Web Site
AUSTRIA	0800-SAMSUNG (0800-7267864) [Only for Dealers] 0810-112233	www.samsung.com/at/support
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA 072 726 786		www.samsung.com/hr/support
BOSNIA	055 233 999	www.samsung.com/support
MONTENEGRO	020 405 888	www.samsung.com/support
SLOVENIA 080 697 267 (brezplačna številka)		www.samsung.com/si/support
SERBIA	011 321 6899	www.samsung.com/rs/support
BULGARIA	*3000 Цена в мрежата0800 111 31 , Безплатна телефонна линия	www.samsung.com/bg/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG)Apel GRATUIT	www.samsung.com/ro/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line ([phone] from mobile and land line
LITHUANIA 8-800-77777		www.samsung.com/lt/support
LAT VIA	8000-7267	www.samsung.com/lv/support
ESTONIA 800-7267		www.samsung.com/ee/support
