USER MANUAL WH-SD30BE5-1 PANASONIC

Illustration of a Panasonic air conditioner unit with control panel and gauges (no text or symbols on main body)

Panasonic®

Operating Instructions Air-to-Water Heatpump

Model No.

Indoor Unit

Outdoor Unit

WH-SD24BE5-1 WH-UD24BE5-1

WH-SD30BE5-1 WH-UD30BE5-1

ENGLISH

2\~9

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

Before operating the unit, make sure the installation has been carried out correctly by authorized dealer correctly and precisely following the installation instructions given.

SVENSKA

10\~17

Thank you for purchasing Panasonic Product

TABLE OF CONTENTS TABLE OF

SAFETY PRECAUTIONS

2\~3

PRODUCT OVERVIEW

4

BASIC OPERATION

5

ADVANCE OPERATION

6

CARE & CLEANING

7

TROUBLESHOOTING

8

INFORMATION

9

NOTE :

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected to change without notice for future improvement.

OPERATION CONDITION

Water outlet Temperature (°C)		Indoor
HEATING	Max. 55
	Min. 25

Ambient Temperature (°C)		Outdoor
HEATING	Max. 35
	Min. -20

NOTICE : When the outdoor temperature is out of the above temperature range, the heating capacity will drop significantly and outdoor unit might stop for protection control.

SAFETY PRECAUTIONS

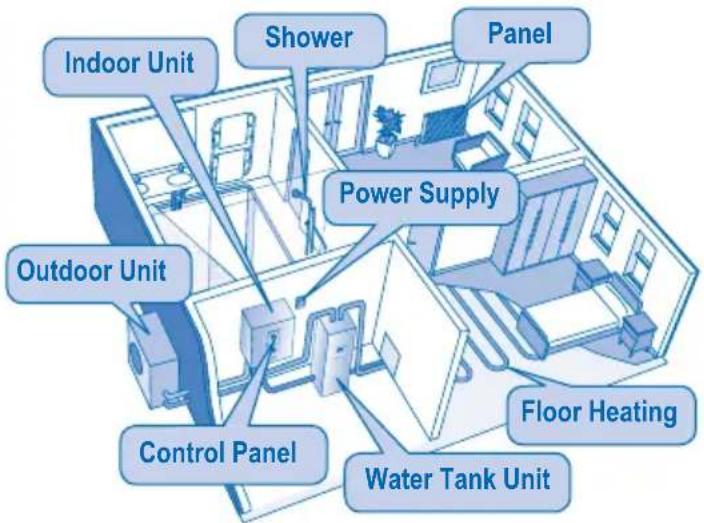

• Panasonic Air-to-Water Heatpump is a split system consisting only of an indoor unit and an outdoor unit. This system designed for F CONTENTS Combined with Panasonic Tank Unit. In case of non-Panasonic Tank Unit is being used with Panasonic Air-to-Water Heatpump System, Panasonic cannot guarantee neither good operation nor reliability of the system.
• This manual describes how to operate the Heatpump system between indoor and outdoor units only.
• Other operation such as water tank, radiator and underfloor system, please refer to respective manufacturer operation manuals.

To prevent personal injury, injury to others, or property damage, please comply with the following.

Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

WARNING warns of death or serious injury.

This sign warns of injury or damage to CAUTION property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote an actions that is COMPULSORY.

WARNING

INDOOR UNIT AND OUTDOOR UNIT

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorized dealer or specialist to repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fi re.

Do not install the unit in a potentially explosive or fl ammable atmosphere. Failure to do so could result in fi re.

Do not insert your fingers or other objects into the indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not attempt to repair the unit by yourself. Otherwise, it may cause injury if it is mishandling.

Do not install the indoor unit at outdoor. This is designed for indoor installation only.

WARNING
POWER SUPPLY
	Do not use modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fi re.
	Do not share the same power outlet with other equipment to prevent overheating and fi re.
	Do not operate with wet hands to prevent electric shock.
	If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
	This unit is equipped with Residue Current Circuit Breaker (RCCB). It is strongly recommended to check the operation of the RCCB after installation and periodically after servicing or maintenance by authorized dealer to ensure it is in good working order. Otherwise, it may cause electrical shock or fi re in case of malfunction.
	It is strongly recommended to install Residual Current Device (RCD) on-site to prevent electric shock or fi re.
	It is recommended to wear gloves during servicing or maintenance in order to avoid hazard.
	This equipment must be earthed to prevent electrical shock or fi re.
	Prevent electric shock by switching off the power supply when:- Before cleaning or servicing.- Extended non-use.- Abnormally strong lightning activity.
	This appliance is for multiple uses. All power supply circuits must be turn off before access to any of the terminals in the indoor unit, to avoid electrical shock, burn or fatal injury.

	Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker.(Risk of smoke/fi re/electric shock)
Examples of abnormality/failure	The RCCB switches off by itself.Burning smell, abnormal noise or vibration sound is observed when the unit is in use.Hot water keeps on coming off the unit.
	Contact immediately your local dealer for maintenance/repair.

CAUTION
INDOOR UNIT AND OUTDOOR UNIT
	Do not wash the indoor unit with water, benzene, thinner or scouring powder.
	Do not install the unit close to any combustible equipment or at bathroom. Otherwise, it may cause electric shock or fi re.
	Do not touch the water discharge pipe at the indoor unit during operation.
	Do not place anything on top or beneath of the unit.
	Do not sit or step on the unit, you may fall down accidentally.
	Do not touch the sharp aluminium fi n, sharp parts may cause injury.
	Ensure drainage pipe is connected properly. Otherwise, leakage may occur.
	Check the installation rack periodically to make sure that it is not damaged. After long periods of use, the strength of the installation rack may have deteriorated.
CONTROL PANEL
	Do not let the control panel get wet. Otherwise, it may cause electric shock or fi re.
	Do not press the buttons on the control panel with hard, pointed objects. Otherwise, it may damage the unit.
	Do not wash the control panel with water, benzene, thinner or scouring powder.
	Do not yourse Otherwise, it may cause injury if mishandling.

inspect or f. Please c

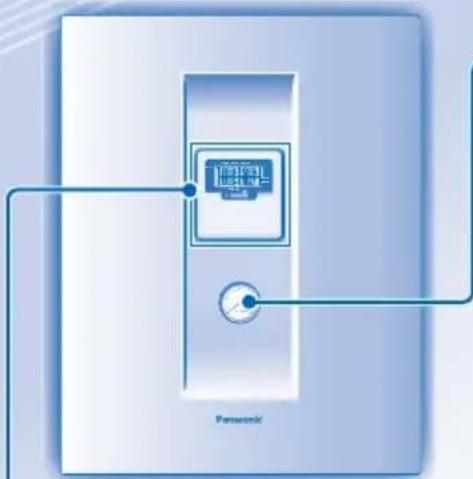

Air-to-Water Heatpump Indoor Unit

Water Pressure Gauge

- Do not press or hit the glass cover with hard, pointed objects. This may damage the unit.

- Ensure that the water pressure is between 0.05 to 0.2 MPa (0.1 MPa = 1 bar).

• In case the water pressure is out of the above range, please consult authorized dealer.

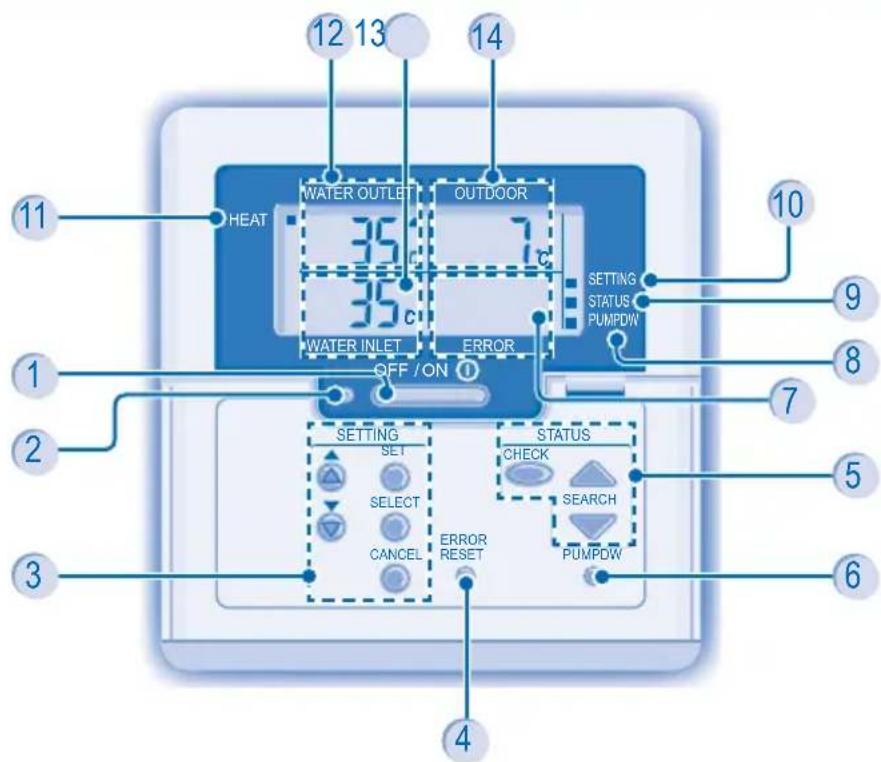

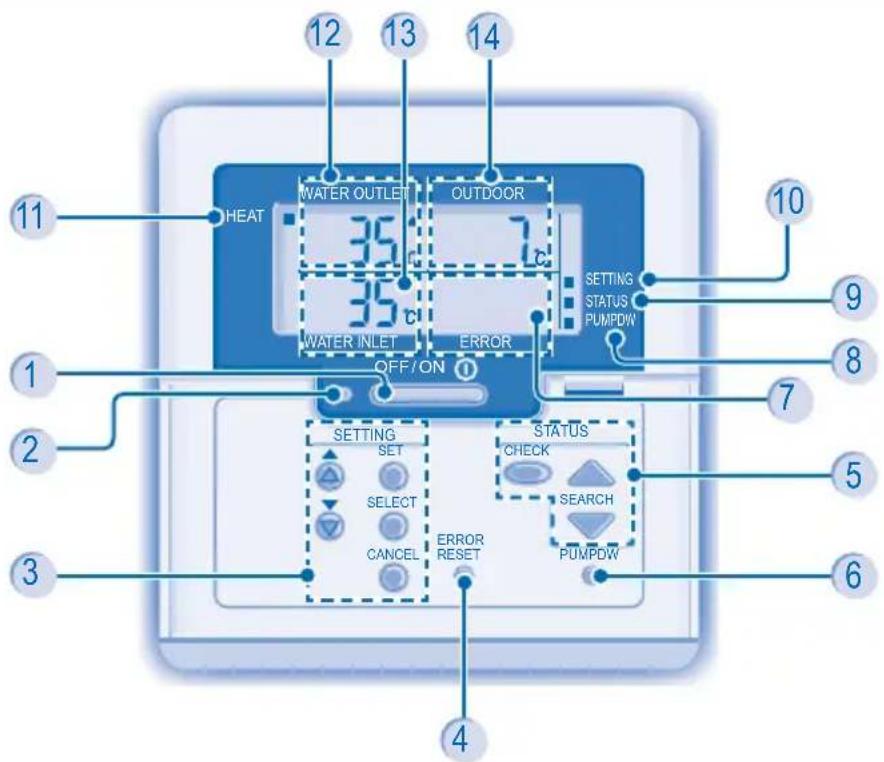

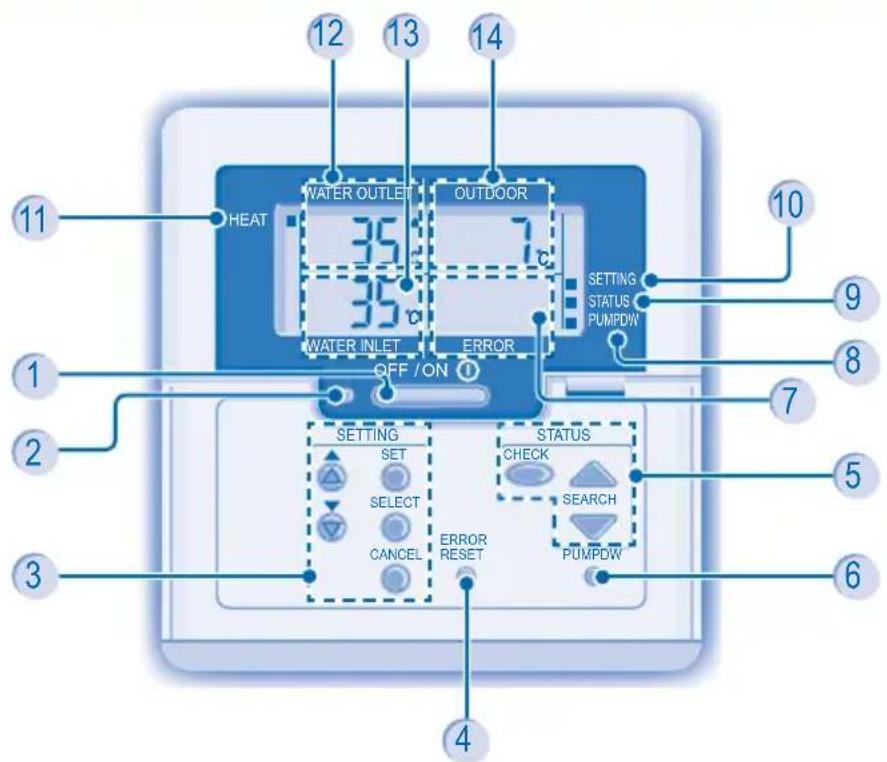

Control Panel

Open the cover to use the buttons

1 OFF/ON Button
2 Operation LED
3 System Setting Mode Buttons
4 Error Reset Button
5 System Status Check Mode Buttons
6 System Pumpdown Mode Button
7 System Error Display

8 System Pumpdown Mode Indicator
9 System Status Check Mode Indicator
10 System Setting Mode Indicator
11 Heating Operation Indicator
12 Water Outlet Temperature Display
13 Water Inlet Temperature Display
14 Outdoor Ambient Temperature Display

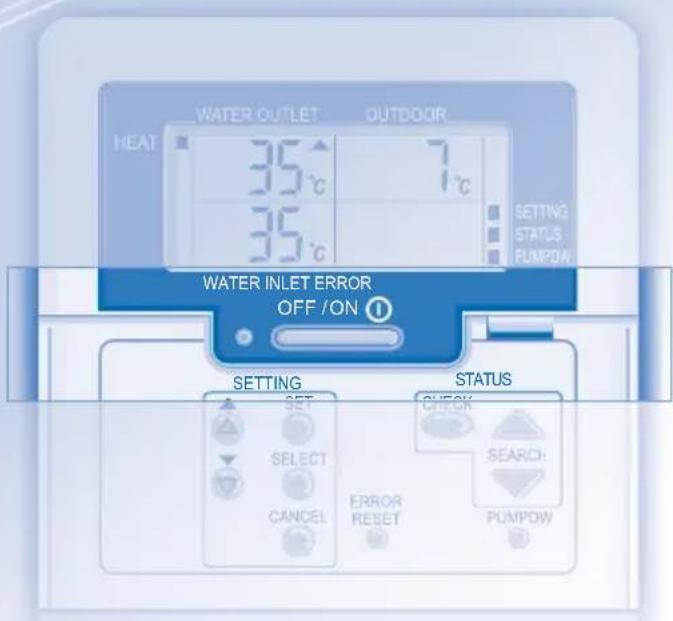

Operatio

• The unit starts by pressing OFF/ON
• When unit is ON, operation LED is lit and the actual temperature for water outlet, water inlet and outdoor ambient are shown on the control panel display.
• Press OFF/ON ① again to stop the operation.

Operation details (Default setting)

• Operation takes place under default settings as follows:

• When Outdoor ambient temperature (Out Lo) is less than 0°C, water outlet set temperature (H2O Lo) is 50°C.

• When Outdoor ambient temperature (Out Hi) is more than 15°C, water outlet set temperature (H2O Hi) is 32°C.

• In between the specified outdoor ambient temperature range (Out Lo and Out Hi), the system will automatically adjust the water outlet temperature between specified range (H2O Lo and H2O Hi).

• Lower outdoor ambient temperature will result in higher water outlet temperature and vice versa.

Optional Settings Optional Settings

Error code reset

• Not usable during normal operation.

System Pump Down

• Not usable during normal operation.
- If accidentally pressed the PUMPDW, press OFF/ON to stop the pump down operation.

- It is strongly recommended to have the authorized dealer to change the water temperature range. The temperature range for water outlet temperature and outdoor ambient temperature could be set by control panel.

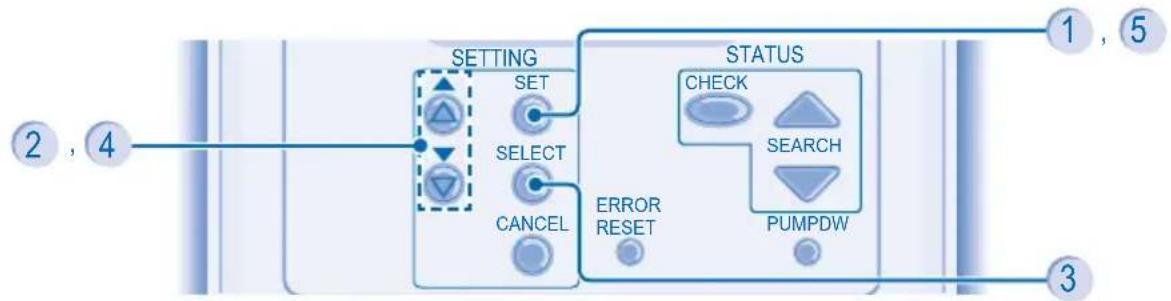

Perform the steps below to set preferred temperature range.

STEP 1: Press

for 5 seconds to enter SETTING mode. "SETTING" indicator is ON.

STEP 2: Press

or to choose a parameter.

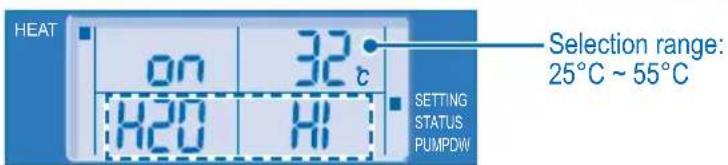

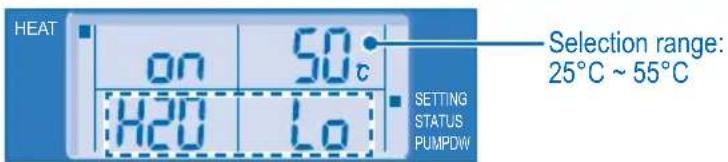

H2O Lo: Water outlet set temperature at low outdoor ambient set temperature

H2O Hi: Water outlet set temperature at high outdoor ambient set temperature

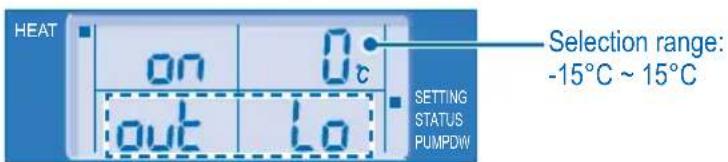

Out Lo: Low outdoor ambient set temperature

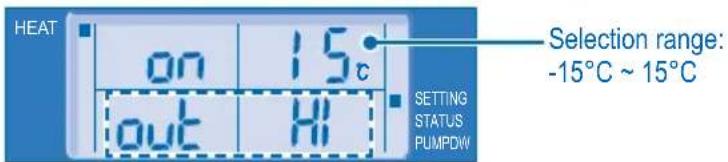

Out Hi: High outdoor ambient set temperature

Note: Please make sure High outdoor ambient set temperature (Out Hi) is always higher than Low outdoor ambient set temperature (Out Lo).

SELECT

STEP 3: After selecting the desired parameter, press parameter is selected.

to enter the parameter. "Indicator will blink when a

STEP 4: Press

or to set the desired temperature.

STEP 5: Press

again to confirm the setting.

• Repeat steps 2 to 5 to set other parameters.
• Press CANCEL or wait 30 seconds to exit SETTING mode.
• The setting temperature will be stored in the system once confirm.
• "SETTING" mode cannot be activated when the "PUMPDW" and "STATUS" indicator is ON.

CARE & CLEANING CARE & CLEANING

CAUTION

- Switch off the power supply before cleaning.

Indoor Unit & Control Panel

• Do not splash water directly.
• Wipe the unit gently with a soft, dry cloth.

External File

External Filter

- Please clean the external filter at least once a year. Fail to do so might cause filter clogged, consequent system breakdown. Please consult authorized dealer.

① 出度差 ^[1]

Outdoor Unit

• Do not obstruct the air inlet and air outlet vents, it may cause low performance or breakdown. Please remove obstacles to assure the ventilation.
• During winter, please clean and remove the snow near outdoor unit so that the snow does no cover the air inlet and air outlet vents.

1. 2017年1月1日

Inspection

• In order to ensure optimal performance of the unit, seasonal inspections on the unit, external filter and field wiring have to be carried out at regular intervals. This maintenance should be carried out by authorized dealer.
• Clear any obstruction at the air inlet and air outlet vents of outdoor unit.

For Extended Non-Use

- Turn off the power supply.

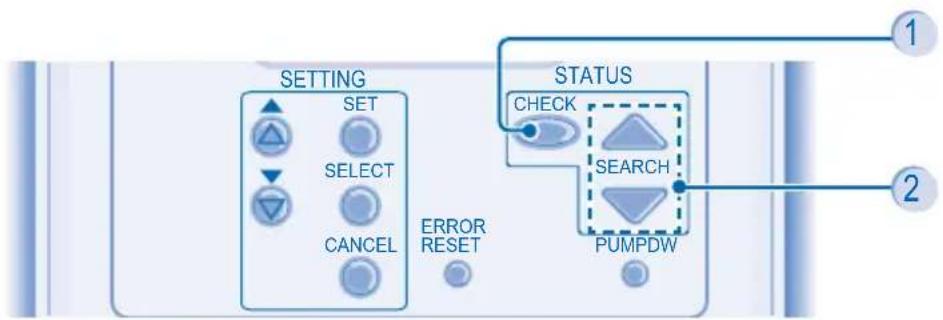

Perform the steps below to check system status

STEP 1: Press

for 5 seconds to enter STATUS mode.

STEP 2: Press

or ▼ to check the Water Inlet Temperature, Tank Temperature, Compressor Running or Error History.

CANCEL

• Press or wait 30 seconds to exit STATUS mode.
• Once STATUS mode is entered, "STATUS" indicator is ON.
• STATUS mode cannot be activated when the "SETTING" indicator is ON.

The following symptoms do not indicate malfunction.

Symptom Cause
Water flowing sound during operation.	• Refrigerant flow inside the unit.
Operation is delayed a few minutes after restart.	• The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
Outdoor unit emits steam during heating mode.	• This is due to defrost operation happens at the heat exchanger.
Outdoor unit does not operate. • When the outdoor temperature is out of the operation condition range, the heatpump system enter protection control.
Air-to-Water Heatpump system operation will turn off.	• If indoor unit water inlet temperature is lower than 20°C. Please set the heater of tank more than 20°C.
System difficult to heat-up.	• When heating is operated by indoor unit together with floor heating or panel heater simultaneously, there may be case where warm water temperature is getting lower and cause floor heating or panel heater heat-up is weaken.• When outdoor air temperature is low, it may be difficult to get warm.• Is the snow pile blocking the discharge outlet or intake inlet of outdoor unit.• When water outlet set temperature is low, it may be difficult to get warm.
System cannot get warm instantly. • Due to the nature of the heatpump system, it may take some time to heat-up the water if the unit is operated from cold-start.
Operation starts after power resumes. • Auto restart is in function and operates under.

Check the following before calling for servicing.

Symptom Check Check
Heating operation is not working efficiently.	Set the temperature correctly.Is the panel heater valve closed.Clear any obstruction at the air inlet and air outlet vents of outdoor unit.
Noisy during operation.	Check if the unit has been installed at an incline or the cover is not closed properly.
The unit does not work.	Check if the circuit breaker is tripped.
Operation LED is no lit or control panel display is blank.	Is the power supply off or power failure.

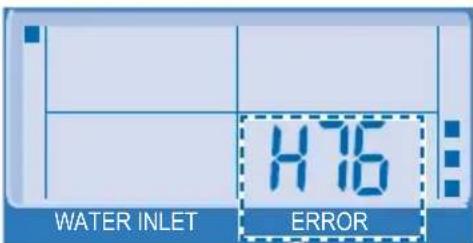

The operation LED blinks and error code appear on control panel display.

- Turn the unit off and reveal the error code to authorized dealer.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the control panel.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
- Switches or buttons are not functioning properly.

Information for Users on Collection and Disposal of Old Equipment

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

INNEHÅLLSFÖRTECKNING

INNEH

SÄKERHETSFÖRESKRIFTER

10\~11

PRODUKTÖVERSIKT

12

GRUNDLÄGGANDE ANVÄNDNING

13

AVANCERAD ANVÄNDNING

14

UNDERHÅLL & RENGÖRING

15

PROBLEMLÖSNING

16

INFORMATION

17

OBS :

VEDLIKEHOLD OG RENHOLD

23

FEILS∅KING

24

INFORMASJON

25

MERKNAD :

The quick brown fox jumps over the lazy dog.

Vanntrykksmåler

10 Modusindikator for systeminnstilling

11 Indikator for varmedrift

- Slå av enheten og informer den autoriserte forhandleren om feilkoden.

KRITERIER HVOR SERVICE IKKE GIS

SLÅ AV STR∅MFORSYNINGEN. Kontakt autorisert forhandler ved følgende omstendigheter:

Start / stop Dri

Flembetjering Or Bedenings

Fjernbetjening Og Betjeningspanel

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany
