Product Type	Upright Freestanding Freezer
Brand	Scandomestic
Model	SFS 352 W
Color	White
Energy Efficiency Class	G
Climate Class	SN, N, ST, T (10°C to 43°C)
Power Supply	220-240V / 50Hz, single phase
Refrigerant	R600a (isobutane), flammable
Lighting	LED light, replaceable by professional only
Temperature Control	Electronic, adjustable from -14°C to -24°C
Super Freeze Mode	Yes, automatic exit after 52 hours
Eco Mode	Yes, sets temperature to -17°C
Door Alarm	Yes, activates after 1 minute open
Child Lock	Yes, press and hold 3 seconds
Standby Mode	Yes, long press Power button
Defrost	Automatic defrost
Ice Maker	Twistable ice tray included
Drawers	Upper, middle (Maxi box), lower freezer drawers
Door Reversible	Yes, instructions provided
Installation Type	Freestanding, not built-in
Spare Parts Availability	Minimum 7 years
Service Contact	Scandomestic A/S, [phone], scandomestic.dk

Frequently Asked Questions - SFS 352 W Scandomestic

How do I set the temperature on my Scandomestic SFS 352 W freezer?

Press the Temp. button repeatedly. The temperature cycles between -14°C and -24°C. The new setting takes effect after 10 seconds of no button press.

What is Super Freeze mode and when should I use it?

Super Freeze rapidly lowers the temperature to -24°C for fast freezing. Activate it at least 24 hours before adding fresh food. It automatically turns off after 52 hours.

Why is the door alarm sounding?

The alarm sounds if the door is open for more than one minute. Press the Alarm button to silence it, or simply close the door. The alarm stops after 10 minutes if left open.

How do I clean the freezer interior?

Unplug the appliance. Remove all food and accessories. Clean with a mild bicarbonate of soda solution, rinse with warm water, and dry thoroughly. Do not use abrasive cleaners or sharp objects.

Does the freezer need manual defrosting?

No, the appliance defrosts automatically. However, if frost builds up (e.g., due to frequent door opening), you may need to unplug, leave doors open, and allow frost to melt. Do not use mechanical tools.

How do I use the twistable ice tray?

Fill the tray with water (not above the max line). Place it in the bracket. When ice cubes form, twist the knobs clockwise to release them into the ice box below.

Can I reverse the door opening direction?

Yes. The door can be changed from left to right. Follow the step-by-step instructions in the manual. Ensure the appliance is unplugged before starting.

How do I replace the LED light?

The LED light should only be replaced by a professional. Contact customer service. If you attempt it yourself, unplug the appliance, remove the light cover, and replace the light module.

What energy-saving tips are recommended?

Keep the door closed as much as possible. Place the freezer away from heat sources. Set the temperature to -18°C for normal use. Do not store warm food. Ensure proper ventilation around the appliance.

What clearances are needed around the freezer?

Allow at least 75mm from the back, 100mm from the top, and 50mm from the sides. The front should have enough space for the doors to open 135°.

USER MANUAL SFS 352 W Scandomestic

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. To avoid contamination and depravity of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the of the appliance.
• Cleaning regularly surfaces that can come in contact with food and is accessible for drainage systems.
• Clean water tanks if they have not been used for 48 h. or more; Flush the water system connected to a water supply if water has not been drawn for 5 days or more.
• Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with, or can drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- This refrigerating appliance is not intended to be used as a built-in appliance.

- Note: When operating in an environment other than the specified climate type (i.e., beyond the rated ambient temperature range), the appliance may not be able to maintain the desirable compartment temperatures.

- How to use the ice-making box. Place the ice-making box in the upper position of the freezer compartment, so that it ices up as soon as possible.

- Lamp type: LED-light. Energy efficiency level: G

• Light source in this product is replaceable only by a professional

DEUTSCHE

Bemærk:

Illustration of a hand holding a cable with a black arrow indicating direction (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion (no text or symbols)

Line drawing of a refrigerator interior with hand holding a tool, showing mechanical parts and directional arrows (no text or symbols)

Diagram showing a device with two curved arrows pointing inward, connected to a box with an arrow indicating rotation (no text or symbols present)

11 Tilslut det elektriske stik (1) i overensstemmelse med trin 3, og installer derefter del (2) (som er i plastposen).

Illustration of a hand holding a small object above a folded document or shelf, with a downward arrow indicating a drop (no text or symbols present)

Diagram showing a hand holding a horizontal bar with an arrow indicating downward motion, next to a structural frame (no text or symbols)

Simple line drawing of a mechanical setup with a lever and base (no text or symbols)

1 Kabinet

2 Hyldelåg

3 Ismaskine

4 Isboks

5 ∅vre fryerskuffe

6 Midterste fryseskuffe (Maxiboks)

7 Händtag

8 Fryserdør

9 Nedre fryserskuffe

Pure geometric diagram showing two rectangles and a curved line with vertical supports (no text or symbols)

Safety and warning informations

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its

operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices.

For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety for children and others who are vulnerable people

According to EN standard

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

According to IEC standard

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Keep all packaging away from children as there is risk of suffocation.

If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.

If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING: This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

WARNING: Do not store explosive substances such as aerosol cans WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Replacing the illuminating lamps

WARNING: The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance.

This warning is only for refrigerators that contain illuminating lamps.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

WARNING: Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.

Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

WARNING: Risk of fire / flammable materials

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Electrical safety

• The power cord must not be lengthened.
- Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
- Make sure that you can access the main plug of the appliance.

- Do not pull the main cable.

- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

- You must not operate the appliance without the interior lighting lamp cover.

The fridge is only applied with power supply of single phase alternating current of 220\~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Daily use

This refrigerating appliance is not intended to be used as a built-in appliance.

Do not store flammable gass or liquids in the appliance,

There is a risk of an explosion.

Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).

When unplugging always pull the plug from the mains socket, do not pull on the cable.

Do not place hot items near the plastic components of this appliance.

Do not place food products directly against the air outlet on the rear wall.

Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.

The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.

Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

Frozen food can cause frost burns if consumed straight from the freezer compartment.

Do not place the appliance in direct sunlight.

Keep buring candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.

The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet. The appliance is heavy. Care should be taken when moving it.

Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Never use the base, drawers, doors etc. to stand on or as supports.

Frozen food must not be refrozen once it has been thawed out.

Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.

To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Care and cleaning

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important!

For electrical connection carefully, follow the instructions given in this manual.

Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.

It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation. Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation.

The appliance must not be locate close to radiators or cookers.

Make sure that the mains plug is accessible after the installation of the appliance.

Service

Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.

This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

If the appliance is Frost Free.

If the appliance contains freezer compartment.

Note: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.(This clause applies only to the EU region.)

Installing your new appliance

Before using the appliance for the first time, you should be in- formed of the following tips.

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the freezer.

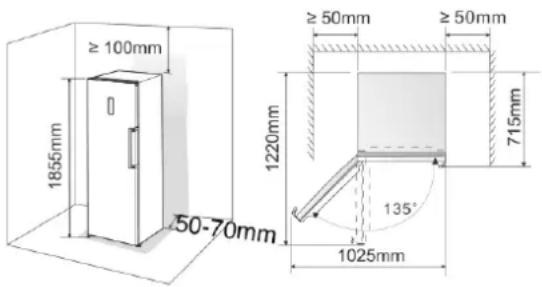

Suggest: It is advisable for there to be at least 75mm of space from the back to the wall, at least 100mm from its top, at least 50mm from its side to the wall and a clear space in front to allow the doors to open 135°.

Note:

This appliance performs well within the climate class showed in the table below.

Climate class	Room temperature
N	from +16°C to +32°C
SN	from +10°C to +32°C
ST	from +18°C to +38°C
T	from +18°C to +43°C

It may not work properly if being left at a temperature above or below the indicated range for a long period.

Leveling of appliance

For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted. You can adjust them manually by hand or by using a suitable spanner.

To allow the doors to self-close, tilt the top backwards by about 10mm.

Stand your appliance in a dry place to avoid high moisture.

Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.

Installing the door handles

1

2

Illustration of a hand holding a cable with a black arrow indicating direction (no text or symbols)

For the convenience of transportation, the door handles are separately provided in a plastic bag, you can install the door handles as follows.

1 Lever screw covers on the right side of the door, and then put them back to the plastic bag.
2 Match the handle on the right side of the door, keeping axes of screw holes in the handle and the door in a line, as the picture shows.
3 Fix the handle with the special screws provided in the plastic bag. And then install the handle covers.

Reversing the door

The side at which the door opens can be changed, from the left side (as supplied) to the right side, if the installation sile requires.

Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

Tools you will need:

• 8 mm socket wrench
  • Cross headed screwdriver
• Small thin blade screwdriver
• 8 mm wrench

Note: Before you start lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps are generally recommended.

1 Stand the refrigerator upright.
2 Open part (1) on top of the refrigerator body from left side and then take down part (3) and part (4) on the door in the same way. Take down part(2) put it back to the plastic bag.

Diagram showing two kitchen appliances with upward arrows indicating movement or assembly (no text or symbols)

3 Disconnect electrical connector (1) as well as electrical con- nector (2) and then take down part (3).

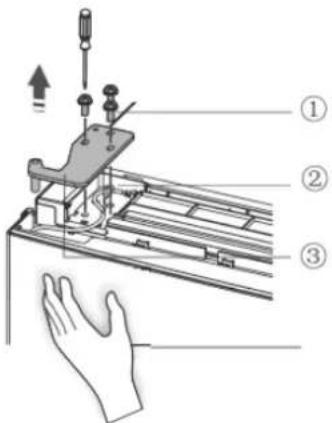

4 Remove the screws (1), loose wire (2), and remove part (3).

Note: Please hold the door by hand during step 4 to prevent door dropping.

5 Remove the door and place it on a smooth surface with its panel upwards. Lever part (1) and part (4), then loose screws (2), as shown in the picture. Change handle (3) to the left side, then install screws (2), part (1) and part (4) in turn. Loose screws (7), detach part (6) and part (5), turn part (6) over and then install part (5) and part (6) to the right side with screws (7).

6 Place freezer flatwise, remove part (3) and then loose screws (4). Remove part (2) and part (1).

7 Screw out lower hinge, change it to the near hole site, and then screw up and mount washer.
8 Just remount to the step 6, change part (1) to right and part (2) to left and then fix them with screws (4). Finally install part (3).

Line drawing of a refrigerator interior with hand holding a tool, showing mechanical parts and directional arrows (no text or symbols)

9 Exchange wires both in the left and right slots of refrigerator body.

Diagram showing a cylindrical device with internal components and an open lid with directional arrows (no text or symbols)

10 Move the door to appropriate position, adjust part (1) (which is in the plastic bag) and the door, Mave the connecting wire (2) in the slot of the door from left to right, and then fix part (1) and wire (2) by screws (3). (Please hold the door by hand when installing)

11 Connect electrical connector (1) in accordance with step 3 and then install part (2) (which is in the plastic bag).

Illustration of a hand holding a small object above a panel with a downward arrow indicating a process (no text or symbols present)

Diagram showing a mechanical assembly with a lever and frame structure (no text or symbols)

12 Reverse part (1) by 180^ and install it onto the left corner of the door, then mount part (2). (both of which are taken down in step 2)
13 Take the reed switch out of the coping block (part (3) in step 3) and mount it on another block for use (which is with mark "L" in the plastic bag). Put the coping block just removed back to the plastic bag.

Note: Be sure character side of reed switch fits well with coping block.

14 Install part (1), connect the wire connector (2), and then install part (3).

Simple line drawing of a mechanical device with a handle and base plate (no text or symbols)

1 Cabinet

2 Flap cover

3 Twist ice maker

4 Ice storage box

5 Upper freezer drawer

6 Middle freezer drawer(Maxi box)

7 Handle

8 Freezer door

9 Lower freezer drawer

10 Freezer door seal

11 Adjustable bottom feet

12 LED light

13 Narrow freezer drawer

14 Glass shelf

15 Shelf bracket

16 Upper shelf

17 Small storage tray (inside)

18 Middle shelf

19 Lower shelf

Note: Due to unceasing modification of our products, your freezer may be slightly different from this instruction manual, but its functions and using methods remain the same.

To get more space in the freezer, you can remove drawers (except lower freezer drawer), installation brackets and intergrated ice maker/twistable ice tray)

Note: To get the best energy efficiency of this product, please place all shelves, drawers and baskets on their original position as the illustration above.

Display controls

Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the control panels showed in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off.

Controlling the temperature

We recommend that when you start your freezer for the first time, the temperature for the freezer is set to -18^ C. If you want to change the temperature, follow the instructions below.

Caution! When you set a temperature, you set an average temperature for the whole freezer cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

Note: High temperature setting will accelerate food waste.

Freezing regulation

In the unlocked state, press "Temp." button, the freezing zone indicator blinks, the freezing set temperature is reduced by 1°C, and the refrigerator temperature is cyclically adjusted between -14°C and 24°C. If you don't continue pressing the button for 10 seconds, the setting takes effect.

Super freeze mode

The super freeze mode lowers the temperature of the box quickly, allowing the food to freeze faster and helping it to keep longer.

The Super Freeze is used to perform pre- freezing and fast freezing in sequence of Freezer compartment. This function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming.

To freeze fresh food activate the Super Freeze function at least 24 hours before placing the food to complete prefreezing.

• In the unlocked state, press the "Super Freeze" button to enter the super freeze mode, the Super Freeze icon is lit and the temperature is set to -24^ .
• Super freeze mode automatically exits after 52 hours.
• When the refrigerator is running in super freeze mode, pressing the "Temp." button will exit the super freeze mode, and after exiting, the refrigerator runs at the original set temperature

Eco mode

When you're away on vacation and don't need to use the refrigerator, you can turn it to

Eco mode to save on electricity.

In the unlocked state, press the "Eco" button to enter the Eco mode, the Eco icon is lit and the temperature is set to -17°C.

In Eco mode, press the "Temp." button will exit it and after exiting, the refrigerator runs at the original set temperature.

Alarm

Door alarm function

• An alarm beeps if a refrigerator door is open for more than one minute in a row, starting with the first alarm, it will ring three times every other minute for ten minutes, the alarm icon flashes and the display screen shows dr. In the unlocked state, press the "Alarm" button at this time to release the door alarm, the buzzer stops beeping, the alarm icon is always lit, and the display screen shows normal.
• After the door alarm time exceeds more than ten minutes, the buzzer stops beeping, the alarm icon is off, and the display screen shows normal.
• To save energy, avoid opening the refrigerator for long periods of time. Door alarm can be cancelled by closing the door, the buzzer stops beeping, the alarm icon is off, and the display screen shows normal.

Over temperature alarm

• If the refrigerator is turned on again after being out of use for a period of time, the refrigerator may have an over-temperature alarm and the beeping starting from the first alarm, and will ring three times every other minute for ten minutes. In the unlocked state, press the "Alarm" button at this time to release the alarm and the alarm icon is always lit.
• When the over-temperature alarm time exceeds more than ten minutes, the buzzer stops beeping, the alarm icon flashes. In the unlocked state, press the "Alarm" button at this time to release the alarm and the alarm icon is always lit.
• When the refrigerator works normally for a period of time, the over-temperature alarm will automatically cancel, the buzzer stops beeping and the alarm icon goes out.

Standby mode

• When the refrigerator is not in use for the time being, you can press the "Power" button to standby.
• When the refrigerator is in working condition and unlocked, long press the "Power" button for 3 seconds, the refrigerator will standby and the display will show OFF.
• Important note! Do not store food in the refrigerator at this time after the refrigerator is turned off via the power button.
• When the refrigerator is in standby mode and unlocked, long press the "Power" button for 3 seconds, the refrigerator will turn on and the display will show normally.

Unlock

• When the refrigerator lock icon is lit, the refrigerator is locked.
• Press and hold the "Child Lock" button for about 3 seconds, the refrigerator lock icon is off, and the lock is released. At this time, you can operate the mode and set the temperature, cancel the alarm, standby mode.
• No button operation for about 20 seconds, and the button will be locked automatically.
• No button operation for about 60 seconds, the display will be off and can be resumed by tapping any button at this time.

Using your appliance

Your appliance can have accessories as the "Description of the appliance" showed in general, with this part instruction you can use it in the right way.

Flap cover

You can turn the flap cover upwards when you want to take out the food in the top chamber.

Before you open or close the flap cover, you must lift it to the guide track first. Then, the flap cover can slide along the guide track to the top or the bottom.

Small storage box

It's used to store food with small size which needs to be frozen, including ravioli, dumpling, frozen dessert, etc.

It can only be put into the Maxi box (the uppermost one) or the upper drawer.

Freezer Drawer

It is used to store food which needs to be frozen, including meat, fish, ice cream, etc.

Twistable ice tray

Note: If the ice tray is used for the first time or has not been used for a long time, please clean it before using.

The twist ice tray is used to make and deposit ice cubes. You should use it as follows.

1 Pull out the twistable ice tray from the installation bracket.
2 Pour water into the ice trays and the water level shall not exceed the maximum line.
3 Place the filled ice tray back to the bracket.
4 When ice cubes form, twist the knobs clockwise and the ice will drop into the ice box below.
5 Ice cubes can be stored in the ice box, if you need them, you can pull out the ice box and take them out.

Installing refrigerators in pairs

Your freezer can be installed with fridge in pairs.

It can be installed by installation parts supplied like this.

Pure geometric diagram showing two adjacent rectangles with curved lines and vertical supports (no text or symbols)

Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter.

Helpful hints and tips

Energy saving tips

We recommend that you follow the tips below to save energy.

• Try to avoid keeping the door open for long periods in order to conserve energy.
• Ensure the appliance is away from any sources of heat. (Direct sunlight, electric oven or cooker etc.)
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.
• Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter.
• If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration

Hints for fresh food refrigeration

• Do not place hot food directly into the freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavor.
• Place food properly so that air can circulate freely around it.

Hints for freezing

• When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminum foil or polyethylene food wraps which are airtight.
• Do not allow fresh/unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
• Iced products if consumed immediately after removal from the freezer compartment, will probably cause frost burns to the skin.
• It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for the storage of frozen food

• Ensure that frozen food has been stored correctly by the food retailer.
• Once defrosted, food will deteriorate rapidly and should not be refrozen. Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the ap- pliance.

1 Remove all food.
2 Remove the power plug from the mains socket.
3 Clean and dry the interior thoroughly.
4 Ensure that all the doors are wedged open slightly to allow air to circulate.

Cleaning and care

For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.

Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

• To maintain good appearance of your appliance, you should clean it regularly.
• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.

Caution!

• Don't use sharp objects as they are likely to scratch the surface.
• Don't use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

• You should clean the appliance interior regularly. It will be easier to clean when food stocks are low.
• Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth.
• Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts. Although this appliance automatically defrosts, a layer of frost may occur on the freezer's interior walls if the door is opened frequently or kept open too long. If the frost is too thick, choose a time when the supply of food stocks are low and proceed as follows:
• Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.
• Caution! Don't use sharp objects to remove frost from the freezer. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.

Door seal cleaning

• Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.
- Caution! Only after the door seals are completely dry should the appliance be powered on.

Replacing the LED light

Warning: The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, the below steps can be followed:

1 Unplug your appliance.
2 Remove light cover by pushing up and out.
3 Hold the LED cover with one hand and pull it with the other hand while pressing the connector latch.
4 Replace LED light and snap it correctly in place.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service.

Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Appliance is not working correctly

• Check whether the power cord is plugged into the power outlet properly.
• Check whether the "Power" function is on by pressing the "power" button for 1 second.
• Check the fuse or circuit of your power supply, replace if necessary.

The ambient temperature is too low.

• Try setting the chamber temperature to a colder level to solve this problem.
• It is normal that the freezer is not operating during the auto-matic defrost cycle, or for a short time after the appliance is switched on to protect the compressor.

Odours from the compartments

• The interior may need to be cleaned.
- Some food, containers or wrapping cause odours.

Noise from the appliance

The sounds below are quite normal:

• Compressor running noises.
  • Air movement noise from the small fan motor in the fridge compartment or other compartments.
  • Gurgling sound similar to water boiling.
• Popping noise during automatic defrosting.
• Clicking noise before the compressor starts.

Other unusual noises are due to the reasons below and may need you to check and take action:

• The cabinet is not level.
• The back of appliance touches the wall.
• Bottles or containers fallen or rolling.

The motor runs continuously

It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances:

• Temperature setting is set colder than necessary
- Large quantity of warm food has recently been stored within the appliance.
• The temperature outside the appliance is too high.

Doors are kept open too long or too often.

• After your installing the appliance or it has been switched off for a long time.

A layer of frost occurs in the compartment

Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure that door is fully closed. To remove the frost, please refer to cleaning and care chapter.

Temperature inside is too warm

You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top.

Temperature inside is too cold

Increase the temperature by following the "Display controls" chapter.

Doors can't be closed easily

Check whether the top of the freezer is tilted back by 10-15mm to allow the doors to self close, or if something inside is prevent-ing the doors from closing.

Water drips on the floor

The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water into this pan, or the water spout is blocked. You may need to pull the freezer away from the wall to check the pan and spout.

The light is not working

• The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter.
• The control system has disabled the lights due to the door being kept open tao lang, close and reopens the door to reactivate the lights.

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1 Pull out the mains plug from the mains socket.
2 Cut off the power cord and discard with the mains plug.
Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professional ly as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Correct Disposal of this product

This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could

otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council your household waste disposal service, or the shop where you purchased the product.

To avoid contamination of food, please respect the following instructions

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Order	Compartments TYPE	temp.[°C] Target storage	Appropriate food
1 Fr	idge	+2~+8 Eggs,	cooked food, pack- aged food, fruits and veg- tables, dairy products, cakes, Drinks and other foods which are not suitable for freezing.
2 (***)*-Freezer		≤-18	Seafood (fish, shrimp, shell- fish), freshwater aquatic products and meat prod- ucts (recommended time is 3 months – nutrition values and taste decrease with time), suitable for frozen fresh food.
3 ***	-Freezer	≤-18	Seafood (fish, shrimp, shell- fish), freshwater aquatic products and meat prod- ucts (recommended time is 3 months – nutrition suitable for freeing fresh food. values and taste de- crease with time). Not
4 **-Freezer		≤-12	Seafood (fish, shrimp, shell- fish), freshwater aquatic products and meat prod- ucts (recommended time is 2 months – nutrition values and taste decrease with time). Not suitable for freeing fresh food.
5 *-Freezer		≤-6	Seafood (fish, shrimp, shell- fish), freshwater aquatic products and meat prod- ucts (recommended time is 1 month – nutrition values and taste decrease with time). Not suitable for freeing fresh food.
6 0-st	ar	-6~0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Re- ommended to eat within the same day, preferably not later than 3 days).

			Partially packed/wrapped up encapsulated processed foods (non-freezable foods)
7	Chill	-2 ~+3	aquatic products, etc.(7 days below 0 °C and Fresh/frozen pork, beef, chicken, freshwater above 0 °C is recommended for consumption within that day, preferably no mo re than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 °C)
8	Fresh Food	0~+4	Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no mo re than 3 days)
9	Wine	+5~+20	red wine, white wine, sparkling wine etc.

Note: please store different foods according to the compartments or target storage temperature of your purchased products.

If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Water dispenser cleaning (special for water dispenser products):

Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

WARNING! Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean.

CE declaration of conformity

This appliance has been manufactured to the strictest standards and complies with all applicable legislations, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA declaration of conformity

This appliance has been manufactured to the strictest standards and complies with all applicable legislation.

Light

• Lamp type: LED-light. Energy efficiency level: G
  • Light source in this product is replaceable only by a professional

Hinweis:

Diagram showing a hand holding a device next to a vertical panel with an arrow indicating direction (no text or symbols present)

Diagram showing two kitchen appliances with upward arrows indicating movement or assembly (no text or symbols)

Line drawing of a refrigerator interior with hand holding a tool, showing mechanical parts and directional arrows (no text or symbols)

Diagram showing a device with curved arrows indicating motion or flow, next to an open refrigerator (no text or symbols)

Illustration of a hand holding a small object above a panel, with a downward arrow indicating a drop (no text or symbols present)

Diagram showing a hand holding a tool above a frame, with an arrow indicating direction (no text or symbols present)

Pure geometric diagram showing two rectangles intersected by a curved line, with no text or symbols

Kommentar:

Illustration of a hand holding a device with a black arrow indicating direction (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion, no text or symbols present

2

3

Diagram of a refrigerator interior with hand holding a tool, showing mechanical parts and directional arrows (no text or symbols)

Diagram showing a cylindrical device with internal components and an open lid with directional arrows (no text or symbols)

Illustration of a hand holding a small object above a folded document or shelf, with a downward arrow indicating a drop (no text or symbols present)

Diagram showing a mechanical assembly with a lever and a bracket, no text or symbols present

Simple line drawing of a mechanical device with a handle and base plate (no text or symbols)

Pure geometric diagram of two adjacent rectangles with curved lines, no text or symbols present

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: SFS 352 W

Aftersales service station list:

Address Scandomestic A/S
Contact Number 7242 5571
Website Scandomestic.dk
QR code 416789
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	7 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

EU DECLARATION OF CONFORMITY

Name and address of the manufacturer or his authorise

Scandomestic A/S

Linåvej 20

8600 Silkeborg

Denmark

This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):

Scandomestic A/S

Linåvej 20

8600 Silkeborg

Denmark

References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:

EN ISO 17050-1: 2004

Additional information:

The appliance is intended exclusively for households and for storing food

Object of the declaration

(identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)

White refrigerator with open doors showing shelves (no visible text or labels)

Model number

(unique identification of the product):

SFS 352 W

Product:

Upright Freestanding Freezer

Brand:

Scandomestic

Colour:

White

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

EU 2019/2019+EU 2019/2016, EN 62552-1:2020, EN 62552-2:2020, EN 62552-3:2020, EN 60704-2-14:2013+A11:2015+A1:2019, EN 60704-1:3020+A11:2012, EN 60704-3:2019, EN 55014-1:2017, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55014-2:2015, EMC 2014/30/EU, EN 62233:2008, EN 60335-2-24:2010+A1:2019+A2:2019, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019, IEC 60335-2-24:2010, AMD1:2012, AMD2:2017, IEC 60335-1:2010, COR1:2010, COR2:2010, AMD1:2013, COR1:2014, AMD2:2016, COR1:2016, LVD 2014/35/EU, REACH 1907/2006, RoHS 2011/65/EU

scandomestic

Denmark - CVR. No.: 29774242

Phone: [phone]

[e-mail]
