Product Type	Freezer
Brand	Scandomestic
Model	SFS163WE
Climate Class	SN (10°C to 32°C)
Refrigerant	R600a (isobutane)
Temperature Range	-16°C to -24°C (adjustable)
Fast Freezing Function	Yes (26 hours cumulative)
Door Alarm	Yes (activates after 3 minutes)
Power-Cut Memory	Yes
Power-On Delay	Yes (5 minutes)
Defrosting Type	Automatic and Manual
Interior Lighting	None
Installation Type	Freestanding
Minimum Clearance Above	30 mm
Warranty Period	12 months (minimum)
Spare Parts Availability	7 years
Energy Compliance	E.E.C. Directives
Accessories Included	Ice cube tray, Freezer element
Control Panel	Electronic with SET key
Door Swing Reversible	Yes
Leveling Feet	Yes, adjustable

Frequently Asked Questions - SFS163WE Scandomestic

How do I set the temperature on my Scandomestic SFS163WE freezer?

Press the SET key repeatedly to cycle through temperature modes: -16°C, -18°C, -20°C, -22°C, -24°C. The selection is confirmed after 5 seconds of no key operation.

What is the super freeze function and how do I use it?

The super freeze (fast freezing) function rapidly lowers the compartment temperature to preserve food nutrition. It runs for a cumulative 26 hours then automatically exits. To enable, refer to the control panel instructions.

How do I defrost the freezer?

The freezer has an automatic defrost program. To manually initiate defrost, press and hold the SET key for 15 seconds until all mode indicator lights illuminate; defrost heating starts. Defrost will end automatically or you can stop it by pressing SET again.

What should I do if the door alarm sounds?

The door alarm activates if the door remains open for more than 3 minutes. You can temporarily silence it for 3 minutes by pressing any key. The alarm stops when the door is closed.

How do I clean the freezer?

Unplug the appliance, remove all food, wait for frost to thaw if needed, then clean interior with a soft cloth and lukewarm water with mild dish soap. Dry thoroughly. Do not use abrasive cleaners or scouring pads. Clean the drain hole regularly to avoid overflow.

What happens if there is a power failure?

The freezer has a power-cut memory function. When power is restored, it will resume the previous operating state. Additionally, a power-on delay protects the compressor: if power returns within 5 minutes, the compressor will not start immediately to prevent damage.

How do I reverse the door swing?

Unplug the freezer. Remove hinge covers, upper hinge screws, and lift off the door. Remove lower hinge and transfer the pin shaft to the opposite side. Install the lower hinge on the left side. Move door bushing and hole covers accordingly. Reattach the door and adjust hinge to ensure proper seal. Full instructions are in the manual.

What are the normal operating sounds of the freezer?

Common sounds include a light hum from the compressor, gargling/rippling from coolant circulation, clicks when the compressor starts/stops, and slight background noise if the fan is running. These are normal and not cause for concern.

Why is my freezer not cooling enough?

Check if the temperature is set correctly. If you have just placed a large amount of food, it takes time to cool. Avoid frequent or prolonged door openings. Also ensure the door seals properly and the ventilation openings are clear. If the problem persists, contact a qualified technician.

How should I store frozen food for best quality?

Maintain temperature at -18°C or below. Pack food airtight using freezer-approved materials (film, foil, bags). Label with contents and date. Do not refreeze thawed food. Follow recommended storage times: fruits/vegetables 10-12 months, meat 4-12 months depending on type, fish 1-6 months.

USER MANUAL SFS163WE Scandomestic

Pure electrical circuit lines without any symbols

Recycling symbol with three arrows forming a triangle (no text or numbers)

Pure electrical circuit lines without any symbols

genbrugsstationer information skal

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a knob with bidirectional arrow indicating rotation (no text or symbols)

Silhouette of a customer wearing a headset and using a laptop with a signal icon (no text or symbols)

• Read this user manual before using the product for the first time. It will help it properly and extend its life.
• Save the user manual for later use if this should become necessary and ensure are followed if the product changes hands.

This user manual contains safety instructions, operating instructions, installation instruction troubleshooting tips, etc.

Before calling for service:

• Review the troubleshooting tips section. This will help you solve some of the yourself.
• If you cannot solve the problems yourself, call for help from professional techn

When you call:

Must you state the full reference of the device (model, type, serial number). This rating plate attached to the appliance. It can be placed both inside the product must state where and which retailer the product was purchased from, as well as

Unauthorized calling of technical service:

Before service is called, the possible errors are checked, it is possible to rectify demand for rectification is unjustified, it is the customer's responsibility to pay the with calling for service.

Right of complaint for household use:

The complaint deadline covers only brand new products purchased in Denmark. The valid according to the legislation from the date of purchase, when a receipt, bill presented, from which the date of purchase appears. The right to complain only material or workmanship. Functional failure of the products due to installation cond covered by the right of complaint. The right of complaint does not restrict the to the legislation.

The right to complain does not include:

• Normal wear and tear, faults or damages caused directly or indirectly as a re-mishandling, abuse, careless handling, insufficient maintenance, faulty installation, inst connection, voltage variations or electrical disturbances or by repairs carried out Scandomestic A/S authorized technicians.
• Faults or damage resulting from commercial or other use of products intended households.
• Compensation for any consequential damage, including damage to other objects, etc., unless otherwise determined by law.

Transport damage:

Transport damage that is detected at the time of the dealer's delivery to the client matter between the customer and the dealer. In cases where the customer himself responsible for the transport of the product, the supplier assumes no obligations in transport damage. Possibly. Transport damage must be reported immediately and no hours after the item has been delivered. Otherwise, the customer's claim may be

Important!

Please be aware that, as a result of constant development and updating of the manufacturer may make changes without prior notice.

This is an original manual

Safety instructions

Your safety and that of others important.

Please read this user manual carefully before using for your own safety and that of others. To avoid mistakes and accidents, it is important to ensure who uses the product is familiar with its operatic features. Keep the user guide and ensure that it the product if it is moved or sold so that all product throughout its life are properly informed a product's use and safety.

For safety reasons, the safety rules in this user observed, as the manufacturer is not responsible for caused by omission. All safety messages will be for safety word which may be “DANGER”, “WARNING” “CAUTION.”

These words mean:

DANGER

An imminently dangerous situation. Serious injury or may result if instructions are not followed immedia

WARNING

A potentially hazardous situation which, if not avoi result in serious injury or death.

CAUTIOUS

A potentially hazardous situation that could result or minor injuries if the situation is not eliminated

All safety messages tell what the potential hazard reduce the risk of injury and what can happen if instructions are not followed.

Safety of children and vulnerable people

- This product can be used by children aged 8 above. Persons with reduced physical, sensory or capabilities and lack of experience and knowledge the product if they have been given supervision instruction in using the product in a safe way understand the potential hazards.

• Children must be supervised to ensure that the with the product.
• Cleaning and maintenance must not be carried children under the age of 8 and only under s
• Keep all packaging far away from children. The suffocation.
• If you dispose of the product, pull the power socket. Cut the connection cable (as close to t possible) and remove the door to prevent children getting electric shocks or being trapped inside.
• If this product is to replace an older product latch (latch) on the door or lid, be sure to latch unusable before disposing of the old product prevents the product from becoming a potential for a child.

General safety

WARNING! Keep ventilation openings in the product in the built-in structure clear of obstructions.

WARNING! Do not use mechanical devices or other speed up the defrosting process.

WARNING! Always follow the manufacturer's instructi the defrosting process.

WARNING! Do not use pointed or sharp objects to frost and ice from the freezer.

WARNING

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (makers) inside the product unless approved by the manufacturer.

WARNING! Do not touch the bulb if it has been time, as it may be very hot.

WARNING! When placing the product, ensure that cord is not pinched or damaged.

WARNING! Portable multi-sockets can overheat during and cause a fire. Therefore, never place portable behind the product.

WARNING! Do not store explosive substances, e.g. cans with flammable propellant in this product.

WARNING! The product contains the refrigerant isok (R600a). It is a natural gas that neither damages layer nor increases the greenhouse effect. It is fla can ignite if leaked.

• Ensure that none of the components of the circuit are damaged during transport and install product.
• Avoid open flames and sources of ignition. Tho ventilate the room where the product is located
• It is dangerous to modify this product in any damage to the cord may cause a short circuit, electric shock.
• This product is intended to be used in house applications such as:

- staff kitchens in shops, offices and other work environments.

- farms and by customers in hotels, motels and residential environments.

- bed and breakfast.

- catering.

- All electrical components (plug, power cord, com etc.) must only be replaced by an authorized s or qualified service personnel.

- The bulb supplied with products with light is that can only be used with the supplied produce be used for other household lighting.

- The power cord must not be extended.

- Make sure the power plug is not pinched or back of the product. A pinched or damaged pl overheat and cause a fire.

• Make sure you can get to the product's power

- Do not pull on the power cord.

- If the power plug is loose, do not insert the risk of electric shock or fire.

- You must not operate the produkt in a dark

- This product is heavy. Therefore, care must be moving and installing it.

- Do not remove or touch items from the freez hands are damp/wet as this may cause frostbite damage.

- Avoid exposing the product to direct sunlight.

Daily use

• Do not place hot food or hot objects in the
• Do not place food directly against the rear wa
• Frozen foods must not be refrozen once they thawed.
• Store prepackaged frozen food in accordance with instructions on its packaging.
• The product's storage recommendations must be observed. See relevant instructions on the packag
• Do not place carbonated beverages in the free carbonation creates pressure on the container, which cause it to explode and cause damage to the
• Popsicles can cause frostbite if eaten directly from freezer.
• Observe the following instructions to avoid food poor shelf life:
• Opening the door for long periods can cause a increase in the temperature in the product's cor
• Regularly clean all surfaces that may come into food.
• Clean water tanks (if applicable) if they have in for 48 hours. Flush the water system connected supply if no water has been suctioned for 5
• Store raw meat and fish in suitable containers refrigerator so that it does not come into cont drip onto other foods.
• Two-star freezer compartment (if available in the suitable for storing pre-frozen foods, storing or cream and making ice cubes.
• One-, two- and three-star compartments (if present in the

product) are not suitable for freezing fresh food

- If the product is left empty for long periods, product, defrost, clean and leave the door open bacteria and fungus from developing inside the

Care and cleaning

• Before maintenance, the product must be switch the power plug removed from the socket.
• Do not clean the product with metal objects.
• Do not use sharp objects to remove frost from Use a plastic scraper.
• Regularly check the drain in the refrigerator for water. If necessary, clean the drain.
• If the drain is blocked, water will accumulate of the product, which may run the risk of sp floor.

Installation

Important! Follow the instructions in the specific e connection section carefully.

• Unpack the product and check for damage. Do the product if it is damaged. Immediately report damage to the place of purchase. In that case, keep the packaging.
• It is recommended to wait at least 4 hours before connecting the product so that the oil can flow compressor.
• There should be sufficient air circulation around to avoid overheating. To achieve adequate ventilation

follow the instructions relevant to the installation product.

• The product must not be placed close to heat as radiators, stoves or stoves.
• Make sure the power plug is accessible after product.

Service

• All electrical work or service should be carried qualified electrician or competent person.
• This product must be serviced by an authorized center and only original spare parts must be used

Energy saving

• Do not place hot food in the product.
• Do not pack food too close to each other as proper air circulation.
• Ensure that food does not touch the back of compartment.
• If the power goes out, do not open the doo
• Do not open the door(s) too often, as this may be temperature inside the product.
• Do not keep the door(s) open for too long;
• Do not set the thermostat to exceed the recc temperatures.

This manual is machine translated

Correct disposal of this product

Pure electrical circuit lines without any symbols

The symbol on the product or on its packaging indicates that it is not be treated as household waste. Instead, it must be handed appropriate collection point for the recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, to prevent potential negative consequences for the environment and health. For more detailed information on recycling this product, your local authority, your household waste center or the store

purchased the product.

Warnings for disposal

Refrigerant and insulating materials are flammable. When the product is scrapped, be kept away from any source of fire. When the refrigerator is to be scrapped and the gasket of the door and shelves are removed. Place the doors and she away from the product to prevent a child from being trapped.

Environmental protection

This product does not contain ozone-depleting gases in its refrigerant circuit or in. The product must not be disposed of together as household waste. The insulating flammable gases: the product must be disposed of according to the product's reg damaging the cooling unit, especially the heat exchanger.

Packaging materials

Recycling symbol with three arrows forming a triangle (no text or numbers)

Materials with this symbol are made from environmentally friendly that can be recycled. By disposing of the packaging correctly in applicable regulations, you help to protect the environment.

WARNING!

The packaging can be dangerous for children!

Plastic parts are marked with the international standard abbreviations:

PE - polyethylene, e.g. the wrapping film

PS - polystyrene, e.g. the upholstery material

POM - polyoxymethylene, e.g. plastic clip

PP - polypropylene, e.g. the salt funnel

ABS - acrylonitrile-butadiene-styrene, e.g. control panel.

Electrical and electronic equipment (EEE) contains materials, components and substandard dangerous and harmful to human health and the environment when waste electric equipment (WEEE) is not disposed of properly.

Pure electrical circuit lines without any symbols

Products marked with this symbol are electrical and electronic eq crossed-out dustbin symbolizes that waste from electrical and elect equipment must not be disposed of together with unsorted house, but must be collected separately.

To this end, all municipalities have established collection schemes electrical and electronic equipment can be handed in free of ch

recycling stations or other collection points or collected directly from households. I must be obtained from the municipality's technical administration.

WARNING!

Warning symbol of a flame inside a triangle (no text or numbers)

During use, service and disposal of the product, pay attention to the left side, which are usually located on the back of the pre-compressor) and are yellow or orange in color. It is the warning hazard. There are flammable materials in the refrigerant piping and please keep far away from fire sources during use, service and

Transport instructions

The product may only be transported upright. The delivered packaging must be in transport.

If the product was laid down during transport, it must not run for the following system to settle after the product has been returned to the correct position.

Failure to follow the above instructions may result in damaging the product. The be held responsible if these instructions are ignored. The product must be protect moisture and other atmospheric influences.

IMPORTANT: Care must be taken when cleaning / lifting the product to avoid touching the capacitor's metal wires at the back of the product as you may injure your fingers and have a product.

IMPORTANT: This appliance is not intended to be stacked with other appliances. Do not attempt to sit or stand on top of your device as it is not intended for such use. You may product.

IMPORTANT: Make sure that the power cable is not stuck under the product du transporting / moving the product to avoid the power cable being cut, broken o When placing your appliance, be careful not to damage your floor, pipes, wall co move the product by pulling the lid or handle. Do not allow children to play tamper with the settings. Our company declines any responsibility if the instructions

Before use

Before using the product, you must do the following:

• Remove all packaging from the product and dispose of it in accordance with
• If the side walls and doors are covered with protective film, this must also
• Thoroughly examine the product for any transport damage after unpacking. In the complaints, you must contact the retailer where you purchased the product.
• Clean the inside of the product and accompanying accessories (see section on

Location

Setup

The product must be placed in a dry and well-ventilated room, far away from radiators, ovens and direct sunlight. If this is not possible, we recommend that y board and keep a minimum distance to the heat source of:

• Stoves and ovens, 3 cm.
• Wood-burning stoves, 30 cm.

The product must stand stable and level. The floor under the product must not this is the case, the floor must be reinforced.

Ventilation

During operation, the cabinet emits heat to the surroundings. The hot air must be otherwise the compressor will have to work more, which will result in increased You must never cover the ventilation openings.

See under section "Installation" for more information on space requirements for the

Room temperature and climate class

The product is intended to stand in a certain climate class. Set it up in a pla temperature corresponds to the product's climate class, which is indicated on the

SN (Extended Temperate):

This refrigerator/freezer is intended for use at an ambient temperature between 10

N (Tempered):

This refrigerator/freezer is intended for use at an ambient temperature between 16

ST (Subtropical):

This refrigerator/freezer is intended for use at an ambient temperature between 16

T (Tropical):

This refrigerator/freezer is intended for use at an ambient temperature between 16

Note! The product is fully functional within the temperature range from the state operation in a temperature range other than the specified climate class, the product maintain the desired temperatures or be fully functional.

Leveling the product

Simple line drawing of a knob with bidirectional arrow indicating rotation (no text or symbols)

The product must stand stable and level. Leveling is important for the product to close and seal the doors properly. If you experience problems with the product not working properly, it may be because it is simply standing unevenly.

Accurate leveling is ensured by adjusting the leveling feet at the bottom of the product. Something can also advantageously be put in underneath to compensate for unevenness.

Connect the product

After installation, you should wait at least 4 hours before switching on the product and putting it into use. This is because during transport it may happen that some of the oil from the compressor flows into the cooling system.

The product should be thoroughly cleaned inside before it is used for the first time (read more under section on Cleaning).

Before connecting, check that the voltage and frequency indicated on the rating plate correspond to your home power supply. The product must be grounded. The power supply cable is equipped with a plug for this purpose. If the household outlet is not earthed, the product must be connected to a separate earth connection in accordance with current regulations and a qualified electrician must be contacted.

The manufacturer disclaims any responsibility if the above safety measures are not observed.

This product complies with the E.E.C. Directives.

Save energy

Here are some good tips on how you can save energy:

• Make sure the food is cold before placing it in the refrigerator or freezer compartment.
- Frozen goods can be advantageously placed in the refrigeration department for thawing. Thereby, the cold from the frozen food is utilized.
- Make sure to place the product in a dry and ventilated room. It must not be left in direct sunlight or near heat sources.
- Frost increases energy consumption and the freezer compartment should therefore be defrosted regularly. A rule of thumb is that when there is 10mm . frost, the freezer should be defrosted.
- Do not open the door of the freezer or refrigerator compartment more than absolutely necessary.

Changing the lamp

The LED lamp is used by the refrigerator for lighting, which features low energy consumption and long service life. In case of any abnormality, please contact the after-sales personnel for visiting service. The lamps can only be replaced by the manufacturer.

Lighting (LED)
	Lamp type: No lightEnergy Efficiency Class (Light): NoneThe light source in this product can only be replaced by a professional.

Cleaning the product

Below is a general description of how to clean your product.

Before using the product for the first time, the interior and all interior accessories washed.

For hygienic reasons, the interior of the product, including internal accessories, sho regularly.

Course of action

• Switch off the product/pull out the power plug.
  • Take all frozen-/ refrigerated food out of the product and put them in a cc
• For the freezer compartment, wait until the frost layer has thawed.
• Use a soft cloth and lukewarm water with a little ph-neutral dish soap to c
  • Dry the product thoroughly.
• All door seals and the like must be washed with clean water and then drie
  • After cleaning: connect the product and switch it on.
• Put the frozen- and refrigerated food back into the product.

Important!

• Do not use abrasive cleaners such as sand, chloride or acidic cleaners and sc
• Do not use steel or scouring sponges as these can scratch the surfaces.
• Shelves and drawers must not be washed in the dishwasher as they may be
  Warning! the product must not be connected to the mains during cleaning.

Danger of electric shock! Before cleaning, the product must be switched off or the plug removed from the socket. Never clean the product with a steam cleaner.

Danger of electric shock! Moisture can accumulate in electrical components. Hot vapors can lead to damage to plastic parts. The product must be dry before it is used again.

Drain hole cleaning

To avoid defrosting water overflowing into the product, you must regularly clean refrigerator. Use a cloth and mild detergent to clean the hole.

Smell

If you experience an unpleasant odor from your product, you can do the followi

• Switch off the product/pull out the power plug.
  • Empty the product of food.
• Wipe all packaging with a cloth.
• Food that has a strong odor is wrapped in airtight packaging to prevent odo
• Switch the product back on and place the food back in the cabinet.
• Keep an eye on whether a new smell develops in the cupboard afterwards.

Defrosting of the product

Below is a general description of how to defrost your product.

Refrigerated products

Over time, frost can form on the back wall of the refrigerator. This is complete by the water in the air in the refrigerator.

The refrigerator compartment is designed to automatically defrost. The ice on the and run via the defrost water channels and the drain hole into the evaporation from the compressor will evaporate the water.

Note! Always make sure to keep the defrost water gutters and drain hole clear passage of the thawed water.

Freozen products

Frost will form in the freezer over time. Unless the freezer section has the Nol not defrost automatically. Rhymes are perfectly normal. It is important that the free energy consumption increases the more frost there is. In addition, frost also has the performance of the freezer.

Beware! Sharp objects and knives must not be used to remove frost or ice. This can damage the inside of the products and refrigerant piping.

Course of action:

• Switch off the product/pull out the power plug.
  • Take the food out and put it in a cool place (possibly in a cool bag with
• Remove the shelves, drawers and similar (does not apply to all models).
• Keep the door or lid open and place a bowl or similar so that it can col of the product.
• When there is no more ice in the product, defrosting is complete and the i dried.
• Connect the product and switch on the product.
• Let the product run until it reaches the recommended temperature.
• Put the food back.

In case of prolonged non-use

If the product is not to be used for an extended period of time, you must:

• Switch off the product/pull out the power plug.
  • Take the food out.
• Clean the product (See section on Cleaning).
• Leave the door open to avoid bad odors developing.

Instructions for food storage in the

The optimum temperature in the freezer section is -18^ and is intended for long colder it is, the better the quality and shelf life of the frozen food. If the food freezes more slowly and the food quality decreases.

Information on freezing capacity can be found on the product nameplate.

When starting up for the first time or starting up after a period of non-use, started 6 hours before food is placed in the freezer compartment.

The freezer compartment is intended for the following:

• For storing deep-frozen foods.
• For freezing fresh food.
- For making ice cubes.

Important! Always make sure the freezer door is completely closed. If the door is not closed properly, the food dries out and the freezer freezes. Moreover, it also increases power cc

How to use the ice cube box:

Place the ice cube box in the uppermost position in the freezer so that it fre

Freezer room and stars

All freezers, freezers and chest freezers have a star rating between 1 and 4. The indicates how efficient the freezer is at freezing.

• 1 star: Freezers with 1 star can maintain a temperature of -6^ and are suitable for short storage (3-4 days).
• 2 stars: Freezers with 2 stars can maintain a temperature of -12^ and are storage (1-2 weeks).
• 3 stars: Freezers with 3 stars can maintain a temperature of -18^ and are suitable for longer storage (>1 month).
• 4 stars: Freezers with 4 stars can freeze food and maintain a temperature of -18^ . Suitable for longer storage (>1 month).

Wrap food correctly

Before food is placed in the freezer compartment, it must be wrapped so that or dry out. Only use packaging that is approved for the freezer.

The following materials are suitable for wrapping: Film foil, aluminum foil, freezer freezer bags.

The following materials are not suitable for wrapping: Wrapping paper, cellophane, used shopping bags.

Follow these steps for proper wrapping:

1. Wrap the food in suitable packaging
2. Press the air out of the packaging
3. Seal the packaging
4. Mark the packaging with contents and date to keep an eye on the storage

Freezing fresh food

The following foods are suitable for freezing: Fish and shellfish, baked goods, pou herbs, fruit and vegetables, cheese, butter, ready meals and leftovers.

Food not suitable for freezing: Salad, eggs, yoghurt, condensed milk, creme fraiche

For best shelf life, we recommend the following tips and advic fresh food:

• The optimum temperature in the freezer is -18^ .
• Only use fresh and unblemished food for freezing.
• The goods must be packed airtight so that they do not lose their flavor or
• Freezing larger quantities of food must be placed in the lower compartment. particularly quickly and the quality of the food is preserved.
• Fish and meat can be advantageously cut into smaller pieces for faster freezir
• Only use packaging that is suitable for going into the freezer.
• Do not let fresh produce come into contact with the frozen to avoid a rise latter.
• Do not overfill the freezer. If the freezer is full, the air will not be able

Storage of frozen foods

To ensure a long shelf life of your frozen foods, you should:

• that the frozen food you buy has been adequately stored by the retailer.
• Ensure that frozen food is transferred directly from the store to the freezer possible time.
• Do not open the freezer too often or leave the door open longer than nec opening lowers the temperature in the freezer and the food deteriorates quick
• When defrosted, food cannot be refrozen.

Shelf life of frozen products

The shelf life of frozen food depends on the type of food.

At a temperature of -18^ , it generally applies to:

• Fruit and vegetables, 10-12 months
• Cheese, 3-4 months
  • Baked goods, 2-8 months
  • Minced meat, 4 months
• Poultry, 3-9 months
• Pork, 3-6 months
  • Whole pieces of beef, 1 year
• Lamb, 1.5 years
• Lean game, 1.5 years
  • Ready meals, 1-3 months
  • Fatty fish, 1-2 months
• Lean fish, 3-6 months

Thawing deep-frozen goods

Frozen foods must be thawed gently to best preserve quality and reduce the gr. Depending on the type and purpose of use, the following methods can be used

The refrigerator

Bacteria develop more slowly in the refrigerator than at room temperature. Theref hygienic thawing method.

The kitchen table

If the food is wrapped in a freezer bag, you can advantageously put it in a the risk of the development of bacteria, food must not be left on the kitchen

The microwave oven

If you don't have much time, you can use a microwave that has a defrosting used, the food must be prepared immediately to avoid the development of danger

Important! Frozen products that have been completely or partially thawed must not be refrozen. They should be cooked in advance, after which it can be frozen again.

Functions

The product can be equipped with the following functions. However, there is a whether it is a refrigerator, freezer or combi cabinet.

Super freeze function

The Superfreeze function is useful if you need to freeze a large amount of food product has been switched off for a long time.

The temperature becomes significantly colder and the food is frozen so quickly the nutritional values, appearance and taste are preserved.

Note! When superfreeze is activated, the compressor works constantly and the operating noise can therefore be somewhat louder than normal.

Vacation mode feature

If you are going on holiday or do not intend to use the product for a long to an energy-saving holiday mode.

Important! When holiday mode is switched on, no food may be stored in the compartment.

Door alarm

The product is equipped with a door alarm that goes off if the door to the long time.

Resume feature

In the event of a power failure, the product will resume the previously set sta failure when the power is restored.

Minus 15°C function

The product is approved for storage in a dry environment with an ambient tem is because the product is equipped with a compressor that generates heat and the oil does not harden/clump at cold temperatures.

Although the product can stand down to -15^ , energy consumption will be diffe given. When the product is set at a different temperature than that prescribed the energy consumption is no longer in accordance with what is given on the

The product's climate class has no influence on compressors technically developing of the product's extra features that it can stand down to an ambient temperatu

Furthermore, there is no climate class that covers down to -15^ .

Normal accessories

The product can be equipped with the following accessories

Bottle shelf

The bottle shelf is intended for horizontal storage of bottles to save space. It bottles, cans and juice.

The shelves in the product can be adjusted in height. Hold one end of the s it out.

Shatterproof glass shelves

This product comes with adjustable, shatterproof glass shelves. To adjust, pull out

lift the front part and pull out the shelf.

Vegetable drawer

The vegetable drawer is ideal for storing fruit and vegetables. Pull out the draw vegetables in the drawer.

Vegetable drawer with humidity regulator

The vegetable drawer is ideal for storing fruit and vegetables. To create the op the vegetable drawer is equipped with a humidity regulator.

The humidity is adjusted by pushing the regulator either to the right or to the

• For large quantities of fruit and vegetables, set the humidity to low.
• For small amounts of fruit and vegetables, set the humidity to high.

Ice cube tray

1 Fill the tray with drinking water and place it in the freezer.
2 To loosen the ice cubes, the ice cube tray can be briefly submerged under Alternatively, the tray can also be turned slightly.

Freezer element

The product can be equipped with a freezing element that can be removed and cooling bag.

In the event of a power failure or fault, the freezing element prevents heating short period.

Installation

Ventilation condition

The position you select for the refrigerator installation should be well-ventilated and Do not locate the refrigerator near a heat source such as cooker, and avoid it guaranteeing the refrigeration effect while saving energy consumption. Do not locate in the damp place, so as to prevent the refrigerator from rusting and leaking the total space of the room in which the refrigerator is installed being divided charge amount of the refrigerator shall not be less than 8 g/ M3.

Note: The amount of refrigerant charged for the refrigerator can be found on th

Heat dissipation space

When working, the refrigerator gives off heat to surroundings. Therefore, at least above the product.

Level ground

Place the refrigerator on the solid and flat ground (floor) to keep it stable, or vibration and noise. When the refrigerator is placed on such flooring materials as polyvinyl chloride, the solid backing plates should be applied underneath the refriger prevent color change due to heat dissipation.

Heat dissipation area

When in operation, the product emits heat to the surroundings. Therefore, it is sufficient ventilation, so that the product can get rid of excess heat.

If the product is built into a cabinet, the product needs ventilation. The more the product in the cabinet, the better it can get rid of the heat.

We recommend that there should be at least 30 mm of free space above and

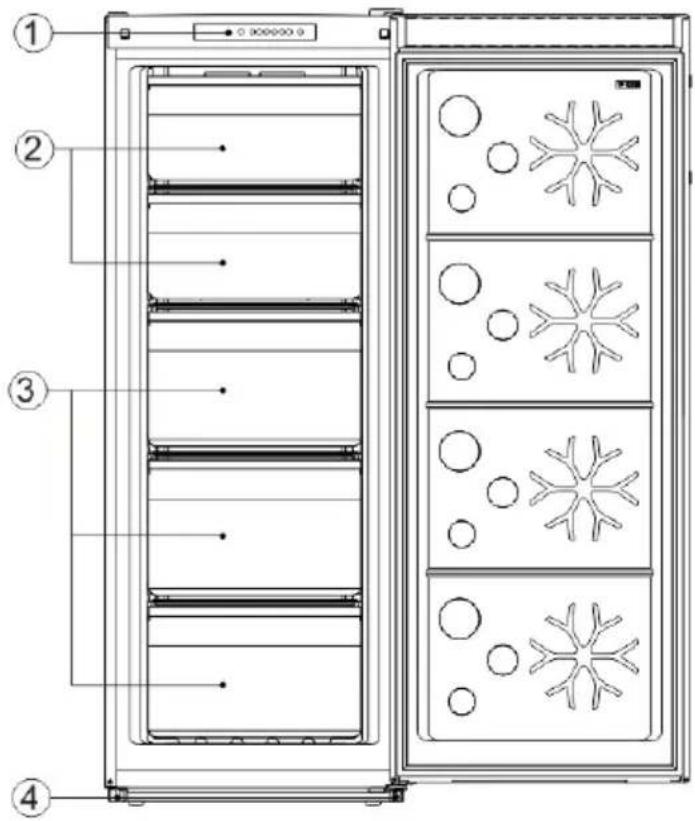

Description of the product

1 Control panel
2 Flip cover
3 Freezer drawers
4 Adjustable Feet

Due to technological innovations, t product descriptions in this manua not be completely consistent with freezer. Detailed information is in accordance with the final product.

Controlpanel functions

When the freezer system is connected to power supply for the first time, all i gets illuminated for 2s, and the system runs at -18^ by default.

Selecting the temperature

Temperature can be adjusted by pressing the "SET" key. Every time when the "SET" key is pressed, the current mode indicator lights off while the next mode indicator lights up, with validated if no key operation within 5s (or else, the mode setting will be inva effect, temperature will be immediately controlled as per the mode setting.

The temperature modes cycle as following:“-16°C-> -18°C-> -20°C-> -22°C-> -24°C-> (-> -16°C .”

Fast freezing

When the fast freezing function is enabled, the compartment temperature can be rapid manner, which is beneficial to the prevention of food nutrition against lost of freshness.

After a cumulative running period of 26 hours, the fast freezing function will e>

the temperature mode restored to that set before the fast freezing function is

Door open alarm

When the freezer door keeps open for more than 3 minutes, the buzzer starts can be suspended for 3 minutes by pressing any key, but they will not be st gets closed.

Power-cut memory

In case of power failure, the freezer will maintain the operating state before pc power supply is restored.

Power-on delay

In order to protect the freezer compressor from being damaged in the case of failure (i.e., less than 5 minutes), the compressor will not be started immediately on.

Defrosting

The freezer can defrost automatically or manually.

When the freezer is not defrosting, the automatic defrosting program can be enabled the "SET" key for 15s, with all the mode indicator lights illuminated, refrigeration stopped, and defrost heating started. During the defrosting process, you can hold down the "SET" key defrosting manually, or wait until the defrosting program gets exited automatically.

In order to avoid frequent defrosting actions of the freezer, do not access to during the defrosting process; and make sure not to enable the defrost function minutes after it is manually disabled.

Fault alarm

When the alarm indicator keeps flashing (with the corresponding indicator light of fast freezing" flickering simultaneously), it indicates fault with the freezer. Please c aftersales person for visiting service in such case.

Reversing the door swing

1. Make sure that your product is unplugged.

2. Pry the hinge cover up and off, the three screws that secure the hinge to the door, then remove hinge.

3. Remove the door from the cabine

4. Remove the screws that secure the lower hinge to the right side of cabinet, then remove the hinge

5. Remove the washer and nut that the pin shaft to the right hole lower hinge, then remove the sha

6. Insert the pin shaft into the left the lower hinge, then secure the with the washer and nut.

7. Install the lower hinge on the le the cabinet.

8. Remove the screw that secures the stop from the bottom right of the then remove the door stop and the bottom left side.

9. Install the door back again.

10. Move the door bushing from the right side of the refrigerator door top left side of the door. And left hole cover to the right side.

11. Remove the hole cover from the side of the cabinet, remove the and secures the cover on the to side of the cabinet.

12. Secure the upper hinge to the side of the cabinet with the three you removed previously. Before you

tighten the upper hinge screws, n sure that the top of the door i the cabinet and that the rubber makes a good seal.

1. Install the hinge cover over the the top left side of the cabinet.

2. Remove the left hole plugs, screw bolts, and remove the right hole

3. Install the right hole plugs on the side of the door, and install the on the right side of the door.

Normal running sounds

All products have different "operating sounds," which can sometimes seem annoying completely normal functional sounds.

These are normal sounds:

Light humming

This sound originates from the engine and can occasionally become louder when started.

Gargling/rippling sound or slight hum

Originates from the coolant circulating through the pipes.

Clicks

Small clicks can always be heard when electronic cards start or stop the compre

Light background noise

If the product has a fan (depending on the model), the air circulating inside the slight background noise.

Avoid noise

If you find that the sounds are louder than usual, this can be due to several most of them yourself without a visit from a service technician.

The product is not stable

If the product is tilted, it can affect the circulation of refrigerant. Adjust on the something underneath.

The door does not close tightly

If the door of the product does not close tightly, the compressor has to work temperature down. Make sure to close the door properly or get a service techn sealing strip.

The product is too close to a wall

The compressor emits small vibrations. If the product is too close to the wall, increase. Fix it by moving the product further away from the wall.

Trouble shooting

(The description below covers several types of products with a freezing function, freezers, products with built-in freezer boxes, chest freezers)

Regarding the following minor errors, technical service personnel are not always re errors. you can try to solve the problem.

Uncommon sounds

Check whether the product legs are set correctly and whether it stands stable a wall.

Check whether all movable parts (boxes, shelves, etc.) are in place as they show or containers placed in product are touching each other.

The product does not produce enough cold

Check if the temperature is set correctly.

If a large amount of food has just been placed in the freezer, make sure to again.

Make sure not to open the freezer door too often or leave it open.

The product does not produce cold at all

Check whether the electronic card is switched on.

Check whether the product plug is plugged into the socket.

Check whether the mains switch has not been switched off, whether the fuse h loose.

Rims are formed inside the product

Do not open the door too often or leave it open.

The outsides are warm

This is completely normal, because it prevents fog from forming on the outside

Water droplets form on the outside of the product

When the heating in the house is not switched on (e.g. in spring and autumn) slightly damp, it may happen that a little condensation forms on the outside of dangerous and the product continues to function properly.

Small drops of water or frost form on the back wall of the

This is completely normal, because it is a particularly cold and humid place in water droplets and frost condense during the product's normal operation.

Certain foods do not freeze completely

It is normal for foods that contain a lot of sugar, fat or alcohol not to free partially soft (ice cream, fruit juice, etc.)

The frozen meat has white stripes

Check whether the temperature is set correctly and not at a temperature that i

Check whether the meat has not been stored in the freezer for too long by freezing food".

It is difficult to open the door/lid

It is normal for the door/lid to be a little difficult to open, especially if it h negative pressure is created to ensure that the door/lid is completely closed. Wa before opening it again.

Any repair of the product must be carried out:

One of your dealers, or by a qualified professional recognized for this mark.

Note: If the above descriptions cannot be used for troubleshooting, do not disassemble and repair it yourself. Repairs carried out by inexperienced persons may cause damage or serious contact the local store where your purchase was made. This product must be authorized engineer and only original spare parts should be used.

When the appliance is not in use for long periods, disconnect the power supply clean the appliance, and leave the door open to prevent unpleasant odors.

Information when contacting service

Silhouette of a customer wearing a headset and using a laptop with a signal icon (no text or symbols)

You are welcome to contact our after-sale service department if questions about our products that you cannot resolve yourself or needs repair.

Often problems can be remedied by using the section on "Troul Solutions." Contact our service department if this is not the case sure to find the best solution and try to avoid unnecessary sei

Due to safety reasons, only trained specialist personnel may carry out repairs on to complain about the product expires if repairs or changes are made by person not given authorization or if non-original spare parts are used.

We offer the purchase of original spare parts in accordance with the relevant environmentally friendly design. See the appendix for the minimum period during 12 years are available to repair the product.

Information about the complaint period and conditions can be found on our web department or your dealer.

Contact information can be found on our website www.scandomestic.dk or in the

We recommend that you have the product's model number and serial number re after-sales service department.

Both parts can be found on the product's type plate, which is inside the product. On some products it may be necessary to remove the vegetable drawer

Write down the information before contacting service.

Technical data

Keep the energy label together with the user manual and other documents for

Further technical information about climate class, refrigerant and volume can be fc plate.

More information about your product can be found at www.scandomestic.dk or by code below. By scanning the QR code with your smartphone, you will get to a product register for energy labels. Here you will find more technical data about

Energy calculations and tests.

The product is energy tested as free standing.

It may occur or can be expected that the energy consumption will be higher if

a cabinet element and thus has lower ventilation.

Information regarding after sales

Access to professional repair, such as websites, addresses, contact information:

Model number: SFS163WE

Address	Scandomestic A/S	QR-code
Contact number	0045 7242 5571
Homepage	www.scandomestic.dk
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;			[e-mail]
The minimum period during which spare parts, necessary for the repair of the appliance, are available; (years)			7
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)			www.scandomestic.dk
Minimum duration of the guarantee offered by the supplier (months)			12

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

CE declaration of conformaty

This appliance has been manufactured to the strictest standards and complies with all

applicable legislations, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

Kära kund

Pure electrical circuit lines without any symbols

Recycling symbol with three arrows forming a triangle (no text or numbers)

Pure electrical circuit lines without any symbols

Warning symbol of a flame inside a triangle (no text or numbers)

SN (Extended Temperate):

Simple diagram of a knob with bidirectional arrow indicating rotation (no text or symbols)

1 Kontrollpanel
2 Flip lock
3 Fryslådor
4 Justerbara fötter

Silhouette of a customer wearing a headset and using a laptop (no text or symbols)
