Product Type	Freestanding Cooker
Brand	Eico
Model	60 IQWP
Width	60 cm
Height	85 - 90 cm (adjustable)
Depth	60 cm
Weight	Approx. 50 kg
Power Supply	230 V / 50 Hz / 16 A
Energy Class	A
Hob Type	Gas hob with 4 burners
Burner Power (max)	3.0 kW (rapid burner), 1.75 kW, 1.0 kW x2
Oven Type	Electric fan oven
Oven Capacity	65 L
Grill Function	Yes, with adjustable power
Cleaning System	Easy-clean enamel interior
Safety Features	Flame failure device (hob), child lock (oven), cool-touch door
Control Type	Knobs and buttons with digital display
Timer	Yes, with auto shut-off
Spare Parts Availability	Available from Eico authorized service centers
Repairability Index	7.5 / 10
Installation Type	Freestanding (can be built-in with side panels)
Noise Level	≤ 60 dB(A)

Frequently Asked Questions - 60 IQWP EICO

How do I clean the oven?

Use a damp cloth and mild detergent. Avoid abrasive cleaners. The oven has an easy-clean enamel lining. For heavy stains, use a specialized oven cleaner.

Why is the oven not heating?

Check if the oven is properly plugged in and the circuit breaker is on. Ensure the timer is set correctly. If the issue persists, the heating element may be faulty and require replacement.

How do I replace the oven light bulb?

Disconnect the cooker from power. Remove the glass cover inside the oven by unscrewing or releasing the clip. Replace with a 25W, 300°C resistant bulb (E14 socket). Reattach cover.

What do the oven function symbols mean?

Common symbols: fan (circulating heat), top and bottom heat (conventional), grill (upper heat only), fan + bottom heat (for even baking). Refer to manual for specific symbols.

How do I use the timer?

Press the timer button, use +/- to set desired time. The oven will automatically shut off when the time expires. An alarm will sound.

How do I connect the gas hob?

The cooker must be installed by a qualified technician. Use a flexible gas hose with proper seals. Ensure the gas supply matches the hob's gas type (natural gas or LPG). Adjust injectors if needed.

Why does the hob flame go out?

This may be due to a dirty burner cap or blocked jet. Clean the burner parts with a pin. Also check that the flame failure device is activating correctly. If persistent, contact service.

Can I use induction pans on the gas hob?

No, the hob is gas, requiring pans suitable for gas flames. Induction pans are not needed.

How do I set the child lock?

Press and hold the child lock button (lock icon) for 3 seconds until indicator lights up. To unlock, repeat the same process.

What spare parts are available for this model?

Spare parts include oven heating elements, thermostats, door hinges, glass panels, burner caps, and injectors. Order through Eico service centers.

USER MANUAL 60 IQWP EICO

induction eicoli'')nk

DK INDUKTIONSKOGEPLADE Brugsanvisning

NO INDUKSJONSKOKEPLATE Bruksveiledning

SE KERAMISKA GLASHÄLLAR Betjäningsmanual

EN INDUCTION GLASSCERAMIC COOKTOP User instructions

Eico 80 IQWP - LINK - 2 Eico 80 IQWF - LINK - 2

Four octagonal panels with circular holes, each with a scale bar labeled 3.00 and 9.00 (no text or symbols on panels)

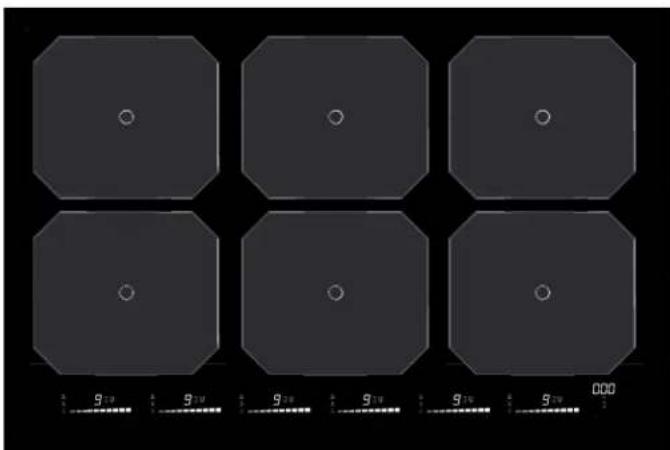

Eico 60 IQWP - LINK - 2
Eico 60 IQWF - LINK - 2

Six identical octagonal panels with circular holes, each labeled with a numerical value below (9.10 to 9.10, 0.00) on the bottom axis.

Eico 80 IQWP - LINK - 2
Eico 80 IQWF - LINK - 2

Fig. 1 Eico 60 IQWP - LINK - 2 Eico 60 IQWF - LINK - 2

Fig. 1
Eico 80 IQWP - LINK - 2 Eico 80 IQWF - LINK - 2

Fig. 6

A

Fig. 7

DK

A - Tænd / sluk-knap B - Børnesikring
C - Pause / genskab-knap
D. Booster
E - Slider
F - Speciaffunktion zone
G. Rogezone displa
H - Tiller plus-Knap
I - Timerminus-knap

NO

A - Av-iPä-knapp
B - Barnesikring
C - Pause- / gjenstartsknapp
D - Booster
E - Slider
F - Spesialfunksjonssone
G. Kokesonedisplay
H - Timer +-knapp
1 - Timer-knapp

SE

A - På /Av-knapp
B - Barnsäkring
C - Paus / återskapa-knapp
D - Booster
E - Slider
F - Specialfunktion zon
G - Kokzon display
H - Timer plus-knapp
1 - Timerminus-knapp

Illustration of a hand holding a pen on a flat surface, labeled 'Fig. 8' (no other text or symbols)

4 Zone
Land Mains Connection Cable diameter Cable Protection calibre
DK S	400V~50/60 Hz	2 Ph + N	4 x 1.5 mm ^2	H 05 VV - FH 05 RR - F	16 A*
NO	230V~50/60 Hz	2 Ph	3 x 2.5 mm ^2	H 05 VV - FH 05 RR - F	25 A*
DK S	230V~50/60 Hz	1 Ph + N	3 x 2.5 mm ^2	H 05 VV - FH 05 RR - F	25 A*

(* ) calculated with the simultaneous factor following the standard EN 60 335-2-6/1990

6 Zone
Land Mains Connection Cable diameter Cable Protection calibre
DK S	400V~50/60 Hz	3 Ph + N	5 × 1.5 mm^2	H 05 VV - FH 05 RR - F	16 A*
DK S	400V~50/60 Hz	2 Ph + N	4 × 2.5 mm^2	H 05 VV - FH 05 RR - F	25 A*
DK S	230V~50/60 Hz	1 Ph + N	3 × 4 mm^2	H 05 VV - FH 05 RR - F	40 A*
NO	230V~50/60 Hz	3 Ph	4 × 2.5 mm^2	H 05 VV - FH 05 RR - F	25 A*
NO	230V~50/60 Hz	2 Ph	3 × 4 mm^2	H 05 VV - FH 05 RR - F	40 A*

( * ) calculated with the simultaneous factor following the standard EN 60 335-2-6/1990

KORT FÖRKLARING AV MONO-STYRNING MED IL- LUSTRATION

Mono-styrning

Induction Hob user instructions

EN

GENERAL INFORMATION

Carefully read this use and maintenance manual, where important information about installation, use and maintenance safety is provided. Keep this manual for future reference. Any installation operation (electric connections) shall be performed by specialized personnel, in compliance with all standards and regulations in force.

SAFETY WARNING

The use of flat-bottomed pots, with a diameter equal to or slightly bigger than the heated area, is recommended. (Fig.6). Do not use pots that have a rough base, in order to prevent the hob thermal surface from being scratched. This appliance is not intended for use by children or infirm people without supervision.

IMPORTANT

• Avoid the overflow of liquids by reducing the heat supply when boiling or warming liquids.
• Do not leave any heating element switched on, if there are no pots, or if the pots are empty.
• Once cooking is completed, turn the concerned heating element off, by using the control shown below.
• This appliance is not intended for use by people (children included) with limited physical, sensorial or mental abilities, or lacking of experience and knowledge, unless they are supervised or well instructed about the use of the appliance, by a person who is responsible for their safety.
• Children should be supervised to assure that they do not play with the appliance.
• If the hob surface is cracked, turn the appliance off and disconnect it from the electric network, so as to avoid the possibility of electric shock.

INSTALLATION INSTRUCTIONS

These installation instructions are intended for a specialized installer and are meant as guidelines for the hob installation, adjustment and maintenance, in compliance with any regulations and standards in force. If a built-in oven or any other appliance generating heat is to be mounted directly under the vitro-ceramic hob, IT IS NECESSARY THAT SUCH AN APPLIANCE (the oven) AND THE VITRO-CERAMIC HOB ARE PROPERLY INSULATED. Failure to comply with this precaution might result in the incorrect operation of the TOUCH CONTROL system.

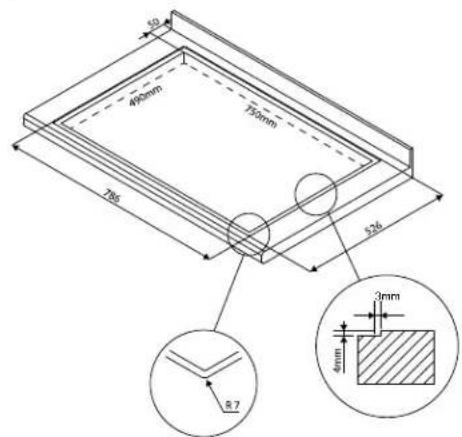

- Positioning:

This household appliance has been designed for built-in installation onto a worktop, as shown in the figure (Fig.1). Use sealing material along the whole perimeter (Fig.2) (Cut dimensions- Fig.1). This operation is necessary in order to prevent any liquid from entering inside the hob, being that the flatness of the top, the glass and their coupling cannot be assured. Fix the appliance on the worktop by using the 4 supports, taking the work top thickness into account (Fig.4). If, after installation, the lower part of the appliance is accessible from the lower part of the cabinet, it will be necessary to mount a spacing panel at the distances given (Fig.3). If the appliance is installed under an oven, this step will not be necessary.

• Electric connections (Fig.5):

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The cord must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 V\~ 50/60 Hz.

Connect always the earth wire.

Respect the connection diagram.

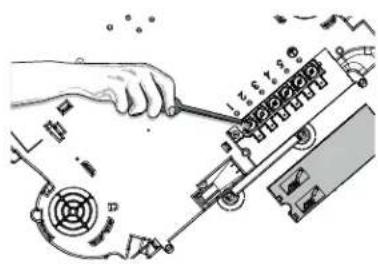

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Caution!

Be careful that the cables are correctly engaged and tightenet.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

USE AND MAINTENANCE

- Maintenance (Fig.8):

Remove any food residue and grease drops from the cooking surface, by using the special scraper provided on request.
Clean the heated area in the best way possible, using suitable products and a paper towel, then wipe with water and a clean cloth.
Through the use of the special scraper (optional), promptly remove any pieces of aluminum foil and plastic material, which might have accidentally melted, or sugar or food remains, and/or remains of sugary foods, from the heated surface. In this way, any possible damage to the surface is prevented.
The use of abrasive sponges or irritating chemical cleaners, such as sprays for ovens or cleaning agents is not allowed under any circumstance.

- Use:

Use the touch control system in the corresponding position according to individual cooking needs. Keep in mind that the higher the number, the more heat is produced.

• Function (Fig.7):

A - On/Off key

B - Control Lock key

C - Pause/recall key

D - Booster level

E - Slider zone display power level

F - Special programmes zone

G -Cooking zone display

H - Timer Plus key +

I - Timer Minus key -

• Switching the cooking top on:

Press A key to switch the top on, the power led lights up. The control unit remains active for 10 seconds. If no cooking zone is selected within this time, the cooking top switches off automatically.

- Pan detection:

This cooktop is fitted with an interactive control system that makes it very easy and comfortable to use. After switching on the cooktop, when you put a cookware on the glass, the control system automatically detects it. This system also automatically indicates you which slider control to use by displaying a (0) over it. You then just have to set the expected cooking level. If the cookware is removed, the display shows the symbol and disappear when the cookware is repositioned on the cooking zone, continuing with the previous settings. After use, always bring power to 0 (do not leave the active symbol). If the symbol should appear on one of the cooking area displays, it means that:

1) The recipient being used is not suitable for induction cooking.

2) The diameter of the recipient used is inferior to that allowed by the appliance.

3) No recipient is present.

- Switching the cooking area on:

Put a cookware on the desired cooking zone and press or slide your finger on E keys zone. Press E key zone to go to position 9 (max. power) or to go to position 1 (min. power). The power of the single cooking zone can be adjusted in 9 different positions and will be shown on the relative luminous display G with a number from "1 to 9".

- Residual heat:

If the temperature of the cooking zone is still high (over 50°) after it has been switched off, the relative display will indicate the symbol (residual heat). The symbol will only switch off when the burn risk is no longer present.

- Timer function:

This function allows establishing the time (from 1 to 99 minutes) for automatically switching the selected cooking zone off. Switch on at least one cooking.

Press simultaneously the H and I key to enter the timer function. Press on button to adjust the cooking time which is shown on its display. Set the power of the area between 1 and 9 keys with the same E. Set at this point the desired sleep time using the keys H or I timers in the area. The inclusion of the timer with the clock symbol will appear next to the display of the cooking zone selected. The countdown will be displayed on the display above the keys H - I. The timer will automatically turn off the cooking area and you will hear a beep that can be turned off by pressing any of the commands. To disable the timer, press the keys H and I of the timer.

- Egg Timer / Reminder function:

To set a 'reminder time' press simultaneously the H and I key. The led located at the bottom-center of the timer display will be flashing. Set the 'reminder time' (from 1 to 99 minutes) by pressing the H or I key. An acoustic signal will indicate the 'reminder time' expiration. Press any key to stop the acoustic signal. The egg timer remains active even if the appliance is switched off. In order to disable the egg timer press simultaneously the H and I key and then the I key until reaching position 0.

- Pause function:

When at least one cooking zone is operating it is possible to momentaneously pause the appliance switching off the heating elements by pressing the C key. When the pause function is active the relative led is on. The pause may last for 10 minutes. If the status is not terminated within this time the appliance switches off. The pause function can be deactivated by pressing the C key and within 10 seconds any of the control keys. Previously programmed timers will be stopped during the pause.

- Recall fuction:

When the appliance has been switched off by mistake it is possible to quickly recall the previously active settings by pressing the on-off A key within 6 seconds, then pressing the C key within another 6 seconds. If the recall function is available the relative led C will be enlightened when the appliance is switched on again.

• Control panel lock :

You can lock the controls to prevent the risk of unintentional changes (cleaning, etc.). Switch on the cook top with A key.

Press the B key for a few seconds, the controls are blocked and the relative warning light switches on. To release the controls and change the settings (e.g. interrupt cooking), the B key must be pressed. The cooking top can however be switched off even when the controls block is activated. In this case the controls block remains active when the top is switched on again.

- Switching the cooking area off:

To switch a cooking zone off, press or crawl the E slider of the relative zone until reaching position ☐.

- Switching the cooking top off:

To turn off the cooking top entirely hold down the A key.

- Booster function:

After selecting a cooking zone the booster function D can be activated by dragging the slider to the end, this function for a time of 10 minutes the selected plate feeds at maximum power and the display shows PTo remove the function, act on the E cursor area.

- Bridge function:

This feature allows you to connect the front and back heating zones on the left or the right side of the hob together thus merging 2 zones into one larger one. This is particularly useful for cooking with large pans.

To set the bridge function

Touch On The E Cursor Area for the 2 adjacent zones at the same time. The symbols and w show against the power level displays for the 2 zones. The heating level of the bridged zone is controlled just by the left hand slider of the 2 connected zones.

To cancel the bridge function

Touch On The E Cursor Area for the 2 adjacent zones at the same time. The symbols and against the power level displays for the 2 zones will go out and the zones will be independently controlled again.

• Special programs:

The cooktop has three special programs that can be set by pressing the F zone. The programs have already been set and the temperatures are melting, working at 42°C to melt chocolate, butter or the like; warming, working at 70°C, when reheating previously cooked; simmering, working at 94°C, to bring to a boil slowly preparing sauces or soups and stews.

• Power Management

The hole hob is equipped with a maximim of Power. When the Power function is activated, and in order to exceed the maximum Booster, the electronic system orders to reduce automatically the power level of an other heating zone. The display is blinking on (9) during a few seconds and the maximim of power allowed.

- Safety switch:

The appliance has a safety switch that automatically switches off the cooking zones when they have been operating for a certain amount of time at a given power level.

POWER LEVEL	OPERATING TIME LIMIT (hours)
1 - 2	6
3 - 4	5
5	4
6 - 7 - 8 - 9	1,5

IMPORTANT INFORMATION REGARDING EICOLINK WITH MONO-CONTROL ON THE HOB

Generally

1) A small delay of reaction on the hood can occur, compared with the users commandoes at the hood control on the hob
2) The hood control will first react on the command, when the finger leaves the hood control key on the hob (shown as
3) Very long press on the hood control key on the hob (shown as ☐ for about 4 sec., turns the hood's motor ON and OFF
4) Short press on the hood control key on the hob (shown as 📋) switches the light in the hood ON and OFF
5) Longer press on the hood control key on the hob (shown as 📤), where the LED above the control illuminates, after which the finger is removed immediately, the speed level of the hood's motor will change
6) The motor speed is operated in loop, when the hood control key on the hob (shown as this used, ie. speed level 1 - 2 - 3 - 4 - 3 - 2 - 1 - 2 - 3 - 4 etc.
7) The hoods own control or remote control, if connected with the hood, will always be the MASTER, in relation to the hood control on the hob (shown as
This means that if you first use the hood control on the hob (shown as ☐), for starting the hood on for example level 2 or to switch off the hood, and then use the hood's own control or remote control to change the speed up or down, or to turn the hood ON or OFF, the hood control on the hob will not detect this, and will therefore remain unchanged registration of the speed level or if the hood's motor is switched ON or OFF.

Specific regarding Ceiling Panel

1) The dimmer function of the light in the hood, can only be operated from the enclosed remote control

SHORT EXPLANATION OF THE MONO-CONTROL WITH ILLUSTRATION

Mono-control

A ON / OFF key >Very long press for about 4 sec., turns the hood's motor ON and OFF

A – Light key > Short press switches the light in the hood ON or OFF

A - Speed selection > Longer press, where the LED (B) above the A-key illuminates, after which the finger is removed immediately, the speed level of the hood's motor will change

B – LED > Only figures as point of guide lighting regarding the control of the hood from the hob

EICOLINK INSTALLATION FOR HOB WITH MONO-CONTROL CONTROLLING THE HOOD

For following hood models

- Ceiling Stripe

- Distante

• EicoE22

- Skyframe

1. Unplug the power supply from the hob, wait 2 minutes

2. Switch power to the hob back on, and 🎨 icon is activated at the control panel

3. Press on/off 🎨 on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔺 icon again until it only flashes twice. Let the light in the control panel turn off

4. Unplug the power supply from the hood, wait 3-5 minutes, switch power to the hood back on and wait 5-10 seconds

5. Press and hold the on/off button on the hood for 4-6 sec. Release and the LED on the hood flashes

6. When flashing, press on/off 🔔 icon on the hob control panel

7. Now Eicolink is active, and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• Iris

1. Unplug the power supply from the hob, wait 2 minutes

2. Switch power to the hob back on, and 📞 icon is activated at the control panel

3. Press on/off 🎨 on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
4. Unplug the power supply from the hood, wait 3-5 minutes, switch power to the hood back on and wait 5-10 seconds
5. Press and hold the on/off button on the hood until the light ring around the button flashes. Then release the button
6. When the light ring flashes, press the on/off icon on the hob control panel
7. Now Eicolink is active, and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• Romeo • Hamlet

1. Unplug the power supply from the hob, wait 2 minutes
2. Switch power to the hob back on, and 📤 icon is activated at the control panel
3. Press on/off 🎨 on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
4. Unplug the power supply from the hood, wait 3-5 minutes, switch power to the hood back on and wait 5-10 seconds
5. Press and hold the + button on the cooker hood until the led E flashes on the cooker hood, then release the button
6. When the ⊥ symbol flashes in the cooker hood display, press the on/off 🔊 icon on the hob control panel
7. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• Aida
- Modena

1. Unplug the power supply from the hob, wait 2 minutes

2. Switch power to the hob back on, and 📤 icon is activated at the control panel

3. Press on/off 🎨 on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off

4. Unplug the power supply from the hood, wait 3-5 minutes, switch power to the hood back on and wait 5-10 seconds
5. Press and hold the + button on the cooker hood until the led flashes on the cooker hood, then release the button
6. When the LED on the cooker hood flashes, press the on/off icon on the hob control panel
7. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• Cloud 100
• EicoE19
• EicoE20
• EicoE24
• EicoE27
• EicoE30
• EicoE35
- Eclipse
• Luna
• PVH8060LINK
• PVH8080LINK
• Q-BIC
- Square
• Vertical 80 N Matt – Link

1. Unplug the power supply from the hob, wait 2 minutes

2. Switch the power to the hob back on, and 📞 icon is activated at the control panel

3. Press on/off ☐ on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
4. Unplug the power supply from the hood, wait 3-5 minutes, switch on the power supply again
5. Within 5 sec. press and hold light button - on the remote, until the light on the hood turns on, release the button and press the engine ▲ button once
6. Wait 10 seconds and the remote control is connected
7. Unplug the power supply from the hob, wait 2 minutes
8. Switch the power to the hob back on, and 📤 icon is activated at the control panel

9. Press on/off ☑ on the hob, the control panel must flash 3 times, if it flashes twice, then press the 🔊 button again, until it flashes 3 times

10. Before the light turns off, grab the remote control, press and hold the light button the control panel for the cooker hood now flashes on the hob. When the control panel stops flashing, release the light button on the remote control (Note: the hood lightning will flash during this process, which is correct)

11. Wait 10 seconds now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• Como
  • EicoE31

• Frame
  • Mat

• Unplug the power supply from the hob, wait 2 minutes

• Switch power to the hob back on 📞 icon is activated at the control panel

• Press on/off ☐ on the hob control panel, the control panel must flash twice. If it flashes 3 times, then press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
• When the light 📋 on the hob control panel turns off, the power supply must be switch on the hood
• Connect the power supply to the hood and wait 5 seconds
• Within 60 seconds press and hold 1 and 2 on the hood control panel for 3-5 seconds. When released, 1 and 2 will flash on the hood control panel
• Press on/off icon on the hob control panel
• Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• EicoE29

1. Unplug the power supply from the hob, wait 2 minutes
2. Switch power to the hob back on 📞 icon is activated at the control panel
3. Press on/off ☐ on the hob control panel, the control panel must flash twice. If it flashes 3 times, then press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off

4. When the light 📤 on the hob control panel turns off, the power supply must be switch on the hood

5. Connect the power supply to the hood and wait 5 seconds

6. Within 60 seconds press on/off Ⓘ on the hood control panel
7. Press "T" until the LED flashes above on the hood control panel
8. Press on/off 📤 icon on the hob control panel
9. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• EicoE32

1. Unplug the power supply from the hob, wait 2 minutes
2. Switch power to the hob back on 📞 icon is activated at the control panel
3. Press on/off ☐ on the hob control panel, the control panel must flash twice. If it flashes 3 times, then press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
4. When the light 📋 on the hob control panel turns off, the power supply must be switch on the hood
5. Connect the power supply to the hood and wait 5 seconds
6. Within 60 seconds, press the < button on the remote control 4 times
7. The light on the hood "flashes" twice within 3 seconds
8. Press on/off icon on the hob control panel
9. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• EicoE33

1. Unplug the power supply from the hob, wait 2 minutes
2. Switch power to the hob back on 📤 icon is activated at the control panel
3. Press on/off ☐ on the hob control panel, the control panel must flash twice. If it flashes 3 times, then press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
4. When the light 📞 on the hob control panel turns off, the

power supply must be switch on the hood

1. Connect the power supply to the hood and wait 5 seconds
2. Press + on the hood control panel until the symbol flashes in the display on the hood control panel
3. Press on/off 📤 icon on the hob control panel
4. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected

separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed-out dustbin symbol on the product reminds you of your obligation regarding separated waste collection. Consumers should contact their local public service or their local dealer for more information on the correct disposal of exhausted household appliances.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREAKING THE ABOVE WARNINGS. THE WARRANTY IS NOT VALID IN THE CASE OF DAMAGE CAUSED BY FAILURE TO COMPLY WITH THE ABOVE-MENTIONED WARNINGS.

Information for household electric hobsIn acc. with regulation (EU) No. 66/2014
Model name/ identifier	EICO 60 IQWP - LINK - 2EICO 60 IQWF - LINK - 2	EICO 80 IQWP - LINK - 2EICO 80 IQWF - LINK - 2
Type of hob built-in built-in
Number of cooking zones and/or areas	4	6
Heating technologyInduction cooking zones and cooking areas, radiant cooking zones.	1. = Induction2. = Induction3. = Induction4. = Induction	1. = Induction2. = Induction3. = Induction4. = Induction5. = Induction6. = Induction
For circular cooking zones:diameter of useful surface area/mm cooking zoneFor non-circular cooking zones or areas: lenght and width of useful surface area per electric cooking zone or areamm	1. = octa2. = octa3. = octa4. = octa	1. = octa2. = octa3. = octa4. = octa5. = octa6. = octa
Energy consumption per cooking zone or area calculated per Kg ( EC_electric cooking )Wh/Kg	1. = 180,002. = 180,003. = 180,004. = 180,00	1. = 180,002. = 180,003. = 180,004. = 180,005. = 180,006. = 180,00
Energy consumption for the hob calculated per kg( EC_electric cooking )Wh/Kg	180,00	180,00

EICO 60 IQWP - LINK - 2
EICO 60 IQWF - LINK - 2

EICO 80 IQWP - LINK - 2
EICO 80 IQWF - LINK - 2

Energy Saving Advice

For hobsAs far as possible, always prepare the food in pots and pans with lids to avoid unnecessary heat consumption.Choose a small pot for small quantities. A small pot uses less energy than a larger, underfilled pot.Cook with as little water as possible.Lower the heat level as soon as possible after boiling or browning.Use a pressure cooker to reduce the cooking time.

• Vertical 80 N Matt – Link
