USER MANUAL Z30425A Livarno Lux

Color palette bar and a target symbol with concentric circles (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Introduction......Page 6

Proper Use ...... Page 7

Description of Parts ...... Page 7

Technical details ...... Page 8

Included items ...... Page 8

Safety Page9

General Safety Information ...... Page 10

Safety Instructions for Batteries...... Page 12

Bringing into operation

Inserting / replacing batteries ...... Page 15

Connecting the adapter ...... Page 16

Operation

Setting the sound sensor light ...... Page 16

Automatic lighting effects

in different patterns ...... Page 17

Setting the sensitivity of the sensor.. Page 17

Cleaning and

Maintenance Page 18

Disposal Page 19

LIVARNO LUX

5 GB/IE

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Sound-Sensor Party Light

- Introduction

Familiarise yourself with the product before using it for the first time. In addi-

tion please refer carefully to the operating instructions below and the safety advice. Use the product only as described and for the indicated purpose. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.

6 GB/IE

LIVARNO LUX

Color palette bar and a target symbol with crosshair (no text or labels)

- Proper Use

This product is suitable only for use indoors, in dry and enclosed rooms. It adds a colourful light effect to music and is intended only for decorative purposes in private, domestic environments. Any other use or modification of the device constitute improper use and may result in injury and / or damage to the device. The manufacturer is not liable for damage caused by improper use. The device is not intended for commercial use.

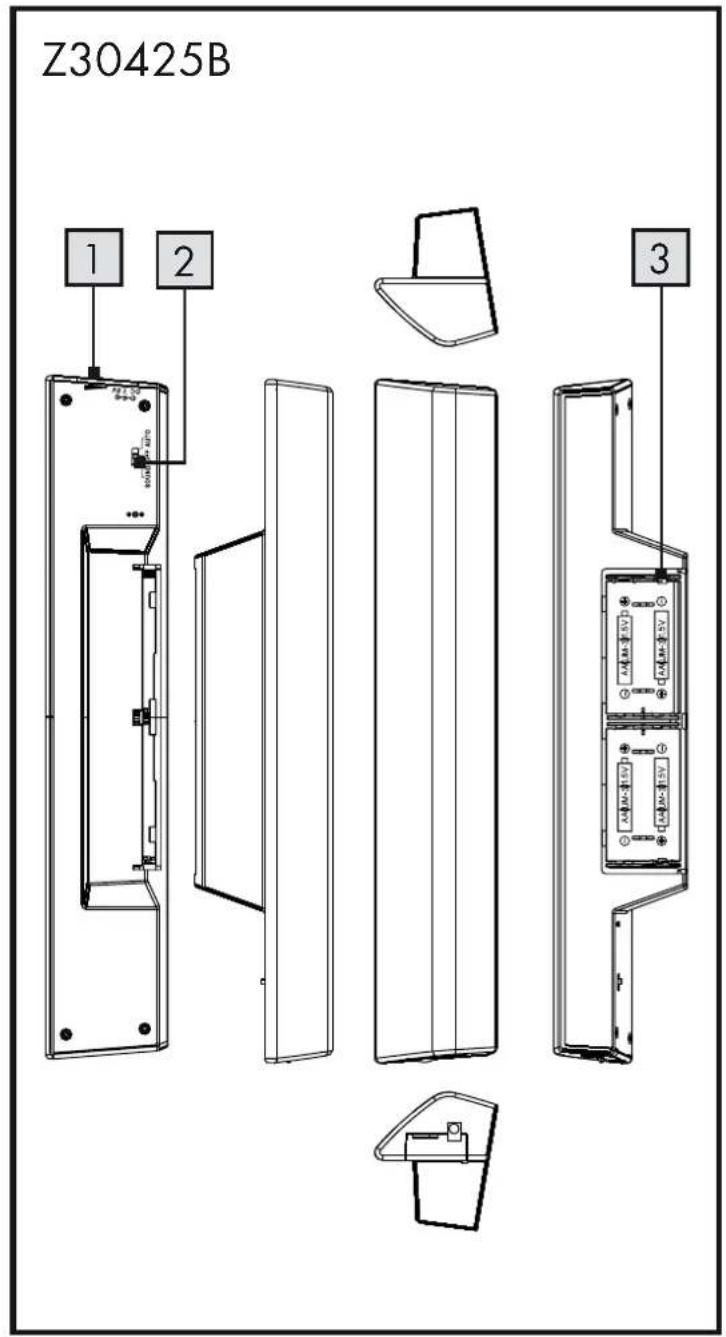

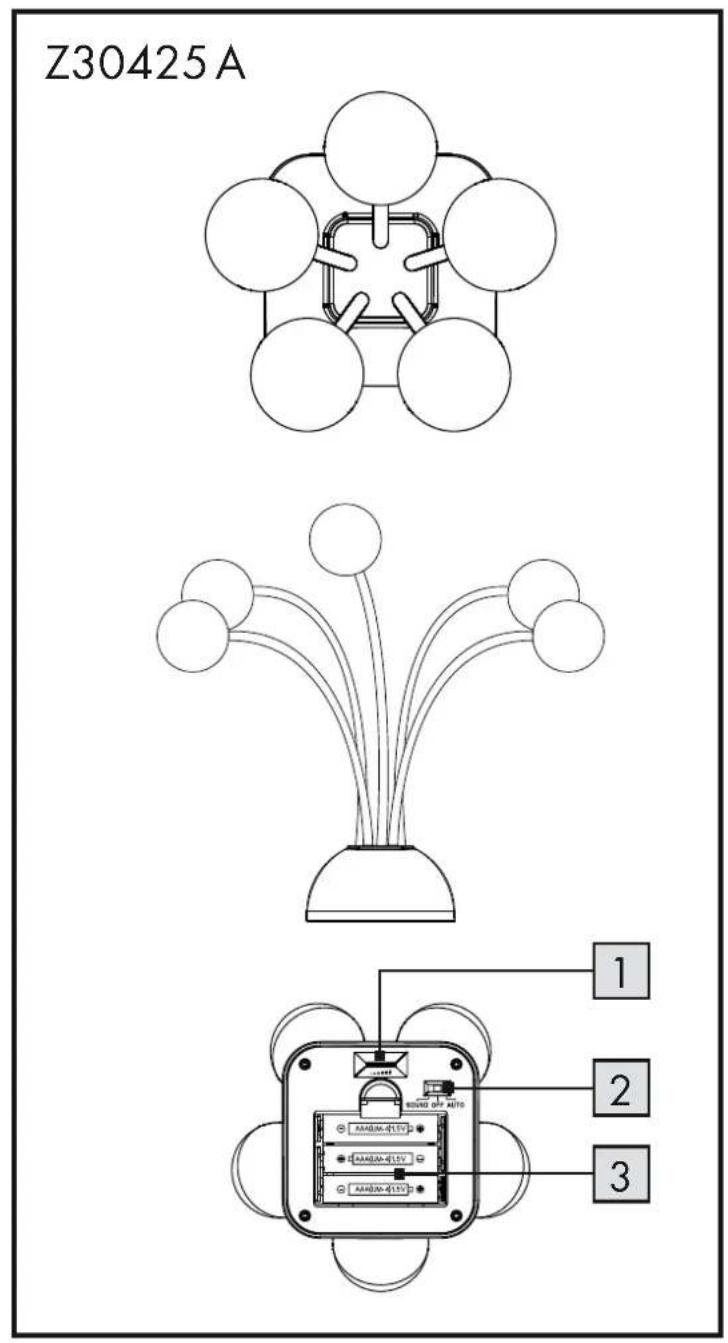

• Description of Parts

1 Rotary control
2 SOUND/OFF/AUTO switch
3 Battery compartment

LIVARNO LUX

7 GB/IE

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Technical details

Model Z30425 A

Elements: 5 LEDs (2 x red, 1 x blue, 1 x green, 1 x orange)

Batteries: 3 x 1.5 V --- AAA

Model Z30425B

Elements: 9 LEDs (3 x red, 2 x blue, 2 x orange, 2 x green)

Batteries: 4 x 1.5 V = AA

- Included items

Model Z30425A

1 Sound sensor
3 Batteries 1.5 V--- AAA
1 Operating instructions

8 GB/IE

LIVARNO LUX

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Model Z30425B

1 Sound sensor
4 Batteries 1.5 V--- AA
1 Operating instructions

Safety

WARNING! Please read all safety information and instructions. Failure to comply with the safety information and instructions may result in, fire and / or severe injuries.

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

LIVARNO LUX

9 GB/IE

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

General Safety Information

WARNING! DANGER TO LIFE AND ACCIDENT

HAZARD FOR TODDLERS AND SMALL CHILDREN!

Never allow children to play unsupervised with the packaging material. There is a danger of suffocation from the packaging material. Children frequently underestimate the dangers. Children should be kept away from the product at all times.

This device is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this device.

10 GB/IE

LIVARNO LUX

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety. Children must never be allowed to play with the device.

WARNING! DANGER TO

LIFE! Batteries can be swallowed, which may represent a danger to life. If a battery has been swallowed, medical help is required immediately.

• Do not use the device if it is damaged.
  ■ Use the device only in enclosed rooms. It is not suitable for use outdoors.

LIVARNO LUX

11 GB/IE

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

- Keep the product away from water or moisture. Otherwise damage to property may occur.

Safety Instructions for Batteries

■ Remove the batteries from the device if they have not been used for a long period.

CAUTION! DAN- GER OF EXPLO- SION! The batteries

must never be recharged!

- When inserting the battery, ensure the correct polarity! This is shown in the battery compartment.

If necessary, clean the battery and device contacts before inserting the battery.

12 GB/IE

LIVARNO LUX

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

■ Always replace all batteries at the same time and only use batteries of the same type.
Do not use different types of batteries or mix used and new batteries together.
■ Remove a spent battery immediately from the device. There is an increased danger of leaks!
If the above instructions are not complied with, the battery may discharge itself beyond its end voltage. There is then a danger of leaking. If the battery has leaked inside your device, you should remove it immediately in order to prevent damage to the device!
■ Batteries must not be disposed of in the normal domestic waste!
■ Every consumer is legally

LIVARNO LUX

13 GB/IE

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

obliged to dispose of batteries in the proper manner!

• Keep batteries away from children; do not throw them in the fire, short-circuit them or take them apart.
• Avoid contact with the skin, eyes and mucous membranes. Any parts of the body coming into contact with battery acid should be rinsed off with copious amounts of water and / or a doctor contacted if necessary!

14 GB/IE

LIVARNO LUX

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

● Bringing into operation

- Inserting / replacing batteries

Open the battery compartment on the back of the device.
☐ Remove the used batteries, if present.
☐ Insert 3 batteries type 1.5=AAA (Model A) / 4 batteries type 1.5 V--- AA (Model B) into the battery compartment 3.

Note: Make sure you fit the batteries the right way round (polarity). The correct polarity is shown inside the battery compartment 3.

☐ Close the battery compartment.

LIVARNO LUX

15 GB/IE

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Connecting the adapter

You can also operate Model B using an adapter (not included):

Input voltage: 230 V \~, 50 Hz

Output voltage: 7.5 V ---

☐ Connect the adapter to the device and insert the mains adapter into the mains socket. The device is now ready for use.

Operation

- Setting the sound sensor light

☐ Set the SOUND/OFF/AUTO switch 2 to SOUND. The LED lights illuminate in reaction to the

16 GB/IE

LIVARNO LUX

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

rhythm of the music and in response to other noises.

Note: The louder the music, the brighter the LED lights.

● Automatic lighting effects in different patterns

☐ Set the SOUND/OFF/AUTO switch 2 to AUTO. The LED lights illuminate automatically in a preset pattern.

- Setting the sensitivity of the sensor

☐ Turn the rotary control to set the sensitivity of the sensor.

LIVARNO LUX

17 GB/IE

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Turn the rotary control upwards to increase the sensitivity of the sensor.
Turn the rotary control downwards to decrease the sensitivity of the sensor.
☐ If the soundscape changes, turn the rotary control 1 to achieve the best light effect.

● Cleaning and Maintenance

☐ The device should only be cleaned on the outside with a soft dry cloth.
☐ Under no circumstances should you use liquids or detergents, as these will damage the device.

18 GB/IE

LIVARNO LUX

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

☐ Remove the batteries if the sound sensor is not being used.

- Disposal

The packaging is made entirely of recyclable materials, which you may

dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environ- ment, please dispose of the product properly when it

has reached the end of its useful life and not in the household waste.

LIVARNO LUX

19 GB/IE

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as

20 GB/IE

LIVARNO LUX

Color palette bar and a target symbol with crosshair (no text or labels)

follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

CE EMC

Product description:

Sound-Sensor Party Light Model No.: Z30425 A, Z30425B Version: 08/2011

LIVARNO LUX

21 GB/IE

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Johdanto

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Diskovalot

- Johdanto

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Tekniset tiedot

Malli Z30425 A

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Malli Z30425B

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Yleiset turvaohjeet

VAROLTUS! HENGEN- JA TAPA- TURMANVAARA

PIKKULAPSILLE JA LAPSILLE!

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar and a target symbol with crosshair (no text or labels)

1,5 V -AA (malli B) paristotilaan 3.

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Käyttö

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar and a target symbol with crosshair (no text or labels)

Malli nro.: Z30425 A, Z30425B

Versio: 08/2011

LIVARNO LUX

37 FI

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Inledning......Sidan 39

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Party-ljussensor

Inledning

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Avsedd användning

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Tekniska data

Modell Z30425 A

Komponenter: 5 lampor (2 x röd,

$$ 1 \times \text { blå }, 1 \times \text { grön }, $$

$$ 1 \times \text { orange }) $$

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Säkerhets- anvisningar för batterier

OBSERVERA! EXPLOSIONS- RISK! Ladda aldrig

batterierna!

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Ansluta adapter

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Avfallshantering

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

CE EMC

Produktbeteckning:

Party-ljussensor

Modell nr: Z30425 A, Z30425B

Version: 08/2011

LIVARNO LUX

53 SE

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Indledning ...... Side 55

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Party lyssensor

- Indledning

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Color palette bar and a target symbol with crosshair (no text or labels)

De enkelte dele

1 Drejeregulator
2 SOUND-/OFF-/AUTO-afbryder
3 Batteribeholder

Tekniske specifikationer

Model Z30425 A

Elementer: 5 LED'er (2 x rød,

$$ 1 \times \text { blå }, 1 \times \text { grøn }, $$

$$ 1 \times \text { orange }) $$

Batterier: 3 × 1.5 V = AAA

Model Z30425B

Elementer: 9 LED'er (3 x rød,

$$ 2 \times \text { blå }, 2 \times \text { grøn }, $$

$$ 2 x \text { orange) } $$

Batterier: 4 × 1.5 V = AA

LIVARNO LUX

57 DK

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Samlet levering

Model Z30425A

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

ALLE SIKKERHEDSANVISNINGER OG VEJLEDNINGER SKAL OPBEVARES FOR FREMTIDEN!

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

FORSIGTIG! EKS- PLOSIONSFARE!

Batterier må ikke

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

batterikamrene.

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

CE EMC

Produktbetegnelse:

Party lyssensor

Modelnr.: Z30425 A, Z30425B

Version: 08/2011

70 DK

LIVARNO LUX

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Party-Leuchtsensor

- Einleitung

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Teilebeschreibung

Color palette bar and a target symbol with crosshair (no text or labels)

Lieferumfang

Modell Z30425A

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Bedienung

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central dot, no text or symbols present

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Produktbezeichnung:

Party-Leuchtsensor
