Product Type	Wall-mounted range hood
Brand	Scandomestic
Model	EMF 902
Width	90 cm (35.4 inches)
Depth	50 cm (19.7 inches)
Height (min-max)	60 - 110 cm (23.6 - 43.3 inches)
Weight	Approx. 15 kg (33 lbs)
Power Supply	220 - 240 V, 50 Hz
Motor Power	200 W
Lighting Power	2 x 3 W LED
Max Extraction Rate (m³/h)	650 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3
Control Type	Electronic push buttons
Grease Filter Type	Aluminum mesh, washable
Charcoal Filter	Optional (sold separately)
Ducting Diameter	150 mm (6 inches)
Installation Type	Ducted or recirculation
Maintenance	Clean grease filters monthly; replace charcoal filter every 3-6 months
Safety Features	Overheat protection, auto shut-off timer
Spare Parts Availability	Filters, LED lamps, motor available through Scandomestic service
Energy Efficiency Class	A+ (estimated)
Warranty	2 years (typical)

Frequently Asked Questions - EMF 902 Scandomestic

What is the recommended installation height for the Scandomestic EMF 902 range hood?

For optimal performance, install the hood at a height of 65-75 cm above an electric hob and 75-85 cm above a gas hob.

Can I use the EMF 902 without ducting?

Yes, it can be used in recirculation mode with an optional charcoal filter (not included). The filter absorbs odors and the air is recirculated back into the kitchen.

How often should I clean the grease filters?

The aluminum mesh filters should be cleaned every 30 days for moderate use. They are dishwasher safe. Frequent cleaning maintains extraction efficiency.

How do I replace the charcoal filter?

Charcoal filters should be replaced every 3 to 6 months depending on usage. Remove the grease filters first, then slide out the old charcoal filter and insert a new one.

What is the maximum noise level of the EMF 902?

The maximum noise level is 65 dB(A) at the highest speed setting. At lower speeds it is quieter, around 45-55 dB(A).

Can I control the hood with a remote?

No, the EMF 902 is controlled via electronic push buttons on the front panel. It does not come with a remote control.

What is the duct diameter required?

The hood requires a duct with a diameter of 150 mm (6 inches). Use rigid or flexible aluminum ducting for best performance.

Does the hood have an automatic shut-off?

Yes, it includes a timer function that can be set to automatically turn off the hood after 10, 20, or 30 minutes.

What type of light bulbs does it use?

The hood uses integrated LED lights (2 x 3W). They are not replaceable by the user; contact Scandomestic service for replacement.

Where can I find spare parts?

Spare parts like filters, motor, and LEDs are available through Scandomestic authorized service centers. Check the manual or website for contact information.

USER MANUAL EMF 902 Scandomestic

Pic _6 2

5.

Technical line drawing of a cylindrical structure mounted on a base plate, labeled 'Pic 6' (no text or symbols on the diagram itself)

Technical line drawing of a device with a cylindrical top and base, labeled 'Pic 7' (no other text or symbols)

Diagram of a cylindrical object with a downward arrow and labeled 'Pic 8' at the base (no other text or symbols)

HINTS FOR UDST∅DNINGS KANAL INSTALLATION

INSTALLATION AF STORE MESH FILTER

BEMÆRK:

INFORMATION TIL DISMANTLING

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.
• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
● All installation work must be carried out by a competent person or qualified electrician.

● Please dispose of the packing material carefully. Children are vulnerable to it.
● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
- When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be:
Gas cookers: 5 cm Electric cookers: 10 cm

Coal or oil cookers: 75 cm

● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards
● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
● This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Always to do:

●Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
● There is a fire risk if cleaning is not carried out in accordance with the instructions
● Regulations concerning the discharge of air have to be fulfilled.

● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
● Cleaning and user maintenance shall not be made by children without supervision.
- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
●WARNING: Danger of fire: do not store items on the cooking surfaces.
●A steam cleaner is not to be used.
● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

MOUNTING OF THE V-FLAP

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, the outlet may be various according to different models and configuration.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part

INSTALLATION

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct. (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm)

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hoods should be placed at a distance of - cm from the cooking surface for best effect. (Electricity = Min. 500 mm, Gas = Min. 650 mm) See Pic 1

Pic 1

1. The ceiling must can bear at least 120kgs weight, and the thickness of the ceiling must be ≥ 30MM, see pic 2, drill 1*170mm round hole in the ceiling.
2. According to the hanging board, drill 12 holes in the ceiling, see pic 2, 12pcs of ST6*40mm big flat screws will be used to fix the hanging board on the ceiling, and then 8pcs of M4*10 screws and M4 nut with gasket will be used to connect the angle iron into the hanging board. See pic 1, calculated the length of the angle iron, and 16pcs M4*10 big flat screws and M4 nut with gasket will be used to connect the angle iron and another angle iron (the overlap length of angle iron can not less 100MM)

Pic 2

1. Let the one side of the expansion pipe go outside through the hole of 170MM, see pic 3.

1. 4pcs ST4*8 big flat screws will be used to connect the inside chimney into the hanging board, then put on the outside chimney, a hook will be used to put up the outside chimney in order to the next installation, see pic 4.
2. 4pcs ST4*8 big flat screws will be used to install the outlet, see pic 5.
3. Adjust the 4 glass screws to check whether the glass and the cooker hood body connected well and fixed, see pic 5.

Technical line drawing of a mechanical assembly with a central block and mounting base (no text or symbols)

Pic 5

Technical line drawing of a mechanical component with mounting base and cylindrical top (no text or symbols)

1. Hold up the hood, 16pcs M4*10 big flat screws will be used to connect the hood body into angle iron, see pic 6.
2. Put the expansion pipe on the outlet; after ensure all the things ok, put down the hook, take from the outside chimney, all the installation is finished, see pic7&8.

Technical line drawing of a cylindrical device mounted on a base, labeled 'Pic 6' (no other text or symbols)

Technical line drawing of a device with a cylindrical top and base, labeled 'Pic 7' (no other text or symbols)

Technical line drawing of a cylindrical component with a base and mounting bracket, labeled 'Pic 8' (no text or symbols on the diagram itself)

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.

- Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.

- Any installation work must be carried out by a qualified electrician or competent person.

- Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.

- The angle of the bend of the expansion pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

•After the installation, make sure that the cooker hood is level to avoid grease collection at on end.

- Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

WARNING:

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Electronic button

There are five buttons: (Low), (Mid), (High), (Light), (Power). See Pic above.

1. After connecting to power, indicator light will lit on, all the output close and the hood will enter standby mode. The indicator light will be off automatically after reminding if no operation.
2. Power on: Press power button one time, its indicator light will lit on, the hood works at low speed. Indicator light of low speed will be bright. Press power button again to close it, and its indicator light will be off. All the function operation of the hood will be closed, the hood enters into standby mode, and recycle by circle. The speed buttons and lamp button can work separately and not controlled by the power button. Press one function button, the hood will work at that function status. Press power button at any status will close all function operation.
3. Press lamp button once; lights will be turn on. Indicator light of lamp button and power button will lit on. Press lamp button again to turn off the lights. Indicator light of lamp button and power button will be off. And recycle like this.
4. Press the ⚙ (High) button one time, motor runs on high speed, the indicator light of high button ⚙ and power button ⏻ will beam. Press high button ⚙ again and the motor will stop. Indicator light of high button and power button will be off, and recycle by circle.
5. Press the ⚙ (Mid) button one time, motor runs on middle speed, the indicator light of middle button ⚙ and power button ⏱ will beam. Press middle button ⚙ again and the motor will stop. Indicator light of middle button and power button will be off, and recycle by circle.
6. Press the ⏻ (low) button one time, motor runs on low speed, the indicator light of low button ⏻ and power button ⏻ will beam. Press low button ⏻ again and the motor will stop. Indicator light of low button and power button will be off, and recycle by circle.
7. Low speed, mid speed and high speed cannot work at the same time. When hood is on high speed, press low speed, it will turn to low speed at once; when it is in low speed, press middle speed, it will turn to middle speed immediately, and so on.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed	Contact service center.
Light does not	House fuses blown	Reset/Replace fuses.
work, motor does not work	Power cord loose or disconnected	Refit cord to power outlet. Switch power outlet on.
Oil leakage	One way valve and the air ventilation entrance are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

- Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mainpower supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Abstract line drawing of a stylized figure with geometric shapes and a circular element, no text or symbols present.

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemonjuice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is

clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of art work on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it. (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

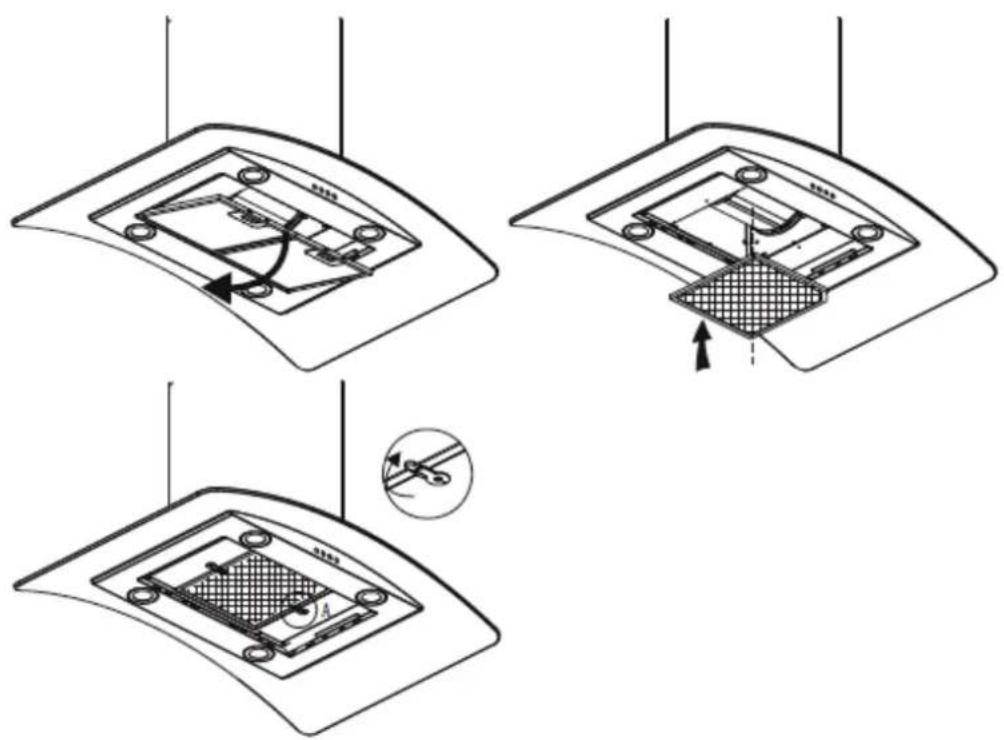

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

CARBON FILTER-not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

• Remove the al filter.
• Insert the carbon filter in the rectangularhole, fitting it over the motor.
• After inserting the front edge of the carbon filter into the slot on the cooker hood. Lower the back edge of the carbon filter, until it clicks into place at the rear of the rectangular hole. Raise the two fixing bars, until they are horizontal over the carbon filter.

- Place the Al. filter back to position.

- Apply reverse procedure to uninstall the carbon filter.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cooldown before any direct contact to hands.
When handling globes hold with a cloth or glove to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

LED LIGHTS:

1. Switch the unit off and pull out the plug first.
2. Wait until the light bulb is cooled down before replacement.
3. Take out the baffle filter and use the screw driver to take out the frame.
4. Replace with same type of bulb (LED 1.5W Max)

Note : Light replacement should carried out by qualified service personnel only.

• ILCOS D code for this lamp is: DSR-1.5/30-S-64
- LED modules- round lamp
- Max wattage: 4 × 1.5 ~W
- Voltage range: DC 12V

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances.For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

Technical line drawing of a ceiling-mounted kitchen fixture with ventilation duct and mounting bracket (no text or symbols)

Inhaltsverzeichnis

INSTALLATION

Pic 1

Pic 2

Simple line drawing of a mechanical or electrical component with three vertical posts and a central cylindrical body (no text or symbols)

Pic 5

Technical line drawing of a mechanical component with mounting base and cylindrical top (no text or symbols)

ACHTUNG:

MONTAGE VON FETTFILTER

HINWEIS:

Technical line drawing of a ceiling-mounted kitchen fixture with mounting holes and ventilation duct (no text or symbols)

Innehåll

INSTALLATION (VENTIL UTANPÅ)

MONTERING AV V-KLAFFEN

INSTALLATION

Pic 1

Pic 2

Simple line drawing of a mechanical or electrical component with three vertical posts and a central cylindrical body (no text or symbols)

Pic 5

Technical line drawing of a mechanical component with mounting base and cylindrical top (no text or symbols)

Technical line drawing of a cylindrical tank mounted on a base, with directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a cylindrical device with a base and top component, labeled 'Pic 7' (no text or symbols on the diagram itself)

Diagram of a cylindrical object with an arrow indicating a downward motion, labeled 'Pic 8' below (no text or symbols on the diagram itself)

TIPS FÖR INSTALLATION AV UTLOPPSDUKT

WARNING:

INSTALLERA FETTFILTER

Technical diagram showing two views of a device with internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical component with a highlighted section and an inset showing a tool interacting with a slot (no text or symbols present)

OBS:
