Product Type	Freestanding washing machine
Brand	Scandomestic
Model	WAD 3815 W
Capacity	8 kg
Spin Speed	1200 rpm
Dimensions (H x W x D)	850 x 597 x 535 mm
Weight	65 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Efficiency Class	A+++
Noise Level (Wash/Spin)	54 dB / 76 dB
Number of Programs	15
Key Programs	Cotton, Synthetic, Delicate, Wool, Quick 30min, Eco
Additional Features	Delay timer, Child lock, Drum cleaning, Overfill protection
Drum Material	Stainless steel
Removable Top	Yes
Water Consumption per Cycle	49 L
Annual Energy Consumption	185 kWh

Frequently Asked Questions - WAD 3815 W Scandomestic

How do I install the washing machine correctly?

Remove all transport bolts and packing material. Place the machine on a solid, level surface. Connect the water inlet hose to a cold water tap with 3/4 inch thread. Attach the drain hose to a standpipe or sink outlet. Plug the power cord into a grounded outlet. Adjust the feet to ensure stability.

What is the capacity of the Scandomestic WAD 3815 W?

The machine has a maximum wash capacity of 8 kg for cotton programs. For other fabrics, refer to the program guide to avoid overloading.

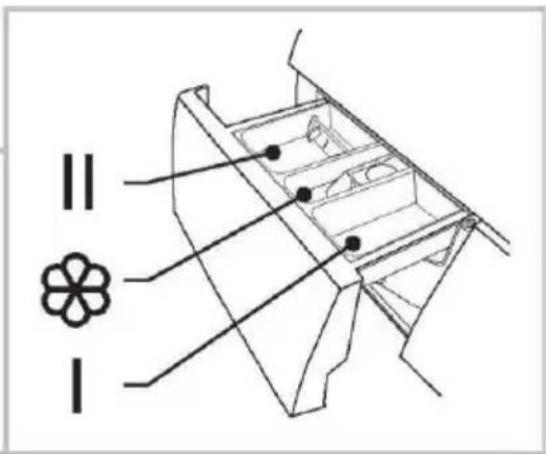

How to clean the detergent drawer?

Pull out the drawer fully. Press the release catch to remove it. Rinse under warm running water to remove detergent residue. Clean the dispenser compartment with a brush. Reinsert the drawer after drying.

What does error code E10 mean?

Error code E10 indicates a water supply issue. Check that the water tap is fully open, the inlet hose is not kinked, and the filter in the inlet valve is clean. If the problem persists, contact service.

How to use the delay timer function?

Select the desired wash program. Press the Delay Timer button repeatedly to set the delay time (from 1 to 24 hours). Press Start/Pause. The machine will begin the program at the set time.

How to clean the pump filter?

Open the filter cover at the bottom front. Place a container underneath. Turn the filter counterclockwise to remove it. Clean any debris. Replace the filter and tighten clockwise. Close the cover.

What are the dimensions of the machine?

The dimensions are 850 mm height, 597 mm width, and 535 mm depth. Allow additional space for connections and ventilation.

How to activate the child lock?

Press and hold the Child Lock button for 3 seconds until the indicator lights up. To deactivate, press and hold again for 3 seconds. The child lock prevents accidental operation.

What is the maximum spin speed?

The maximum spin speed is 1200 rpm. You can adjust it using the spin speed selector for different fabric types.

What should I do if the machine does not start?

Ensure the door is closed properly. Check that the water tap is open and the power cord is plugged in. Verify the Start/Pause button was pressed. If the problem continues, check for error codes on the display.

USER MANUAL WAD 3815 W Scandomestic

Line drawing of a washing machine with labeled parts W (no text or symbols on the device itself)

W>20mm

Simple line drawing of a washing machine with no text or symbols

Diagram of a mechanical device with an inset showing a boat and a magnified view of the component (no text or symbols)

Hand holding a tool interacting with a washing machine (no text or symbols visible)

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

Advarsel!

Hand holding a coiled ring with an arrow indicating rotation (no text or symbols)

Luk døren

Tilsæt vaskemiddel

Note!

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Læs mærkatet

Two handbags with circular cutouts, one wrapped in a blanket and the other in a sack (no text or symbols)

Sørg for at lukke tøj med lynlås og lignende

Simple line drawing of a bag with internal objects, no text or symbols present

Line drawing of a T-shirt with three arms (no text or symbols)

Diagram showing a mechanical or architectural process with curved arrows indicating rotation or movement (no text or symbols present)

Pulver vaskemiddel

Åbn sæbeskuffen

! Forsigtig !

OBS!

Tryk [Start/Pause] 3sec.

Læg tøjet ind

Start

! Forsigtig !

Line drawing of a washing machine with a handle (no text or symbols)

OBS!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a mechanical assembly with rotating components (no text or symbols)

Line drawing of a hand holding a tool with a brush (no text or symbols)

Hand holding a small electronic device with a circular inset showing a mechanical component (no text or symbols visible)

Simple line drawing of a person inserting a device into a device (no text or symbols)

OBS!

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Indsæt sæbeskuffen

Note!

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

Illustration of a hand pressing down on a device with a circular dial and scroll (no text or symbols)

Åbn filteret ved at dreje dækslet mod uret

Technical diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

Technical line drawing of a washing machine with side panel and height dimension (no text or symbols)

W D

Model	VaskekapacitetTørrekapacitet	Dimension(B*D*Hmm)	Nettovægt:	NominelEffekt
WAD 3815 W	8.0/6.0kg	595*475*850	65kg	1900W

■ Forbrugs data

■ Safety Instructions

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols:

⚠ Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

! Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

! Warning!

The electric shock!

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

• Before any maintenance the device, unplug the appliance from the mains.

• Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals.

• To ensure your safety, power plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.
• Pull out its plug from the power socket before cleaning or maintenance.
• Do not use any socket with rated current less than that of appliance. Never pull out power plug with wet hand.
• Please remember to disconnect water and power supply immediately after the clothes are washed.

Risk to children !

- EN countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and usermaintenance shall not be made by children without supervision.

- Children of less than 3 years should be supervised to ensure that they do not play with appliance.

- Animals and children may climb into the machine. Check the machine before every operation.

- Kids should be supervised that they do not play with the appliance.

• Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas.
• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.

Risk of explosion!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances( such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.
• The washer dryer is not to be used if industrial chemicals have been used for cleaning.
• The exhaust air must not be discharged into a flue which is for exhausting fumes from appliances burning gas or other fuels.
  • Before hand thoroughly rinse items of washing by hand.

Caution!

Installing the product!

• This appliance is for indoor use only.
- It isn't intended to be built-in using.
- The openings must not be obstructed by a carpet.
- The appliance shall not be installed in bath room or very wet rooms as well as in the rooms with e xplosive or caustic gases.
- The appliance with single inlet valve only can be connected to the cold water supply. The appliance with double inlet valves should be correctly connected to the

hot water and cold water supply.

• Plug must be accessible after installation.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer.
  • The appliance shall not be installed at a humid place.
  • The household appliance isn't intended to be built-in.
• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.

Risk of damaging appliance!

• The product is only for home use and is only designed for the textiles suitable for machine washing and drying.
• Do not climb up and sit on top cover of the machine.

• Do not lean against machine door.
  • Cautions during Handling Machine:

• Transport bolts shall be reinstalled to the machine by a specialized person.

• The accumulated water shall be drained out of the machine.
• Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.
• This appliance is heavy. Transport with care.
• That the hands shall not be inserted into running water extracting tub.

- Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well.

• It is forbidden to wash carpets.

Operating the appliance!

• Before using the wash machine, the product shall be calibrated.
• Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch,nail,screw or stone etc.may cause serious damages to this machine.
• Please check whether the water inside the drum has been drained before opening its door. Please do not open he door if there is any water visible.
• Be careful of burning when the product drains hot washing water.
• After the program is completed, Please wait for two minutes to open the door(Some model).
  • Never refill the waterby hand during washing.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products. it be placed in a tumble dryer they should first be washed in hot water with extra detergent, this will reduce, but not eliminate, the hazard.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
• Do not dry unwashed items in the appliance.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.

• Items such as foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The machine whose lid can be opened during water extraction, that it takes 15s or more for complete stop of water extracting chamber tub.
• The final part of a washer dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches before use the appliance.
• WARNING: Never stop a washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled wasted disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

■ Product Description

Note!

- The product line chart is for reference only, please refer to real product as standard.

Accessories

Transport hole plug

Supply hose cold water

Supply hose hot water (optional)

Drain hose support (optional)

Owner's manual

■ Installation

Installation area

Warning!

- Stability is important to prevent the product from wandering! the power cord.

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
   4.Room temperature is above 0^ C
4. Keep far away from the heat resources such as coal or gas.

Unpacking the washing machine

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation ! Keep all packaging well away from children.

Simple line drawing of a washing machine with no text or symbols

Diagram showing a box being placed on a base with an inset magnified view of a ship (no text or symbols)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

Warning!

• You must remove the transport bolts from the backside before using the product.
• You'll need the transport bolts again if you move the product, so make sure you keep them in a safe place.

Please take the following steps to remove the bolts:

1. Loosen4 bolts with spanner and then remove them.
2. Stop the holes with transport hole p lugs.
3. Keep the transport bolts properly for future use.

Illustration of a hand using a tool to adjust or install a device into a washing machine (no text or symbols visible)

Levelling the washer d ryer

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.

Connect Water Supply Hose

Warning!

• To prevent leakage or water damage, follow the instructions in this chapter!
- Do not kink, crush, modify or sever water inlet hose.
- For the model equips hot valve, connect it to hot water tap with hot water supply hose. Energy consumption will decrease automatically for some program.

Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe. 1. Connection between ordinary tap and inlet hose.

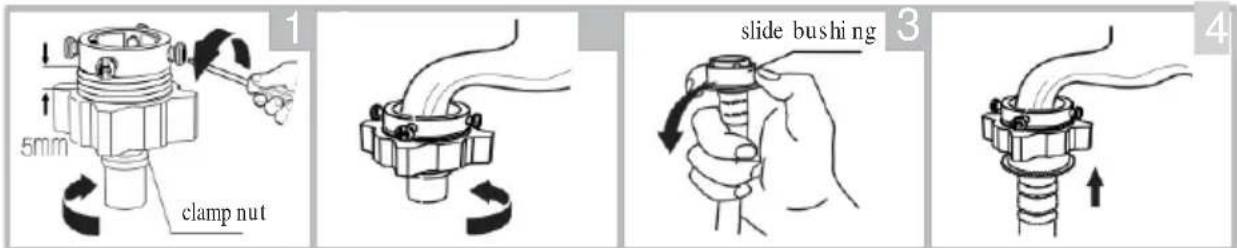

Loosen clamp nut and four bolts

Tightenclamp nut

Press slide bushing, insert inlet hose into connecting base

Connection finished

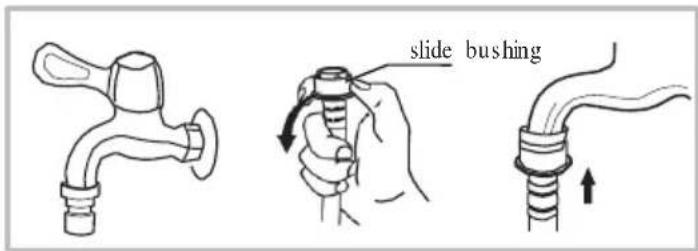

2.Connection between screw tap and inlet hose.

Diagram showing the change in faucet handle and valve position before and after (no text or symbols)

Tap with threads and inlet hose

Special tap for washer dryer

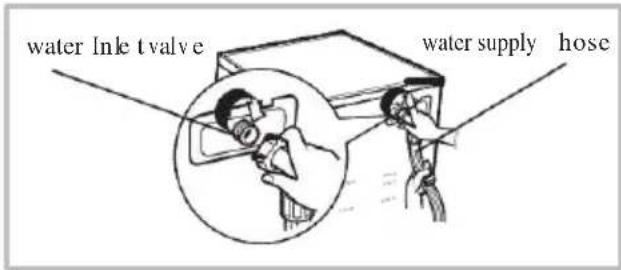

Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

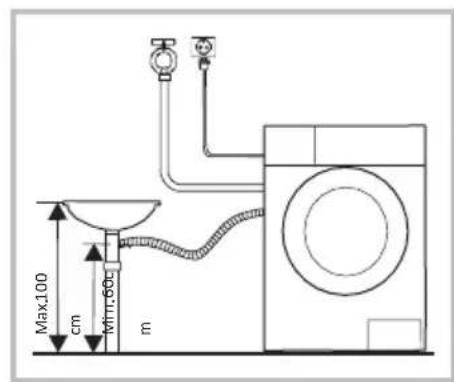

There are two ways to place the end of drain hose:

1. Put it into the water trough.

2. Connect it to the branch drain pipe of the trough.

Note!

- If the machine has drain hose support, p lease install it like the following.

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

Warning!

• When installing drain hose, fix it properly with a rope.
• If drain hose is too long, do not force it into washing machine as it will cause abnormal no i ses.

■ Quick Start

! Caution!

• Before washing, please make sure it's installed properly.
• Before washing at first time, the washing machine shall be operated in one round of the whole procedures w ithout clothes in as follows.

1. Before Washing

Note!

- Detergent only need to be added in "case I" after selecting pre-washing for machines with this function.

2.Washing

Power On
Select Programme
Select function or default
Start up

Note!

• 1. If default is selected, step 3 can be skipped.
2. The function button line chart is for reference only, please refer to real product as standard.

3. After Washing

Buzzer beep or "End" on display.

■ Before Each Washing

• The working condition of the washer should be (0-40)^ . If used under 0^ , the inlet valve and draining system may be damaged. If the machine is placed under condition of 0^ or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag hanging nearby (no text or symbols)

Check the label

Illustration of a garment with cutouts and accessories, no text or symbols present

Take out the items out of the pockets

Two handbags with circular designs, one wrapped in a strap and the other in a blanket (no text or symbols)

Knot the long strips,zip or button

Line drawing of a bag with internal anatomical structure (no text or symbols)

Put small clothes into the pillow slip

Line drawing of a knitted sweater with three arms (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Diagram showing a mechanical or architectural component with curved arrows indicating motion (no text or symbols)

Separate clothes with different textures

⚠ Warning!

• When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.
• Don't washing the clothes touching with kerosene, gasoline, alcohol and other flammable materials.

■ Detergent Dispenser

Pre wash detergent

II Main wash detergent

Softener

Liquid detergent

Powder detergent

Pull out the dispenser

! Caution!

• Detergent only need to be added in "case I" after selecting pre-washing for machines with this function.

Programme	I	II	※	Programme	I	II	※
1 Hour W/D		X	O	20°C		X	O
Wash and Dry		X	O	Wool		X	O
Quick 15'		X	O	Mix	O	X	O
Dry Only				Synthetic	O	X	O
Air Wash				ECO 40-60		X	O
Allergy Care	O	X	O	Intensive		X	O
Steam Care	O	X	O	Cotton	O	X	O
Spin Only

X = Means must 0 = Means optional

Note!

- As for the agglomerated orropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.

- Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption.

■ Control panel

Note!

• The chart is for reference only, Please refer

to real product as standard.

1 On/Off

Product is switched on or off.

3 Option

This allows you to select an additional function and will light when selected.

5 Display

? Start/Pause

Press the button to start or pause the washing cycle.

4 Programmes

Available according to the laundry type.

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

A Delay	G Option Confirm
B Door Lock	H Speed Wash
C Child Lock	I Extra Rinse
D Reload	J Anti-crease
E Pre Wash	K Spin Speed
F Extra Wash	L Temp.
M Rate Of Progress (Pre Wash-Wash-Rinse-Spin)
N Dry level( Air Dry-Gentle Dry-NormalDry-Extra Dry)
O Wash Time Delay Time
125	2h
Error	End
E20	End

Option

Pre Wash

The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes; You need to put detergent into the Case (I) when select it.

Extra Rinse

The laundry will undergo extra rinse once after you select it.

Speed Wash

The function can decrease the washing time.

Delay

Set the Delay function:

1. Select a programme
2. Press the Delay button to choose the time (the delaying time is 0-24 H.)
3. Press [Start/Pause] to commence the delay operation

On/Off

Choose

the Programme

Setting

time

Start

Cancel the Delay function:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should press the [On/Off] button to reset the programme.

! Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, press the [On/Off] button the program will continue.

Extra Wash

Very dirty clothes can choose it, select it can increase the washing time and intensity to increase the washing effect.

Anti- Crease

Anti-Crease function can be used to reduce the wrinkles of clothes.

■ Other Functions

R elo ad

This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the [Start/Pause] button.

Press[Start/Pause]3sec.

Reload the clothes

St art

! Caution!

- Don't use the Reload function when the water level over the edge of the inner tub or the temperature is higher.

My Cycle

Memory the frequently used programmes

Press [❤/❤]3sec. to memory the running programme. The default is cotton.

Child Lock

To avoid mis operation by children.

On/Off

Start/Pause Press

[Function] and [Select] or [Dry Options] and [Extra Options] 3 sec. till buzzer beep.

Caution!

• Press the two button 3sec. also to be released the function.
• The "Child Lock" will lock all buttons except [On/Off].
• Cut off the power supply, the kid's protection is to be released.
  • The child lock will remain effective when the power is resumed for some models.

Temp.

Temp.

Press the button to regulate the temperature(Cold,20°C,30°C, 40°C,60°C,90°C)

Speed

Speed/Spin

Press the button to change the spin speed.

Programme	Default Speed(rpm)	Programme	Default Speed(rpm)
	1500		1500
1 Hour W/D	1500	20°C	1000
Wash and Dry	1500	Wool	600
Quick 15'	800	Mix	800
Dry Only	1200	Synthetic	1200
Air Wash	-	ECO40-60	1500
Allergy Care	800	Intensive	800
Steam Care	800	Cotton	1500
Spin Only	1000

Caution!

- When the lights of speed are off means the spin speed is 0.

! Caution!

- After Muting the buzzer function, the sounds will not be activated any more.

Dry

Press the Dry button continuously to choose the dry level: Extra Dry/Normal Dry (Normal)/ Gentle Dry(Soft)/Time/Air Dry.

Extra Dry: Need to wear clothes immediately, we can choose this function
Normal Dry(Normal) : The normal dry procedure
Gentle Dry(Soft):Only to dry slightly and then is just ok.
Air Dry: Clothes is roated to remove peculiar smell without water in high temperature.

Time

Users can choose gears according to practical need. When there are fewer clothes to be dried, it is recommended to choose timing drying. The optional time is 30 Mins, 60 Mins, 120 Mins, 180 Mins (The default spinning time is 10 Mins, the actual display time is 0:40, 1:10, 2:10, 3:10), the corresponding drying capacity is recommended respectively 0.5kg/1kg/2kg/3kg.

Note!

• Drying hints
• Clothes could be dried after sp inning
• To ensure quality dry the textiles, please classify them according to their kinds and the drying temperature.
• Synthetic should be set the proper drying time.
• If you want to iron the clothes after drying, please put them for a while.
  • Clothes not suitable for drying
• Particularly delicate items such as synthetic curtains, woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes, such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be dried.
• Clothes padded with foam-rubber or materials similar to foam-rubber must not be machine dried.
• Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

Option Confirm

Confirm the selection of the Pre Wash, Extra Rinse, Extra Wash, Night Wash or Anti-crease function.

Programmes

Programmes are available according to the laundry type.

Programmes
1Hour W/D	For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts).
Wash and Dry Quick15'	The standard energy program. Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Dry Only	Select it to dry clothes, the temperature is different .The drying time according to the load .
Air Wash	Clothes is roated to remove peculiar smell without water in high temperature.
Allergy Care	Washing machine can effectively kill some allergens and achieve anti-allergic effect by adapting 60°C high temperature for sterilization.
Steam Care	Steam Care is applicable for daily laundries like cotton and synthetics. The steam can deeply penetrate the fiber, which effectively eliminate bacterias and germs, preventing odors and protecting your health.
Spin Only	Extra spin with selectable spin speed.
20°C	20°C default, can choose cold water.
Wool	Hand or machine-washable wool or richwool textiles .Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor ).
Mix	Mixed load consisting of textiles made of cotton and synthetics.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
ECO 40-60	Default 40°C,not selectable,suitabale for laundry washing at about 40°C-60°C.
Intensive Cotton	To increase the washing effects, washing time is increased Hard-wearing textiles, heat-resistant textiles made of cotton or linen.

■ Washing Programmes Table

Programme	Load(kg)	Temp.(°C Default)	Default Time
	8.0/6.0		8.0
1Hour W/D	1.0	Cold	0:58
Wash & Dry	6.0	40	5:04
Quick 15'	2.0	Cold	0:15
Dry Only	-/6.0	-	4:14
Air Wash	6.0	-	0:30
Allergy Care	8.0/6.0	60	2:09
Steam Care	8.0/6.0	40	1:47
Spin Only	8.0	-	0:12
20°C	8.0	20	1:01
Wool	2.0	40	1:07
Mix	8.0/6.0	40	1:20
Synthetic	4.0/4.0	40	3:17
ECO 40-60	8.0	-	3:35
Intensive	8.0	40	3:48
Cotton	8.0/6.0	40	3:39

- Concerning to Regulation(EU) No 1061/2010, The EU energy efficiency class is: A Energy test program: Intensive; Speed: The highest speed; Temp.: 60°C; Other as the default. Half load for 8.0Kg machine: 4.0Kg.

- Concerning to Regulation(EU) 2019/2023, The EU energy efficiency class is: E Energy test program: ECO 40-60/Wash & Dry. ECO 40-60: as the default

Half load for 8.0Kg machine:4.0Kg.

Quarter load for 8.0Kg

maschine 2.0Kg

Wash and Dry: dry level (Extra dry), Other as the default.

Half load for 6.0 Kg machine: 3.0Kg

Note!

• The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.
• The programme with can be choose dry function.

■ Cleaning And Care

Warning!

- Before your maintenance starts, p lease unplug the machine and close the tap.

Cleaning The Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed.

Line drawing of a washing machine with a handle (no text or symbols)

Note!

- Formic acid and its diluted solvents orequivalent are forbidden, such as alcohol, solvents or chemical products, etc.

Cleaning The Drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents.

Never uses steel wool.

Note!

- Don't put laundry in the washing machine during the drum cleaning.

Cleaning The Door Seal And Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks.

Remove any coins, buttons and other objects from the seal after each wash.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning The Inlet Filter

Note!

- In let filter must be cleaned if there is less water.

Washing the filter in the tap

1. Close the tap.
2. Remove the water supply hose from the tap.
   3.clean the filter.
3. Reconnect the water supply hose.

Washing the filter in washer dryer:

1. Screw off the inlet pipe from the backside of the machine.
2. Pull out the filter with long nose pliers and reinstall it back after being washed.
3. Use the brush to clean the filter
4. Reconnect the inlet pipe.

Diagram showing a mechanical assembly with rotating components and a base, no text or symbols present

Line drawing of a hand holding a tool with a pen, no text or symbols present

Illustration of a hand holding a small electronic device with a circular inset showing a mechanical component (no text or symbols)

Simple line drawing of a hand holding a tool near a table with a magnified circular view (no text or symbols)

Note!

• If the brush is not clean, you can pull out the filter washed separately;
• Reconnect, turn on the tap.

Clean Detergent Dispenser

1. Press down the arrow location on softener cover inside the dispenser drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
   3.Restore the softener cover and push the drawer into position.

Technical line drawing of a mechanical device with internal components and labeled section A (no text or symbols beyond label)

Pull out the dispenser drawer with press the A

Technical line drawing of a mechanical device with lever and housing (no text or symbols)

Clean the dispenser drawer under water

Line drawing of a hand inserting a component into a device (no text or symbols)

Clean inside the recess with an old toothbrush

Line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Insert the dispenser drawer

Note!

- Do not use alcohol, solvents or chemical products to clean the machine.

Cleaning Drain Pump Filter

Warning!

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Rotate 90°C and pull out the emergency drain hose, and take off the hose cap

Line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

After water runs out, reset the drain hose

Illustration of a hand pressing down on a device with a circular dial and scroll (no text or symbols)

Open the filter by turning to the counter clockwise

Remove extraneous matter

Technical diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

Close the lower cover cap

! Caution!

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak;
• Some machines don't have emergency drain hose, so step 2 and step 3 can be skipped. Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

The start of the appliance does not work or it stops during operation.

First try to find a solution to the problem, If not, contact the service centre.

Description	Reason	Solution
Washer dryer cannot start up	Door is not closed properly	Restart after the door is closedCheck if the clothes is stuck
Door can’t be opened	Washer’s safety protection design is working	Disconnect the power, restart the product
Water leakage	The connection between in let pipe or outlet hose is not tight	Check and fasten water pipesClean up outlet hose
Detergent residues in the box	Detergent is dampened or agglomerated	Clean and wipe the detergent box
Indicator or display does not light	Disconnect the power PC board or harness has connection problem	Check if the power isshut down and the powerplug is connected correctly
Abnormal noise		Check if the fixing (bolts) have been removedCheck it’s installed on a solid and level floor

Description	Reason	Solution
E30	Door is not closed properly	Restart after the door is closedCheck if the clothes is stuck
E10	Water in jec tingproblem while washing	Check if the water pressure istoo lowStraighten the water pi peCheck if the inlet valve filter is blocked
E21	Overtime water draining	Check if the drain hose is blocked
E12	Water overflow	Rest art the washer
EXX	Others	Please try againfirst, call up service line if there are still troubles

Note!

- After the check, activate the appliance. If the problem occurs or the display shows other alarm codes again, contact the service.

Technical Specifications

Power Supply 220-240V\~,50Hz

MAX.Current 10A

Standard Water 0.05MPa\~1MPa Pressure

Technical line drawing of a mechanical housing or enclosure with labeled dimensions H and D (no text or symbols beyond labels)

Model	Washing Capacity Drying Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
WAD 3815 W	8.0/6.0kg	595*475*850	65kg	1900W

■ Product Fiches

Model	WAD 3815 W
Washing Capacity	8kg
Drying Capacity	6kg
Spin Speed	1500 rpm
Energy efficiency class	A
Energy consumption of per cycle (to wash and dry a full capacity wash load at 60°C)	5.44kWh/Cycle
Water consumption of per cycle(Total)	136L/cycle
Annual energy consumption(Using the dryer)	1088kWh /annual
Annual water consumption(Using the dryer)	27200 L /annual
Annual energy consumption(Never Using the dryer)	176kWh /annua
Annual water consumption(Never Using the dryer)	12800 L/annual
Washing performance class	A
Spin- drying efficiency class	B
Standard washing cycle	Intensive
Energy consumption of the Cotton ECO 60°C at full load(Washing) Water	0.88kwh/cycle
consumption of the Cotton ECO 60°C at full load(Washing) Remaining	64L/cycle
moisture content of the Cotton ECO 60°C at full load(Washing) Programme	53%
duration of Cotton ECO 60°C at full load(Washing)	310min
Energy consumption of the Dry at full load(Drying) Water	4.56kwh /cycle
consumption of the Dry at full load(Drying) Remaining	72L/cycle
moisture content of the Dry at full load(Drying) Programme	0%
duration of Dry at full load(Drying)	420min
Power consumption of off - mode	0.5W
Power consumption of Left on -mode	1.0W
Noise level of washing	57dB (A)
Noise level of sp inning	79dB (A)
Noise level of drying	62dB (A)

Supplier's name or trade mark: Scandomestic A/S
Supplier's address : Thrigesvej 2, 8600 Silkeborg
Model identifier: WAD 3815 W
General product parameters:
Parameter	Value		Parameter	Value
Rated capacity (kg)	Rated capacity	6.0	Dimensions in cm	Height	85
	Rated washing capacity	8.0		Width	60
				Depth	48
Energy Efficiency Index	EEIW	60.0	Energy efficiency class	EEIW	B
	EEIWD	82.0		EEIWD	E
Washing efficiency index	IW	1.04	Rinsing effectiveness (g/kg dry textile)	IR	5.0
	JW	1.04		JR	5.0
Energy consumption in kWh per kg per cycle, for the washing cycle of the household washer-dryer, using the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used	0.545		Energy consumption in kWh per kg per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual energy consumption will depend on how the appliance is used	3.768
Water consumption in litre per cycle, for the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	48		Water consumption in litre per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and	90

MAINTENANCES

			half loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water
Maximum temperature inside the treated textile (°C)	Rated washing capacity	38	Remaining moisture content (%)	Rated washing capacity	53
	Half	38		Half	53
	Quarter	21		Quarter	53
Spin speed (rpm)	Rated washing capacity	1500	Spin-drying efficiency class	B
	Half	1500
	Quarter	1500
Eco 40-60 programme duration (h:min)	Rated washing capacity	3:38	wash and dry cycle duration (h:min)	Rated capacity	9:30
	Half	2:48		Half	6:40
	Quarter	2:48
Airborne acoustical noise emissions during the spinning phase for the eco 40-60 washing cycle at rated washing capacity (dB(A) re 1 pW)	80		Airborne acoustical noise emission class for the spinning phase for the eco 40-60 programme at rated washing capacity	C
Type	[built-in/free-standing]		Freestanding
Off-mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier:
This product has been designed to release silver ions during the washing cycle			No
Additional information:

MAINTENANCES

Weblink to the supplier's website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found: www.scandomestic.dk

Note!

• Programme setting for testing in accordance with applicable standard En60456 for wash.
• Programme setting for testing in accordance with applicable standard En50229 for wash and dry.
• When using the test programmes, wash the specified load using the maximum spin speed.
• The actual parameters will depend on how the applicance is used, and maybe different with the parameters in above mentioned table.
• The household washing machine is equipped with power management system. The duration of the left-on mode time is less than 10 minute.
• The noise emissions during washing/spinning for the standard washing cycle at full load.

Remarks:

The energy efficiency class is from A(highest efficiency) to D (lowest efficiency)
2 Energy consumption per year, based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
4 Spin-drying efficiency class from G (least efficient) to A (most efficient).
5 The standard 60°C programme and the standard 40°C programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle emperature. Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

Säkerhetsinstruktioner

Simple line drawing of a washing machine with a circular dial and X-shaped mark (no text or symbols)

Diagram showing a box being inserted into a base with an inset magnified view of a mechanical component (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a washing machine (no text or symbols visible)

Avloppsslang

WARNING!

Notera!

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

WARNING!

• Innan tvätt, se till att maskinen är korrekt installerat.
• Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows.

1. Innan du tvättar

Notera!

Simple line drawing of a sweater with a tag (no text or symbols)

Kolla etiketten

Tömm fickorna

Line drawing of two bags with circular patterns, no text or symbols present

Knyt långa snören

Simple line drawing of a bag with patterned design and small floral elements (no text or symbols)

Line drawing of a knitted sweater with textured cap and side ribs (no text or symbols)

Simple line drawing of a bag being folded into a basket (no text or symbols)

Technical line drawing of a dam-board frame structure (no text or symbols)

Flytande tvättmedel

Technical line drawing of a dam-board structure (no text or symbols)

Pulvertvättmedel

Air Dry: Clothes is roated to remove peculiar smell without water in high temperature.

Tid

Line drawing of a hand washing a washing machine (no text or symbols)

Notera!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram showing a mechanical assembly with rotating components and arrows indicating motion (no text or symbols)

Line drawing of a hand holding a tool with a mechanical component (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing rotational motion (no text or symbols)

Simple line drawing of a mechanical device with a circular component inserted into a base (no text or symbols)

Notera

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Line drawing of a hand using a tool to remove or remove material inside a container (no text or symbols)

Line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Diagram of a mechanical component with a rotating ring and base plate (no text or symbols)

Simple line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Ta bort främmande material

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Line drawing of a washing machine with labeled dimensions (W) and angle indicators (no text or symbols beyond measurement markers)

Simple line drawing of a box with a circular center and two X-shaped marks on the side (no text or symbols)

Diagram showing a box with an arrow pointing upward and a magnified inset of a mechanical component (no text or symbols)

Illustration of a hand using a tool to switch or adjust a mechanical component (no text or symbols visible)

Line drawing of a washing machine with pipes and control valves (no text or symbols)

- ^ Hinweis!

Line drawing of a kitchen sink with faucet and chain-link rings (no text or symbols)

- A Warnung!

Simple line drawing of a sweater with a tag (no text or symbols)

Line drawing of two backpacks with circular designs and ribbon handles (no text or symbols)

Simple line drawing of a bag with a bag inside, containing no text or symbols

Line drawing of a knitted sweater with pleated pattern (no text or symbols)

Simple line drawing of a mechanical or architectural component with arrows indicating motion (no text or symbols)

Flüssigwaschmittel

Pulverwaschmittel

Note!

Line drawing of a hand washing a washing machine (no text or symbols)

- ^ Hinweis!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a mechanical valve or pump assembly with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool with a circular component inserted (no text or symbols)

Hand holding a small electronic device with a magnified inset showing the internal components (no text or symbols visible)

Simple line drawing of a mechanical device with a circular component and internal components (no text or symbols)

- 1^ Hinweis!

Technical line drawing of a mechanical component with internal channels and a labeled section (no text or symbols)

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Hand inserting a small object into a rectangular device (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Simple line drawing of a device with a circular button and a pointer, no text or symbols present

Simple line drawing of a kitchen appliance with a plate, sink, and handle (no text or symbols)

Hand pressing a button on a control panel with a rotary knob (no text or symbols visible)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: WAD 3815 W

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	372128
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	10 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE
