Product type	Portable CD player with FM/MW radio and cassette deck
Brand	PHILIPS
Model	AZ1018
Power supply	6 R14/UM2/C batteries (1.5 V) or AC mains via included cord
Sound sources	Audio CD, FM/MW radio, cassette
CD functions	Play, Pause, Stop, Search/Skip, Program (20 tracks), Shuffle and Repeat modes
Radio functions	Manual and automatic tuning, 30 presets, telescopic FM antenna, built-in MW antenna
Cassette functions	Play, Record (CD sync, radio), Rewind, Fast Forward, Pause
Amplification	DBB (Dynamic Bass Boost) for enhanced bass
Display	LCD screen with track, time, mode, and battery level indicators
Maintenance	Clean cassette heads (every 50h) with cotton swab and alcohol; clean CD with soft cloth from center to edge
Precautions	Do not expose to humidity, excessive heat, sunlight. Minimum 15 cm ventilation around the device
Safety	Never open the device (risk of electric shock); use only identical batteries
Repairability	Refer to after-sales service; do not repair yourself
Included accessories	AC power cord (detachable)
Battery type	6 x R14/UM2/C (alkaline recommended)
Radio bands	FM (standard frequencies) and MW (AM)

Frequently Asked Questions - AZ1018 PHILIPS

How do I play a CD on my Philips AZ1018?

Set the power selector to CD, open the lid (LIFT TO OPEN), insert an audio CD (printed side up), close the lid, then press PLAY•PAUSE ▶II to start playback.

How do I record from the radio?

Select the RADIO source, tune to the desired station, insert a blank cassette into the deck, then press RECORD ●. Recording starts automatically.

How do I program radio stations?

Tune to a station, press CD MODE/PROGRAM (PROGRAM flashes), select a preset number with PRESET ▲/▼, then press CD MODE/PROGRAM again to confirm. Up to 30 stations can be stored.

What if the device does not turn on?

Check that the power cord is properly connected or that the batteries are inserted correctly and not drained. If the BATT LOW indicator lights up, replace the batteries.

How do I improve FM reception?

Extend and orient the telescopic antenna. Tilt and rotate it for best reception. If the signal is too strong (near a transmitter), reduce the antenna length.

How do I clean the cassette deck heads?

Open the cassette compartment, press PLAY ◀ to clean the pinch rollers, then press PAUSE II to clean the magnetic heads and capstan with a cotton swab moistened with alcohol. Perform this every 50 hours of use.

What types of batteries should I use?

Use 6 batteries of type R14/UM2/C (C cells), preferably alkaline. Never mix different battery types (alkaline and zinc-carbon) and do not combine new and used batteries.

What does 'Cd Err' mean?

The 'Cd Err' display indicates a CD reading error. Possible causes: no CD inserted, scratched or dirty CD, blank or unfinalized CD-R(W), or foggy lens (let the device acclimatize). Clean the CD or replace it.

How do I use Shuffle or Repeat mode?

During CD playback, press CD MODE/PROGRAM repeatedly to cycle through modes: SHUFFLE (random play), REPEAT (repeat a track), REPEAT ALL (repeat the entire CD). To return to normal mode, press until the icons disappear.

Can I use Chrome or Metal cassettes for recording?

No, this device is not compatible with CHROME (IEC II) or METAL (IEC IV) cassettes. Use only NORMAL (IEC I) cassettes with intact protective tabs.

USER MANUAL AZ1018 PHILIPS

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse.

2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.

3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).

- As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.
• Connect the brown wire to the terminal marked L or coloured red.
• Do not connect either wire to the earth terminal in the plug, marked E (or 1/2 ) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Copyright in the U.K.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Norge

Philips Consumer Electronics

Philips, Glaslaan 2,

5616 JB Eindhoven, The Netherlands

CAUTION: Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

This product complies with the radio interference requirements of the European Union.

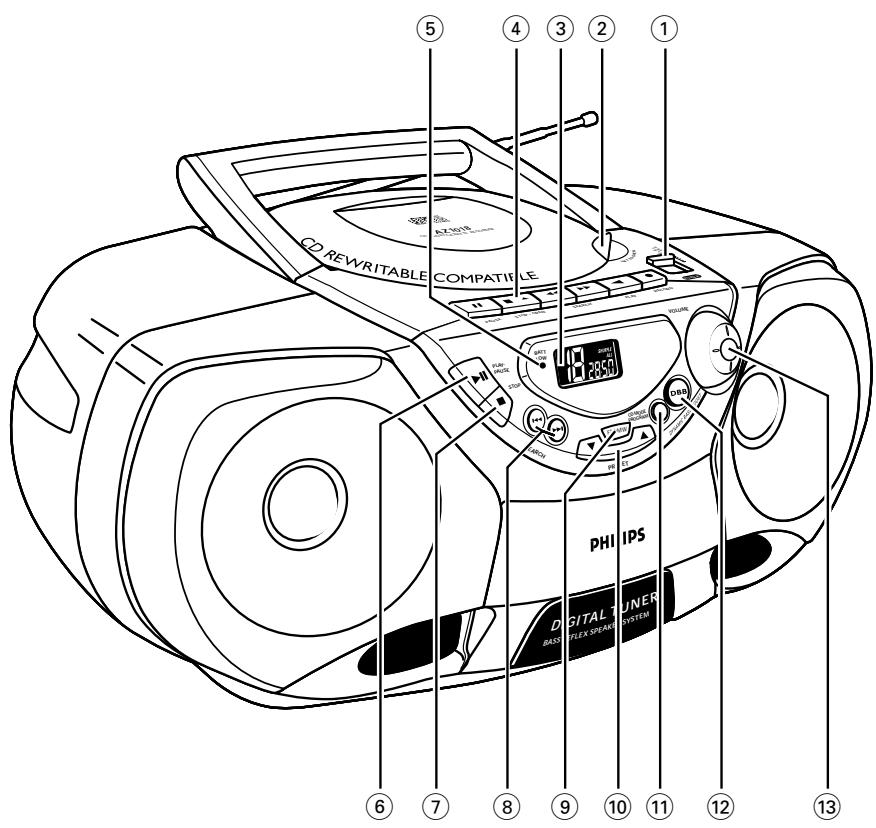

Top and front panels

1 Power slider: CD, RADIO, TAPE/OFF – selects source of sound CD, RADIO, TAPE/OFF, and the power on/off switch 2 LIFT TO OPEN – opens/closes the CD door 3 Display – shows the status of the set 4 CASSETTE RECORDER: PAUSE II – pauses recording or playback

STOP•OPEN ■▲ – stops the tape; opens the cassette door

SEARCH ◀◀ or ▶▶ – fast rewinds / winds the tape

PLAY ◀ – starts playback

RECORD ● – starts recording

5 BATT LOW – indicator lights up if battery power is running low 6 PLAY·PAUSE ▶II – starts or pauses CD playback 7 STOP ■ – stops CD playback; erases a CD programme 8 SEARCH ◀◀, ▶▶ CD: skips or searches a passage/track backwards or forward RADIO – tunes to a radio station (up, down) 9 FM•MW – selects FM/ MW (AM) waveband 10 PRESET ▲, ▼ – selects a preset station (up, down) 11 CD MODE/PROGRAM CD – programmes and reviews programmed track numbers; – plays tracks CD/ programme in random order; – repeats a track/CD/ programme RADIO – programmes radio preset stations

12 DBB (Dynamic Bass Boost) – enhances bass response 13 VOLUME – adjusts volume level

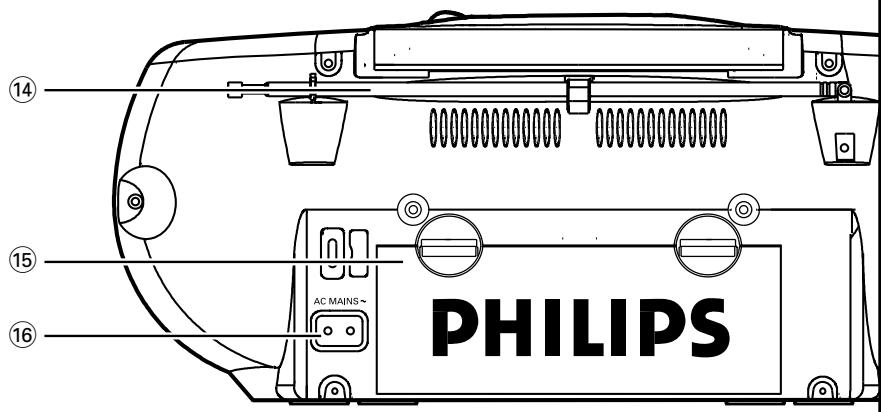

Back Panel

14 Telescopic aerial – to improve FM reception 15 Battery door – open to insert 6 x 1.5V R14/UM2/ C-cell batteries 16 AC MAINS – inlet for mains lead

Power Supply

Whenever convenient, use the power supply if you want to conserve battery life.

Make sure you remove the plug from the set and wall socket before inserting batteries.

For users in the U.K.: please follow the instructions on page 2.

Batteries (not included)

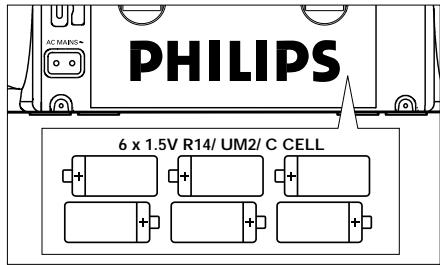

1 Open the battery compartment and insert six batteries, type R-14, UM-2 or C-cells, (preferably alkaline) with the correct polarity as indicated by the "+" and "-" symbols inside the compartment. 2 Close the compartment door, and make sure the batteries are firmly and correctly in place. The set is now ready to operate. → If BATT LOW lights up, battery power is running low. The BATT LOW indicator eventually goes out if the batteries are too weak.

Batteries contain chemical substances, so they should be disposed of properly.

Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst. Therefore:

• Do not mix battery types: e.g. alkaline with carbon zinc. Only use batteries of the same type for the set.
• When inserting new batteries, do not try to mix old batteries with the new ones.
• Remove the batteries if the set is not to be used for a long time.

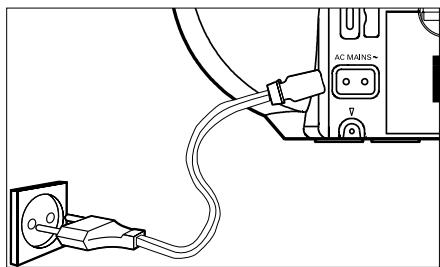

Using AC Power

1 Check if the mains voltage, as shown on the type plate located on the bottom of the set, corresponds to your local mains supply. If it does not, consult your dealer or service centre.

2 Connect the mains lead to the AC MAINS inlet and the wall socket. The power supply is now connected and ready for use.

3 To switch off completely, unplug the mains lead from the wall socket.

- Unplug the mains lead from the wall socket to protect your set during heavy thunderstorms.

The type plate is located on the bottom of the set.

Switching power on/off: Save energy

Whether you are using mains or battery supply, to avoid unnecessary energy consumption always adjust the POWER slider to TAPE/OFF and check if the cassette keys are released.

General operation

1 To select your sound source adjust the POWER slider to CD, RADIO or TAPE/OFF. 2 Adjust the sound with the VOLUME and DBB (Dynamic Bass Boost) controls. 3 To switch off the set, adjust the POWER slider to TAPE/OFF position and check the cassette keys are released.

Note: When the set is switched off the tuner presets will be retained in the set's memory.

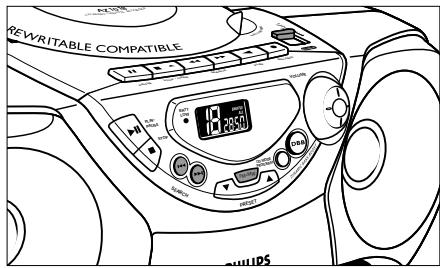

Radio reception

1 Adjust the POWER slider to RADIO.

→ Display: shows the radio frequency briefly. The radio frequency is then shown.

2 Press FM•MW once or more to select the desired waveband.

→ Display: shows your waveband

3 Press and hold down SEARCH ◀◀ or ▶▶ briefly to tune to a radio station. Release when the frequency in the display starts to change.

→ The radio automatically tunes to a radio station of sufficient reception. Display shows 5rch during automatic tuning.

• To tune to a weak station, press SEARCH

◀◀ or ▶▶ briefly and repeatedly until you have found optimal reception.

To improve reception

- For FM, pull out the telescopic aerial. Incline and turn the aerial. Reduce its length if the signal is too strong (very close to a transmitter).

- For MW (AM) the set is provided with a built-in aerial so the telescopic aerial is not needed. Direct the aerial by turning the whole set.

4 To switch off the radio, adjust the POWER slider to TAPE/OFF position and check the cassette keys are released.

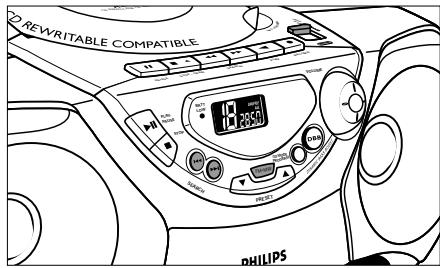

Programming radio stations

You can store up to a total of 30 radio stations in the memory.

1 Tune to your desired station (see Radio Reception).

2 Press CD MODE/PROGRAM to activate programming.

→ Display: PROGRAM flashes.

3 Press PRESET ▲ or ▼ once or more to allocate a number from 1 to 30 to this station.

4 Press CD MODE/PROGRAM again to confirm the setting.

→ Display: PROGRAM disappears, and the preset number and frequency of the preset station are shown.

5 Repeat the above four steps to store other stations.

- You can erase a preset station by storing another frequency in its place.

Tuning to preset stations

Press PRESET ▲ or ▼ until the desired preset station is shown.

CD Player

Display indication

• Cd open: CD door open
• 15C: when reading CD contents
• In stop mode: total track number and total playback time
• During CD playback: elapsed playback time of current track and current track number – Pause: elapsed playback time freezes and flashes
• SHUFFLE/ REPEAT modes: when the respective mode is activated
• PROGRAM: when CD programme active; program also appears briefly when you store a track
• no SEL: programme activated but no tracks selected
• FULL: programme memory full
• no pro9: programme cancelled
• Cd Err, no dISC or nF dISC: error in CD operation /no disc/ or a CD-R(W) is blank or the disc is not finalized (see Troubleshooting)

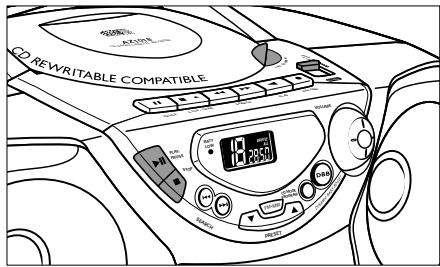

Playing a CD

This CD-player can play all kinds of Audio Discs such as CD-Recordables and CD-Rewritables. Do not try to play a CD-ROM, CDi, VCD, DVD or computer CD.

1 Adjust the POWER slider to CD. → Display: shows £ → briefly. 2 To open the CD door, lift the CD door at the edge marked LIFT TO OPEN. 3 Insert a CD or CD-R(W) with the printed side facing up and press the CD door gently close. 4 Press PLAY·PAUSE ▶II on the set to start playback. 5 To pause playback press PLAY·PAUSE ▶II. To resume, press PLAY·PAUSE ▶II again. → The elapsed playback time freezes and flashes. 6 To stop CD playback, press STOP ■. 7 To switch off the set, adjust the POWER slider to TAPE/OFF position and check the cassette keys are released. Note: CD play will also stop when: - you open the CD compartment; - you select RADIO or TAPE sound source; – the CD has reached to the end.

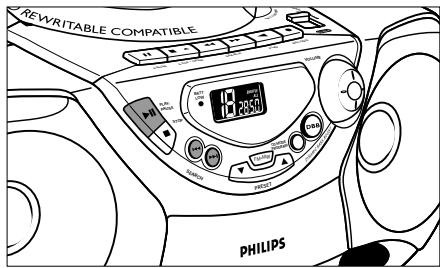

Selecting a different track

During playback you can use the SEARCH buttons to select a particular track.

• If you have selected a track number in the stop or pause position, press PLAY·PAUSE ▶II to start playback.
• Press SEARCH ▶ once briefly for the next track, or press repeatedly until the desired track number appears in the display.
• Press SEARCH ◀ once briefly to return to the beginning of a current track.
• Press SEARCH ◀ more than once briefly for a previous track.

Finding a passage within a track

1 During playback, press and hold down SEARCH ◀◀ or ▶▶. - The CD is played at high speed and low volume. 2 When you recognize the passage you want release the SEARCH button.

→ Normal playback resumes.

Note: During a CD programme or when SHUFFLE/REPEAT is active, searching is only possible within a track.

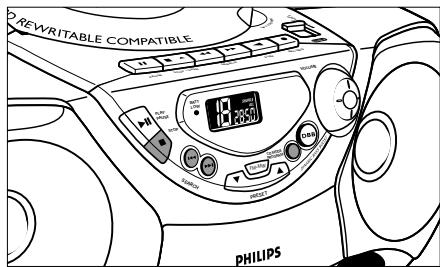

Different play modes

CD MODE/PROGRAM allows you to select various play modes. The modes can be selected or changed during playback of an entire CD/CD programme in the following sequence:

SHUFFLE – all tracks are played in random order

SHUFFLE REPEAT ALL – repeats the entire CD in random order

REPEAT – plays the current track continuously

REPEAT ALL – plays the entire CD continuously

1 During playback, select your play mode by pressing CD MODE/PROGRAM once or more until the desired play mode is shown. - You can use SEARCH ◀◀ or ▶▶ to skip tracks during the SHUFFLE/ REPEAT modes. - The SHUFFLE/ REPEAT play options can be combined and used with a programme: e.g. SHUFFLE/ REPEAT ALL repeats the entire CD programme in random order. 2 To return to normal playback press CD MODE/PROGRAM until the SHUFFLE/REPEAT modes are no longer shown. - You can also press STOP ■ to quit the play mode.

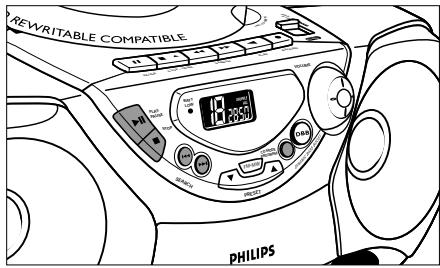

Programming track numbers

You may store up to 20 tracks in the desired sequence. If you like, store any track more than once.

1 In the STOP mode, press SEARCH ◀◀ or ▶▶ for your desired track. 2 When your chosen track number appears, press CD MODE/PROGRAM once to store the track.

→ The display shows PROGRAM and 'PROG' briefly followed by your selected track number. → If you attempt to programme without first selecting a track number, no SET is shown.

3 Repeat steps 1 to 2 to select and store all desired tracks in this way.

→FULL is displayed if you attempt to programme more than 20 tracks.

4 To play your programme, press PLAY•PAUSE ▶II.

Reviewing your programme

- In the STOP mode, press and hold down CD MODE/PROGRAM for more than one second.

→ The display shows all your stored track numbers in sequence.

Erasing a programme

You can erase the contents of the memory by:

• opening the CD door; – selecting RADIO or TAPE source;
• pressing STOP ■ (twice during playback or in the stop position.)

→ Display: shows "no prog" briefly when the programme is cancelled.

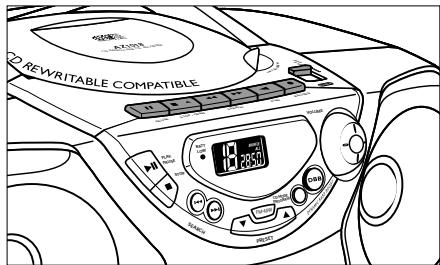

CASSETTE RECORDER

Cassette playback

1 Adjust the POWER slider to TAPE/OFF. 2 Press STOP•OPEN ■▲ to open the cassette door and insert a recorded cassette. 3 Close the cassette door. 4 Press PLAY ◀ to start playback. → Display: shows E RPE throughout tape operation. 5 To pause playback press PAUSE II. To resume, press the key again. 6 By pressing ◀◀ or ▶▶, fast winding of the tape is possible in both directions. To stop fast winding, press STOP·OPEN ■▲. 7 To stop the tape, press STOP·OPEN ■▲. - The keys are automatically released at the end of the tape, the LAPE indication goes out and the set is switched off, except if PAUSE II has been activated.

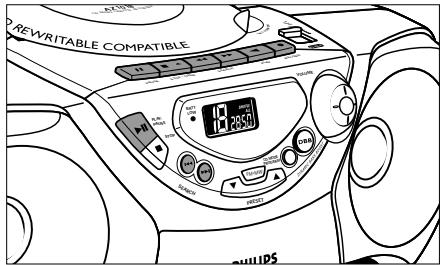

General information on recording

• Recording is permissible insofar as copyright or other rights of third parties are not infringed.
• This deck is not suited for recording on CHROME (IEC II) or METAL (IEC IV) type cassettes. For recording, use only NORMAL type cassettes (IEC type I) on which the tabs have not been broken.
• The best recording level is set automatically. Altering the VOLUME and DBB controls will not affect the recording in progress.
• At the very beginning and end of the tape, no recording will take place during the 7 seconds when the leader tape passes the recorder heads.
• To protect a tape from accidental erasure, have the tape in front of you and break out the left tab. Recording on this side is no longer possible. To record over this side again, cover the tabs with a piece of adhesive tape.

Synchro Start CD recording

1 Select CD source. 2 Insert a CD and if desired, programme track numbers. 3 Press STOP•OPEN ■▲ to open the cassette door. Insert a blank tape. 4 Close the cassette door. 5 Press RECORD ● to start recording.

- Playing of the CD programme starts automatically from the beginning of the programme. It is not necessary to start the CD player separately.

6 For brief interruptions press PAUSE II. To resume recording, press PAUSE II again. 7 To stop recording, press STOP·OPEN ■▲.

Selecting and recording a particular passage

• During CD playback, press and hold down the SEARCH buttons ◀◀ or ▶▶ on the set to find your passage.
• Press PLAY·PAUSE ▶II to put the CD player on pause at the selected passage.

→ Recording will begin from this exact point in the track when you press RECORD ●.

Recording from the Radio

1 Select RADIO source and your waveband. 2 Tune to the desired radio station (see Radio reception). 3 Press STOP•OPEN ■▲ to open the cassette door. Insert a blank tape. 4 Close the cassette door. 5 Press RECORD ● to start recording. 6 For brief interruptions, press PAUSE II. To resume recording, press PAUSE II again. 7 To stop recording, press STOP·OPEN ■▲.

Precautions & General Maintenance

• Place the set on a hard and flat surface so that the system does not tilt.
• Do not expose the set, batteries, CDs or cassettes to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.
• Do not cover the set. Adequate ventilation with a minimum gap of 6 inches between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up.
• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.
• To clean the set, use a soft, slightly dampened chamois leather. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

Tape deck maintenance

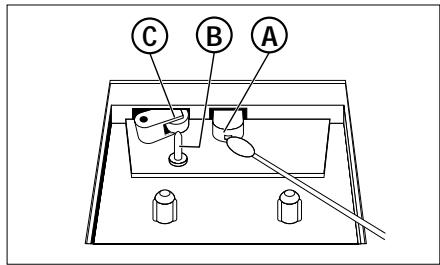

To ensure quality recording and playback of the tape deck, clean parts A, B and C shown in the diagram below, after approx. 50 hours of operation, or on average once a month. Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean the deck.

1 Open the cassette door by pressing STOP·OPEN ■▲. 2 Press PLAY ◀ and clean the rubber pressure roller ©. 3 Press PAUSE II and clean the magnetic heads Ⓐ, and also the capstan Ⓑ. 4 After cleaning, press STOP·OPEN ■▲. - Cleaning of the heads can also be done by playing a cleaning cassette through once.

CD player and CD handling

• The lens of the CD player should never be touched!
• Sudden changes in the surrounding temperature can cause condensation to form and the lens of your CD player to cloud over. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates. • Use only Digital Audio CDs.
• Always close the CD door to keep the CD compartment dust-free. To clean, dust the compartment with a soft dry cloth.
• To take a CD out of its box, press the centre spindle while lifting the CD. Always pick up the CD by the edge and replace the CD back in its box after use to avoid scratching and dust.
• To clean the CD, wipe in a straight line from the centre towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.
• Never write on a CD or attach any stickers to it.

Environmental information

All unnecessary packaging material has been omitted. The packaging can be easily separated into three materials: cardboard, polystyrene and plastic.

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

If a fault occurs, first check the points listed below before taking the set for repair.

Do not open the set as there is a risk of electric shock.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Under no circumstances should you try to repair the set yourself, as this will invalidate the guarantee.

Problem	Solution
No sound	- Adjust the VOLUME
No power	- Mains lead not securely connected. Connect AC mains lead properly- Batteries exhausted /incorrectly inserted. Insert (fresh) batteries correctly
Display does not function properly/ No reaction to operation of any of the controls	- Electrostatic dischargeSwitch off and unplug the set.Reconnect after a few seconds.
no d ISC, Cd Err or nF d ISC indication	- No CD inserted, insert a CD- CD badly scratched/ dirty.Replace/ clean CD (see maintenance)- CD-R(W) is blank or the disc is not finalized.Use a finalized CD-R(W)- Laser lens steamed up.Wait until lens has acclimatized
Laser lens steamed up	- Wait until lens has cleared- Wait until lens has acclimatized
CD playback does not work	- CD badly scratched/ dirty.Replace/ clean CD (see maintenance)
The CD skips tracks	- CD damaged or dirty.Replace or clean CD.- Programme is active. Quit programme mode
Poor cassette sound quality	- Dust and dirt on the heads, etc.Clean deck parts, see maintenance.- Use of incompatible cassette types (METAL or CHROME). Only use NORMAL (IEC I) for recording
Recording does not work	- Cassette tab(s) may be broken.Apply a piece of adhesive tape over the missing tab space.

Batteries (not included)

SHUFFLE REPEAT ALL – repeats the entire CD in random order

General operation

Meet Philips at the Internet

http://www.philips.com

AZ 1018

CLASS 1 LASER PRODUCT
