USER MANUAL AJ3290 PHILIPS
ALARM1 ALARM 2
RUN + 1.1x TIMESET
SLUMBER
SLUMBER OFF
ALARM RESET
300
009
055
3HH
4H
dual alarm
REPEAT ALARM
PHILIPS
7:30
ALARM 1
VOLUME
ALARM 2
Instructions for use
Mode d'emploi
Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows:
- Remove fuse cover and fuse.
- Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
- Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.
Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).
As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:
- Connect the blue wire to the terminal marked N or coloured black.
- Connect the brown wire to the terminal marked L or coloured red.
- Do not connect either wire to the earth terminal in the plug, marked E (or 12 ) or coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires. Copyright in the U.K.: Recording and playback of material may require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.
English 4
Français 8
Español 12
Deutsch...... 16
Nederlands 20
Italiano 24
Português 28
Dansk 32
Svenska 36
Suomi 40
'Ελληνικά 44
2
3
4
5
6
7
8
ALARM 1 ALARM 2
RUN→ TIME SET
SLUMBER
ALARM RESET
SLUMBER OFF
REPEAT ALARM
PHILIPS
VOLUME
ALARM 1
ALARM 2
MW FM
1300 1600
104 108
96 100
90 104
530 ZMH
ZHZ
dual alarm
⑩
⑪
OFF+RAD+BUZ
AL.1
OFF+RAD+BUZ
AL.2
OFF+ •ON RADIO
⑭
⑫
⑬
⑬
MW FM BAND

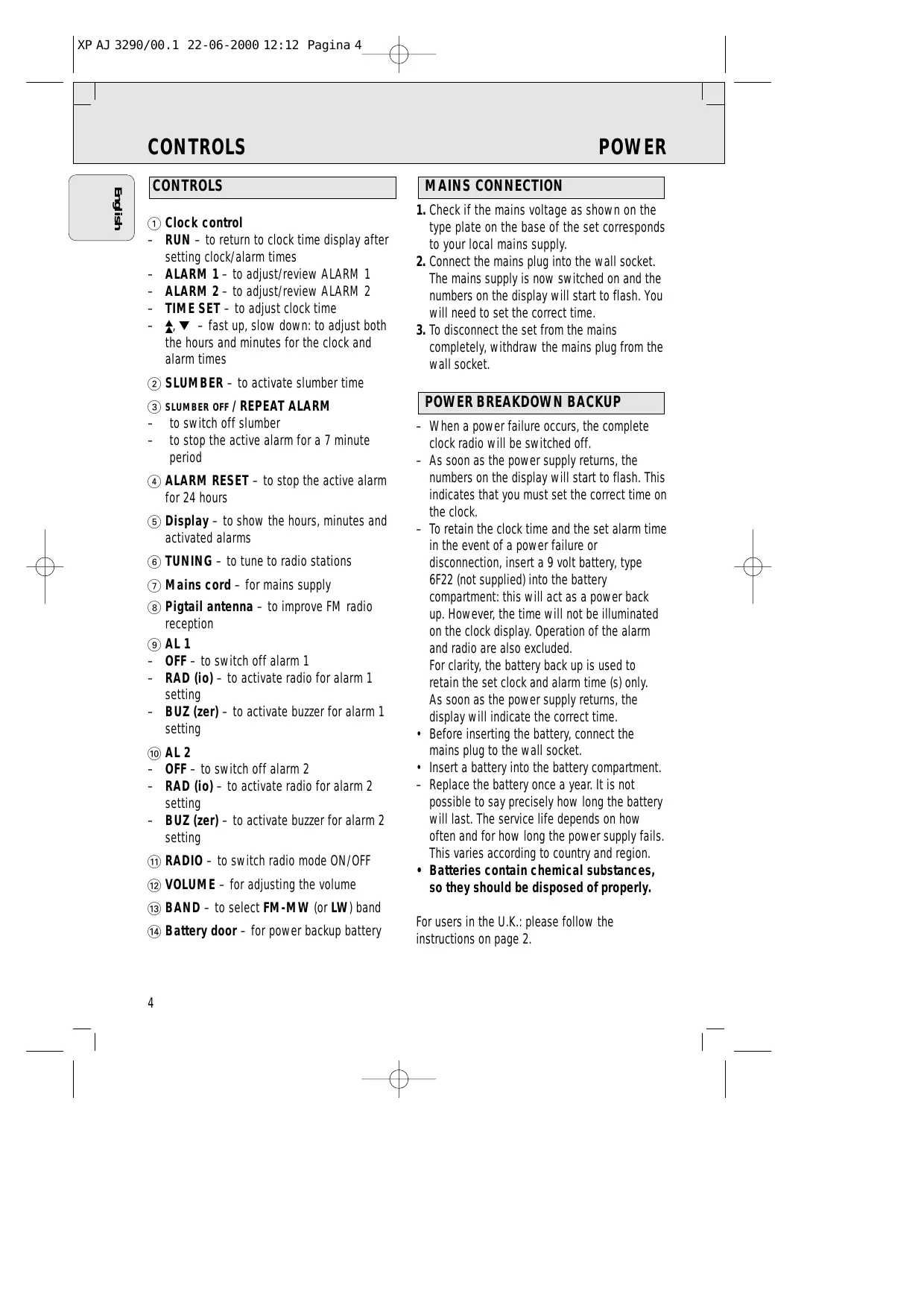

CONTROLS

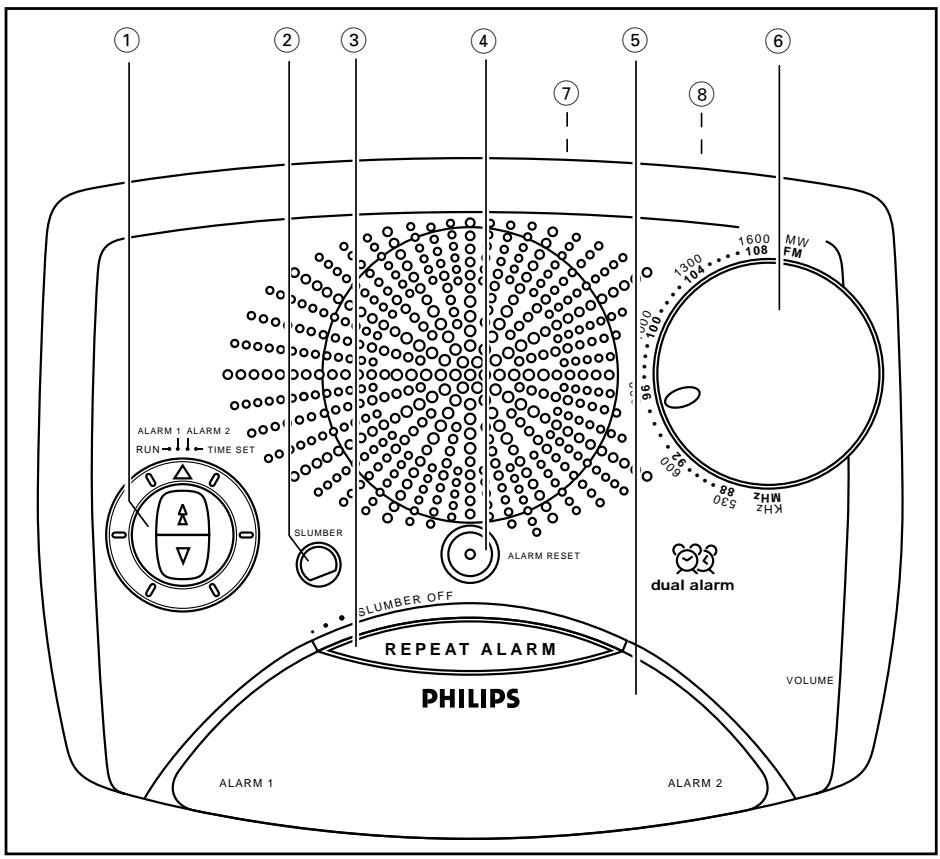

① Clock control
- RUN – to return to clock time display after setting clock/alarm times
- ALARM 1 – to adjust/review ALARM 1
- ALARM 2 – to adjust/review ALARM 2
– TIME SET – to adjust clock time
- ▲, ▼ – fast up, slow down: to adjust both the hours and minutes for the clock and alarm times
② SLUMBER – to activate slumber time
③ SLUMBER OFF / REPEAT ALARM
- to switch off slumber
– to stop the active alarm for a 7 minute period
④ ALARM RESET – to stop the active alarm for 24 hours
⑤ Display – to show the hours, minutes and activated alarms
⑥ TUNING – to tune to radio stations
⑦ Mains cord – for mains supply
⑧ Pigtail antenna – to improve FM radio reception

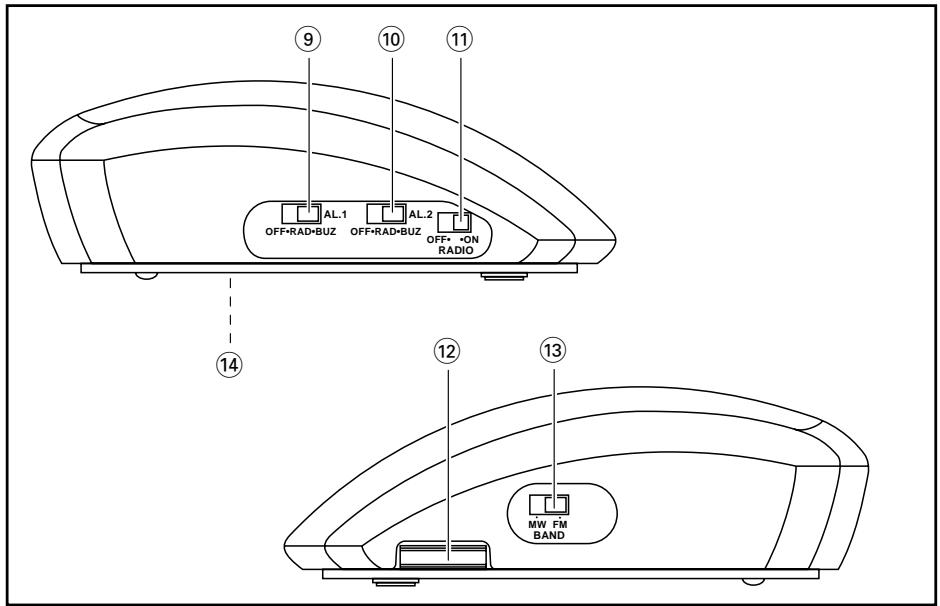

⑨ AL 1
- OFF – to switch off alarm 1
- RAD (io) – to activate radio for alarm 1 setting
- BUZ (zer) – to activate buzzer for alarm 1 setting
⑩ AL 2
- OFF – to switch off alarm 2
- RAD (io) – to activate radio for alarm 2 setting
- BUZ (zer) – to activate buzzer for alarm 2 setting
⑪ RADIO – to switch radio mode ON/OFF
⑫ VOLUME – for adjusting the volume
⑬ BAND – to select FM-MW (or LW) band
⑭ Battery door – for power backup battery
MAINS CONNECTION
- Check if the mains voltage as shown on the type plate on the base of the set corresponds to your local mains supply.
- Connect the mains plug into the wall socket. The mains supply is now switched on and the numbers on the display will start to flash. You will need to set the correct time.
- To disconnect the set from the mains completely, withdraw the mains plug from the wall socket.
- When a power failure occurs, the complete clock radio will be switched off.
- As soon as the power supply returns, the numbers on the display will start to flash. This indicates that you must set the correct time on the clock.
- To retain the clock time and the set alarm time in the event of a power failure or disconnection, insert a 9 volt battery, type 6F22 (not supplied) into the battery compartment: this will act as a power back up. However, the time will not be illuminated on the clock display. Operation of the alarm and radio are also excluded.
For clarity, the battery back up is used to retain the set clock and alarm time (s) only. As soon as the power supply returns, the display will indicate the correct time.
- Before inserting the battery, connect the mains plug to the wall socket.
- Insert a battery into the battery compartment.
- Replace the battery once a year. It is not possible to say precisely how long the battery will last. The service life depends on how often and for how long the power supply fails. This varies according to country and region.
- Batteries contain chemical substances, so they should be disposed of properly.
For users in the U.K.: please follow the instructions on page 2.
SETTING THE CLOCK
Clock display
The time is displayed using the 24-hour clock system.
- Adjust the clock control to the TIME SET position.
- Press and hold down the ▲ or ▼ buttons to set and adjust both the hours and the minutes.
- With your finger held down on , the time will increase rapidly and continuously from minutes to hours.
-
With your finger held down on ▼, the time will slowly count down minute by minute.
-
Release the ▼ or ▼ buttons when you have reached the correct setting.
-
To safeguard the clock time from being accidentally adjusted, turn the clock control to the RUN position.
RADIO
You can use this clock solely as a radio.
- Set the RAD switch to ON.
- Select your wave band using the BAND switch.
- Tune to desired radio station using the TUNING knob.
- Set the volume by turning the VOLUME control.
- To turn off the radio, set the RAD switch to OFF.
To improve radio reception
- For AM, (MW or LW) the set is provided with a built-in aerial which to function best should be placed on a non-metallic surface e.g. wood, plastic. Direct the MW aerial by adjusting the position of your clock radio.
- For FM , extend the pigtail wire at the back of the set completely for optimum reception.
SETTING THE ALARM
General
If you wish to use the alarm, then you should first set the alarm time. There is also the choice of two modes for waking you up: by buzzer or radio. The display will show the alarm indicator in the bottom left or right corners if the alarm is set.
- Adjust the clock control to the ALARM 1 or 2 position.
- Press and hold down the ▲ or ▼ buttons to set and adjust both the hours and the minutes.
- With your finger held down on , the time will increase rapidly and continuously from minutes to hours.
-
With your finger held down on ▼, the time will slowly count down minute by minute.
-
Release the ▲ or ▼ buttons when you have reached the correct setting.
-
Adjust the clock control to the RUN position to return to clock time display.
- To review your set alarm time, adjust the clock control to the respective ALARM 1 or 2 position.
- To select the alarm mode you wish to be awoken by, set the respective AL 1 or 2 switch to RAD or BUZ.
- If you have selected the radio mode, make sure you have adjusted the volume loud enough to wake you.
- The 2 buzzers are at a set volume and cannot be adjusted. BUZ on AL 1 is a low tone buzzer while BUZ on AL 2 is a high tone.
SWITCHING OFF THE ALARM
You can switch off the alarm in three ways: Unless you choose to cancel the alarm completely, the ALARM RESET option will be automatically selected after 59 minutes from the time your alarm first goes off.
Alarm reset
If you want the alarm mode to be stopped immediately, but also wish to repeat the alarm call at the same time for the following day:
- Press ALARM RESET during the alarm call.
Repeat alarm
This will repeat your alarm call at 7 minutes intervals.
- Press SLUMBER OFF/REPEAT ALARM.
- Press SLUMBER OFF/REPEAT ALARM again during the next call if you wish to repeat the alarm call.
- If, however, you do not press SLUMBER OFF/REPEAT ALARM again, the alarm will sound for 59 minutes before turning itself off. Your alarm time setting will then automatically enter the ALARM RESET mode to sound at the same time next day.
Cancelling the alarm completely
- Before or during the set alarm goes off, push the AL (1 or 2) switch to the OFF position.
- The alarm indicator will disappear from the display.
SLUMBER
About SLUMBER time
The clock radio has a built-in timer device called the SLUMBER, which enables the radio to be automatically switched off after a set period of time; this allows you to lie back, listen and fall asleep. The maximum slumber time is 59 minutes.
Setting and switching off SLUMBER
- Set the RADIO switch to the OFF position.
- Set your slumber time by pressing on the SLUMBER button. Keep your finger on the button and the display will begin to count down from 59 to 00 minutes.
- Release the button as soon as the required slumber time is reached.
- To cancel the SLUMBER function, press SLUMBER OFF/REPEAT ALARM.
Notes:
- The slumber function does not affect the alarm setting(s).
- If during SLUMBER you have turned down the volume and you have an alarm set in radio mode, make sure you have adjusted the volume loud enough to wake you up the next day.
MAINTENANCE
- If you do not intend to use the clock radio for a long time, disconnect the set by removing the plug from the wall socket. The battery should also be removed to prevent chemical leakage which will damage your set.
-
To clean your set from fingerprints, dust and dirt, use a clean and soft damp cloth or chamois leather. Do not use cleaning products which contain benzene, thinner etc. as these may harm the housing.
-
If a fault occurs, first check the points listed below before taking the set for repair.
- If you are unable to remedy a problem by following the hints below, consult your dealer or service centre.
WARNING: under no circumstances should you try to repair the set yourself, as this will invalidate the guarantee.
PROBLEM
NO SOUND
– Volume not adjusted.
- Adjust the volume.
AM (MW OR LW) BROADCAST CANNOT BE RECEIVED PROPERLY
- Weak radio signal.
- Rotate the set for better reception and make sure the set is placed on a non-metallic surface.
CONTINUOUS CRACKLING AND HISS NOISE DURING MW (AM OR LW) RECEPTION
- Interference from other electrical equipment e.g. TV's, computers, fluorescent lamps.
- Move the clock radio away from electrical equipment.
INTERMITTENT CRACKLING SOUND DURING FM RECEPTION
- Weak signal.
- Adjust the pigtail.
THE ALARM DOES NOT FUNCTION
- The alarm is not set
- Set the alarm time and the alarm switch to BUZ OR RAD.
- Volume too low for radio.
- Increase the volume.
THE SLUMBER DOES NOT FUNCTION
- RADIO still in ON position.
- Switch RADIO to OFF position.
All unnecessary packaging material has been omitted. We have tried to make the packaging easy to separate into three mono-materials: cardboard (box), polysterene (buffer) and polyethylene (bags).
Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.
