Type	Split system air conditioner
Cooling Capacity	12000 BTU/h (3.5 kW)
Heating Capacity	13000 BTU/h (3.8 kW)
Energy Efficiency (SEER)	15.0
Power Supply	220-240 V, 50 Hz
Indoor Unit Dimensions (WxHxD)	29.7 x 22.9 x 10.6 cm
Outdoor Unit Dimensions (WxHxD)	78.0 x 54.2 x 28.9 cm
Indoor Unit Weight	10.5 kg
Outdoor Unit Weight	32.0 kg
Refrigerant Type	R32
Functions	Cooling, heating, fan, dehumidification
Air Filter	Washable, clean every 2 weeks
Remote Control	Infrared, with LCD display
Timer	24-hour on/off timer
Sleep Mode	Yes
Safety Features	Overheating protection, auto restart
Installation	Wall-mounted indoor unit, floor or wall outdoor unit
Spare Parts Available	Filters, remote control, fan motor
Repairability Index	8.5/10

Frequently Asked Questions - CU-YE12MKX PANASONIC

How do I clean the air filter?

Turn off the unit and open the front panel. Remove the filter and wash it with water. Let it dry completely before reinserting. Clean every 2 weeks for optimal performance.

What does the error code H11 mean?

Error code H11 indicates an indoor fan motor lock. Check if the fan is obstructed or the motor is faulty. Contact a technician if the issue persists.

Can I use an extension cord?

No, always plug directly into a dedicated 220-240V outlet. Extension cords can overheat and cause fire.

How to set the timer?

Press the Timer button on the remote. Use the arrow keys to set the desired time for on/off. Confirm with the SET button.

What refrigerant does this unit use?

It uses R32 refrigerant, which is environmentally friendly and more efficient than R410A.

How often should I service the unit?

Professional maintenance is recommended once a year to check refrigerant levels, clean coils, and ensure proper operation.

Why is the unit not cooling properly?

Possible causes: dirty filter, low refrigerant, blocked outdoor unit, or wrong mode. Clean the filter first. If issue continues, call a technician.

Can I install the outdoor unit in a balcony?

Yes, but ensure proper ventilation. Leave at least 30 cm clearance on all sides for air circulation.

How to reset the remote control?

Remove the batteries, press any button for 5 seconds, then reinsert batteries. This resets the remote to factory settings.

What is the energy efficiency rating?

The unit has a SEER of 15.0, which is energy-efficient and can save on electricity bills compared to older models.

USER MANUAL CU-YE12MKX PANASONIC

Illustration of a blue water drop with leaves in a snowy landscape, featuring a white air conditioner unit above (no text or symbols)

Panasonic®

Operating Instructions Air Conditioner

Indoor Unit Outdoor Unit

CS-YE9MKX CU-YE9MKX

CS-YE12MKX CU-YE12MKX

CS-YE18MKX CU-YE18MKX

ENGLISH

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

ESPAÑOL

© Panasonic Home Appliances Air-Conditioning (Guangzhou) Co., Ltd. 2010. Unauthorized copying and distribution is a violation of law.

TABLE OF CONTENTS

SAFETY PRECAUTIONS 8\~9

REMOTE CONTROL 10\~11

INDOOR UNIT 12

TROUBLESHOOTING....13

INFORMATION 50\~55

PRODUCT SPECIFICATION 56

QUICK GUIDE....BACK COVER

NOTE: The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected to change without notice for future improvement.

Use this air conditioner under the following temperature range

Temperature (°C)		Indoor Outdoor
		*DBT *WBT *DBT *WBT
COOLING	Maximum 32 23 43 26
	Minimum 16 11 16 11
HEATING	Maximum 30 - 24 18
	Minimum 16 - -5 -6

* DBT: Dry bulb temperature
* WBT: Wet bulb temperature

NOTICE: • This model is not suitable for 24 hours non-stopping operation in heating mode below -5°C.

When the outdoor temperature is below -5^ and you use this model out of above conditions, the outdoor unit might be frozen up and stop operation for protection control.

To prevent personal injury, injury to others, or property damage, please comply the following. Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classified as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED

These symbols denote an action that is COMPULSORY.

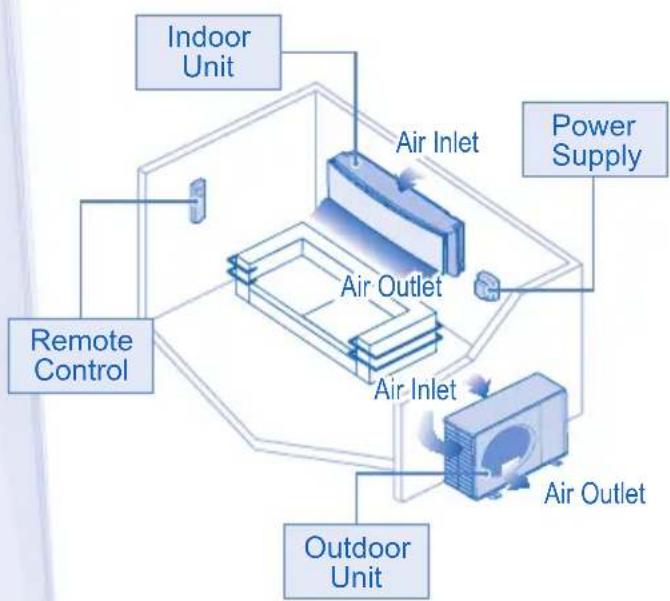


WARNING

INDOOR UNIT AND OUTDOOR UNIT

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorized dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.

Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down accidentally.

REMOTE CONTROL

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

POWER SUPPLY

Do not use modified cord, joint cord, extension cord or unspecified cord to prevent overheat and fire.

To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug.

WARNING
POWER SUPPLY
	If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
	It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire.
	To prevent overheating, fire or electric shock:Insert the power plug properly.Dust on the power plug should be periodically wiped with a dry cloth.
	Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker.(Risk of smoke/fire/electric shock)Examples of abnormality/failureThe ELCB trips frequently.Burning smell is observed.Abnormal noise or vibration of the unit is observed.Water leaks from the indoor unit.Power cord or plug becomes abnormally hot.Fan speed cannot be controlled.The unit stops running immediately even if it is switched on for operation.The fan does not stop even if the operation is stopped.Contact immediately your local dealer for maintenance/repair.
	Replacement or installation of power plugs shall be performed by authorized/qualified personnel only. The wires in this mains lead are coloured in accordance with the following code:Terminals wires colours (IEC Standard)Red livebrownBlack neutral blueGreen/Yellow earth green-yellowWiring colour may vary depending on a country wiring code's standard.
	This equipment must be earthed to prevent electric shock or fire.
	Prevent electric shock by switching off the power supply and unplug when:- Before cleaning or servicing.- Extended non-use.- Abnormally strong lightning activity.

CAUTION

CAUTION
INDOOR UNIT AND OUTDOOR UNIT
	Do not wash the indoor unit with water, benzene, thinner or scouring powder to avoid damage or corrosion at the unit.
	Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc.
	Do not use any combustible equipment in front of the airflow outlet to avoid fire propagate.
	Do not expose plants or pet directly to airflow to avoid injury, etc.
	Do not touch the sharp aluminium fin, sharp parts may cause injury.
	Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit.
	Do not install the unit in oily and smoky areas to prevent damage to the unit.
	Do not dismantle the unit for cleaning purpose to avoid injury.
	Do not step onto unstable bench when cleaning the unit to avoid injury.
	Do not place vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock.
	Do not left the window open during Cool/Dry mode operation to prevent water leakage.
	Ensure drainage pipe is connected properly and keep drainage outlet clear of gutters, containers or does not immersed in water to prevent water leakage.
	After long period of use or use with any combustible equipment, aerate the room regularly.
	After long period of use, make sure the installation rack is not deteriorate to prevent the unit from falling down.
REMOTE CONTROL

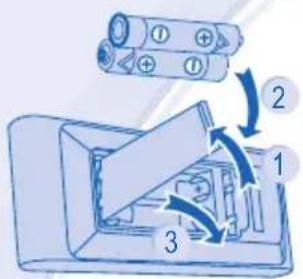

	Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.
	To prevent malfunction or damage of the remote control:Remove the batteries if the unit is not going to be used for a long period of time.New batteries of the same type must be inserted following the polarity stated.
POWER SUPPLY
	Do not pull the cord to disconnect the plug to prevent electric shock.

REMOTE CONTROL

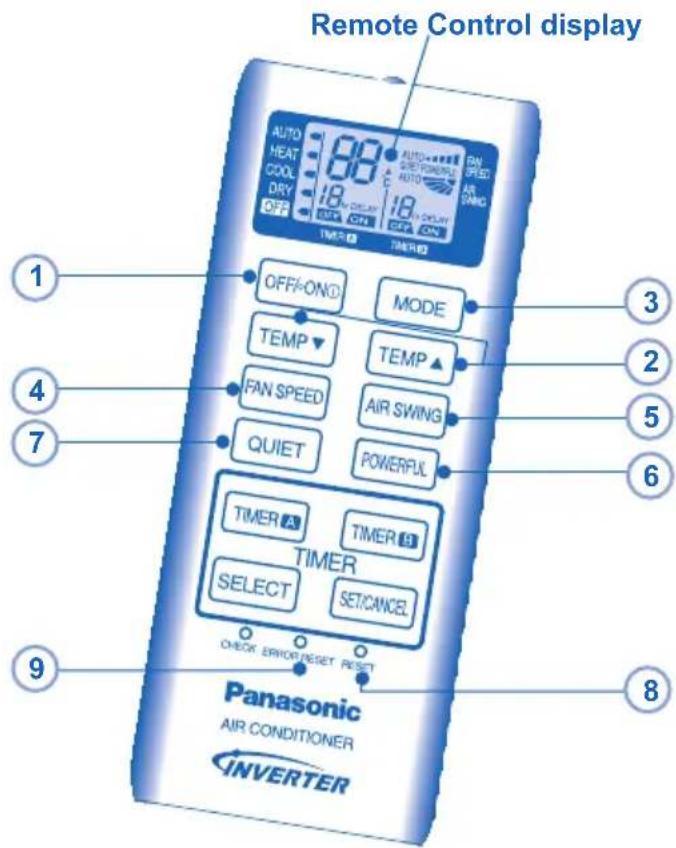

Press the remote control's button

1 TO TURN ON OR OFF THE UNIT

- Please be aware of the OFF indication on the remote control display to prevent the unit from starting/stopping improperly.

2 TO SET TEMPERATURE

• Selection range: 16^ C 30^ C .
• Operating the unit within the recommended temperature could induce energy saving.
  HEAT mode: 20^ C \~ 24^ C.
  COOL mode: 26°C \~ 28°C.
  DRY mode : 1°C \~ 2°C lower than room temperature.

• During operation mode selection the power indicator blinks.
• Unit selects the operation mode according to the indoor intake temperature and remote control temperature.

HEAT mode - To enjoy warm air

- In heat mode, it may take a while for the unit to warm up. The POWER indicator blinks during preheating.

COOL mode - To enjoy cool air

- Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

DRY mode - To dehumidify the environment

- Unit operates at low fan speed to give a gentle cooling operation.

- For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

5 TO ADJUST AIRFLOW DIRECTION (5 OPTIONS)

AIR SWING

• Keeps the room ventilated.
• In COOL mode, if AUTO is set, the louver swing up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver fix at predetermined position.

6 TO ACHIEVE TEMPERATURE QUICKLY

- This setting enables the desired set temperature to be reached quickly.

7 TO ENJOY QUIET ENVIRONMENT

• This setting provides a quiet environment by reducing the airflow noise.
• POWERFUL AND QUIET operations can not be activated at the same time.

8 PRESS TO RESTORE THE REMOTE CONTROL'S DEFAULT SETTING

9 NOT USED IN NORMAL OPERATIONS

TO SET THE TIMER (12-HOUR TIMER SETTING)

- When you want the air conditioner to turn ON or OFF automatically.

DELAY OFF-TIMER

For example, to stop the air conditioner 5 hours later.

1 To select the Delay OFF-TIMER, press the SELECT button once.
2 Press the TIMER button to select the delay hour.
- The OFF-TIMER can only be set while the air-conditioner is in operation.

DELAY ON-TIMER

For example, to start the air conditioner 2 hours later.

1 To select the Delay ON-TIMER, press the button once.
2 Press the TIMER button to select the delay hour.
- The ON-TIMER can only be set while the air-conditioner is not in operation.

DELAY OFF AND ON TIMER

For example, to stop the air conditioner 3 hours later and start 4 hours later.

1 To select the Delay OFF and ON Timer, press the SELECT button twice repeatedly.
2 Press the TIMER button to select the delay hour for OFF Timer.
3 Press the TIMER button to select the delay hour for ON Timer.
- This mode of timer can only be set while the air-conditioner is in operation.

DELAY ON AND OFF TIMER

For example, to start the air conditioner 7 hours later and stop 10 hours later.

1 To select the Delay ON and OFF Timer, press the SELECT button twice repeatedly.
2 Press the TIMER button to select the delay hour for ON Timer.
3 Press the TIMER button to select delay hour for OFF Timer.
- This mode of timer can only be set while the air-conditioner is not in operation.

TO CONFIRM THE TIMER SETTING

Press the SETCANCEL button once to activate the timer operation which will start when the set time is reached.

TO CANCEL THE TIMER SETTING

Press the SETCANCEL button again to cancel the timer operation.

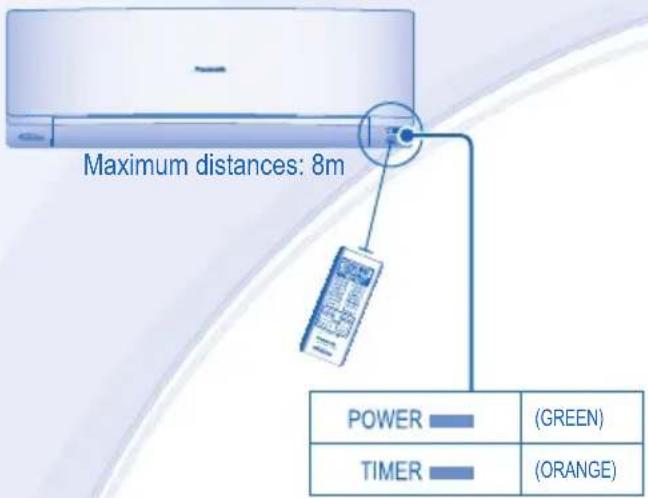

• The timer indicator of the indoor unit will light up during the timer operation.
• When ON Timer is set, the unit may start earlier before the actual set time in order to achieve the desired temperature on time.
• If you press operation OFF/ON/O button during the timer setting operation, timer setting will be cancelled.
• If timer is cancelled manually or due to power failure, you can restore the timer again by repeating steps above (once power is resumed).

CAUTION

• Switch off the power supply before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.

WASHING INSTRUCTIONS HINT

• Do not use benzene, thinner or scouring powder.
• Use only soap (pH7) or neutral household detergent.
• Do not use water hotter than 40^ .

- To ensure optimal performance of the unit, cleaning maintenance have to be carried out at regular intervals.

NOTE

- If chemical cloth is used to wipe the unit, instruction for the cloth should be followed.

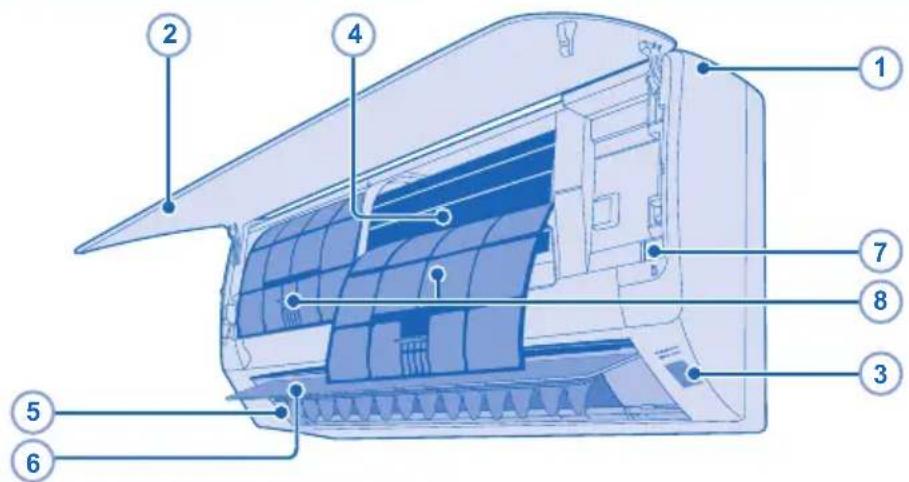

1 INDOOR UNIT

- Wipe the unit gently with a soft, dry cloth.

2 FRONT PANEL

Remove Front Panel

• Raise and pull to remove the front panel.
• Wash gently and dry.

Close Front Panel

- Press down both ends of the front panel to close it securely.

3 RECEIVER

4 ALUMINIUM FIN

5 HORIZONTAL AIRFLOW DIRECTION LOUVER

- Manually adjustable.

WARNING

Be careful not to insert your fingers into the unit to avoid injuring by cross-flow fan.

6 VERTICAL AIRFLOW DIRECTION LOUVER

- Do not adjust by hand.

7 AUTO OFF/ON BUTTON

- Use when remote control is misplaced or malfunction.

Action Mode
Press once. Auto
Press and hold until 1 beep is heard, then release.	Cooling
Press and hold until you hear double beep sound, then release.	Heating
Press the button to turn off.

8 AIR FILTERS

• Clean the filters regularly.
• Wash/rinse the filters gently with water to avoid damage to the filter surface.
• Dry the filters thoroughly under the shade, away from fire or direct sunlight.
• Replace any damage filter.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM CAUSE

Mist emerges from indoor unit. ▶ • Condensation effect due to cooling process.

Water flowing sound during operation. ▶ • Refrigerant flow inside the unit.

The room has a peculiar odour. ▶ • This may due to damp smell emitted by the wall, carpet, furniture or clothing.

Indoor fan stops occasionally during automatic fan speed setting. ▶ This helps to remove the surrounding odours.

Operation is delayed a few minutes after restart. ▶ • The delay is a protection to the unit's compressor.

Outdoor unit emits water/steam. ▶ • Condensation or evaporation occurs on pipes.

The unit operates automatically when power is resumed after a power failure. It is the Auto Restart function of the unit. Operation will be restarted automatically under the previous operation mode and air flow direction when power is resumed as the operation is not stopped by remote control.

Indoor fan stops occasionally during heating operation. ▶ To avoid unintended cooling effect.

Power indicator blinks before the unit is switched on. ▶ • This is a preliminary step in preparation for the operation when the ON timer has been set.

Cracking sound during operation. ▶ Changes of temperature cause the expansion/contraction of the unit.

Check the following before calling for servicing.

SYMPTOM CHECK

Heating/Cooling operation is not working efficiently. ▶ Set the temperature correctly.

Noisy during operation.

Remote control does not work. (Display is dim or transmission signal is weak.)

The unit does not work.

The unit does not receive the signal from the remote control.

• Check if the unit has been installed at an incline.
• Close the front panel properly.
• Insert the batteries correctly.
• Replace weak batteries.
• Check if the circuit breaker is tripped.
• Check if timers have been set.
  • Make sure the receiver not obstructed.
• Certain fluorescent lights may interfere with signal transmitter. Please consult authorized dealer.

The unit stops and the timer indicator blinks.

Use remote control to retrieve error code.

Note:

- For certain error, you may restart the unit with limited operation with 4 beeps during operation starts.

4 Turn the unit off and reveal the error code to authorized dealer.

1 UNIDAD INTERIOR

UNITÀ INTERNA E UNITÀ ESTERNA

1 UNITÀ INTERNA

1 UNIDADE INTERIOR

Retire o painel frontal

1 ВЪТРЕШНА ЧАСТ

Illustration of a hand pressing down on a partially assembled air conditioner panel (no text or symbols visible)

1 UNUTARNJA JEDINICA

- Jedinicu pažljivo obrišite mekom, suhom krpom.

2 PREDNJA PLOČA

Uklonite prednju ploču

1 iç ÜNİTE

Illustration of a car interior with arrows indicating movement or force (no text or symbols)

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select Cooling/Heating operation, after 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents: Cooling: ≥ 8°C Heating: ≥ 14°C

FOR EXTENDED NON-USE

• Activate Heat mode for 2\~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.
  • Turn off the power supply.
• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.
- Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
- Switches or buttons are not functioning properly.
- The timer indicator blinks and the unit can not be operated.

1. Standard piping length: 7.5 m (Includes Indoor Unit piping length).

Translations

Deutsch

Français

Greek

Italian

Nederland

Portuguese

Spanish

Bulgarian

Turkish

Arabic

HR

Norwegian

Product Specification

ProduktSpezifikation

Caractéristiques du produit

Παλειαργακείς προλίντος

presorcione del producto

productikenmarkon

Especialifications de produits

Especializzazione de produits

Среднебных на продукта

Cristine desiccés

ملاويت التسخ

Specifikacija proizvoda

Produktats spezifikacuter

Model Indoor UnitOutdoor Unit

ModellInngesertAussergerlit

ModèleUnité métenureUnité extéréture

ΜοντέλοΕιουτραης ευσκυη Εξυτικρεις ευσκυη

ModelloImplante interneImplante esterne

ModelBitterinnrichtingButterinnrichting

ModeloElemente interiorElemente exterior

ModeloEquipo interiorEquipo exterior

ModelenΒγρειπεια устройствоΒγισιπεια устройство

Modeliç UniteDy Unite

طرازالعربية المئيقيمة

ModelUnutamja jedinicaVanjska jedinica

ModellInnandørsanhetUtendørsenhet

Power / Current

Stromversorgung

Alimentation

Παροχήρευματος

Corrente

Stroom

Potência

Corriente

Електрическо захранване

Güç / Akim

/الفرية/النبار الكهرباني

Napajanje / struja

Effekl/strem

Refrigerant

KZHmittel

Réfrigérant

ψυκτικό μεοο

Refrigerante

Koelmiddel

Refrigerante

Refrigerante

Охлаждане

Sogutucu

اللادة المبردة

Rashladno sredsvo

Kjalemiddel

Cooling Capacity

Kühlleistung

Capacité réfrigérante

Ικανότηταψυξης

Refrigerazione

Cooling Capacity

Capacidade do refrescamiento

Potencia trigorífica

Охлаждаци кападитет

Sogutma Kapasitesi

سعة التبريد

Kapacilet hadenja

Kjalekapasitet

Heating Capacity

Heizleistung

Capacité chauffage

Ικανότηταθέρμανοης

Riscaldamento

Verwarming Capacity

Capacidade do aquecimento

Potencia calcafacción

Загриващ кападитет

Isilma Kapasitesi

سعة التدفئة

Kapacitet grijanja

Varmekapasitet

Noise LevelConditions1m DistanceMax.codingSound power level

LármpegalBedingungen1m AbstandMax. KürtingSchalfeistungspegel

Niveau de bruitCondensDistance 1 mRetroidissement max.Niveau de puissancesorats

Επιεδο δορυβουΣυνθίκεςΑνστοση 1 μετρουΜεχ. θυήηΣτοδην υχυοςδορυβου

Livello di rumoraCondizioniDistanza di 1 mRetreddamento max.Livello rumore

LawaaipellerVoorwaarden1m afstandMax. KoelingGaludsniveau

Nivel do barulho ConditionsDistância de 1mArrefecimento máx.Nivel de alimentação senere

Nivel sonoroCondicionas1 m de distanciaRefrigeración máx.Nivel de potencia de sonido

Ниво на шумаУсловия1m разстояниеМажинville оп CambridgeНиво на звука

Ses seviyesiKeyufar1m UzaklikMaks. sogutmaSes seviyesi

مستو الحضUAعالطيودالشستفة ام.ألف الأصني التب partiesمستوى遨رة الحسين

Razina bukeUyjeiUdaljenost od 1 mStandardro grijanjeRazina zvučne snage

StaryniváVilkár1 m avstandMaks. kjellingLydolfekttniva

Air Circulation

Luftzirkulation

Ventilation

Κυκλοφορία ασρα

Circolazione aria

Luchtorculate

Circulação do ar

Circultacion de aire

Βъздушна цуркулация

Hava Devri

دوران الهواء

Cirkulacija zraka

Luftstremning

Product weight

Produktgewicht

Poids du produit

Βαρος τουプロιουτος

Peso prodotto

Produktgewicht

Peso do producto

Peso del producto

Тето на продукта

Ürün agidigi

وزن النتح

Masa proizvoda

Produktets vekt

Dimensions

Armessungen

Dimensions

Διάσταση

Misure

Afmetingen

Dimensões

Medidas

Размери

Eballar

الأبعاد

Dimenzije

Mál

MEMO

QUICK GUIDE/GUÍA RÁPIDA/GUIDA RAPIDA/GUIA RÁPIDO/ БЪРЗ СПРАВОЧНИК/BRZE UPUTE/HIZLI REHBER

Remote Control Preparation • Preparación Del Mando A Distancia • Telecomando: Operazioni Preliminari • Preparação Do Controlo Remoto • Подготвяне На Дистанционното Управление • Priprema daljinskog upravljača • Uzaktan Kumanda Hazirlanmasi

1 Remove the battery cover • Retire la tapa de las pilas • Rimuovere il coperchio batteria • Remova a tampa da bateria • Свалете капака за батериите • Uklonite pokrov baterija • Pil kapağını çıkartın.
2 Insert AAA or R03 batteries (can be used \~ 1 year) • Inserte pilas AAA o R03 (puede ser usado \~ 1 año) • Inserire batterie AAA o R03 (può essere utilizzato per circa 1 anno) • Introduza pilhas AAA ou R03 (pode ser utilizado \~ 1 ano) • Поставете AAA или R03 батерии (могат да се използват приблизително една година) • Umetnite AAA ili R03 baterije (mogu se koristiti \~ 1 godinu) • AAA veya R03 pil kullanın (\~ 1 yıl kullanılabilir)
3 Close the cover • Cierre la tapa • Chiudere il coperchio • Feche a tampa • Затворете капака • Zatvorite pokrov • Kapağı kapatın.

1

MODE

AUTOHEAT DRYCOOL

Select the desired mode.
Seleccione el modo deseado.
Selezionare la modalità desiderata.
Seleccione o modo de funcionamento pretendido.
Избор на желания режим на работа.
Odaberite željeni način.
Istenilen modu seçin.

2

OFF/ON

Start/stop the operation.

Inicio/detenga el funcionamiento.
Avviare/arrestare l'apparecchio.
Ligue/Desligue a unidade.
Включване/спиране.
Pokrenite/zaustavite rad
Çalışmayı başlatın/durdurun.

3

TEMP

Select the desired temperature.
Seleccione la temperature deseada.
Selezionare la temperatura desiderata.
Programe a temperatura desejada.
Настройка на желаната температура.
Odaberite željenu temperaturu.
Istenilen sıcaklığı seçin.

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

EEE COMPLIES WITH DIRECTIVE OF TURKEY

EEE YÖNETMELİĞİNE UYGUNDUR

BU ÜRÜNÜN KULLANIM ÖMRÜ 10 YILDIR
