HEL065X - Oven Ardo - Free user manual and instructions
Find the device manual for free HEL065X Ardo in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Built-in Electric Oven |
| Brand | Ardo |
| Model | HEL065X |
| Energy Source | Electric |
| Capacity | 70 liters |

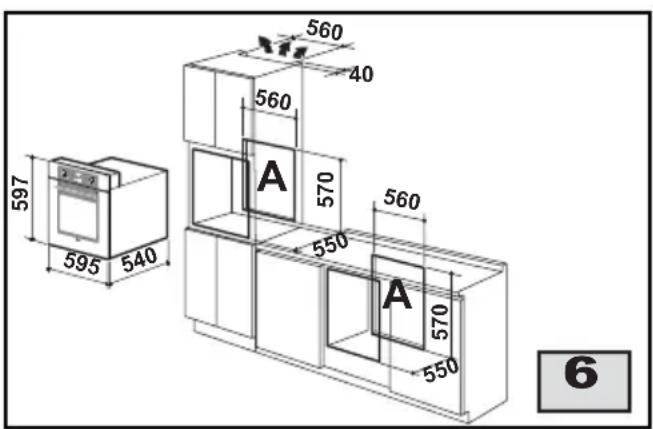

| Dimensions (W x H x D) | 595 x 595 x 568 mm |
| Weight | 30 kg |
| Voltage / Frequency | 220-240 V / 50-60 Hz |
| Power Rating | 2.5 kW |
| Oven Functions | Grill, Convection, Bottom heat, Top heat, Defrost, Light |
| Temperature Range | 50 to 250 °C |
| Timer | Electronic timer with delay start |
| Control Type | Touch control |
| Display | LED display |
| Interior Light | Yes |
| Door Type | Drop-down door |
| Number of Shelves | 2 |
| Cleaning | Back wall catalytic self-cleaning panels |
| Safety Features | Child lock, automatic shut-off |
| Energy Class | A |
| Color | Stainless steel |
| Installation Type | Built-in |
| Accessories Included | 1 baking tray, 1 grill grid |
| Spare Parts Availability | Spare parts available for repair |
Frequently Asked Questions - HEL065X Ardo
How do I set the timer on my Ardo HEL065X oven?
Press the timer button, then use the +/- buttons to set the desired time. Confirm with the timer button again. The oven will automatically shut off when the timer ends.
Can I use aluminum foil in the oven?
Yes, but avoid covering the entire shelf or blocking air circulation. Do not let foil touch the heating elements to prevent fire risk.
How to clean the catalytic panels?
Catalytic panels are self-cleaning. They absorb grease and burn it off during high-temperature cycles. Wipe residue with a damp cloth after the oven cools.
What is the child lock feature and how to activate it?
Child lock prevents accidental operation. To activate, press and hold the lock button for 3 seconds. Repeat to deactivate. A lock icon appears on the display when active.
Why is my oven not heating up?
Check power supply, fuse, and that the oven is properly connected. Ensure the timer is not set to a delayed start. If problem persists, contact service.
What is the maximum temperature of the oven?
The maximum temperature is 250 °C. Some functions like grill may have a different max temperature.
Can I use the oven as a microwave?
No, this is a conventional electric oven without microwave function. Do not use metal containers or try to microwave food.
How to replace the internal light bulb?
Disconnect power, remove the glass cover (if applicable), and replace with a compatible 25W/300°C oven bulb. Reassemble and reconnect.
What are the recommended oven rack positions?
For most baking, use the middle rack. For grilling, use the top rack. Refer to the manual for specific recipes.
How to preheat the oven?
Select the desired function and temperature. The oven will heat until the set temperature is reached, indicated by a signal or light. Place food inside after preheating.
