USER MANUAL WTW8500BW WHIRLPOOL

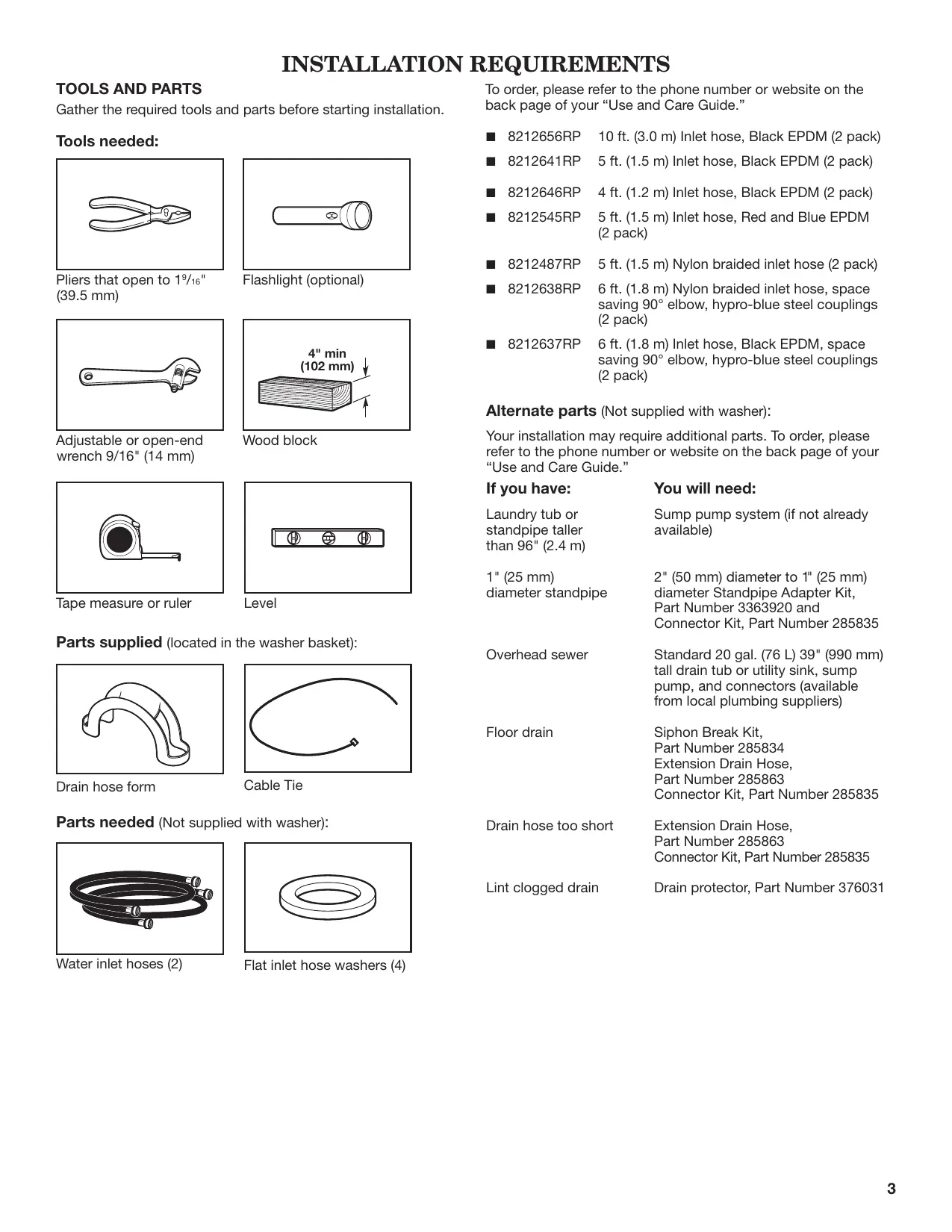

Gather the required tools and parts before starting installation. To order, please refer to the phone number or website on the back page of your “Use and Care Guide.” Tools needed: ■■ 8212656RP 10 ft. (3.0 m) Inlet hose, Black EPDM (2 pack) ■■ 8212641RP 5 ft. (1.5 m) Inlet hose, Black EPDM (2 pack) ■■ 8212646RP 4 ft. (1.2 m) Inlet hose, Black EPDM (2 pack) ■■ 8212545RP 5 ft. (1.5 m) Inlet hose, Red and Blue EPDM (2 pack) Pliers that open to 19/16" (39.5 mm) Flashlight (optional) ■■ 8212487RP 5 ft. (1.5 m) Nylon braided inlet hose (2 pack) ■■ 8212638RP 6 ft. (1.8 m) Nylon braided inlet hose, space saving 90° elbow, hypro-blue steel couplings (2 pack) ■■ 8212637RP 6 ft. (1.8 m) Inlet hose, Black EPDM, space saving 90° elbow, hypro-blue steel couplings (2 pack)

Alternate parts (Not supplied with washer): Adjustable or open-end wrench 9/16" (14 mm) Tape measure or ruler Wood block Level Parts supplied (located in the washer basket): Drain hose form Cable Tie Parts needed (Not supplied with washer): Water inlet hoses (2) Your installation may require additional parts. To order, please refer to the phone number or website on the back page of your “Use and Care Guide.” If you have: You will need: Laundry tub or standpipe taller than 96" (2.4 m) Sump pump system (if not already available) 1" (25 mm) diameter standpipe

2" (50 mm) diameter to 1" (25 mm) diameter Standpipe Adapter Kit, Part Number 3363920 and Connector Kit, Part Number 285835 Overhead sewer

LOCATION REQUIREMENTS Select proper location for your washer to improve performance and minimize noise and possible “washer walk.” Install your washer in a basement, laundry room, closet, or recessed area. Spacing for recessed area or closet installation All dimensions show recommended spacing allowed, with tested spacing of 0" (0 mm) clearance on sides. ■■ Additional spacing should be considered for ease of installation and servicing. ■■ Additional clearances might be required for wall, door, and floor moldings. ■■ Additional spacing should be considered on all sides of the washer to reduce noise transfer. 45.5" (1156 mm) ■■ For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable. ■■ Companion appliance spacing should also be considered. 27.5" (698 mm) 3"* (76 mm) 27.5" (698 mm) You will need: ■■ A water heater set to deliver 120°F (49°C) water to the washer. ■■ A grounded electrical outlet located within 4 ft. (1.2 m) of where the power cord is attached to the back of the washer. See “Electrical Requirements.” 48 in.2 * (310 cm2) 14" max. * (356 mm) 17"* (432 mm) ■■ Hot and cold water faucets located within 3 ft. (900 mm) of the hot and cold water fill valves, and water pressure of 20–100 psi (138–690 kPa) for best performance. ■■ Level floor with maximum slope of 1" (25 mm) under entire washer. Installing the washer on carpet is not recommended. ■■ A sturdy floor to support the washer weight (washer, water, and load) of 315 lbs (143 kg). IMPORTANT: Do not operate, install, or store washer where it will be exposed to water, weather, or at temperatures below 32° F (0° C). Some water can remain in washer and can cause damage in low temperatures. See your “Use and Care Guide” for information on winterizing. Proper installation is your responsibility.

(25 mm) 3"* (76 mm) DRAIN SYSTEM ELECTRICAL REQUIREMENTS Drain system can be installed using a floor drain, wall standpipe, floor standpipe, or laundry tub. Select method you need. Floor standpipe drain system 41/2" (114 mm) 39" (990 mm) Minimum diameter for a standpipe drain: 2" (51 mm). Minimum carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe must be at least 39" (990 mm) high; install no higher than 96" (2.4 m) from bottom of washer. If you must install higher than 96" (2.4 m), you will need a sump pump system. Wall standpipe drain system ■■ A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical supply is required. A time-delay fuse or circuit breaker on a separate circuit serving only this washer is recommended. ■■ This washer is equipped with a power supply cord having a 3-prong grounding plug. 41/2" (114 mm) ■■ To minimize possible shock hazard, the cord must be See requirements for floor standpipe drain system. Floor drain system plugged into a mating, 3-prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician. ■■ If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. ■■ Do not ground to a gas pipe. ■■ Check with a qualified electrician if you are not sure the washer is properly grounded. ■■ Do not have a fuse in the neutral or ground circuit. Floor drain system requires a Siphon Break Kit (Part Number 285834), 2 Connector Kits (Part Number 285835), and an Extension Drain Hose (Part Number 285863) that may be purchased separately. To order, please see toll-free phone numbers in your “Use and Care Guide.” Minimum siphon break: 28" (710 mm) from bottom of washer. (Additional hoses may be needed.) Laundry tub drain system 41/2" (114 mm) 30" 39" (762 (990 mm) Minimum capacity: 20 gal. (76 L). Top of laundry tub must be at least 39" (990 mm) above floor; install no higher than 96" (2.4 m) from bottom of washer. IMPORTANT: To avoid siphoning, no more than 4 1⁄2" (114 mm) of drain hose should be inside standpipe or below the top of wash tub. Secure drain hose with cable tie.

1. Remove shipping base

and packing ring INSTALLATION INSTRUCTIONS Place cardboard supports from shipping carton on floor behind washer for support. Secure the lid with tape. Using two or more people, tip the washer onto its back and place on cardboard supports. Remove foam shipping base. Then, set washer back upright, and remove the tape from the lid so that you can open the lid and remove the foam packing ring from the washer tub. NOTE: Keep foam packing ring in case you need to move the washer in the future.

IMPORTANT: Proper connection of the drain hose helps to avoid water leakage and damage to your floors. The drain hose is connected to your washer and is stored inside the washer cabinet. Before you start: remove shipping materials. It is necessary to remove all shipping materials for proper operation and to avoid excessive noise from washer. NOTE: To avoid floor damage during installation, set the washer onto cardboard before moving across the floor. IMPORTANT: ■■ Be sure the foam shipping base has been removed from the bottom of the washer as directed in the “Remove Shipping Base and Packing Ring” section. ■■ If foam shipping base has not been removed, be sure lid is secured with tape before laying washer on its back. ■■ Removing the foam shipping base is necessary for proper operation.

1. Remove drain hose from washer

cabinet Gently pull hose out of back of washer cabinet from top until end emerges. IMPORTANT: Do not force excess drain hose back into rear of washer.

2. Connect drain hose form

IMPORTANT: To avoid leaks, check that your water inlet For a laundry tub or standpipe drain, connect the drain hose form. For a floor drain, do not install drain hose form. You may need alternate parts with separate directions. See “Tools and Parts” to determine what you may need. Feed hose into one end of form. Bend hose and feed through other side, anchoring form on smooth sections of hose. The hose must extend 4.5" (114 mm) beyond the form. hoses have flat washers at both ends. Washer must be connected to water faucets with new inlet hoses with flat washers (not provided). Do not use old hoses. Do not use hoses without washers.

2. Connect inlet hoses to water

3. Place drain hose in standpipe

4.5" (114 mm) Place hose into standpipe (shown in picture) or over side of laundry tub. IMPORTANT: To keep drain water from going back into the washer: ■■ Do not force excess drain hose into standpipe. Hose should be secure but loose enough to provide a gap for air. ■■ Do not lay excess hose on the bottom of the laundry tub. Make sure the washer basket is empty. Attach the hose labeled hot to hot water faucet. Screw on coupling by hand until it is seated on washer. Use pliers to tighten couplings an additional two-thirds turn. Repeat this step with the hose labeled cold for the cold water faucet. Both hoses must be connected for washer to work properly. IMPORTANT: Do not overtighten or use tape or sealants on valve when attaching to faucets or washer. Damage can result. HELPFUL TIP: Make note of which hose is connected to hot water to help in attaching hoses to washer correctly.

3. Clear water lines

Run water for a few seconds through hoses into a laundry tub, drainpipe, or bucket to avoid clogs. Water should run until clear. Check the temperature of the water to make sure that the hot water hose is connected to the hot water faucet and the cold water hose is connected to the cold water faucet.

4. Connect inlet hoses to washer

Turn on water faucets to check for leaks from faucet and at washer connection. A small amount of water may enter washer. You will drain this in a later step.

Attach hot water hose to hot water inlet valve. Screw coupling by hand until it is snug. Use pliers to tighten couplings an additional two-thirds turn. Repeat with cold water inlet valve. Both hoses must be connected for washer to work properly. IMPORTANT: Do not overtighten or use tape or sealants on valve when attaching to faucets or washer. Damage can result. NOTE: To reduce risk of hose failure, replace the hoses every 5 years. Record hose installation or replacement dates for future reference. Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

Secure drain hose to laundry tub leg, drain standpipe, or inlet hoses for wall standpipe with cable tie (A). This will help reduce the chance of drain water splashing on the floor. LEVEL WASHER IMPORTANT: Leveling your washer properly reduces excess

3. Adjust leveling feet

noise and vibration.

1. Move washer to final location

Jam nut Move the washer to its final location. Rock the washer back and forth to check whether all four feet are stable and in firm contact with the floor. If the washer rocks, minor adjustments may be needed to level the washer on your floor.

2. Check levelness of washer

If washer is not level, use a 9/16" or 14 mm open-end or adjustable wrench to turn jam nuts clockwise on feet until they are about 1/2" (13 mm) from the washer cabinet. Then turn the leveling foot clockwise to lower the washer or counterclockwise to raise the washer. Recheck levelness of washer and repeat as needed. HELPFUL TIP: You may want to prop up front of washer about 4" (102 mm) with a wood block or similar object that will support weight of washer.

4. Tighten leveling feet

Place level here Jam nut Place level here When washer is level, use a 9/16" or 14 mm open-end or adjustable wrench to turn jam nuts counterclockwise on leveling feet tightly against washer cabinet. HELPFUL TIP: You may want to prop washer with wooden block. Check the levelness of the washer. First, place a level on the lid near the console. Then place the level on the side of the washer in the crease between the top of the washer and the cabinet. Not Level LEVEL Not Level

COMPLETE INSTALLATION CHECKLIST ■■ Check electrical requirements. Be sure you have correct electrical supply and recommended grounding method. See “Electrical Requirements.” ■■ Check that all parts are now installed. If there is an extra part, go back through steps to see what was skipped. ■■ Check that you have all of your tools. ■■ Keep the foam packing ring from the washer tub for future relocation of the washer. Dispose of/recycle all packaging materials. ■■ Check that both water faucets are on. ■■ Check for leaks around faucets and inlet hoses. ■■ Remove film from console and any tape remaining on washer.

5. Plug into a grounded

3-prong outlet ■■ Check that washer is plugged into a grounded 3-prong outlet. ■■ Read “Washer Use” in your “Use and Care Guide.” ■■ To test and clean your washer, measure 1/2 of normal recommended amount of High Efficiency (HE) powdered or liquid detergent for a medium-size load and pour it into detergent dispenser. Close lid. Press POWER. Select a normal cycle and press START. Allow it to complete one whole cycle.
