USER MANUAL WTW8900BC WHIRLPOOL

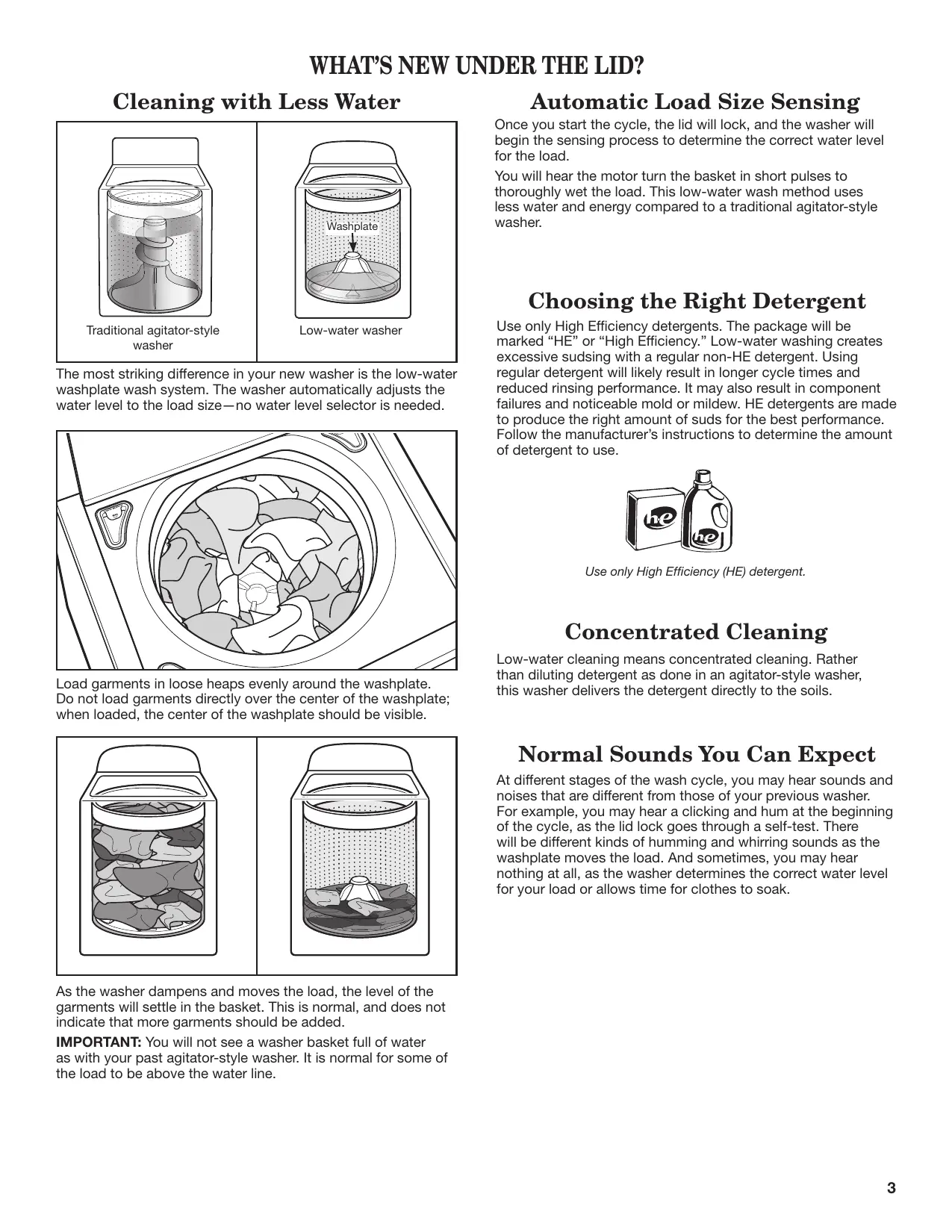

WHAT’S NEW UNDER THE LID? Cleaning with Less Water Washplate Washplate Automatic Load Size Sensing Once you start the cycle, the lid will lock, and the washer will begin the sensing process to determine the correct water level for the load. You will hear the motor turn the basket in short pulses to thoroughly wet the load. This low-water wash method uses less water and energy compared to a traditional agitator-style washer. Choosing the Right Detergent Traditional agitator-style washer Low-water washer The most striking difference in your new washer is the low-water washplate wash system. The washer automatically adjusts the water level to the load size—no water level selector is needed. Use only High Efficiency detergents. The package will be marked “HE” or “High Efficiency.” Low-water washing creates excessive sudsing with a regular non-HE detergent. Using regular detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer’s instructions to determine the amount of detergent to use. Use only High Efficiency (HE) detergent. Concentrated Cleaning Load garments in loose heaps evenly around the washplate. Do not load garments directly over the center of the washplate; when loaded, the center of the washplate should be visible. Low-water cleaning means concentrated cleaning. Rather than diluting detergent as done in an agitator-style washer, this washer delivers the detergent directly to the soils. Normal Sounds You Can Expect At different stages of the wash cycle, you may hear sounds and noises that are different from those of your previous washer. For example, you may hear a clicking and hum at the beginning of the cycle, as the lid lock goes through a self-test. There will be different kinds of humming and whirring sounds as the washplate moves the load. And sometimes, you may hear nothing at all, as the washer determines the correct water level for your load or allows time for clothes to soak. As the washer dampens and moves the load, the level of the garments will settle in the basket. This is normal, and does not indicate that more garments should be added. IMPORTANT: You will not see a washer basket full of water as with your past agitator-style washer. It is normal for some of the load to be above the water line.

Not all features and cycles are available on all models.

Press to turn the washer ON. Pressing once while the washer is on will cancel the current cycle, pressing twice will turn the washer OFF. Turn the Wash Cycle knob to select a cycle for your laundry load. See “Cycle Guide” for detailed descriptions of cycles. The Estimated Time Remaining display shows the time required for the cycle to complete. Factors such as load size and water pressure may affect the time shown in the display. Tightly packed loads, unbalanced loads, or excessive suds may cause the washer to adjust the cycle time, as well. If you have set a delay start to the cycle, the Estimated Time Remaining display will show the delay time adjusted. When the cycle is complete, the Done indicator will light until the lid is opened. The Lid Lock indicator lights up when the lid is locked and cannot be opened. If you need to open the lid, press START/PAUSE. The lid will unlock once the washer movement has stopped. This may take several minutes if the load was spinning at high speed. Press START/ PAUSE again to restart the cycle.

Your washer is specially designed to conserve energy and water. Each cycle, along with any selected options, will result in different energy and water usage. To use the Eco Monitor, choose the best cycle for the load being washed, then adjust temperature and spin speed options to improve the energy usage within that cycle. Press to start the selected cycle; press again to pause a cycle. CYCLE OPTIONS You may add or remove options for each cycle. Not all options can be used with all cycles, and some are preset to work with certain cycles. ECOBOOST™ option The EcoBoost™ option allows you to increase your energy savings on your wash cycles. When this option is used, the wash cycle will use cooler wash water than the selected cycle and may increase the spin speed for faster drying.

EXTRA RINSE This option can be used to automatically add a second rinse to most cycles. DEEP CLEAN with HEATER The Deep Clean with Heater option helps to ensure better soil and stain removal. Deep Clean uses a heater within the washer to maintain the selected temperature setting throughout the wash period. This option will add some additional time to the cycle based on which temperature is selected. It is a preset cycle setting on the Sanitary cycle. Deep Clean with Heater may be selected as an option with other cycles. ISPENSERS Press this button to set the dispensers for Oxi, Fabric Softener, or both so that the selected laundry product is added to the load at the correct time. CYCLE SIGNAL Use this option to adjust volume of the signal that sounds at end of cycle. A louder signal is helpful in removing items as soon as cycle is complete. Press and hold the CYCLE SIGNAL button to illuminate the washer basket, making loading and unloading easier. The light comes on when the lid is opened, and turns off automatically when the lid is closed or when you press and hold the button again. If the lid is left open, the drum light will turn off on its own after a few minutes. If you turn on the drum light while the lid is closed, it will not automatically time out. You must press and hold the CYCLE SIGNAL button again to turn it off. Drum Light

CYCLE MODIFIERS WASH TEMP Temperature Control senses and maintains uniform water temperatures by regulating incoming hot and cold water. Select a wash temperature based on the type of fabric and soils being washed. For best results and following the garment label instructions, use the warmest wash water safe for your fabric.

• Warm and hot water may be cooler than what your previous washer provided.
• Even for cold wash settings, some warm water may be added to the washer to maintain a minimum temperature. For cold water with no warm water added, select Eco Cold. When you select a cycle, its default settings will light up. SOIL LEVEL Soil Level (wash time) is preset for each wash cycle. As you press the Soil Level pad, the cycle time (minutes) will increase or decrease in the Estimated Time Remaining display and a different wash time will appear. For most loads, use the Soil Level that is preset with the cycle you have chosen. For heavily soiled and sturdy fabrics, press SOIL LEVEL to select more wash time, if needed. For lightly soiled and delicate fabrics, press SOIL LEVEL to select less wash time, if needed. A lower Soil Level setting will help reduce tangling and wrinkling. SPIN SPEED This washer automatically selects the spin speed based on the cycle selected. The preset speeds can be changed. Not all spin speeds are available with all cycles.
• Faster spin speeds mean shorter dry times, but may increase wrinkling in your load.
• Slower spin speeds mean less wrinkling, but will leave your load more damp. To turn Button Sounds either On or Off: While washer is off (before pressing Power button), press the following buttons within 5 seconds: Wash Temp - Cycle Signal - Wash Temp - Cycle Signal. Washer will make a single beep when the process is complete. NOTE:
• Cycle Signal Button will still operate, even if you turned the button sounds off.
• Whatever your preferences are, they remain in effect through a power loss.
• Default setting sounds is turned On. Dispensers

High Efficiency “HE” detergent dispenser Add liquid or powdered HE detergent product to this dispenser for your main wash cycle.

Use only High Efficiency (HE) detergent.

Liquid chlorine bleach/Oxi dispenser Liquid chlorine bleach: This dispenser holds up to 3/4 cup (180 mL) liquid chlorine bleach. The bleach will be automatically diluted and dispensed at the optimum time during the wash cycle. This dispenser cannot dilute powdered bleach. Oxi: This dispenser holds up to 3/4 cup (180 mL) Oxi booster or other laundry booster, such as powdered or liquid color-safe bleach. Laundry boosters are automatically dispensed at the proper time during the wash cycle. Be sure to select Oxi from the options to ensure proper dispensing. NOTE: Fill dispenser with only bleach OR oxi. Do not mix products.

Liquid fabric softener dispenser Pour measured liquid fabric softener into the liquid fabric softener dispenser, if desired. It will dispense automatically at the optimum time when the Fabric Softener option is selected.

• Use only liquid fabric softener in this dispenser.

CYCLE GUIDE Settings and options shown in bold are default settings for that cycle. For best fabric care, choose the cycle that best fits the load being washed. If using the Eco Monitor, adjust the temperature and spin speed within that cycle to improve energy usage. Not all cycles and options are available on all models. Items to wash: Cycle: Wash Temp*: Spin Speed: Soil Level: Available Options: Quick Wash Hot Warm Cool Cold Eco Cold High Medium Low No Spin Heavy Normal Medium Light Deep Clean Extra Rinse Fabric Softener Oxi Use this cycle to wash small loads of 2–3 lightly soiled garments that are needed in a hurry. This cycle combines a fast agitation, a shortened wash time, and a high-speed spin to shorten drying times. Machine-wash silks, hand-wash fabrics and wool Handwash/ Delicate Warm Cool Cold Eco Cold Medium Low No Spin Heavy Normal Medium Light Deep Clean Extra Rinse Fabric Softener Oxi Use this cycle for machine washable delicate garments. This cycle uses intermittent wash action with cool water and slow spin to gently care for fine washables and avoid shrinkage. Place small items in mesh bags before washing. Athletic and high-performance wear Active Wear Hot Warm Cool Cold Eco Cold High Medium Low No Spin Heavy Normal Medium Light Deep Clean Extra Rinse EcoBoost™ Fabric Softener Oxi Use this cycle to wash loads of no-iron fabrics such as sport shirts and other active wear. Normally soiled sheets Sheets Hot Warm Cool Cold Eco Cold High Medium Low No Spin Heavy Normal Medium Light Extra Rinse Use this cycle to wash bed sheets. This cycle uses extra water and a special EcoBoost™ Fabric Softener wash action to reduce tangling. Oxi Towels and terrycloth items Towels Hot Warm Cool Cold Eco Cold High Medium Low No Spin Heavy Normal Medium Light Deep Clean Extra Rinse EcoBoost™ Fabric Softener Oxi This cycle defaults to a warm wash and medium spin speed. Hotter temperatures help remove soils and odors; faster spin speeds will reduce drying times. No-iron fabrics Perm Press Casual Hot Warm Cool Cold Eco Cold High Medium Low No Spin Heavy Normal Medium Light Deep Clean Extra Rinse EcoBoost™ Fabric Softener Oxi Use this cycle for lightly soiled office wear. The cycle uses a warm wash, a cooldown, and medium spin speeds for better wrinkle performance. Cottons, linens, and mixed garment loads Normal Hot Warm Cool Cold Eco Cold High Medium No Spin Heavy Normal Medium Light Extra Rinse EcoBoost™ Fabric Softener Oxi Use this cycle to clean normally soiled cottons, linens, and mixed fabric loads. Default settings can be adjusted as needed. Cold Wash Cold Eco Cold High Medium Low No Spin Heavy Normal Medium Light Extra Rinse EcoBoost™ Fabric Softener Oxi This cycle uses cold water wash and a concentrated detergent solution to gently lift out stains and care for fabrics. Settings may be adjusted as desired, but must use only cold water settings. Large items such as sleeping bags, small comforters, jackets Bulky Items Hot Warm Cool Cold Eco Cold Medium Low No Spin Heavy Normal Medium Light Extra Rinse EcoBoost™ Fabric Softener Oxi This cycle is designed for oversized items that do not easily absorb water, such as comforters, pillows, and polyfilled jackets. The cycle uses an initial soak to thoroughly saturate the item(s). Sturdy fabrics, colorfast items Heavy Duty Hot Warm Cool Cold Eco Cold High Medium Low No Spin Heavy Normal Medium Light Deep Clean Extra Rinse EcoBoost™ Fabric Softener Oxi Use this cycle for heavily soiled or sturdy cotton items. This cycle combines highspeed wash action, longer wash time, and extra high-speed spin to shorten drying times. Adjust temperature settings as needed. Lightly soiled garments Bright or darkly colored cottons, linens, casual and mixed loads Cycle Details:

• Wash temperatures vary according to the chosen cycle setting. All cycle settings use a cold rinse temperature.

CYCLE GUIDE Settings and options shown in bold are default settings for that cycle. For best fabric care, choose the cycle that best fits the load being washed. If using the Eco Monitor, adjust the temperature and spin speed within that cycle to improve energy usage. Not all cycles and options are available on all models. Items to wash: Cycle: Wash Temp*: Spin Speed: Soil Level: Available Options: Heavily soiled white fabrics Whites Hot Warm Cool Cold Eco Cold High Medium Low No Spin Heavy Normal Medium Light Deep Clean Extra Rinse EcoBoost™ Fabric Softener Oxi This cycle adds liquid chlorine bleach to the load at the proper time for improved whitening of soiled white fabrics. Cottons and linens exposed to possible allergens Allergen Hot High Medium Low No Spin Heavy Normal Medium Light Deep Clean Extra Rinse Fabric Softener Oxi This cycle uses more water to flush out allergens, such as dust mites or pet dander, from normally soiled garments. This cycle removes more than 95% of allergens. Sanitary with Oxi & Steam† Hot High Medium Low No Spin Heavy Normal Medium Light Deep Clean Extra Rinse Fabric Softener Oxi Use this cycle to eliminate 99.9% of bacteria when used in conjunction with the Deep Clean with Heater option. Preset cycle setting must be used to achieve the proper sanitization. Be sure to add an Oxi product to the Liquid Chlorine Bleach dispenser. EcoBoost™ Use this cycle every 30 washes to keep the inside of your washer fresh and clean. This cycle uses a higher water level. Use with affresh® Washer Cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer. This cycle should not be interrupted. See “Washer Care.” IMPORTANT: Do not place garments or other items in the washer during the Clean Washer with affresh® cycle. Use this cycle with an empty wash tub. EcoBoost™ Adjustable soak time to loosen heavy soils. At the end of the cycle, the washer will drain but not spin, and a tone will sound. To set a follow-up cycle, add additional detergent and select a cycle based on fabric type. EcoBoost™ Fabric Softener This cycle uses a high-speed spin. For some fabrics, you may wish to set the spin speed to a lower setting. Heavily soiled, colorfast fabrics No clothes in washer Clean Washer with affresh® Heavily soiled fabrics Deep Water Soak Warm Cool Cold Eco Cold No Spin Swimsuits, items that need rinsing only Rinse/ Drain & Spin High Medium Low No Spin Wet load of clothes Rinse/ Drain & Spin High Medium Low Heavy Normal Medium Light Cycle Details: To select, choose Rinse/Drain & Spin and turn off Extra Rinse. Use this cycle to spin excess water out of a load. This cycle drains the water and spins at a high speed. Spin speed is adjustable.

• Wash temperatures vary according to the chosen cycle setting. All cycle settings use a cold rinse temperature. Model: WTW8900B** † Sanitary with Oxi & Steam Sanitary with Oxi & Steam cycle certified by NSF International, an independent, third party testing and certification organization. The certification verified that the cycle reduced 99.9% of bacteria typically found in clothing, bedding, and towels. There is no carry over of bacteria between loads after the cycle is complete. Only the Sanitary with Oxi cycle has been designed to meet the requirements of NSF Protocol P172 for Sanitizing Effectiveness.

WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

1. Sort and prepare your laundry

• Empty pockets. Loose change, buttons, or any small object can pass under the washplate and become trapped, causing unexpected sounds.
• Sort garments by recommended cycle, water temperature, and colorfastness.
• Separate heavily soiled garments from lightly soiled.
• Separate delicate garments from sturdy fabrics.
• Do not dry garments if stains remain after washing; heat can set stains into fabric.
• Treat stains promptly.
• Close zippers, fasten hooks, tie strings and sashes. Remove non-washable trim and ornaments.
• Mend rips and tears to avoid further damage to garments during washing. Helpful Tips:
• When washing water-proof or water-resistant items, load evenly. See “Cycle Guide” for tips and more information on using the Bulky Items cycle.
• Use mesh bags to help avoid tangling when washing delicate or small items.
• Turn knits inside out to avoid pilling. Separate lint-takers from lint-givers. Synthetics, knits, and corduroy fabrics will pick up lint from towels, rugs, and chenille fabrics. NOTE: Always read and follow fabric care labels instructions to avoid damage to your garments.

2. Add laundry products

Add a measured of amount of detergent or single-dose laundry packet into the basket. If using Oxi-type boosters, color-safe bleach, or fabric softener crystals, add to the bottom of the washer basket before adding clothes. NOTE: Follow the manufacturer’s instructions to determine the amount of laundry products to use.

3. Load laundry into washer

5. Add liquid chlorine bleach or Oxi

product to dispenser Liquid chlorine bleach/ Oxi dispenser Load garments in loose heaps evenly around the washplate. Do not load garments directly over the center of the washplate; when loaded, the center of the washplate should be visible. Try mixing different sized garments to reduce tangling. IMPORTANT: Garments need to move freely for best cleaning and to reduce wrinkling and tangling. NOTE: Do not add single-dose laundry packets or fabric softener crystals to dispensers. They will not dispense correctly.

4. Add HE detergent to dispenser

Add liquid chlorine bleach or Oxi laundry boost product to the dispenser. When using Oxi products or other laundry boosters (liquid or powdered color-safe bleach), select the Oxi option, press the Dispensers button until Oxi is selected. It is not necessary to select the Oxi option when using liquid chlorine bleach.

• Do not overfill, dilute, or use more than 3/4 cup (180 mL) of liquid chlorine bleach. Overfilling will cause the bleach or Oxi product to dispense immediately into the washer.
• Do not use color-safe bleach or Oxi products in the same cycle with liquid chlorine bleach.

6. Add liquid fabric softener to

dispenser Fabric softener dispenser Detergent dispenser Add a measured amount of HE detergent into detergent dispenser. IMPORTANT: Use only High Efficiency detergents. The package will be marked “HE” or “High Efficiency.” Low-water washing creates excessive sudsing with a regular non-HE detergent. Using regular detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer’s instructions to determine the amount of detergent to use. HELPFUL TIP: See “Washer Maintenance” for information on recommended method of cleaning washer dispensers. Pour a measured amount of liquid fabric softener into dispenser; always follow manufacturer’s directions for correct amount of fabric softener based on your load size. Then select Fabric Softener option using the Dispensers button. IMPORTANT: Fabric Softener option must be selected to ensure proper distribution at correct time in cycle. Do not overfill or dilute. Overfilling dispenser will cause fabric softener to immediately dispense into washer. If Extra Rinse option is selected, fabric softener will be dispensed in the last rinse. NOTE: Do not use liquid fabric softener dispenser balls in this washer. They will not dispense correctly.

7. Press POWER to turn on washer

Press and hold POWER to turn on the washer.

9. Select cycle modifiers

Once you select a cycle, the default modifiers for that cycle will be lit. Press the cycle settings buttons to change the Soil Level, Spin Speed, and Wash Temp, if desired. Not all settings are available with all cycles. NOTE: Always read and follow fabric care labels instructions to avoid damage to your garments. Wash Temp Hot Some cold water is added to save energy. This will be cooler than your hot water heater setting Warm Some cold water will be added, so this may be cooler than what your previous washer provided. Turn cycle knob to choose your wash cycle. Estimated Time Remaining will light up with a cycle time. You may notice time adjusting during the cycle. This is normal. If you do not want to begin a cycle immediately, you may choose DELAY WASH option. To choose a delay time:

1. Press DELAY WASH button to select desired delay time.

2. Press START/PAUSE.

To cancel delaying a cycle:

1. Press START/PAUSE again to begin a wash cycle

immediately. IMPORTANT: When delaying a cycle, use liquid HE detergent only in the dispenser. Powdered detergents may absorb moisture from a previous cycle and clump before the wash cycle begins.

Cool Warm water is added to assist in soil removal and to help dissolve detergents. Cold Warm water may be added to assist in soil removal and to help dissolve detergents. Eco Cold This is the cold water temperature from your faucet without warm water added. Suggested Fabrics Whites and pastels Durable garments Heavy soils Bright colors Moderate to light soils Colors that bleed or fade Light soils Dark colors that bleed or fade Light soils Dark colors that bleed or fade Light soils

10. Select cycle options

WASHER CARE Recommendations to Help Keep Your Washer Clean and Performing at its Best Select any other cycle options you may wish to add, if not previously set. Some cycles will automatically add certain options such as Deep Clean with Heater or Extra Rinse. These may be turned off, if desired. NOTE: Not all options are available with all cycles.

11. P ress START/PAUSE to begin

wash cycle Press the START/PAUSE button to start the wash cycle. When the cycle has finished, the DONE indicator will light and the end of cycle signal will sound (if set). Promptly remove garments when cycle is done to avoid odor, reduce wrinkling, and rusting of metal hooks, zippers, and snaps. Unlocking the lid to add garments If you need to open the lid to add 1 or 2 missed garments: Press START/PAUSE; the lid will unlock once the washer movement has stopped. This may take several minutes if the load was spinning at high speed. Then close lid and press START/PAUSE again to restart the cycle. If lid is left open for more than 10 minutes the water will pump out. WASHER MAINTENANCE

Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found. When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker. NOTE: This washer does not include inlet hoses. See the Installation Instructions for more information.

1. Always use High Efficiency (HE) detergents and follow the

HE detergent manufacturer’s instructions regarding the amount of HE detergent to use. Never use more than the recommended amount because that may increase the rate at which detergent and soil residue accumulate inside your washer, which in turn may result in undesirable odor.

2. Use warm and hot wash water settings sometimes (not

exclusively cold water washes), because they do a better job of controlling the rate at which soils and detergent accumulate.

3. Always leave the washer lid open between uses to

help dry out the washer and prevent the buildup of odor-causing residue. Cleaning Your Top Loading Washer Read these instructions completely before beginning the routine cleaning processes recommended below. This Washer Maintenance Procedure should be performed, at a minimum, once per month or every 30 wash cycles, whichever occurs sooner, to control the rate at which soils and detergent may otherwise accumulate in your washer. Cleaning the Inside of the Washer To keep your washer odor-free, follow the usage instructions provided above, and use this recommended monthly cleaning procedure: Clean Washer Cycle This washer has a special cycle that uses higher water volumes in combination with affresh® Washer Cleaner or liquid chlorine bleach to clean the inside of the washer. Begin procedure

1. affresh® Washer Cleaner Cycle Procedure

(Recommended for Best Performance): a. Open the washer lid and remove any clothing or items. b. Place an affresh® Washer Cleaner tablet in the bottom of the washer basket. c. Do not place an affresh® Washer Cleaner tablet in the detergent dispenser. d. Do not add any detergent or other chemical to the washer when following this procedure. e. Close the washer lid. f. Select the CLEAN WASHER cycle. g. Press the START/PAUSE button to begin the cycle. The Clean Washer Cycle Operation is described below. NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, press POWER. (For models with no Power button, press and hold START/PAUSE for three seconds). After the Clean Washer cycle has stopped, run a Rinse/Drain & Spin cycle to rinse cleaner from washer.

2. Chlorine Bleach Procedure (Alternative):

a. Open the washer lid and remove any clothing or items. b. Add 1 cup (236 mL) of liquid chlorine bleach to the bleach compartment. NOTE: Use of more liquid chlorine bleach than is recommended above could cause washer damage over time. c. Close the washer lid. d. Do not add any detergent or other chemical to the washer when following this procedure. e. Select the CLEAN WASHER cycle.

WASHER CARE (cont.) f. Press the START/PAUSE button to begin the cycle. The Clean Washer Cycle Operation is described below. NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, press POWER. (For models with no Power button, press and hold START/PAUSE for three seconds). After the Clean Washer cycle has stopped, run a Rinse/Drain & Spin cycle to rinse cleaner from washer. Description of Clean Washer Cycle Operation:

1. This cycle will fill to a water level higher than in normal

wash cycles to provide rinsing at a level above the water line for normal wash cycle.

2. During this cycle, there will be some agitation and

spinning to increase the removal of soils. After this cycle is complete, leave the lid open to allow for better ventilation and drying of the washer interior. Cleaning the Dispensers After a period of using your washer, you may find some residue buildup in the washer’s dispensers. To remove residue from the dispensers, wipe them with a damp cloth and towel dry. Do not attempt to remove the dispensers or trim for cleaning. The dispensers and trim are not removable. If your model has a dispenser drawer, however, remove the drawer and clean it before or after you run the Clean Washer cycle. Use an all-purpose surface cleaner, if needed. Cleaning the Outside of the Washer Use a soft, damp cloth or sponge to wipe away any spills. Use only mild soaps or cleaners when cleaning external washer surfaces. IMPORTANT: To avoid damaging the washer’s finish, do not use abrasive products.

TRANSPORTING YOUR WASHER

1. Shut off both water faucets. Disconnect and drain water

2. If washer will be moved during freezing weather, follow

WINTER STORAGE CARE directions before moving.

3. Disconnect drain from drain system.

4. Unplug power cord.

5. Place inlet hoses inside washer basket.

6. Drape power cord and drain hose over the console

and secure with masking tape.

7. Place foam packing ring from original shipping materials

back inside washer. If you do not have packing ring, place heavy blankets or towels into basket opening. Close lid and place tape over lid and down front of washer. Keep lid taped until washer is placed in new location. WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord.

NON-USE AND VACATION CARE

Operate your washer only when you are home. If moving, or not using your washer for a period of time, follow these steps:

1. Unplug or disconnect power to washer.

2. Turn off water supply to washer, to avoid flooding

due to water pressure surge.

IMPORTANT: To avoid damage, install and store washer where it will not freeze. Because some water may stay in hoses, freezing can damage washer. If storing or moving during freezing weather, winterize your washer. To winterize washer:

1. Shut off both water faucets; disconnect and drain water

2. Put 1 qt. (1 L) of R.V.-type antifreeze in basket and

run washer on RINSE/DRAIN & SPIN cycle for about 30 seconds to mix antifreeze and remaining water.

3. Unplug washer or disconnect power.

Failure to follow these instructions can result in death, fire, or electrical shock.

REINSTALLING/USING WASHER AGAIN

To reinstall washer after non-use, vacation, winter storage or moving:

1. Refer to Installation Instructions to locate, level, and

2. Before using again, run washer through the following

recommended procedure: To use washer again:

1. Flush water pipes and hoses. Reconnect water inlet

hoses. Turn on both water faucets.

2. Plug in washer or reconnect power.

3. Run washer through BULKY ITEMS cycle to clean

washer and remove antifreeze, if used. Use only HE High Efficiency detergent. Use half the manufacturer’s recommended amount for a medium-size load. TROUBLESHOOTING First try the solutions suggested here or visit our website at www.whirlpool.com/product_help In Canada www.whirlpool.ca for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Vibration or Off-Balance Vibration, rocking, or “walking” Feet may not be in contact with the floor and locked. Front and rear feet must be in firm contact with floor, and washer must be level to operate properly. Jam nuts must be tight against the bottom of the cabinet. Washer may not be level. Check floor for flexing or sagging. If flooring is uneven, a 3/4" (19 mm) piece of plywood under your washer will reduce sound. See “Level the Washer” in the Installation Instructions. Vibration during spinning or washer stopped with all dial lights flashing Load could be unbalanced. Load garments in loose heaps evenly around the washplate. Do not load garments directly over the center of the washplate. Adding wet items to washer or adding more water to basket could unbalance washer. Avoid washing single items. Balance a single item such as a rug or jeans jacket with a few extra items. If the dial is flashing, redistribute the load, close the lid, and press START/PAUSE. Use Bulky Items cycle for oversized, non-absorbent items such as comforters or poly-filled jackets. Other items are not appropriate for Bulky Items cycle. See “Cycle Guide.” Item or load not suitable for selected cycle. See “Cycle Guide” and “Using Your Washer.” Noises – For normal operating sounds, go to www.whirlpool.com/product_help. Clicking or metallic noises Objects caught in washer drain system. Empty pockets before washing. Loose items such as coins could fall between basket and tub or may block pump. It may be necessary to call for service to remove items. It is normal to hear metal items on clothing such as metal snaps, buckles, or zippers touch against the stainless steel basket. Gurgling or humming Washer may be draining water. It is normal to hear the pump making a continuous humming sound with periodic gurgling or surging as final amounts of water are removed during the spin/drain cycles. Humming Load sensing may be occurring. You may hear the hum of the sensing spins after you have started the washer. This is normal. Washer not level. Water may splash off basket if washer is not level. Fill hoses not attached tightly. Tighten fill-hose connection. Fill hose washers Make sure all four fill hose flat washers are properly seated. Drain hose connection Pull drain hose from washer cabinet and properly secure it to drainpipe or laundry tub. Water Leaks Check the following for proper installation: Do not place tape over drain opening. Check household plumbing for leaks or clogged sink or drain. Water can back up out of a clogged sink or drainpipe. Check all household plumbing for leaks (laundry tubs, drain pipe, water pipes, and faucets.) Washer not loaded as recommended. An unbalanced load can cause basket to be out of alignment and cause water to splash off tub. See “Using Your Washer” for loading instructions. Washer not performing as expected Not enough water in washer Load not completely covered in water. This is normal operation for an HE low-water washer. The load will not be completely underwater. The washer senses load sizes and adds correct amount of water for optimal cleaning. See “What’s New under the Lid.” IMPORTANT: Do not add more water to washer. Adding water lifts the garments off the washplate, resulting in less effective cleaning. Washer won’t run or fill, washer stops working Check for proper water supply. Both hoses must be attached and have water flowing to inlet valve. Both hot and cold water faucets must be turned on. Check that inlet valve screens have not become clogged. Check for any kinks in inlet hoses, which can restrict water flow.

TROUBLESHOOTING WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. First try the solutions suggested here or visit our website at www.whirlpool.com/product_help In Canada www.whirlpool.ca for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Washer not performing as expected (cont.) Washer won’t run or fill, washer stops working (cont.) Check proper electrical supply. Plug power cord into a grounded 3-prong outlet. Do not use an extension cord. Ensure there is power to outlet. Reset a tripped circuit breaker. Replace any blown fuses. NOTE: If problems continue, contact an electrician. Normal washer operation. Lid must be closed for washer to run. Washer will pause during certain phases of cycle. Do not interrupt cycle. Washer may be stopped to reduce suds. Washer may be tightly packed. Remove several items, rearrange load evenly around the washplate. Do not load garments directly over the center of the washplate. Close lid and press START/PAUSE. Add only 1 or 2 additional garments after washer has started. Do not add more water to the washer. Not using HE detergent or using too much HE detergent. Only use HE detergent. Suds from regular detergents can slow or stop the washer. Always measure detergent and following detergent directions based on your load requirements. To remove suds, cancel cycle. Select RINSE/DRAIN & SPIN. Select your cycle. Press START/PAUSE. Do not add more detergent. Washer not draining/ spinning, loads are still wet

Empty pockets and use garment bags for small items. Small items may have been caught in pump or between basket and tub, which can slow draining. Using cycles with a lower spin speed. Cycles with lower spin speeds remove less water than cycles with high spin speeds. Use the recommended cycle/speed spin for your garment. Washer may be tightly packed or unbalanced. Tightly packed loads may not allow the washer to spin correctly, leaving the load wetter than normal. Evenly arrange the wet load for balanced spinning. Select RINSE/DRAIN & SPIN to remove excess water. See “Using Your Washer” for loading recommendations. Check plumbing for correct drain hose installation. Drain hose extends into standpipe farther than 4.5" (114 mm). Check drain hose for proper installation. Use drain hose form and securely attach to drainpipe or tub. Do not tape over drain opening. Lower drain hose if the end is higher than 96" (2.4 m) above the floor. Remove any clogs from drain hose. TROUBLESHOOTING First try the solutions suggested here or visit our website at www.whirlpool.com/product_help In Canada www.whirlpool.ca for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Washer not performing as expected (cont.) Washer not draining/ spinning, loads are still wet (cont.) Not using HE detergent or using too much HE detergent. Suds from regular detergent or using too much detergent can slow or stop draining or spinning. Use only HE detergent. Always measure and follow detergent directions for your load. To remove extra suds, Select RINSE/DRAIN & SPIN. Do not add detergent. Incorrect or wrong wash or rinse temperatures Check for proper water supply. Make sure hot and cold inlet hoses are not reversed. Both hoses must be attached to both washer and faucet, and have both hot and cold water flowing to inlet valve. Check that inlet valve screens are not clogged. Remove any kinks in hoses. Load not rinsed Energy-saving controlled wash temperatures. ENERGY STAR® qualified washers use cooler wash and rinse water temperatures than traditional top-load washers. This includes cooler hot and warm washes. Check for proper water supply. Make sure hot and cold inlet hoses are not reversed. Both hoses must be attached and have water flowing to the inlet valve. Both hot and cold water faucets must be on. Inlet valve screens on washer may be clogged. Remove any kinks in the inlet hose. Not using HE detergent or using too much HE detergent. The suds from regular detergent can cause the washer to operate incorrectly. Use only HE detergent. Be sure to measure correctly. Always measure detergent and follow detergent directions based on load size and soil level. Washer may be tightly packed. The washer is less efficient at rinsing when load is tightly packed. Load garments in loose heaps evenly around the washplate. Do not load garments directly over the center of the washplate. Use cycle designed for the fabrics being washed. Add only 1 or 2 additional garments after washer has started. Fabric softener option not selected. When using fabric softener, be sure the Fabric Softener option is selected. Sand, pet hair, lint, etc. on load after washing Heavy sand, pet hair, lint, and detergent or bleach residues may require additional rinsing. Add an Extra Rinse to the selected cycle. Load is tangling Washer not loaded as recommended. Load garments in loose heaps evenly around the washplate. Do not load garments directly over the center of the washplate. Reduce tangling by mixing types of load items. Use the recommended cycle for the type of garments being washed. Not cleaning or removing stains Wash action and/or spin speed too fast for load. Select a cycle with a slower wash action and slower spin speed. Note that items will be wetter than when using a higher speed spin. Wash load not completely covered in water. Washer senses load size and adds correct amount of water. This is normal and necessary for clothes to move. Added more water to washer. Do not add more water to washer. Adding water lifts the garments off the washplate, resulting in less effective cleaning. Washer not loaded as recommended. Load garments in loose heaps evenly around the washplate. Do not load garments directly over the center of the washplate. Add only 1 or 2 additional garments after washer has started.

TROUBLESHOOTING First try the solutions suggested here or visit our website at www.whirlpool.com/product_help In Canada www.whirlpool.ca for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Washer not performing as expected (cont.) Not cleaning or removing stains (cont.) Not using HE detergent or using too much HE detergent. The suds from regular detergent can prevent washer from operating correctly. Use only HE detergent. Be sure to measure correctly. Always measure detergent and follow detergent directions based on load size and soil level. Not using correct cycle for fabric type. Use a higher soil level cycle option and warmer wash temperature to improve cleaning. If using Quick Wash cycle (on some models), wash only a few items. Use Whites or Heavy Duty cycle for tough cleaning. See the “Cycle Guide” to match your load with the best cycle. Not using dispensers. Use dispensers to avoid chlorine bleach and fabric softener staining. Load dispensers before starting a cycle. Avoid overfilling. Do not add products directly onto load. Odors Not washing like colors together. Wash like colors together and remove promptly after the cycle is complete to avoid dye transfer. Monthly maintenance not done as recommended. Run the Clean Washer with affresh® cycle after every 30 washes. See “Washer Care” in “Washer Maintenance.” Unload washer as soon as cycle is complete. Not using HE detergent or using too much HE detergent. Use only HE detergent. Be sure to measure correctly. Always follow the detergent directions. See “Washer Care” section. Fabric Damage Sharp items were in pockets during wash cycle. Empty pockets, zip zippers, and snap or hook fasteners before washing to avoid snags and tears. Strings and straps could have tangled. Tie all strings and straps before starting wash load. Items may have been damaged before washing. Mend rips and broken threads in seams before washing. Fabric damage can occur if the load is tightly packed. Load garments in loose heaps evenly around washplate. Do not load garments directly over the center of the washplate. Load items should move freely during wash to avoid damage. Use cycle designed for the fabrics being washed. Add only 1 or 2 additional garments after washer has started. Garment care instructions may not have been followed. Always read and follow garment manufacturer’s care label instructions. See the “Cycle Guide” to match your load with the best cycle. Liquid chlorine bleach may have been added incorrectly. Do not pour liquid chlorine bleach directly onto load. Wipe up bleach spills. Undiluted bleach will damage fabrics. Do not use more than recommended by manufacturer. Do not place load items on top of bleach dispenser when loading and unloading washer.

TROUBLESHOOTING First try the solutions suggested here or visit our website at www.whirlpool.com/product_help In Canada www.whirlpool.ca for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Washer not performing as expected (cont.) Incorrect dispenser operation Clogged dispensers or laundry products dispensing too soon. Do not overfill dispenser. Overfilling causes immediate dispensing. Always select Fabric Softener option to assure proper dispensing. Load dispensers before starting a cycle. It is normal for small amounts of water to be remain in dispenser at the end of the cycle. Homes with low water pressure may result in residual powder in the dispenser. To avoid, select a warmer wash temperature if possible, depending on your load. Single-dose laundry packet not dissolving Liquid chlorine bleach not used in dispenser. Use only liquid chlorine bleach in the bleach dispenser. Adding laundry packet incorrectly. Be sure laundry packet is added to washer basket before adding clothes. Follow the manufacturer’s instructions to avoid damage to your garments. Error Code Appears in Display oL (overloaded) appears in display Load too large. If an overload is detected, the washer will drain any water and detergent in the washer. Remove several items and add HE detergent. Close lid and press START/PAUSE. uL (unbalanced load) appears in display Load not balanced. The washer is running a load-balance correction routine. Allow the washer to continue. If the dial is flashing and the washer has stopped, redistribute the load, close the lid, and press START/PAUSE. LF (too long to fill) appears in display Washer taking too long to fill. Drain Check plumbing for correct drain hose installation. Use drain extends more than 4.5" (114 mm) into hose form and attach securely to drainpipe or tub. Do not tape standpipe. over drain opening. See Installation Instructions. Ld (too long to drain water) appears in display Washer taking too long to drain water. Drain extends more than 4.5" (114 mm) into standpipe. Check plumbing for correct drain hose installation. Use drain hose form and attach securely to drainpipe or tub. Do not tape over drain opening. Lower drain hose if the end is higher than 96" (2.4 m) above the floor. Remove any clogs from drain hose. See Installation Instructions. HC (hot and cold hoses reversed) appears in display Hot and cold inlet hoses have been installed incorrectly. This code will appear at the end of the wash cycle to indicate that cold water hose is connected to the hot water inlet and hot water hose is connected to the cold water inlet. Sd (Excess suds) appears in display Excessive suds in washer. Washer is running a suds reduction routine. Allow the washer to continue. Use only HE detergent. Always measure detergent, and base detergent quantity on load size. Follow detergent manufacturer’s instructions. If the dial is flashing, reselect your desired cycle using a cold wash temperature, and press START/PAUSE. Do not add detergent. dL (Lid cannot lock) appears in display An item in the load may be keeping the lid from locking. Check for items directly under the lid. lid (Lid opened) appears in display Washer lid left open. Close the lid to clear the display. If the lid is left open for more than 10 minutes, the cycle will reset and water in the washer will drain. dU (Lid cannot unlock) appears in display Objects on washer lid prevent it from unlocking. Remove objects, such as a basket of laundry, from the top of the washer. F## code (F-type error code) appears in display System error code. Press START/PAUSE once to clear the code. Then press START/PAUSE again to restart washer. If code appears again, call for service.

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions. 2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 3. Service calls to repair or replace appliance light bulbs, air filters, or water filters. Consumable parts are excluded from warranty coverage. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Pick up and delivery. This major appliance is intended to be repaired in your home.

7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool published installation instructions. 10. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered, or cannot be easily determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. If you think you need repair service, first see the “Troubleshooting” section of the Use & Care Guide. If you are unable to resolve the problem after checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. 10/11 Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

AssistAnce or service Before calling for assistance or service, please check “Troubleshooting” or visit www.whirlpool.com/help. It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts or to order accessories We recommend that you use only FSP® Factory Specified Parts. These parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL® appliance. To locate FSP® replacement parts, assistance in your area, or accessories: Whirlpool Canada LP Customer eXperience Centre Whirlpool Corporation Customer eXperience Center 1-800-253-1301 www.whirlpool.com 1-800-807-6777 1-800-442-9991 (Accessories) www.whirlpool.ca www.whirlpool.com/accessories or call your nearest designated service center or refer to your Yellow Pages telephone directory. Our consultants provide assistance with In the U.S.A. and Canada Use and maintenance procedures. ■■ Accessory and repair parts sales. ■■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States and Canada. You can write with any questions or concerns at: Whirlpool Corporation Customer eXperience Centre Customer eXperience Center Whirlpool Canada LP 553 Benson Road Unit 200-6750 Century Ave Benton Harbor, MI 49022-2692 Mississauga, Ontario L5N 0B7 In the U.S.A. ■■ Features and specifications on our full line of appliances. ■■ Installation information. ■■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
