Product Type	Tumble Dryer
Brand	Heinner
Model	HCD-80B
Capacity	8 kg
Drying Type	Condenser (Heat Pump)
Energy Efficiency Class	A++
Annual Energy Consumption	560 kWh
Noise Level	65 dB(A)
Dimensions (W x D x H)	600 x 600 x 850 mm
Weight	38 kg
Power Supply	230 V / 50 Hz
Rated Power	2500 W
Drying Programs	Cotton, Synthetics, Delicates, Mixed, Shirts, Jeans, Sports, Quick 30 min, Extra Dry, Cupboard Dry, Iron Dry
Special Functions	Delay Start, Anti-Crease, Child Lock, Drum Light, End-of-Cycle Signal
Filter Type	Lint filter (easy-clean)
Condenser Cleaning Indicator	Yes
Water Tank	Built-in (to be emptied manually)
Drum Material	Stainless steel
Reversible Door	Yes
Safety Features	Overheat protection, Child lock, Moisture sensor
Maintenance	Clean lint filter after each cycle; clean condenser every 30 cycles
Spare Parts Availability	Filters, belts, drums, heating elements available online
Warranty	2 years (varies by region)

Frequently Asked Questions - HCD-80B Heinner

How do I clean the lint filter on the Heinner HCD-80B?

Open the door and pull out the lint filter located at the bottom of the door opening. Remove lint by hand or with a soft brush. Rinse under running water if necessary, dry thoroughly, and reinsert.

What is the maximum capacity of the HCD-80B dryer?

The maximum drying capacity is 8 kg for cotton items. Reduce load for synthetics and delicates to achieve optimal results.

Can I install the dryer under a counter?

Yes, the HCD-80B is designed for integrated installation. Ensure proper ventilation and a minimum gap of 10 cm around the appliance.

How often should I empty the water tank?

Empty the water tank after each drying cycle or when the indicator light turns on. The tank is located in the bottom left corner of the appliance.

The dryer stops before the cycle ends. What should I do?

Check if the water tank is full, the lint filter is clogged, or the condenser needs cleaning. Also, ensure the load is not too large or unbalanced.

How do I activate the child lock?

Press and hold the 'Child Lock' button for 3 seconds until the indicator light appears. To deactivate, repeat the same step.

What is the energy efficiency class of this dryer?

The Heinner HCD-80B is rated A++ for energy efficiency, making it economical to run.

Can I dry wool or silk items?

It is recommended to air dry wool and silk items. The dryer has a 'Delicates' program, but always check the care label of your garment.

How do I clean the condenser?

Open the lower flap, remove the condenser unit, and rinse it with water. Use a soft brush to remove any lint. Reinsert and lock in place.

Where can I find the user manual for the HCD-80B?

The user manual is available for free download on the notice-facile.com website in multiple languages.

USER MANUAL HCD-80B Heinner

Front view of a white HERNONER washing machine with control panel and digital display (no visible text or symbols on main body)

Technical line drawing showing a washing machine and a sink with a 100 μm pipe, no text or symbols present.

V. ELIMINAREA PRODUSULUI

Simple line drawing of a magnifying glass resting on a patterned surface (no text or symbols)

Simple line drawing of a washing machine with a hand operating it, no text or symbols present

Conectarea la sursa de alimentare

Technical line drawing of a mechanical component with grid pattern (no text or symbols)

Architectural line drawing showing two views of a building facade with hand positioning (no text or symbols)

NOTĂ!

Technical line drawing showing hands operating a mechanical component and a device with a grid pattern (no text or symbols)

AVERTISMENT:

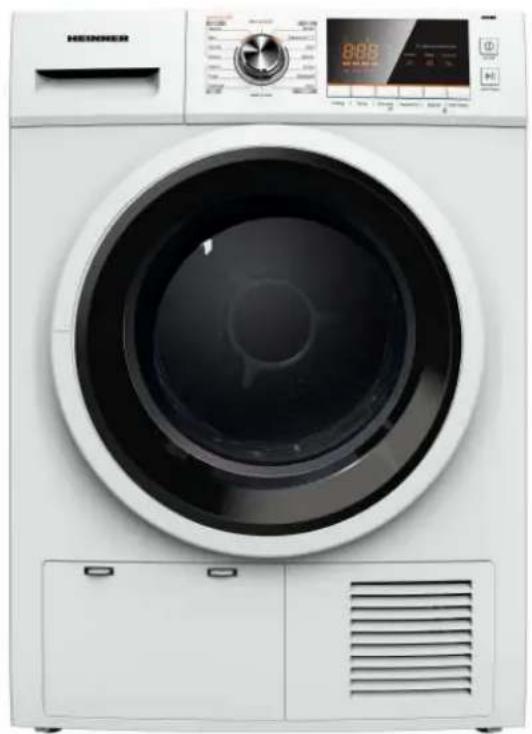

Front view of a white washing machine with control panel and digital display (no visible text or symbols)

• Condenser dryer
• Capacity: 8kg
• Energy class: B

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

Condenser dryer
User manual
Warranty card

III. SAFETY PRECAUTIONS

- To prevent any damages to your and others' life or property, you have to follow the safety notes.

- This product belongs to Category I electrical appliances, and only for drying textiles which have been washed with water in the household. Please pay attention to the safety of power use during the operation!

- A power source with reliable earthing must be used. Its earth wire must be buried under the ground and shall not be connected with the public utilities such as city water pipe or gas pipe etc. The earth wire and null wire shall be distinguished and shall not be connected together.

- The power wire shall comply with national standards and must be able to withstand a current above 16A. To ensure your and your family's safety, please make improvements immediately if any power source at your home does not comply with the abovementioned requirements.

- The maximum mass of dry textile material to be used in the appliance is 8 kilograms.

- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

- The lint trap has to be cleaned frequently.

- Do not allow to accumulate around the tumble dryer.

- Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

- Do not dry unwashed items in the tumble dryer.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

- Fabric softeners or similar products should be used as specified by the fabric softener manufacturer.

- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures the items will not be damaged.

- WARNING: never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

- The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

- The appliance must not be install behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer. The full opening of the tumble dryer door must not be restricted.

- Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

- If it is unavoidable that fabrics containing vegetable or cooking oil or contaminated by hair care products be placed in a tumble dryer, they should first be washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.

- The appliance should not be overturned during normal use or maintenance.

- Remove all objects from pockets such as lighters and matches.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is for indoor use only.

- The openings must not be obstructed by carpets or other objects.

- Do not let children under 3 years around the dryer unless they are continuously supervised.

- Keep pets away from this appliance.

- If the appliance warms up abnormally, immediately remove the plug from the socket.

Electric shock hazard

1. Do not draw the power cord forcefully to pull out the mains plug.

2. Please do not plug/draw the mains plug with wet hands.

3. Do not damage the power cord and the power plug.

Injury danger

1. Do not disassemble and install the dryer under no instruction or supervision.

2. Do not stack this dryer on washing machine without stacking kits (please purchase independent parts and have them installed by the manufacturer, its service agent or similarly qualified persons in order to avoid hazards.)

3. Do not lean on the opened door of the dryer.

4. Do not put any pyrotoxin on the dryer, such as the candle, electric cooker.

Damage danger

1. Do not dry over the rated capacity.

2. Do not operate the dryer without the lint filter.

3. Do not dry the clothes before being spun.

4. Do not expose the dryer directly under the sun, and use only indoors.

5. Do not install the dryer in a humid and drenching environment.

6. During cleaning and maintenance, please do remember to pull out the power plug and do not directly wash the dryer with water.

Explosion danger

Please do not dry clothes soiled with flammable substances such as coal oil or alcohol. Explosion hazard!

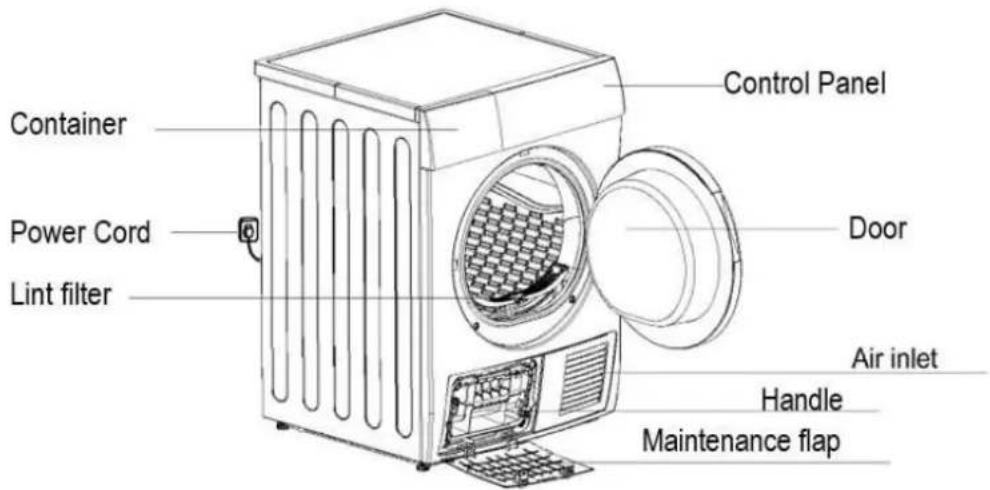

IV. DESCRIPTION

Accessories

The following parts are optional for specific models. If your dryer has the following parts, please wear gloves and install them following the instructions below.

Installation steps:

Step 2: insert the external drainage hose.

Step 1: remove the drain hose from the hose connector using pliers.

Step 3: put the hose holder on the washing basin or any other sink.

Line drawings of a washing machine and a sink with a shower, both without any text or symbols

V. PRODUCT DISPOSAL

This product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

VI. INSTALLING THE APPLIANCE

Transport

Move cautiously. Do not grasp any salient parts of machine. The machine must not be used as the handle for delivery.

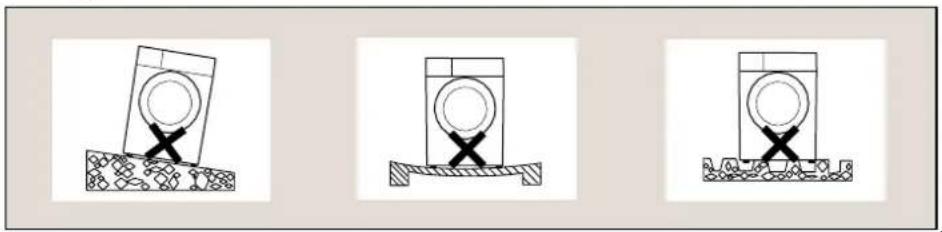

Installation position

1. Please install the dryer on solid and flat ground.
2. Please do not place the dryer on the slope, soft carpet or wooden floor.
3. Please do not install the dryer outdoors, to prevent the machine and its components being damaged by freezing.

Three technical diagrams showing a washing machine with mounting base and support structure (no text or labels)

Level adjusting

If the floor is obviously uneven, the legs of the machine must be adjusted. The machine can move due to vibration. Use tools to adjust the height of four machine legs.

Simple line drawing of a washing machine with a hand operating it, no text or symbols present

Power supply connection

1. Make sure that the voltage of the power supply is the same as the one specified on the dryer.
2. Please do not connect it with the power connection board, universal plugs or sockets.

VII. ATTENTION

Before the first cycle, the dust and grease may remain in this dryer during the period of manufacture and transportation. To avoid contaminating your clothes, please follow these steps:

a) Put some clean rags into the drum.
b) Plug the power cord.
c) Press "On/Off" button, select the "Quick" program, and press "Start/Pause" button.
d) After finishing this program, please follow the "cleaning and routine maintenance" to clean the lint filter and air condenser.

VIII. CLEANING AND ROUTINE MAINTENANCE

Clean the lint filter

Leave the dryer to cool down

1.Open the machine door.
2.Take out the lint filter, pull upward to take it out.
3. Clean the lint filter; wipe off the scrap threads accumulated on the lint filter or rinse with water and dry thoroughly.
4. Reinstall the lint filter.

Technical line drawing of a mechanical component with grid pattern inside a circular housing (no text or symbols)

Two technical diagrams showing a curved panel and a grid layout with hand gestures (no text or symbols)

NOTE!

1. The lint filter accumulated on the filter will block the air circulation, which will cause the extension of drying time and consumption; therefore, the scrap thread filter shall be cleaned after each use.
   2.Do disconnect the power cord before cleaning!
   3.Do not operate the dryer without the lint filter!
2. Clean the lint filter after each use to prevent lint accumulation inside the dryer.

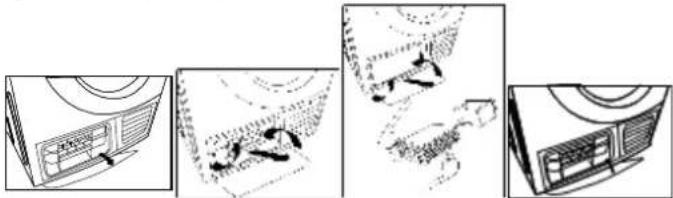

Wash air condenser

-Leave the dryer to cool down.

-Residual water may escape, place an absorbent cloth under the maintenance flap.

1. Unlock the maintenance flap.
2. Completely open maintenance flap.
3. Screw both locking levers towards each other.
4. Pull out the air condenser.
5. Clean the air condenser completely, drain thoroughly.
   6.Clean the seals.
6. Re-insert the air condenser.
7. Unscrew both locking levers.
8. Close the maintenance flap until it locks into position. Please clean the air condenser approximately once every 3 months if frequently used.

Do not damage the air condenser!

1. Clean with water only; do not use hard/sharp-edged objects! Do not operate the dryer without the air condenser!
2. During drying, water may collect between the window and the seal, but this does not affect the operation of your dryer!

Four-panel line drawing showing a device with a screen, a grid, and a fan-like structure (no text or symbols)

Empty the water container

1. Hold and pull out the water container with two hands.
2. Tilt the water container, pour out the condensed water.
3. Insert the water container.

Line drawing of a hand holding a rectangular object with a handle, no text or symbols present

Line drawing of a device with internal components and a screen (no text or symbols)

WARNING:

1. Empty the water container after each use, the program will be paused and the “☐” icon will flash if the water container is full during the drying process. After the container emptied, the dryer can be restarted by pressing 【Start/Pause】 button.
   2.Do not drink the condensed water.
2. Do not use the dryer without the water container.

IX. ALARM FUNCTION

Display	Reason	Solutions
“☐”is flashing	Container is full	Empty container
	Water pump failure or water level sensor failure	Please contact your local service center if the problem persists
“E30”	Heater failure
“E32”	Humidity sensor failure
“E33”	Temperature sensor failure
“☐”is flashing	Filter is plug up or environment temperature is too high	Clean filter and confirm the ambient temperature
		Please contact your local service center if the problem persists

X. ADVICE

1. Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.
2. For uniform drying result, sort the laundry according to fabric type and drying program.
3. Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4. Do not over dry the clothes, because over dried clothes can easily get creases or shrinkage.
5. Do not dry the articles containing rubber or similar elastic materials such as raincoats, bicycle covers and feather products.
6. The door can be opened only after the program of the drying machine is completed. Do not open the door before the end of the program, as the skin may be scalded by steam or hot surface.
7. Clean the lint filter and empty container after each use to avoid extension of drying time and energy consumption.
8. Do not dry these clothes after dry-clean process.
9. The weight references are as follows:

	Blended Coats (about 800g)		Jackets (about 800g in cotton)		Jeans Trousers (about 800g)		Towel Quits (about 900g in cotton)
	Single Sheets (about 600g in cotton)		Work Clothes (upper and lower) (about 1120g in cotton)		Pajamas (about 200g)		Shirts (about 300g in cotton)
	Undershirts (about 180g in cotton)		Underpants (about 70g in cotton)		Socks (about 30g in blended materia)

XI. DRY CARE SYMBOLS

Please pay attention to use the drying machine if the materials of your clothes cannot be dried by it or contain the symbols as follows:

[5WHW]Dry	Normal	[TDTY]Not tumble dry normal	Do not dry
Line dry / hang to dry	[7K9T]Drip dry	Dry flat	In the shade
Dry clean	[C063]Do not dry clean	[3722]Dry clean normal cycle with any solvent	[Y44Z]Dry clean normal cycle petroleum solvent only

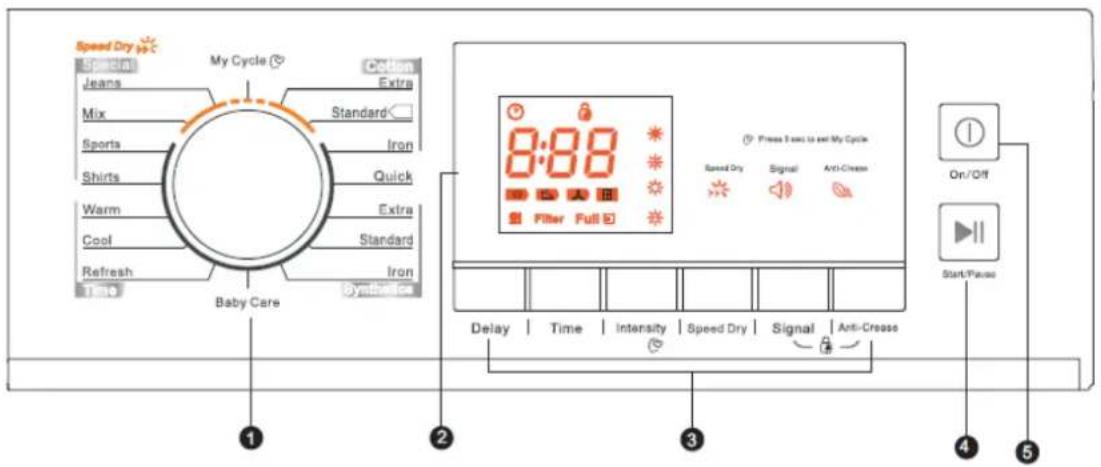

XII. USING THE DRYER

1. Program selection knob
2. Display
3. Special function buttons
   4.Start/Pause button
   5.On/Off button

Display

	Delay start
	Child lock
	Remaining Time indicator/Error message
	Cycle phase status
	Clean filter (warning)
	Empty water container (warning)
	Dryness level (four grades)
	Speed dry indicator
	Signal indicator
	Anti-crease mode

SELECT THE PROGRAM

1. Press the 【On/Off】 button, when the LED display screen brighten up, rotate the program knob to select the desired program.
2. Select the 【Delay】, 【Time】, 【Intensity】, 【Speed Dry】, 【Signal】or 【Anti-Crease】functions for additional options.
3. Press the 【Start/Pause】 button.

PROGRAM START

The drum will keep rotating after the program start, the state light in the display area will flash in sequence, and the remaining time displayed will change automatically.

PROGRAM END

1. The drum will stop running after the program ends, the display will show "0-00", the last cycle phase status light will flash. The dryer will start 【Anti-crease】 function if user doesn't remove the load in 1 minute. Please press 【On/Off】 key to cut off power and pull the plug out.
2. Deal with the problem according to "Malfunction display and solutions", if there is an unexpected stop during the drying procedure and the dryer shows information.

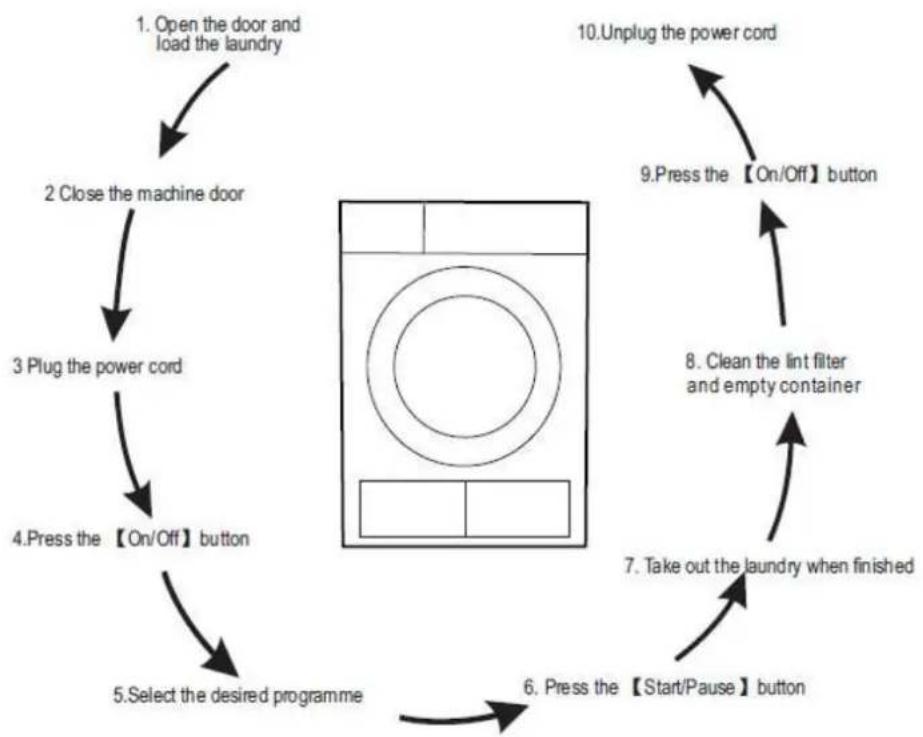

Quick start

Programme		Weight (max)	Application/Properties	Delay	Time
Cotton	For cottons and coloureds made of cotton or linen.
	Extra	8.0kg	To dry cotton pieces of clothing. Drying level: extra dry.	Y	N
	Standard		To dry cotton pieces of clothing. Drying level: cupboard dry.
	Iron		To dry cotton pieces of clothing. Drying level: applicable to iron.	Y	N
Quick	Quick	3.0kg	For washing which is to be dried quickly,eg,made of acrylic fibres or for individual small items. Also for subsequent drying.	Y	N
Synthetics	For non-iron washing made of synthetic and blended fabrics,cotton.
	Extra	3.5kg	To dry thick or multi-layered synthetic fabrics. Drying level: extra dry.	Y	N
	Standard		To dry thin synthetic fabrics which are not ironed, such as a easy care shirts, table linen, baby clothes, socks.
	Iron		To dry thin synthetic fabrics which are also to be ironed, such as knitwear, shirts.
Baby Care	Baby Care	1.0kg	To dry the clothes of the baby.	Y	N
Special	Jean	8.0kg	To dry jeans or leisure clothes that are spun at high speeds in the washing machine.	Y	N
	Mix	3.5kg	If you can not determine what the clothing's material is, please choose Mix.
	Sports	3.0kg	To dry sportswear, thin fabrics,polyester,which are not ironed.
	Shirts	1.0kg	For easy care clothes such shirts and blouses with anti-crease mechanism for minimum ironing effort. Place clothes loosely in the dryer. Once dried, hang it on a clothes hange
My Cycle	My Cycle	——	Define and save your favorite programme.	Y	——
Time	Warm	——	To warm clothes from minimum 10 min. to maximum 120 min.(in 10 min. steps).	Y	Y
	Cool	——	To air clothes without blowing hot air from minimum 10 min. to maximum 30 min.(in 10 min. steps).
	Refresh	1.0kg	To refresh the clothes that have been kept at closed environments for a long time from minimum 20 min. to maximum 150 min.(in 10 min. steps).

Note: 1. This symbol means the energy efficiency test programme "standard cotton programme", which is most suitable to dry normal cotton load at rated load capacity
2. The programmes above are only recommended for using, users can choose the appropriate programme according to the personal habits. Thick and multi-layered fabrics, e.g. bedlinen, jeans, jackets etc, are not easy to dry, you'd better choose Jeans programme and maximum drying intensity level..

To delay the drying program from 0 hour to 24 hours. The delay time means the program will start after x hours. When the delay program starts, the time starts to decrease on the display

and the icon blinks.

Steps in details

-Load your laundry and make sure the machine door is closed.

-Press the 【On/Off】button, then turn the program selector knob and select a desired program.

-You can select the 【Anti-Crease】 or 【Signal】 functions according to your need.

-Continue to press the 【Delay】to select the delay time.

-After the 【Start/Pause】 button is pushed, the dryer is at the run condition. The drying procedure will be automatically performed when the delay time is over.

-If you push the【Start/Pause】button again, the delay function will be paused.

-If you want to cancel the “Delay” function, please press the 【On/Off】 button.

1. Instruction of the 【Time】 function When the warm or cool or refresh program is selected, the 【Time】 button can be used to adjust the drying time in 10 min. steps.

2. Instructions on 【Intensity】 function.

Used to adjust the dryness level of the laundry. The level has four grades

The

drying time increases 3 minutes in every grade.

-The intensity function can be activated only before the program start.

-Press the 【Intensity】 button repeatedly to select the drying time.

- Except the 【Cotton Iron】【Quick】【Synthetic Iron】【Baby Care】【Warm】【Cool】【Refresh】, all the other programs can be set the 【Intensity】 function.

1. Instructions on 【My Cycle】 function.

Used to define and save your favorite programs that are used frequently.

-Use the program selector to select the required program and other drying functions.

-Press and hold the 【Intensity】 button for 3 seconds until the beep, and the required program has been saved.

-Turn the program selector knob to the 【My Cycle】 position, you can start your favorite program.

If you want to change the 【My Cycle】 settings, repeat the steps (1) and (2).

1. Instructions on 【Speed dry】. Used to curtail the time of drying.

6. 【Signal】

Set up the buzzer on or off. In the general condition, the buzzer is on. Please press it if needed. When the buzzer on:

• The dryer will give the leading sound if you press the extra function buttons.
• If the dryer is running, rotate the function choosing knob, and the dryer will remind the operator it is an invalid choose.
• At the end of the program, the buzzer will also remind the user.

7. Instructions on【Anti-Crease】function

At the end of the drying cycle, the anti-crease operation time is 30 minutes (default) or 120 minutes (selected). The 【Anti-Crease】 light shall illuminate when the anti-crease function is selected. This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except 【Cool】, 【Refresh】 and 【Baby Care】, all the other programs have this function.

8. Instructions on 【Child Lock】 feature

-This machine incorporates a special child safety lock, which can prevent children from carelessly pressing keys.
-When the dryer is at the operation state, press the【Anti-Crease】and【Signal】buttons at the same time for over 3 seconds to start child lock function. When child lock function is set, the display

will show the “ 🔒 ” icon and the keys are inactive except 【On/Off】 button. Under the start state of the child lock, the【Anti-Crease】and 【Signal】buttons shall be pressed at the same time for over 3 seconds to release the child lock function.

www.heinner.com

XIII. PRECAUTIONS

Only authorised technicians can carry out repairs.

Before you call customer service, please check if you can deal with the fault by yourself or if you have followed the user instructions.

A technician will charge you for advice, even during the warranty period.

Problem	Solution
•Display does not come on	•The mains plug is inserted.•Check the selected program.•Check fuse in the house.
••••is flashing	•Empty condensation container.•If failure, check hose for condensation outlet.
••••is flashing	•Clean air cooler.•Clear lint filter.
•Dryer does not start	•Make sure you pressed the power button.•Make sure the appliance door is closed.•Make sure you selected a program
•Water is running out	•Align dryer horizontally.•Clear air condenser and door seals.
•Door is open by itself	•Press door until it “clicks” into position.•Ensure that you have not overloaded the drum.
•Humidity in the room is increase significantly	•Ventilateroom adequately.•Clean the cooling grille.•Ensure that the air condenser has been inserted.
	•Clean lint filter and wash condenser.•Empty container.

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

СУШИЛНЯ ЗА ДРЕХИ

С КОНДЕНЗИРАНЕ

Модел: HCD-80B

Front view of a white HERNKER washing machine with control panel and digital display (no visible text or symbols on main body)

Diagram showing a hand pressing a component into a device with an inset close-up of the component (no text or symbols)

Technical line drawing showing a washing machine and a sink with a shower, both without any text or symbols.

Simple line drawing of a washing machine with a hand operating it (no text or symbols)

Cross-sectional diagram of a mechanical component with internal grid structure (no text or symbols)

Architectural line drawing showing two views of a building facade with structural elements (no text or symbols)

ЗАБЕЛЕЖКА!

Line drawing of a hand holding a mechanical component (no text or symbols)

Line drawing of a laptop with a computer mouse, no text or symbols present

ПРЕДУПРЕЖДЕНИЕ:

1. Бутон за избор на програмите (селектор на програми)
2. Екран
3. Бутони за специални функции
4. Бутон "Старт/Пауза"
5. Бутон ВКЛЮЧВАНЕ/ИЗКЛЮЧВАНЕ

Екран

Front view of a white HBMWHI washing machine with control panel and digital display (no visible text or symbols)

Technical line drawing showing a washing machine and a sink with a shower, both without any text or symbols.

Diagram of a washing machine with a hand operating it, showing no text or symbols

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

MEGJEGYZÉS!

Line drawing of a hand holding a small object, possibly a tool or component, with no visible text or symbols.

Line drawing of a laptop with a screen showing text (no readable symbols or text)

FIGYELMEZTETÉS:
