USER MANUAL WFG710H0AS WHIRLPOOL

IMPORTANT: Installer: Leave installation instructions with the homeowner. Homeowner: Keep installation instructions for future reference.

IMPORTANT : Installateur : Remettre les instructions d'installation au propriétaire. Propriétaire : Conserver les instructions d'installation pour référence ultérieure.

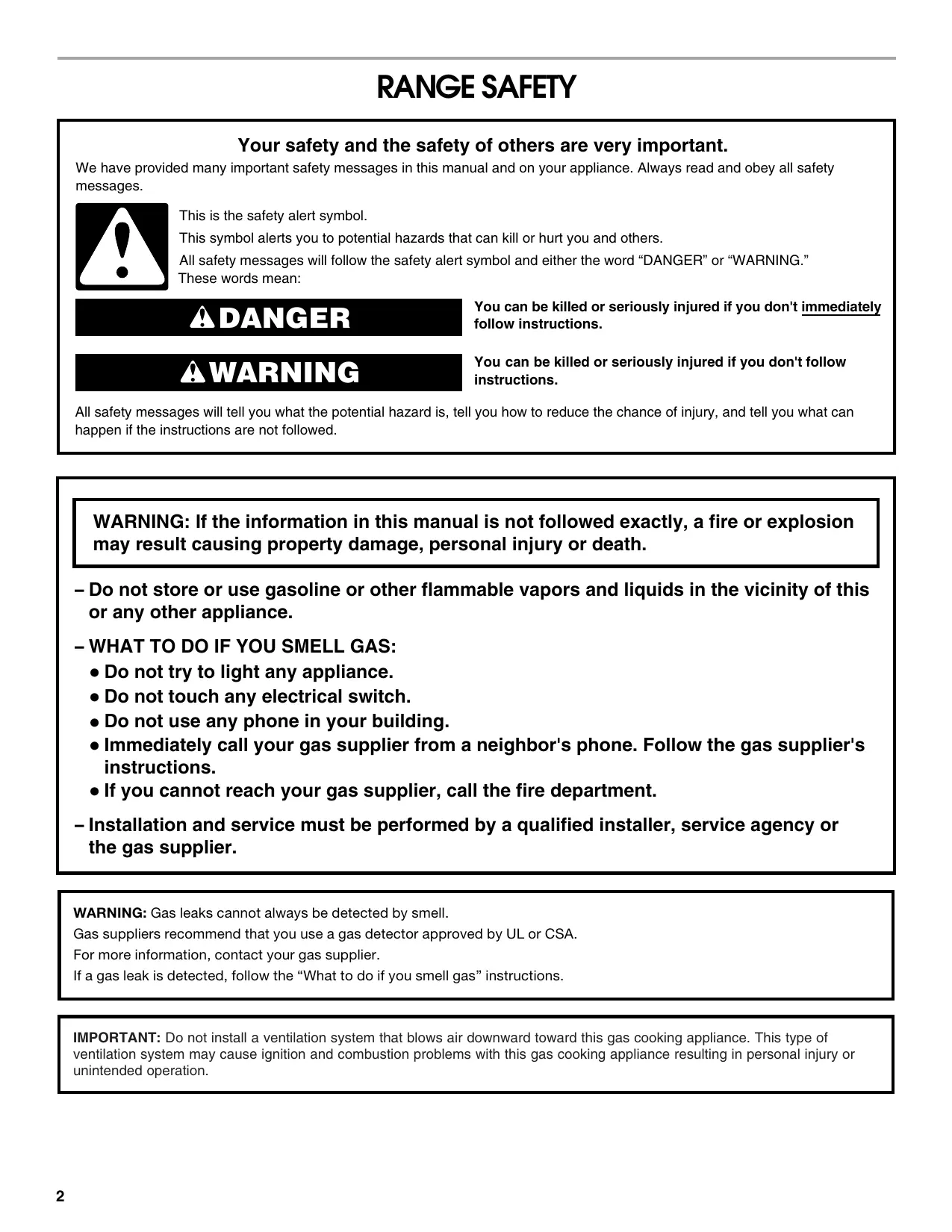

W10553363A RANGE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

DANGER WARNING You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

– Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. – WHAT TO DO IF YOU SMELL GAS: • Do not try to light any appliance. • Do not touch any electrical switch. • Do not use any phone in your building. • Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions. • If you cannot reach your gas supplier, call the fire department. – Installation and service must be performed by a qualified installer, service agency or the gas supplier.

WARNING: Gas leaks cannot always be detected by smell. Gas suppliers recommend that you use a gas detector approved by UL or CSA. For more information, contact your gas supplier. If a gas leak is detected, follow the “What to do if you smell gas” instructions.

IMPORTANT: Do not install a ventilation system that blows air downward toward this gas cooking appliance. This type of ventilation system may cause ignition and combustion problems with this gas cooking appliance resulting in personal injury or unintended operation.

In the State of Massachusetts, the following installation instructions apply: ■ ■ ■

Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by the State of Massachusetts. If using a ball valve, it shall be a T-handle type. A flexible gas connector, when used, must not exceed 3 feet.

WARNING Tip Over Hazard A child or adult can tip the range and be killed. Install anti-tip bracket to floor or wall per installation instructions. Slide range back so rear range foot is engaged in the slot of the anti-tip bracket. Re-engage anti-tip bracket if range is moved. Do not operate range without anti-tip bracket installed and engaged. Failure to follow these instructions can result in death or serious burns to children and adults. To verify the anti-tip bracket is installed and engaged: Anti-Tip Bracket

• Slide range forward. • Look for the anti-tip bracket securely attached to floor or wall. • Slide range back so rear range foot is under anti-tip bracket.

• See installation instructions for details.

INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Parts supplied Check that all parts are included.

Flat-blade screwdriver

Phillips screwdriver

Pipe-joint compound resistant to LP gas

Noncorrosive leak-detection solution

Hand or electric drill

½" combination wrench

¹⁵⁄₁₆" combination wrench

⁵⁄₈" combination wrench

7 mm (⁹⁄₃₂") nut driver

¹⁄₈" (3.2 mm) drill bit (for wood floors)

B A. Anti-tip bracket B. #12 x 1⁵⁄₈" screws (2) ■

Anti-tip bracket must be securely mounted to floor or wall. Thickness of flooring may require longer screws to anchor bracket to floor.

Parts needed Check local codes and consult gas supplier. Check existing gas supply and electrical supply. See “Electrical Requirements” and “Gas Supply Requirements” sections.

†® QUADREX is a registered trademark of NLW Holdings, Inc.

Location Requirements IMPORTANT: Observe all governing codes and ordinances. Do not obstruct flow of combustion and ventilation air. ■ It is the installer’s responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located on the oven frame behind the top right side of the oven door. ■

Recessed installations must provide complete enclosure of the sides and rear of the range.

All openings in the wall or floor where range is to be installed must be sealed.

Do not seal the range to the side cabinets.

Cabinet opening dimensions that are shown must be used. Given dimensions are minimum clearances.

The floor anti-tip bracket must be installed. To install the antitip bracket shipped with the range, see “Install Anti-Tip Bracket” section.

Grounded electrical supply is required. See “Electrical Requirements” section.

Proper gas supply connection must be available. See “Gas Supply Requirements” section.

Contact a qualified floor covering installer to check that the floor covering can withstand at least 200°F (93°C).

Use an insulated pad or ¼" (0.64 cm) plywood under range if installing range over carpeting.

IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194°F (90°C).

Mobile Home - Additional Installation Requirements The installation of this range must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280). When such standard is not applicable, use the Standard for Manufactured Home Installations, ANSI A225.1/NFPA 501A or with local codes. In Canada, the installation of this range must conform with the current standards CAN/CSA-Z240 - latest edition, or with local codes. Mobile home installations require: ■ When this range is installed in a mobile home, it must be secured according to the instructions in this document.

A B C F E D A. 27⁷⁄₈" (70.8 cm) max. depth with handle B. 36" (91.4 cm) cooktop height (max.) with leveling legs screwed all the way in* C. 46⁷⁄₈" (119.1 cm) overall height (max.) with leveling legs screwed all the way in* D. 29⁷⁄₈" (75.9 cm) width E. 25⁷⁄₁₆" (64.6 cm) depth. Back of range to front of cooktop** F. Model/serial rating plate (located on the oven frame behind the top right side of the oven door)

IMPORTANT: Range must be level after installation. Follow the instructions in the “Level Range” section. Using the cooktop as a reference for leveling the range is not recommended. *Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs. **Front of door and drawer may extend farther forward, depending on styling.

Electrical Requirements

Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth, 24" (61.0 cm) base cabinet depth and 36" (91.4 cm) countertop height. IMPORTANT: If installing a range hood or microwave hood combination above the range, follow the range hood or microwave hood combination installation instructions for dimensional clearances above the cooktop surface.

WARNING Electrical Shock Hazard

D B Plug into a grounded 3 prong outlet.

C Do not remove ground prong. Do not use an adapter. Do not use an extension cord.

A Failure to follow these instructions can result in death, fire, or electrical shock.

E M L K G H F I J A. 18" (45.7 cm) upper side cabinet to countertop B. 13" (33 cm) max. upper cabinet depth C. 30" (76.2 cm) min. opening width D. For minimum clearance to top of cooktop, see NOTE*. E. 30¹⁄₈" (76.5 cm) min. opening width F. The shaded areas are recommended for installation of rigid gas pipe. G. 11" (27.9 cm) H. 17" (43.2 cm) I. 2" (5.1 cm) J. 4¹⁄₂" (11.4 cm) K. 3" (7.6 cm) min. clearance from both sides of range to side wall or other combustible material. L. Grounded outlet M. Cabinet door or hinges should not extend into the cutout.

*NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is covered by not less than ¹⁄₄" (0.64 cm) flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper. 30" (76.2 cm) minimum clearance between the top of the cooking platform and the bottom of an uncovered wood or metal cabinet.

IMPORTANT: The range must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1. This range is equipped with an electronic ignition system that will not operate if plugged into an outlet that is not properly polarized. If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path is adequate. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575 ■ A 120 volt, 60 Hz., AC only, 15-amp fused, electrical circuit is required. A time-delay fuse or circuit breaker is also recommended. It is recommended that a separate circuit serving only this range be provided. ■

Electronic ignition systems operate within wide voltage limits, but proper grounding and polarity are necessary. Check that the outlet provides 120-volt power and is correctly grounded.

This gas range is not required to be plugged into a GFCI (Ground-Fault Circuit Interrupter) outlet. It is recommended that you not plug an electric spark ignition gas range or any other major appliance into a GFCI wall outlet as it may cause the GFCI to trip during normal cycling.

Performance of this range will not be affected if operated on a GFCI-protected circuit. However, occasional nuisance tripping of the GFCI breaker is possible due to the normal operating nature of electronic gas ranges.

The wiring diagram is located on the back of the range in a clear plastic bag. NOTE: The metal chassis of the range must be grounded in order for the control panel to work. If the metal chassis of the range is not grounded, no keypads will operate. Check with a qualified electrician if you are in doubt as to whether the metal chassis of the range is grounded.

Gas Supply Requirements Flexible metal appliance connector:

If local codes permit, a new CSA design-certified, 4 to 5 ft (122 to 152.4 cm) long, ½" (1.3 cm) or ¾" (1.9 cm) I.D., flexible metal appliance connector may be used for connecting range to the gas supply line.

A ½" (1.3 cm) male pipe thread is needed for connection to the female pipe threads of the inlet to the appliance pressure regulator.

Do not kink or damage the flexible metal tubing when moving the range.

Use a new CSA International approved gas supply line. Install a shut-off valve. Securely tighten all gas connections.

Rigid pipe connection:

If connected to LP, have a qualified person make sure gas pressure does not exceed 14" (36 cm) water column.

The rigid pipe connection requires a combination of pipe fittings to obtain an in-line connection to the range. The rigid pipe must be level with the range connection. All strains must be removed from the supply and fuel lines so range will be level and in line.

Examples of a qualified person include: licensed heating personnel, authorized gas company personnel, and authorized service personnel. Failure to do so can result in death, explosion, or fire. Observe all governing codes and ordinances. IMPORTANT: This installation must conform with all local codes and ordinances. In the absence of local codes, installation must conform with American National Standard, National Fuel Gas Code ANSI Z223.1 - latest edition or CAN/CGA B149 - latest edition. IMPORTANT: Leak testing of the range must be conducted according to the manufacturer’s instructions.

Must include a shutoff valve: The supply line must be equipped with a manual shutoff valve. This valve should be located in the same room but external to the range opening, such as an adjacent cabinet. It should be in a location that allows ease of opening and closing. Do not block access to shutoff valve. The valve is for turning on or shutting off gas to the range.

B Type of Gas Natural gas: This range is design-certified by CSA International for use with Natural gas or, after proper conversion, for use with LP gas. ■ This range is factory set for use with Natural gas. See “Gas Conversions” section. The model/serial rating plate located on the oven frame behind the top right side of the oven door has information on the types of gas that can be used. If the types of gas listed do not include the type of gas available, check with the local gas supplier. LP gas conversion: Conversion must be done by a qualified service technician. No attempt shall be made to convert the appliance from the gas specified on the model/serial rating plate for use with a different gas without consulting the serving gas supplier. See “Gas Conversions” section.

Provide a gas supply line of ¾" (1.9 cm) rigid pipe to the range location. A smaller size pipe on longer runs may result in insufficient gas supply. With LP gas, piping or tubing size can be ½" (1.3 cm) minimum. Usually, LP gas suppliers determine the size and materials used in the system. NOTE: Pipe-joint compounds that resist the action of LP gas must be used. Do not use TEFLON®† tape.

†®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

A C A. Gas supply line B. Shutoff valve “open” position C. To range

Gas Pressure Regulator The gas pressure regulator supplied with this range must be used. The inlet pressure to the regulator should be as follows for proper operation: Natural gas: Minimum pressure: 5" WCP Maximum pressure: 14" WCP LP gas: Minimum pressure: 11" WCP Maximum pressure: 14" WCP Contact local gas supplier if you are not sure about the inlet pressure.

Burner Input Requirements

Gas Supply Pressure Testing

Input ratings shown on the model/serial rating plate are for elevations up to 2,000 ft (609.6 m). For elevations above 2,000 ft (609.6 m), ratings are reduced at a rate of 4% for each 1,000 ft (304.8 m) above sea level (not applicable for Canada).

Gas supply pressure for testing regulator must be at least 1" water column pressure above the manifold pressure shown on the model/serial rating plate. Line pressure testing above ½ psi gauge (14" WCP) The range and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of ½ psi (3.5 kPa). Line pressure testing at ½ psi gauge (14" WCP) or lower The range must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ psi (3.5 kPa).

INSTALLATION INSTRUCTIONS Unpack Range

WARNING Excessive Weight Hazard Use two or more people to move and install range.

4. On Ranges Equipped with a Storage Drawer: Remove the storage drawer. See the “Storage Drawer” section. Use a ¼" drive ratchet to lower the rear leveling legs one-half turn. Use a wrench or pliers to lower front leveling legs one-half turn.

A Failure to do so can result in back or other injury.

1. Remove shipping materials, tape and film from range. 2. Remove oven racks and parts package from inside oven. 3. Do not remove the shipping base at this time.

C B A. ¼" drive ratchet B. Rear leveling leg

A C. Wrench or pliers D. Front leveling leg

On Ranges Equipped with a Warming Drawer or Premium Storage Drawer: A. Shipping base

On ranges equipped with a warming drawer or premium storage drawer, the rear legs cannot be accessed by removing the warming drawer or premium storage drawer. It will be necessary to adjust the rear legs from outside the range. Use wrench or pliers to lower the front and rear leveling legs one-half turn.

C A B A. Rear leveling leg B. Wrench or pliers C. Front leveling leg

Install Anti-Tip Bracket

WARNING Tip Over Hazard A child or adult can tip the range and be killed. Install anti-tip bracket to floor or wall per installation instructions.

5. Using the Phillips screwdriver, mount anti-tip bracket to the wall or floor with the two #12 x 1⁵⁄₈" screws provided. 6. Move range close enough to opening to allow for final gas and electrical connections. Remove shipping base, cardboard or hardboard from under range. 7. Move range into its final location, making sure rear leveling leg slides into anti-tip bracket.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket. Re-engage anti-tip bracket if range is moved. Do not operate range without anti-tip bracket installed and engaged. Failure to follow these instructions can result in death or serious burns to children and adults. 1. Remove the anti-tip bracket from where it is taped inside the storage drawer, warming drawer, or premium storage drawer. 2. Determine which mounting method to use: floor or wall. If you have a stone or masonry floor, you can use the wall mounting method. If you are installing the range in a mobile home, you must secure the range to the floor.

8. Move range forward onto shipping base, cardboard or hardboard to continue installing the range using the following installation instructions.

3. Determine and mark centerline of the cutout space. The mounting can be installed on either the left side or right side of the cutout. Position mounting bracket against the wall in the cutout so that the V-notch of the bracket is 12⁹⁄₁₆" (31.9 cm) from centerline as shown.

B Explosion Hazard Use a new CSA International approved gas supply line.

Install a shut-off valve. Securely tighten all gas connections.

A If connected to LP, have a qualified person make sure gas pressure does not exceed 14" (36 cm) water column. Examples of a qualified person include: licensed heating personnel, authorized gas company personnel, and authorized service personnel.

A. 12⁹⁄₁₆" (31.9 cm) B. Bracket V-notch

4. Drill two ¹⁄₈" (3 mm) holes that correspond to the bracket holes of the determined mounting method. See the following illustrations. Floor Mounting

Failure to do so can result in death, explosion, or fire.

Typical rigid pipe connection A combination of pipe fittings must be used to connect the range to the existing gas line. Your connections may be different, according to the supply line type, size and location. 1. Apply pipe-joint compound made for use with LP gas to all pipe thread connections.

Diagonal (2 options)

2. Using a pipe wrench to tighten, connect the gas supply to the range.

Complete Connection 1. Check that the gas pressure regulator shutoff valve is in the “on” position.

B C D A F A E A. Gas pressure regulator shutoff valve shown in the “on” position

J I A. Gas pressure regulator B. 90° elbow (must have ½" male pipe thread) C. Nipple D. Union E. Black iron pipe

2. Open the manual shutoff valve in the gas supply line. The valve is open when the handle is parallel to the gas pipe.

G A F. Manual gas shutoff valve G. ½" or ¾" gas pipe H. Nipple I. Union J. 90° elbow

B A. Closed valve B. Open valve

Typical flexible connection 1. Apply pipe-joint compound made for use with LP gas to the smaller thread ends of the flexible connector adapters (see B and G in the following illustration). 2. Attach one adapter to the gas pressure regulator and the other adapter to the gas shutoff valve. Tighten both adapters. 3. Use a ¹⁵⁄₁₆" combination wrench and channel lock pliers to attach the flexible connector to the adapters. Check that connector is not kinked.

3. Test all connections by brushing on an approved noncorrosive leak-detection solution. If bubbles appear, a leak is indicated. Correct any leak found. 4. Remove cooktop burner caps and grates from parts package. Burner caps should be level when properly positioned. If burner caps are not properly positioned, surface burners will not light. Place burner grates over burners and caps.

B A B C A D E H A. Gas pressure regulator B. Use pipe-joint compound. C. Adapter (must have ½" male pipe thread) D. Flexible connector

G C A. Burner base B. Burner cap C. Burner grate

F WARNING E. Manual gas shutoff valve F. ½" or ¾" gas pipe G. Use pipe-joint compound. H. Adapter

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. 5. Plug into a grounded 3 prong outlet. 6. Slide range into final location, making sure the rear leveling leg slides into the slot of the anti-tip bracket.

Verify Anti-Tip Bracket Is Installed and Engaged On Ranges with a Storage Drawer: 1. Remove the storage drawer. See “Storage Drawer” section. 2. Use a flashlight to look underneath the bottom of the range. 3. Visually check that the rear range foot is inserted into the slot of the anti-tip bracket. On Ranges with a Warming Drawer or Premium Storage Drawer: 1. Place the outside of your foot against the bottom front of the warming drawer or premium storage drawer, and grasp the lower right or left side of the control panel as shown. NOTE: If your countertop is mounted with a backsplash, it may be necessary to grasp the range higher than is shown in the illustration.

5. Slide range back so the rear range foot is inserted into the slot of the anti-tip bracket. IMPORTANT: If the back of the range is more than 2" (5.1 cm) from the mounting wall, the rear range foot may not engage the bracket. Slide the range forward and determine if there is an obstruction between the range and the mounting wall. Changes to the gas supply must be performed by a qualified service technician. If you need assistance or service, refer to the “Assistance or Service” section of the Use and Care Guide, or the cover or “Warranty” section of the User Instructions, for contact information. 6. Repeat steps 1 and 2 to ensure that the range foot is engaged in the anti-tip bracket. If the rear of the range lifts more than ½" (1.3 cm) off the floor without resistance, the anti-tip bracket may not be installed correctly. Do not operate the range without anti-tip bracket installed and engaged. Please reference the “Assistance or Service” section of the Use and Care Guide, or the cover or “Warranty” section of the User Instructions, to contact service.

Level Range Determine if you have AquaLift® Technology or Steam Clean by referring to the “Range Care” section of the User Instructions. For Ranges with AquaLift® Technology or Steam Clean: 1. Place level on the oven bottom as indicated in one of the two figures below depending on the size of the level. Check with the level side to side and front to back.

2. Slowly attempt to tilt the range forward. If you encounter immediate resistance, the range foot is engaged in the anti-tip bracket. 3. If the rear of the range lifts more than ½" (1.3 cm) off the floor without resistance, stop tilting the range and lower it gently back to the floor. The range foot is not engaged in the anti-tip bracket. IMPORTANT: If there is a snapping or popping sound when lifting the range, the range may not be fully engaged in the bracket. Check to see if there are obstructions keeping the range from sliding to the wall or keeping the range foot from sliding into the bracket. Verify that the bracket is held securely in place by the mounting screws. 4. Slide the range forward, and verify that the anti-tip bracket is securely attached to the floor or wall.

2. If range is not level, pull range forward until rear leveling leg is removed from the anti-tip bracket. 3. Follow the directions in Style 1 or Style 2, depending on the style of drawer supplied with the range. For Ranges without AquaLift® Technology or Steam Clean: 1. Place a standard flat rack in oven. 2. Place level on the rack and check levelness of the range, first side to side; then front to back.

3. If range is not level, pull range forward until rear leveling leg is removed from the anti-tip bracket. 4. Follow the directions in Style 1 or Style 2, depending on the style of drawer supplied with the range. Style 1: Ranges Equipped with a Storage Drawer: Use a ¼" drive ratchet, wrench or pliers to adjust leveling legs up or down until the range is level. Push range back into position. Check that rear leveling leg is engaged in the anti-tip bracket. Style 2: Ranges Equipped with a Warming Drawer or Premium Storage Drawer: Use a wrench or pliers to adjust leveling legs up or down until the range is level. Push range back into position. Check that rear leveling leg is engaged in the anti-tip bracket. NOTE: Range must be level for satisfactory baking performance and best cleaning results using AquaLift® Technology and Steam Clean functions.

Electronic Ignition System Initial lighting and gas flame adjustments Cooktop and oven burners use electronic igniters in place of standing pilots. When the cooktop control knob is turned to the “LITE” position, the system creates a spark to light the burner. This sparking continues, as long as the control knob is turned to “LITE.” When the oven control is turned to the desired setting, sparking occurs and ignites the gas.

Check Operation of Cooktop Burners Standard Surface Burners

1. Light 1 burner and turn to lowest setting. 2. Remove the control knob. Hold the knob stem with a pair of pliers. Use a small flatblade screwdriver to turn the screw located in the center of the control knob stem until the flame is the proper size. 3. Replace the control knob. 4. Test the flame by turning the control from “LO” to “HI,” checking the flame at each setting. 5. Repeat above steps for each burner.

Check Operation of Oven Bake Burner

Push in and turn each control knob to the “LITE” position. The flame should light within 4 seconds. The first time a burner is lit, it may take longer than 4 seconds to light because of air in the gas line.

If burners do not light properly: ■

Turn cooktop control knob to the “OFF” position.

Check that the range is plugged in. Check that the circuit breaker has not tripped or the household fuse has not blown.

Check that the gas shutoff valves are set to the “open” position.

Check that burner caps are properly positioned on burner bases.

1. Remove the oven rack. 2. To remove the oven bottom: Remove 2 screws at the rear of the oven bottom. Lift the rear of the oven bottom up and back until the front of the panel is away from the front frame. Remove from oven and place on a covered surface.

A B Repeat start-up. If a burner does not light at this point, turn the control knobs to “Off” and contact your dealer or authorized service company for assistance.

Adjust Flame Height Adjust the height of top burner flames. The cooktop “low” burner flame should be a steady blue flame approximately ¼" (0.64 cm) high.

A B A. Low flame B. High flame

To adjust standard burner: The flame can be adjusted using the adjustment screw in the center of the valve stem. The valve stem is located directly underneath the control knob. If the “low” flame needs to be adjusted:

A B A. Screws B. Oven bottom

3. You can check the burner flame by using a mirror. Insert a mirror to one side of the burner. Look into the mirror to check flame. 4. Push the BAKE pad. 5. Press the START pad. The oven bake burner should light within 8 seconds. Under certain conditions, it may take the burner up to 50 to 60 seconds to light. Electronic igniters are used to light the bake and broil burners. Refer to the Use and Care Guide or User Instructions for proper operation of the oven controls.

Adjust Oven Bake Burner Flame (if needed) 1. On models with a warming drawer, remove access cover plate (1 screw) located at the back of the warming drawer compartment. 2. Check the oven bake burner for proper flame. This flame should have a ½" (1.3 cm) long inner cone of bluish-green, with an outer mantle of dark blue, and should be clean and soft in character. No yellow tips, blowing or lifting of flame should occur.

C A. Control knob stem B. Screwdriver C. Pliers

3. If the oven bake flame needs to be adjusted, locate the air shutter near the center rear of the range. Loosen the locking screw and rotate the air shutter until the proper flame appears. Tighten locking screw.

Warming Drawer or Premium Storage Drawer (on some models)

A Remove all items from inside the warming drawer or premium storage drawer, and allow the range to cool completely before attempting to remove the drawer.

B To Remove: 1. Open the warming drawer or premium storage drawer to its fully open position. 2. Using a flat-blade screwdriver, gently loosen the warming drawer or premium storage drawer from the glide alignment notch and lift up the drawer alignment tab from the glide.

A A. Locking screw B. Air shutter

4. Push CANCEL/OFF when finished. 5. Reinstall flame spreader and oven bake burner cover.

C Check Operation of Oven Broil Burner 1. Close the oven door. 2. Press the BROIL pad. 3. Press the START pad. The oven burner should light within 8 seconds. Under certain conditions, it may take the burner up to 50 to 60 seconds to light. Refer to the Use and Care Guide or User Instructions for proper operation of the oven controls.

Adjust Oven Broil Burner Flame (if needed) Look through oven window to check broil burner for proper flame. This flame should have a ½" (1.3 cm) long inner cone of bluish-green, with an outer mantle of dark blue, and should be clean and soft in character. No yellow tips, blowing or lifting of flame should be present. If flame needs to be adjusted: 1. Loosen the lock screw on the air shutter located at the rear of the broil burner. 2. Adjust the air shutter as needed. 3. Tighten lock screw.

A. Flat-blade screwdriver B. Drawer alignment tab C. Drawer glide notch

3. Repeat Step 2 on the other side. The warming drawer or premium storage drawer is no longer attached to the drawer glides. Using both hands, pick up the warming drawer or premium storage drawer to complete the removal.

To Replace: 1. Align the forward drawer notches with the notches in the drawer glides on both sides. Place the rear alignment tabs into the drawer glides on both sides.

A B A A. Drawer alignment tab B. Drawer glide notch

B A. Lock screw B. Air shutter

4. Press CANCEL/OFF when finished.

2. Push the warming drawer or premium storage drawer in all the way. 3. Gently open and close the warming drawer or premium storage drawer to ensure it is seated properly on the glides on both sides.

Storage Drawer (on some models)

4. Lift the oven door while holding both sides. Continue to push the oven door closed and pull it away from the oven door frame.

The storage drawer can be removed. Before removing, make sure drawer is cool and empty.

To Remove: 1. Pull the storage drawer straight back to the drawer stop.

To Replace: 1. Insert both hanger arms into the door.

A A. Drawer stop notch

2. Lift up the front of the drawer and pull the drawer out.

To Replace: 1. Lift up the front of the drawer and place the rear of the drawer inside the range so that the drawer stop notch is behind the drawer glide. 2. Lower the drawer so that the edge of the slide rail drops into the slot in the drawer glide. 3. Slowly push the drawer into the range.

2. Open the oven door. You should hear a “click” as the door is set into place. 3. Move the hinge levers back to the locked position. Check that the door is free to open and close. If it is not, repeat the removal and installation procedures.

Complete Installation

A A. Engage drawer glide.

NOTE: When properly installed, the rear slides on the bottom of the drawer will engage the base rails and the drawer will not tip when items are placed in the drawer.

Oven Door For normal range use, it is not suggested to remove the oven door. However, if removal is necessary, make sure the oven is off and cool. Then, follow these instructions. The oven door is heavy.

To Remove: 1. Open oven door all the way. 2. Pinch the hinge latch between two fingers and pull forward. Repeat on other side of oven door.

1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped. 2. Check that you have all of your tools. 3. Dispose of/recycle all packaging materials. 4. Check that the range is level. See the “Level Range” section. 5. Use a mild solution of liquid household cleaner and warm water to remove waxy residue caused by shipping material. Dry thoroughly with a soft cloth. For more information, see the “Range Care” section of the Use and Care Guide or User Instructions. 6. Read the Use and Care Guide or User Instructions. 7. Turn on surface burners and oven. See the Use and Care Guide or User Instructions for specific instruction on range operation. If range does not operate, check the following: ■ Household fuse is intact and tight, or circuit breaker has not tripped. ■ ■

Range is plugged into a grounded 3 prong outlet. Electrical supply is connected.

See “Troubleshooting” in the Use and Care Guide or User Instructions. 8. When the range has been on for 5 minutes, check for heat. If the range is cold, turn off the range and check that the gas supply line shutoff valve is open. ■ If the gas supply line shutoff valve is closed, open it, then repeat the 5-minute test as outlined above.

If the gas supply line shutoff valve is open, press the CANCEL button on the oven control panel and contact a qualified technician.

If you need Assistance or Service: A. Hinge latch

Please reference the “Assistance or Service” section of the Use and Care Guide or the cover of the User Instructions, or contact the dealer from whom you purchased your range.

3. Close the oven door as far as it will shut.

GAS CONVERSIONS Gas conversions from Natural gas to LP gas or from LP gas to Natural gas must be done by a qualified installer.

WARNING WARNING Explosion Hazard Use a new CSA International approved gas supply line. Install a shut-off valve. Securely tighten all gas connections. If connected to LP, have a qualified person make sure gas pressure does not exceed 14" (36 cm) water column. Examples of a qualified person include: licensed heating personnel, authorized gas company personnel, and authorized service personnel. Failure to do so can result in death, explosion, or fire.

Tip Over Hazard A child or adult can tip the range and be killed. Install anti-tip bracket to floor or wall per installation instructions. Slide range back so rear range foot is engaged in the slot of the anti-tip bracket. Re-engage anti-tip bracket if range is moved. Do not operate range without anti-tip bracket installed and engaged. Failure to follow these instructions can result in death or serious burns to children and adults. 1. Turn the manual shutoff valve to the closed position.

B A C A. To range B. Manual shutoff valve “closed” position C. Gas supply line

2. Unplug range or disconnect power.

To Convert Gas Pressure Regulator (Natural Gas to LP Gas) 1. Remove storage drawer or warming drawer. See the “Storage Drawer” or “Warming Drawer or Premium Storage Drawer” section. 2. Locate gas pressure regulator at rear of storage or warming drawer compartment. NOTE: On models with a warming drawer, an access cover must be removed to access the gas pressure regulator.

A A. Gas pressure regulator

IMPORTANT: Do not remove the gas pressure regulator.

3. Remove plastic cover from gas pressure regulator cap. 4. Turn gas pressure regulator cap counterclockwise with a ⁵⁄₈" combination wrench to remove. NOTE: Do not remove the spring beneath the cap.

3. Apply masking tape to the end of a 7 mm (⁹⁄₃₂") nut driver to help hold the gas orifice spud in the nut driver while changing it. Press nut driver down onto the gas orifice spud and remove by turning it counterclockwise and lifting out. Set gas orifice spud aside.

C A A D NG D E B NG B LP A. Orifice spud B. Orifice spud holder

LP C A. Plastic cover B. Gas pressure regulator cap with solid end facing out C. Gas pressure regulator cap with hollow end facing out D. Washer E. Gas pressure regulator cap

5. Turn over the gas pressure regulator cap and reinstall on regulator so that the hollow end faces out and the marking “LP” is facing the direction shown in the above drawing. 6. Replace plastic cover over gas pressure regulator cap.

To Convert Surface Burners (Natural Gas to LP Gas) 1. Remove burner cap. 2. Using a Phillips or Quadrex® screwdriver, remove the burner base. NOTE: Reinstall one of the screws through the range cooktop to hold the orifice spud holder in place while removing and replacing the orifice spuds.

C A D B A. Igniter electrode B. Gas tube opening

C. Screw D. Spark electrode

4. Remove the cardboard orifice spud holder shipped in the literature package in the oven. Gas orifice spuds are stamped with a number, marked with 1 color dot, and have a groove in the hex area. Replace the Natural gas orifice spud with the correct LP gas orifice spud.

Refer to the following chart for correct LP gas orifice spud placement. LP Gas Orifice Spud Chart for Surface Burners Burner Rating

5,000 BTU Yellow/Orange Yellow/Brown Yellow/Black Yellow/White

1.07 mm 0.99 mm 0.85 mm 0.70 mm

NOTE: Refer to the Model Number and Serial Number Plate located on the oven frame behind the top right side of the oven door for proper sizing of spuds for each burner location. 5. Place Natural gas orifice spuds in the cardboard orifice spud holder. 6. Replace the burner base using both screw. 7. Replace burner cap. 8. Repeat steps 1-7 for the remaining burners.

C. Burner cap D. Burner base

To Convert Oven Bake Burner (Natural Gas to LP Gas) 1. Remove the oven racks. 2. Remove 2 screws at the rear of the oven bottom. 3. Lift the rear of the oven bottom up and back until the front of the panel is away from the front frame. Remove from oven and set it aside on a covered surface.

8. Position the back of the bake burner over the oven orifice, and slide the tab on front of the bake burner into the front of the oven. 9. Reattach the bake burner with 1 screw. 10. Position the front of the oven bottom panel toward the front frame and lower the rear of the oven bottom panel into the oven. 11. Reattach the oven bottom panel with screws.

To Convert Oven Broil Burner (Natural Gas to LP Gas) B

1. Remove the screw from the broil burner. 2. Remove the broil burner from the broil burner orifice hood. NOTE: The broil burner will hang in the back of the oven while changing the orifice hood.

A B A. Screws B. Oven bottom

4. Remove 1 screw from the bake burner. 5. Slide the front of the bake burner to the side to remove tab from front of oven. Lift the back of the bake burner off the oven orifice, and set the bake burner aside.

B C A. Broil burner B. Screws C. Orifice hood

3. Use a ³⁄₈" combination wrench and turn the Natural gas broil burner orifice hood counterclockwise to remove. The hood will be stamped with a “155.” 4. Replace the “155” hood with a “100” hood. Install the LP gas broiler burner orifice hood, turning it clockwise until snug. IMPORTANT: Do not overtighten.

A A. Screw B. Bake burner

6. Use a ³⁄₈" nut driver or combination wrench and turn the Natural gas bake burner orifice spud counterclockwise to remove. The spud will be stamped with a “47.” 7. Replace the “47” spud with a “56” spud. Install the LP gas bake burner orifice spud, turning it clockwise until snug. IMPORTANT: Do not overtighten.

5. Place the broil burner on the broil burner orifice hood and insert the broil burner ceramic igniter in the hole in the rear of the oven. 6. Position the broil burner against the top of the oven and attach it with 2 screws. 7. Replace storage drawer or warming drawer. See the “Storage Drawer” or “Warming Drawer or Premium Storage Drawer” section. 8. Replace the oven door if it has been removed. See the “Oven Door” section. 9. Replace the oven racks.

Complete Installation (Natural Gas to LP Gas) 1. Refer to the “Make Gas Connection” section for properly connecting the range to the gas supply. 2. Refer to the “Electronic Ignition System” section for proper burner ignition, operation, and burner flame adjustments. IMPORTANT: You may have to adjust the “LO” setting for each cooktop burner. Checking for proper cooktop, bake and broil burner flame is very important. The small inner cone should have a very distinct blue flame ¼" (0.64 cm) to ½" (1.3 cm) long. The outer cone is not as distinct as the inner cone. LP gas flames have a slightly yellow tip.

To Convert Gas Pressure Regulator (LP Gas to Natural Gas) 1. Remove storage drawer or warming drawer. See the “Storage Drawer” or “Warming Drawer or Premium Storage Drawer” section. 2. Locate gas pressure regulator at rear of storage or warming drawer compartment. NOTE: On models with a warming drawer, an access cover must be removed to access the gas pressure regulator.

3. Refer to “Complete Installation” in the “Installation Instructions” section of this manual to complete this procedure. NOTE: Make sure to save the orifices that have just been replaced in the conversion.

Natural Gas Conversion

A. Gas pressure regulator

IMPORTANT: Do not remove the gas pressure regulator. 3. Remove plastic cover from gas pressure regulator cap. 4. Turn gas pressure regulator cap counterclockwise with a ⁵⁄₈" combination wrench to remove. NOTE: Do not remove the spring beneath the cap.

WARNING Side view before

A LP A child or adult can tip the range and be killed.

B D LP Tip Over Hazard

E Install anti-tip bracket to floor or wall per installation instructions.

NG Slide range back so rear range foot is engaged in the slot of the anti-tip bracket. Re-engage anti-tip bracket if range is moved.

Failure to follow these instructions can result in death or serious burns to children and adults. 1. Turn the manual shutoff valve to the closed position.

B A C Side view after

NG Do not operate range without anti-tip bracket installed and engaged.

A. Plastic cover B. Gas pressure regulator cap with hollow end facing out C. Gas pressure regulator cap with solid end facing out D. Washer E. Gas pressure regulator cap

5. Turn over the gas pressure regulator cap and reinstall on regulator so that the solid end faces out and the marking “ NG” is facing the direction shown in the above drawing. 6. Replace plastic cover over gas pressure regulator cap.

C To Convert Surface Burners (LP Gas to Natural Gas) A. To range B. Manual shutoff valve “closed” position C. Gas supply line

2. Unplug range or disconnect power.

1. Remove burner cap. 2. Using a Phillips or Quadrex® screwdriver, remove the burner base. NOTE: Reinstall one of the screws through the range cooktop to hold the orifice spud holder in place while removing and replacing the orifice spuds.

3. Apply masking tape to the end of a 7 mm (⁹⁄₃₂") nut driver to help hold the gas orifice spud in the nut driver while changing it. Press nut driver down onto the gas orifice spud and remove by turning it counterclockwise and lifting out. Set gas orifice spud aside.

C A D To Convert Oven Bake Burner (LP Gas to Natural Gas) 1. Remove the oven racks. 2. Remove 2 screws at the rear of the oven bottom. 3. Lift the rear of the oven bottom up and back until the front of the panel is away from the front frame. Remove from oven and set it aside on a covered surface.

A B B A. Orifice spud B. Orifice spud holder

C. Screw D. Spark electrode

4. Gas orifice spuds are stamped with a number on the side. Replace the LP gas orifice spud with the correct Natural gas orifice spud.

A. Screws B. Oven bottom

4. Remove 1 screw from the bake burner. 5. Slide the front of the bake burner to the side to remove tab from front of oven. Lift the back of the bake burner off the oven orifice, and set the bake burner aside.

A B A. Stamped number

Refer to the following chart for the correct Natural gas orifice spud placement. Natural Gas Orifice Spud Chart Burner Rating 18,000 BTU 17,000 BTU 15,000/15,500 BTU 14,200 BTU 13,000/13,500 BTU 12,000/12,500 BTU 9,500 BTU 8,000 BTU

5,000 BTU Color Yellow/Blue Red/Magenta Red/Black Red/Orange Red/Blue Red/Yellow Red/Brown Red/White Red/Brass

Size 2.16 mm 2.10 mm 2.00 mm 1.90 mm 1.85 mm 1.80 mm 1.55 mm 1.40 mm 1.10 mm

ID Number N216 N210 N200 N190 N185 N180 N155 N140 N110

A A. Screw B. Bake burner

6. Use a ³⁄₈" nut driver or combination wrench and turn the LP gas bake burner orifice spud counterclockwise to remove. The spud will be stamped with a “56.” 7. Replace the “56” spud with a “47” spud. Install the Natural gas bake burner orifice spud, turning it clockwise until snug. IMPORTANT: Do not overtighten.

NOTE: Refer to the Model Number and Serial Number Plate located on the oven frame behind the top right side of the oven door for proper sizing of spuds for each burner location. 5. Place LP gas orifice spuds in plastic parts bag for future use and keep with package containing literature. 6. Replace the burner base using both screws. 7. Replace burner cap. 8. Repeat steps 1-7 for the remaining burners.

8. Position the back of the bake burner over the oven orifice, and slide the tab on front of the bake burner into the front of the oven. 9. Reattach the bake burner with 1 screw. 10. Position the front of the oven bottom panel toward the front frame and lower the rear of the oven bottom panel into the oven. 11. Reattach the oven bottom panel with 2 screws.

To Convert Oven Broil Burner (LP Gas to Natural Gas)

4. Replace the “100” hood with a “155” hood. Install the Natural gas broiler burner orifice hood, turning it clockwise until snug. IMPORTANT: Do not overtighten.

1. Remove the screw from the broil burner. 2. Remove the broil burner from the broil burner orifice hood. NOTE: The broil burner will hang in the back of the oven while changing the orifice hood.

A B C A. Broil burner B. Screws C. Orifice hood

3. Use a ³⁄₈" combination wrench and turn the LP gas broil burner orifice hood counterclockwise to remove. The hood will be stamped with a “100.”

5. Place the broil burner on the broil burner orifice hood and insert the broil burner ceramic igniter in the hole in the rear of the oven. 6. Position the broil burner against the top of the oven and attach it with 2 screws. 7. Replace storage drawer or warming drawer. See the “Storage Drawer” or “Warming Drawer or Premium Storage Drawer” section. 8. Replace the oven door. See the “Oven Door” section. 9. Replace the oven racks.

Complete Installation (LP Gas to Natural Gas) 1. Refer to the “Make Gas Connection” section for properly connecting the range to the gas supply. 2. Refer to the “Electronic Ignition System” section for proper burner ignition, operation, and burner flame adjustments. IMPORTANT: You may have to adjust the “LO” setting for each cooktop burner. Checking for proper cooktop, bake and broil burner flame is very important. Natural gas flames do not have yellow tips. 3. Refer to “Complete Installation” in the “Installation Instructions” section of this manual to complete this procedure. NOTE: Make sure to save the orifices that have just been replaced in the conversion.
