Product Type	Smart Plug
Brand	Emos
Model	P5550
Category	Home Automation
Dimensions	Approx. 60 x 60 x 80 mm
Weight	Approx. 100 g
Power Supply	AC 230 V / 50 Hz
Max Load	16 A (3680 W resistive)
Connectivity	Wi-Fi 2.4 GHz (802.11 b/g/n)
App Control	Compatible with Emos Home or similar app
Voice Control	Works with Google Assistant, Amazon Alexa
Remote Control	Yes, via smartphone from anywhere
Scheduling	Timers and schedules can be set
Energy Monitoring	Real-time power consumption tracking
Overload Protection	Built-in automatic shutoff
Safety Certification	CE, RoHS compliant
Operating Temperature	0°C to 40°C
Humidity Range	10% to 90% RH (non-condensing)
Material	Flame-retardant PC/ABS
Installation	Plug into standard wall outlet
Maintenance	Wipe with a dry cloth; use no solvents

Frequently Asked Questions - P5550 Emos

How do I set up the Emos P5550 smart plug?

Download the Emos Home app, create an account, plug in the device, and follow the in-app instructions to connect to Wi-Fi.

What Wi-Fi frequency does the P5550 support?

It supports 2.4 GHz Wi-Fi (802.11 b/g/n). It does not work with 5 GHz networks.

Is the P5550 compatible with voice assistants?

Yes, it works with Amazon Alexa and Google Assistant for voice control.

Can I control the smart plug remotely?

Yes, once connected to Wi-Fi and paired with the app, you can control it from anywhere via the internet.

Does the P5550 have energy monitoring?

Yes, it monitors real-time power consumption and historical usage through the app.

How do I reset the Emos P5550?

Press and hold the button on the side for 5 seconds until the LED blinks rapidly. Release to reset.

What is the maximum load?

The maximum load is 16 A (3680 W resistive). Do not exceed this.

Can I schedule the smart plug?

Yes, you can set timers and schedules in the app to turn devices on/off automatically.

Is the plug safe to use outdoors?

No, it is designed for indoor use only. Avoid exposure to water and extreme conditions.

What if the plug gets hot?

It may become warm under heavy load. Ensure proper ventilation and do not cover. If too hot, check load and connections.

USER MANUAL P5550 Emos

Wi-Fi-Socket with Timer

P5550

G-Homa

Free G-Homa app

White G-Homa wireless power outlet with three pins and a power button (no text or symbols visible on the device body)

GB	WI-FI SOCKET WITH TIMER 2
CZ	FI ZÁSUVKA S ČASOVAČEM 6
SK	FI ZÁSUVKA S ČASOVAČOM 10
PL	IAZDKO WI-FI Z TIMEREM 14

CE www.emos.eu

GB

OPERATING MANUAL FOR APPLICATION-CONTROLLED WI-FI SOCKET EMOS G-HOMA EMW302WF

2

Options

• Emos G-Homa is a socket controlled via the home Wi-Fi network, which facilitates the control of all your household appliances, saves power and increases the security of your home.
  • Using an application, you can turn all your home appliances on or off from your smart phone, tablet or computer. You can turn the connected devices on and off or set timed triggers for individual devices or groups anytime, anywhere. Everything can be controlled through a device with Android or iOS systems.
  • The alarm feature allows the sending warnings regarding the breach of security to a registered e-mail or to the device application.
• When the application is turned on, you can check which devices are on or off.
• Whenever needed, you can turn the device on or off manually using the button on the socket, or the buttons inside the application.
• The setting of a timed trigger in the application is both comfortable and simple.
• Through the G-Homa application, you can add and control up to 15 sockets on a single Wi-Fi network.

Connecting - Installing the G-Homa Application

• After downloading the application from Google Play, App Store or after loading through a QR code and subsequent installation of the application to your device, you need to register and enter a valid e-mail address.

• If you need to add another socket and control other devices or groups, you can do so via the G-Homa application.
  • After plugging in, you can control the socket using the G-Homa application or manually using the button.

DEVICE SETTINGS

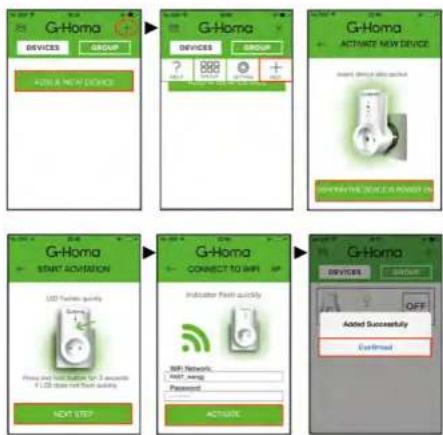

Adding a New Device

• After downloading the application and registering your account, plug the timer socket into a 230 V-network. Activate the pairing function by pressing and holding the button on the socket. The LED Indicator will begin flashing several times a second. • The application on the screen of your device will show "ADD A DEVICE"; enter the name and password of the Wi-Fi network where you are connected and choose "ACTIVATE" if authorisation is not successful on the first try, try activating again until the process completes and the device is added. After verifying the IP address, the application will notify you that the device was successfully added and the control menu will be displayed for setting and controlling the device (image of a socket to the left, icon in the middle, ON/OFF button on the right).

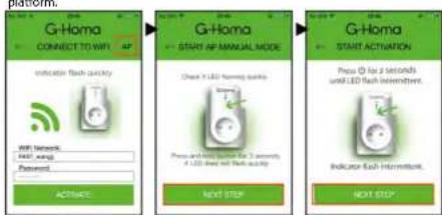

Manual Mode for Adding a Deviceg

- You can add the G-Homa timer socket into the application using manual mode, which you can enter by pressing AP in the top right. Enter the necessary information (see figures below) based on whether you have a device working on the Android or the iOS platform.

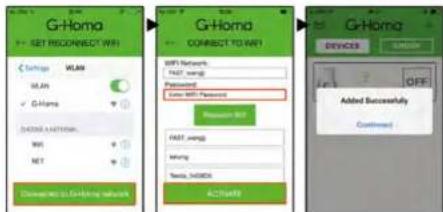

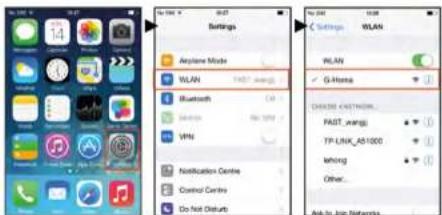

Example of the Setting Page in iOS

- After setting the connection in the iOS device, continue with the settings in the G-Homa application, select the Wi-Fi network and enter a password for activation. Once the message "Added Successfully" is displayed, confirm. The manual activation is now complete.

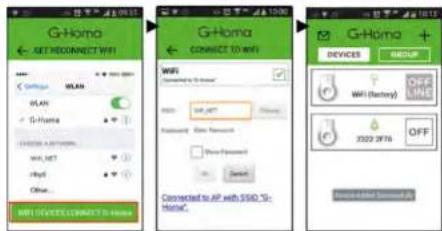

Example of the Settings Page in Android

GB

ERATING MANUAL FOR APPLICATION-CONTROLLED WI-FI SOCKET EMOS G-HOMA EMW302WF

3

MENU Settings

• At the top of the application, you will find timer settings and settings for the maximum duration for which the connected device will be turned on.
• In the middle are basic settings – choice of device icon and name.
• At the bottom of the application, you will find alarm settings and contact for the G-Homa technical support service.
• At the end, you can delete the added Emos G-Homa socket.

Change of Icon and Name of the Controlled Device

• Click the device icon in the middle; the MENU will open.
• After installing, the device name will automatically be set to 101, 102... and the icon will be changed to a lamp.
• To change the device name, click the current name (e.g. 101), enter a new name and confirm.
• To change the device icon, click the lamp icon and select an icon from the menu, then confirm.

Replacing the Timer Icon with an Image/Photo of Your Choice

- Swipe your finger left to right over the device icon. A camera icon will be shown. Click the icon, then choose from the menu – take a photo, select a photo from the album or delete a photo. After finishing, the icon will change to the image you have chosen and assigned to the device.

Setting the Timer

• Click the device icon in the middle; the MENU will open.
• Timer Settings – Add Timer Setting.
• Set the time for turning on, off, choose repeat options. Then tick the boxes and confirm the settings by pressing Done. The set timer will be shown in the Timer Settings field, where you can turn the timer on/off or adjust the settings. If you have activated the location detection function in the device where the G-Home application is installed, the application will show you the current time of sunrise and sunset on the current day after clicking next to the clock icon.

Setting the Maximum ON Time

• Click the device icon in the middle: the MENU will open.
• Click the Max.ON Time field and set the maximum time for which you want the device to be on. When needed, you can turn the feature on or off using the 0 - I field.

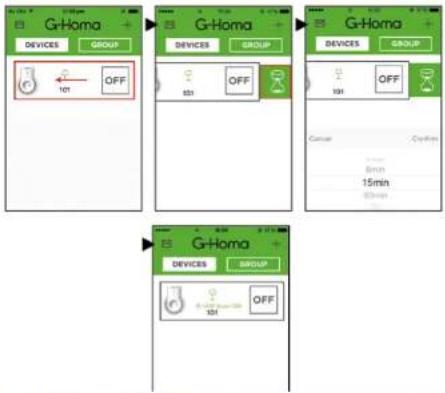

Setting ON/OFF Countdown Timer

- Swipe your finger right to left over the OFF icon. An hourglass icon will be displayed. Click the icon and set from the menu the ON or OFF time to between 1 minute to 4 hours. The countdown will be activated and displayed in the middle below the icon. After the time elapses, the socket will turn on or off.

SETTING GROUP CONTROL

- Group control allows you to control multiple sockets at once using various commands; e.g. when leaving on a holiday. You can turn the connected devices on or off, or set a special control mode. For this control mode, you must first create a device group.

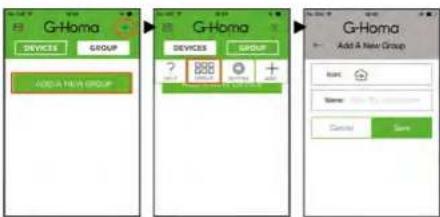

Adding a New Group

• After pressing the GROUP button, press +, and then +GROUP.

- Now choose an icon for ease of orientation – you can choose from among Default, Weekend, Winter time, Energy saving, Vacation, Summer time. In the Name field, you can name the group. Confirm all the settings by pressing Confirm.

GB OPERATING MANUAL FOR APPLICATION-CONTROLLED WI-FI SOCKET EMOS G-HOMA EMW302WF

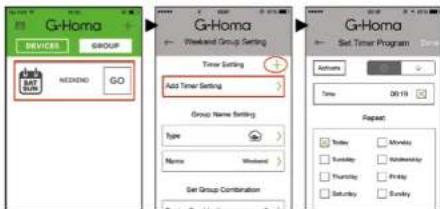

Setting Group Timer

- Select a group and click on the group name at the centre of the device. You will enter the MENU for timer settings by clicking on Add Timer Setting. Set your timer and confirm by pressing Done. To delete the group, click the Delete Group Settings button.

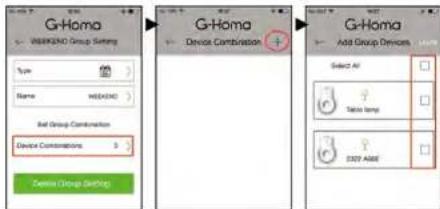

Setting a Combination of Commands for Turning One or Multiple Sockets On/Off

- After pressing the Device Combinations button, you can set various combinations of turning on or off one or even multiple sockets. All the processes can be activated by pressing the Go button next to the button showing the group name.

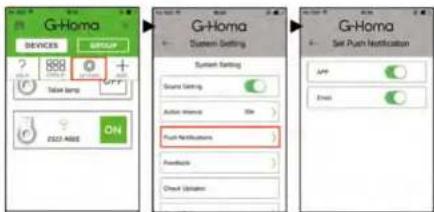

Alarm Feature

- The application and device can send a warning message to your e-mail or to the application mailbox. You can enter and modify the message by pressing the Add Alarm Message button. When needed, if you hold the Power button for 3 seconds on the G-Homa timer socket, the socket will send the set message to the e-mail or the application mailbox. You can set the message destination in the Push Notifications,

choose I-O in the APP field (mailbox application) or the e-mail field. You will find all messages sent in the Message and Alarm field. The list will also show the time and date of when the message was sent.

Changing the Password

- If you need to change your password, click Change Password in settings and enter the original password, then the new password, and finally again confirm the new password.

OFFLINE

- If the application shows OFF LINE on the right instead of OFF/ON and the LED indicator on the socket is flashing slowly (e.g. 1× a second) that means the socket is searching for Wi-Fi connection and the device cannot be controlled remotely. Check the Wi-Fi connection and when needed, set up the socket again using the procedure for adding a new device.

SETTING OPTIONS - SYSTEM SETTINGS

Private Settings

- account info – displays the registered e-mail and account name, which can be changed - account password change – allows the changing of the password for the account

Device Settings

- message and alarm – displays messages received in the device application - new device (socket) registration – allows the adding of a new G-Homa socket

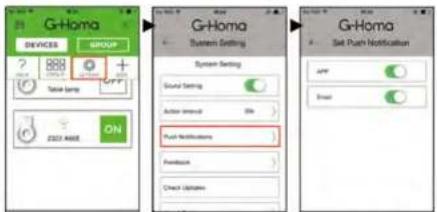

System Settings

• action interval – allows the setting of an interval from 0 to 60 seconds
• settings for the destination for alarm messages
  • option for sending comments or questions to the manufacturer
• option for updating the software
  • manufacturer information
• log out; after logging out, you will be asked for your login information

Timer Reset

- Press and hold the manual on/off button on the timer for 20 seconds. All settings will be erased and the socket will switch to "add new device" mode, the LED indicator will be flashing rapidly.

LED Indicator - Options

• LED flashes slowly ca 1× a second - the socket is searching for Wi-Fi connection. Press and hold the button below the LED indicator until the LED begins flashing several times a second and the socket switches into connection mode. Once there, follow the instructions for adding a new device.
  LED flashes quickly several times a second – the socket is in connection mode, follow the instructions for adding a new device. After successfully completing the settings, the LED will remain on in the ON mode and off in the OFF mode.

GB OPERATING MANUAL FOR APPLICATION-CONTROLLED WI-FI SOCKET EMOS G-HOMA EMW302WF

• LED flashes quickly several times a second in 1–2 second intervals – the socket is in manual settings mode and requires the Wi-Fi and password to be set manually. After successfully entering the settings, the LED will remain on in the ON mode and off in the OFF mode.
• LED flashes 3× – after activating the alarm mode (by holding the button for 3 seconds),
  the socket will send the set message to the e-mail or the G-Homa application mailbox.
• After successfully connecting/plugging the socket, the manual mode of the button will function properly; the LED will be on when the socket is ON, and off when the socket is OFF.

Note:

• Only plug devices which are off into the socket.
  • The G-Homa socket is designed for indoor use only.
  • If the Wi-Fi network settings change, the socket must be set again.
• Do not plug devices into the socket one after another without at least a 10 second delay!

Possible danger when used in connection with the following devices!

• vacuum cleaners and cleaning appliances working with water and steam
- cookers, hobs/cooktops, ovens and similar devices
• grills, toasters and similar portable cooking appliances
- medical devices
- deep fryers, electrical pans and similar devices
- food processors and kitchen appliances
• appliances for skincare and haircare
• microwave ovens and their combinations
- indoor heating – heaters
- sauna heating
• projectors and similar devices
• storage water heaters
• devices for cleaning floors and commercial areas
• electrical heating devices for animals
- portable heaters and immersion heaters
• electrical grills
• high-pressure cleaners and steam cleaners
• machines for entertainment and machines for private use

Specifications

• designed for powering from a 230 V\~/50 Hz network
  • maximum input power of the connected device must not exceed 3 680 W
  • transmission frequency: 2.4 GHz (the device conforms to standards IEEE802.11/b/g/n)
  • WI-FI ^® router
• The device is compatible with devices on platforms Android 3.0 or higher or iOS 6.0 or higher.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental disability or lack of experience and expertise prevents safe use, unless they are supervised or instructed in the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Do not dispose of electrical appliances as unsorted municipal waste; use sorted waste collection points. Contact local authorities for up-to-date information about collection points. If electrical appliances are deposited in waste landfills, hazardous substances can leak into the groundwater, get into the food chain and harm your health.

Emos spol. s.r.o. declares that Emos G-Homa EMW302WF is in compliance with the basic requirements and other relevant provisions of Directive 2014/53/EU. The device can be freely operated in the EU.

The Declaration of Conformity can be found at http://shop.emos.cz/download-centrum/.
