Type	Rotary hammer drill
Brand	Tryton
Model	TMM710K
Voltage	220-240 V
Frequency	50 Hz
Power consumption	710 W
No-load speed	930 rpm
Impact rate	5000 bpm
Impact energy	2.6 J
Drill chuck	SDS-plus
Max drilling diameter in steel	13 mm
Max drilling diameter in concrete	26 mm
Max drilling diameter in wood	40 mm
Weight (without accessories)	4.0 kg
Equipment class	II (double insulated)
Ingress protection	IP20
Sound pressure level (drilling)	90.23 dB(A) ±3 dB
Sound pressure level (chiseling)	95.33 dB(A) ±3 dB
Sound power level (drilling)	101.23 dB(A) ±3 dB
Sound power level (chiseling)	106.33 dB(A) ±3 dB
Vibration level (hammer drilling, main handle)	21.540 m/s²
Vibration level (hammer drilling, auxiliary handle)	9.847 m/s²
Vibration level (chiseling, main handle)	26.368 m/s²
Vibration level (chiseling, auxiliary handle)	10.817 m/s²
Delivery contents	Rotary hammer, auxiliary handle, depth limiter, flat chisel, point chisel, SDS-plus bits (8,10,12 mm), rubber dust ring, carbon brushes, transport case, user manual, warranty card
Maintenance – grease change interval	Every 40-50 operating hours
Carbon brush replacement	When worn to 6 mm length, both replaced simultaneously

Frequently Asked Questions - TMM710K Tryton

How do I change the drilling mode on the Tryton TMM710K?

The TMM710K has an operation mode selector switch (7) with positions for no-impact drilling, impact drilling, and chiseling. To change modes, first turn off the tool, then depress the release button (6) and rotate the switch to the desired mode until it clicks into place. Never switch modes while the tool is running.

What type of drill bits does the TMM710K use?

For impact drilling and chiseling, use SDS-plus bits. For drilling without impact (wood, metal, plastic), you can use standard cylindrical shank bits with an optional toothed ring chuck. Never use non-SDS bits for impact drilling as they can damage the chuck.

How do I adjust the drilling depth?

Use the drilling depth limiter (4). First insert the SDS-plus bit fully into the holder. Then depress the fixing button (5), slide the limiter so that the distance between the bit tip and the limiter tip equals the desired depth, and release the button to lock.

Why is my rotary hammer not starting?

Check that the power cord is properly connected and the wall outlet is working. Inspect fuses or circuit breakers. If the tool still doesn't start, carbon brushes may be worn; replace them if they are shorter than 6 mm.

What should I do if the tool runs jerkily or sparks?

This usually indicates worn carbon brushes. Open the brush holders (11) on both sides of the motor, remove the old brushes, and install identical new ones. Run the tool for about 5 minutes at no load to seat the new brushes.

How do I install the auxiliary handle?

Loosen the handle clamp by turning counterclockwise, slide it over the tool holder, then tighten by turning clockwise. The handle can be swiveled to any comfortable position before final tightening.

Can I use the TMM710K for chiseling?

Yes, the tool has a chiseling mode. Set the mode selector switch to the chiseling symbol (with a chisel icon). For repositioning the chisel, rotate the switch to the unlocked chisel position, adjust the chisel angle, then lock it by moving the switch back to the chiseling mode.

How do I clean and maintain the rotary hammer?

Clean external plastic parts with a damp cloth and mild detergent. Never use solvents. After heavy use in dusty conditions, blow out ventilation holes and the chuck with compressed air at up to 0.3 MPa. Replace gearbox grease every 40-50 operating hours at a service center.

What does the overload safety coupling do?

The overload coupling disengages the drive if the bit jams, preventing sudden torque reactions. If the tool stalls, immediately release the trigger, remove the bit, and clear the jam. Always hold the tool firmly with both hands.

How should I store the TMM710K?

Store in the original transport case in a dry, dust-free place out of reach of children. Ensure all moving parts are locked and protected. Keep the tool away from moisture and extreme temperatures.

USER MANUAL TMM710K Tryton

E E K T R O N A R Z I

Illustration of a Tryton drill press tool with handle and control panel (no text or symbols)

TMM710K

EN

Operating instruction

ROTARY HAMMER 4

PL

BEFORE YOU START USING THE MACHINE READ THOROUGHLY THIS MANUAL.

Keep this document for future reference.

WARNING! Read all safety warnings marked with a symbol ⚠️ and all operating safety instructions.

To limit the risk of fire, electric shock and injury while using the device, follow all operating safety instructions and tips provided below.

Keep all work safety instructions and tips for future reference.

In warnings provided herein the expression "power tool" means a power tool powered from the mains (with a power cord) or a battery powered power tool (cordless).

WARNING! General work safety warnings for use of the tool.

Workplace safety:

a) Keep your workplace tidy and well lit. Untidiness and bad lighting result in higher accident rate.
b) Do not use the power tool in explosive environments, created by flammable liquids, gases or dusts. The power tool generates sparks that can ignite dust or vapors.
c) Keep children and unauthorized persons away from the place where the power tools are used. Inattention may result in losing control over your power tool.

WARNING! General warnings regarding the use of power tools.

Electric safety:

a) Plugs used in power tools must match wall outlets. Never modify the plug of your power tool. Do not use any extension cables when operating a power tool with a grounding/earthing conductor (PE). Any modifications of plugs and outlets increase the risk of electric shock.
b) Avoid touching earthed surfaces or grounded items like pipes, heaters, central heating radiators and refrigerators. Touching earthed or grounded surfaces increases the risk of electric shock.
c) Do not expose your power tool to rain or damp environments. Water penetrating the tool increases the risk of electric shock.
d) Do not damage the power cord. Never use the power cord to carry, pull the power tool and do not pull by its power cord to disconnect plug from the outlet. Keep the power cord away from sources of heat, oils, sharp edges and moving parts. Damaged or entangled power cords increase the risk of electric shock.
e) When your power tool is operated outdoors use extension cords intended for outdoor use only. Using an extension cable intended for outdoor use decreases the risk of electric shock.
f) It is recommended to connect the device to a mains supply equipped with a residual current device (RCD) with a rated current of 30 mA or less.
g) When it is unavoidable to use your power tool in a damp environment use an RCD (Residual Current Device) for protection. The use of RCDs decreases the risk of electric shock.

WARNING! General warnings regarding the use of power tools.

Personal safety:

a) This equipment is not intended for use by persons (including children) disabled physically, mentally, sensorial or persons

with no experience and knowledge in operating the equipment unless they operate the equipment under supervision or follow user's instructions provided by persons responsible for their safety.

b) It is necessary to predict steps, watch and keep common sense when using power tools. Do not operate power tools when you are tired, under influence of drugs, medicine or alcohol. A moment of inattention while operating a power tool may result in serious personal injury.
c) Use personal protective equipment (PPE). Always wear safety goggles. Wearing personal protective equipment (PPE) including a dust mask, anti-slippery footwear, a helmet and ear protection reduces personal injury.
d) Avoid unexpected start up. Before connecting your power tool to the mains and/or inserting a battery make sure its power switch is in off position. Carrying your power tool with a finger on its power switch or without disconnecting it from the mains (switched on) may result in an accident.
e) Before starting your power tool remove any keys/wrenches. Leaving a key/wrench in the rotating part of your power tool may result in personal injury.
f) Do not lean forward too far. Always remain stable and maintain balance. It will allow you to have a better control over your power tool in unpredictable situations.
g) Wear appropriate clothing. Do not wear loose clothes or jewelry. Keep your hair tied. Keep your clothes away from moving parts. Loose clothes, jewelry or long hair may be caught by moving parts.
h) If your power tool allows for using an external dust extraction or collection system, make sure it is connected and used properly. Using dust collectors may reduce dust affected risks.
i) Do not let your skills gained through the frequent use of the power tool make you overconfident and disregard safety rules. Carelessness may cause injury in a fraction of a second.

WARNING! General warnings regarding the use of power tools.

Use and taking care of your power tool:

a) Do not overload your power tool. Use a power tool with power adjusted to work being done. An appropriately chosen power tool will allow you to work better and safer under load it has been designed for.
b) Do not use a power tool when its power switch is out of order (it does not switch it on or off). Any power tool with its power switch out of order is dangerous and must be repaired.
c) Always disconnect the plug from the power source and/or disconnect its battery before changing any settings, performing replacement or storage. Such preventive measures reduce the risk of accidental power tool start up.
d) Keep your power tool out of reach of children and do not allow unauthorized persons to use the power tool. Power tools in hands of untrained persons can be dangerous.
e) Power tools require maintenance. Check power tools for concentricity or jamming of moving parts, any cracks and all other factors affecting the power tool work safety. If any damage to the power tool is detected, it should be repaired before use. Improper power tool maintenance is a reason for many accidents.

f) Cutting tools should be sharp and clean. Keeping sharp cutting edges in good condition reduces the risk of jamming and facilitates operation.
g) Power tools, equipment, working tools etc. should be used according to this user's manual taking into account operating conditions and the work to be done. Misusing a power tool can result in dangerous situations.
h) At low temperatures and after a long brakes in operation it is recommended to turn the power tool to operate it with no load for a few minutes to provide proper grease distribution inside its driving mechanism.
i) Use soft, damp (cannot be wet) cloth and soap to clean power tools. Do not use petrol, solvents and other agents that may damage your equipment.
j) Power tools can be stored/carried after making sure that all moving components are locked and protected against release with original devices intended for this purpose.
k) Store power tools in a dry, dust and water-protected place.
1) Carry your power tool in its original packaging to provide protection against mechanical damage.
m) Keep handles and grip surfaces clean and free from oil and grease. Secure grip and control over the tool in unexpected circumstances are impossible if handles and grip surfaces are slippery.

WARNING! General warnings regarding the use of power tools.

Repair:

a) Warranty and post-warranty repairs of its power tools are carried out by PROFIX Service, which guarantees the best quality or repair and use of genuine spare parts.

WARNING! ROTARY HAMMER, Additional Safety Warnings –

Personal Safety:

a) Wear ear protectors with rotary hammer. Long-term effect of noise may lead to damage of hearing or deafness.
b) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
c) Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
d) Do not work materials containing asbestos. Asbestos is considered carcinogenic.
e) Keep your workplace clean and tidy. Material mixtures are extremely dangerous. Light metal dusts can ignite or explode.
f) Protect the object machined. Make sure all clamps are closed and check for excessive clearance. It is safer to fix the object machined in a fixing device or a vice than holding it in your hand.
g) Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
h) Prepare the tool before use. This tool produces high torque. Ensure adequate support during operation. Otherwise, you may lose control of the tool leading to injury.
i) Always hold firmly the power tool with your both hands using both the main and auxiliary handle keeping a stable position. It is safer to control your power tool with both hands.

j) Turn the power tool immediately when the bit jams. Expect intense vibrations that can result in a kickoff. The bit jams when the power tool is overloaded or is bent inside the object.
k) Always unplug the tool from the mains socket during breaks, prior to changing bits, during repairs, cleaning or making adjustments. Before you put the power tool aside make sure it is completely stopped. The bit can jam resulting in losing control over the power tool.
1) Do not use a power tool with its power cord damaged. Do not touch the power cord when damaged; in case of damaging the power cord during operation unplug it from the mains. Damaged power cords increase the risk of electric shock.
m) If the power cord is damaged, it must be replaced with a special cord available from an authorized service center. Safety instructions when using long drill bits

a) Never use a speed higher than the maximum drill bit speed. At higher speeds, the drill bit may bend if not in contact with the workpiece, resulting in injury.
b) Always start drilling at a low speed and after touching the workpiece to the drill bit. At higher speeds, the drill bit may bend if not in contact with the workpiece, resulting in injury.
c) Push the drill bit against the workpiece in line with the drill bit. Do not use excessive force. Drill bits may bend, causing damage and loss of control, which may result in injury.

APPLICATION AREA AND DESIGN OF THE HAMMER DRILL:

The rotary hammer is designed for impact drilling of boreholes in concrete, bricks and stone, as well as for light chiselling work. It can be also used for drilling in wood, metals, ceramic items or plastics when the impact functionality if switched off.

It is absolutely prohibited to use the tool in other applications.

The rotary hammer is driven by a vertical single-phase brushed motor.

The tool is not suitable for long-term heavy duty applications. It cannot be used for jobs requiring professional tools.

Each application of the tool not in line with the intended use as specified below is strictly forbidden and makes the warranty terms null and void. The manufacturer shall not be held responsible for possible consequential damage that may arise due to or in connection with such application.

Any modifications of the tool by the user relieve the manufacturer from responsibility for any damage and injuries to the user and the surroundings.

Application of the tool in accordance with the intended use also refers to its maintenance, storage, transportation and repairs.

Defective electric tools can be handed over for repairs exclusively to service workshops appointed by the tool manufacturer. The tools supplied from electric grid shall be repaired exclusively by authorized electricians.

Despite using the tool according to its intended application it is impossible to eliminate certain residual risk factors. Considering the tool construction the following risks may occur when operating the tool:

• Contact of a rotating working tool during drilling with the operator's hand or clothes or contact with the power cord.
• Scalding at replacement of a working tool (During drilling the working tool gets very hot; to avoid scalding operators must wear protecting gloves when they replace working tools).
• Outburst of treated material or chips from treated material.
• Bending /breaking of a working tool.

■ :Delivery kit

• Rotary hammer – 1 pc.

• Auxiliary handle – 1 pc.

• Drilling depth limiter – 1 pc.

• Flat chisel – 1 pc.
• Point chisel – 1 pc.
  • SDS-plus drilling tools – 3 pcs. (8,10,12 mm)
• Rubber ring for dust collection – 1 pc.
• Carbon brushes – 2 pcs.
• Transportation case – 1 pc.
• User's manual – 1 pc.
• Warranty card – 1 pc.

■ Device components

The numbers of tool components refer to the image presented on pages 2-3 of the user manual:

Fig.A 1. SDS-plus tool holder

1. Dust protection hood
2. Lockingsleeve
3. Drilling depth limiter
4. Fixing button to fit the drilling depth limiter

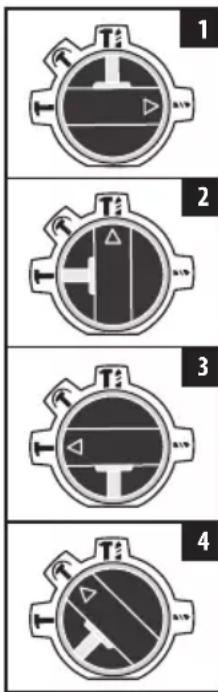

5. Button to release locking of the operation mode selector switch
6. Operation mode selector switch
7. Main handle with a slip resistant pad
8. On/Off trigger
9. Power cord
10. Brush-holder
11. Auxiliary handle

Fig.C 13. Securing bolt for the drilling chuck with a toothed ring*

1. Drilling chuck with a toothed ring*
2. Adapter stud to fix the drilling chuck to the SDS-plus socket*

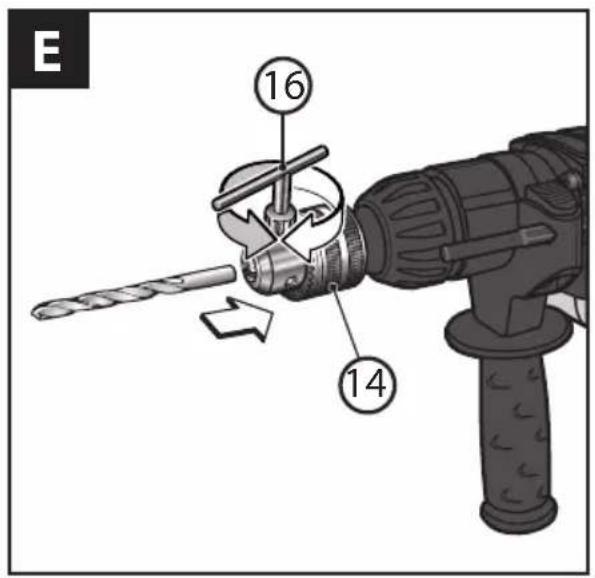

Fig.E 16. Key for the drilling chuck with a toothed ring*

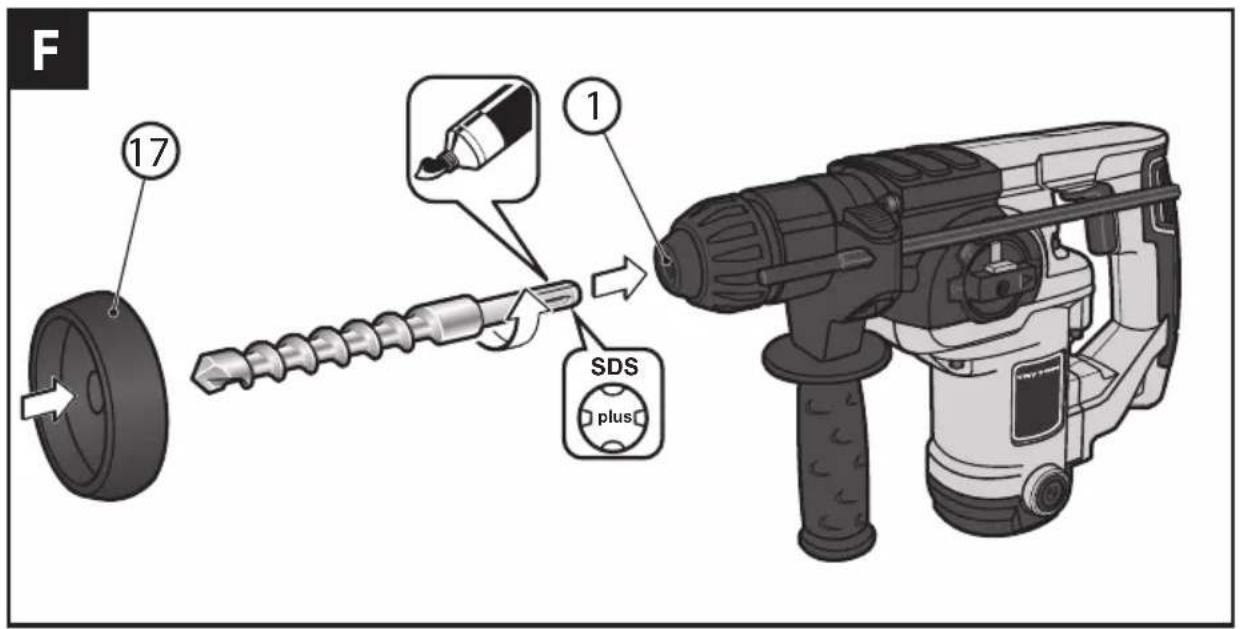

Fig. F 17. Rubber ring for dust collection
