Product Type	Coffee Machine with Integrated Grinder
Model	S10GC13E
Brand	Sandstrøm
Voltage Rating	240V
Power Consumption (Grinding)	120W
Power Consumption (Brewing)	1.07kW
Standby Power	0.59W
Capacity	Up to 10 cups
Water Tank Capacity	Maximum 10 cups
Bean Container Capacity	Fill completely (enough for desired brew)
Grind Settings	Adjustable fineness dial
Coffee Strength Options	Mild, Medium, Strong
Functions	Whole bean and ground coffee brewing, programmable timer, keep warm (2 hours)
Display	Digital clock with indicators for filter, strength, cups, keep warm
Safety Features	Auto shut-off, anti-drip system, steam vent, overheat protection
Cleaning	Descaling cycle, removable filter, cleaning brush, grinding compartment key
Included Accessories	Jug, funnel, filter, measuring spoon, brush, grinding compartment key
Material	Plastic housing, glass jug
Repairability	No user-serviceable parts; repairs by qualified personnel

Frequently Asked Questions - S10GC13E Sandstrøm

Why doesn't the Start/Stop button light up?

Check that the coffee maker is plugged into the mains socket and the outlet is switched on.

Why doesn't the coffee brew?

Ensure the funnel is properly inserted, there is power, and the water tank is filled. The coffee maker may also be in program mode.

Why does the coffee maker only brew water?

No coffee grounds are in the filter. Add the desired amount of coffee and ensure the filter is correctly placed.

Why does the coffee taste bad?

The grind may be incorrect for drip coffee makers, the coffee-to-water ratio unbalanced, or the machine needs cleaning. Descale regularly.

Why do grounds appear in the coffee?

The filter is not properly seated in the funnel or the filter has collapsed. Replace or reposition the filter.

None of the buttons are working.

The coffee maker may be in program mode. Switch the machine off and on again to exit program mode.

Why doesn't the grinder work?

The Pre-Ground button may be selected, which disables the grinder. Press the Pre-Ground button to turn off pre-ground mode.

How do I descale the coffee maker?

Fill the water tank with descaling solution and water to MAX 10, run until 1/3 is in the jug, wait 30 minutes, then run the rest. Rinse 3-4 times with fresh water.

How do I set the programmable timer?

Press and hold the Program button until the indicator flashes. Use Hour and Min buttons to set the start time, then press Program to confirm. Prepare coffee as usual; it will brew at the set time.

How do I clean the grinding compartment?

Unplug the machine. Use the included key to unlock the grinding compartment, open the cover, and clean with the brush. Lock the compartment afterwards.

USER MANUAL S10GC13E Sandstrøm

Modern coffee maker with digital display and open lid, featuring clear glass shades and a glass coffee jar (no visible text or symbols)

Instruction Manual Coffee Machine

Safety Warnings....5

Unpacking....9

Jug Use and Care....10

Product Overview....10

Control Panel 11

Display Window 11

First Time Use....12

Setting the Clock 12

Funnel Assembly 12

Operation 13

Making Coffee with Whole Beans....13

Making Coffee with Ground Coffee 16

Program Operation 18

Cleaning and Maintenance....18

Cleaning the Grinding Compartment....19

Descaling the Coffee Maker 19

Hints and Tips.... 20

Specifications....20

Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical shock.

• Read all the instructions carefully before using this appliance and keep them for future reference.
• Retain the manual. If you pass the appliance on to a third party, make sure to include this manual.
  • Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the appliance.
• Unplug the appliance from the mains socket when not in use, or before cleaning any part of the appliance.
• Do not operate any appliance with a damaged mains cable or mains plug, or in an abnormal state. If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Do not use an extension cable, it may result in fire, electrical shock and/or personal injuries.
• Do not let the mains cable hang over the edge of the table or counter, or touch hot surfaces.
• To disconnect, remove the mains plug from the mains socket. Never pull the mains cable to remove the mains plug from mains socket.
• Do not immerse the appliance, mains cable or mains plug in water or other liquids.
• Be careful not to get scalded by the steam.
• Use handles or oven gloves. Accessible surfaces may get hot.
• Do not touch the appliance whilst in use as there are hot surfaces on this appliance.
• Never use the appliance if the jug shows any signs of cracks. Only use the jug supplied with this appliance. Handle the jug with caution as it is very fragile.
• Never leave an empty jug on the warming plate otherwise the jug is liable to crack.
  • Never switch your appliance on without water in it.
• Stand the appliance on a stable flat surface before use.
  • This appliance is intended for household use only. Do not use outdoors.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

Thank you for purchasing your new Sandstrøm Coffee Machine.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a coffee maker with control panel and side buns (no text or symbols)

The Main Unit

Line drawing of a simple coffee maker with lid and handle (no text or symbols)

Jug Funnel

Line drawing of a bucket with handle and spout (no text or symbols)

Filter

Simple line drawing of an oval-shaped object with rounded edges (no text or symbols)

Coffee Bean Compartment Lid
Measuring Spoon

Brush and Grinding Compartment Key

Instruction Manual

Jug Use and Care

The jug may break if the following instructions are not followed:

1. Do not set a hot jug on a wet or cold surface.
2. Do not use a cracked jug or a jug with a loose or weakened handle.
3. Do not clean the jug with cleaners, steel wool pads or other abrasive materials.
4. Discard the jug immediately if it has boiled dry.
5. Avoid sharp blows, scratches or rough handling.

To reduce the risk of fire or electrical shock, do not remove any service covers. There are no user serviceable parts inside. Repairs should be done by qualified personnel only.

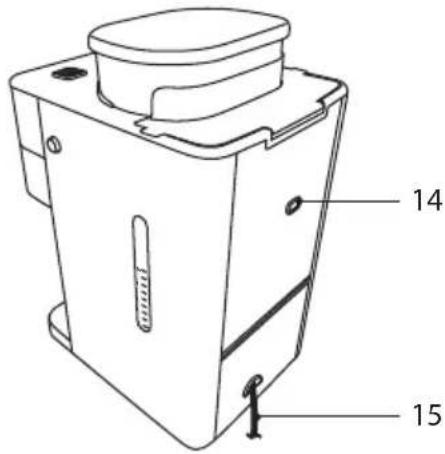

Product Overview

1. Filter
2. Funnel
3. Ground Coffee Fineness Dial
4. Control Panel
5. Funnel Holder
6. Warming Plate
7. Coffee Bean Container Lid

8. Coffee Bean Container

9. Water Tank Cover

10. Grinding Compartment
11. Steam Vent
12. Open Button
13. Water Level Indicator
14. Overflow
15. Mains Cable
16. Jug

Control Panel

1. Strength Button
2. Cups Button
3. Hour Button

4. Program Button

5. Min Button

6. Pre-Ground Button
7. Start/Stop Button

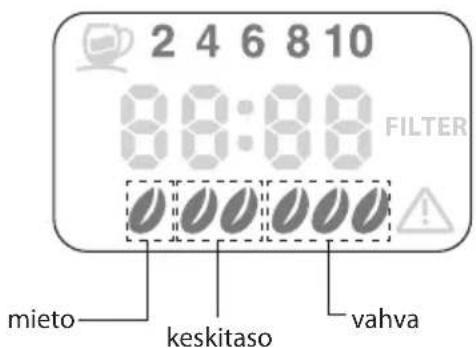

Display Window

1. Keep Warm Indicator
2. Cups Indicator
3. Clock Display

4. Filter indicator - flashes to remind you to clean the filter

5. Grinding Compartment Cleaning Indicator

6. Coffee Strength Indicator

First Time Use

1. Fill the water tank with clean water up to the maximum level (MAX 10). Do not over fill the water tank. If you over fill the water tank, water will flow out of the overflow on the back of the unit.
2. Plug the unit in and switch on at the mains. Follow the steps in the section "Operation - Making Coffee with Ground Coffee" (without adding ground coffee) once or twice, then discard the hot water.
3. Clean the jug, coffee compartment lid and filter thoroughly with warm water. You may now use your coffee maker.
4. Wipe the appliance's exterior surface with a soft, damp cloth. Do not use strong detergents or aggressive cleaners.

Setting the Clock

1. Plug the mains cable into the mains socket, the display window will light up blue and "12:00" will flash in the display. The clock has a 24 hour display.
2. Press the Hour or Min buttons repeatedly or hold down to adjust the hour or minute digits. The time is now set and will no longer flash in the display.

Funnel Assembly

• Water will spill out of the funnel if the funnel is not locked firmly and properly.
• The funnel should not move when locked properly.

1. Press the Open button to open the funnel door. Locate the slot on both sides of the coffee maker.

Diagram of a washing machine with a bucket being poured into it, showing the process (no text or symbols present)

1. Locate the tabs and position the funnel as shown. Lower the funnel into the coffee maker with the handle upright.

Illustration of a bucket being placed into a basin by an appliance (no text or symbols)

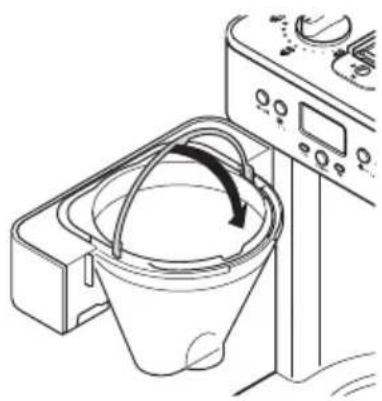

1. Lower the handle. The filter then fits inside the funnel.

Line drawing of a washing machine with a bucket and control panel (no text or symbols)

Operation

Making Coffee with Whole Beans

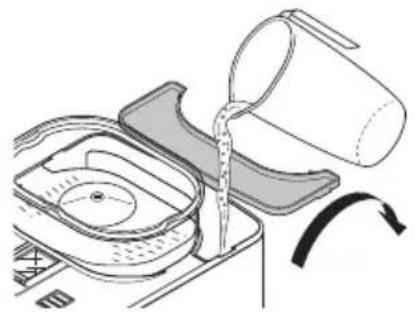

1. Open the water tank cover and fill with the correct amount of cold water. The water level should be between minimum level "2" and maximum level "MAX 10". Close the water tank cover.

Fill the water tank with the exact amount of water you need. For example if you want to make 4 cups of coffee only add 4 cups of water in the tank. The coffee maker will keep making coffee until is runs out of water.

Diagram of a kitchen sink with a cup pouring liquid into a tray (no text or symbols)

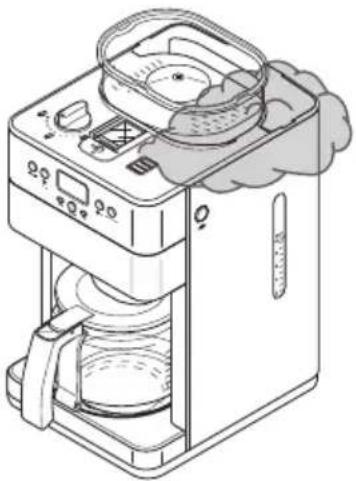

1. Lift the coffee bean container lid, fill the container completely with beans. Be sure that you have a sufficient amount of beans in your container for the amount of coffee you intend to brew. Firmly close the lid.

Do not put any water in the coffee grinding container. If water gets into the grinder motor, the motor may be damaged and malfunction.

Line drawing of a microwave oven with lid and tray, showing internal components (no text or symbols)

GB

1. Turn the Ground Coffee Fineness dial to set the required fineness of the ground coffee.

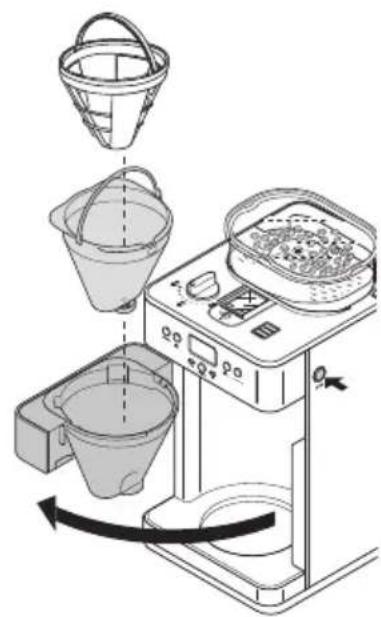

2. Press the Open button to open the funnel door. Place the filter in the funnel and then place the funnel in the funnel holder, make sure it is assembled correctly, see the section "Funnel Assembly" for details. Close the filter door until it clicks into place.

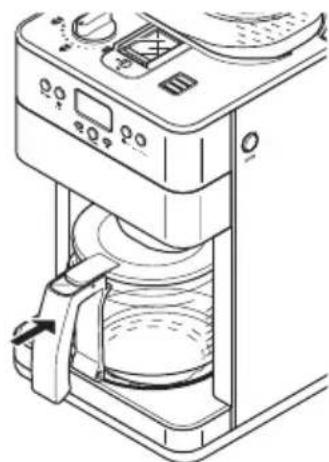

3. Place the jug on the warming plate horizontally.
4. Press the Cups button repeatedly to select the required coffee quantity 2, 4, 6, 8 or 10 cups. The coffee quantity indicator will light up.
5. Press the Strength button repeatedly to set the required coffee strength, mild, medium or strong. The coffee strength indicator will light up.

Line drawing of a toaster oven with control panel and side door (no text or symbols)

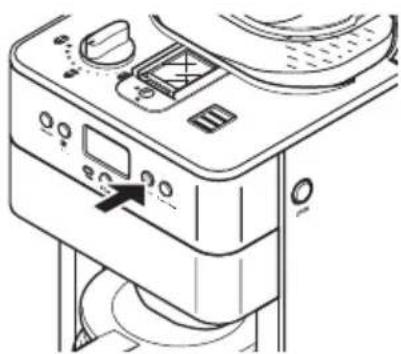

1. Press the Start/Stop button to start the coffee maker the indicator will light up. The grinder will start and the coffee maker will start brewing coffee.

• The grinder should automatically switch on, if not you may have the Pre-Ground button selected, switch this off.
• Press the Start/Stop button again to interrupt the process. The indicator light will go out.
• You can remove the jug, pour and serve at any time once the coffee is made. The coffee maker will stop dripping automatically. The jug must be replaced within 15 seconds as the water will accumulate in the funnel which may overflow if the jug is not replaced shortly.
• Do not open the water tank cover while the coffee maker is brewing.

Line drawing of a kitchen appliance with control panel and buttons (no text or symbols)

1. When the brewing cycle is complete, the unit will beep 5 times. You can remove the jug when brewing is finished (about one minute after the coffee stops dripping into the jug). The steam will come out from the steam vent.

The amount of coffee you get will be less than the water you have put in the tank, as some water is absorbed by the ground coffee.

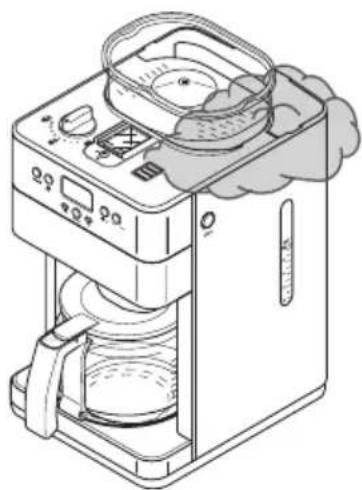

• Never block the steam vent.
• The steam coming out from the coffee maker is very hot. Do not touch the vent.

Line drawing of a modern coffee maker with digital display and side arm (no text or symbols)

1. The coffee maker will keep your coffee hot for 2 hours. The Keep Warm indicator will blink, then automatically go out. Press the Start/Stop button to stop the grinding and brewing function. Always turn the coffee maker off when it is not in use.

• Keep the lid of the jug closed when pouring.
• The brewed coffee in the jug and the grounds in the filter are very hot. Handle with care to avoid scalding.

1. Don't forget to empty the ground coffee beans out of the filter. The word FILTER will flash in the display to remind you.

Making Coffee with Ground Coffee

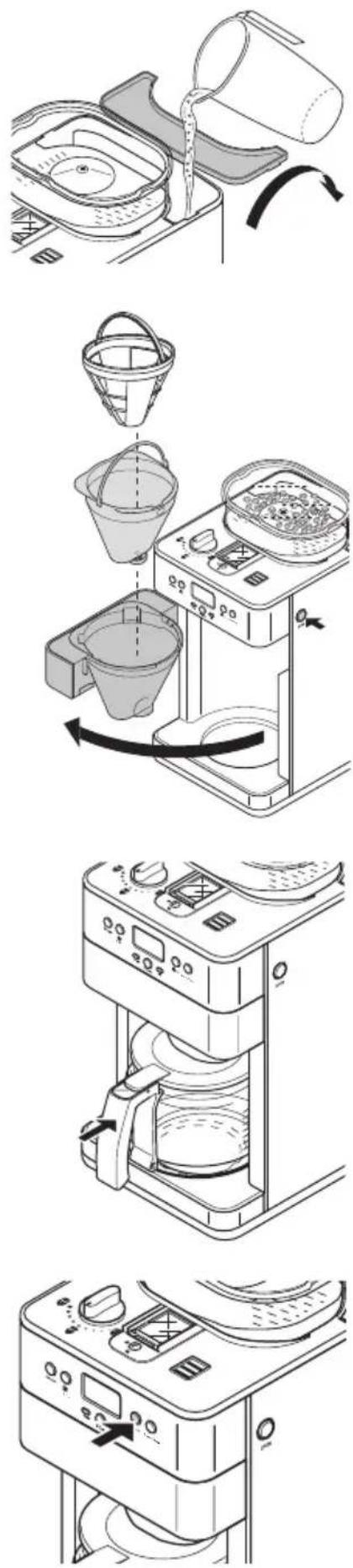

1. Open the water tank cover of the coffee maker and fill with the correct amount of water. The water level should be between minimum level "2" and maximum level "MAX 10".

2. Press the Open button to open the funnel door. Place the ground coffee in the filter. Place both the filter and ground coffee in the funnel and then place the funnel in the funnel holder. Make sure it is assembled correctly, see the section "Funnel Assembly" for details. Close the filter door until it clicks into place.

Simple line drawing of a net being lifted by a tool, no text or symbols present

1. Place the jug on the warming plate horizontally.

2. Press the Pre-Ground button to switch to pre-ground coffee mode. The Pre-Ground indicator will light up blue.

Line drawing of a kitchen sink with a cup pouring liquid from a tray (no text or symbols)

Line drawing of a coffee maker with a glass coffee cup and control panel (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

1. Press the Start/Stop button to start the coffee maker the indicator will light up. The coffee maker will start to brew the coffee.

• Press the Start/Stop button again to interrupt the process. The indicator light will go out.
• You can remove the jug, pour and serve at any time once the coffee is made. The coffee maker will stop dripping automatically. The jug must be replaced within 15 seconds as the water will accumulate in the funnel which may overflow if the jug is not replaced shortly.

• Do not open the water tank cover while the coffee maker is brewing.

• When the brewing cycle is complete, the unit will beep 5 times. You can remove the jug when brewing is finished (about one minute after the coffee stops dripping into the jug). The steam will come out from the steam vent.

The amount of coffee you get will be less than the water you have put in the tank, as some water is absorbed by the ground coffee.

• Never block the steam vent.
• The steam coming out from the coffee maker is very hot. Do not touch the steam vent.

1. The coffee maker will keep your coffee hot for 2 hours. The Keep Warm indicator will blink, then automatically go out. Press the Start/Stop button to stop the Keep Warm function. Always turn the coffee maker off at the mains when it is not in use.

• Keep the lid of the jug closed when pouring.

• The brewed coffee in the jug and the grounds in the filter are very hot. Handle with care to avoid scalding.

• Don't forget to empty the ground coffee beans out of the filter. The word FILTER will flash in the display to remind you.

Line drawing of a kitchen appliance with control panel and buttons (no text or symbols)

Line drawing of a modern coffee maker with a side panel and lid, showing its open lid and base (no text or symbols)

Program Operation

You can programme your coffee maker to switch on at a set time using the Program operation. For example if you want to wake up and have your coffee ready you can set the coffee maker to switch on at 7:30 am or any other time.

Ensure the clock has been set to the correct time. Remember it's a 24 hour clock. Please refer to the section "Setting the Clock" for details.

1. Press and hold the Program button until the programme indicator flashes.
2. Select the time you want coffee to start brewing by using the Hour button, then the Minute button, following the same instructions for setting the clock.
3. If you want to make coffee with whole beans, set the coffee bean quantity and strength. Please refer to the section "Operation - Making Coffee with Whole Beans" steps 6-7.
   If you want to make coffee with ground coffee, press the Pre-Ground button to switch to pre-ground coffee mode.
4. Press the Program button to confirm the setting. The programme indicator will light up solidly.
5. After setting the Program start time, prepare coffee following the section "Operation" steps 1 to 5.
6. The coffee maker will automatically begin brewing at the preset time.
7. To reset the Program time for the same preset time for the next day, simply press the Program button.

OR

Cleaning and Maintenance

Be sure to unplug and allow this appliance to cool down before cleaning. To protect against electrical shock, do not immerse the mains cable, mains plug or the appliance in water or liquids. After each use, always make sure the mains plug is removed from the mains socket.

1. Clean the filter, jug and jug lid after each use in hot, soapy water. They are NOT dishwasher proof.
2. Wipe the appliance's exterior surface with a soft, damp cloth to remove stains. Do not use strong detergents or aggressive cleaners.
3. Water droplets may build up in the area above the filter and drip onto the product base during brewing. To control the dripping, wipe off the area with a clean, dry cloth after use.
4. Use a damp cloth to gently wipe the warming plate. Never use abrasive cleaners to clean it.

Cleaning the Grinding Compartment

When grinding coffee beans, coffee powder can clog the grinding mechanism. The grinding compartment must be cleaned when the ▲Grinding Compartment Cleaning indicator is shown on the display. The grinding compartment should be cleaned regularly to prevent the grinding mechanism from being clogged.

Be sure to unplug the appliance before cleaning. Remove the jug from the warming plate. Place the filter and funnel in the funnel support and close the funnel door.

1. Use the grinding compartment key to unlock the grinding compartment.
2. Open the grinding compartment cover.
3. Use the brush to clean the grinding compartment.
4. Close the grinding compartment cover, then use the grinding compartment key to lock the grinding compartment.

Descaling the Coffee Maker

Depending on the hardness of the water in your area, limescale may be deposited inside the coffee maker. The coffee maker may need descaling from time to time.

1. Open the water tank cover and fill with descaling solution (following the manufacturers instructions) and water to the maximum level "MAX 10".
2. Place the jug on the warming plate.
3. Make sure NO coffee is in the coffee maker. Press the Start/Stop button, let the coffee maker run until 1/3 of the descaling solution is in the jug.
4. Press the Start/Stop button to stop the unit. Let the descaling solution work for approximately 30 minutes.
5. Press the Start/Stop button again and let the unit run until the remaining descaling solution is in the jug.
6. Pour fresh water into the water tank to the maximum level "MAX 10" (do not place any coffee in the appliance). Repeat steps 3-6 in the section "Operation - Making Coffee with Ground Coffee". Repeat this process 3-4 times (or refer to the descaler manufacturers instruction) with fresh water each time to ensure that the descaling liquid has been thoroughly rinsed through. Clean the filter, funnel, jug and jug lip with hot soapy water.

Hints and Tips

GB

Question Answer
Why doesn’t the Start/Stop button light up?	Check that you have plugged your coffee maker into the mains socket.
Why doesn’t the coffee brew? The funnel is not properly inserted, or there is a power outage, or the water tank is empty.
Why does the coffee maker only brew water?	There is no coffee in the filter, check that you have added the desired amount of coffee.
Why does the coffee taste bad? Maybe you did not use the coffee grind recommended for automatic drip coffee makers. The ground coffee-to-water ratio was unbalanced. The coffee maker needs to be cleaned.
Why do grounds appear in the coffee?	The filter is not properly seated in the funnel or the filter has collapsed.
None of the buttons are working?	You may be in program mode. To switch this mode off switch the coffee maker off and back on again.
Why does the grinder not work?	You have selected Pre-Ground coffee mode, switch this off.

Specifications

Model S10GC13E
Voltage Rating 240V
Power Consumption Grinding: 120WBrewing: 1.07KWStandby: 0.59W

Features and specifications are subject to change without prior notice.

Line drawing of a portable coffee maker with lid and handle (no text or symbols)

Diagram of a kitchen mixer with a bucket and fan, showing the process (no text or symbols)

Line drawing of a kitchen appliance with a bucket and side panel, showing airflow direction (no text or symbols)

NO

1. Legg ned håndtaket. Filteret passer deretter inne i trakten.

Line drawing of a washing machine with a bucket and fan, no text or symbols present

Betjening

Diagram of a kitchen sink with a cup pouring liquid into a bowl (no text or labels)

Line drawing of a kitchen appliance with a lid and lid removed, showing internal components (no text or symbols)

Line drawing of a coffee maker with a glass pitcher and control panel (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a coffee maker with a side panel and lid, showing its open lid and base (no text or symbols)

Diagram of a kitchen sink with a cup pouring liquid into a tray (no text or symbols)

Line drawing of a hand pouring liquid into a basket (no text or symbols)

Line drawing of a toaster oven with a coffee maker in the background (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a kitchen appliance with control panel and buttons (no text or symbols)

Line drawing of a coffee maker with a side bumper and cloud-shaped lid (no text or symbols)

Programmering

Line drawing of a coffee maker with control panel and side mount (no text or symbols)

Huvudenheten

Line drawing of a simple coffee pot with lid and handle (no text or symbols)

Kanna Tratt

Line drawing of a bucket with handle and spout (no text or symbols)

Filter

Simple line drawing of an oval-shaped object with no text or symbols

Line drawing of a portable coffee maker with label pointing to the lid (no text or symbols on the device itself)

Diagram of a coffee maker with a cup and side bowl, showing a hand pouring liquid from a container (no text or symbols present)

Line drawing of a kitchen appliance with a bucket and side panel, showing airflow direction (no text or symbols)

Line drawing of a washing machine with a bucket and fan, showing no text or symbols

Hantering

Diagram of a kitchen sink with a cup pouring liquid into a bowl (no text or labels)

Line drawing of a kitchen appliance with a lid and lid removed, showing internal components (no text or symbols)

Line drawing of a coffee maker with a glass pitcher and control panel (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a modern coffee maker with a side panel and side cloth (no text or symbols)

Diagram of a kitchen sink with a cup pouring liquid into a tray (no text or symbols)

SE

Line drawing of a hand holding a tool above a basket filled with a handle (no text or symbols)

Line drawing of a toaster oven with a coffee maker in the background (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a kitchen appliance with control panel and buttons (no text or symbols)

Line drawing of a coffee maker with a side panel and lid, showing its open lid and base (no text or symbols)

Programhantering

Line drawing of a portable coffee maker with lid and handle (no text or symbols)

Diagram of a kitchen mixer with a bucket and fan, showing the process (no text or symbols)

Line drawing of a kitchen appliance with a bucket and lid, showing airflow direction (no text or symbols)

Line drawing of a washing machine with a bucket and fan, no text or symbols present

Käyttö

Diagram of a kitchen appliance with a glass pouring liquid into a container, showing internal components and a curved handle (no text or symbols)

Line drawing of a kitchen appliance with a lid and lid removed, showing internal components (no text or symbols)

Line drawing of a coffee maker with a glass jar and control panel (no text or symbols)

Line drawing of a kitchen appliance with control panel and door (no text or symbols)

FI

Line drawing of a modern coffee maker with a side panel and side cloth (no text or symbols)

Line drawing of a hand pouring liquid into a net (no text or symbols)

Diagram of a kitchen sink with a cup pouring liquid into a tray (no text or symbols)

Line drawing of a modern toaster with a coffee maker in the oven (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a kitchen appliance with control panel and buttons (no text or symbols)

Line drawing of a modern coffee maker with a side panel and control panel (no text or symbols)

Line drawing of a modern coffee maker with control panel and side buns (no text or symbols)

Hovedenheden

Line drawing of a simple coffee maker with lid and handle (no text or symbols)

Kande Tragt

Line drawing of a bucket with handle and spout (no text or symbols)

Filter

Simple line drawing of an oval-shaped object with no text or symbols

Line drawing of a portable coffee maker with lid and handle (no text or symbols)

Diagram of a coffee maker with a cup and side bowl, showing a hand pouring liquid from a container into a machine (no text or symbols present)

Line drawing of a kitchen appliance with a bucket and lid, showing airflow direction (no text or symbols)

Line drawing of a washing machine with a bucket and fan, no text or symbols present

DK

Betjening

Diagram of a kitchen sink with a glass pouring liquid into a container (no text or symbols)

Line drawing of a kitchen appliance with a lid and handle, showing internal components (no text or symbols)

Line drawing of a coffee maker with a glass jar and control panel (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a modern coffee maker with a side panel and side cloth (no text or symbols)

Line drawing of a hand pouring liquid into a basket (no text or symbols)

1. Stil kanden på varmepladen.

2. Tryk på For-malet-knappen for at gå i formalet-tilstand. For-malet-indikatoren lyser blå.

1. Tryk på Start/Stop-knappen for at starte kaffemaskinen. Indikatoren lyser. Kaffemaskinen vil brygge kaffe.

Line drawing of a kitchen appliance with control panel and buttons (no text or symbols)

Line drawing of a coffee maker with a side panel and cup, showing its interior setup (no text or symbols)

DK

Line drawing of a coffee maker with control panel and side shelves (no text or symbols)

Hlavní jednotka

Line drawing of a simple coffee pot with lid and handle (no text or symbols)

Konvice Nálevka

Line drawing of a bucket with handle and spout (no text or symbols)

Filtr

Simple line drawing of an oval-shaped object with no text or symbols

Line drawing of a portable coffee maker with handle and lid, labeled with number 16 (no text or symbols on the device itself)

Diagram of a kitchen machine with a bucket and fan, showing a hand pouring liquid from a container (no text or symbols present)

Line drawing of a kitchen appliance with a bucket and side panel, showing airflow direction (no text or symbols)

Line drawing of a washing machine with a bucket and fan, showing a circular arrow indicating rotation (no text or symbols)

CZ

Provoz

Diagram of a kitchen sink with a cup pouring liquid into a bowl (no text or labels)

Line drawing of a kitchen appliance with a lid and lid removed, showing internal components (no text or symbols)

Line drawing of a coffee maker with a side panel and control panel (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a coffee maker with a side panel and lid, showing its open lid and base (no text or symbols)

Line drawing of a hand pouring liquid into a basket (no text or symbols)

Diagram of a kitchen sink with a cup pouring liquid into a tray (no text or symbols)

Line drawing of a modern toaster with a glass jar and control panel (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a kitchen grater with control panel and buttons (no text or symbols)

Line drawing of a coffee maker with a side bumper and cloud-shaped lid (no text or symbols)

CZ

Line drawing of a coffee maker with control panel and side mount (no text or symbols)

Hlavné zariadenie

Line drawing of a simple ceramic teapot with lid and handle (no text or symbols)

Kanvica Lievik

Line drawing of a bucket with handle and spout (no text or symbols)

Filter

Simple line drawing of an oval-shaped object with no text or symbols

Line drawing of a portable coffee maker with label pointing to the lid (no text or symbols on the device itself)

Diagram of a coffee maker with a cup and side bowl, showing a hand pouring liquid from a container (no text or symbols present)

Line drawing of a kitchen appliance with a bucket and lid, showing airflow direction (no text or symbols)

Line drawing of a washing machine with a bucket and fan, no text or symbols present

Prevádzka

SK

Diagram of a mechanical device with a handle and lever, showing internal components (no text or symbols)

Line drawing of a kitchen appliance with a lid and lid removed, showing internal components (no text or symbols)

1. Kanvicu položte na ohrievaciu dosku vo zvislej polohe.

Line drawing of a coffee maker with a glass pitcher and control panel (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a modern kitchen blender with a side panel and side cloth (no text or symbols)

Line drawing of a hand pouring liquid into a basket (no text or symbols)

Diagram of a kitchen sink with a cup pouring liquid into a tray (no text or symbols)

Line drawing of a toaster oven with a glass jar and control panel (no text or symbols)

Line drawing of a kitchen appliance with control panel and scroll (no text or symbols)

Line drawing of a kitchen appliance with control panel and buttons (no text or symbols)

Line drawing of a coffee maker with a side bumper and a cloud-shaped container (no text or symbols)

SK

Odvápnenie kávovaru

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

NO
