Product Type	Wall-mounted range hood
Model	PEW 6713
Brand	Philco
Installation Type	Wall-mounted with chimney
Dimensions (approx.)	Width 60 cm, Depth 50 cm, Height adjustable
Weight (approx.)	15 kg
Power Supply	220-240 V ~ 50 Hz
Air Outlet Diameter	150 mm (or 120 mm with adapter)
Number of Speeds	3 (touch button models) or 5 (digital control models)
Control Type	Touch buttons or digital controls (depending on variant)
Lighting	Yes, 1 x 50 W halogen or 2 x 20 W (depending on model)
Timer	Yes, 15-minute automatic shut-off
Filter Type	Aluminium mesh (washable) + optional carbon filter (replaceable)
Carbon Filter	Not included, replace every 3-5 months
Max Power Consumption	Approx. 150 W (motor + lights)
Noise Level	Approx. 45 dB at low speed
Minimum Installation Height	65 cm above electric hob, 75 cm above gas hob
Safety Features	Auto shut-off timer, grounded plug, child safety warning
Cleaning	Wash aluminium filters monthly; wipe exterior with damp cloth
Warranty	Standard manufacturer warranty (check terms)

Frequently Asked Questions - PEW 6713 Philco

What is the recommended installation height for the Philco PEW 6713 range hood?

The minimum installation height is 65 cm above an electric cooktop and 75 cm above a gas cooktop. Ensure proper clearance for safety and optimal performance.

How do I clean the aluminium filters?

Remove the filters by pressing the clip. Wash them monthly in warm water with dish soap or in a dishwasher at max 60°C. Dry thoroughly before reinstalling.

Does the range hood come with a carbon filter?

No, the carbon filter is not included. It must be purchased separately if you plan to use the hood in recirculation mode. Replace it every 3-5 months depending on usage.

How do I set the automatic timer?

For models with touch buttons or digital controls, press and hold the speed button for 2 seconds to activate the 15-minute timer. The motor will turn off automatically when time expires.

What should I do if the lights are not working?

First, check that the power plug is properly connected and the circuit breaker is on. If the light bulb is broken, replace it with the same type (e.g., 50W halogen or 20W depending on model). Always disconnect power before replacing.

Can I install the range hood without ducting to the outside?

Yes, you can use the hood in recirculation mode by installing a carbon filter. Ensure the air outlet is closed and the filter is properly fitted. This is useful in homes with heat recovery systems.

Why is my range hood not extracting air effectively?

Check if the aluminium filters are dirty – clean them. Also verify that the air outlet is not blocked and that the carbon filter (if used) is not clogged. For best results, operate the hood while cooking and leave it on for a few minutes after.

How do I change the light bulb?

Turn off and unplug the hood. Remove the aluminium filter. Depending on the model, either press and twist the 50W halogen bulb anticlockwise, or remove the glass cover for 20W bulbs. Use a bulb with the same specifications.

What does the 'C' symbol on the display mean?

The 'C' symbol indicates that the aluminium filters need cleaning. It appears after approximately 60 hours of operation. Clean the filters and press and hold the fan button for 3 seconds to reset.

Is the Philco PEW 6713 safe to use with gas appliances?

Yes, but ensure proper ventilation. The range hood must be installed at least 75 cm above a gas cooktop. Do not use flambé cooking under the hood, and always follow the installation instructions to avoid backdraft.

USER MANUAL PEW 6713 Philco

Famous for Quality the World Over

PEW 6713

PEW 9713

PEW 6714GLIX

PEW 9714GLIX

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: IMPORTANT SAFETY INSTRUCTIONS....2

PART 2: DESCRIPTION OF THE APPLIANCE .... 4

PART 3: INSTALLATION .... 5

Unpacking....5

Dimensions of the appliance ....5

Placement....7

Installation....7

Carbon filter....12

Ventilation....13

PART 4: OPERATION....14

Models with touch buttons – 3 speeds....14

Models with digital controls – 3 speeds....14

Models with digital controls – 5 speeds....15

Models with an LCD display - 5 speeds....16

Operating tips....17

PART 5: MAINTENANCE AND CLEANING....18

Changing a light bulb....18

Cleaning....19

PART 6: BEFORE YOU CALL THE SERVICE CENTRE....21

PART 7: TECHNICAL SPECIFICATIONS....22

PART 1: IMPORTANT SAFETY INSTRUCTIONS

Recommendation:

Carefully read these instructions before installing and operating this range hood.

Write down the serial number found on the rating label of the range hood in the space below. It is essential that you store this user's manual in a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the user's manual is attached to the appliance, so that the new owner can also learn about the operation of the appliance and the relevant warnings.

SERIAL NUMBER:

Important safety instructions

• This appliance is designed for household use only.
- Before connecting the power cord plug, make sure the voltage stated on the rating label of the appliance corresponds to the voltage in your wall socket. Connect the power cord plug to a power socket with a voltage of 220 – 240 V \~ 50 Hz.
- Only use a properly grounded power socket. The appliance may only be connected to a properly grounded power socket.
- All electrical connections must be performed by a qualified electrician.
- Installation performed by an unqualified person may cause incorrect operation, damage to the appliance, create a fire hazard or cause injury to persons.
- Neither the manufacturer nor the vendor take responsibility for damages cause by incorrect or unprofessional installation, connection or operation. Tampering with the appliance by an unqualified person will void the customer's right to a warranty repair.
- Do not expose the power cord to excessive pressure or loads, do not place heavy objects on it, it must not be tangled and it must not be stepped on. Do not locate the power cord in or on heat sources such as stoves, heating or other generators of heat. Otherwise this may damage the power cord or create a fire hazard.
- Only connect the power cord plug to a power socket after the entire installation is completed.
- The power plug serves as a disconnection device and for this reason the power socket must remain easily accessible for the event of a dangerous situation, unless it is connected into a terminal box.
- Do not touch the lights if the appliance has been running for some time. Lights heat up during operation and may cause burns.
- This appliance is designed for fume extraction during standard domestic use. Do not use the appliance for purposes other than those for which it was designed. Otherwise you expose yourself to the risk of a dangerous situation and voiding the warranty.
- Follow the instructions for installation and ventilation (with the exception of when a fire stove is used).
- Do not use the flambé cooking method under the range hood.
• Regularly replace the filters in the range hood. Otherwise this presents a fire hazard.
- Only use filters suitable for use with the range hood. The manufacturer or distributor will recommend the suitable fi lter type.
- Do not use the appliance without the aluminium filter inserted. Do not take out the filters while the appliance is on.
• Regularly clean the appliance to prevent a dangerous situation from occurring.
- Before cleaning, replacing filters, moving or any other maintenance, turn off the appliance and pull out the power plug from the power socket, or turn off the respective circuit breaker.
- If you are using another gas or natural gas appliance in the room at the same time, the fumes from this appliance must be spatially isolated.

• If a chimney is connected to the exhaust of the range hood, use pipes with a diameter of 150 or 120 mm. The pipe connection should be as short as possible.
• Keep packaging materials out of children's reach. They could suffer injury or suffocation.
• Children must be supervised to ensure that they do not play with the appliance. If the power cord is damaged stop using the appliance. Have the power cord replaced at an authorised service centre or by another qualified person. Under no circumstances should you replace the power cord yourself.

To ensure safety, use a fuse with a maximum rating of 6 A.

WARNING!

This appliance must not be used by persons (including children) with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the appliance, or unless they have been properly supervised by a qualified person who will be responsible for their safety.

Attention when transporting or carrying

The packaging materials are from recyclable materials, so dispose of them in an environmentally conscientious manner according to regulations in force.

During transport adhere to the symbols of the cardboard box.

When carrying the appliance, hold it by the respective handles.

NOTE:

We recommend that you keep the original packaging at least for the duration of the warranty period for the event of repair or refund and transport to the authorised service centre. Adhere to the symbols on the cardboard box.

If you do not have the original cardboard box, adhere to the following instructions:

a) Do not place any items on the appliance that could damage the appliance during transport.
b) Protect the appliance against impacts, falls, etc.
c) Wrap the appliance, e.g. in bubble wrap which will protect the appliance from damage.

NOTE:

The carbon fi Iter is not included.

NOTE:

If the building is equipped with a heat recovery system system, it is necessary to setup the appliance for internal air circulation (without an exhaust). In that case, it is necessary to purchase the carbon filter.

PART 2: DESCRIPTION OF THE APPLIANCE

PEW 6713 / PEW 9713

1. Inner chimney
2. Outer chimney
3. Control panel
4. Filter
5. Lighting

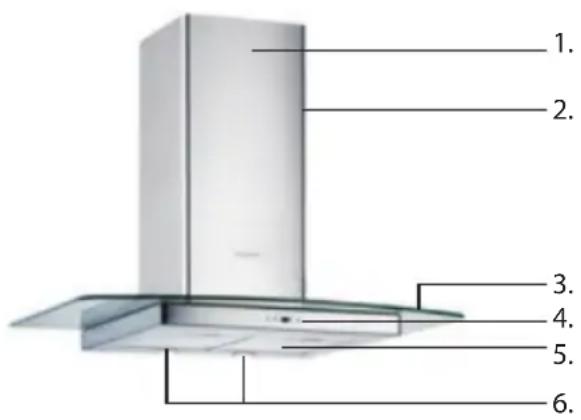

PEW 6714GLIX / PEW 9714GLIX

1. Inner chimney
2. Outer chimney
3. Tempered glass
4. Control panel
5. Filter
6. Lighting

PART 3: INSTALLATION

Unpacking

• After unpacking remove all packaging and advertising labels from the appliance.
- Check that the appliance has not been damaged and that the package includes all the items described in this user's manual.
• If the appliance was damaged during transport, contact authorised service centre.
- Do not use a damaged appliance under any circumstances.

IMPORTANT:

Ensure that children do not play with the packaging material.

Dimensions of the appliance

PEW 6713 / PEW 9713

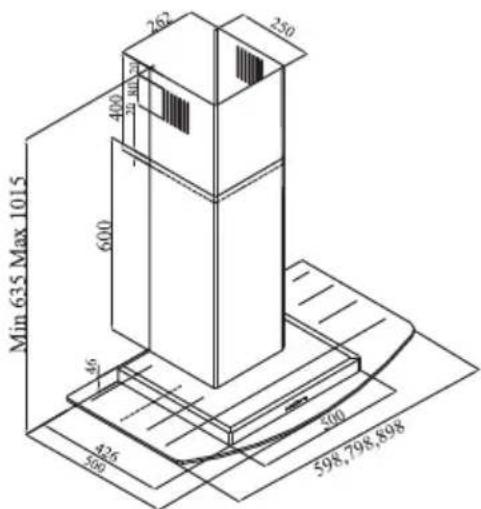

PEW 6714GLIX / PEW 9714GLIX

IMPORTANT:

Before installing or using the appliance, please first read all instructions and check that the voltage and frequency values on the rating label correspond to the voltage and frequency in your electricity grid.

We recommend that the appliance be connected by a service technician or another qualified person in compliance with local codes and regulations.

Before starting the installation

• Check that the purchased appliance has the correct dimensions corresponding to the chosen installation location. Furthermore ensure that there is an electrical power socket available that will remain accessible even after the range hood is installed.
  • Before installing the range hood, check that all necessary masonry work is complete.
  • Have all electrical connections performed by a qualified person.
  • We recommend that you remove the aluminium filters before installing the range hood.
• Check that there are no packaging materials or other materials, e.g. user's manual, warranty card or bags with screws, inside the appliance. These need to be taken out and kept for possible use in the future.
  • We recommend that you disconnect and move to the side freely standing or built in stoves so that you have easier access to the rear wall or ceiling. If this is not possible place protective material on to the work area, cooktop or stove. This will prevent damaging these surfaces.
• Select an even surface for the necessary assembly of the range hood. Cover the surface with a protective material and place all parts of the range hood and fastening elements on to it.
• It is necessary that a qualified technician inspects the suitability of the supplied fastening material and other components for the specific wall / ceiling type. The wall / ceiling must be sufficiently strong to hold the weight of the range hood.
• Do not attach this range hood to a wall or cabinet furniture by tiling, plastering and do not glue it on using silicone glue. The appliance is designed to only be installed on a wall / ceiling.
  • We recommend that always two people perform the installation of the appliance.

If your range hood is designed to be mounted to the ceiling, adhere to the following instructions.

1) The range hood must only be suspended on ceiling beams or on load bearing ceiling beam connections.
2) Do not suspend the range hood on false ceilings.
3) The ceiling must have a load bearing capacity of at least 40 kg.
4) The ceiling thickness must be at least 30 mm.

IMPORTANT:

THE RANGE HOOD MAY ONLY BE CONNECTED TO THE ELECTRICAL GRID AFTER THE ENTIRE INSTALLATION IS COMPLETE.

Supplied accessories (depending on the model)

Pure technical line drawing of a mechanical component with no text or symbols

A non-return exhaust flap must be installed into the air outlet of the range hood (unless one is already factory installed).

Placement

Install the range hood at a height of at least 65 cm above an electric cooktop or at a height of 75 cm above a gas cooktop.

Installation

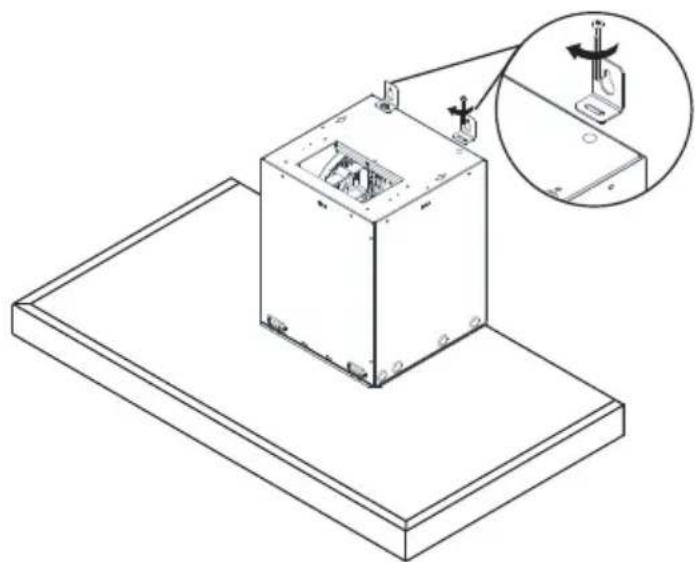

1. Installation of hanging brackets

To hang the range hood it is necessary to first install 2 L-shaped hanging brackets, which are supplied together with the screws, on to the range hood according to the illustration below. Then secure the brackets using appropriate M5 x 35 screws into an M5 thread.

Technical line drawing of a bolt and its 3D view (no text or symbols)

M5 x 35 screws Hanging bracket

Isometric line drawing of a mechanical assembly with a base platform and a magnified inset showing a component detail (no text or symbols)

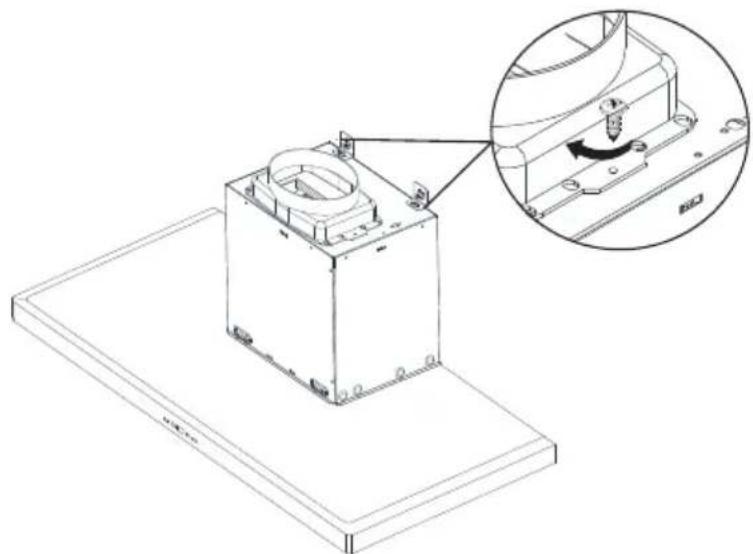

2. Installation of the non-return exhaust fl ap

Install the non-return exhaust flap on to the top part of the range hood using 3.5 x 9.5 screws according to the illustration below.

3.5 x 9.5 screws

Technical line drawing of a mechanical assembly with an inset showing a component being inserted (no text or symbols present)

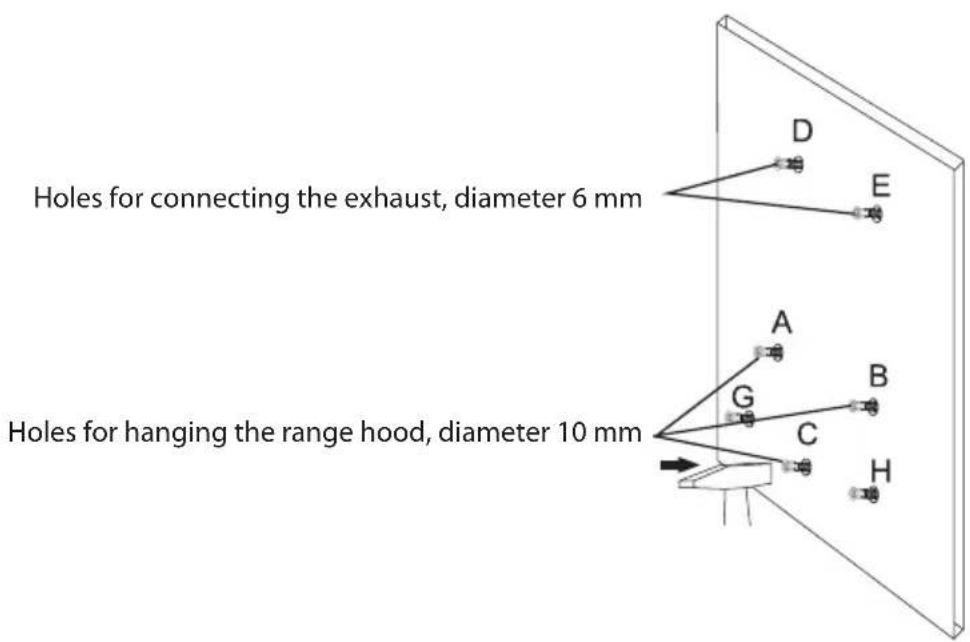

3. Drilling mounting holes

Place the installation template against the wall and drill holes in points A, B, and C using a drill bit with a diameter of 10 mm. To install the chimney, drill holes using a drill bit with a diameter of 6 mm adhering to the dimensions for the minimum and maximum height. For 80 – 90 cm models drill holes marked G, H using a drill bit with a diameter of 8 mm.

WARNING!

When drilling the mounting holes used for hanging the range hood, ensure the holes have the correct diameter. If the holes are drilled incorrectly, then the correct assembly of the range hood will not be possible.

4. Inserting dowels

Into the drilled holes A, B and C with a diameter of 10 mm, insert dowels with a diameter of 10 mm. Into the two holes with a diameter of 6 mm, insert dowels with a diameter of 6 mm – see illustration below. For 80 – 90 cm models into the drilled holes G, H insert dowels with a diameter of 10 mm.

10mm plastic dowel 6mm plastic dowel

5. Attaching the chimney plate

Drill holes into the wall using a drill bit with a diameter of 6 mm. Attach the chimney plate by screwing 3.9 x 22 Ysb screws into the plastic dowels with a diameter of 6 mm.

Into the drilled holes A, B with a diameter of 10 mm, with the dowels inserted, screw in two 5.5 x 60 Ysb screws. The distance between the wall and the head of the screw must be 5 mm.

Two identical spiral-shaped objects with labeled ends (no text or symbols on the shapes themselves)

5.5 x 60 Ysb screw 3.9 x 22 Ysb screw

6. Hanging the range hood

Hang the range hood using the hanging brackets on to the screws in holes A and B – see illustration below.

7. Tightening the screws

After hanging the range hood, tighten the screws to secure the range hood in place. You can use the M5 x 40 Ysb screws to fully stabilise the range hood.

Note: You can use M5 screws to achieve full stability.

8. Tightening the hanging screws

In point C (see illustration below) tighten the 5.5 x 60 Ysb hanging screws to ensure that it is hung safely.

80 - 90 mm models - In points G, H (see illustration below) tighten the 5.5 × 60 Ysb hanging screws to ensure that it is hung safely.

9. Installation of the aluminium duct tube

Attach the flexible aluminium duct tube on to the air exhaust in the top part of the range hood and insert the other end into the exhaust opening in the wall. Check that the connection is secure even at full power.

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a base plate (no text or symbols)

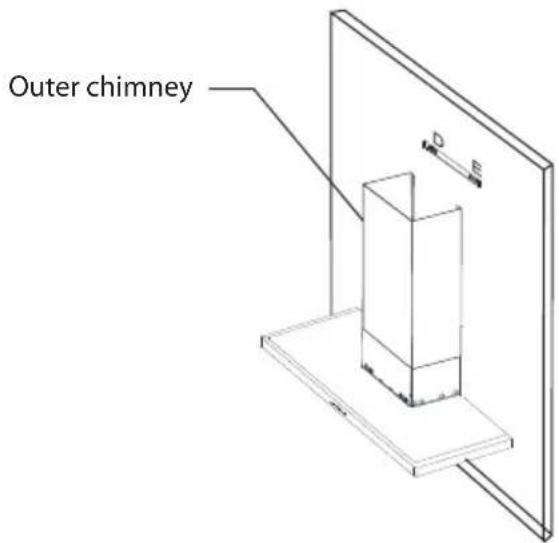

10. Installation of the outer chimney

Insert the inner chimney into the outer chimney. Seat the chimneys on to the base with the motor and slide downwards. Check that the connection between the body and the base with the motor is secure.

11. Installation of the inner chimney

Pull the inner chimney out of the outer chimney and secure to the plate using 9.5 x 3.5 screws.

3.5 x 9.5 screw

After completing the installation check that the range hood is correctly installed and works properly.

Carbon fi Iter

If you are using the range hood without an air exhaust, it is necessary to use a carbon filter. The carbon filter is not included. Contact your vendor or an authorised service centre to purchase this filter.

• Before installing or replacing the carbon filter, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.
• It is necessary to replace the carbon filter regularly every 3 – 5 months depending on how much the appliance is used.
  • Never wash the carbon filter in water unless the manufacturer states otherwise.
• Aluminium filters must always be installed even when the carbon filter is not installed. Do not use the appliance without the aluminium filter installed.

Replacing the carbon fi Iter

1. For the correct operation of the appliance it is necessary to install a carbon filter. The number and type depends on the model.
2. Place the carbon filter on the motor outlets and turn it in the clockwise direction.
3. To remove the carbon filter turn it in the anticlockwise direction.

3D technical illustration of a mechanical component with a circular housing and mesh base (no text or symbols)

Diagram of a fan or fan assembly with internal blades and rotating components (no text or symbols)

or

Hand pressing a button on a computer monitor (no text or symbols visible)

Hand inserting a device into a wall-mounted panel (no text or symbols visible)

Ventilation

To ensure proper ventilation, leave windows closed while the appliance is turned on.

WARNING!

Pay increased attention if you are using the appliance together with another appliance that uses air or fuel for its operation (e.g. heating fan, fan, etc.) or that uses gas, coal or wood, as its operation may negatively affect the performance of the range hood because it expels air out of the room. This warning does not apply if you installed the appliance without an exhaust out of the room.

PART 4: OPERATION

Remove the protective foil from the control panel.

Models with touch buttons – 3 speeds

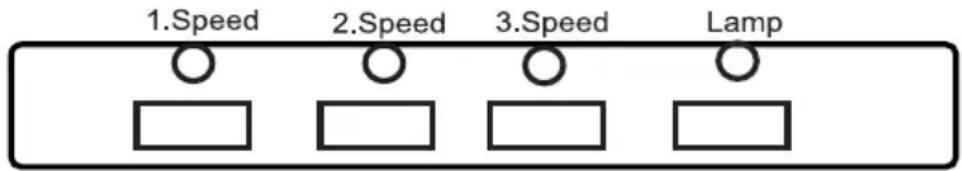

Exhaust power selection

This range hood is equipped with 3 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

Press the respective button on the control panel.

1st Speed – lowest exhaust power

2nd Speed – medium exhaust power

3rd Speed – highest exhaust power

Automatic timer (TIMER)

All models with electronic controls are equipped with an automatic timer.

Press and hold the respective button for the exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. The LED indicator light will flash. When the function is turned on, the respective symbol will appear on the display and the motor will turn off automatically after 15 minutes.

NOTE:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lighting. Press the Lamp button once to turn on the lights. Press the button again to turn the lights off.

Models with digital controls - 3 speeds

Exhaust power selection

This range hood is equipped with 3 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

Press the respective button on the control panel.

I – lowest exhaust power

II – medium exhaust power

III – highest exhaust power

Automatic timer (TIMER)

All models with a remote control are equipped with an automatic timer.

Press and hold the respective button for the exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn off automatically after 15 minutes.

NOTE:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights off.

Models with digital controls – 5 speeds

Exhaust power selection

This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

To turn on the motor press the ✗ button and to set the exhaust power level press the + or - button. Press the + button to increase the exhaust power and the - button to reduce the exhaust power.

Automatic timer (TIMER)

All models with a remote control are equipped with an automatic timer.

Press and hold the ⏻ button at the set exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn off automatically after 15 minutes.

NOTE:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights off.

Models with an LCD display – 5 speeds

This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

On / Off button X – Press the button once to turn on the range hood. The initial exhaust power level is 2. Press again to turn the range hood off.

Setting the exhaust power level – To set the exhaust power level press the + or – button. Press the + button to increase the exhaust power and the – button to reduce the exhaust power. If you press and hold down the +/- button for at least 2 seconds, the exhaust power levels will increase / decrease in half-second intervals. If you set the exhaust power level to maximum (5), the appliance will work at the maximum exhaust power level for 15 minutes and then continue at the exhaust power level of 2. The maximum exhaust power level is called "turbo speed".

Timer

TIMER - ⏻ button: Set the operating time of the appliance with a countdown feature during operation. Each time it is pressed the power level will decrease by 1 level. If you press and hold down this button for at least 2 seconds, the power level will decline faster.

TIMER – ⏻ button: Set the operating time of the appliance with a count-up feature during operation. Each time it is pressed the power level will increase by 1 level. If you press and hold down this button for at least 2 seconds, the power level will increase faster.

Timer functions:

1. Turn off the range hood – If you set the timer while the range hood is running, the range hood will stop running, lights will turn off and a warning sound will be emitted for 5 seconds after the timer duration comes to an end.
2. Alarm – If you set the timer while the range hood is not running, then an alarm will be set. As soon as the set time of the timer comes to an end, a sound will be emitted for 15 seconds. The range hood will not stop and the lights will stay on, if the alarm timer turns off.
   If a timer is not set, the clock is displayed.

Clock

The clock on the display shows the current time. If the clock is set, the colon between the hours and minutes will flash once a second.

Setting the time

1. Press the ^- and buttons at the same time.
2. The hours and minutes will start to flash for 5 seconds.
3. In this time press the ^- or ⁺ button to set the hours or minutes.
   If a power outage occurs, it will be necessary to set the time again.

Additional functions

Additional functions may be set only when the motor and the lights are off.

1. Setting the backlight brightness – Press and hold the button – after about 5 seconds the blue colour intensity in percent will appear (e.g. b00). Press the button – once and the colour of the display colour will change to red (e.g. r100), press the button – once more and the display colour to green (e.g. g10).
   After selecting the colour, use the Ⓗ / Ⓥ buttons to set the brightness of the respective display colour (e.g. 0 – 100). To confirm the setting press and hold button – for approx. 5 seconds. A sound will be made. If you do not wish to save the setting, press the button or the button for the light.

2. Backlight – The display backlight is always on. Press and hold the + button for approx. 5 seconds. A sound will be made. Now you can turn off the backlight. If you wish to again turn on the display backlight, press and hold down the + button for approx. 5 seconds.

Blue (%) Red (%) Green (%) Colour
100 100 100 Turquoise
0 100 100 Light green
0 0 100 Green
100 0 0 Blue
50	100 0 Violet
0 100 0 Red
0	0	0	Colourless display
0 100 10	Orange

Operating tips

1. Regularly clean the aluminium fi Iters and regularly replace the carbon fi Iters.
2. Use the medium exhaust power level. Only use the highest power level when necessary.
3. To ensure proper ventilation, leave windows closed while the appliance is turned on.

PART 5: MAINTENANCE AND CLEANING

WARNING!

Before cleaning, regular or other maintenance, installation or removal, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.

Changing a light bulb

• Turn off the appliance.
• Take out the aluminium fi Iter.
• If the light bulb broke during operation wait until it cools down.

Models with a 50W halogen light bulb

• To remove the halogen light bulb (50 W), press the light bulb holder downwards and gently turn it anticlockwise. Remove the light bulb.
  • Install a light bulb with the same parameters in reverse sequence.

Illustration showing a hand holding a small device with a magnified view of its internal components (no text or symbols present)

Models with a 20 W light bulb

• To remove the halogen light bulb (20 W), first remove the glass cover using a thin screwdriver. Be careful not to scratch the appliance. Remove a faulty light bulb by pulling downwards and insert a new working light bulb.
  • Use a light bulb with the same parameters.

Illustration showing a hand holding a small black object next to a circular target and a close-up of a finger pointing at a target (no text or symbols present)

NOTE:

Do not hold the light bulb with your bare hands. Dirt or sweat from the hand may shorten their lifetime.

Models with a 25W light bulb

Unscrew the broken light bulb. Install a new one with the same parameters.

Technical line drawing of a light bulb and its internal component (no text or symbols)

Cleaning

• Aluminium fi lters capture dust and fat from the extracted air.
- It is necessary to regularly wash these filters, ideally once a month, depending on the level of use. Wash the filters in water with dishwashing detergent, or you may place the filters in a dishwasher and wash them using a gentle program (max. 60°C).
• Take out the aluminium filters by pressing the clip.
• After cleaning allow the aluminium filters to dry thoroughly before reinstalling them.
- Wipe the outer surface of the range hood with a clean damp wiping cloth lightly dipped in water with a small amount of dishwashing detergent. Then wipe dry.
- Avoid electrical parts coming into contact with water or another liquid.
- For cleaning you can also use special agents for the maintenance and cleaning of INOX surfaces (applies only for models with an INOX surface treatment).

Cleaning the aluminium fi Iters

Models with digital controls – 3 speeds

Aluminium filters need to be cleaned when "C" (depending on the model) appears on the display, e.g. every 2 – 3 weeks (depending on the level of use).

Clean the fi Iters according to the above mentioned instructions and after reinstalling them press and hold down the I fan button for 3 seconds until the "C" symbol (depending on the model) disappears from the display. The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready for operation.

If you wish to use the appliance without clearing the "C" symbol (depending on the model), press the I button to start extraction for 1 second, then the "C" symbol (depending on the model) will appear again and the motor will continue running.

Models with digital controls - 5 speeds

The aluminium fi Iters need to be cleaned when "C" appears on the display (depending on the model). Clean the fi Iters according to the above mentioned instructions and after reinstalling them press and hold down the fan button for 3 seconds until the "C" symbol (depending on the model) disappears from the display. The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready for operation.

If you wish to use the appliance without clearing the "C" symbol (depending on the model), press the fan button to start extraction for 1 second, then the "C" symbol (depending on the model) will appear again and the motor will continue running.

NOTE:

The "C" symbol (depending on the model) appears on the display after approximately 60 hours of operation.

Models with an LCD display - 5 speeds

The aluminium filters need to be cleaned when 📄 appears on the display.

Clean the filters according to the above mentioned instructions and after reinstalling them press and hold

down the fan button for 3 seconds until the 📄 symbol (depending on the model) disappears from the display.

NOTE:

The symbol (depending on the model) appears on the display after approximately 60 hours of operation.

WARNING!

For cleaning do not use petrol, benzene, thinners or any other solvents, coarse cleaning agents, steel wool or any sponges with steel wool.

WARNING!

You may put the aluminium filters in a dishwasher. The colour of the aluminium filters may change after several washes. This is a normal event.

PART 6: BEFORE YOU CALL THE SERVICE CENTRE

If the appliance is not working as it should check the following recommendations for resolving the most common problems.

If the problem persists or it is not included in the table below, turn off the appliance and disconnect it from the power socket and contact an authorised service centre.

Problem	Solution
The range hood is not working. Check that	at the power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
	Check that the motor power switch is in the "On" position.
The lights are not working. Check that th	e power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
	Check that the motor power switch is in the "On" position.
	Check whether the light bulb or fl fluorescent tube is broken.
Exhaust power is weak. Check whether th	e aluminium fi lters are dirty.
	Check the air outlet, it should be open.
	Check whether the carbon fi lter is not too dirty.
The range hood does not extract the air directly out (for models without an exhaust).	Check whether the aluminium fi lters are dirty.
	Check whether the carbon fi lter is not too dirty.

Attention:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

PART 7: TECHNICAL SPECIFICATIONS

		PEW PEI			PEC 6405 - PEC 9405	PEC 5507 - PEC 6507	PEB 6408	PEC 5406 - PEC 6406	PEB 6708
SPEED 1	Voltage (A) 0,5 0,6 0	5 0,5 1 0,6 0,6	0,5
	Power (W) 105 90 12	0 70 135 80 8	0 110
	Air flow (m3/h) 180	230 200 190	250 190 155 2	10
	Pressure (mmH20)	130 155 170 1	50 160 160 180	155
	Noise level (dB)	36	35	39,7	43	40	45	44	34,5
SPEED 2	Voltage (A) 0,6 0,9 0	6 0,6 1,2 0,9 0	6 0,6
	Power (W) 125 120 1	30 90 170 110	95 125
	Air flow (m3/h) 260	310 265 225	310 400 175 2	90
	Pressure (mmH20)	200 205 230 1	65 180 190 205	235
	Noise level (dB)	43	42	43,6	47,5	48	54	50	43
SPEED 3	Voltage (A) 0,7 1,5 0	7 0,8 1,6		0,9 0,7
	Power (W) 145 185 1	50 110 220		110 150
	Air flow (m3/h)	335	500	360	400	500		400	375
	Pressure (mmH20)	265 245 290 1	80 200		225 285
	Noise level (dB)	48	52	49	51,5	55		53	49
SPEED 4	Voltage (A) 0,8		0,8					0,8
	Power (W) 170		175					175
	Air flow (m3/h)	450		455					470
	Pressure (mmH20)	310		325					320
	Noise level (dB) 53		53,4					53,5
SPEED 5	Voltage (A)	1		1					1
	Power (W) 210		210					210
	Air flow (m3/h)	750		750					750
	Pressure (mmH20)	350		365					380
	Noise level (dB) 61		60,2					61
Input voltage		220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240V ~ 50 Hz
Air outlet diameter		150 mm	150 mm	150 mm	120 mm	120 mm	120 mm	120 mm	120 mm

NOTE: All the here mentioned data is subject to change.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fi nes.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

ODSAVAČ PAR

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

PEW 6713

PEW 9713

PEW 6714GLIX

PEW 9714GLIX

Vážený zákazníku

Technical line drawing of a mechanical component with a central cylindrical feature and mounting base (no text or symbols)

Technical line drawing of a bolt and its corresponding mechanical component (no text or symbols)

Isometric line drawing of a mechanical assembly with a base platform and a magnified inset showing a component detail (no text or symbols)

7. Dotažení šroubů

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a base plate (no text or symbols)

3D technical illustration of a mechanical component with a circular cutaway view (no text or symbols)

Diagram of a fan assembly with rotating blades and fan blades (no text or labels)

nebo

Hand pressing a button on a computer monitor (no text or symbols visible)

Illustration of a hand inserting a device into a rectangular panel (no text or symbols visible)

Ventilace

Illustration showing a hand holding a small device with a magnified view of its internal components (no text or symbols present)

Illustration showing a hand inserting a component into a circular device and then touching a button (no text or symbols present)

POZNÁMKA:

Technical line drawing of a bulb and optical device (no text or symbols)

Čištění

Famous for Quality the World Over

PEW 6713

PEW 9713

PEW 6714GLIX

PEW 9714GLIX

Vážený zákazník

Technical line drawing of a mechanical component with concentric circles and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with a base platform and an inset showing a component detail (no text or symbols)

Two identical screw-like objects with threaded ends, no text or symbols present

Skrutka 5,5 × 60 Ysb Skrutka 3,9 × 22 Ysb

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a base plate (no text or symbols)

3D technical illustration of a mechanical component with a curved housing and internal structure (no text or symbols)

Diagram of a mechanical fan assembly with rotating blades and internal blades (no text or labels)

alebo

Hand pressing a button on a computer monitor (no text or symbols visible)

Illustration of a hand inserting a device into a wall-mounted panel (no text or symbols visible)

Ventilácia

Illustration of a hand holding a small object with arrows indicating downward motion (no text or symbols)

Modely s 20W žiarivkou

Illustration showing a hand holding a circular object and a close-up of a finger pressing a button (no text or symbols)

POZNÁMKA:

Technical line drawing of a bulb and optical device (no text or symbols)

Čistenie
